VRX932LA-1WH + EVE E-50Z
JBL
VRX932LA-1WH + EVE E-50Z
VRX932LA-1WH + EVE E-50Z
12 in Passive Line Array Speaker, 800 W, Warm-White LED Gobo Spot Light, Manual Zoom
Features
- 800 W / 1600 W / 3200 W ratings for the 12 in passive speaker
- Three compression drivers support extended high-frequency output
- Up to six enclosures can form an array with optional frame
- Passive or bi-amp operation with 100° x 15° coverage
- Includes a 50 W warm-white LED gobo light with manual zoom
Couldn't load pickup availability

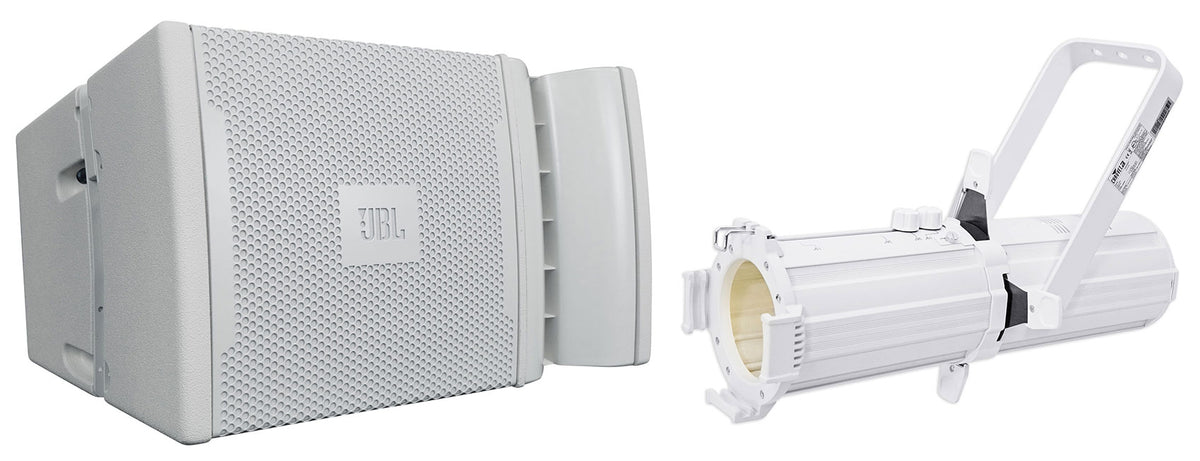

What's Included in the box

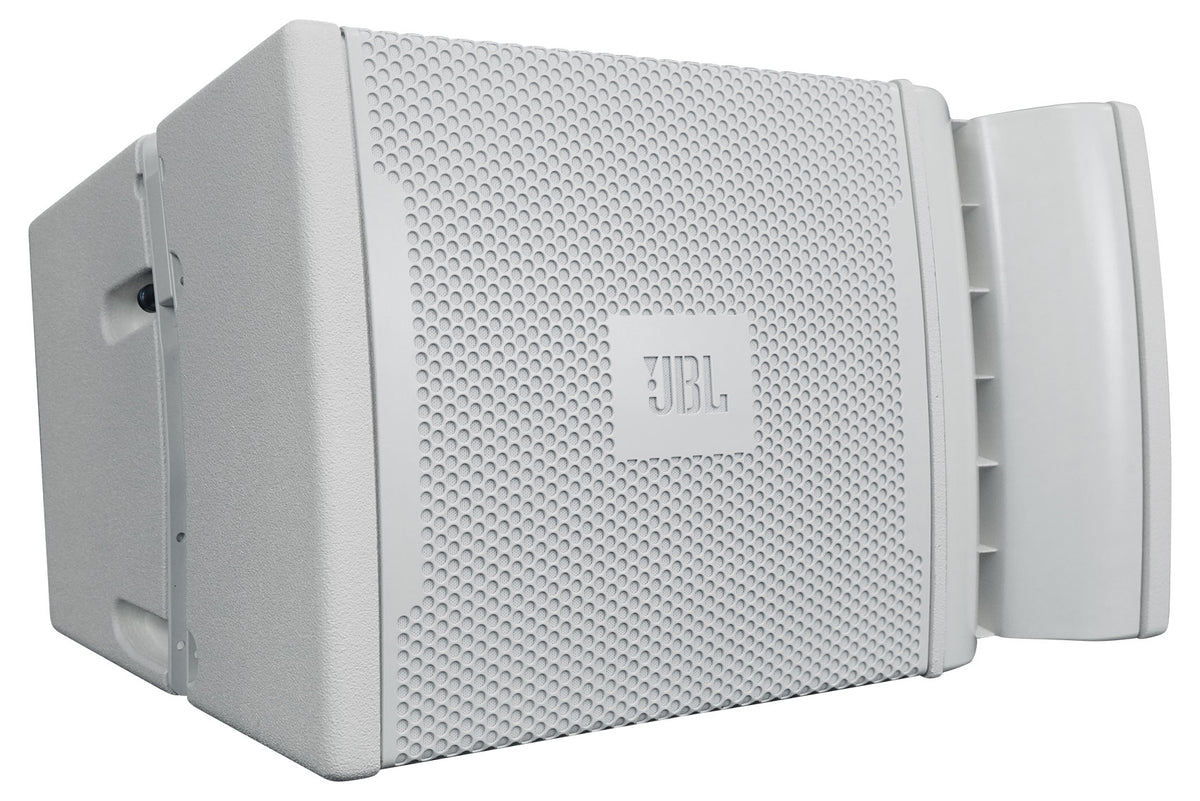

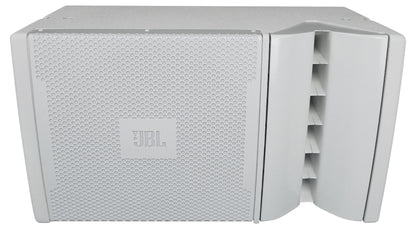

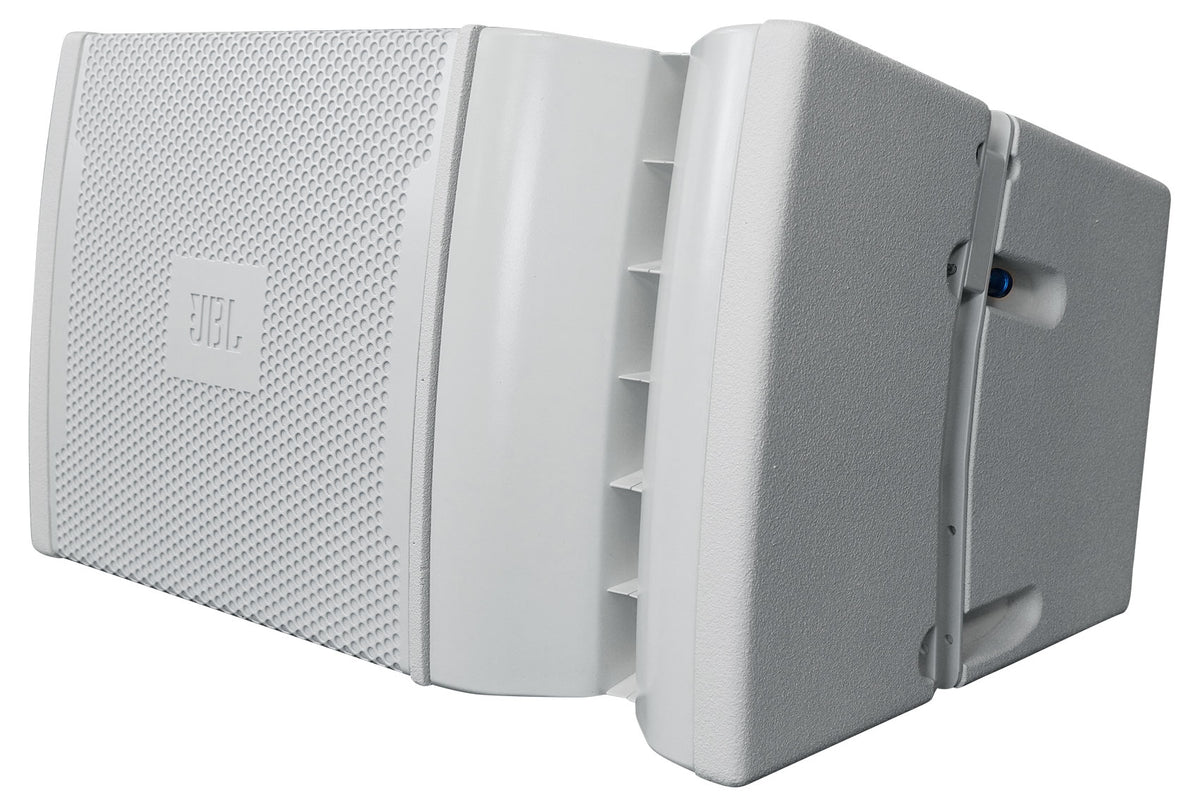

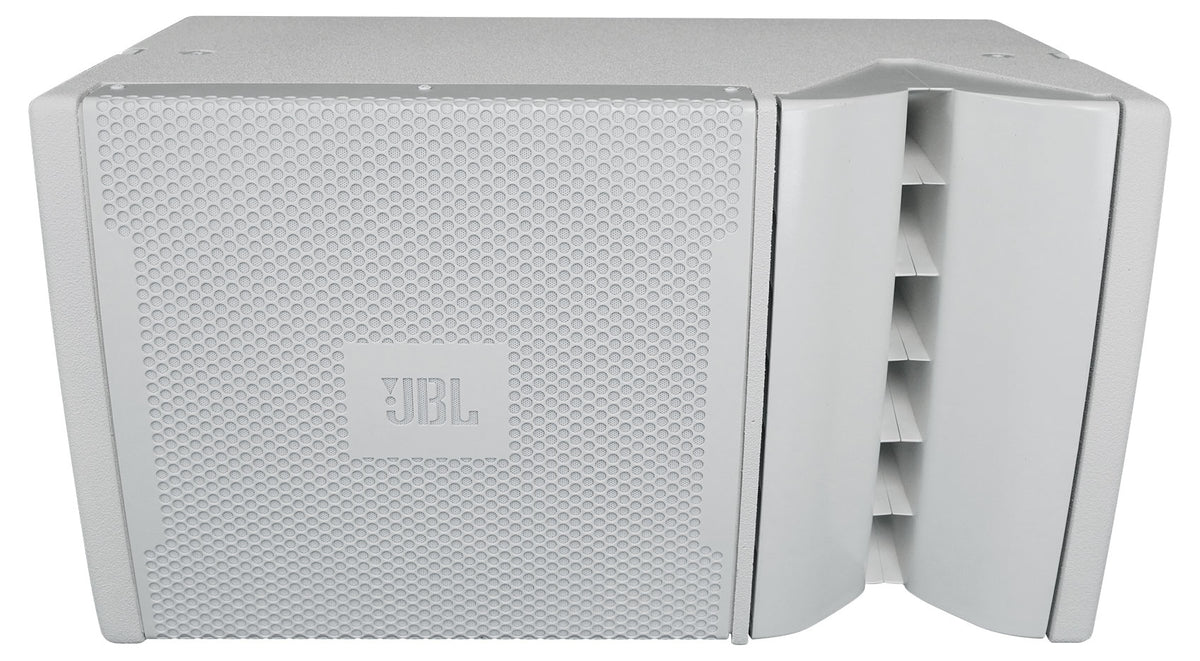

- (1) VRX932LA-1WH 12 in passive line array speaker in white

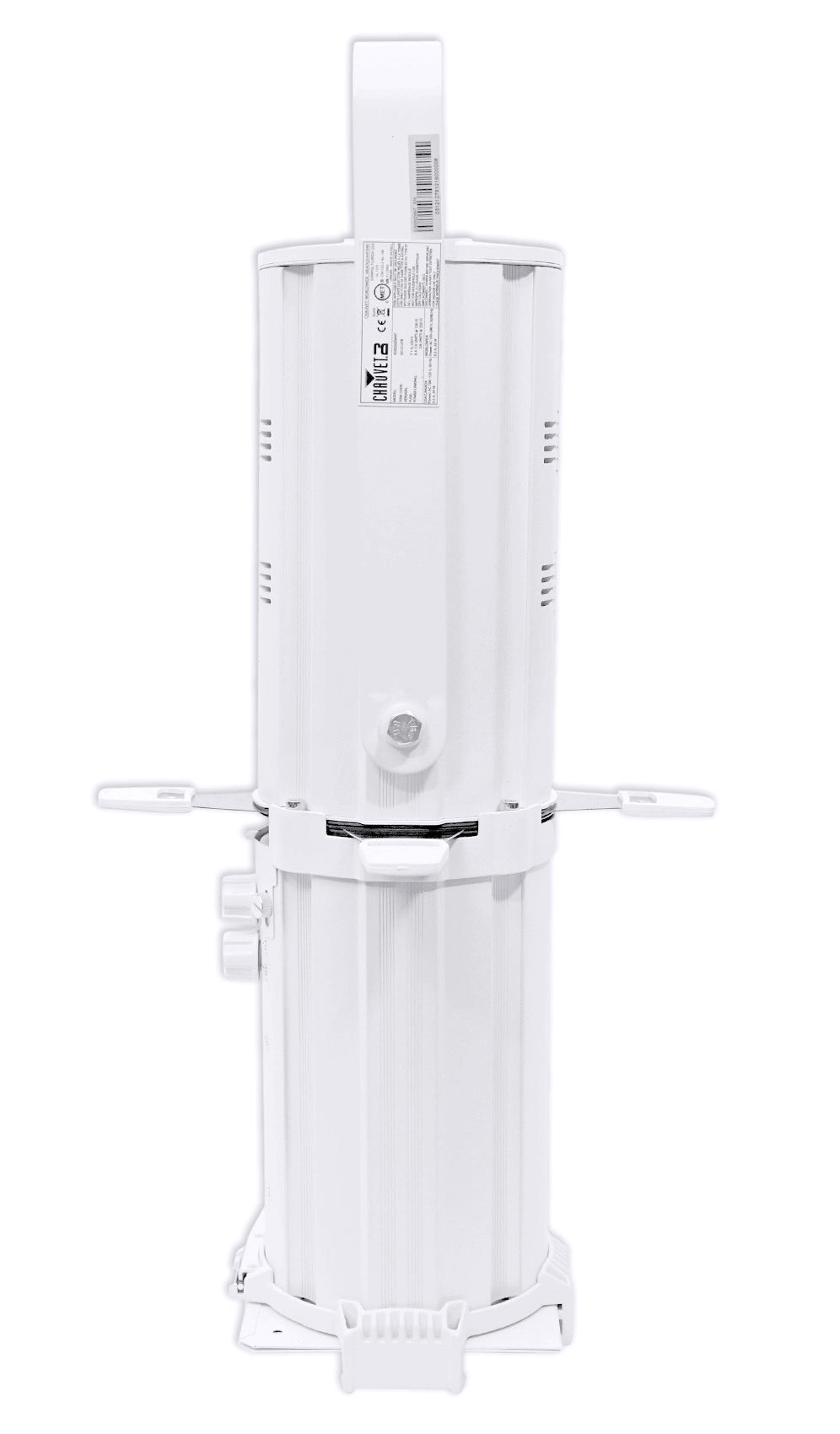

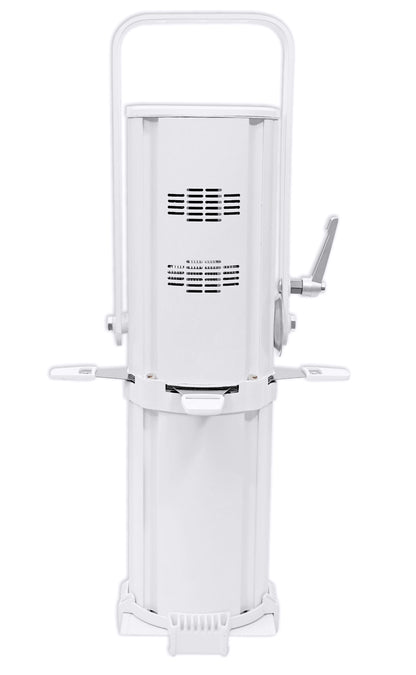

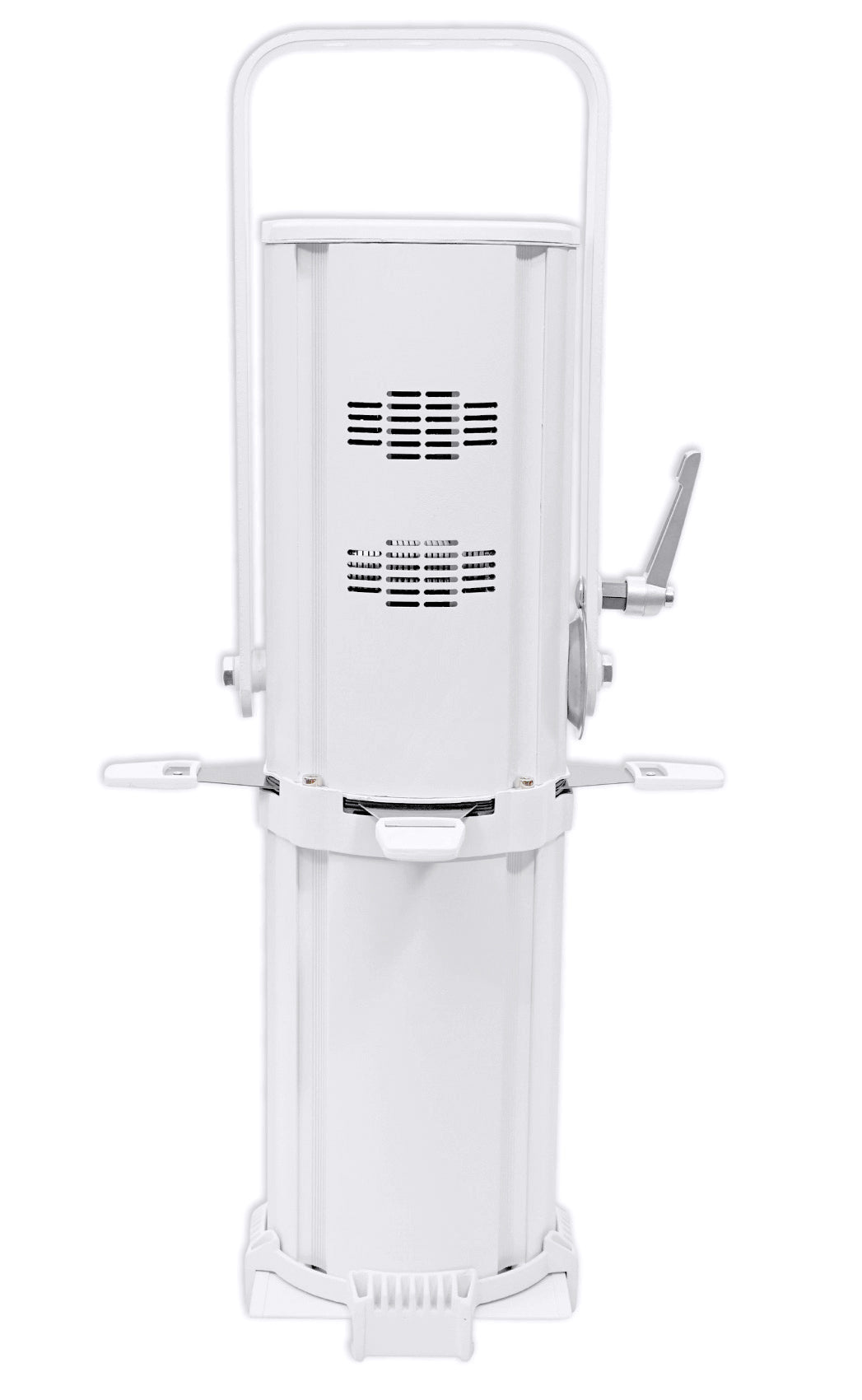

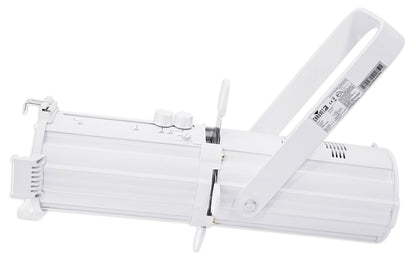

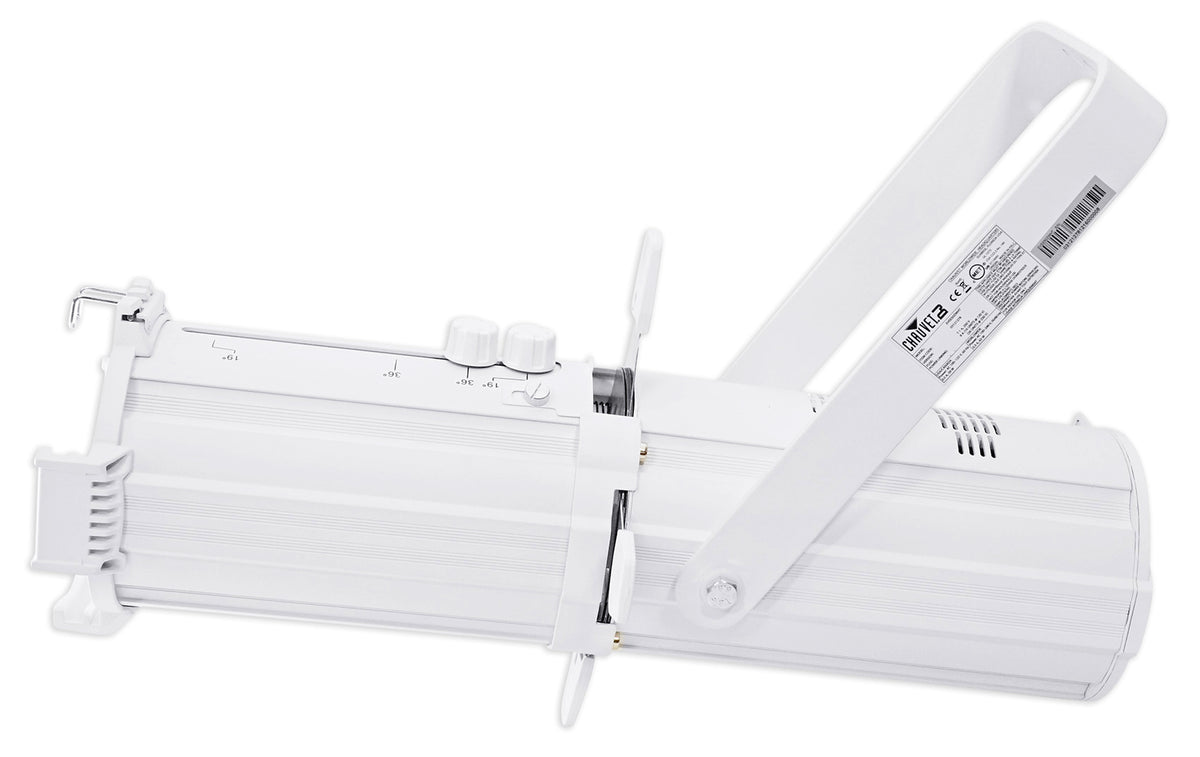

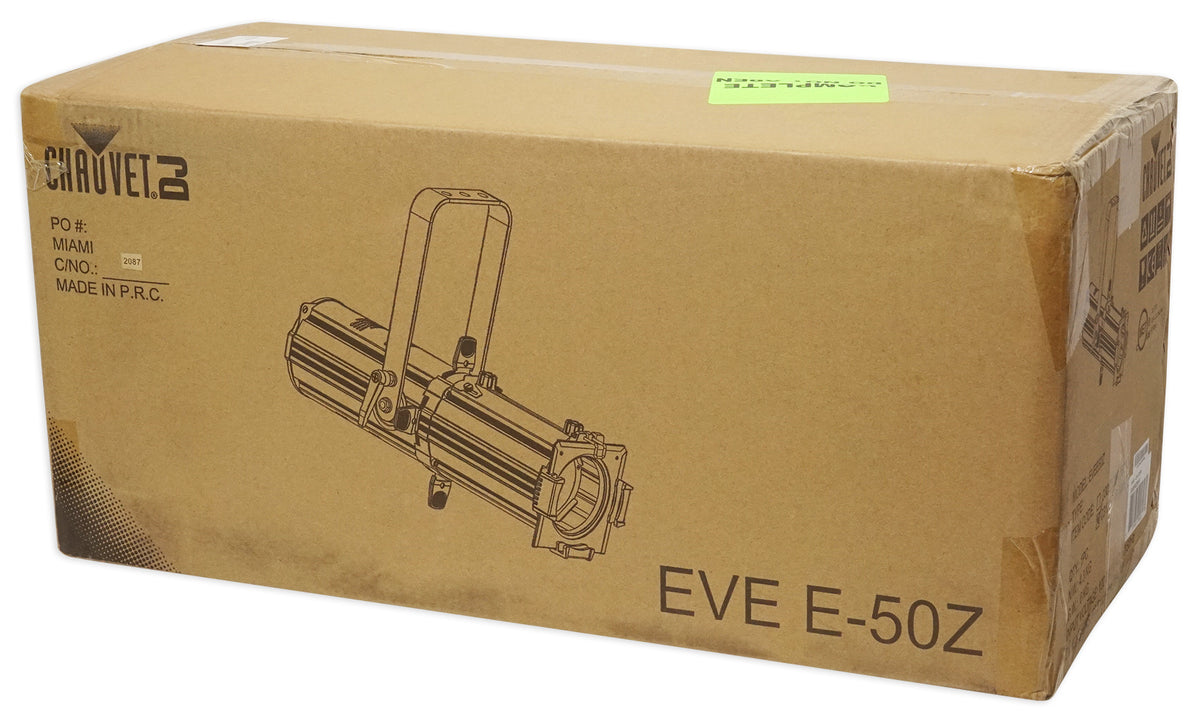

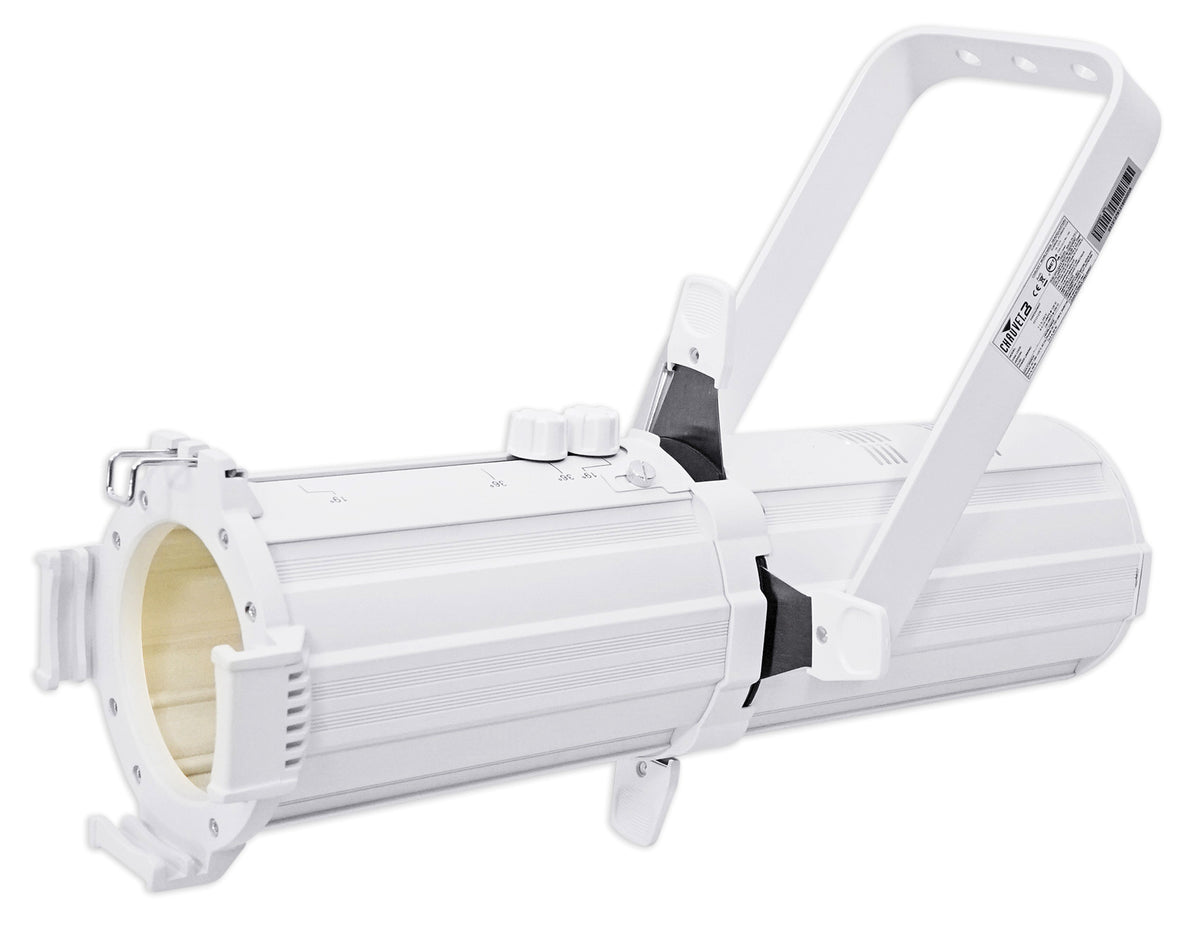

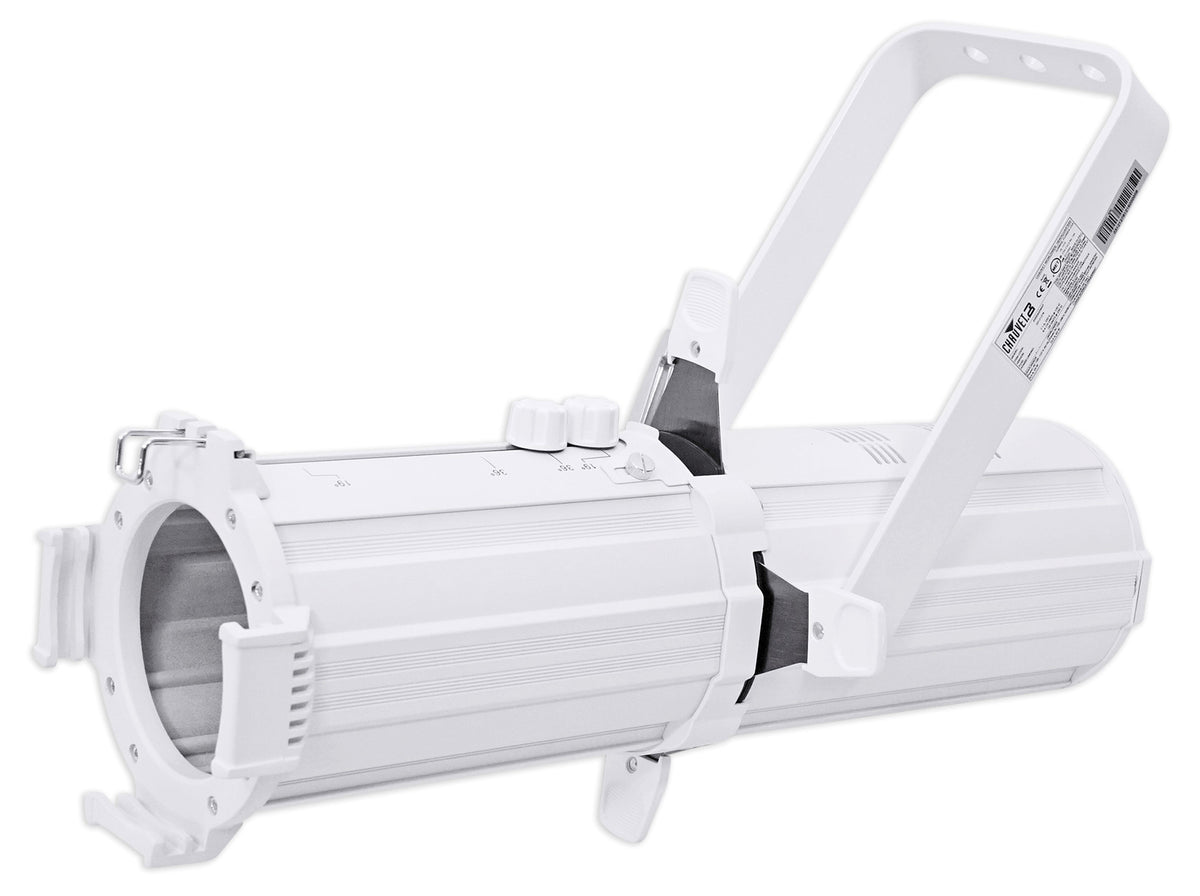

- (1) EVE E-50Z warm-white LED ellipsoidal gobo spot light with manual zoom
- Built-in speaker rigging hardware

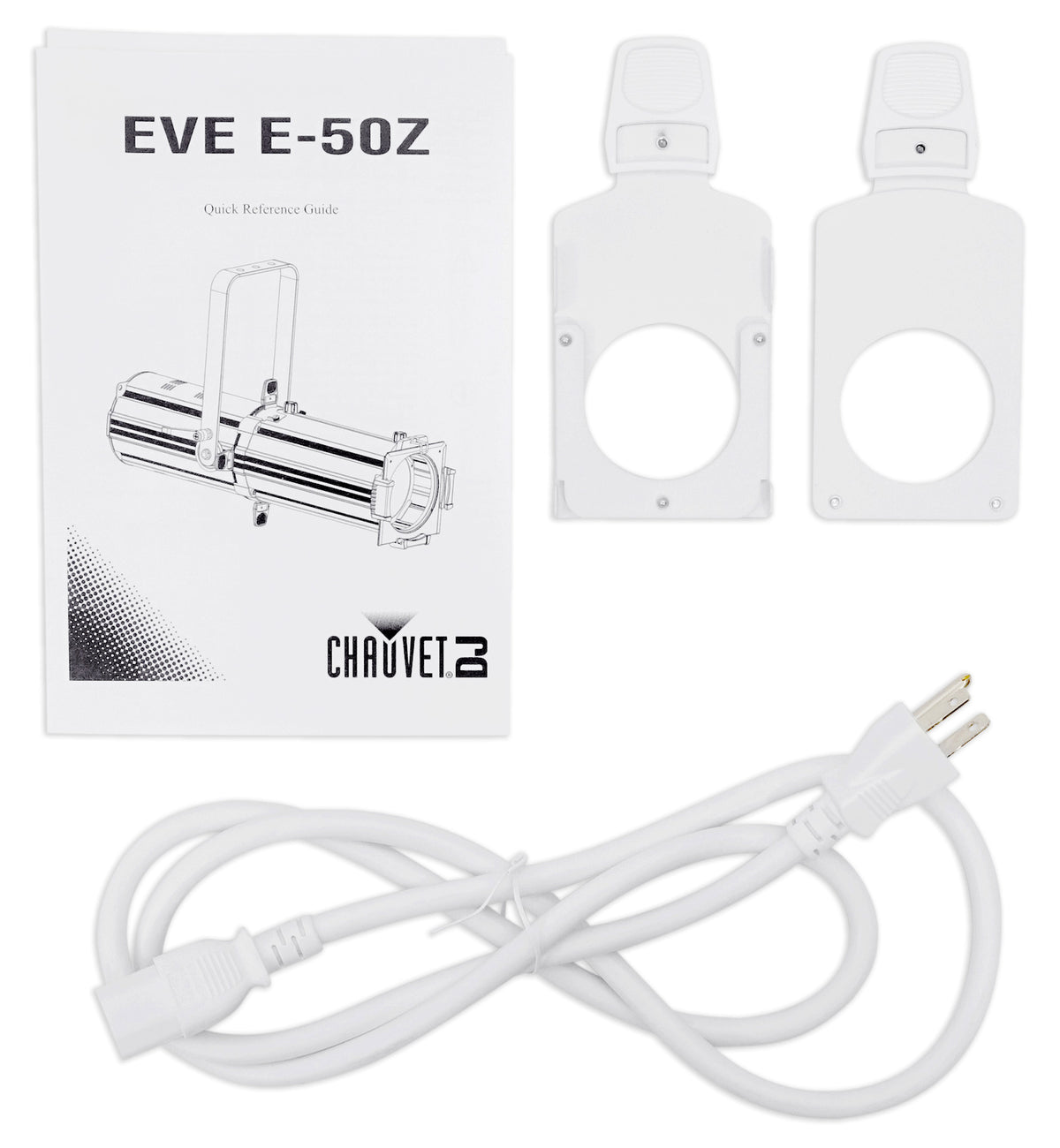

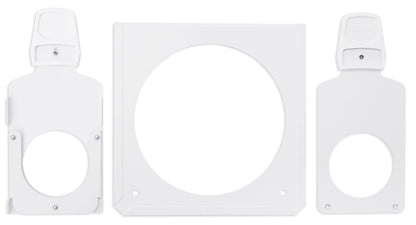

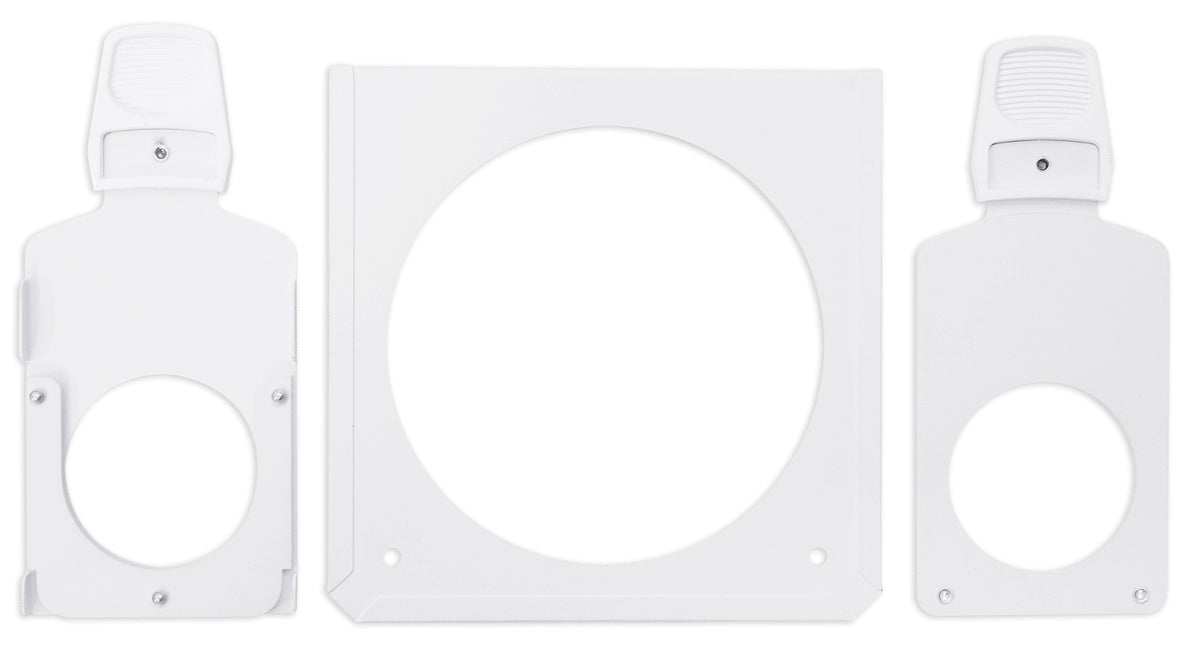

- Glass and steel gobo holders
- Gel frame
SKU: SKU: VRX932LA-1WH+EVE E 50Z WHT
View full details



















Product Description
Features
Array Coverage
A 100° x 15° pattern and Constant Curvature waveguide keep coverage focused across auditoriums, theaters, worship spaces, and other permanent installations.
Power Handling
The 800 W / 1600 W / 3200 W ratings and three compression drivers provide headroom for clear program audio in larger rooms without requiring a larger long-throw system.
Installation Fit

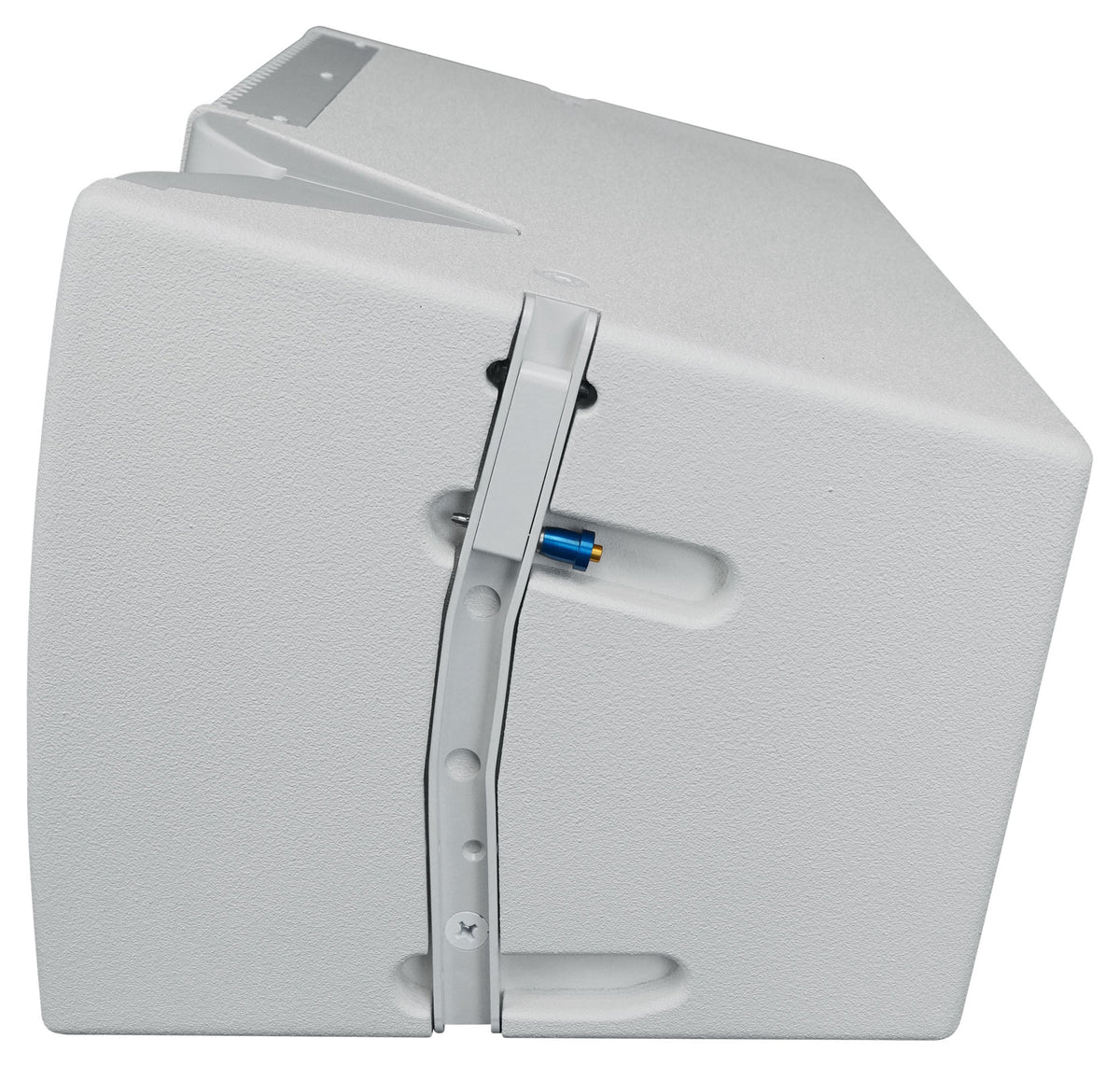

White finish, built-in rigging hardware, and support for arrays up to six enclosures suit permanent installations with a clean visual profile.
Focused Stage Light
The included 50 W warm-white LED ellipsoidal produces a hard-edged spot, while framing shutters shape highlights for presentations and performances.
Control Options

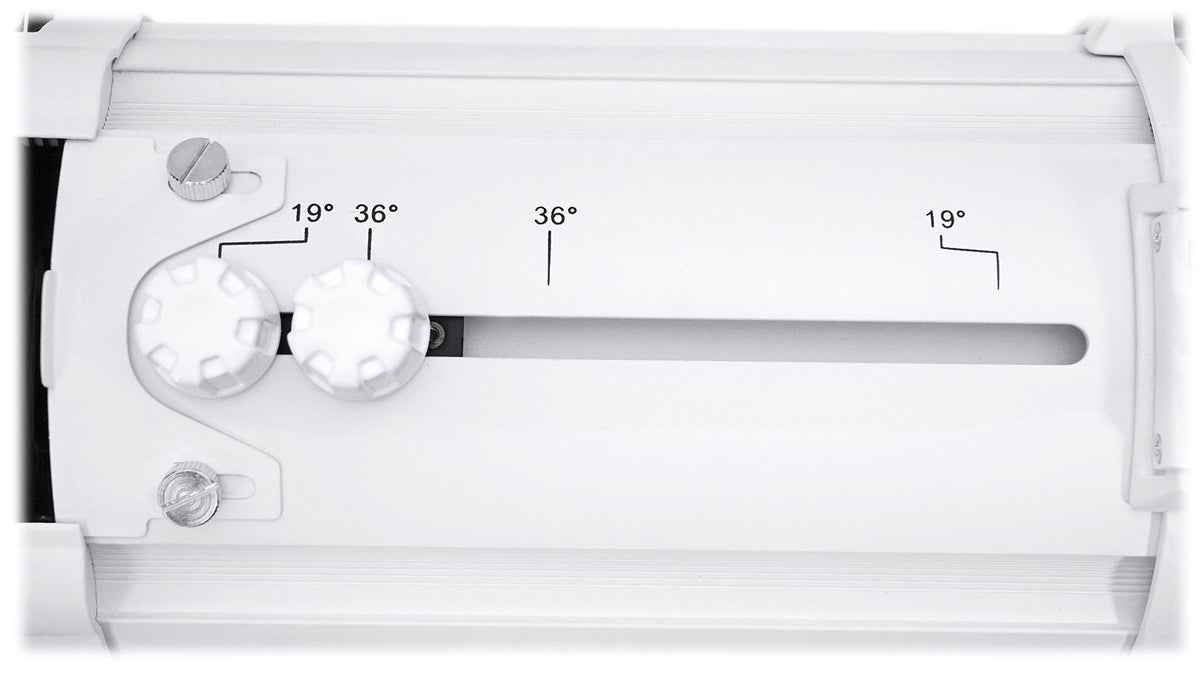

Manual 20° to 39° zoom, standalone operation, and wireless USB compatibility cover varied throw distances and control setups for the included light.
Technical Specifications
- Product Type 12 in passive line array speaker with warm-white LED ellipsoidal gobo spot light
- Speaker Power Rating 800 W / 1600 W / 3200 W
- Speaker Frequency Range (-10 dB) 57 Hz to 20 kHz
- Speaker Frequency Response (±3 dB) 75 Hz to 20 kHz
- Speaker Coverage Pattern 100° x 15° nominal

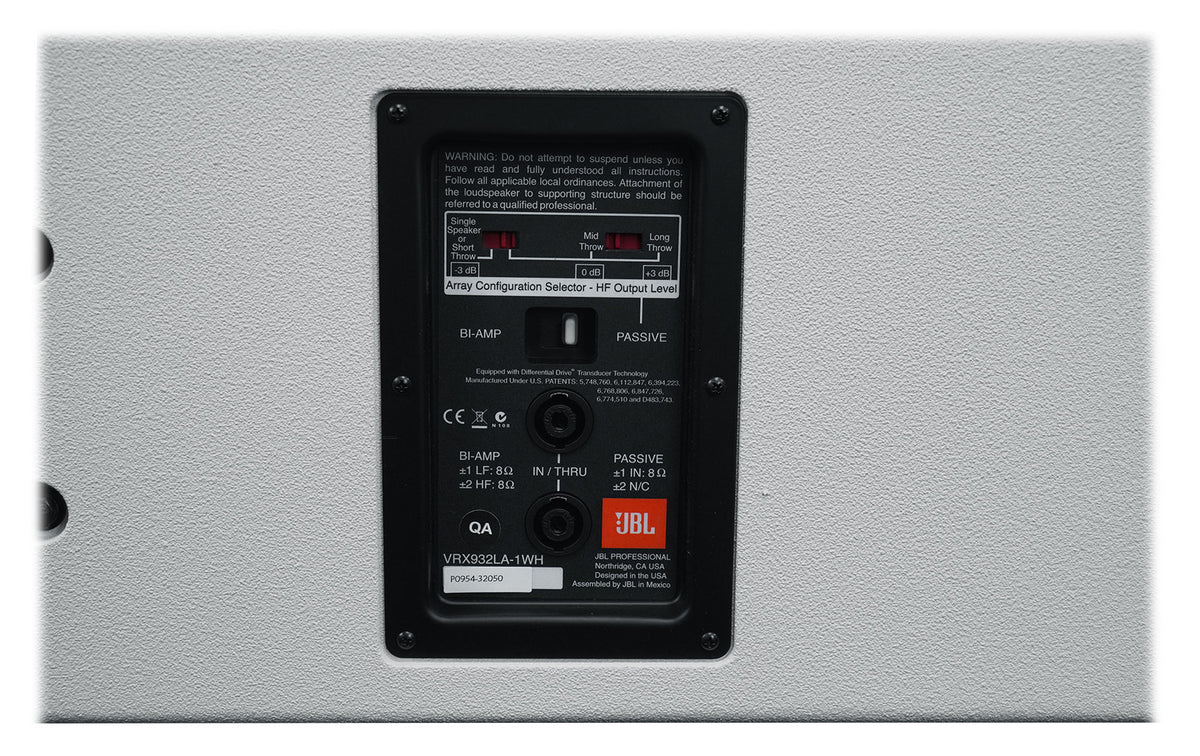

- Speaker Crossover Modes Bi-amp / passive, externally switchable
- Speaker Maximum SPL 130 dB SPL peak (passive mode); LF: 130 dB; HF: 139 dB
- Speaker Sensitivity Passive: 95 dB SPL; Bi-amp LF: 95 dB SPL; Bi-amp HF: 114 dB SPL
- Speaker LF Driver 1 x 305 mm (12 in) woofer with neodymium magnet, dual voice coils, and dual magnetic gaps
- Speaker HF Driver 3 x 38 mm (1.5 in) voice-coil compression drivers
- Speaker Nominal Impedance Passive: 8 ohm; Bi-amp LF: 8 ohm; Bi-amp HF: 8 ohm
- Speaker Enclosure 18 mm, 11-ply birch plywood
- Speaker Mounting Optional array frame; M-10 eyebolt kit #229-00009-01 (available separately)
- Speaker Finish White finish
- Speaker Grille White powder-coated, 16-gauge perforated steel with acoustically transparent cloth backing

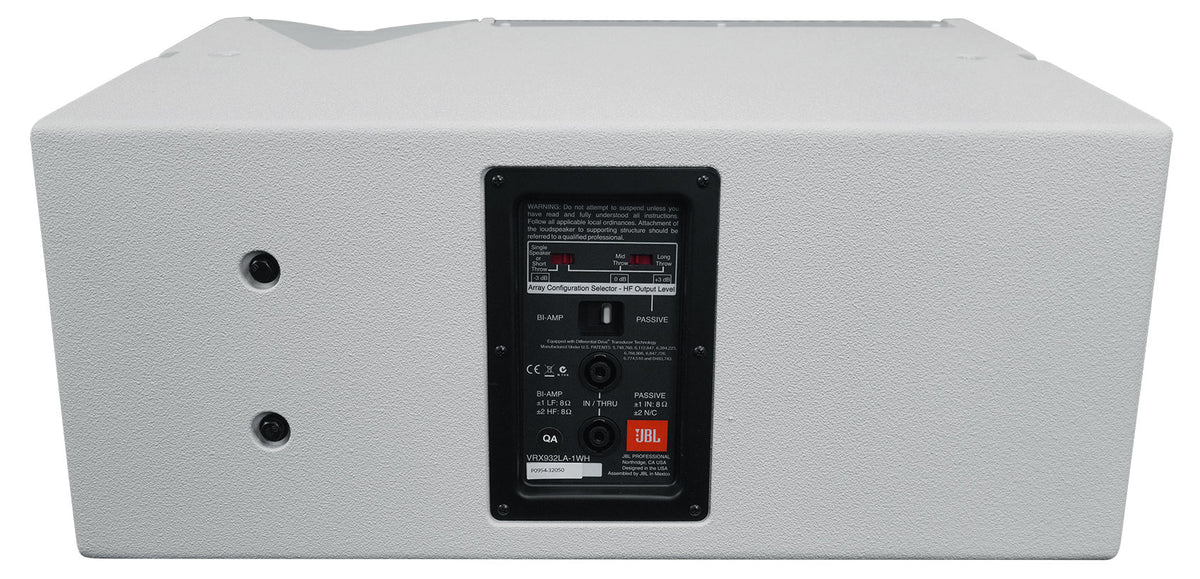

- Speaker Inputs NL-4 connectors, 2

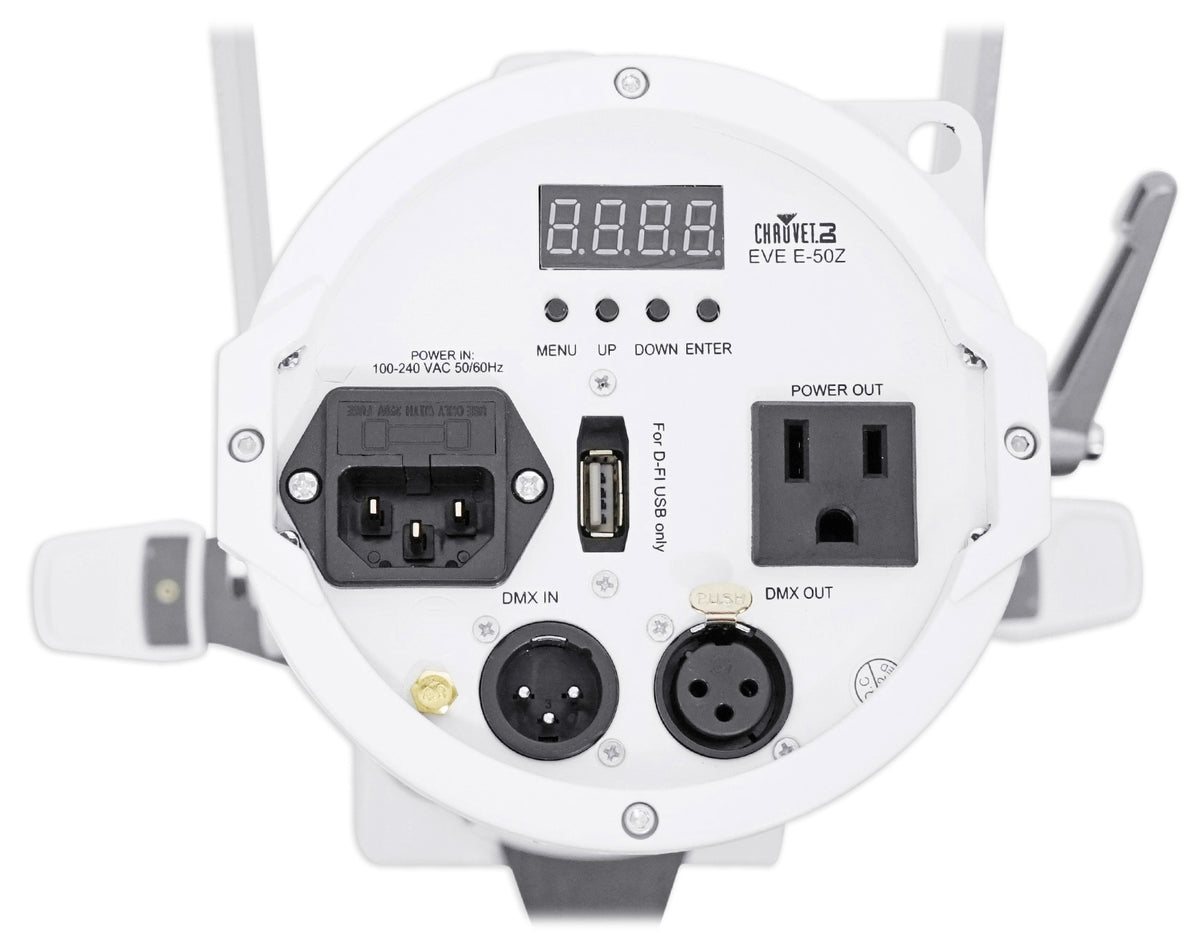

- Light DMX Channels 1 or 3
- Light DMX Connectors 3-pin XLR
- Light Source 1 warm-white LED, 50 W, 1.3 A, 50,000-hour life expectancy
- Light Strobe Rate 0 to 29 Hz
- Light PWM Frequency 1.2 kHz
- Light Illuminance 7,910 lux at 2 m (20°); 2,710 lux at 2 m (39°)
- Light Power Linking 16 units at 120 V; 26 units at 230 V
- Light Input Voltage 100 to 240 VAC, 50/60 Hz, auto-ranging
- Light Power and Current 59 W, 0.5 A at 120 V, 60 Hz; 63 W, 0.3 A at 230 V, 50 Hz
- Light Gobo Size D: 53.3 mm outside, 43 mm image, 2 mm max thickness
- Light Zoom Angle Manual: 20° to 39°
- Light Color Temperature 3500 K
- Light Gel Frame Size 5.5 in
- Weight Speaker: 46 lb; light: 9.2 lb
- Dimensions Speaker: 13.75 in H x 23.5 in W x 15.0 in D; light: 18.9 in H x 6.2 in W x 15 in D
