WIIM PRO
Wiim
WIIM PRO
WIIM PRO
WiFi Music Streamer, Hi-Res 192 kHz/24-Bit Output, Line, Optical, And Coaxial Connections
Free Shipping
Features
- Hi-res output up to 192 kHz/24-bit through a TI stereo DAC
- 106 dB SNR and -92 dB THD+N for low-noise analog output
- Line and SPDIF inputs plus line, SPDIF, and coaxial outputs
- Multiroom sync within 150 microseconds over Wi-Fi or Ethernet
- 26 EQ presets with 10-band graphic and parametric EQ options
Couldn't load pickup availability

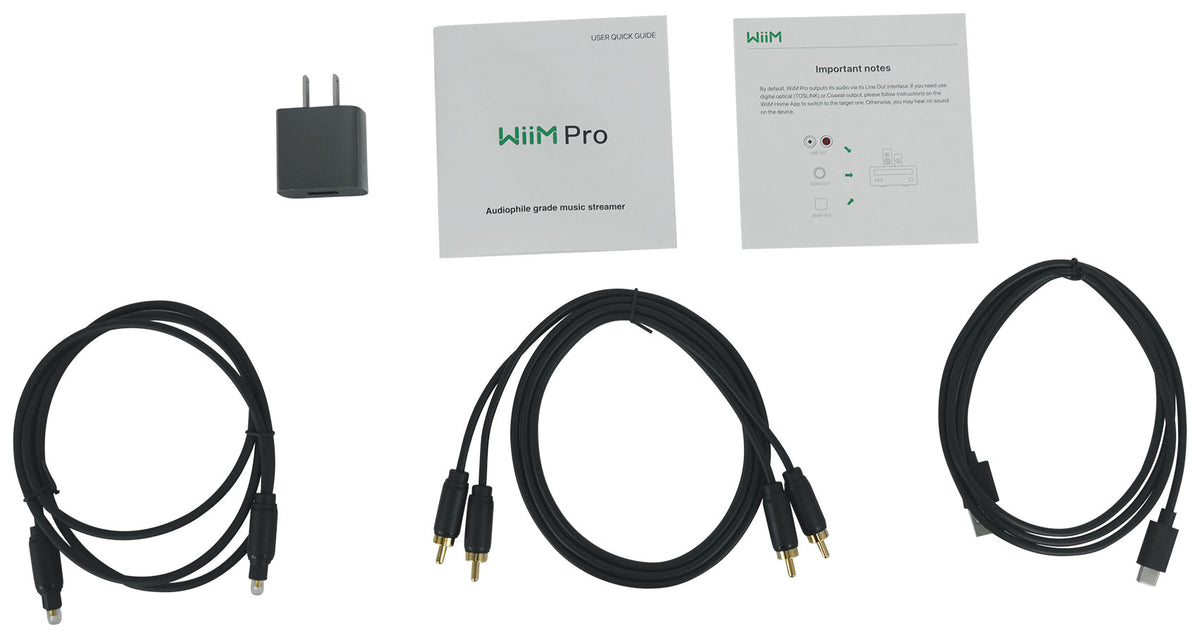

What's Included in the box
- WiiM Pro Music Streamer
- 5V 1.5A Power Adapter
SKU: SKU: Wiim Pro
View full details






Product Description
Output reaches 192 kHz/24-bit, matching an artist's studio recording, and the integrated TI stereo DAC is rated at 106 dB SNR with -92 dB THD+N. Hi-res files from Amazon Music, TIDAL, Qobuz, Deezer, and Spotify play at full resolution, and supported formats include MP3, AAC, ALAC, APE, FLAC, WAV, WMA, and OGG. A NAS or a folder of local files can serve as the source instead.
Setup takes about two minutes. The Pro appears automatically in the WiiM Home app, which also holds playback control, presets, alarms, and routines that start or stop music on a schedule. Siri, Alexa, and Google Assistant handle spoken requests.
Multiroom playback holds devices within 150 microseconds of each other anywhere your Wi-Fi reaches, and two units can be joined as a stereo pair for a wider sound stage. Multiroom works from Wi-Fi, Bluetooth, aux, and SPDIF sources, not only network streams. Gapless playback uses two decoders to remove padding at file boundaries, which matters on live concert recordings and classical tracks. Adaptive EQ reads genre tags and adjusts frequency response in real time, and automatic delay calibration measures audio path latency with the on-device microphone to hold sync.
Connectivity covers dual-band 802.11 b/g/n/ac Wi-Fi, 100M Ethernet, and Bluetooth 5.0 as both receiver and transmitter. Capacitive touch buttons cover play/pause, volume, and one preset.
Features
-
Studio-Resolution Playback
Output reaches 192 kHz/24-bit through a TI stereo DAC rated at 106 dB SNR, matching the resolution of the original studio recording on hi-res services.
-
Two-Minute Setup
WiiM Pro appears automatically in the WiiM Home app, and the in-app guide has music playing in under two minutes without manual network configuration.
-
Music In Every Room
Multiroom playback keeps devices within 150 microseconds on the same wireless network, and two units can be joined as a stereo pair for a wider sound stage.
-
Connections For Gear You Own
Line in, SPDIF in, line out, SPDIF out, and coaxial out let an existing receiver, powered speakers, or turntable setup join the network without being replaced.
-
Tuning And Routines Built In
26 EQ presets, bass and treble controls, 10-band graphic and parametric EQ, plus wake and sleep routines that start or stop your music on schedule.
Technical Specifications
- Product Type WiFi Music Streamer
- Maximum Output Resolution 192 kHz/24-bit
- DAC TI stereo DAC, 106 dB SNR, -92 dB THD+N
- Audio Formats MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG

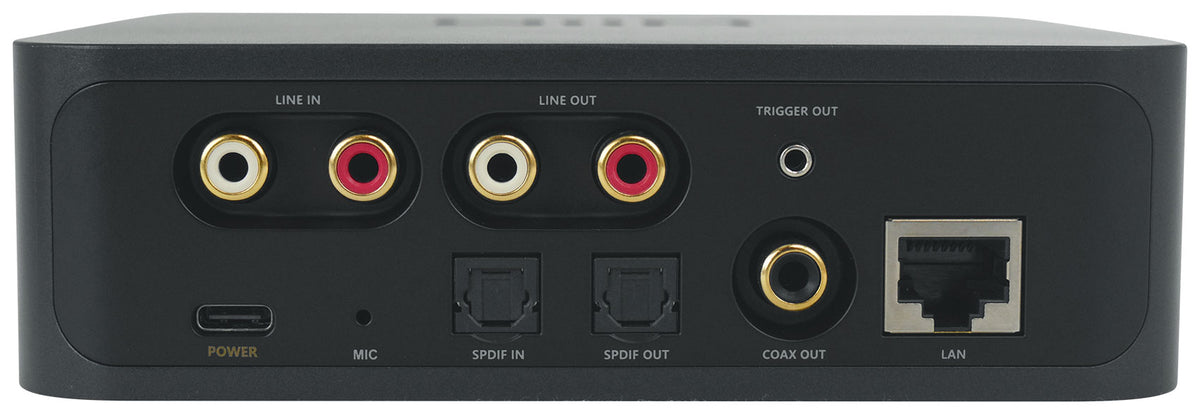

- Audio Inputs Line in, SPDIF in
- Audio Outputs Line out, SPDIF out, coaxial out
- Line In Level 1 Vrms
- Line In To Line Out 2 Vrms output, 0.009% THD+N, 102 dB SNR, -106 dB crosstalk, 96 dB dynamic range
- Bluetooth In To Line Out 2 Vrms output, 0.009% THD+N, 102 dB SNR, -106 dB crosstalk, 96 dB dynamic range
- EQ 26 presets, bass/treble adjustment, 10-band graphic EQ, parametric EQ
- Network IEEE 802.11 b/g/n/ac dual band Wi-Fi, 100M Ethernet
- Bluetooth 5.0, SBC and AAC codecs, receiver and transmitter

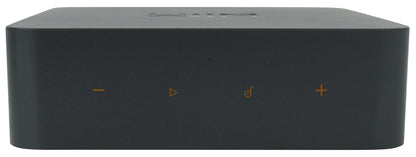

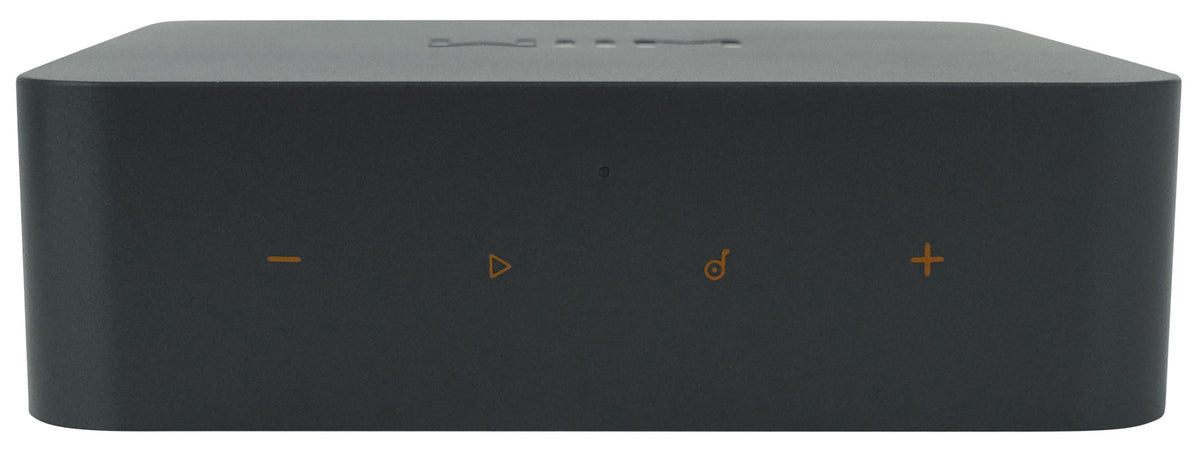

- Controls Capacitive touch: play/pause, volume up, volume down, 1 preset
- LED Three-color status indicator (red, green, white)
- Power Supply 5V, 1.5A
