JBL

(2) AWC159 + RCS650-6

(2) AWC159 + RCS650-6

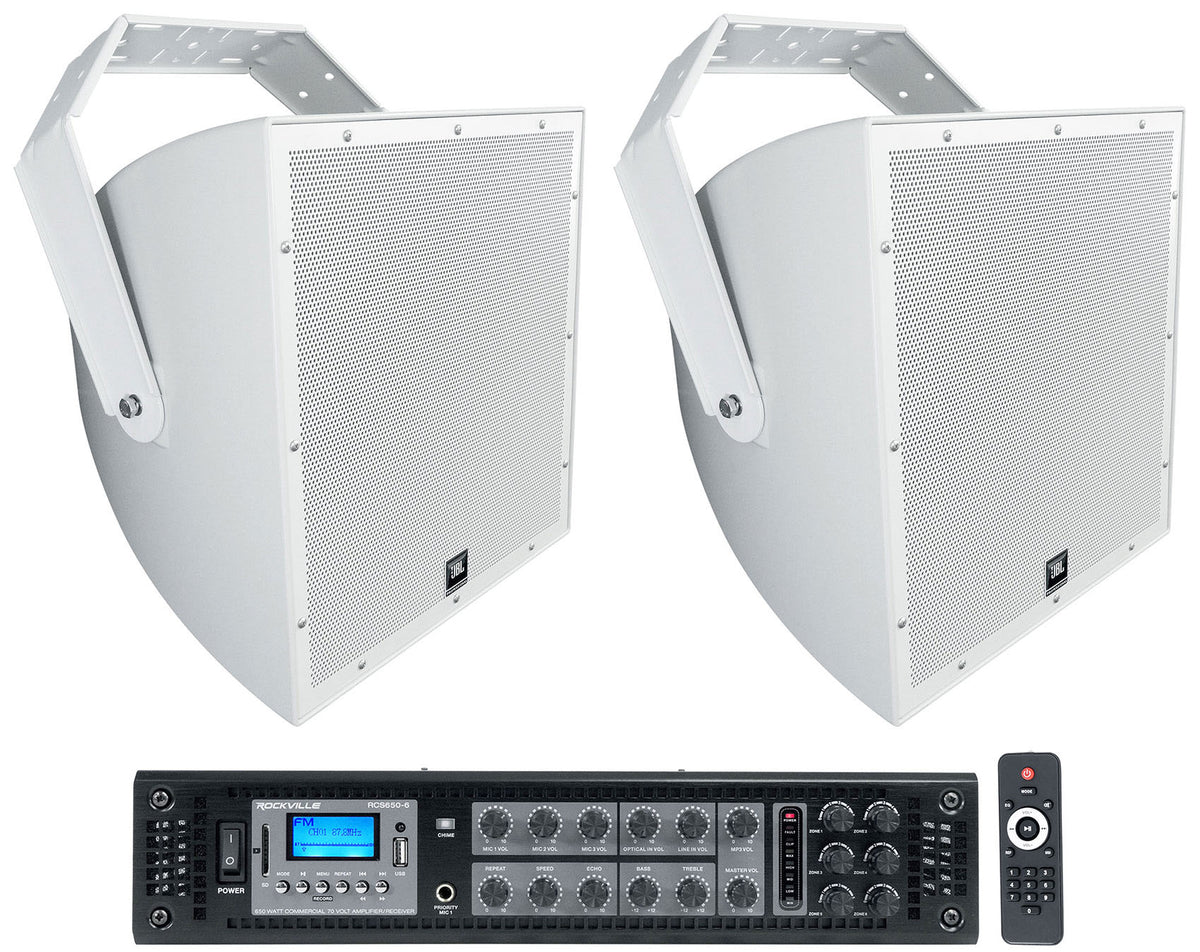

Outdoor 70V Speaker System, (2) 15" 2-Way Coaxial All-Weather Speakers, 650W 6-Zone Bluetooth Amplifier
Regular price $2,465.95
Sale price $2,465.95 Regular price $4,277.68
Save 42%
Shipping calculated at checkout.
Features
    • (2) AWC159 15" coaxial speakers with 1.5" compression drivers
    • IP56 rated cabinets with corrosion-resistant steel grilles for outdoor installs

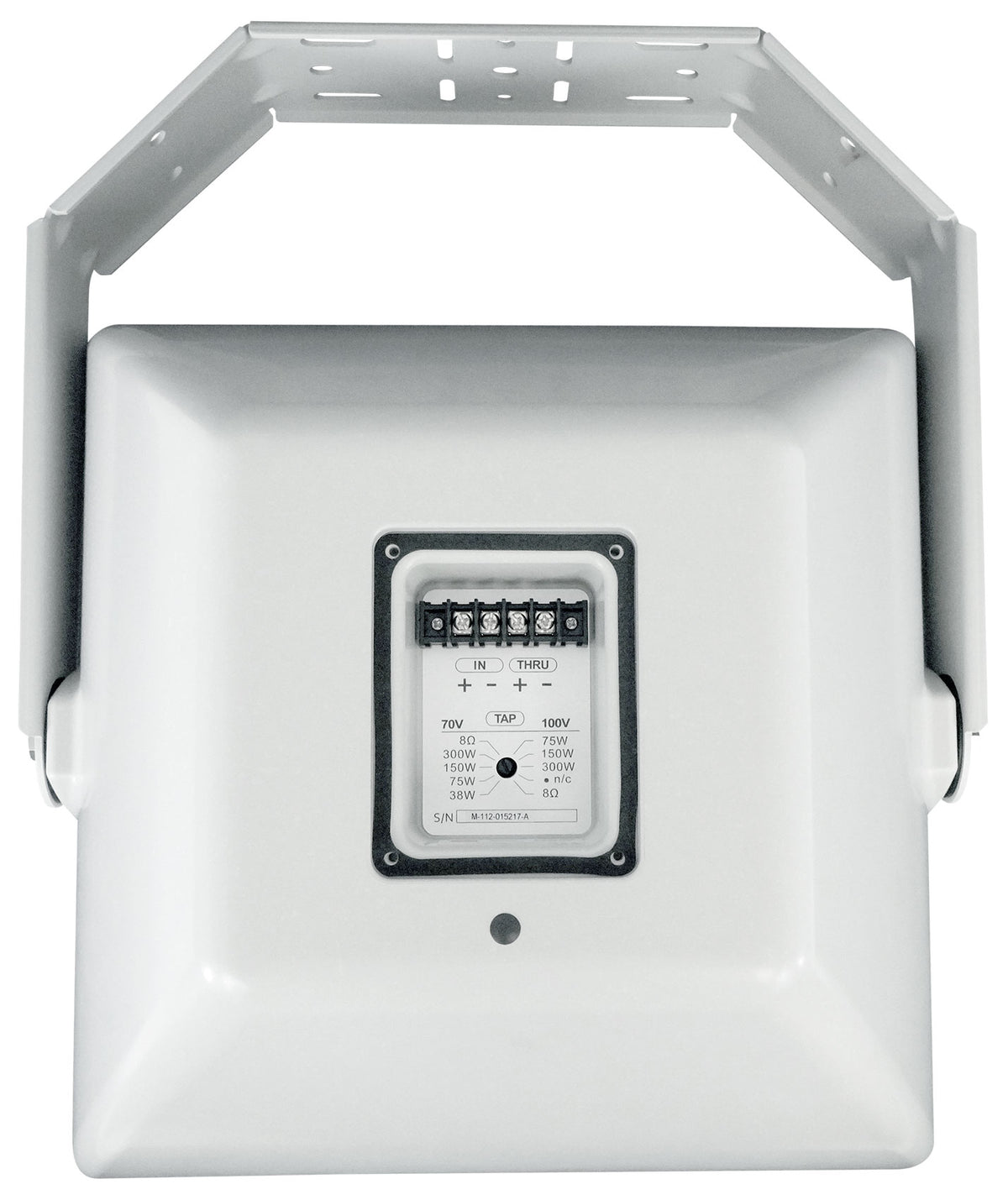

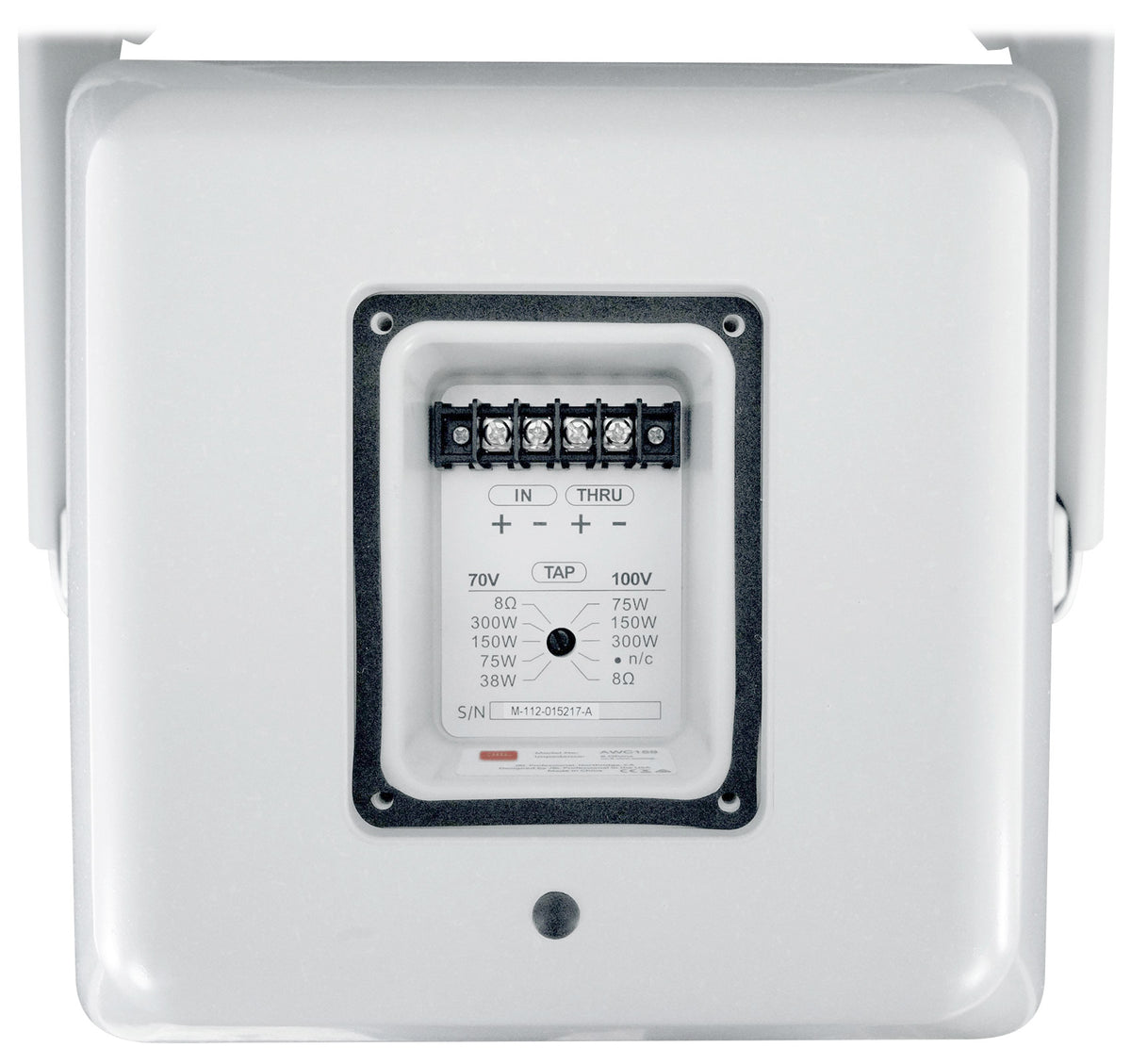

    • 70V taps at 300W, 150W, 75W, and 38W, plus 8 ohm direct operation

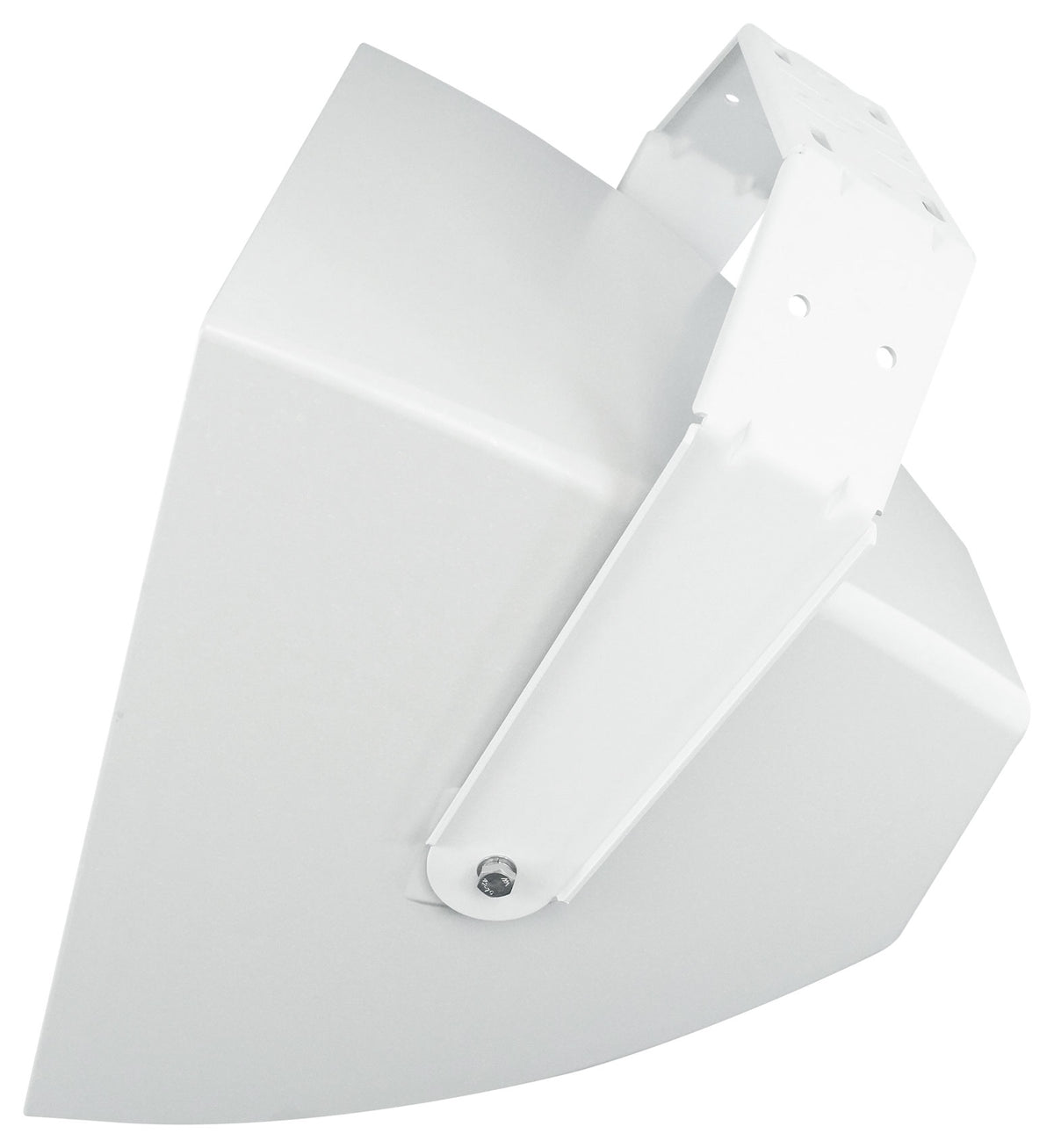

    • Color-matched U-bracket included with each speaker

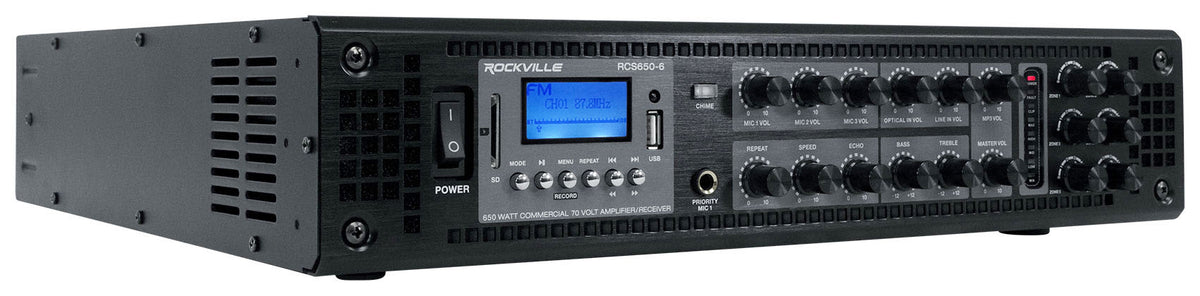

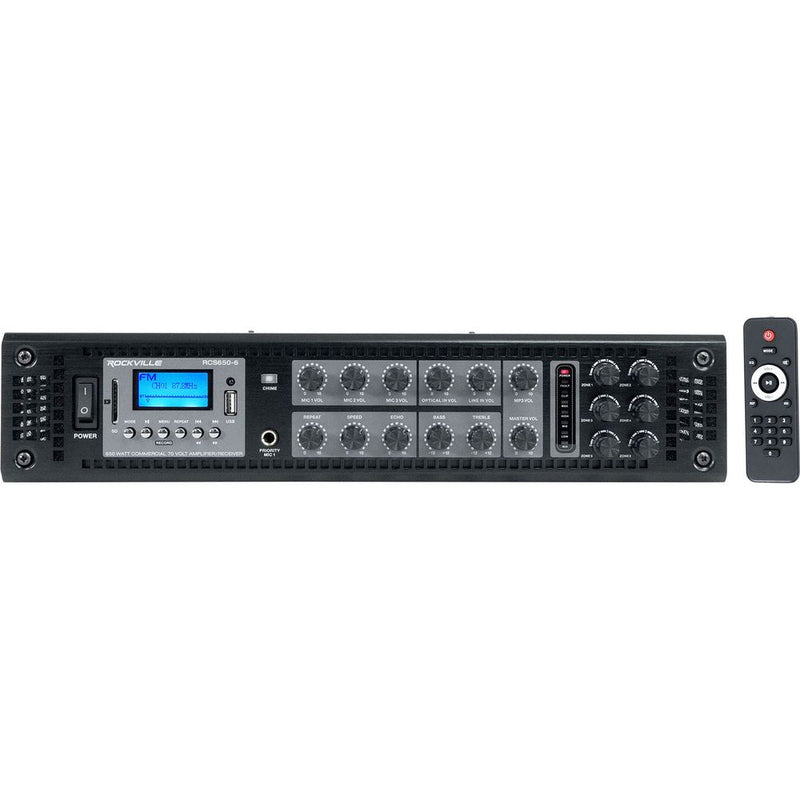

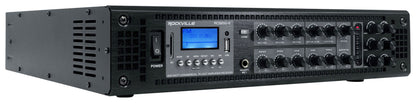

    • RCS650-6 650W 6-zone amp with Bluetooth, FM, USB, SD, and 3 mic inputs
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • (2) AWC159 15" 2-Way Coaxial All-Weather 70V Speakers

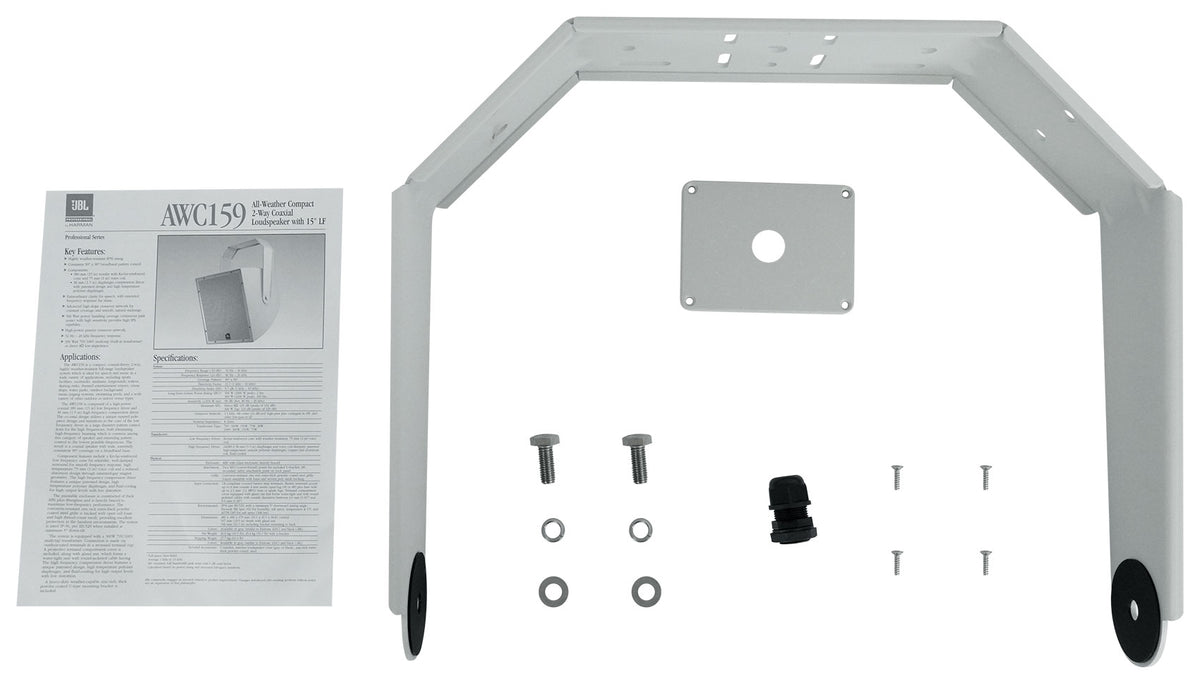

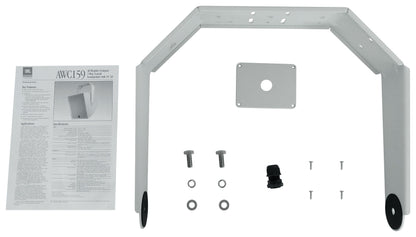

    • (2) Color-Matched U-Brackets
    • (1) RCS650-6 650W 6-Zone 70V Amplifier

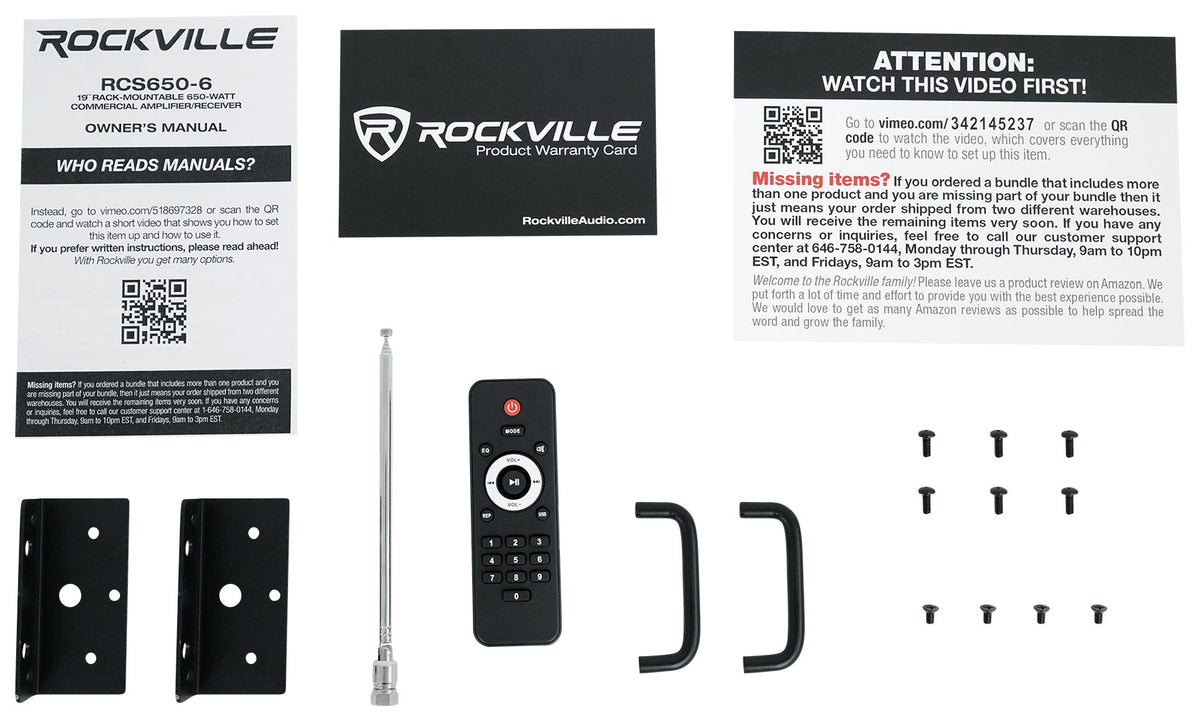

    • (1) Remote
    • Rack Mount Ears
    • Power Cable
    • FM Radio Antenna

SKU: SKU: (2) AWC159+RCS650-6

View full details

Product Description

Two AWC159 all-weather coaxial speakers and the RCS650-6 six-zone amplifier give pool decks, water parks, patios, sports fields, fairgrounds, rinks, and large restaurants a complete 70V system for music and announcements. Big 15" speakers cover a lot of open space each, so two of them and one amp handle areas that would otherwise take a ceiling full of small speakers.

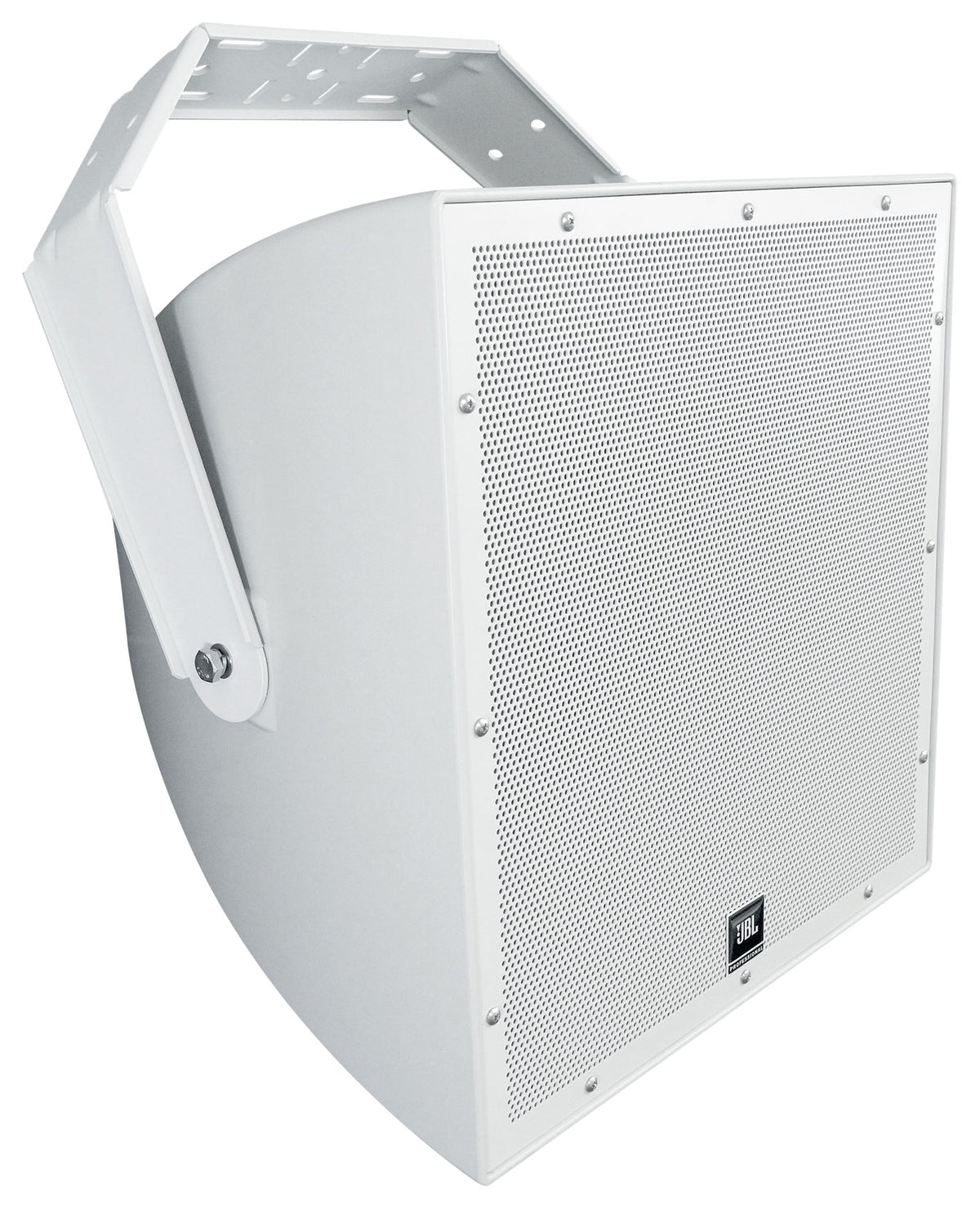

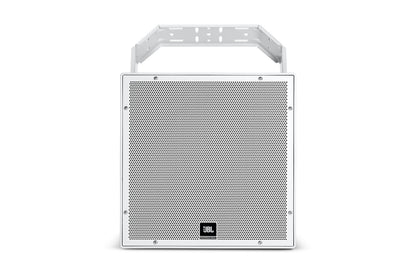

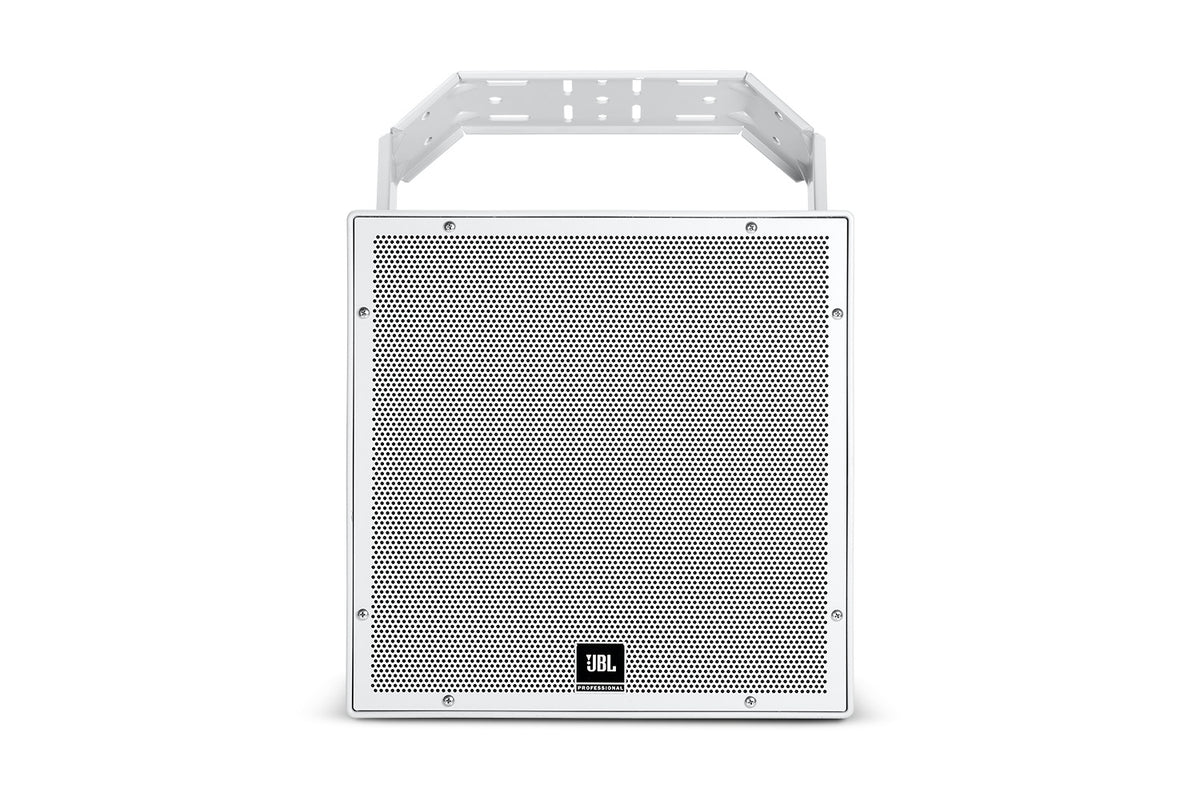

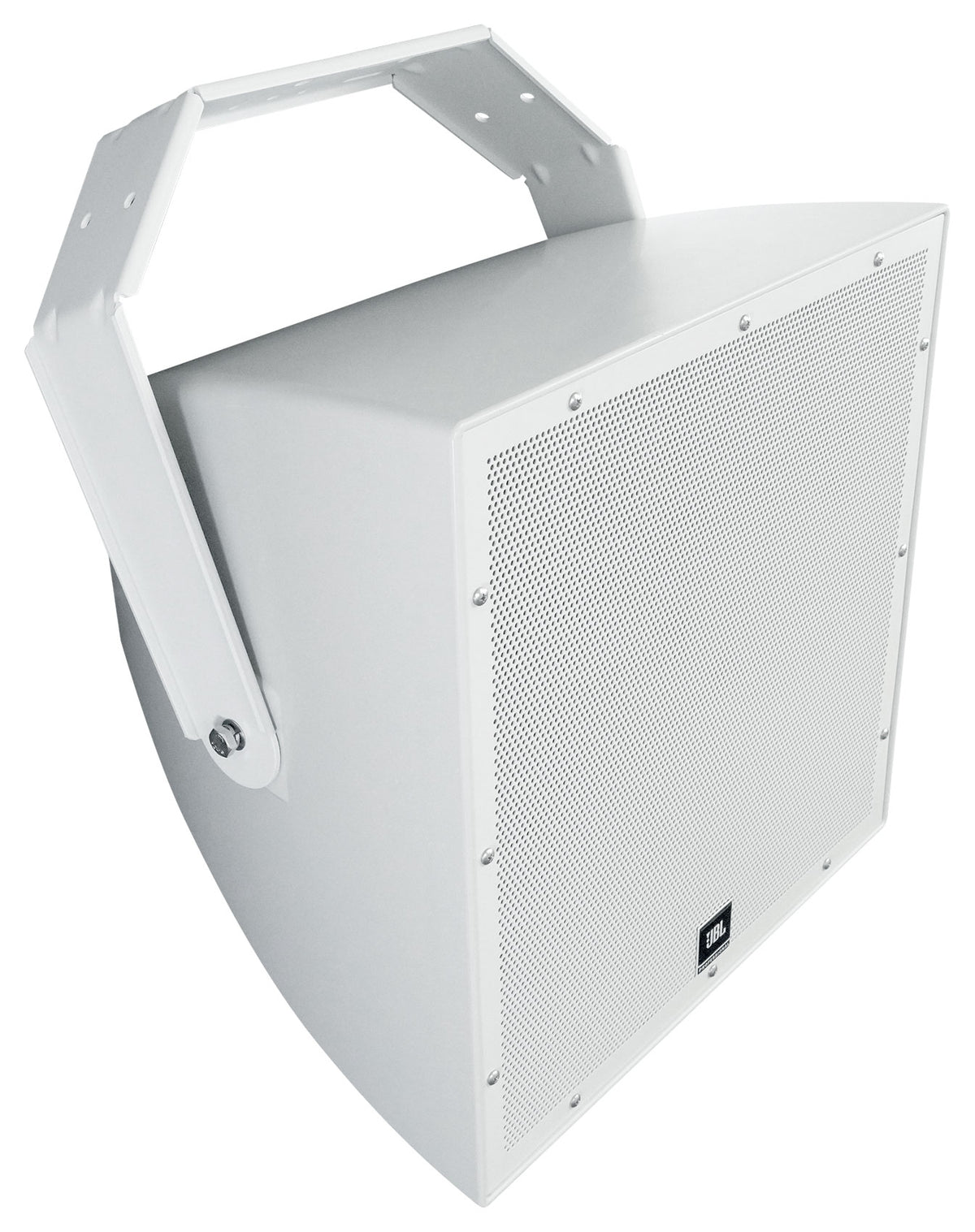

Each AWC159 pairs a 15" Kevlar-reinforced woofer with a 1.5" compression driver in a coaxial layout, holding a consistent 90° x 90° pattern from 52Hz to 20kHz. Speech stays clear for paging, and music keeps its low end, with up to 123 dB max SPL on the 300W tap. The cabinets are built to live outside: IP56 rated, with a corrosion-resistant zinc-rich steel grille, a sealed terminal compartment, and testing beyond Mil Spec 810 for humidity, salt spray, temperature, and UV. A color-matched U-bracket comes with each speaker for wall or overhead mounting.

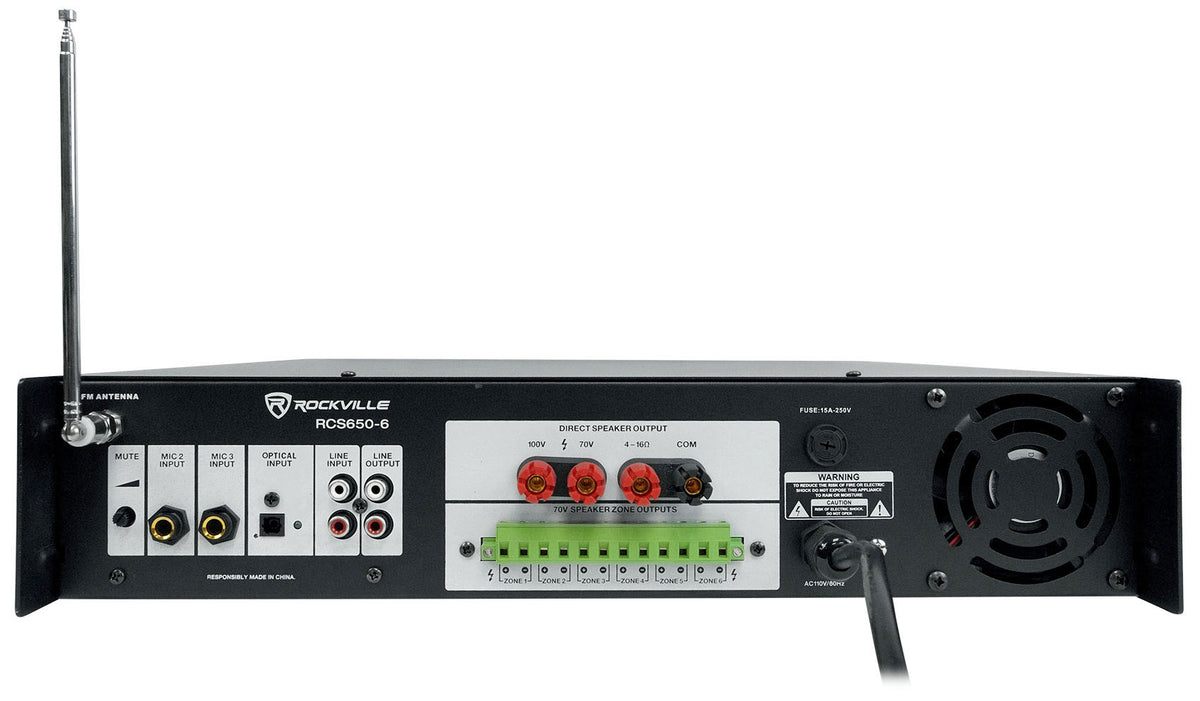

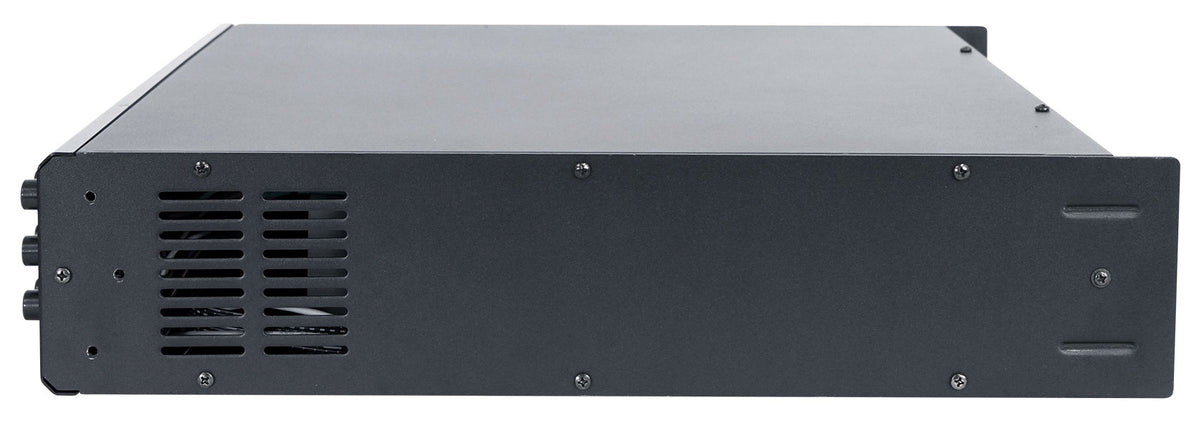

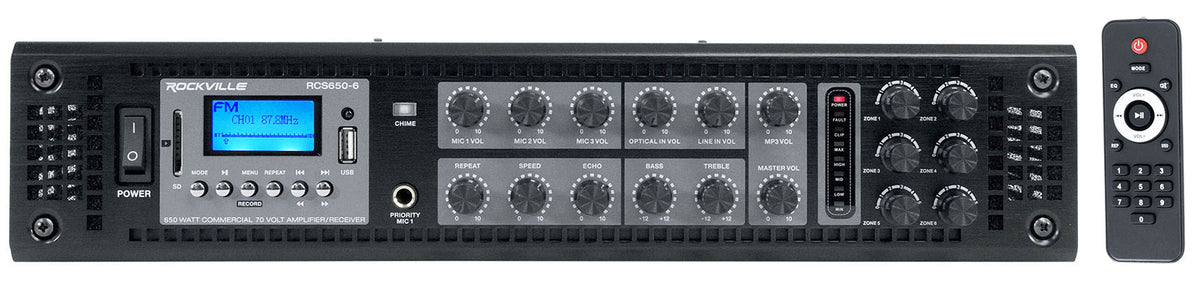

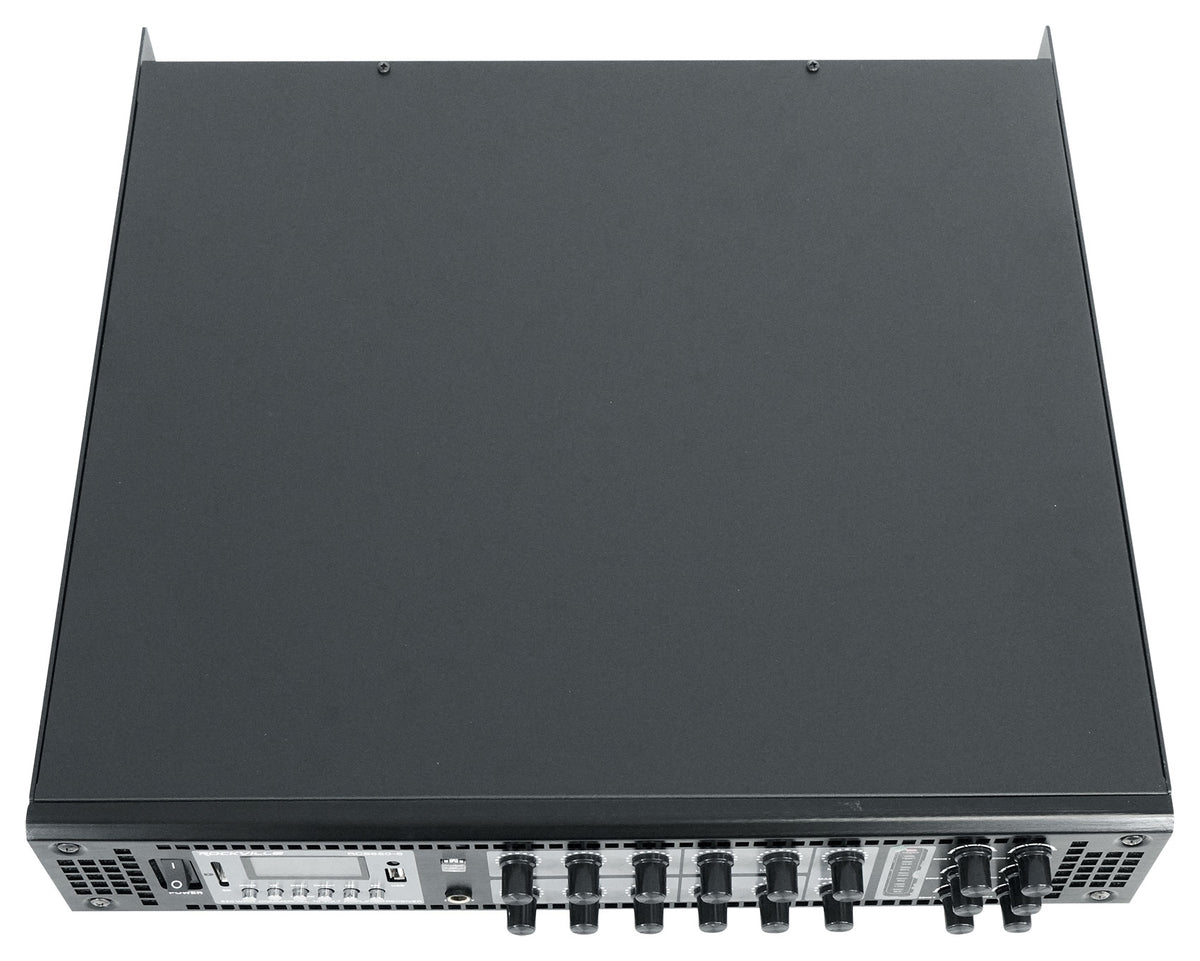

The power math works out. Each speaker taps at 300W, 150W, 75W, or 38W on 70V (or runs 8 ohm direct), so both speakers at 300W on the amp's direct output total 600W, right at the RCS650-6's recommended maximum. To control each area separately, put each speaker on its own zone at the 150W tap, under the 200W per-zone limit. The amp streams over Bluetooth, plays FM, USB, SD, and two line inputs, and takes three mic inputs with echo control plus a chime button for announcements. A clipping limiter and cooling system protect the amp and speakers, and removable ears fit a 19" rack.

Features

    • Built for the Weather

      An IP56 rating, zinc-rich powder-coated steel grille, and sealed terminal compartment let each speaker handle rain, salt spray, humidity, and UV at pools and parks.

    • Wide, Even Coverage

      A coaxial 15" woofer and 1.5" compression driver hold a consistent 90° x 90° pattern, so listeners across a patio or grandstand hear balanced sound.

    • Power That Lines Up

      Both speakers at their 300W taps total 600W on the direct output, right at the recommended load for the 650W amplifier with nothing extra to buy.

    • Control Each Area Separately

      Run each speaker on its own zone at the 150W tap, with individual volume knobs, so the pool deck and patio can play at different levels.

    • Music and Announcements

      Stream over Bluetooth, play FM, USB, or SD audio, and use three mic inputs with echo control and a chime button for paging and live announcements.

Technical Specifications

  • Product Type 70V All-Weather Speaker and Amplifier System
  • Speaker Model AWC159
  • Speaker Quantity 2
  • Speaker Type 2-Way Coaxial All-Weather
  • LF Driver 15" (380 mm) Kevlar-Reinforced Cone, 3" Voice Coil, Weather Treated
  • HF Driver 1.5" (38 mm) Compression Driver, Polymer Diaphragm
  • Frequency Range (-10 dB) 52Hz to 20kHz
