(6) Control 424LP + (6) MTC-426SG Square Grilles
JBL
(6) Control 424LP + (6) MTC-426SG Square Grilles
(6) Control 424LP + (6) MTC-426SG Square Grilles
Six 4" Low Profile 70V Ceiling Speakers, Bonus White Square Grilles, Restaurants, Bars, Retail
Free Shipping
Features

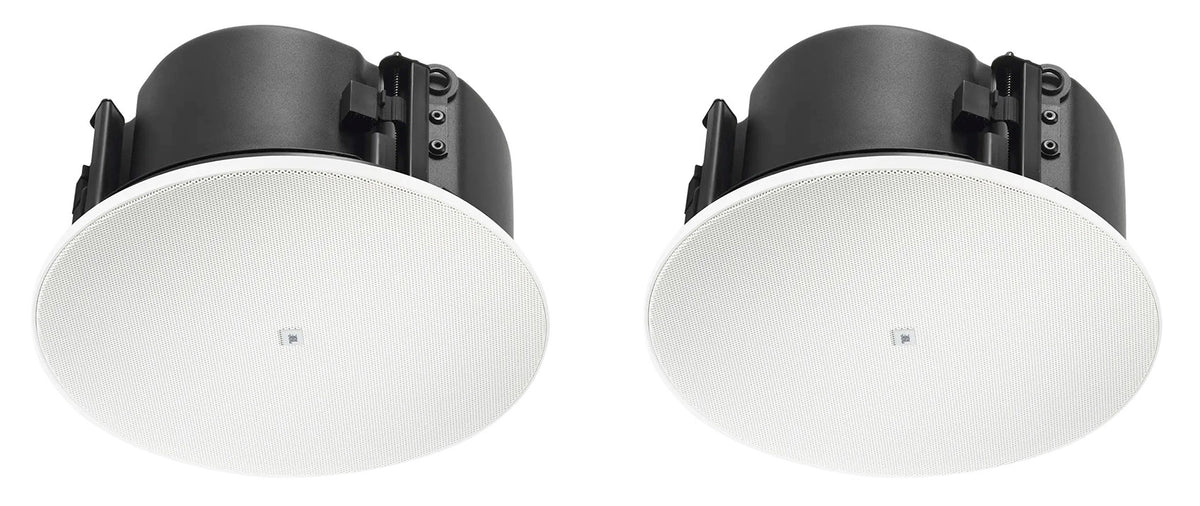

- (6) JBL Control 424LP 4" two-way coaxial low profile ceiling speakers
- Shallow 3.9" depth behind the ceiling fits tight plenum spaces
- CRBI technology spreads sound across a consistent 130° conical pattern
- 70V/100V multi-tap transformer plus 16-ohm direct input for flexible system design
- Includes (6) bonus MTC-426SG white square grilles for grid ceilings
Couldn't load pickup availability

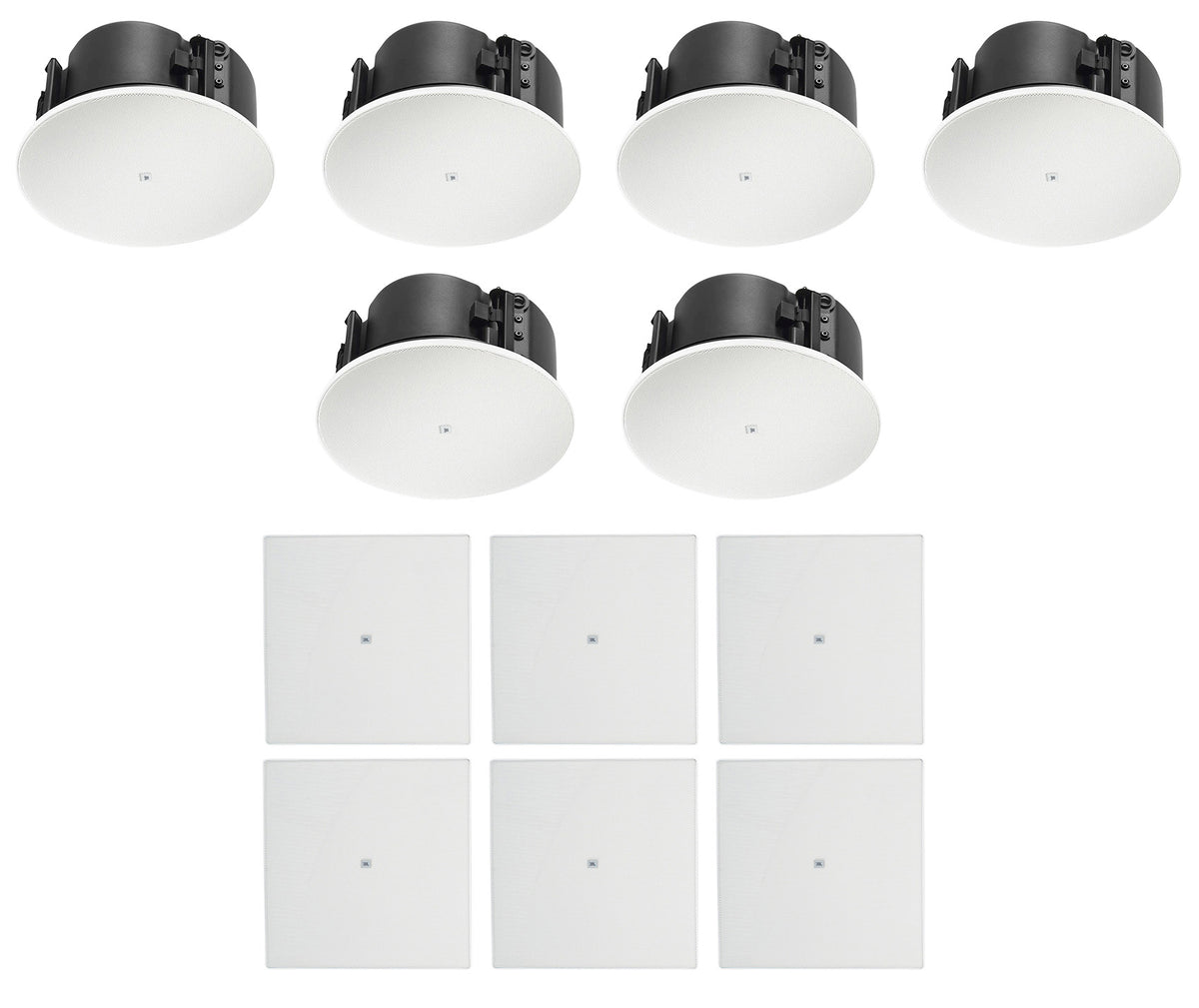

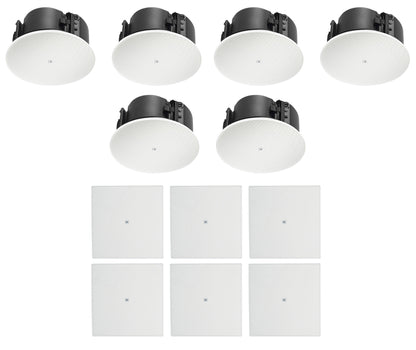

What's Included in the box
- (6) JBL Control 424LP 4" 2-Way Low Profile 70V Ceiling Speakers (3 Pairs)
- (6) White Full-Face Magnetic Grilles with Safety Tethers

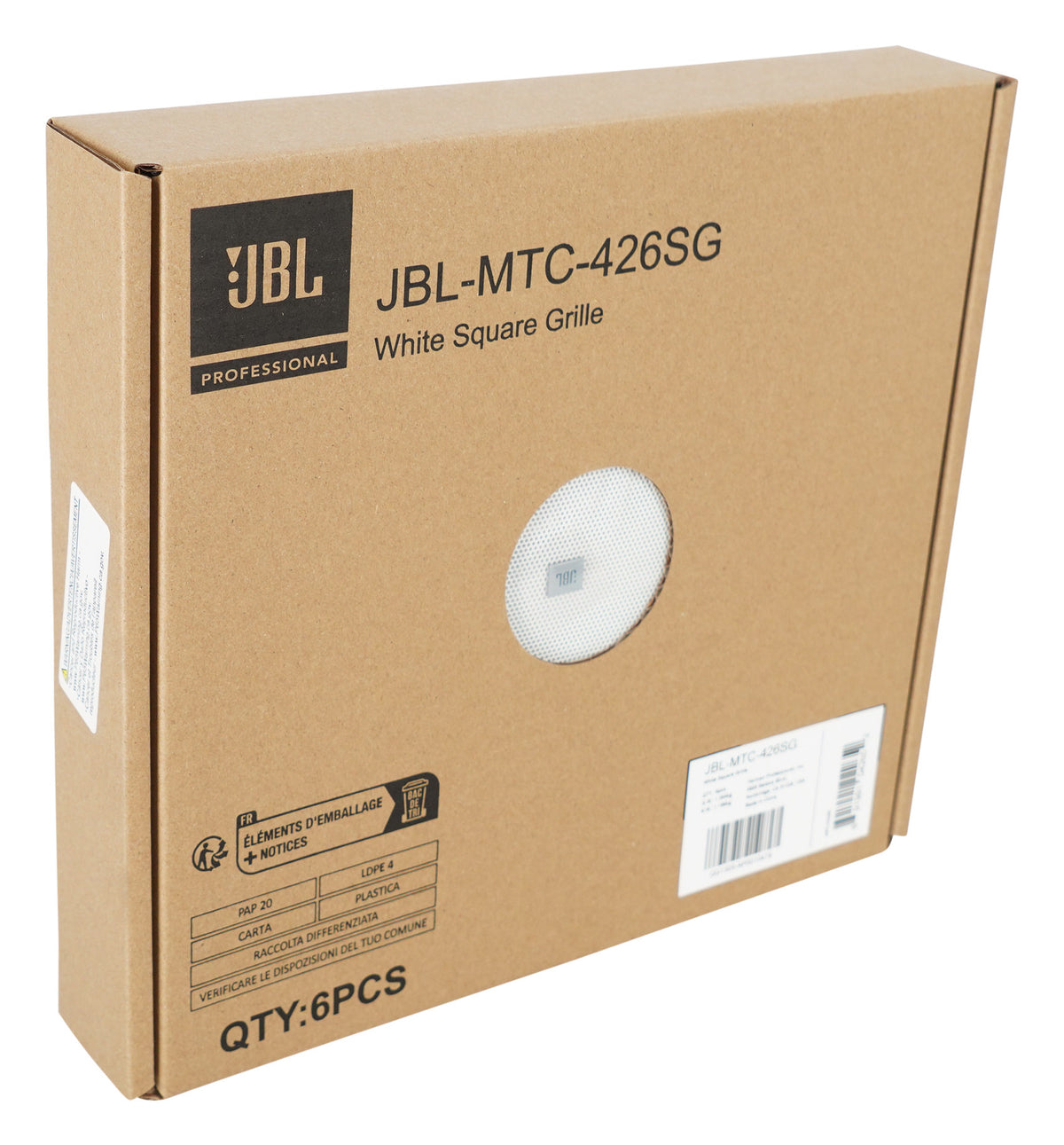

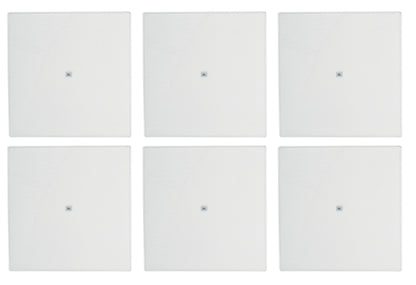

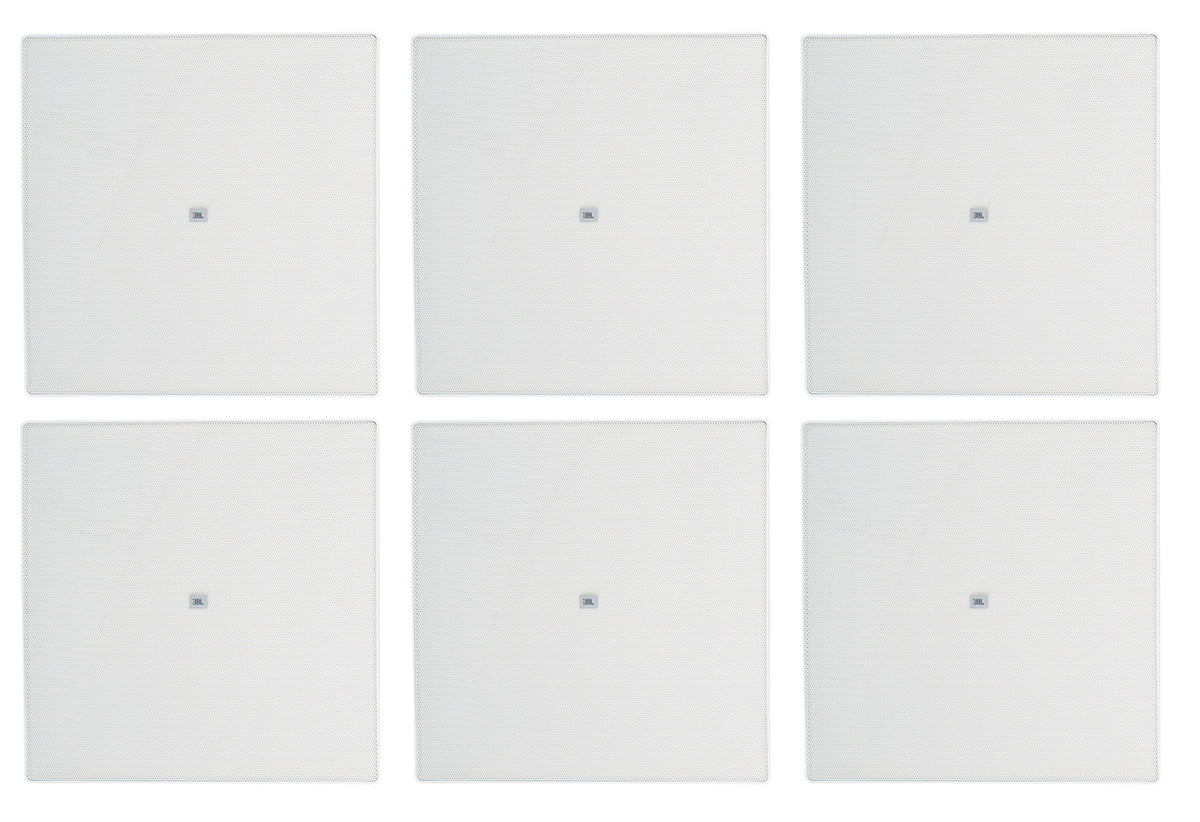

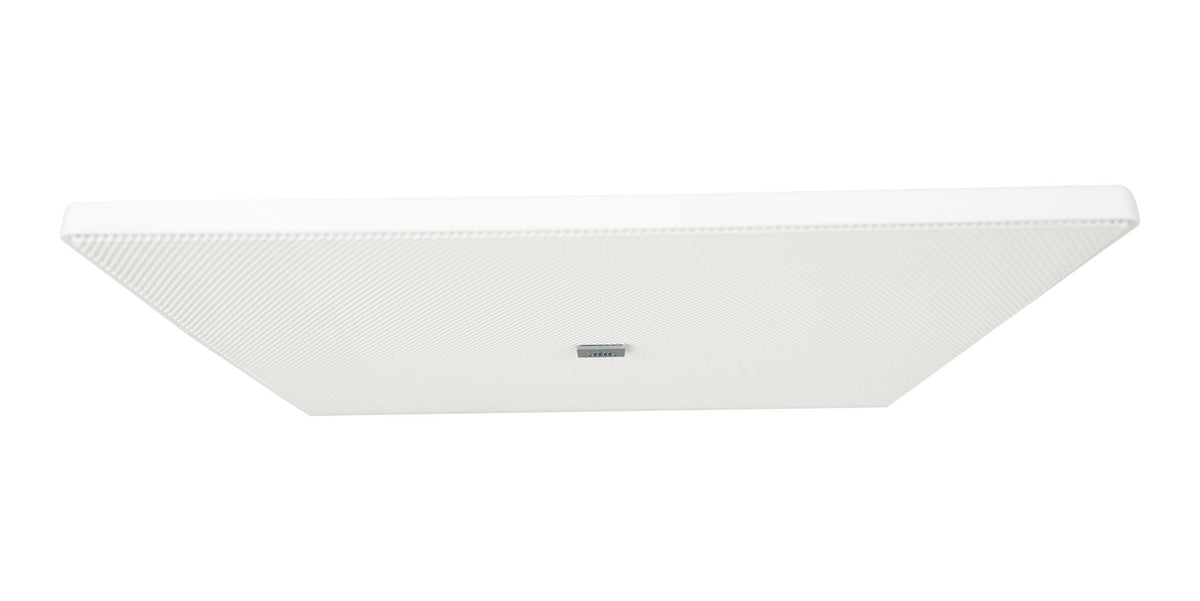

- (6) JBL MTC-426SG White Square Grilles
SKU: SKU: (3) Control 424LP+MTC-426SG
View full details













Product Description

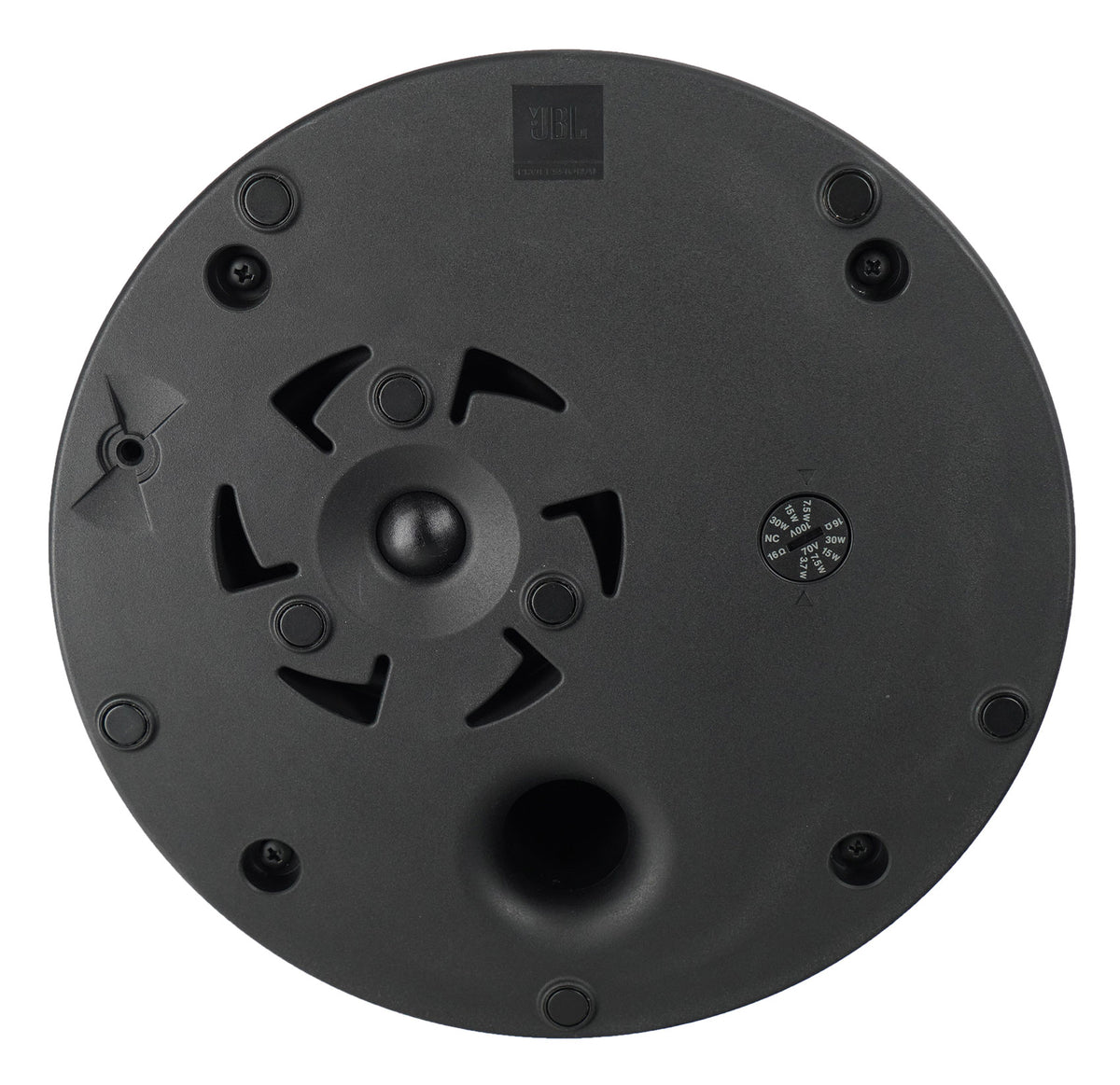

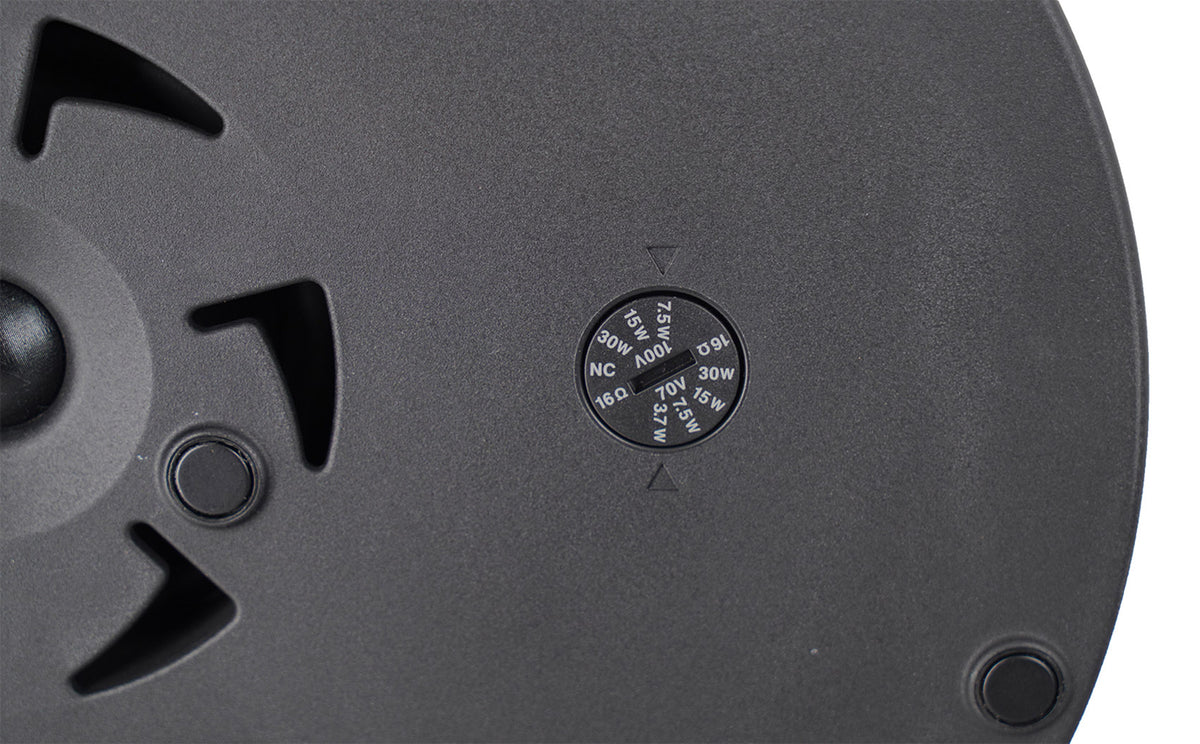

The built-in transformer taps at 30W, 15W, 7.5W, or 3.7W on 70V lines (30W, 15W, or 7.5W on 100V), and a 16-ohm direct input covers low impedance systems, so the speakers drop into a distributed install or run off a small local amp. Captive dogears grip a wide range of ceiling thicknesses through an 8.8" cutout, and tool-free terminal covers take cable from the top or side. Every speaker is UL 2043 listed for air handling spaces and IP33 rated. The stock white round magnetic grilles are paintable, and six bonus MTC-426SG white square grilles come included at no extra cost for a squared-off look that lines up with grid ceilings, square light fixtures, and air vents.
This Bundle Includes

Control 424LP

MTC-426SG
Features

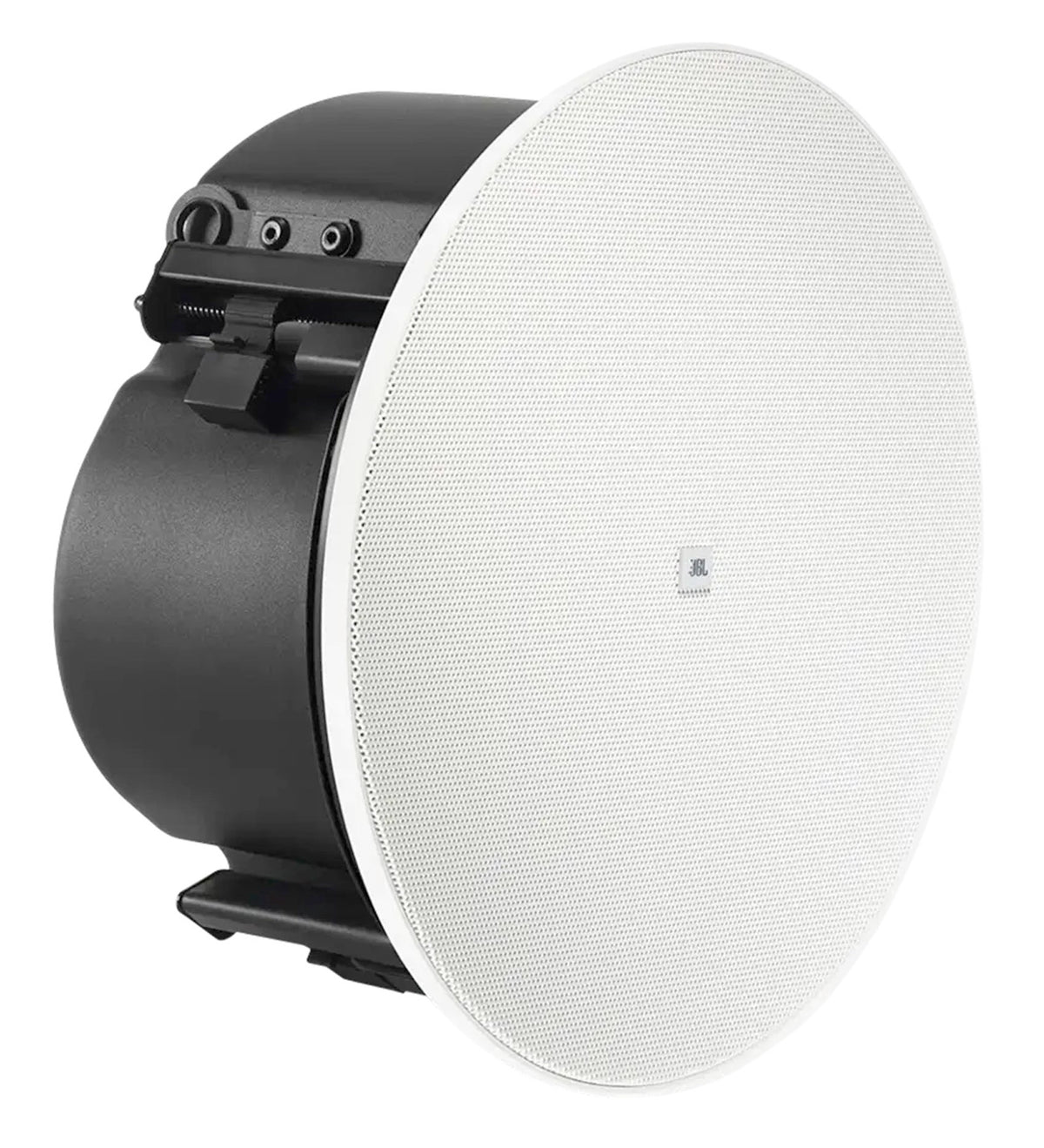

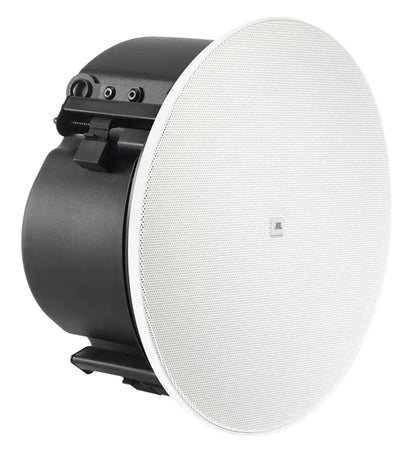

Built for Tight Ceilings

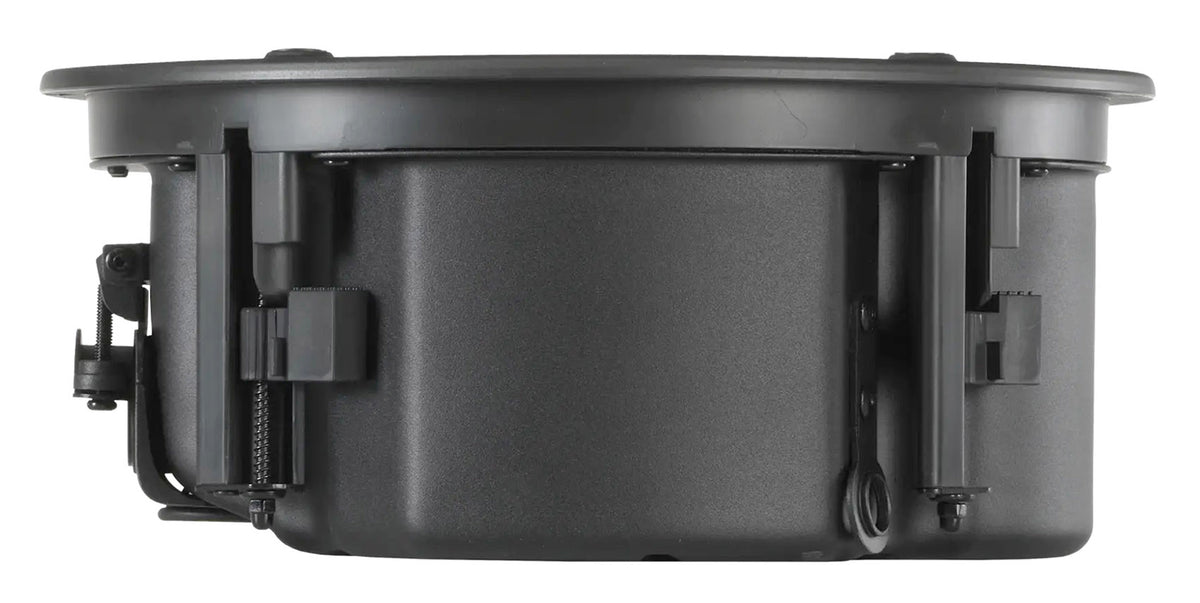

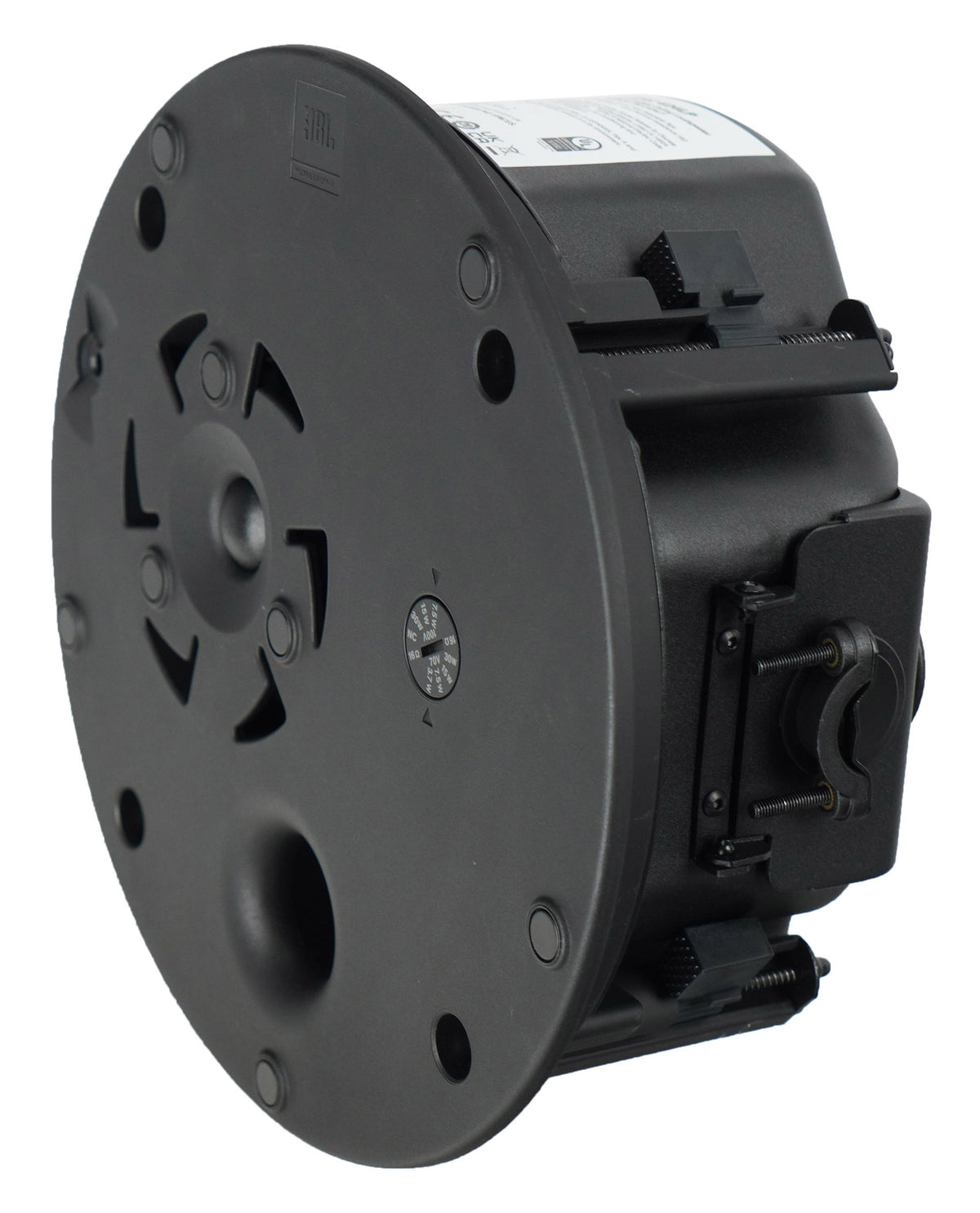

The low profile enclosure needs just 3.9" from the bottom of the ceiling tile to the top of the back can, clearing ductwork and beams in shallow plenums.
Even Sound Across the Room
CRBI technology spreads sound in a consistent 130° conical pattern, reducing hot and cold spots so guests hear the same music from the bar to the back booth.
Clear Two-Way Coaxial Sound
A 4" treated paper cone woofer and 0.75" soft dome tweeter cover 75 Hz to 18 kHz, keeping vocals clear and background music full at every table.
Fits Nearly Any System
The built-in transformer taps from 3.7W to 30W on 70V and 7.5W to 30W on 100V, with a 16-ohm direct input for low impedance amplifiers.

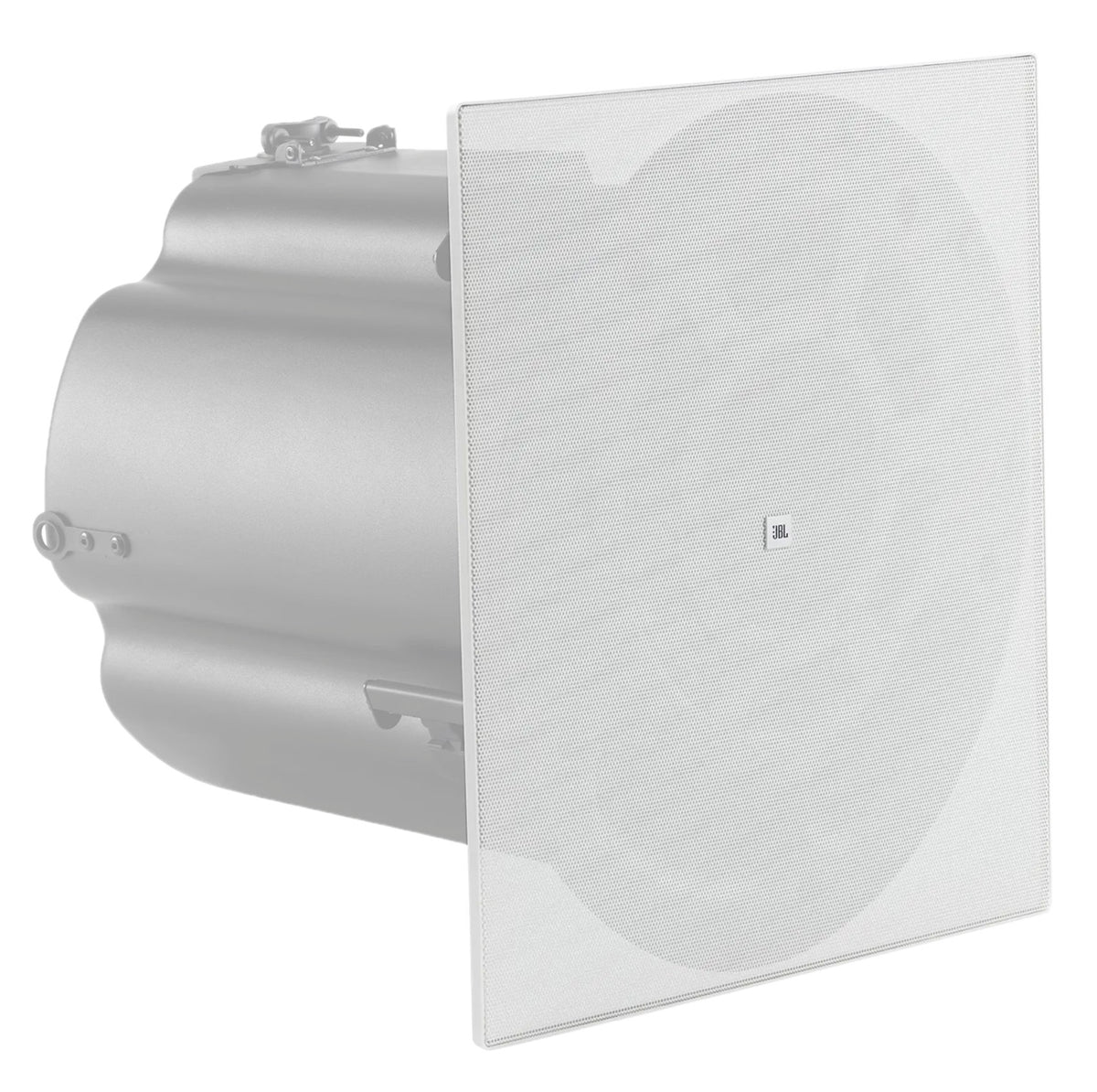

Bonus Square Grilles Included
Paintable white round grilles come standard, and six bonus MTC-426SG white square grilles are included to line up with grid ceilings and square fixtures.
Technical Specifications
- Product Type Low Profile 70V Ceiling Speaker Package
- Speakers (6) JBL Control 424LP (3 Pairs)
- Included Grilles (6) White Full-Face Magnetic (Stock), (6) MTC-426SG White Square (RAL9003)
- Speaker Design Two-Way Coaxial, Low Profile
- Woofer 4" (100 mm) Treated Paper Cone
- Tweeter 0.75" (19 mm) Textile Soft Dome, Neodymium Magnet
- Frequency Range (-10 dB) 75 Hz to 18 kHz
- Power Capacity 60W Continuous (240W Peak) Pink Noise, 2 Hrs; 40W (160W Peak), 100 Hrs
- Sensitivity (1W/1m) 85 dB
- Max SPL (1m) 103 dB Continuous, 109 dB Peak
- Coverage Angle 130° Conical
- Nominal Impedance 16 Ohms
- Transformer Taps (70V) 30W, 15W, 7.5W, 3.7W
- Transformer Taps (100V) 30W, 15W, 7.5W
- Ceiling Cutout 8.8" (224 mm)
- Depth Behind Ceiling 3.9" (98 mm)
- Safety Rating UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No. 205, UL 1480A
- IP Rating IP33
- Operating Temperature 32°F to 113°F (0°C to 45°C)
- Stock Grille Color White (RAL9003), Paintable
- Weight (Each) 6.7 lb (3.0 kg)
- Dimensions (Each) 4.2" H x 9.9" Dia. (107 x 253 mm)
