GSF3-TN Landscape Speakers (4 Pairs) + RCS180-6 Amp
JBL
GSF3-TN Landscape Speakers (4 Pairs) + RCS180-6 Amp
GSF3-TN Landscape Speakers (4 Pairs) + RCS180-6 Amp

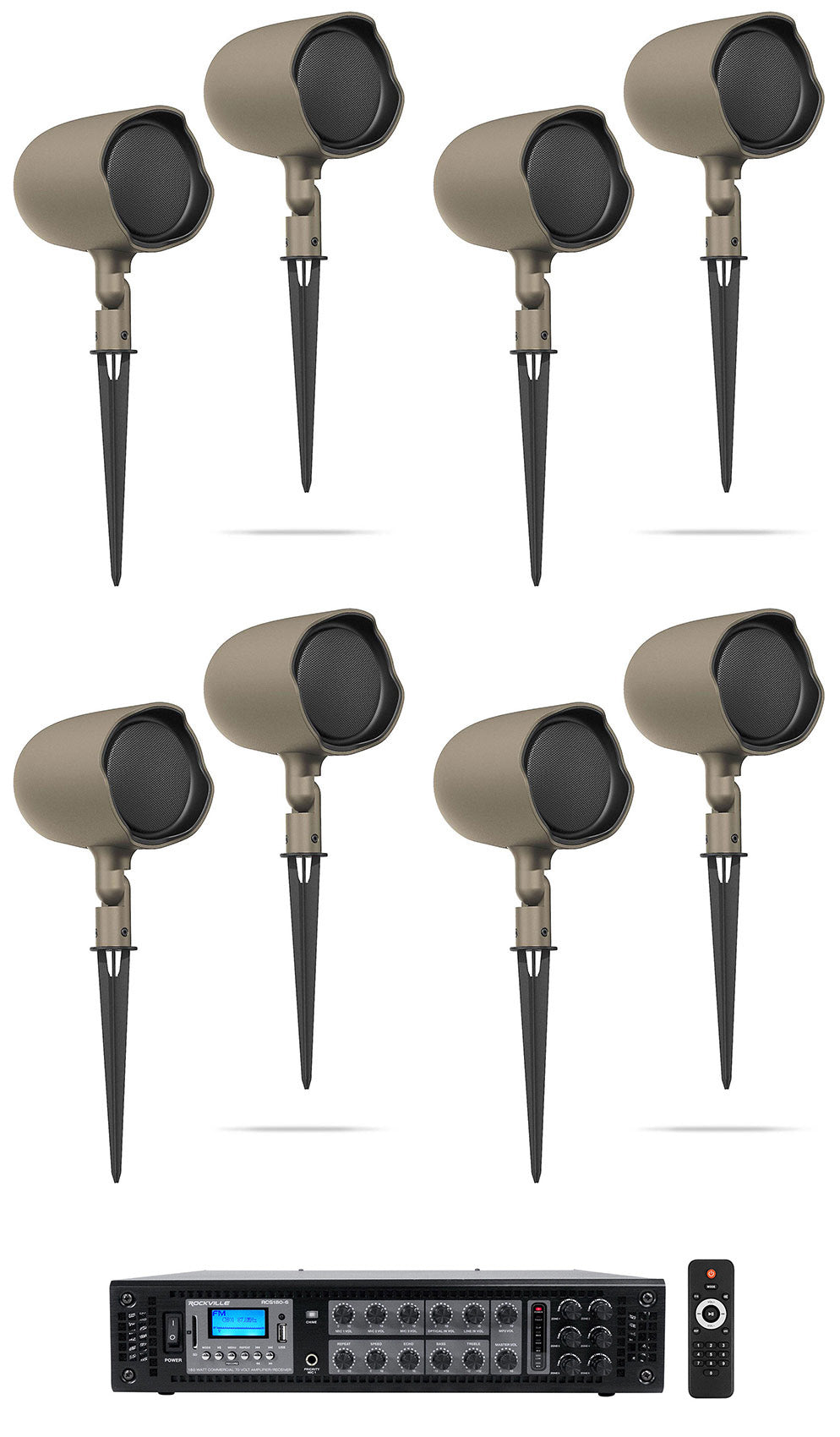

70V Outdoor System, (8) IP66 3" Tan Speakers, 180W 6-Zone Bluetooth Amp, Stakes, L-Brackets
Features
- (8) GSF3-TN 3" coaxial landscape speakers (4 pairs) with a 74 Hz to 20 kHz range
- IP66 rating protects each speaker from water and dust in year-round outdoor installs
- Ground stake and L-bracket included with every speaker for in-ground or surface mounts
- 15W multi-tap transformers run on 70V or 100V lines, or switch to 8 ohm direct

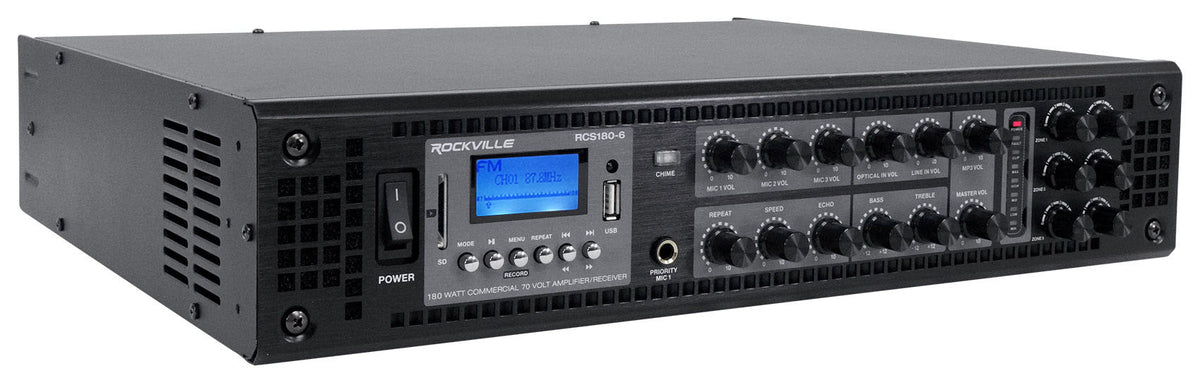

- RCS180-6 amp delivers 180W at 70V across 6 zones with separate volume controls
Couldn't load pickup availability

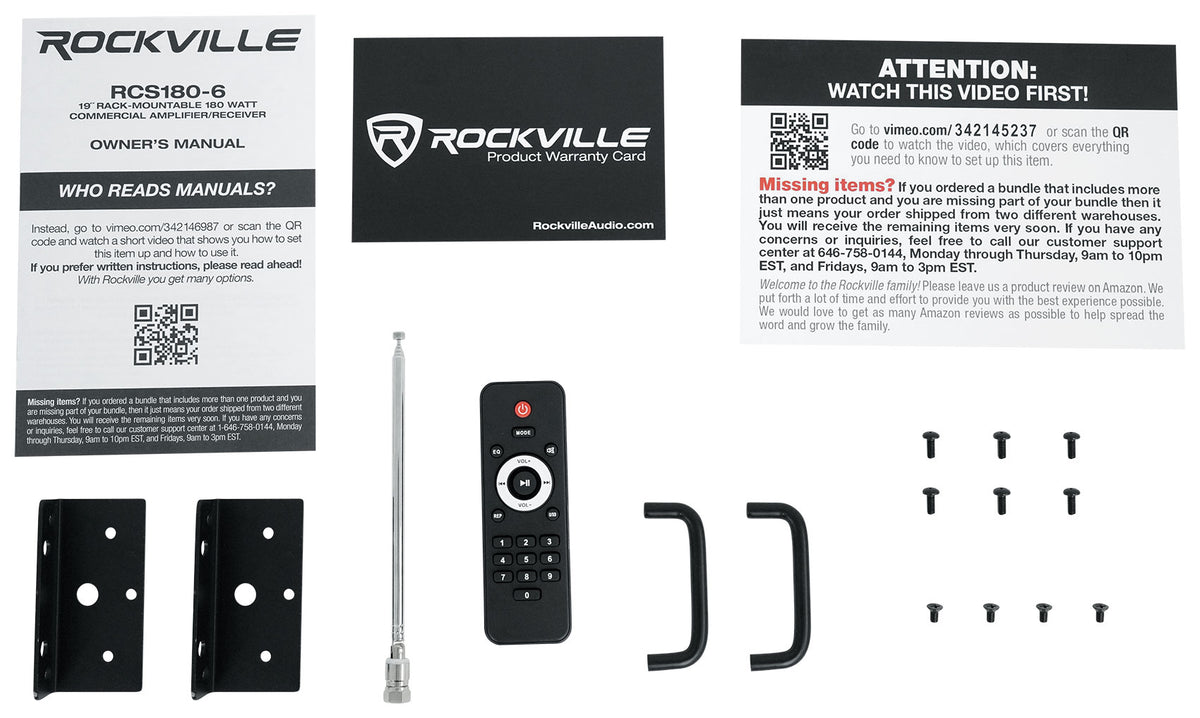

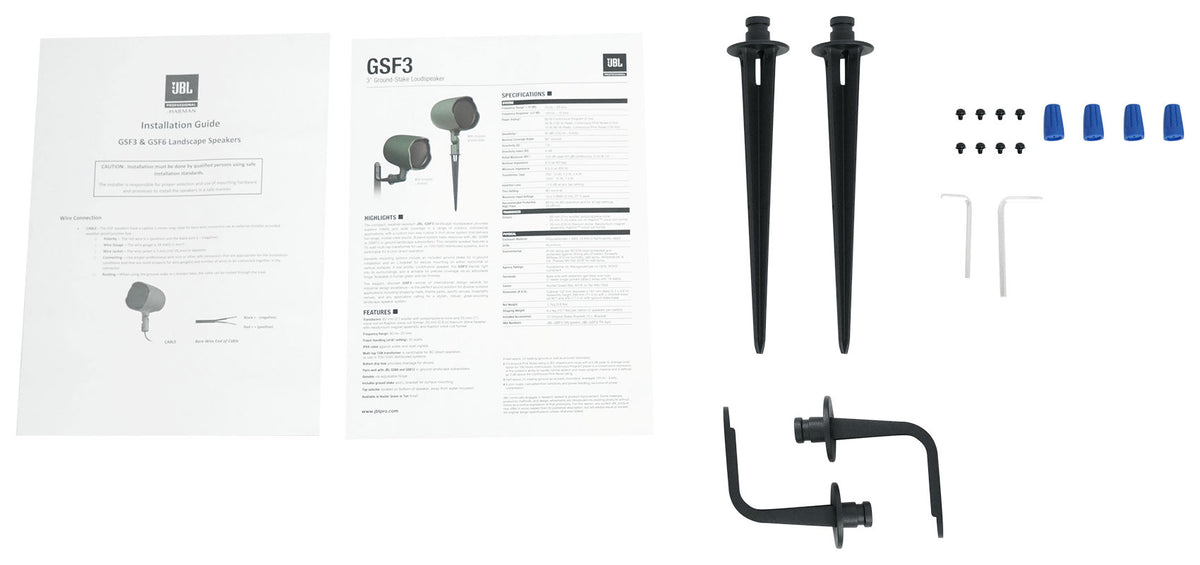

What's Included in the box
- (8) GSF3-TN 3" Landscape Speakers, Tan (4 Pairs)
- (8) Ground Stake Brackets
- (8) L-Brackets
- (1) RCS180-6 180W 6-Zone 70V Amplifier
- (1) Remote
- (1) Set of Rack Mount Ears
- (1) Power Cable
- (1) FM Radio Antenna
SKU: SKU: (4) JBL-GSF3-TN+RCS180-6
View full details














Product Description
Wiring stays simple. The built-in 15W multi-tap transformer runs each speaker on a 70V or 100V line, so all eight at the full 15W tap total 120W, inside the 150W ceiling recommended for this amplifier. The RCS180-6 splits 180W at 70V across six zones with their own volume knobs, so a bar patio and a quiet garden path can each run at the right level. Bluetooth, FM, USB, SD, optical, and RCA inputs handle music, while three mic inputs with echo control and a chime button cover announcements. It mounts in a standard 19" rack with removable ears, and detachable euro-block terminals make speaker connections quicker in tight spaces.
Features
Full Coverage Across Outdoor Spaces

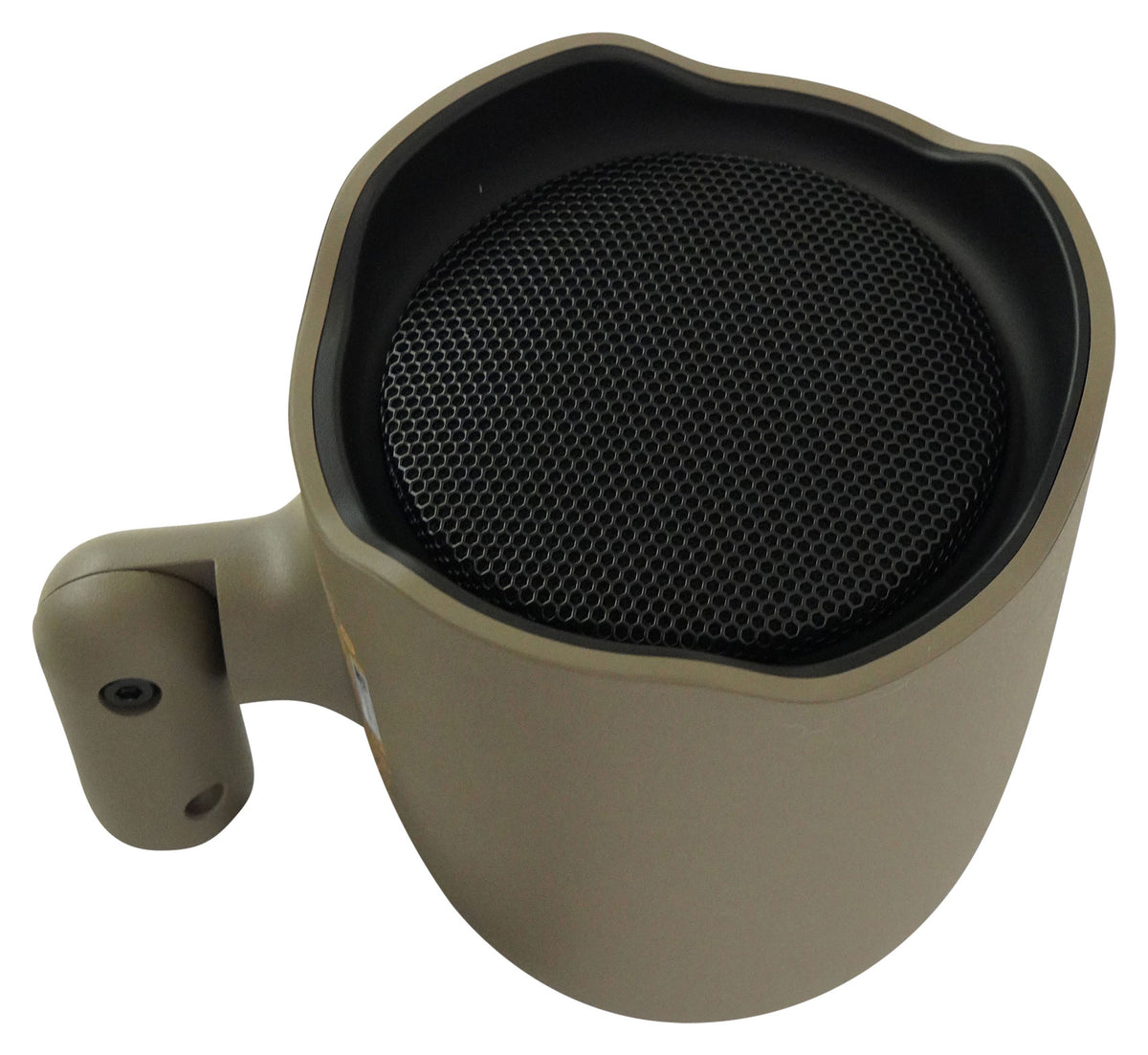

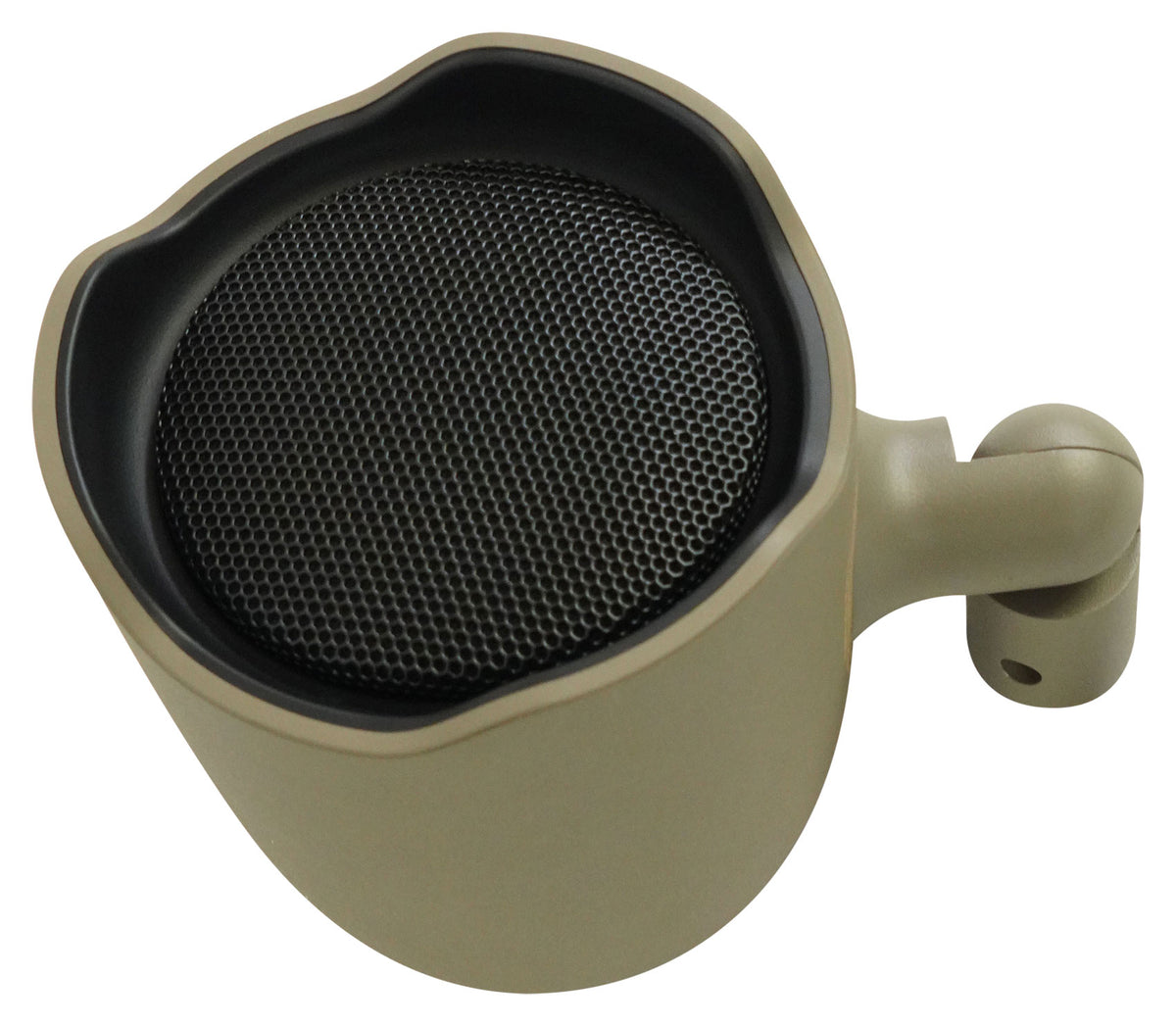

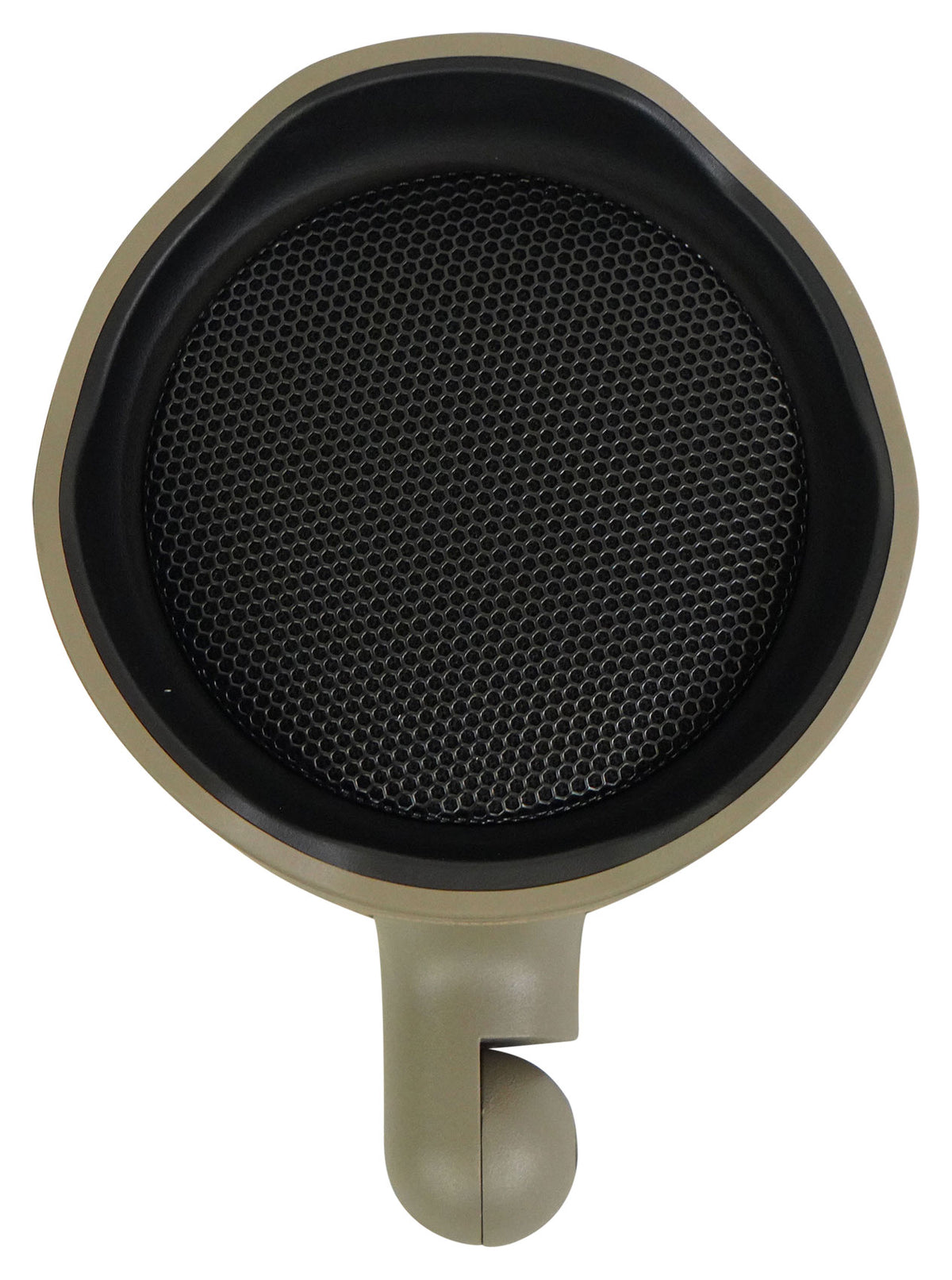

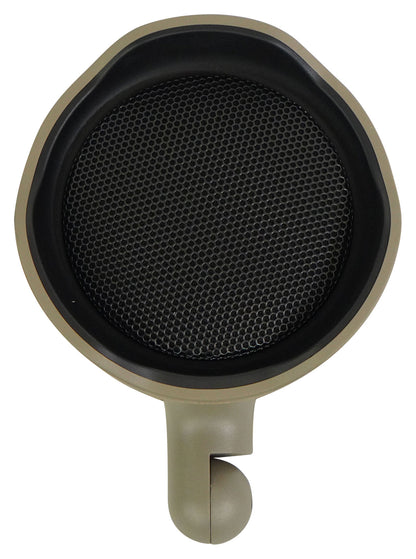

Eight two-way coaxial speakers with 3" woofers and titanium dome tweeters spread 74 Hz to 20 kHz sound across patios, gardens, and walkways with wide 90° coverage.
Built for Year-Round Weather

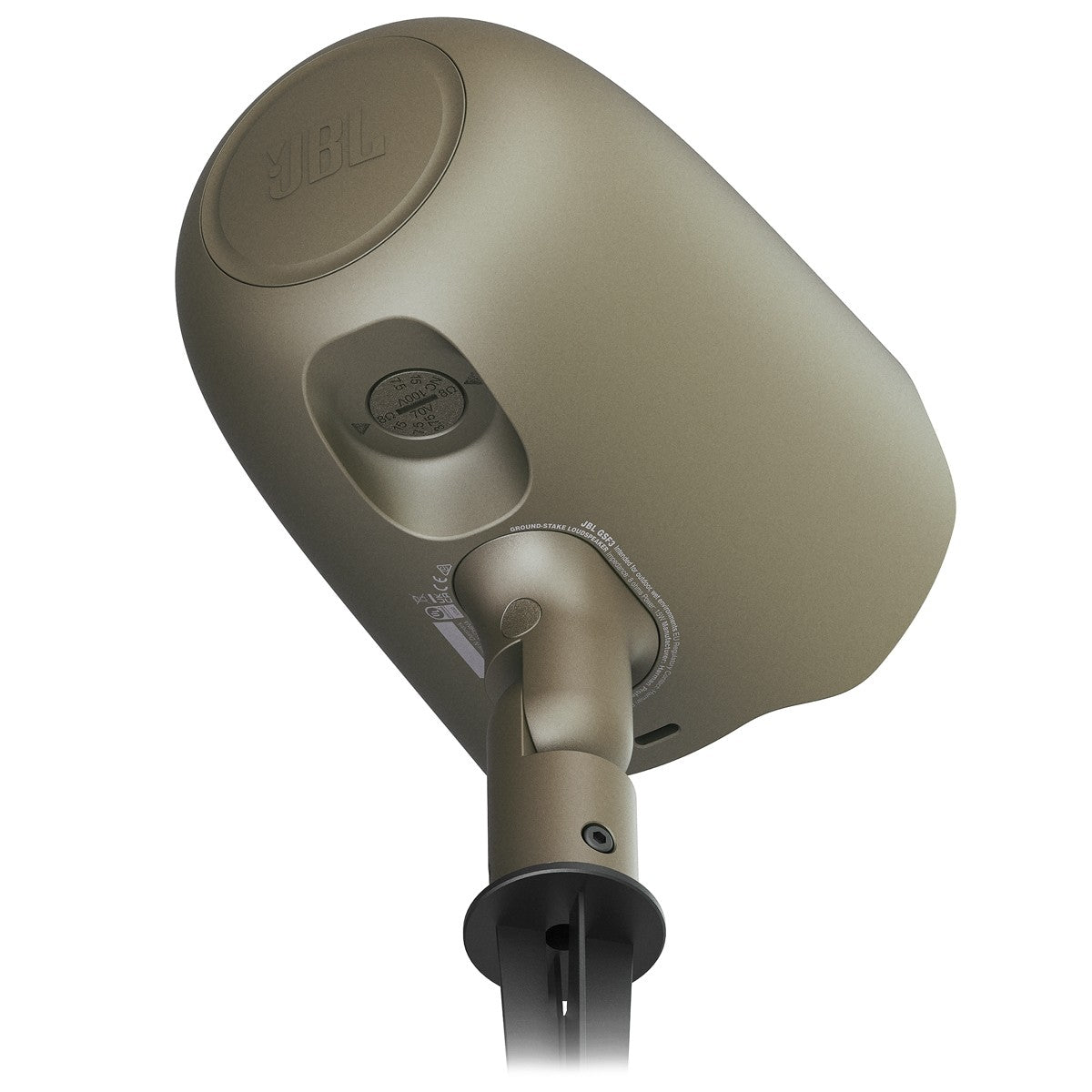

IP66 sealing against water and dust, a bottom drip hole, and an underside tap selector keep each speaker running through wet outdoor conditions season after season.
Flexible Mounting and Aiming

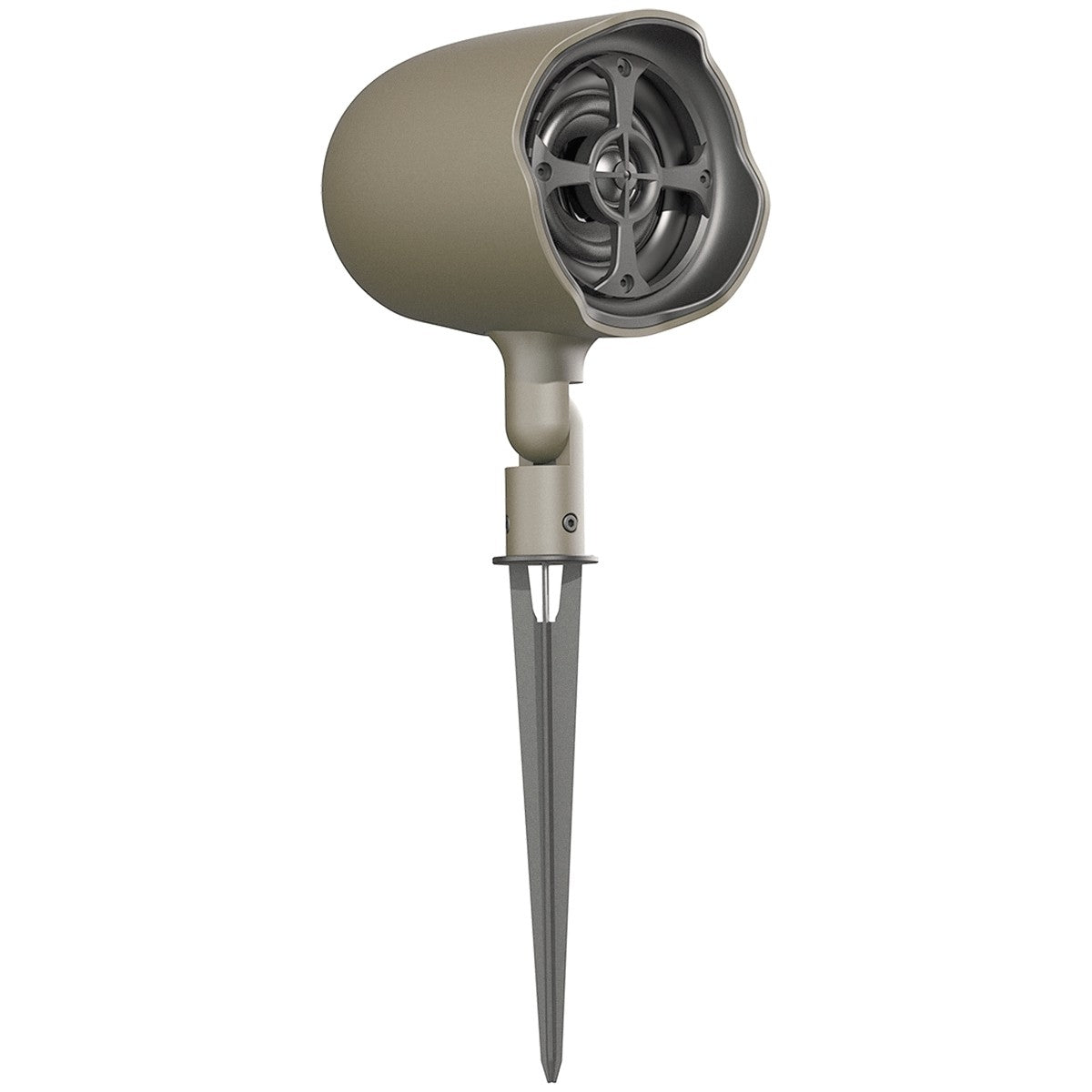

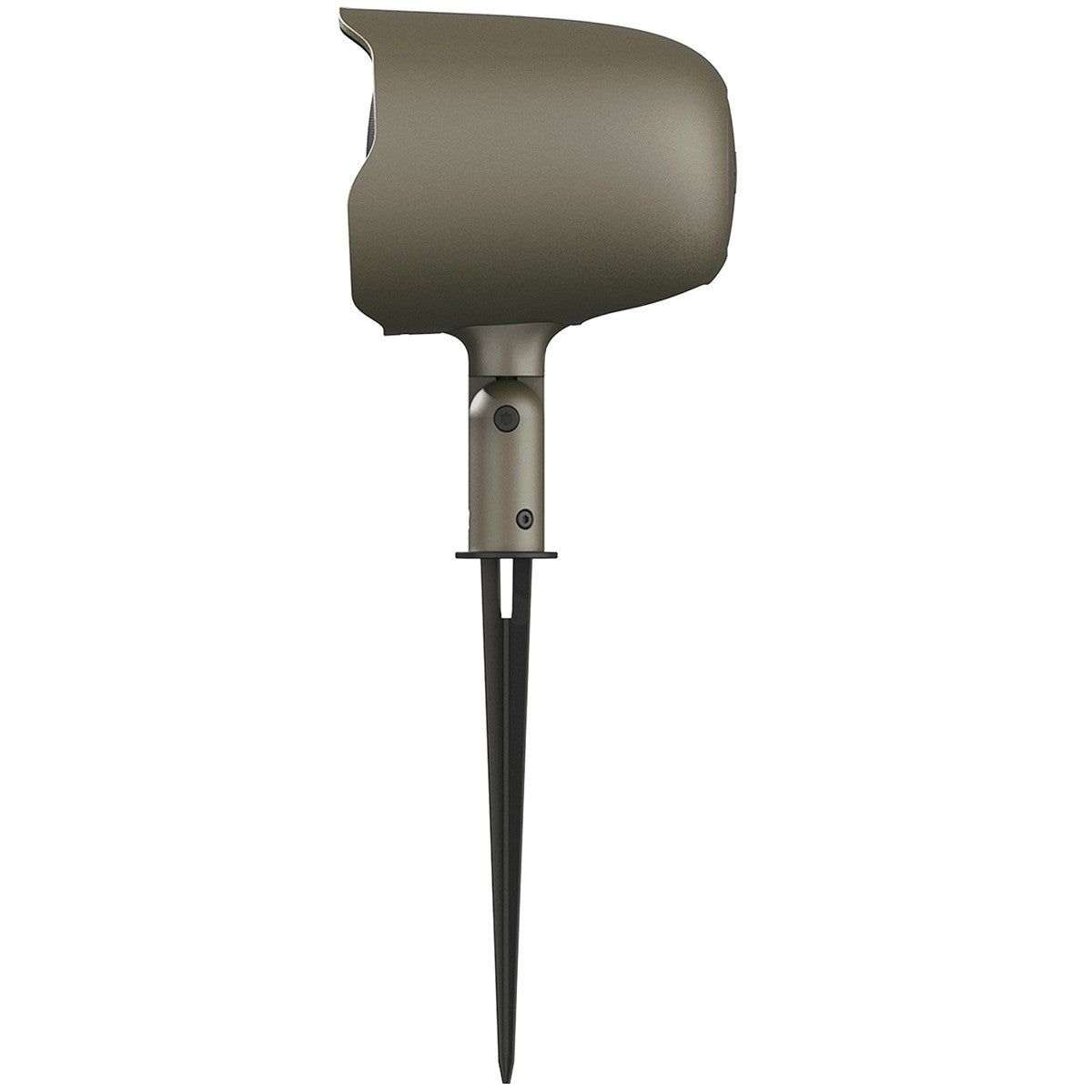

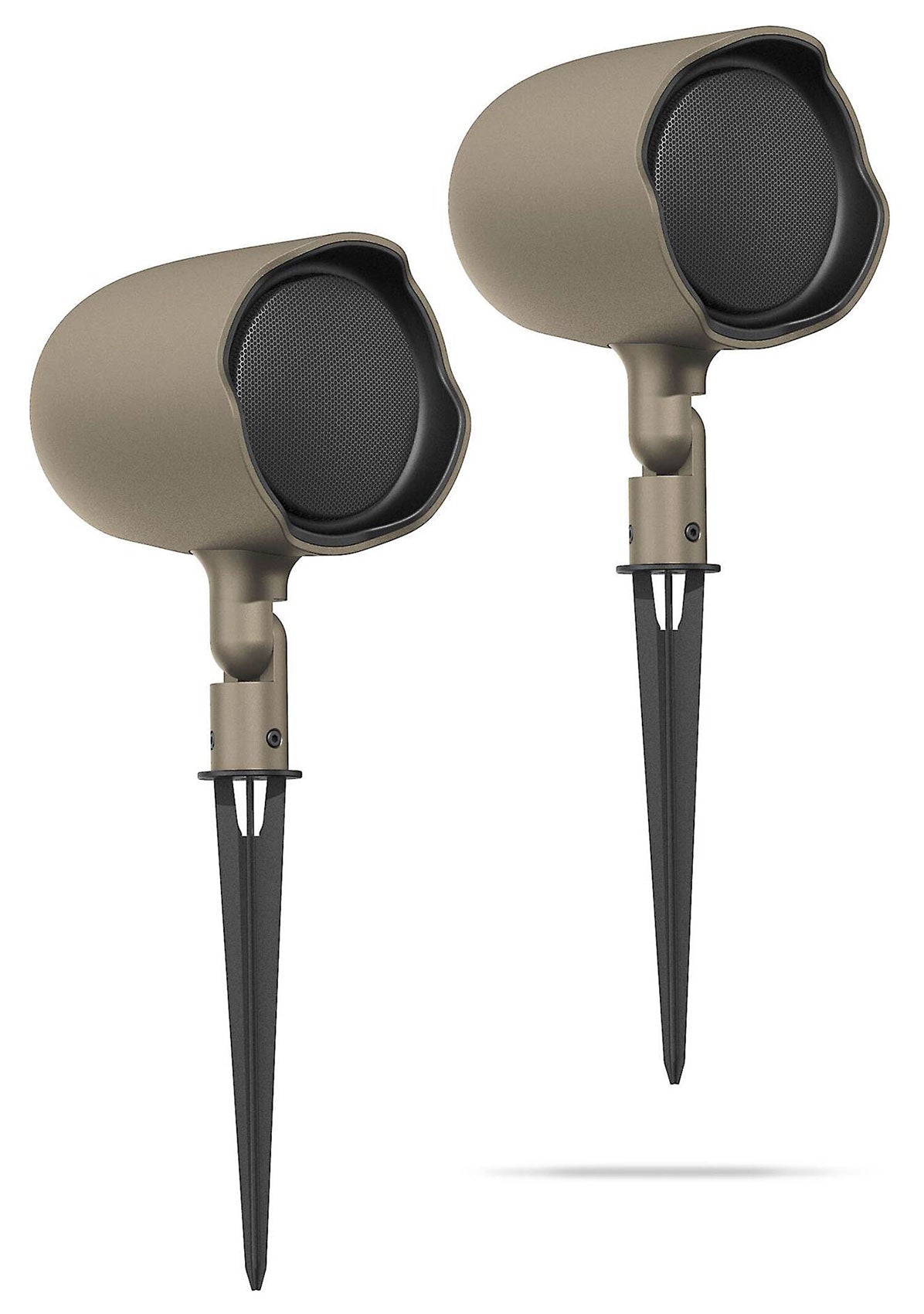

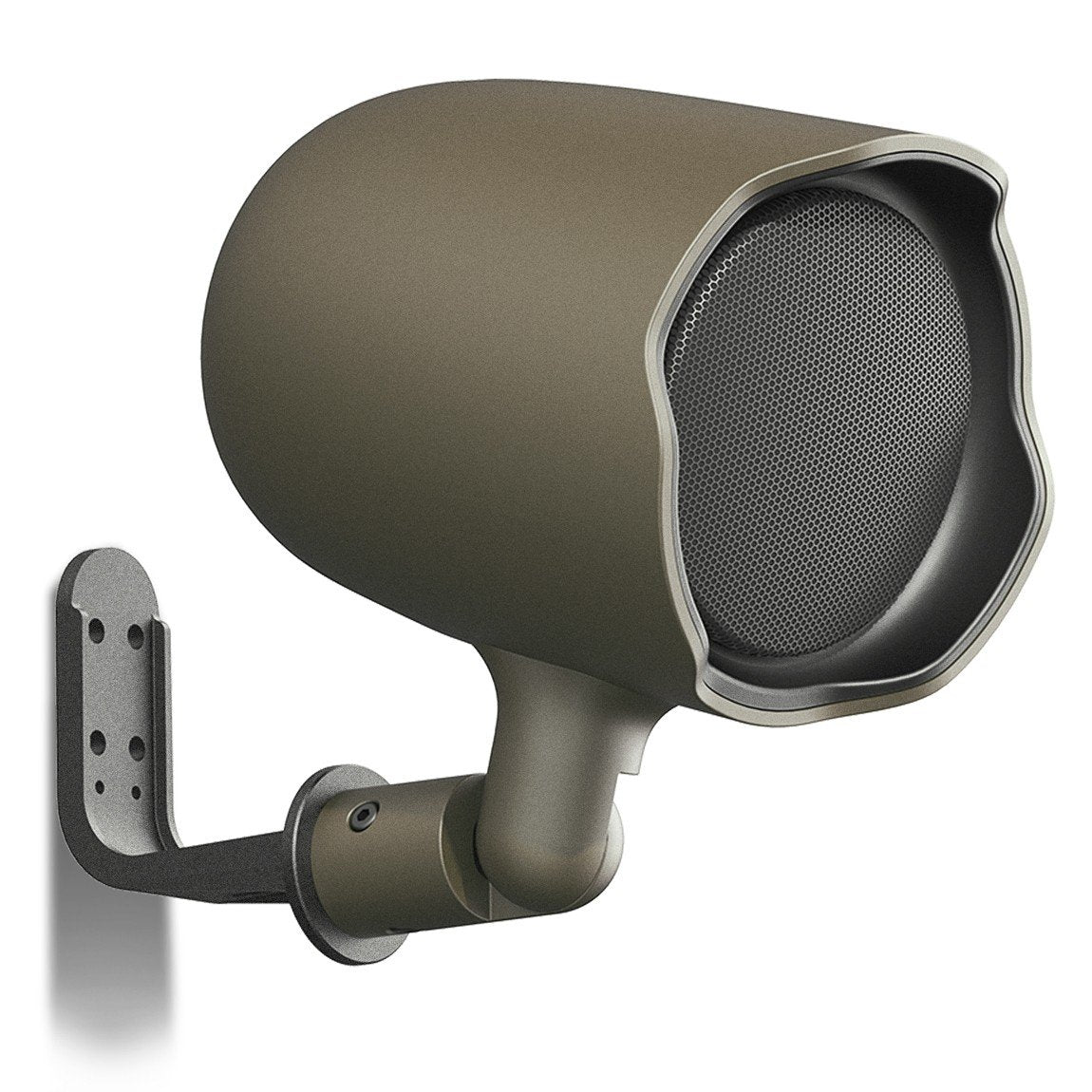

Each speaker includes a ground stake for lawns and planting beds plus an L-bracket for walls and decks, with an adjustable hinge to aim sound where you need it.
Six Independent Listening Zones
The RCS180-6 splits 180W at 70V across six zones with their own volume knobs, so a busy bar patio and a quiet garden path each play at the right level.
Music and Announcements in One Amp
Stream over Bluetooth or play from FM, USB, SD, or optical sources, then use three mic inputs with echo control and the chime button for clear paging.
Technical Specifications
- Product Type 70V Outdoor Landscape Speaker and Amplifier Package
- Speaker Model GSF3-TN
- Speaker Quantity 8 (4 Pairs)
- Speaker Type Two-Way Coaxial Landscape Speaker
- Woofer 3" (83 mm) Polypropylene Cone, 1" (25 mm) Voice Coil
- Tweeter 0.8" (20 mm) Titanium Dome, Neodymium Magnet
- Frequency Range (-10 dB) 74 Hz to 20 kHz
- Frequency Response (±3 dB) 120 Hz to 15 kHz
- Speaker Power Handling 60W Continuous Program, 30W Continuous Pink Noise (120W Peak)
- Sensitivity 84 dB
- Maximum SPL 103 dB Peak, 95 dB Continuous @ 1m
- Coverage Pattern 90° Conical
- Directivity Index 9 dB (Q 7.9)
- Nominal Impedance 8 Ohm (at 8 Ohm Tap)
- Transformer Taps 70V: 15W, 7.5W, 3.75W; 100V: 15W, 7.5W
- Weather Rating IP66
- Enclosure Material Polycarbonate + ABS, UL94V-0 Rated
- Speaker Color Tan (RAL 7004)

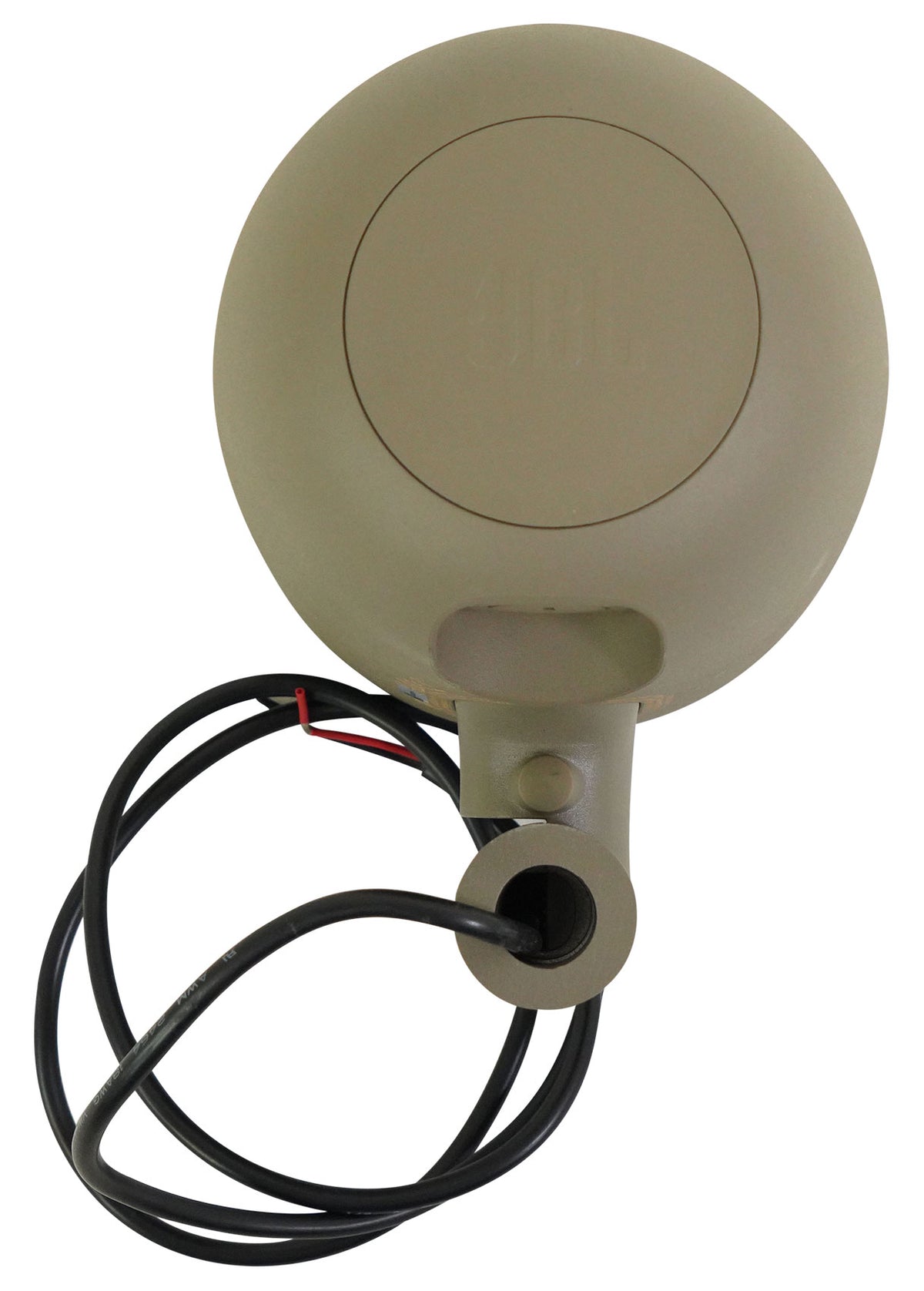

- Speaker Terminals Bare Wire with Gel-Filled Wire Nuts, 1 m 18 AWG Cable
- Speaker Mounting Ground Stake or L-Bracket, Adjustable Hinge
- Amplifier Model RCS180-6
- Amplifier Power 180W at 70V (184W RMS at 70V/100V)
- Amplifier Operation 70V, 100V, 8 Ohm, 4 Ohm
- Amplifier Zones 6, Individual Volume Controls, 100W Max per Zone
- Amplifier Inputs Bluetooth, FM Tuner, USB (32GB Max), SD Card (32GB Max), Optical, RCA Aux, (3) Mic

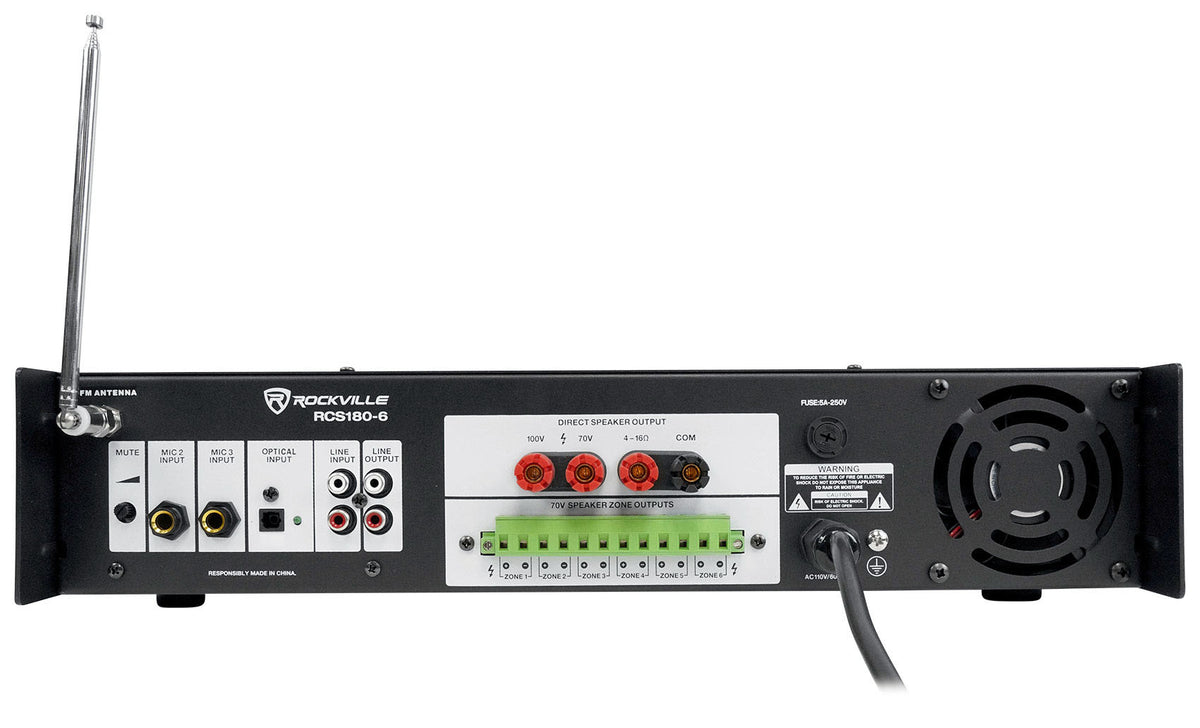

- Amplifier Outputs 6-Zone Euro-Block Terminals, 70V/100V Binding Posts, 4-16 Ohm Binding Posts, RCA Line Out
- Amplifier Controls Bass, Treble, Mic Echo, Chime Button
- Amplifier Mounting 19" Rack Mountable, Removable Rack Ears
- Speaker Weight 3.8 lb (1.7 kg) Each
- Speaker Dimensions 5.2" Dia. x 6.6" D (Cabinet)
