4 Pairs JBL-SLP14/T-WH On-Wall Speakers + RCS350-6 Amplifier
4 Pairs JBL-SLP14/T-WH On-Wall Speakers + RCS350-6 Amplifier
8 White 4" 70V On-Wall Speakers, 6-Zone Bluetooth Amp, Restaurants, Retail
Features

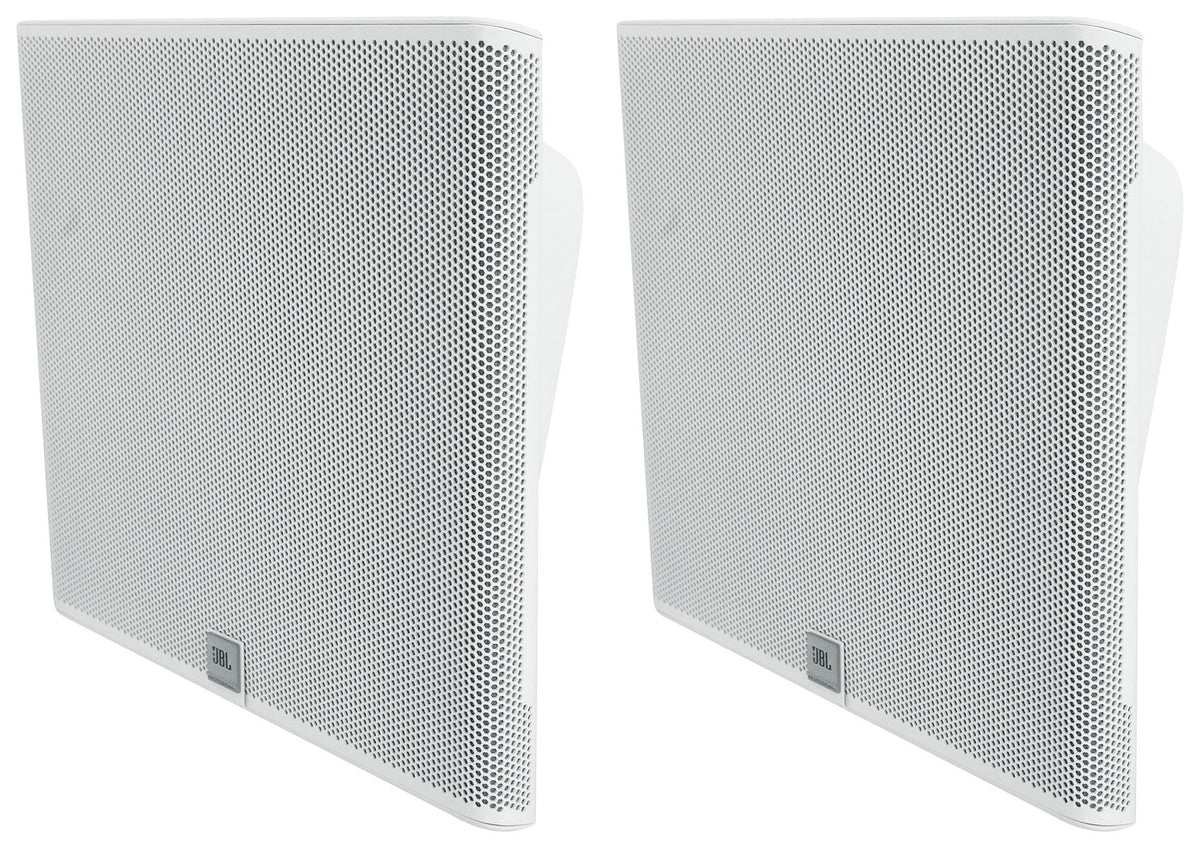

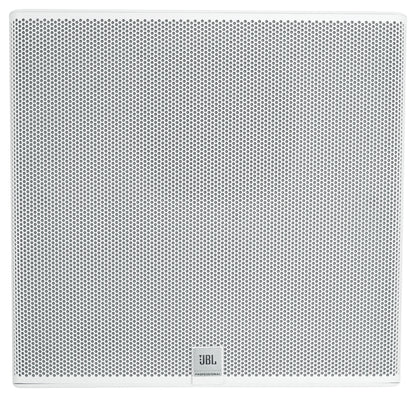

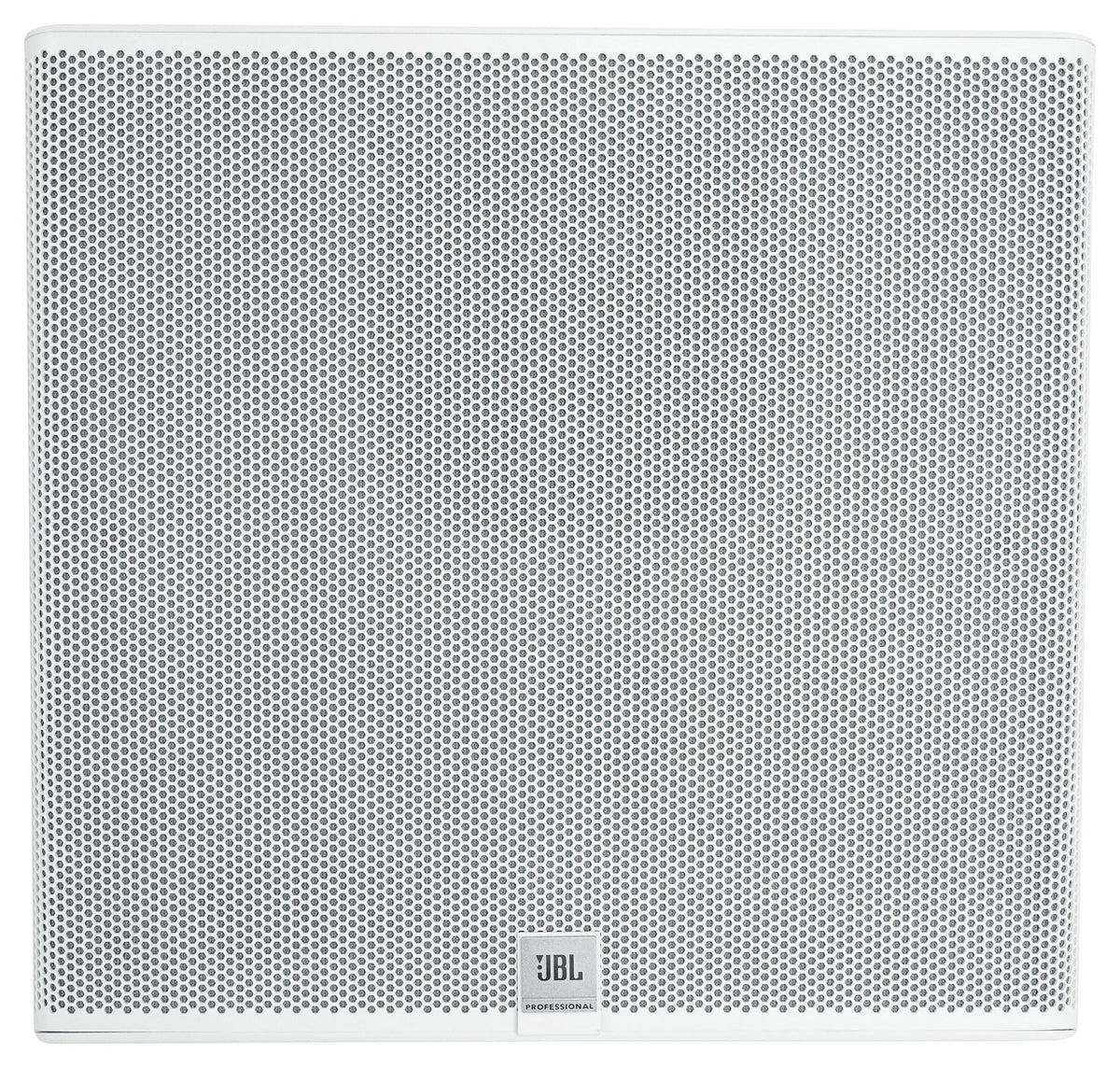

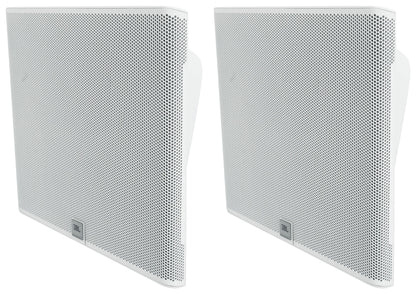

- Eight SLP14/T-WH two-way on-wall speakers with coaxial 4" woofers
- 25W multi-tap transformer for 70V/100V systems, switchable to 8-ohm
- 15° down-tilted coverage lets each speaker mount flush against the wall
- Includes a 350W RCS350-6 six-zone amplifier with Bluetooth and 3 mic inputs
- ADA-compliant enclosure under 4" deep with slide-in bracket and rain cover
Couldn't load pickup availability

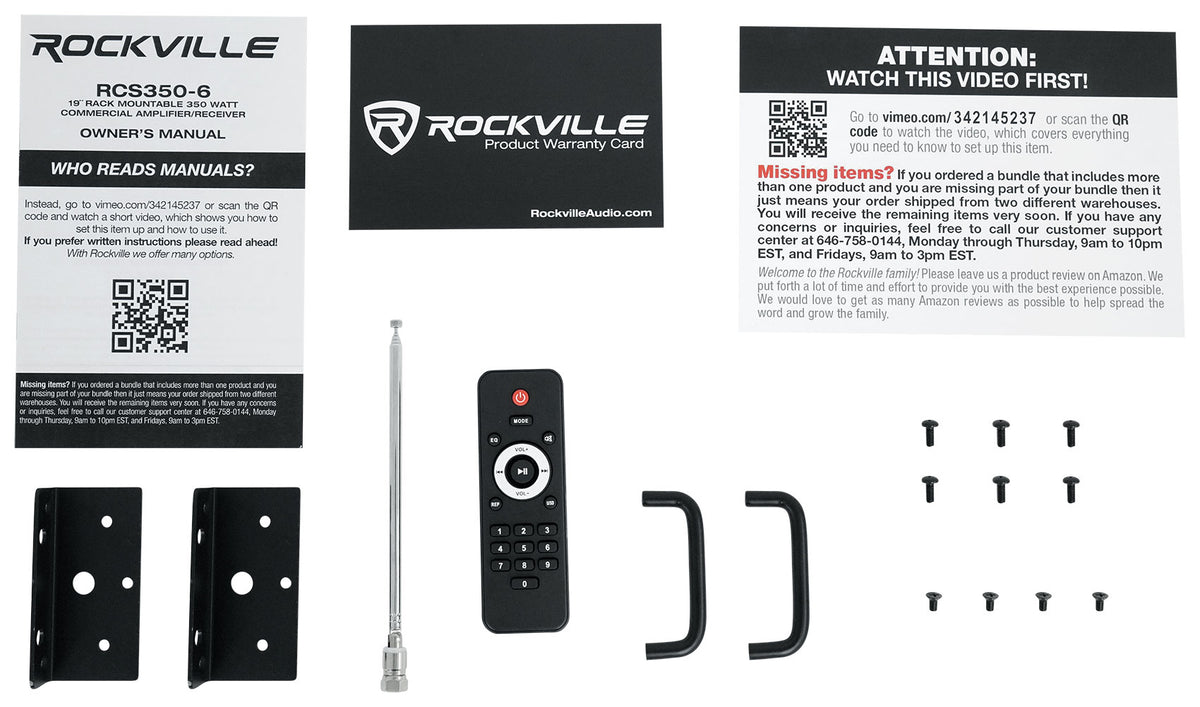

What's Included in the box

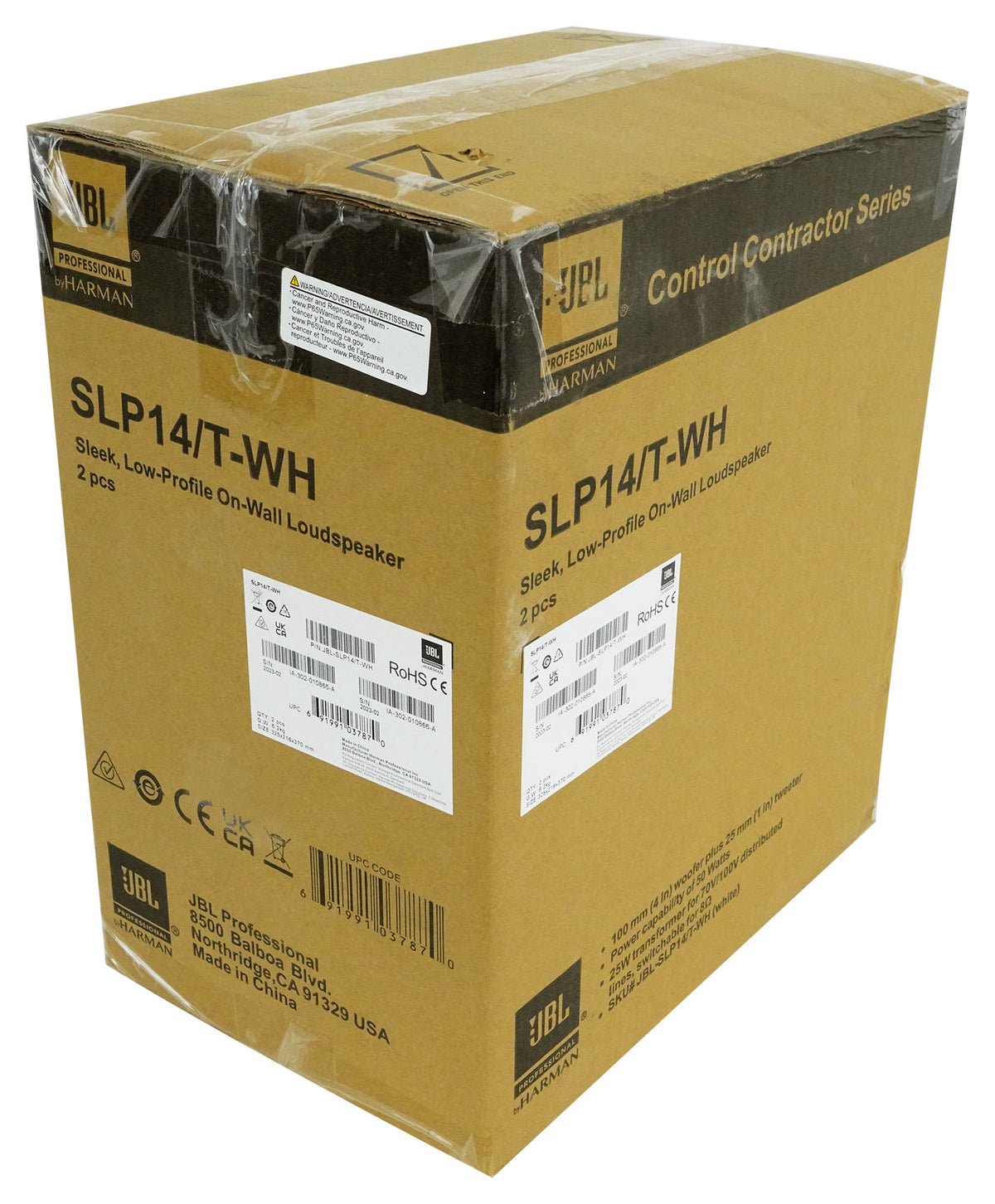

- (8) JBL SLP14/T-WH On-Wall Speakers (4 Pairs)
- (8) Slide-On Wall-Mount Brackets
- (8) 4-Pin Euroblock Plugs
- (8) Protective Terminal Covers
- (1) Rockville RCS350-6 6-Zone Amplifier

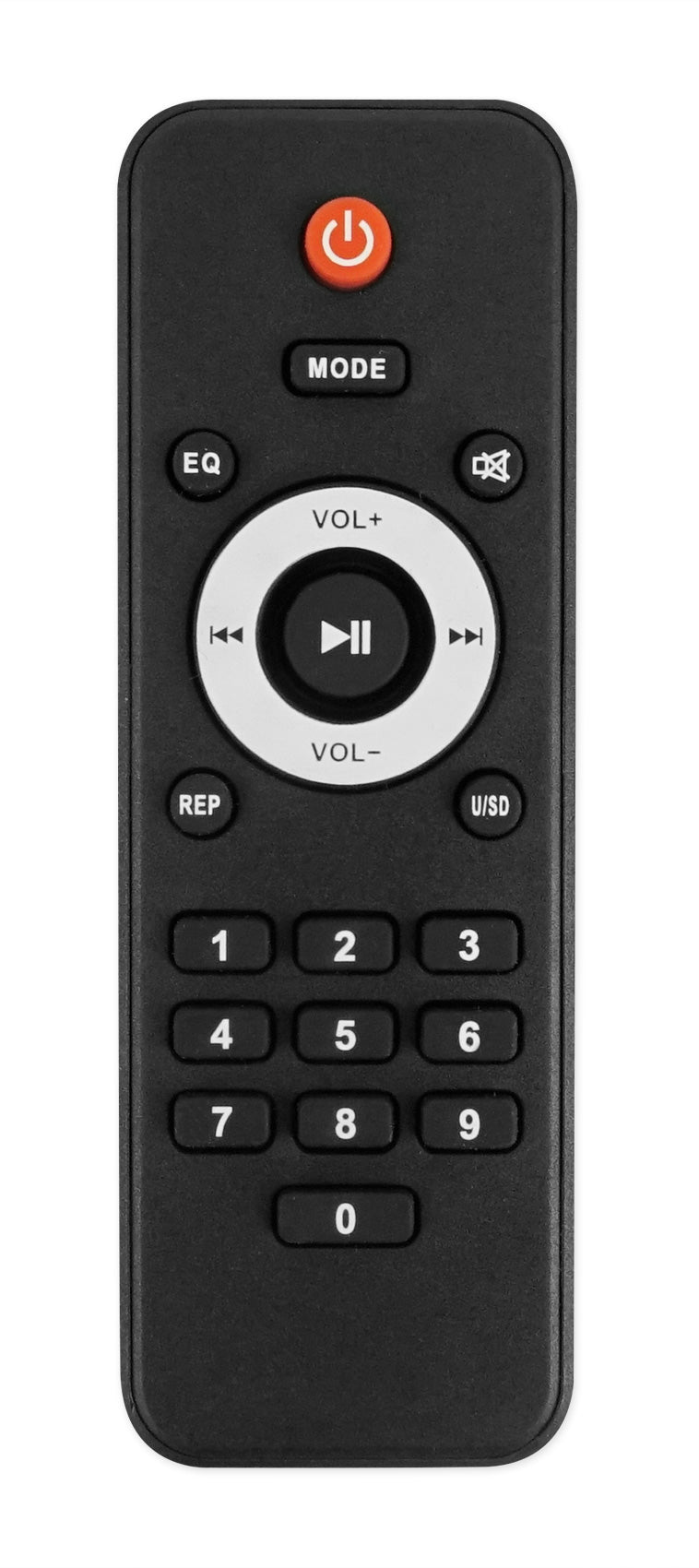

- (1) Remote
- (1) Set of Rack Mount Ears
- (1) Power Cable
- (1) FM Radio Antenna
SKU: SKU: (4) JBL-SLP14/T-WH+RCS350-6
View full details


















Product Description

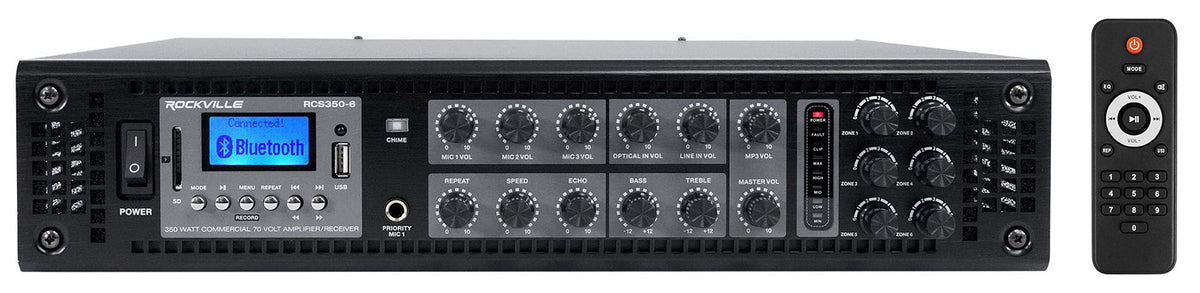

Powering all eight is the Rockville RCS350-6, the 70V amplifier this system needs anyway. It delivers 350W at 70V or 100V across six zones, each with its own volume knob, so the patio, bar, and dining room can run at different levels. Tap every speaker at 25W and the total lands at 200W, comfortably under the recommended 300W limit, with headroom to add speakers later. Three mic inputs with echo control and a chime button handle announcements, while Bluetooth, USB, SD, FM radio, optical, and two line inputs cover the music side. Detachable euro-block terminals and a built-in clipping limiter make the setup friendly for a DIY install without hiring a contractor.
Features

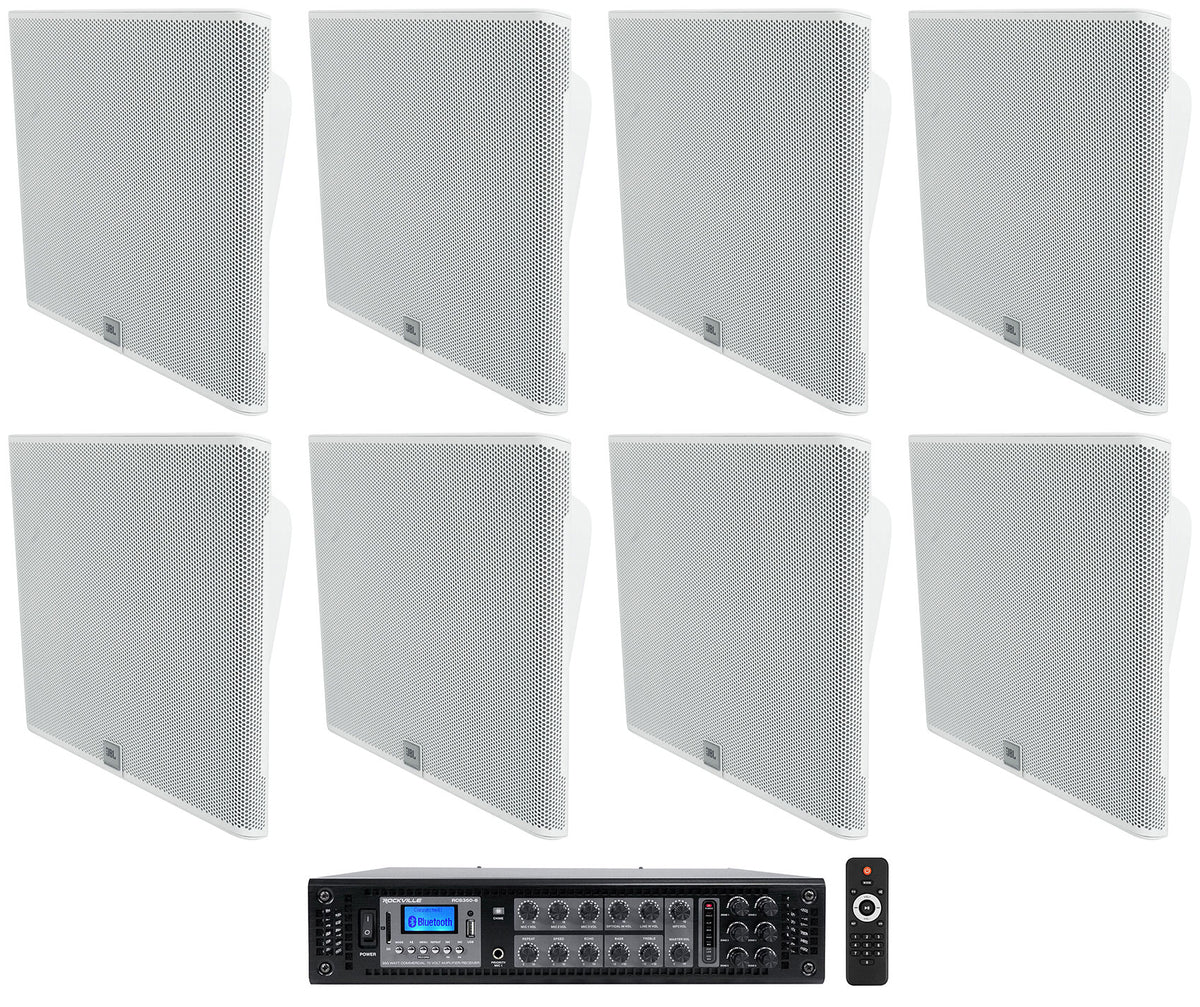

Complete 70V System in One Order
Eight on-wall speakers and a 350W six-zone amplifier arrive together, so you can wire a restaurant, shop, or hotel lobby without sourcing parts separately.

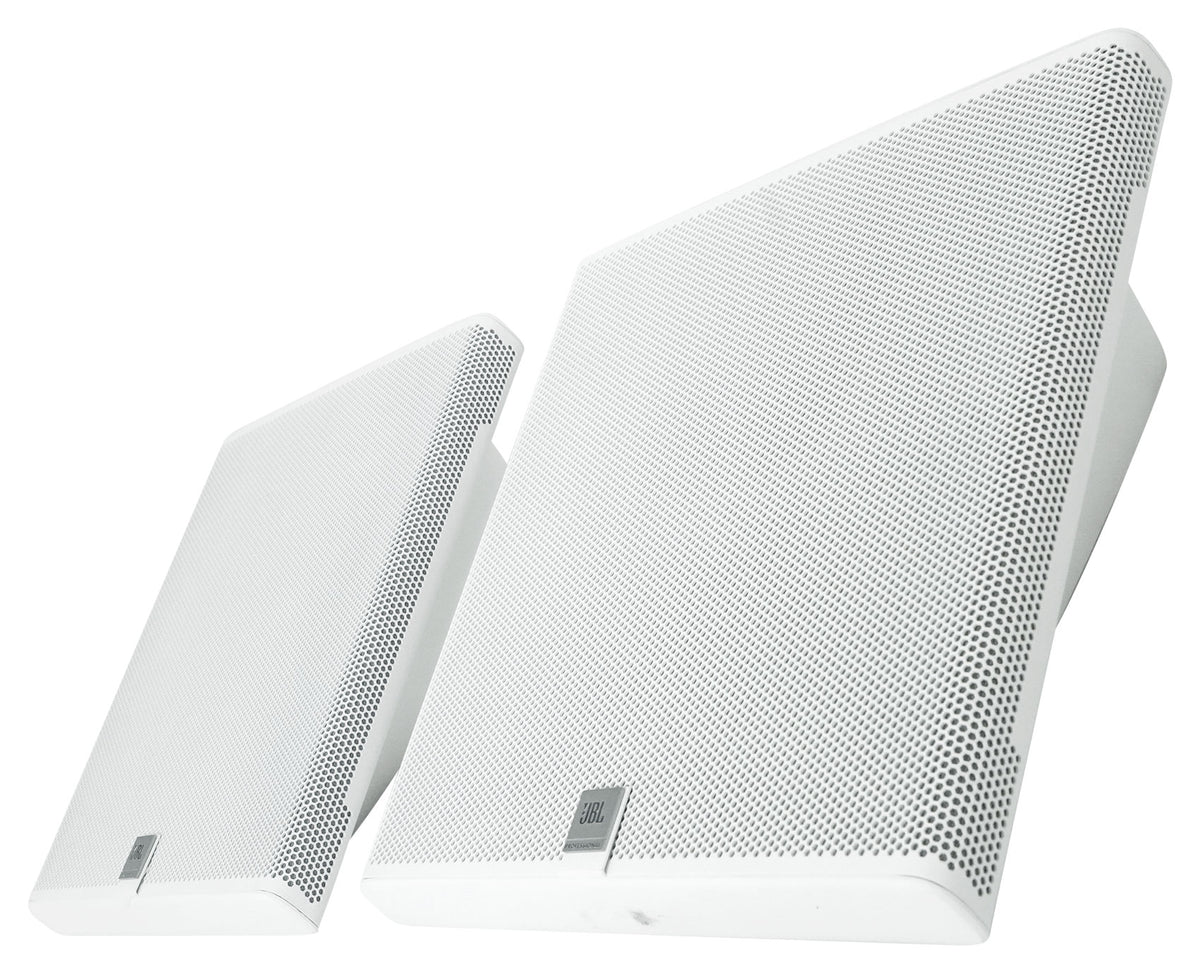

Discreet Look, Full-Room Sound

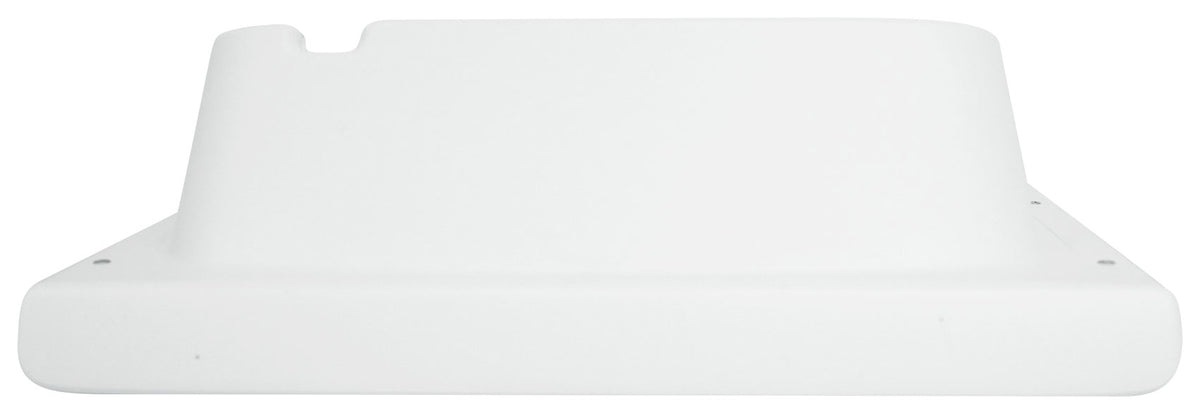

Each speaker sits under 4" deep and uses a coaxial 4" woofer and dome tweeter with 140° x 120° coverage for clear music and voice.
Flush Mounting That Aims Sound Down

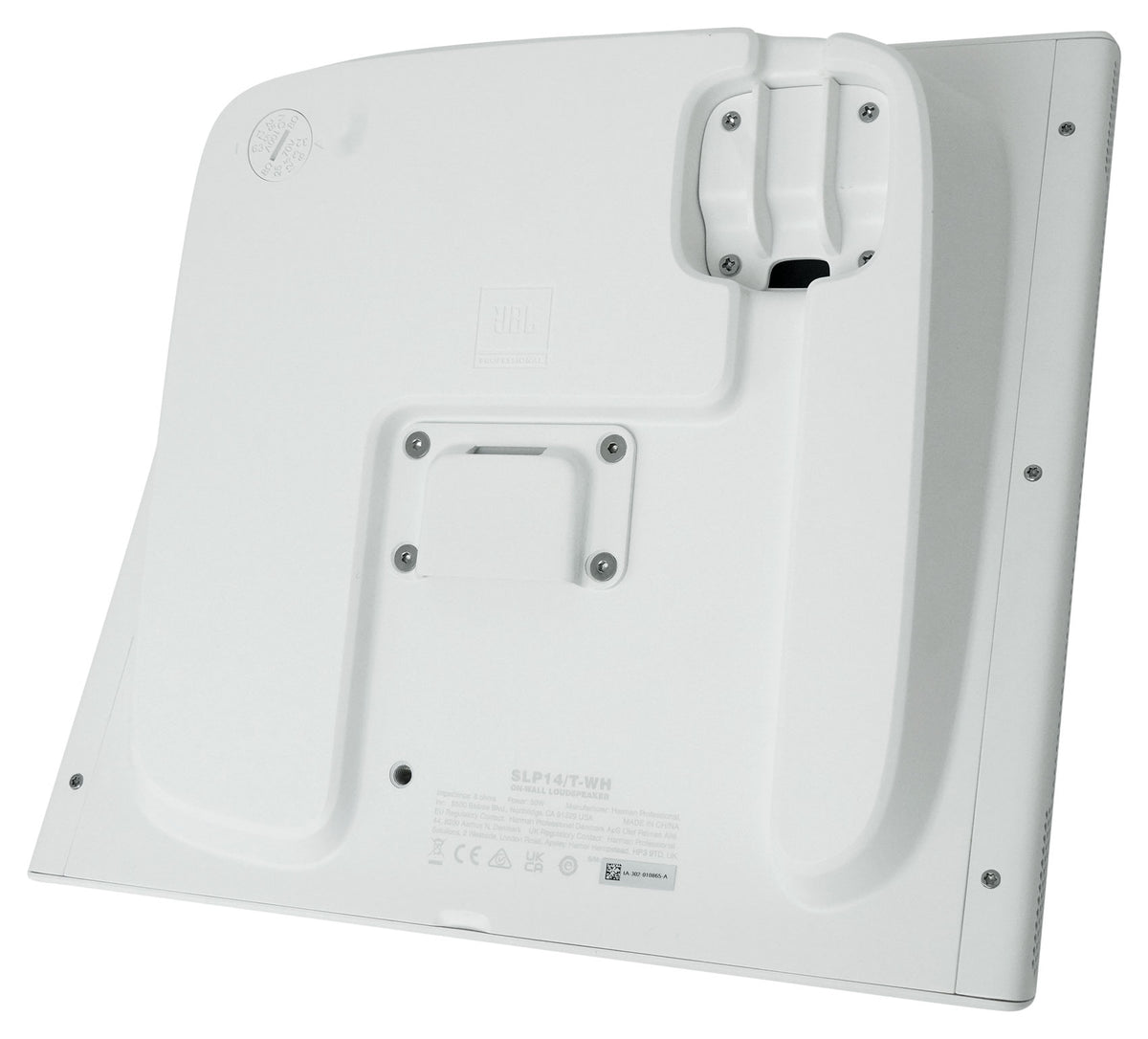

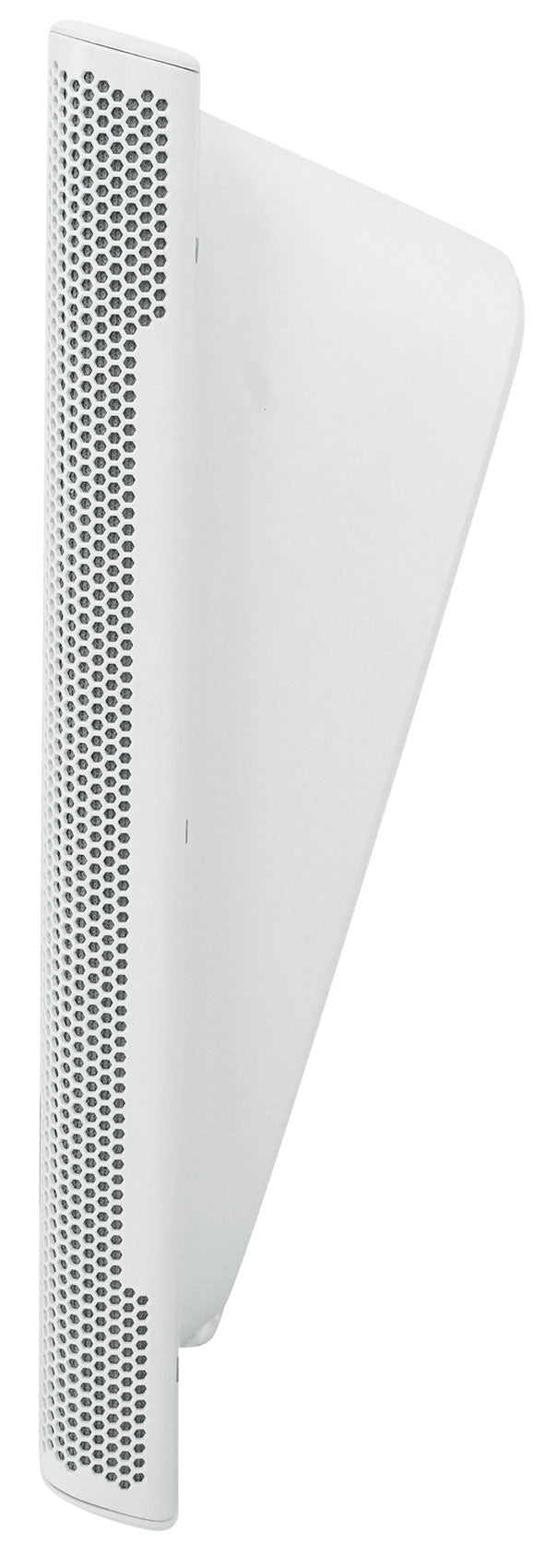

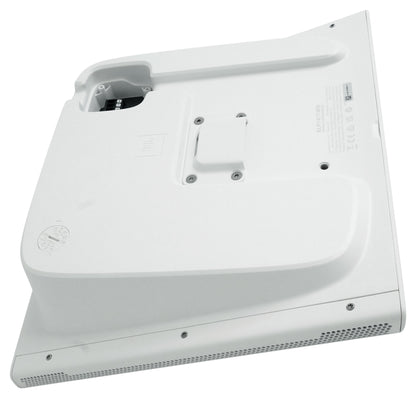

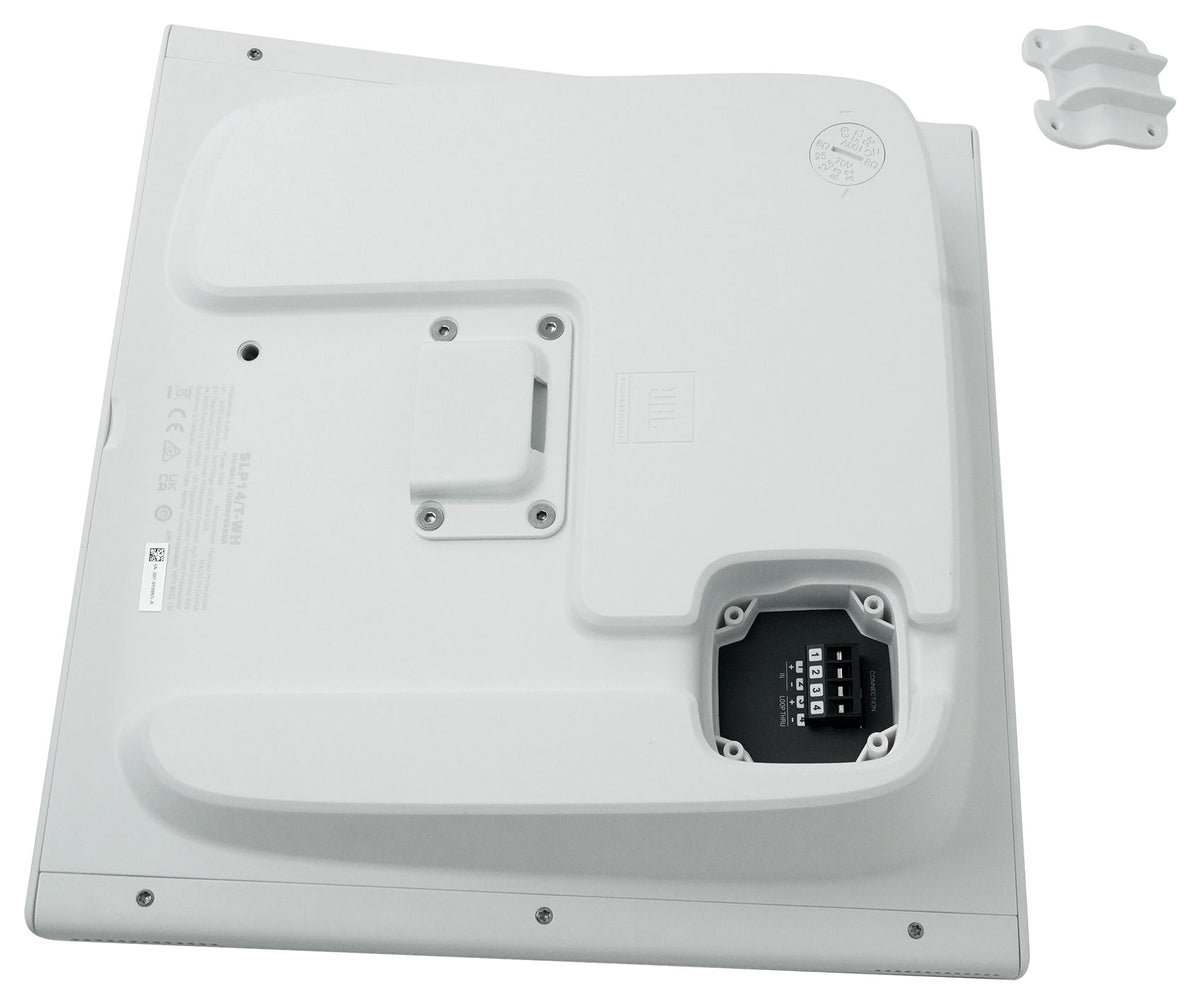

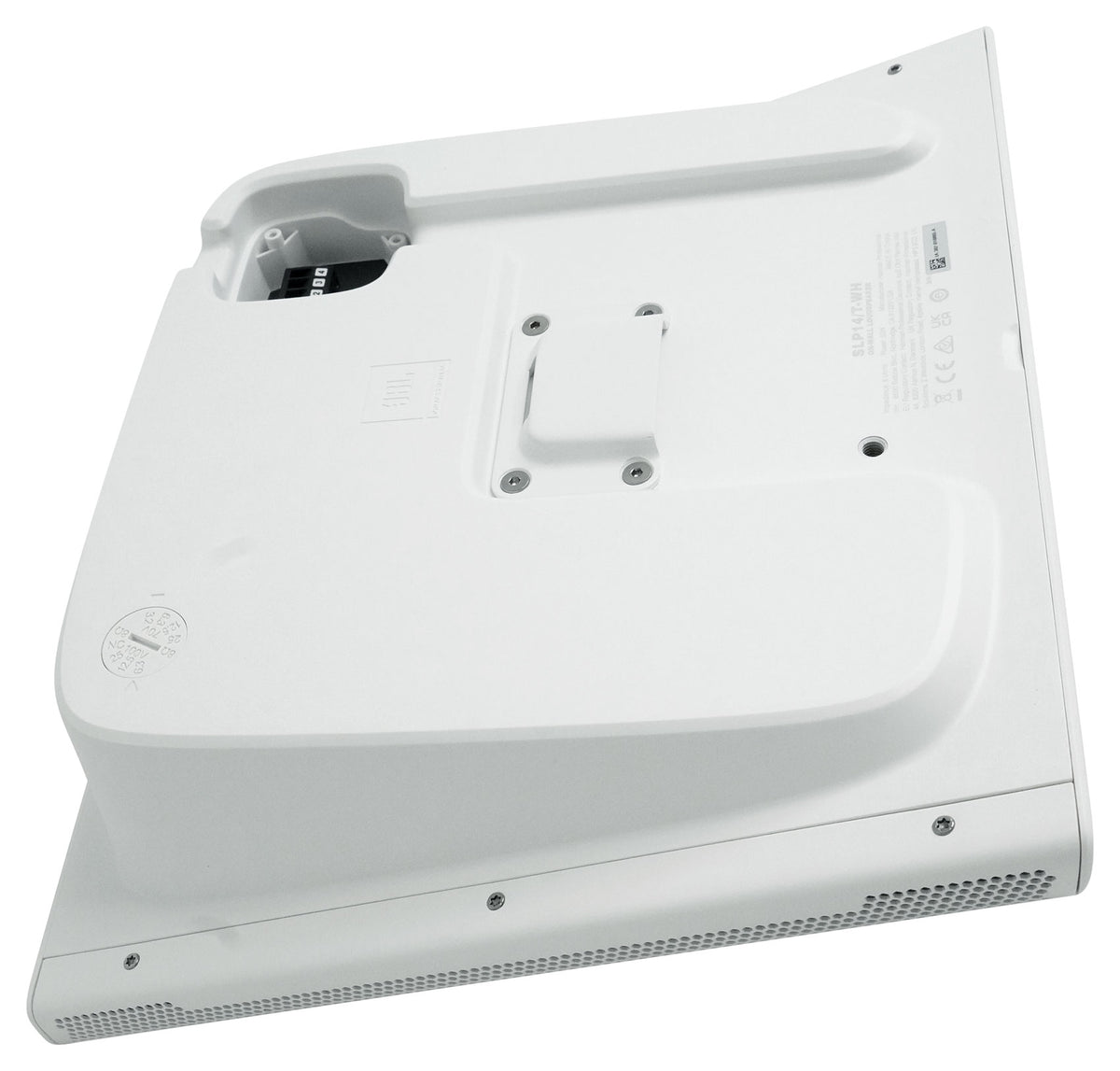

A 15° down-tilt points audio toward listeners while the speaker sits flat on the wall, and the slide-in bracket keeps installation quick on every unit.

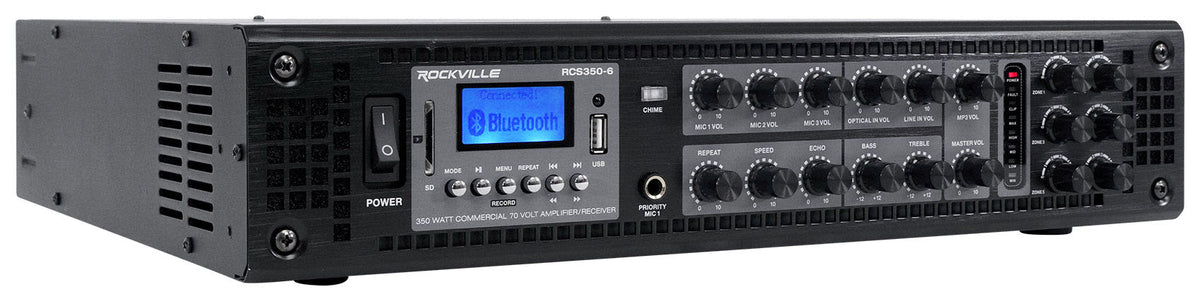

Six Zones, Six Volume Controls
The RCS350-6 splits 350W across six zones with separate volume knobs, so the patio, bar, and dining room each get the level they need.

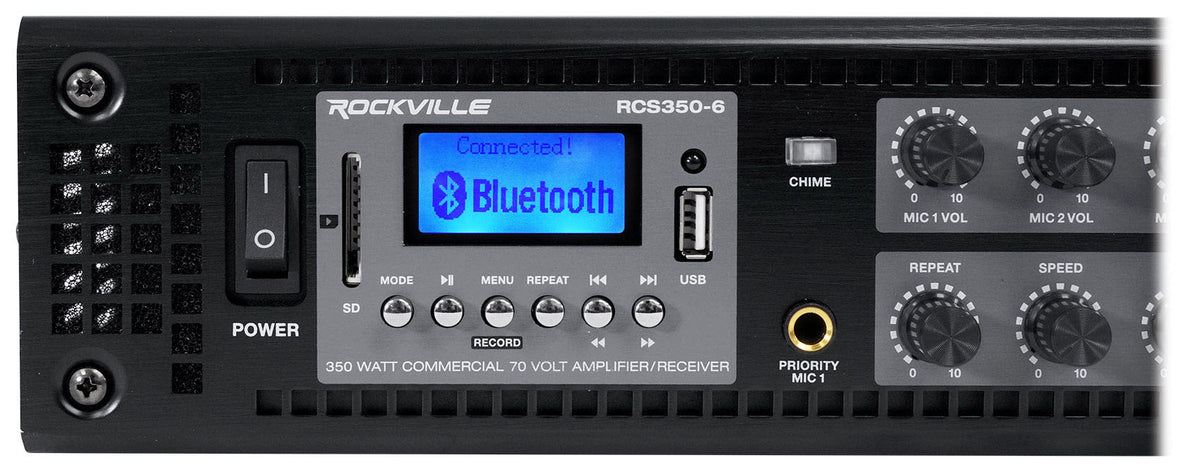

Music and Announcements Built In
Stream over Bluetooth, play from USB or SD, or tune FM radio, then use three mic inputs with echo control and a chime button for announcements.
Technical Specifications
- Product Type 70V Commercial On-Wall Speaker and Amplifier System
- Speaker Model JBL SLP14/T-WH
- Speaker Quantity 8 (4 Pairs)
- Speaker Design Two-Way Coaxial On-Wall
- Woofer 4" Polypropylene Cone
- Speaker Power Handling 50W Continuous Pink Noise, 100W Continuous Program

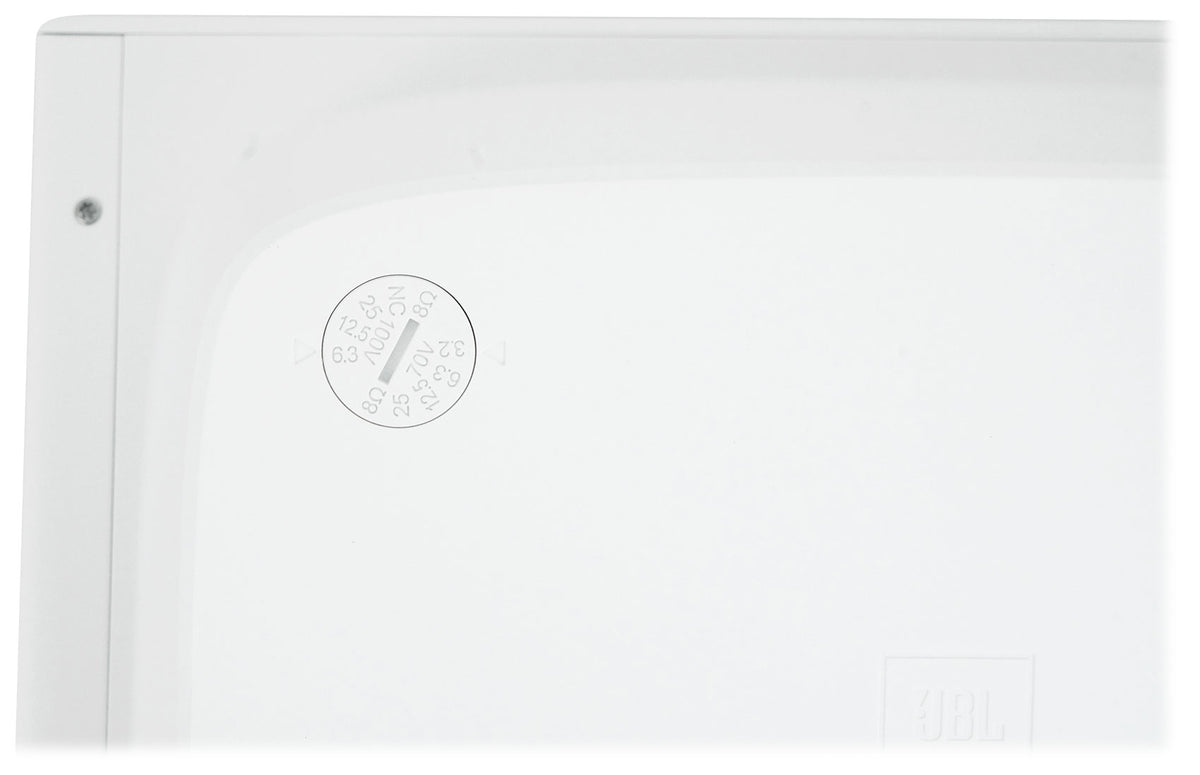

- Transformer Taps 70V: 25W, 12.5W, 6.3W, 3.2W; 100V: 25W, 12.5W, 6.3W
- Nominal Impedance 8 Ohm (8-Ohm Tap Setting)
- Frequency Range (-10 dB) 70 Hz to 20 kHz
- Frequency Response (+/-3 dB) 80 Hz to 18 kHz
- Sensitivity 85 dB
- Maximum SPL 108 dB Peak, 102 dB Continuous @ 1m
- Coverage Angle 140° H x 120° V

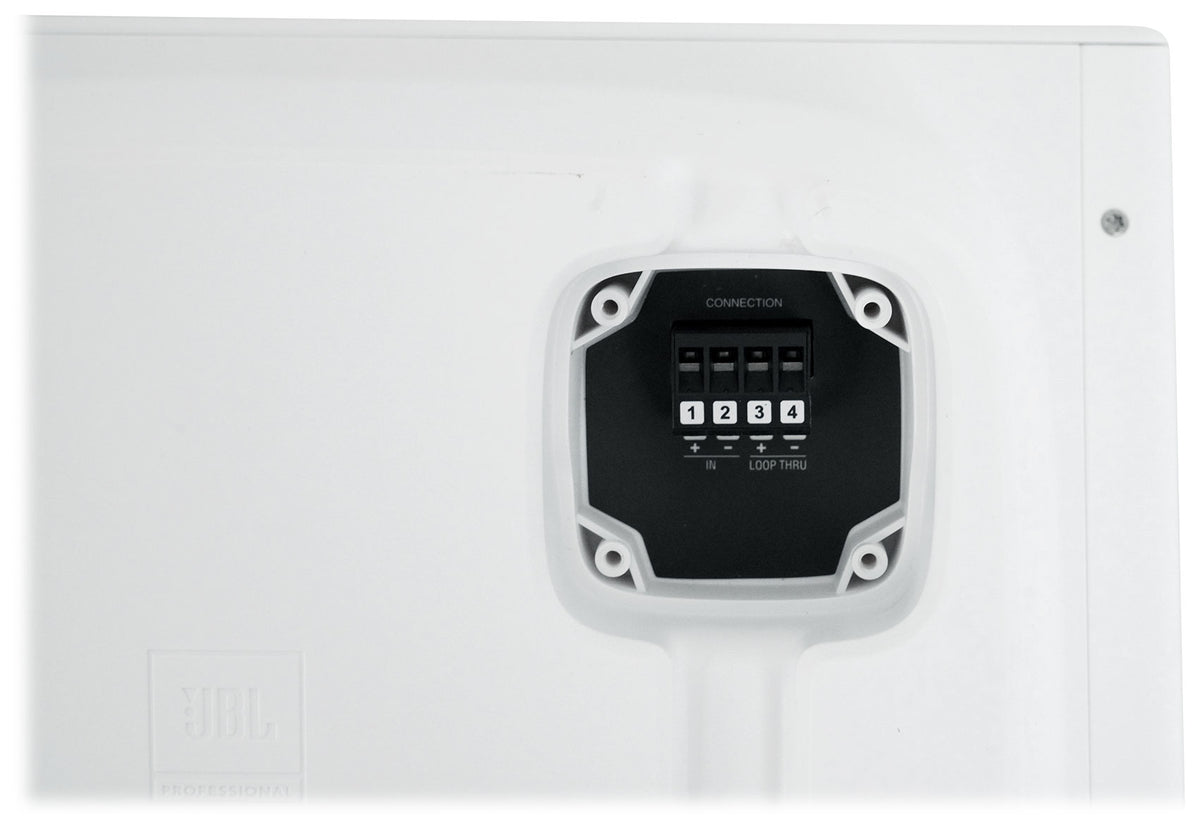

- Speaker Terminals 4-Pin Euroblock, 24 to 14 AWG
- Enclosure Material Polycarbonate + ABS, UL94V-0 Flammability Rated
- Color White, Paintable
- Amplifier Model Rockville RCS350-6
- Amplifier Power 350W RMS at 70V/100V

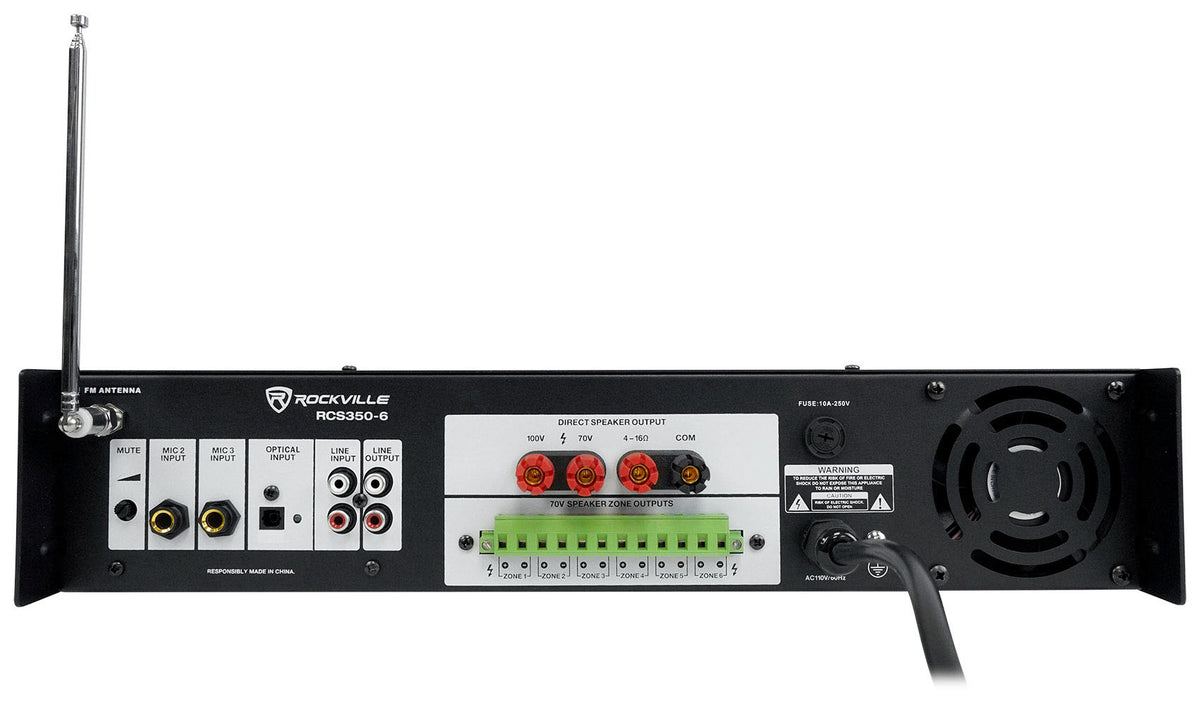

- Amplifier Output Modes 70V, 100V, 8 Ohm, 4 Ohm
- Zones 6, Individual Volume Control
- Amplifier Inputs 3 Mic, 2 Line, Optical, Bluetooth, USB, SD Card, FM Tuner
- USB/SD Capacity 32GB Max
- Amplifier Line Output RCA
- Rack Mount 19" Removable Rack Ears
- Speaker Weight (Each) 6.2 lb (2.8 kg)
- Speaker Dimensions (Each) 11.3" W x 10.4" H x 3.9" D
