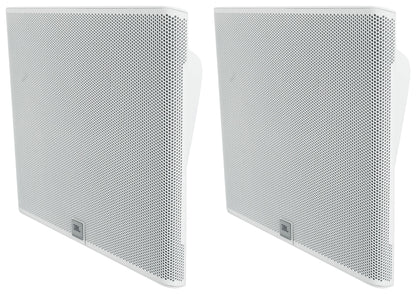

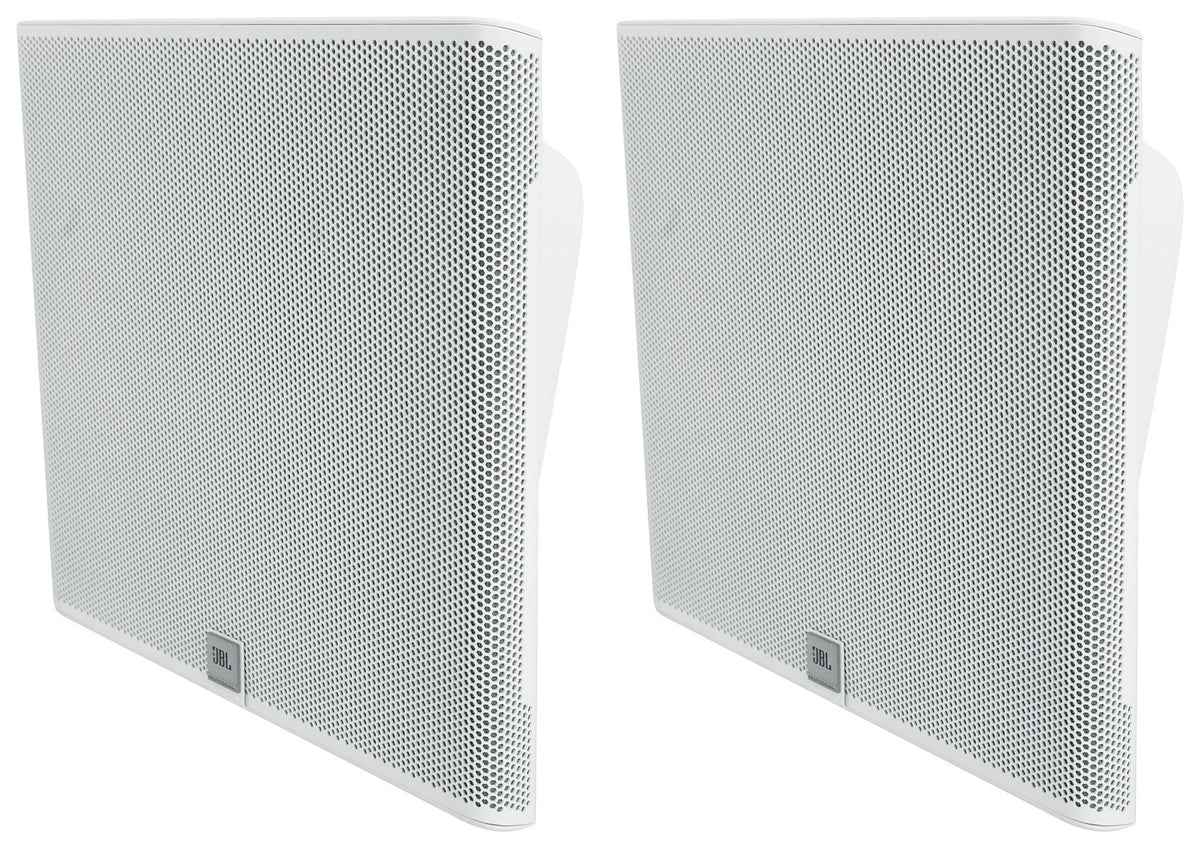

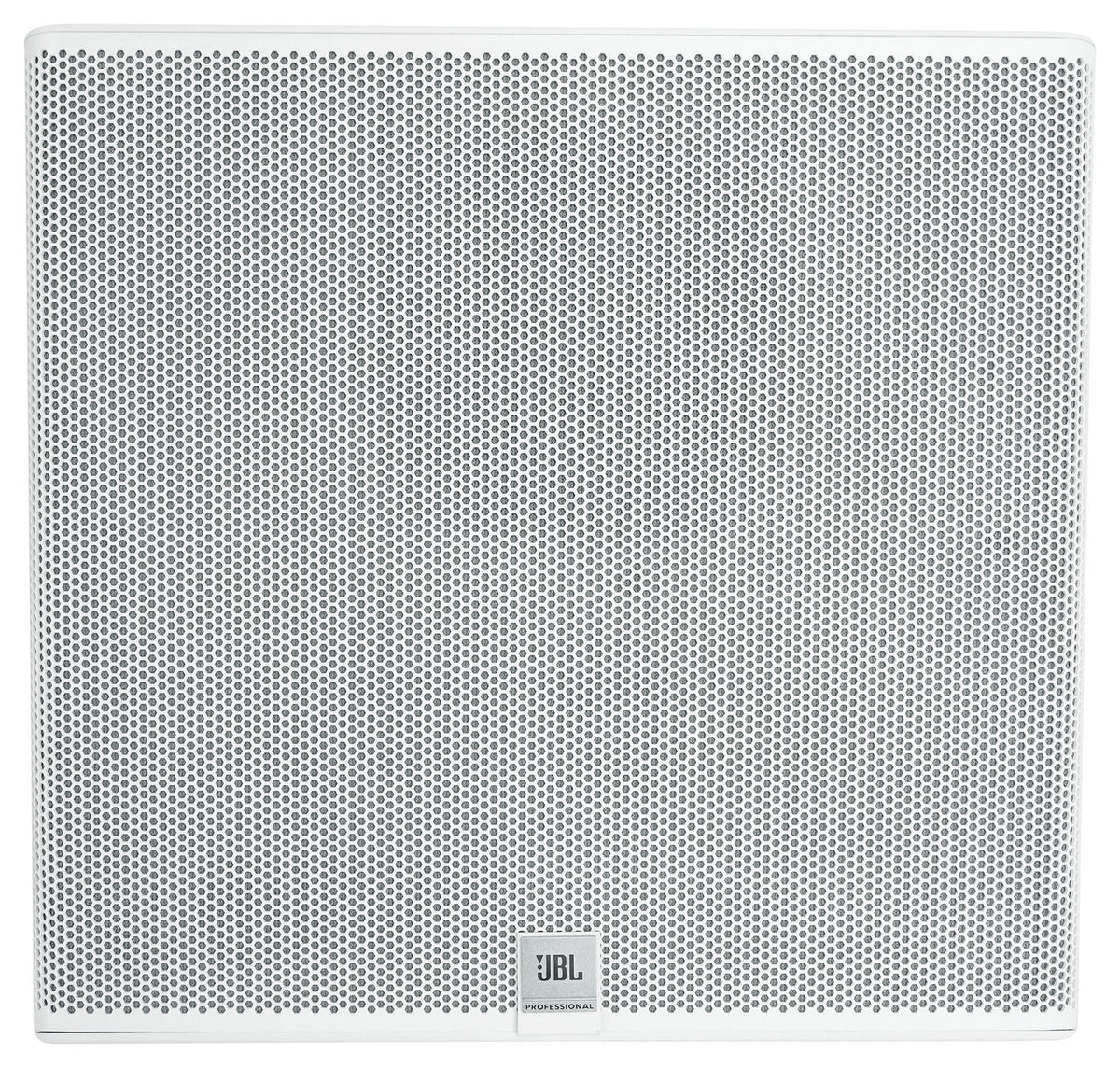

Pair JBL SLP14/T-WH Sleek Low-Profile On Wall Mount 4" 70v Commercial Speakers
Pair JBL SLP14/T-WH Sleek Low-Profile On Wall Mount 4" 70v Commercial Speakers
JBL
Pair JBL SLP14/T-WH Sleek Low-Profile On Wall Mount 4" 70v Commercial Speakers
Pair JBL SLP14/T-WH Sleek Low-Profile On Wall Mount 4" 70v Commercial Speakers
Pair Of 4" Two-Way On-Wall Speakers, 50W, 70V/100V Taps, White, Bracket And Rain Cover
Free Shipping
Features
- Coaxial 4" woofer and dome tweeter cover 70 Hz to 20 kHz
- Wide 140 by 120 degree coverage from a low-profile cabinet
- 50W continuous pink noise handling with 108 dB peak SPL
- Under 4 inches deep, ADA compliant and paintable
- 25W multi-tap transformer for 70V and 100V lines plus 8 ohm
Couldn't load pickup availability

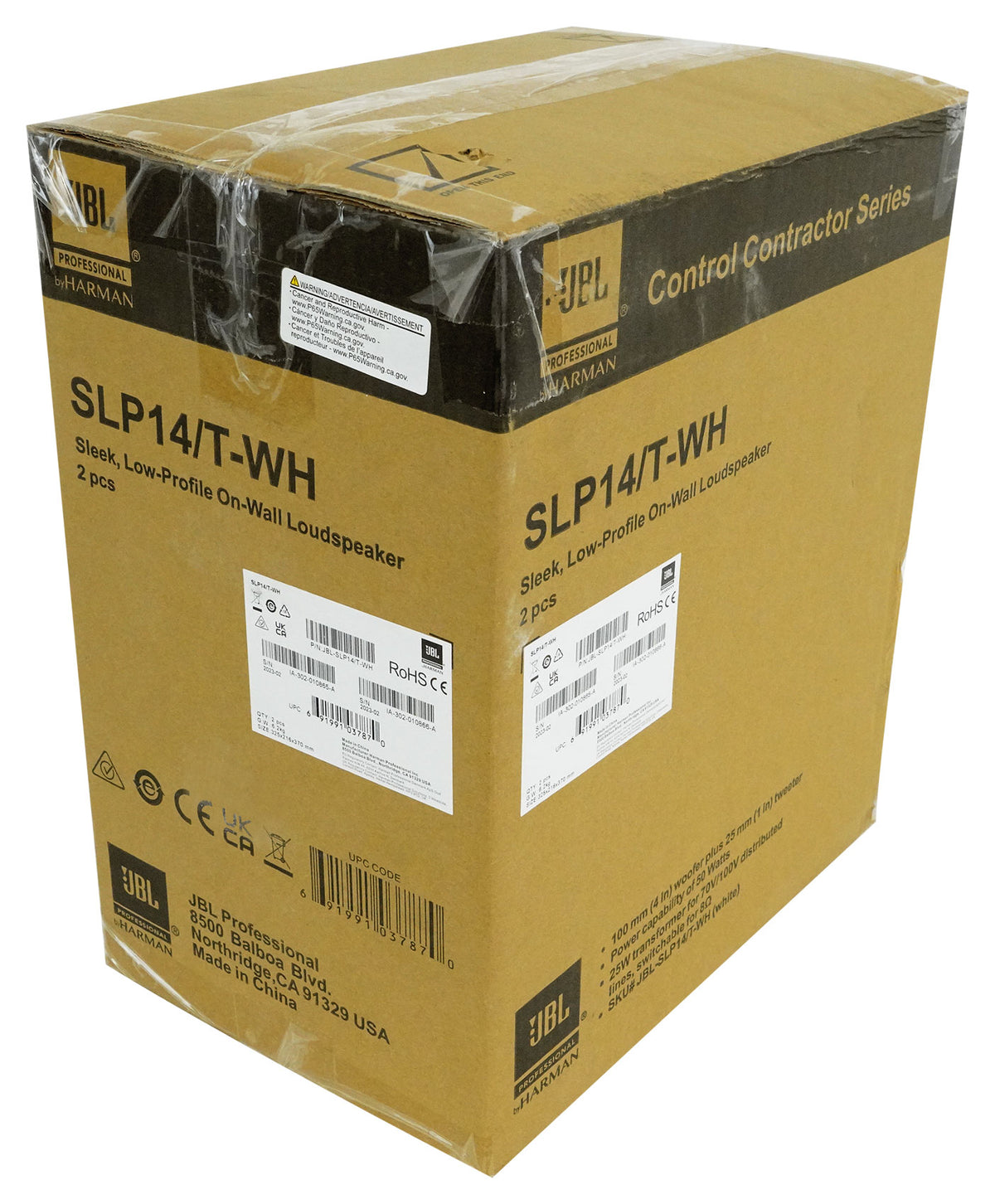

What's Included in the box

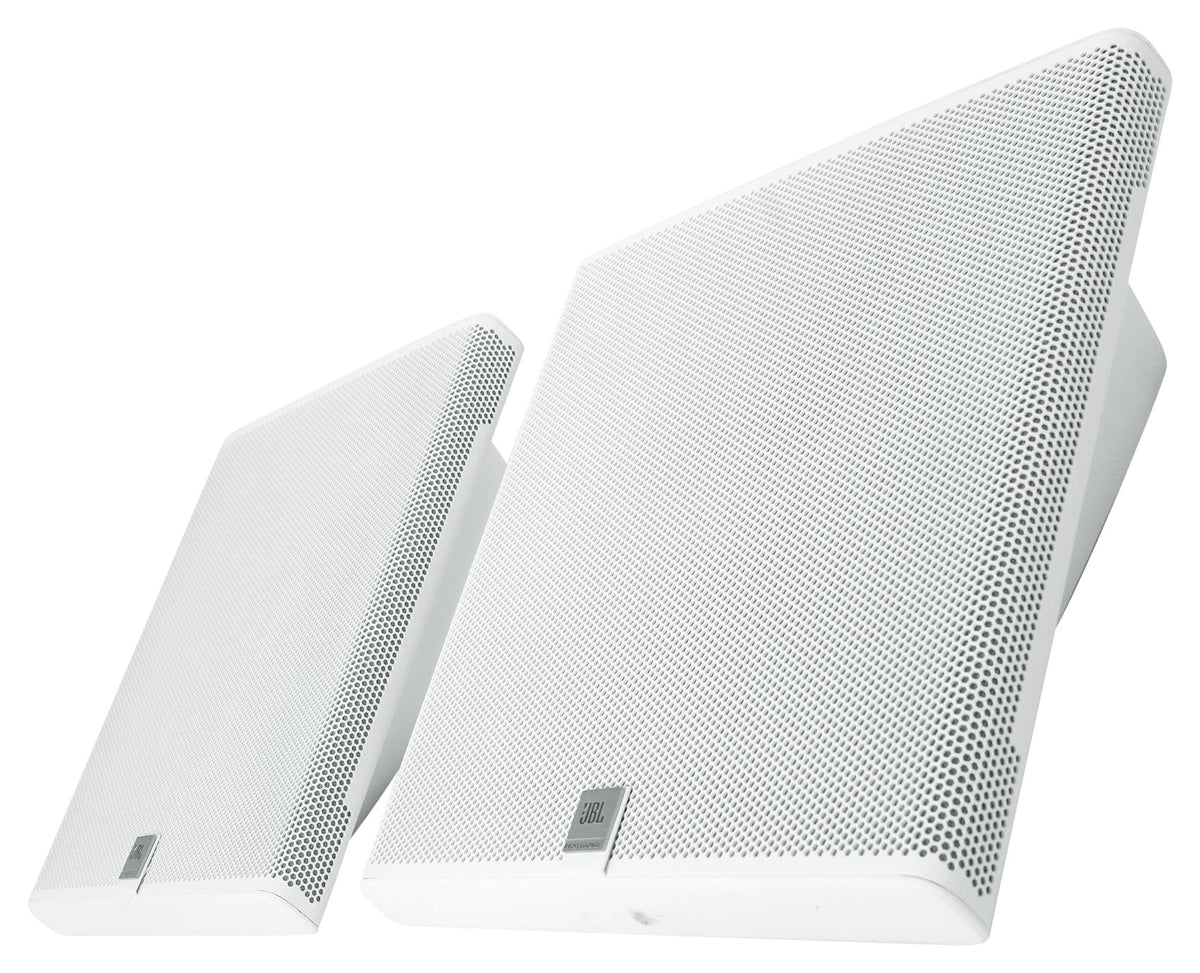

- 2 x SLP14/T On-Wall Loudspeakers (White)

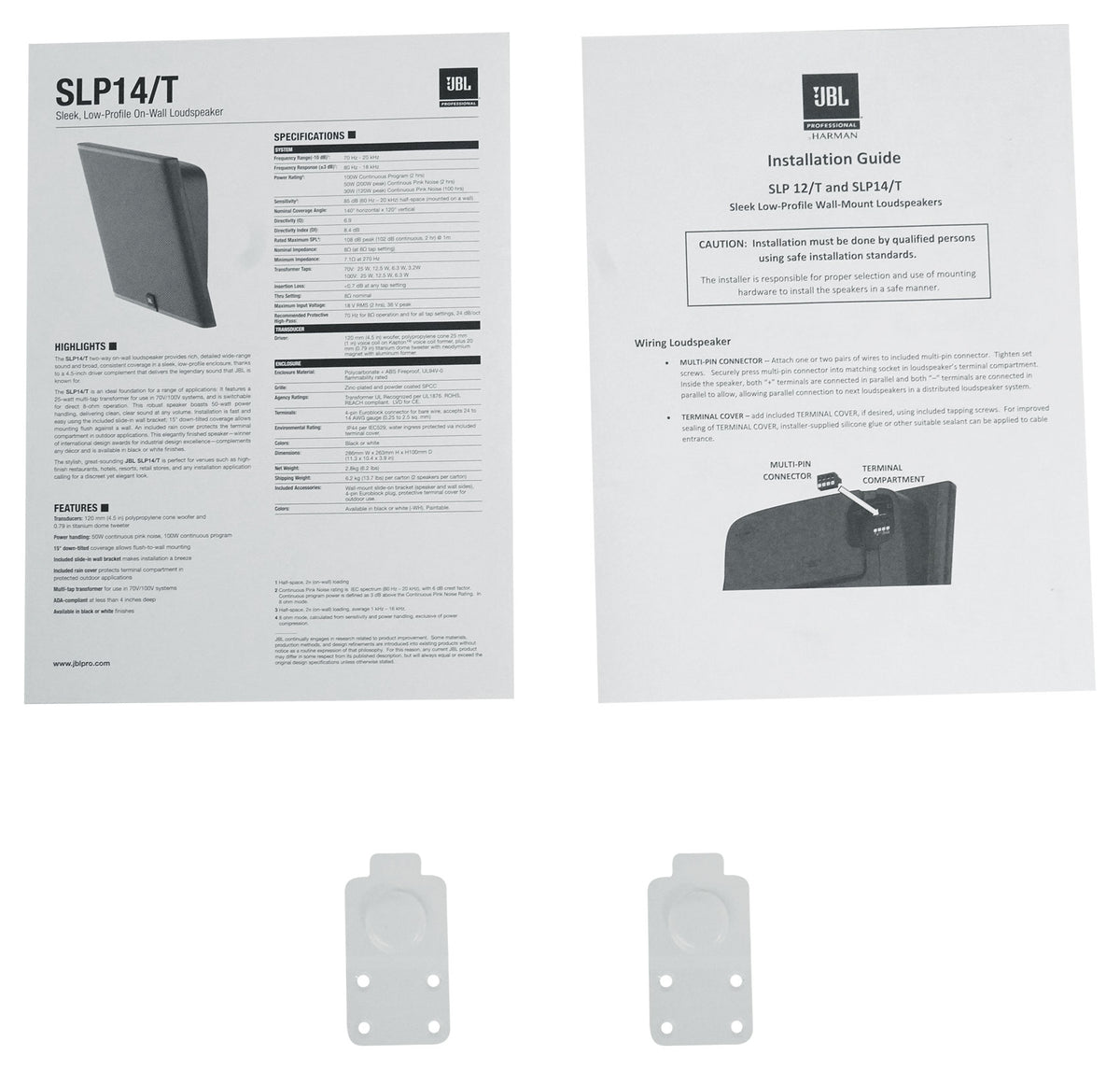

- 2 x Slide-On Wall Brackets (Speaker And Wall Sides)
- 2 x 4-Pin Euroblock Plugs
- 2 x Protective Terminal Covers For Outdoor Use
SKU: SKU: JBL-SLP14/T-WH
View full details











Product Description
That matters in rooms where the audio is doing more than background paging. Restaurants running music through service, hotel lobbies, resort common areas and retail floors with a real playlist get music that holds together at conversational levels and above.

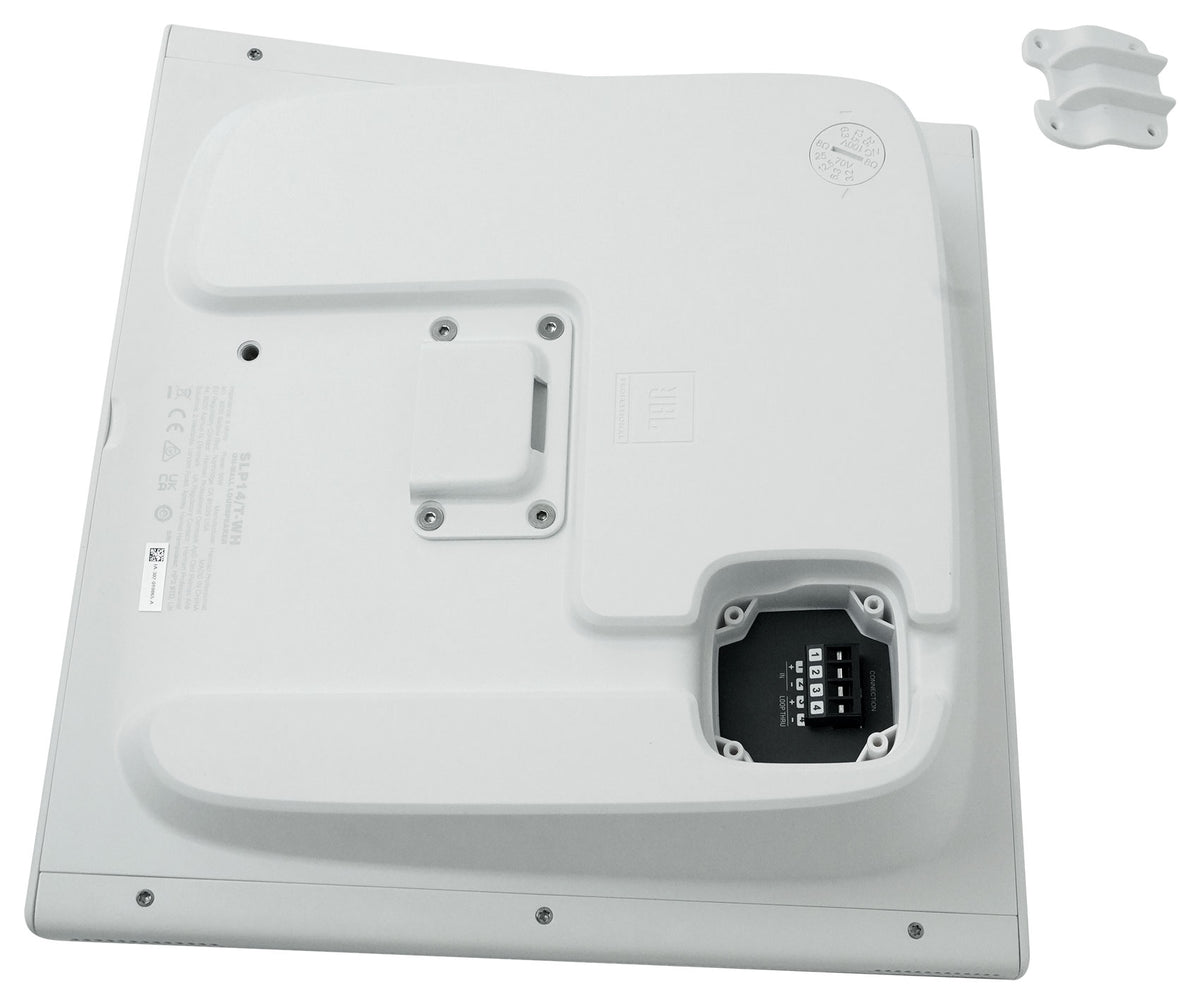

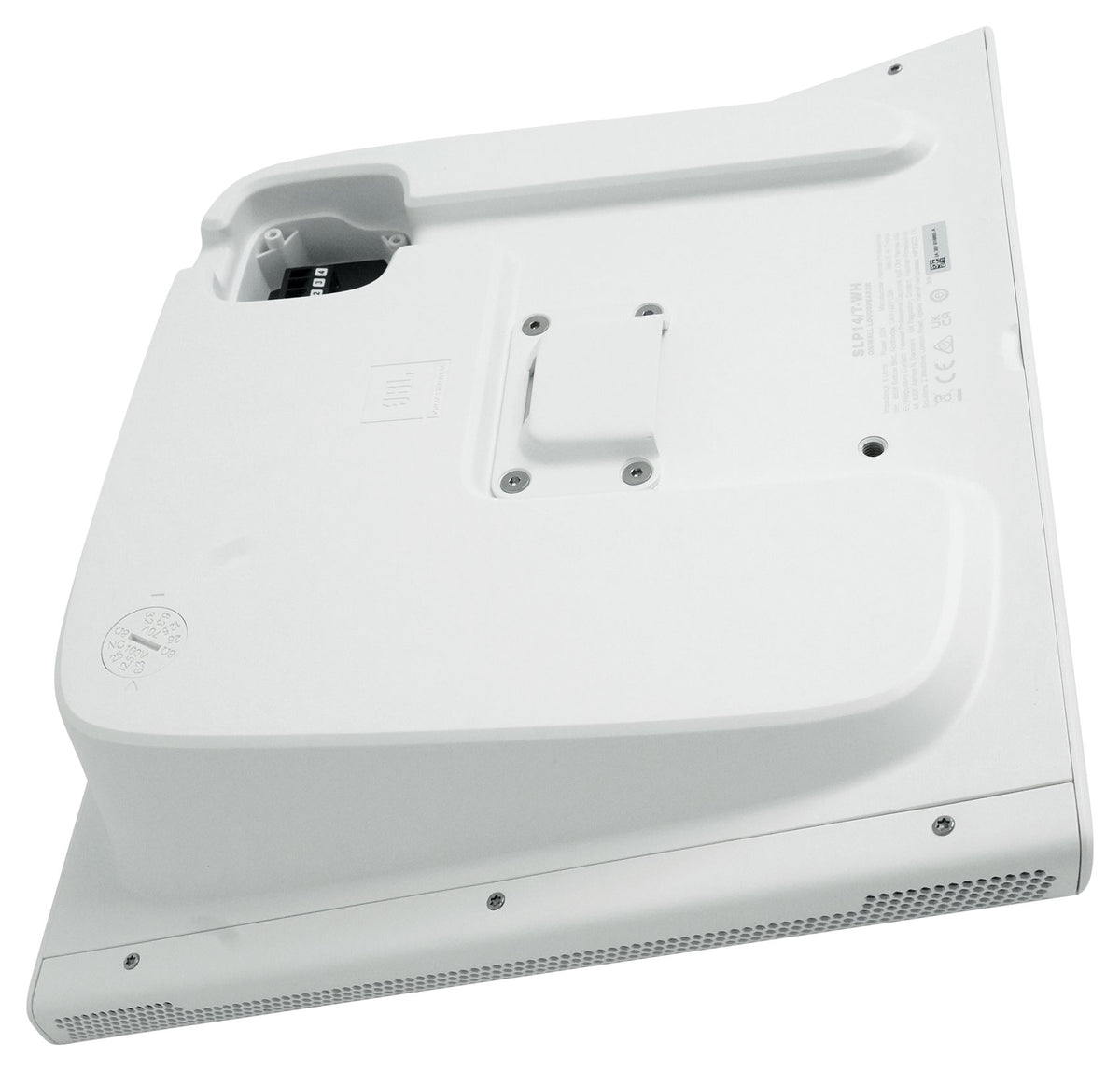

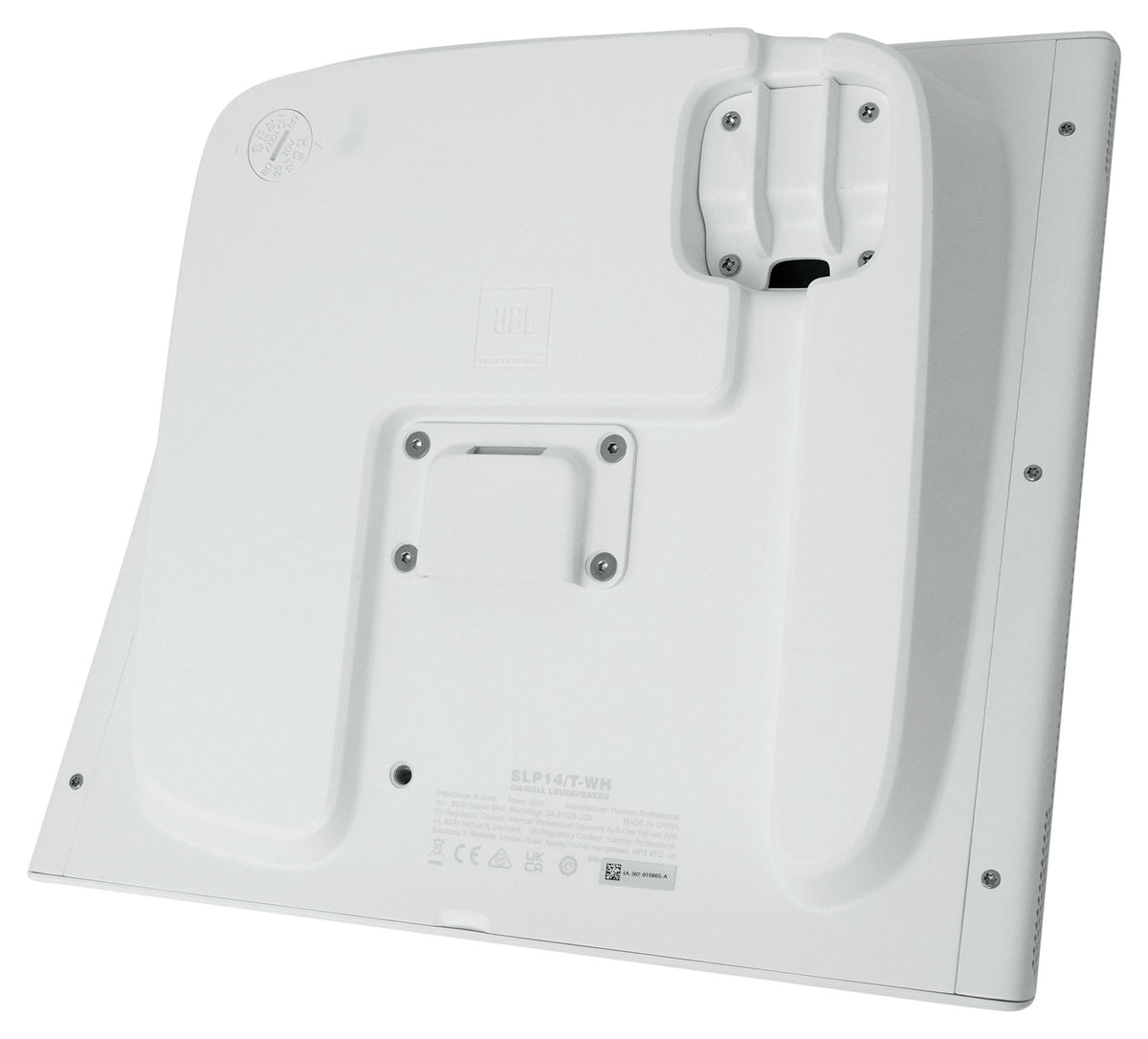

The cabinet is under 4 inches deep, meeting ADA requirements for wall-mounted objects, and coverage is tilted 15 degrees down so the speaker mounts flush and still aims at listeners. An included slide-in wall bracket handles installation: mount and wire the wall half, then slide the speaker into place. An included rain cover protects the terminal compartment in protected outdoor locations.

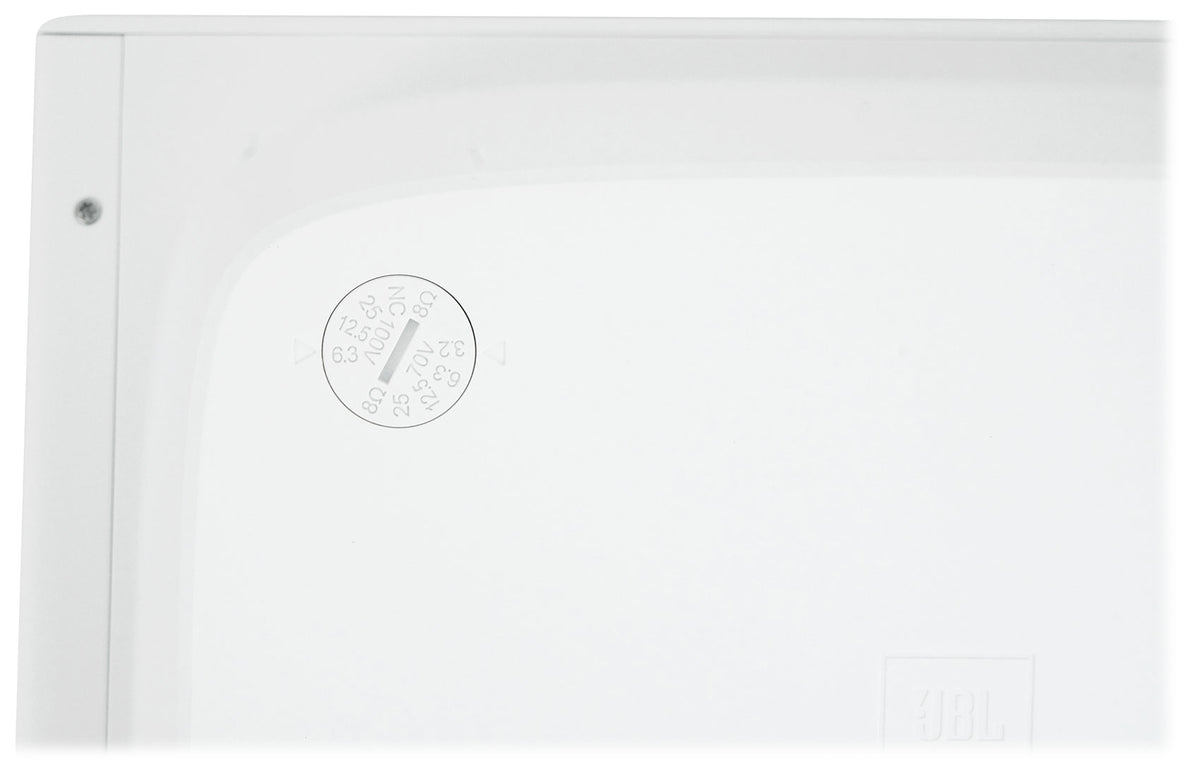

A 25W multi-tap transformer serves 70V and 100V lines with taps at 25W, 12.5W, 6.3W and 3.2W, plus direct 8-ohm operation. Power handling is 50W continuous pink noise with 200W peak and 108 dB peak SPL. Terminals are 4-pin Euroblock for 24 to 14 AWG wire. The polycarbonate and ABS enclosure is UL94V-0 rated, paintable, and weighs 6.2 lb per speaker.
Features
-
Two-Way Detail For Real Music
A coaxial 4-inch woofer and dome tweeter cover 70 Hz to 20 kHz, so playlists keep their bottom end and top end instead of sounding like paging audio.
-
Sound Without A Visible Speaker Box
A cabinet under 4 inches deep sits close to the wall and meets ADA depth requirements, and the finish is paintable to match the room.
-
Aimed At People, Mounted Flat

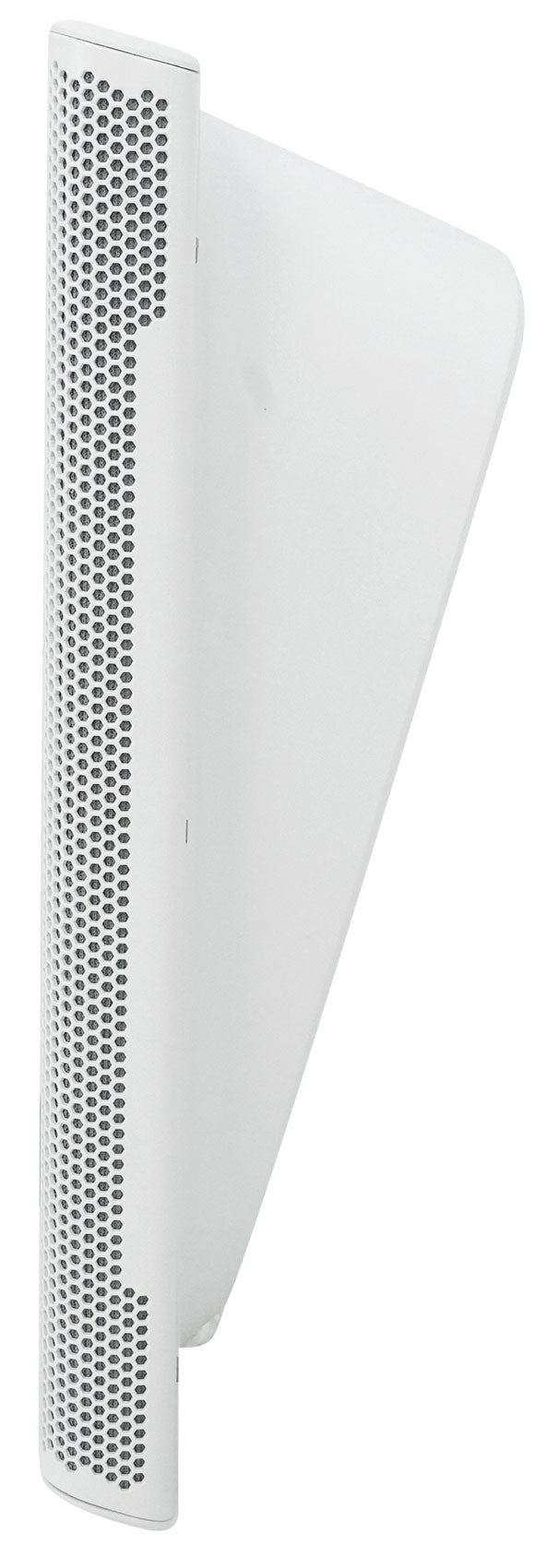

Fifteen degrees of down-tilt are built into the coverage, so the speaker points at listeners while the cabinet stays flush against the wall.
-
Fewer Units Per Room
A wide 140 by 120 degree pattern with 108 dB peak SPL covers more floor area per speaker, reducing hardware count on a distributed system.
-
Install In Two Steps
The included slide-in wall bracket mounts and wires first, then the speaker slides on, and a rain cover protects terminals in covered outdoor spots.
Technical Specifications
- Product Type 4" Two-Way On-Wall Loudspeaker (Pair)
- Drivers 100 mm (4 in) Polypropylene Cone Woofer, 1 in Dome Tweeter
- Frequency Range (-10 dB) 70 Hz - 20 kHz (On Wall)
- Frequency Response (+/-3 dB) 80 Hz - 18 kHz (On Wall)
- Power Rating 50W (200W Peak) Continuous Pink Noise (2 hrs), 30W (120W Peak) Continuous Pink Noise (100 hrs), 100W Continuous Program
- Sensitivity 85 dB Half-Space
- Maximum SPL 108 dB Peak, 102 dB Continuous @ 1m
- Coverage Angle 140 degrees H x 120 degrees V
- Directivity Factor (Q) 6.9
- Directivity Index (DI) 8.4 dB
- Nominal Impedance 8 Ohms
- Transformer Taps 70V: 25W, 12.5W, 6.3W, 3.2W; 100V: 25W, 12.5W, 6.3W

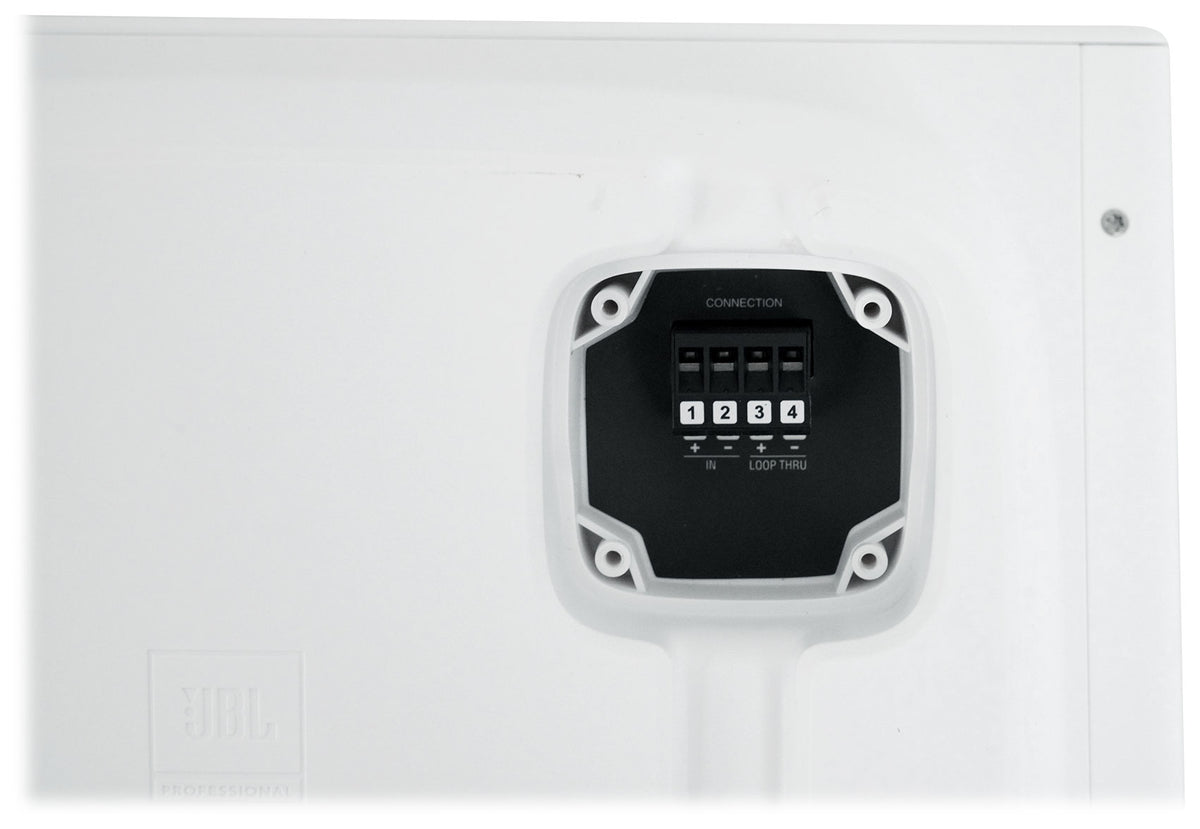

- Terminals 4-Pin Euroblock, 24 To 14 AWG
- Enclosure Material Polycarbonate + ABS, UL94V-0, Paintable
- Color White
- Weight 6.2 lb Each
- Dimensions (W x H x D) 11.3 x 10.4 x 3.9 in
