(2) Ultra LB18 18 x 10W RF RGBAL Color Mixing LED DMX Wash Bar Lights
AMERICAN DJ
(2) Ultra LB18 18 x 10W RF RGBAL Color Mixing LED DMX Wash Bar Lights
(2) Ultra LB18 18 x 10W RF RGBAL Color Mixing LED DMX Wash Bar Lights
Two 18x10W RGBAL LED Wash Bars, Variable 2,300K-9,900K, CRI >90, DMX
Features
- 18 x 10W RGBAL (5-in-1) LEDs per fixture with CRI above 90
- Linear white color temperature control from 2,300K to 9,900K
- 11 DMX channel modes with 6-group pixel zone control
- Flicker-free with selectable refresh rates from 2.88KHz to 25kHz
- Locking power in/out for daisy chaining up to 12 units at 120V
Couldn't load pickup availability
What's Included in the box

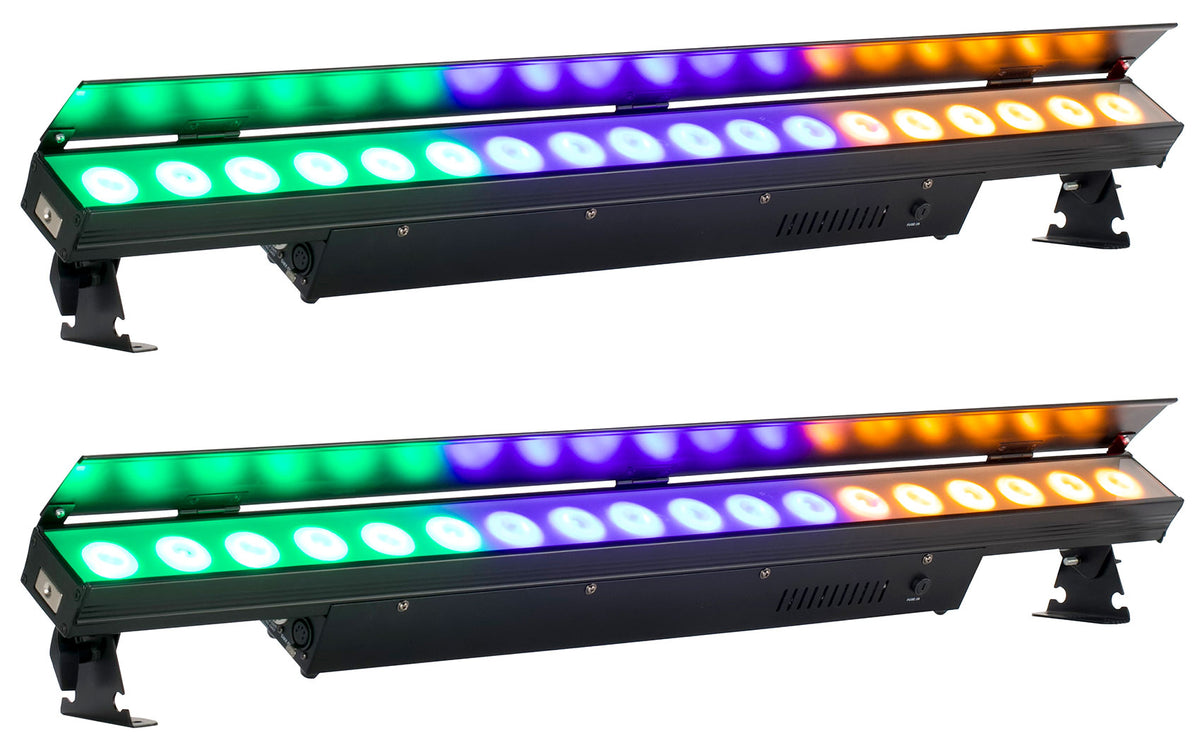

- (2) ADJ Ultra LB18 RGBAL LED DMX Wash Bar Lights
- (2) Locking Power Cords
- (2) Removable Glare Shields
- (2) Mounting Brackets
SKU: SKU: (2) Ultra LB18
View full details










Product Description

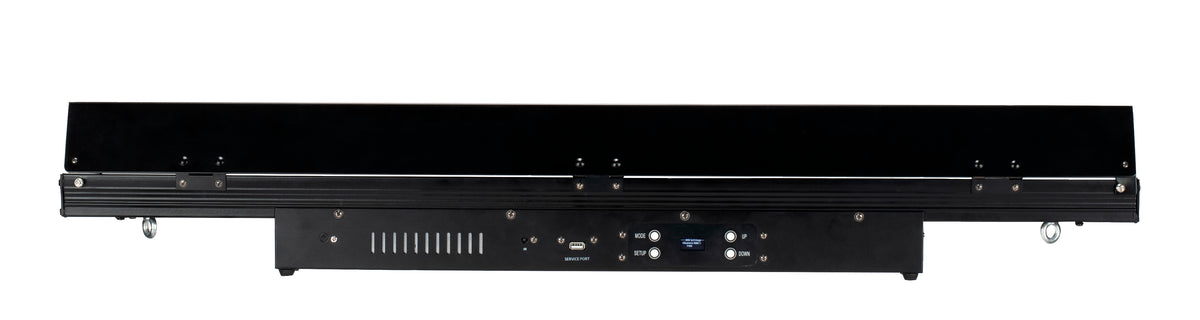

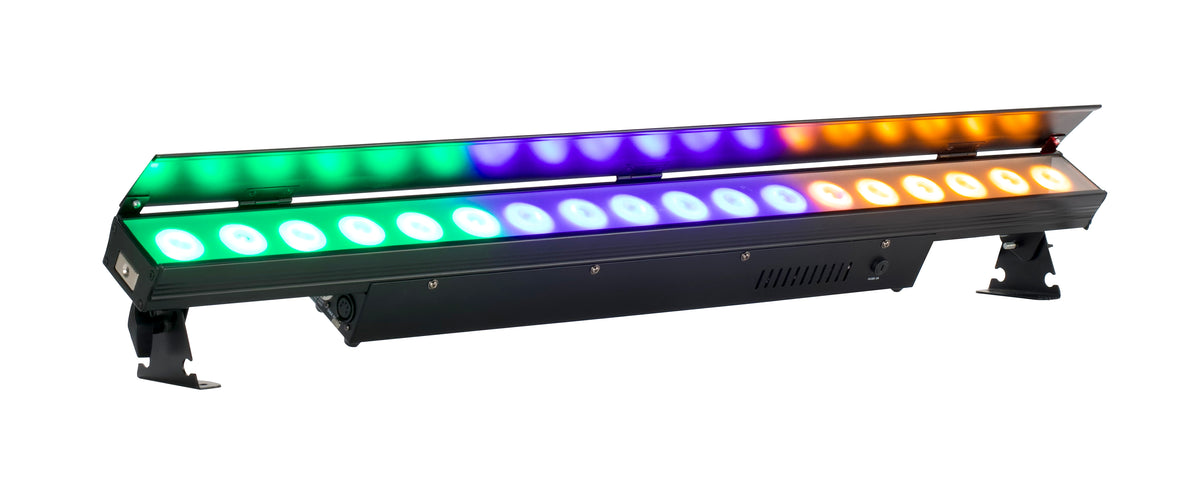

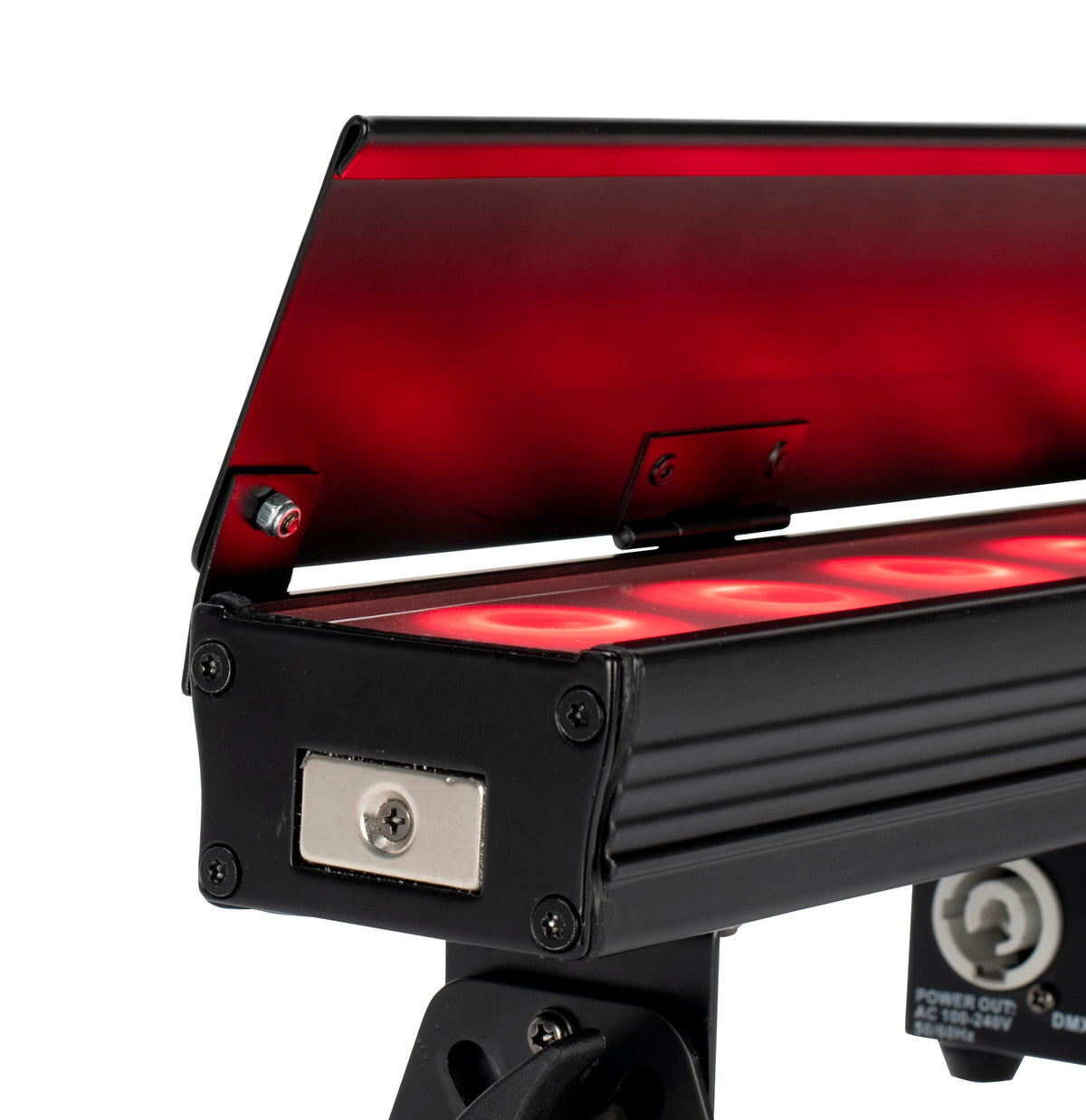

A 17 x 40-degree beam angle produces a wide, even wash, and a removable glare shield blocks the LEDs from direct view and protects them during transport. Eleven DMX channel modes (from 5 to 71 channels) and 6 groups of 3 RGBAL LED pixels provide detailed zone control for gradient effects and color sweeps. Flicker-free operation with selectable refresh rates from 2.88KHz to 25kHz covers live camera situations from broadcast TV to film. ADJ UC IR remote compatibility adds wireless walk-around control, and locking power in/out lets you daisy chain up to 12 units at 120V.
Features
Five-Color RGBAL Mixing
Adding lime to the RGBA palette extends the color range and boosts greens and pastels beyond what four-color fixtures can produce.
Variable White Temperature
Linear control from 2,300K to 9,900K lets you match tungsten warmth or cool daylight with one fixture, no gel changes needed.
Pixel Zone Control

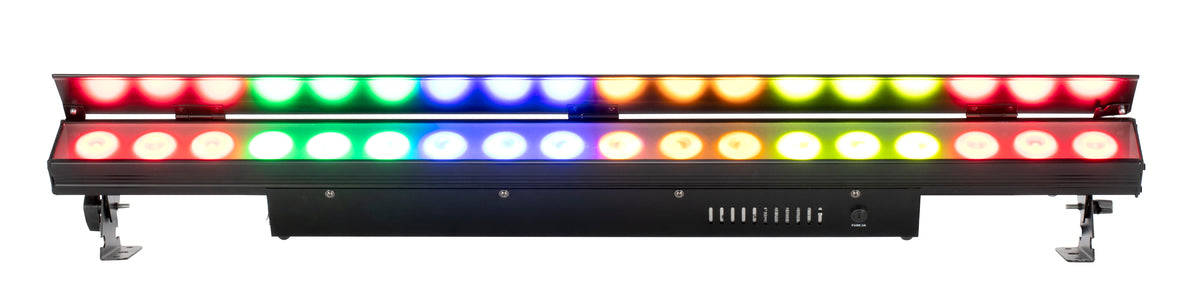

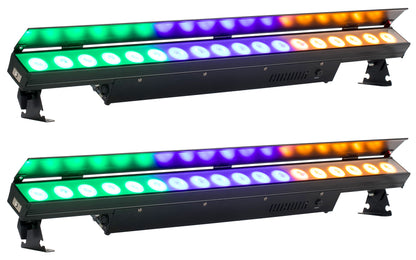

Six groups of three LED pixels per fixture give you gradient effects, color sweeps, and chases across the 39.3-inch bar.
Broadcast-Ready Refresh Rates
Selectable rates from 2.88KHz to 25kHz keep the output flicker-free for broadcast TV, film, and high-frame-rate cameras.
Accurate Color Rendering
CRI above 90 keeps skin tones natural and stage colors true, which is important for live video and event photography.
Technical Specifications
- Product Type LED Wash Bar Light (Pair)
- LED Source 18 x 10W RGBAL (5-in-1: Red, Green, Blue, Amber, Lime) per fixture
- CRI >90
- Beam Angle 17 x 40 degrees
- White Color Temperature 2,300K to 9,900K (linear control)
- Color Macros 64 built-in, including 15 white presets
- LED Life 50,000 hours
- DMX Modes 11 channel modes: 5, 8, 10, 13, 16, 30, 33, 38, 41, 60, 71

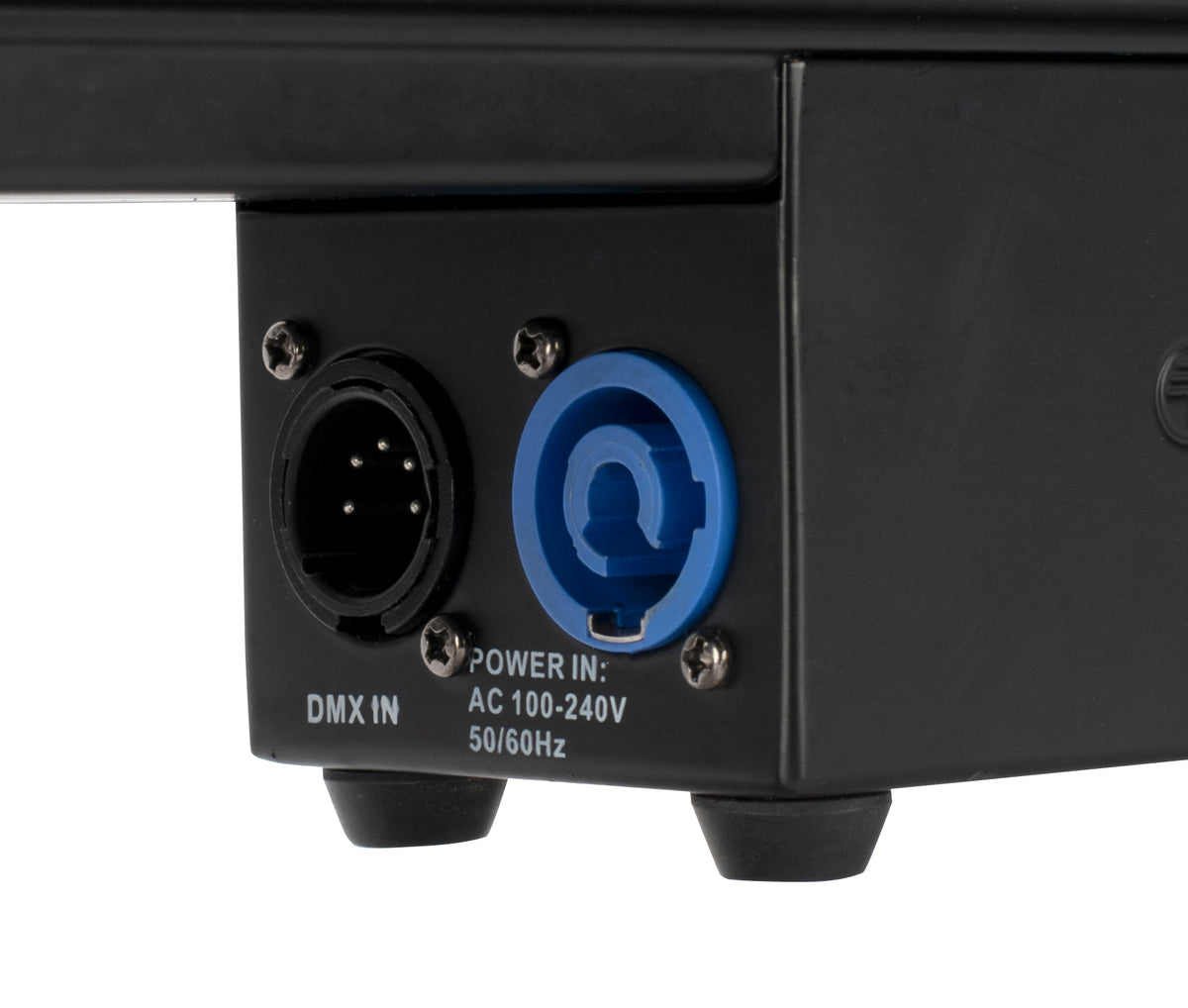

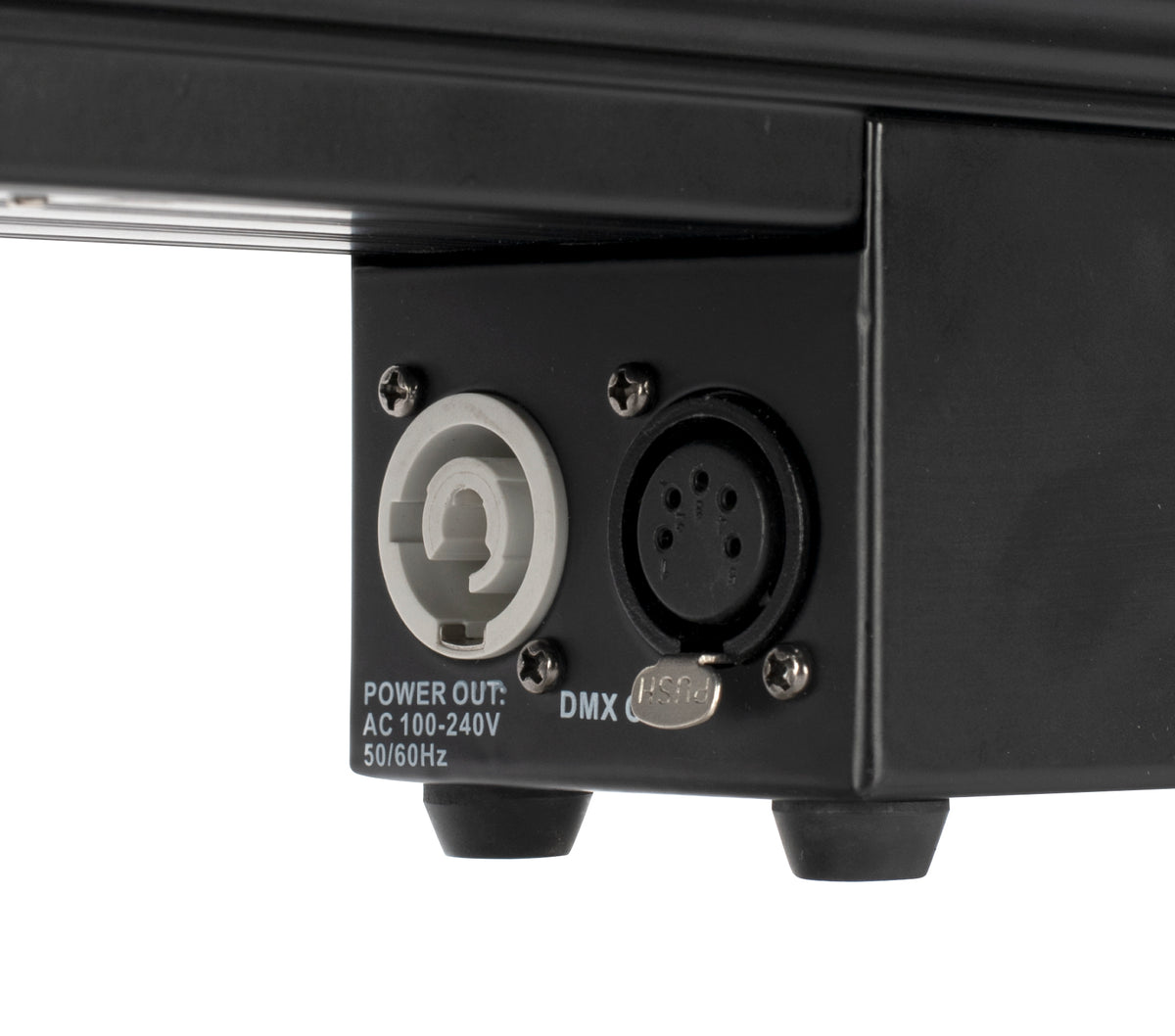

- DMX Connectors 5-pin XLR In/Out
- Pixel Control 6 groups x 3 RGBAL pixels
- Dim Modes 6
- Dim Curves 4
- Electronic Dimming 0-100%
- Refresh Rate 2.88KHz to 25kHz (selectable)
- Input Voltage AC 100-240V, 50/60Hz
- Power Draw 130W per fixture
- Daisy Chain 12 fixtures at 120V, 25 fixtures at 240V
- Dimensions (per fixture) 3.39" x 39.3" x 7.42" / 86 x 996 x 188.4mm
- Weight (per fixture) 11.2 lb / 5.1 kg
