32 HEX PANEL IP

32 HEX PANEL IP

IP65 Wash, Blinder And Strobe Panel With 32 x 12W RGBAW+UV LEDs, 8 Zones, Frost Filter, Safety Cables
$1,094.00
$1,094.00 $1,439.95
Save 24%
Shipping calculated at checkout.
Features
    • Works as a wash, blinder and color strobe in one IP65 fixture
    • 32 x 12W six-in-one RGBWA+UV HEX LEDs with a 24-degree beam angle
    • Eight individually controlled sections for Pixel Zone Control effects
    • Magnetic removable filter frame holds the included frost filter
    • IP65 locking 5-pin DMX and power in/out with rubber protective covers
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • American DJ 32 HEX PANEL RGBAW+UV DMX Outdoor Wash/Blinder/Strobe Effect Light
    • Removable Frost Filter with Metal Frame
    • IP65 Locking Power Cable
    • Two Safety Cables

SKU: 32 HEX PANEL IP

View full details

Product Description

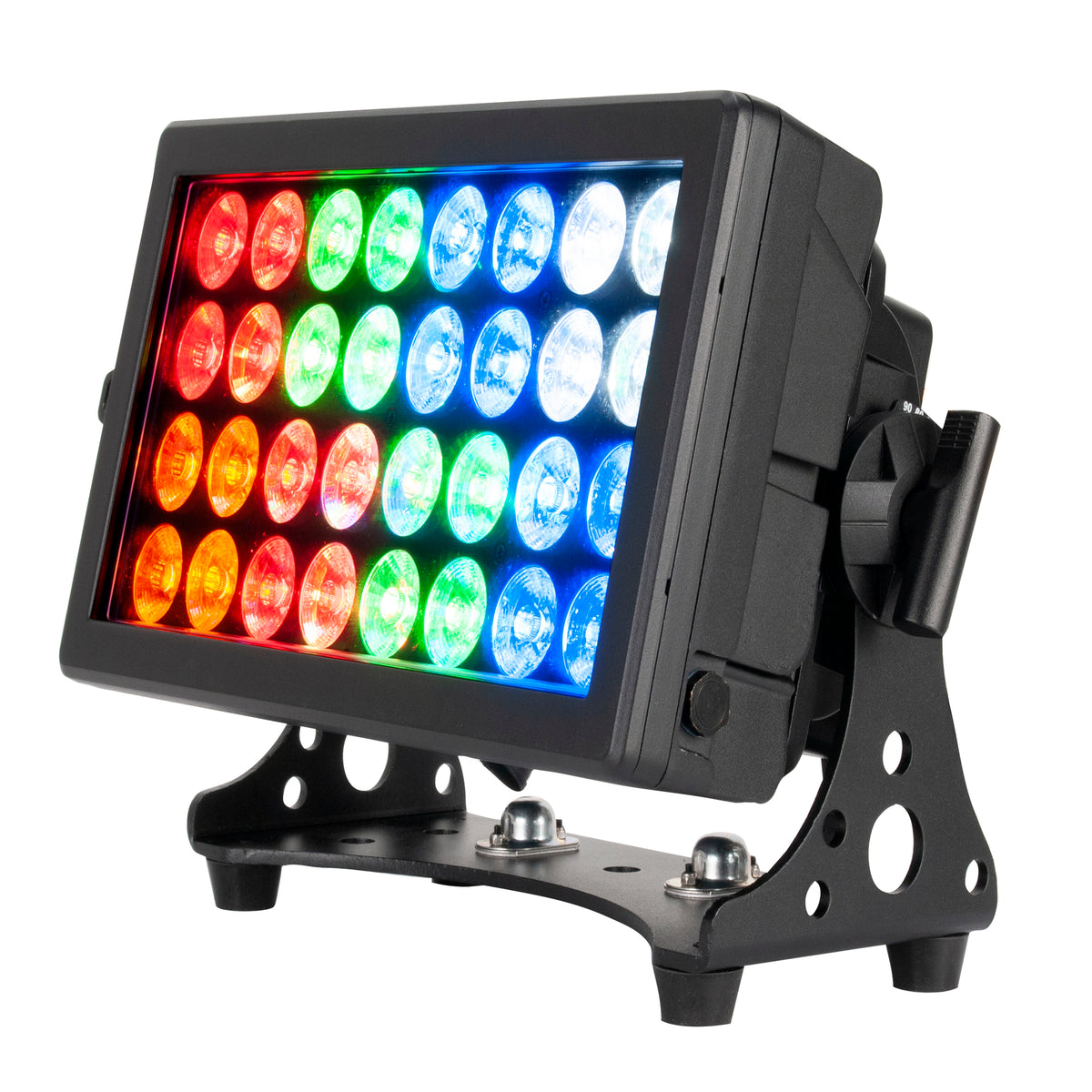

The ADJ 32 HEX Panel IP does three jobs in one IP65 fixture: wash, blinder and color strobe. Thirty-two 12W six-in-one HEX LEDs (RGBWA+UV) sit behind a 24-degree beam angle in an all-metal black housing, with 8 individually controlled sections for Pixel Zone Control.

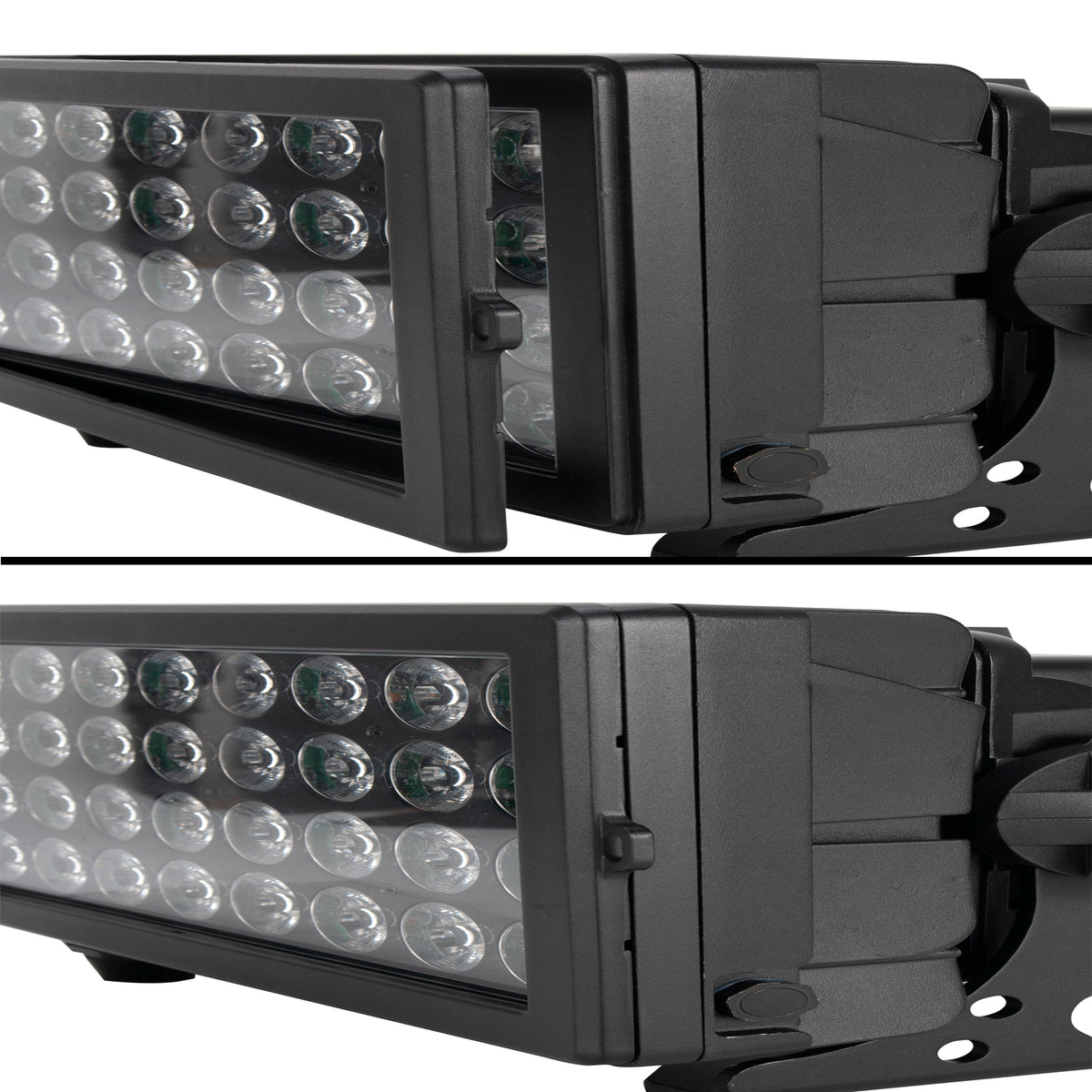

Those eight zones are what make it more than a bright panel. Run it as a solid wall of color, split it into bands for chases, or pixel-map effects across a row of panels behind a band. A magnetic removable filter frame accepts the included frost filter, so you can switch between a tight, punchy blinder look and a soft wash without touching the rig.

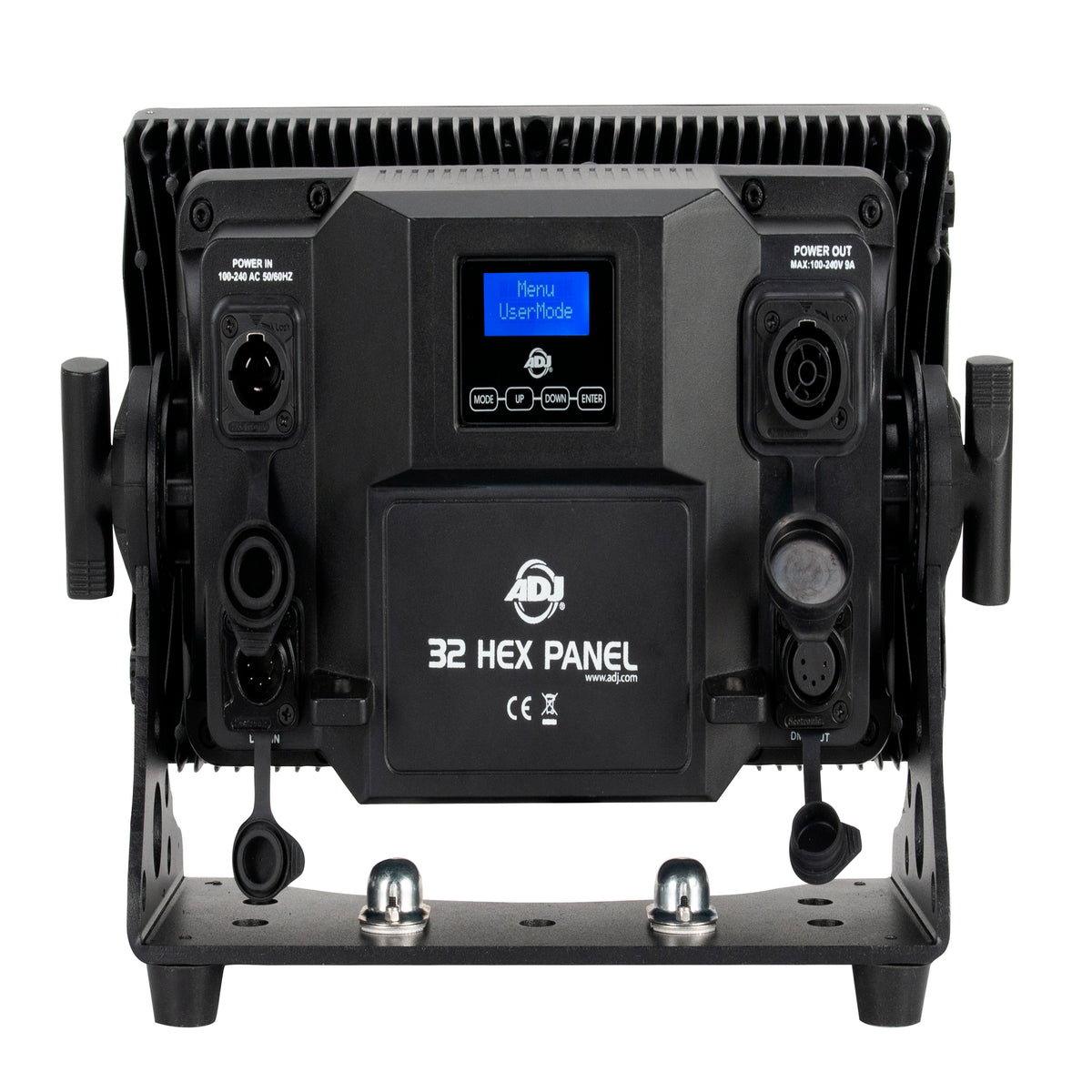

IP65 protection against dust, sand, moisture and liquids covers indoor and outdoor use. The rear panel carries IP65 locking 5-pin XLR DMX in/out and IP65 locking power in/out, both under rubber protective covers, and an OLED display with touch buttons handles setup. Daisy chain up to 3 fixtures at 120V or 6 at 230V, with 220W max draw per unit.

Output is flicker free for film and broadcast, with 0-100% dimming, 16-bit dimming resolution, five dimming curve modes, selectable gamma brightness and selectable LED refresh rate for matching cameras on set. Control runs DMX512 with RDM and multiple channel modes. Linear variable white temperature control covers the moments you need white light rather than color.

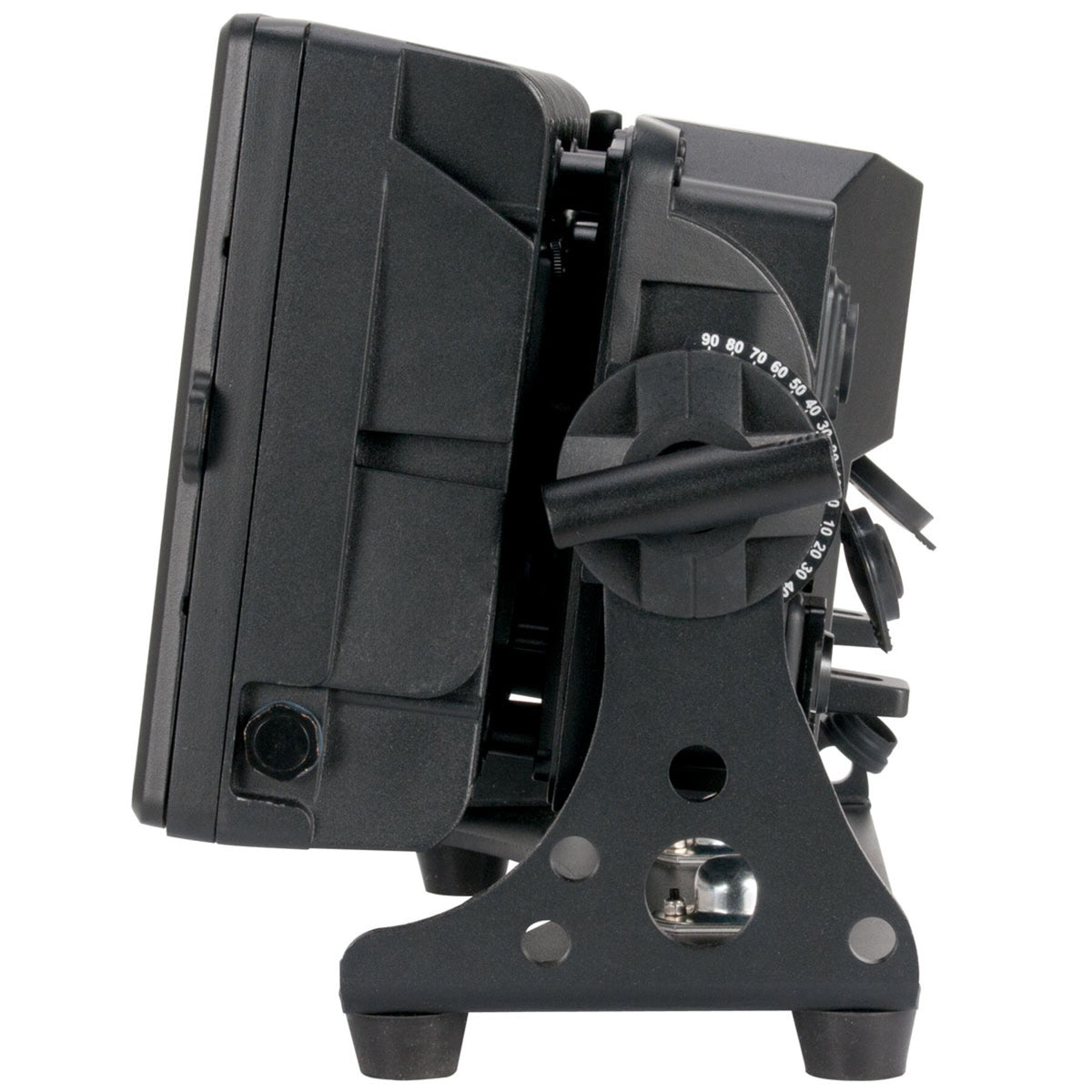

Heavy-duty housing, a Sure-lock bracket that locks every 10 degrees and two included safety cables make it practical for touring, festival stages and installs. Weight is 24.25 lb.

Features

    • Three Fixtures In One

      Wash, blinder and color strobe duty from a single panel, so one truck-packed fixture covers front light, audience hits and effect looks.

    • Pixel Zone Control

      Eight individually controlled sections let you run bands, chases and mapped effects across a row of panels instead of one flat color.

    • Rated For Outdoors

      IP65 construction with rubber-covered locking power and DMX connections keeps dust, sand and moisture out at festivals and open-air stages.

    • Tuned For Camera

      Selectable gamma brightness, selectable LED refresh rate, 16-bit dimming and flicker-free output let you dial the panel in for film and broadcast.

    • Change The Beam Fast

      The magnetic removable filter frame takes the included frost filter on and off in seconds, switching between a punchy blinder and a soft wash.

Technical Specifications

  • Product Type IP65 LED Wash / Blinder / Strobe Panel
  • Light Source 32 x 12W RGBWA+UV six-in-one HEX LEDs (50,000 hour rating)
  • Beam Angle 24 degrees
  • LUX 33040 @ 1M, 1322 @ 5M (Full On No UV); 20659 @ 1M, 826 @ 5M (Full On)
  • Zone Control 8 individually controlled sections with Pixel Zone Control
  • White Control Linear variable white temperature control
  • Dimming 0-100% with 16-bit dimming
