32 HEX Panel IP RGBAW+UV LED Wash/Blinder/Strobe + 100° Frost Filter
AMERICAN DJ
32 HEX Panel IP RGBAW+UV LED Wash/Blinder/Strobe + 100° Frost Filter
32 HEX Panel IP RGBAW+UV LED Wash/Blinder/Strobe + 100° Frost Filter
IP65 32x12W RGBAW+UV Wash/Blinder/Strobe With 100° Frost Filter Included
Features

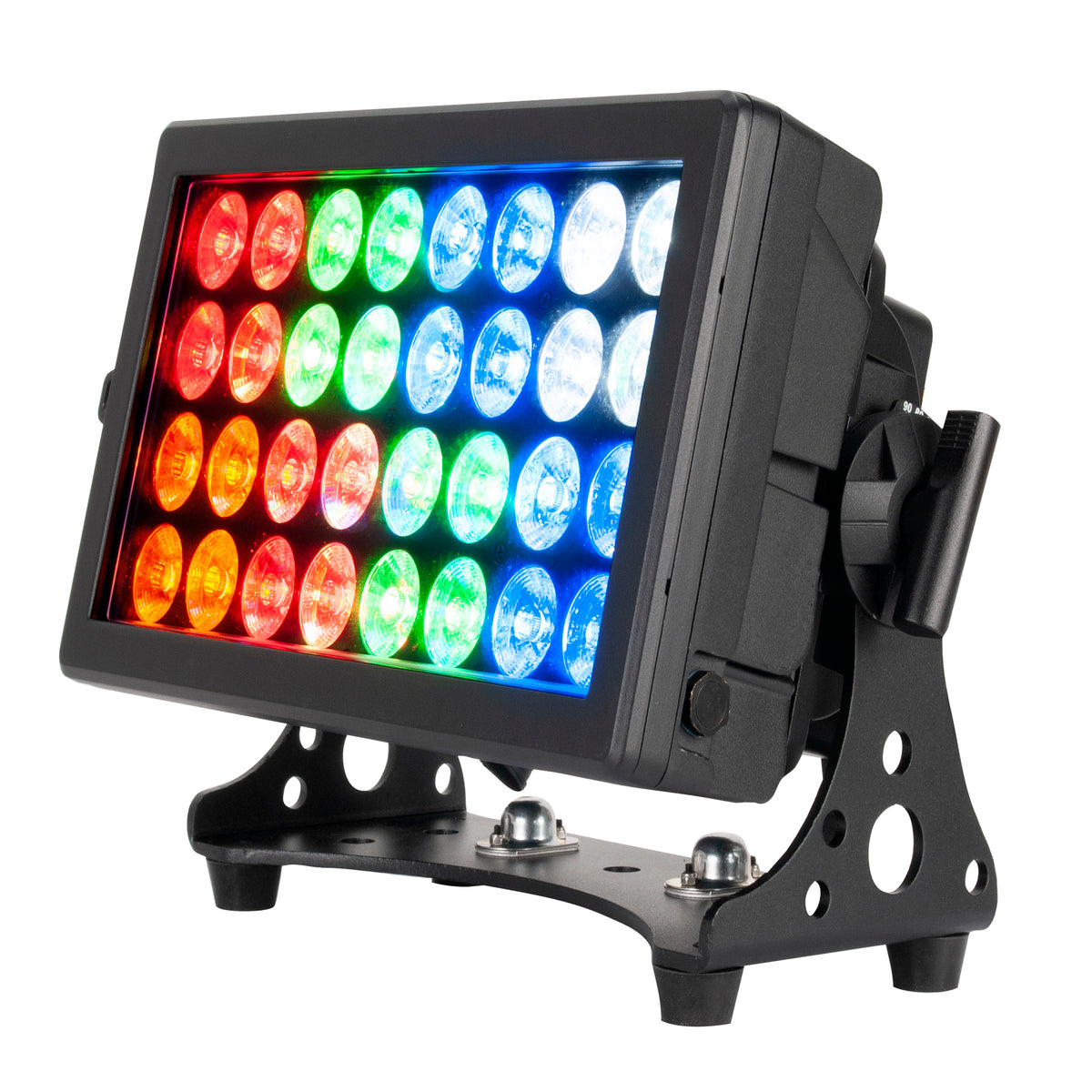

- 32 x 12W RGBAW+UV HEX LEDs with IP65 rating
- 100° frost filter included for wide-angle washes and blinder effects
- 8 individually controlled Pixel Zone sections
- Magnetic filter frame for tool-free frost filter swaps
- OLED display with sealed locking power and DMX connections
Couldn't load pickup availability
What's Included in the box

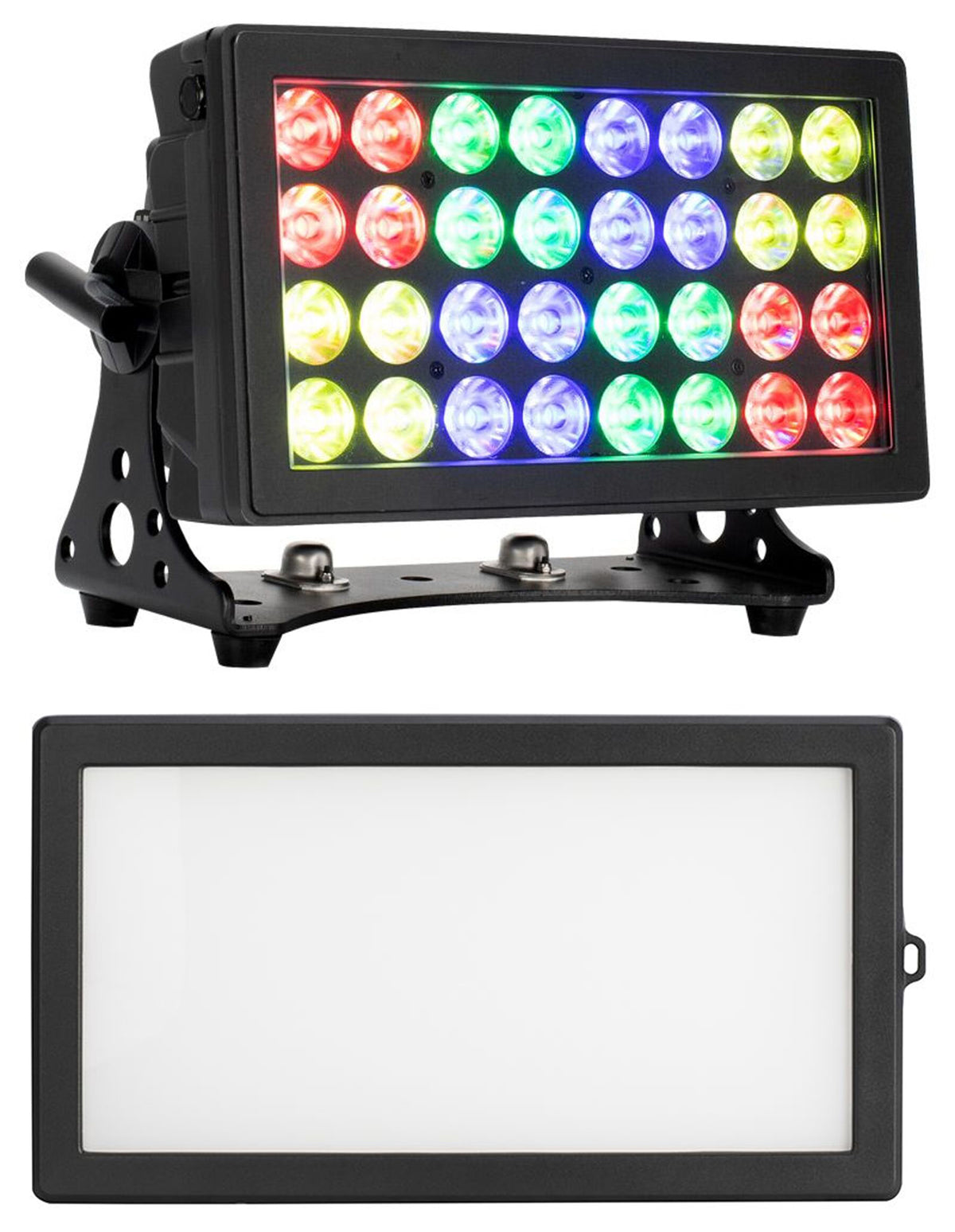

- (1) ADJ 32 HEX Panel IP RGBAW+UV Wash/Blinder/Strobe

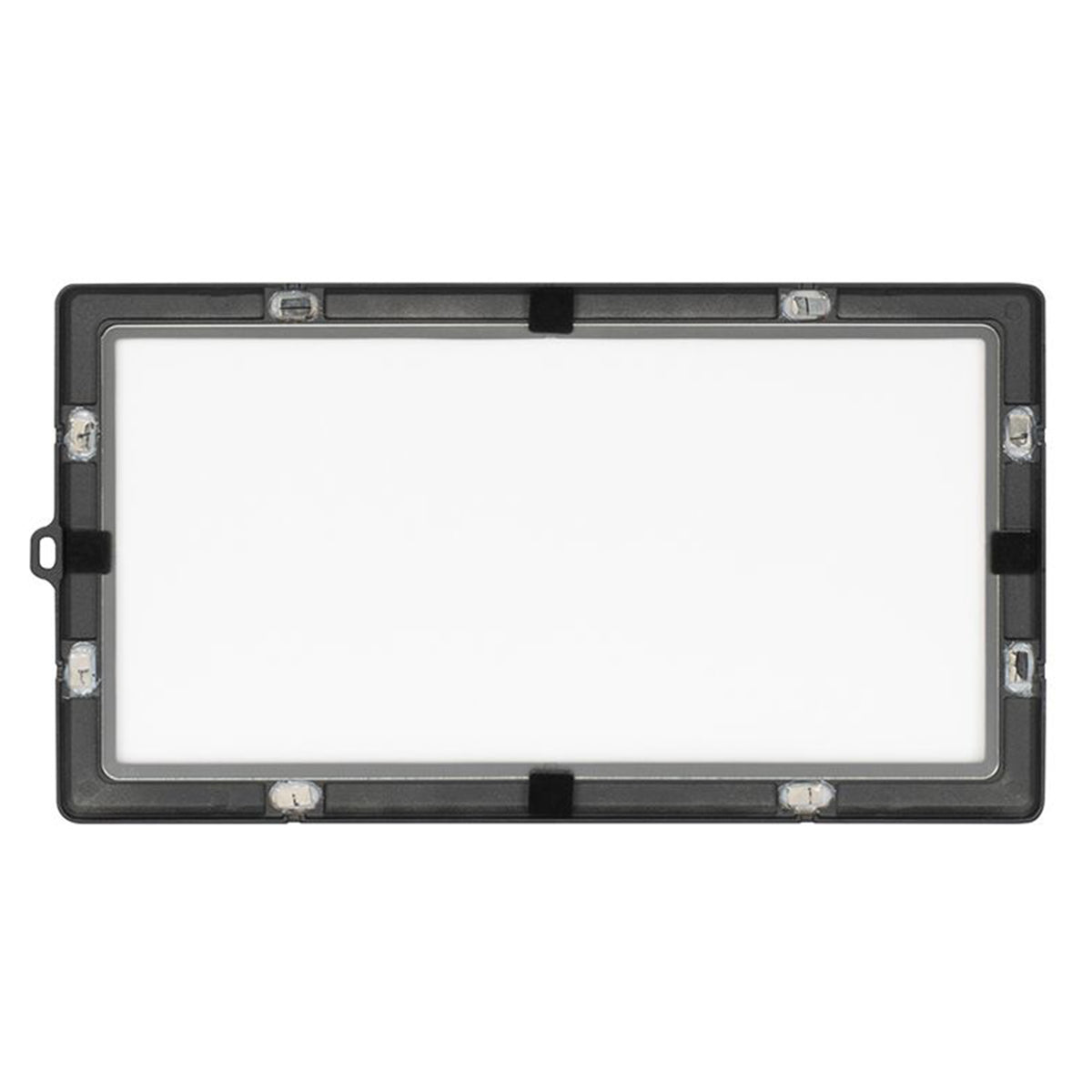

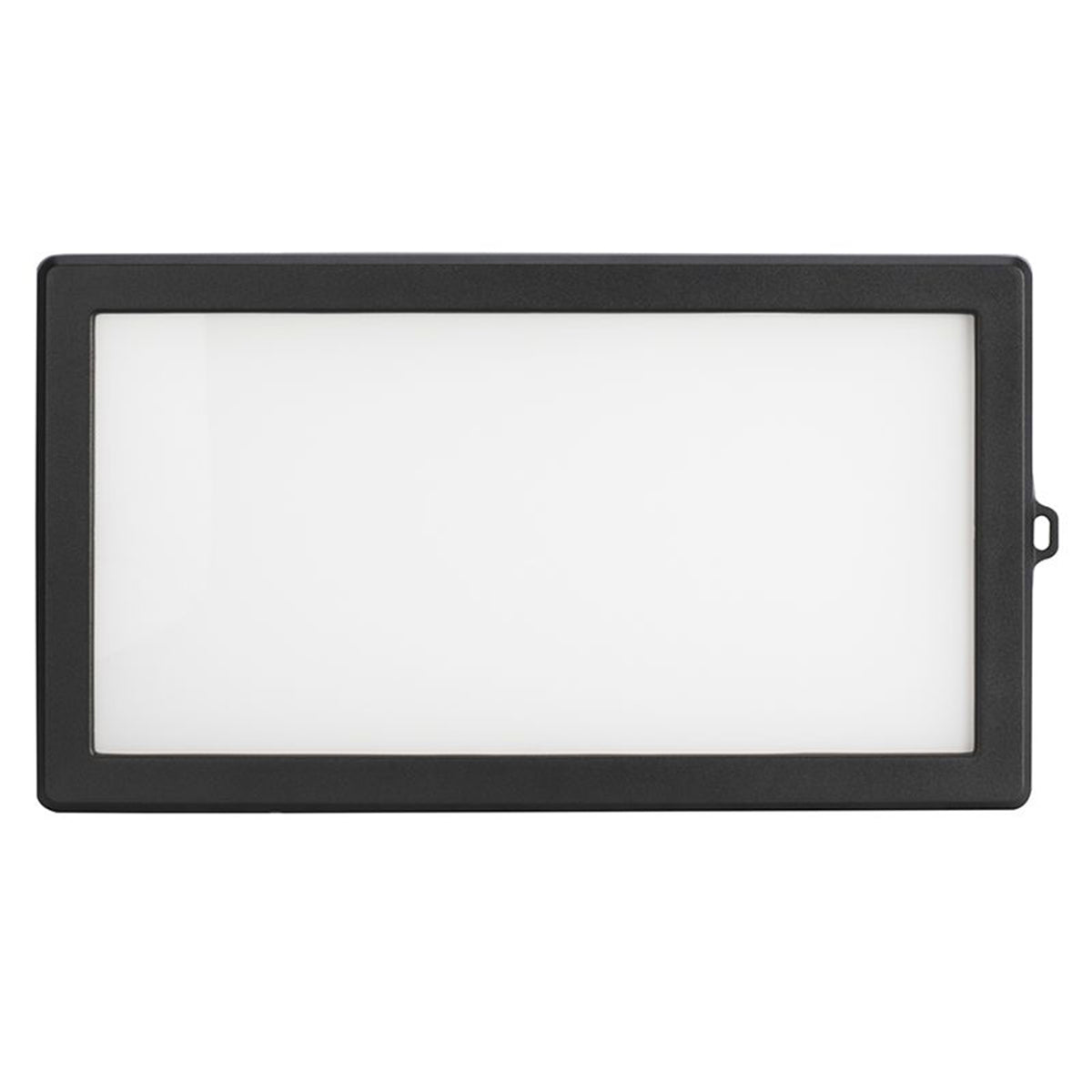

- (1) Removable Frost Filter with Metal Frame
- (1) ELP32L100 100° Frost Filter
- (1) IP65 Locking Power Cable
- (2) Safety Cables
SKU: SKU: 32 HEX Panel IP+ELP32L100
View full details









Product Description

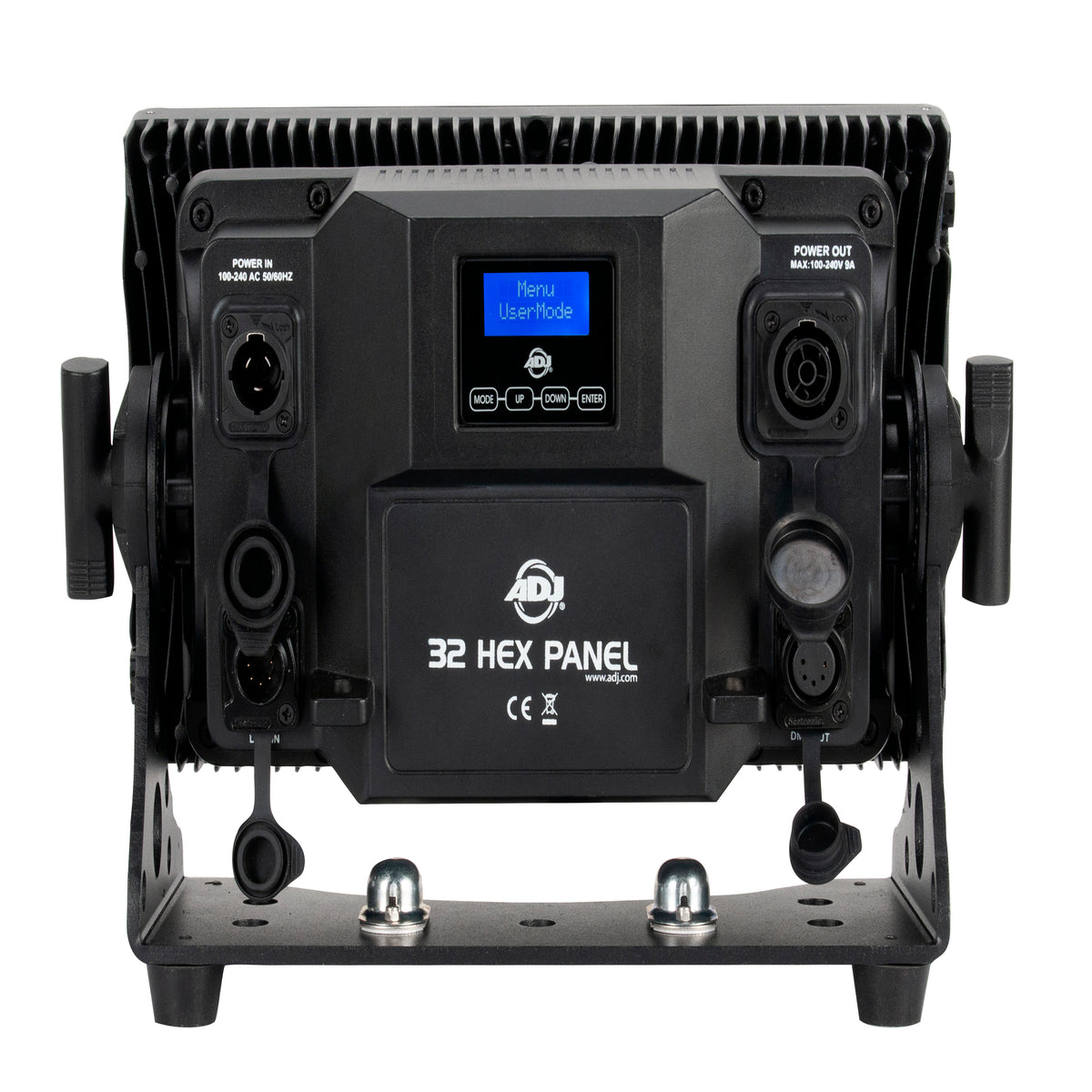

An IP65 rating and all-metal construction protect the fixture from dust, sand, moisture, and rain, making it a fit for both indoor venues and temporary outdoor events. Eight individually controlled Pixel Zone sections let you create segmented chases and color patterns across the panel face, while the rear OLED display with touch buttons keeps navigation fast. IP65 locking 5-pin XLR DMX and locking power connections, all fitted with rubber covers, keep every connection sealed.
Flicker-free output with selectable gamma and refresh rate settings handles broadcast, film, and live streaming. The 100° frost filter attaches magnetically to the included metal filter frame, so swapping between the stock frost filter and the 100° option takes seconds with no tools. Daisy chain up to 3 units at 120V.
Features

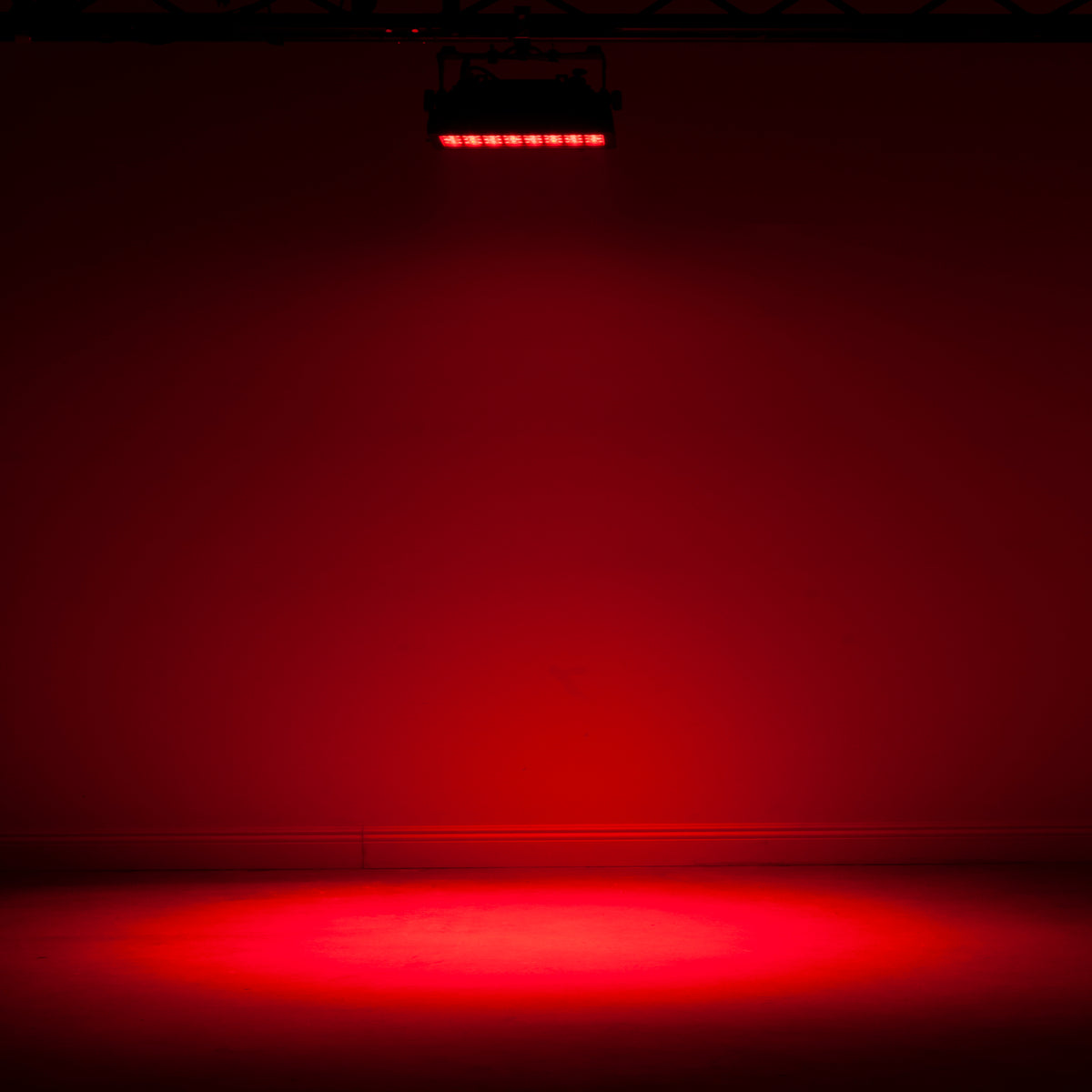

Wide-Angle Coverage Out of the Box
The included 100° frost filter widens the native 24° beam dramatically, so you get broad wall washes and audience blinder effects without buying filters separately.
Three Fixtures in One
Wash, blinder, and color strobe modes in a single IP65 housing reduce the number of fixtures to rig, cutting weight, power draw, and setup time.

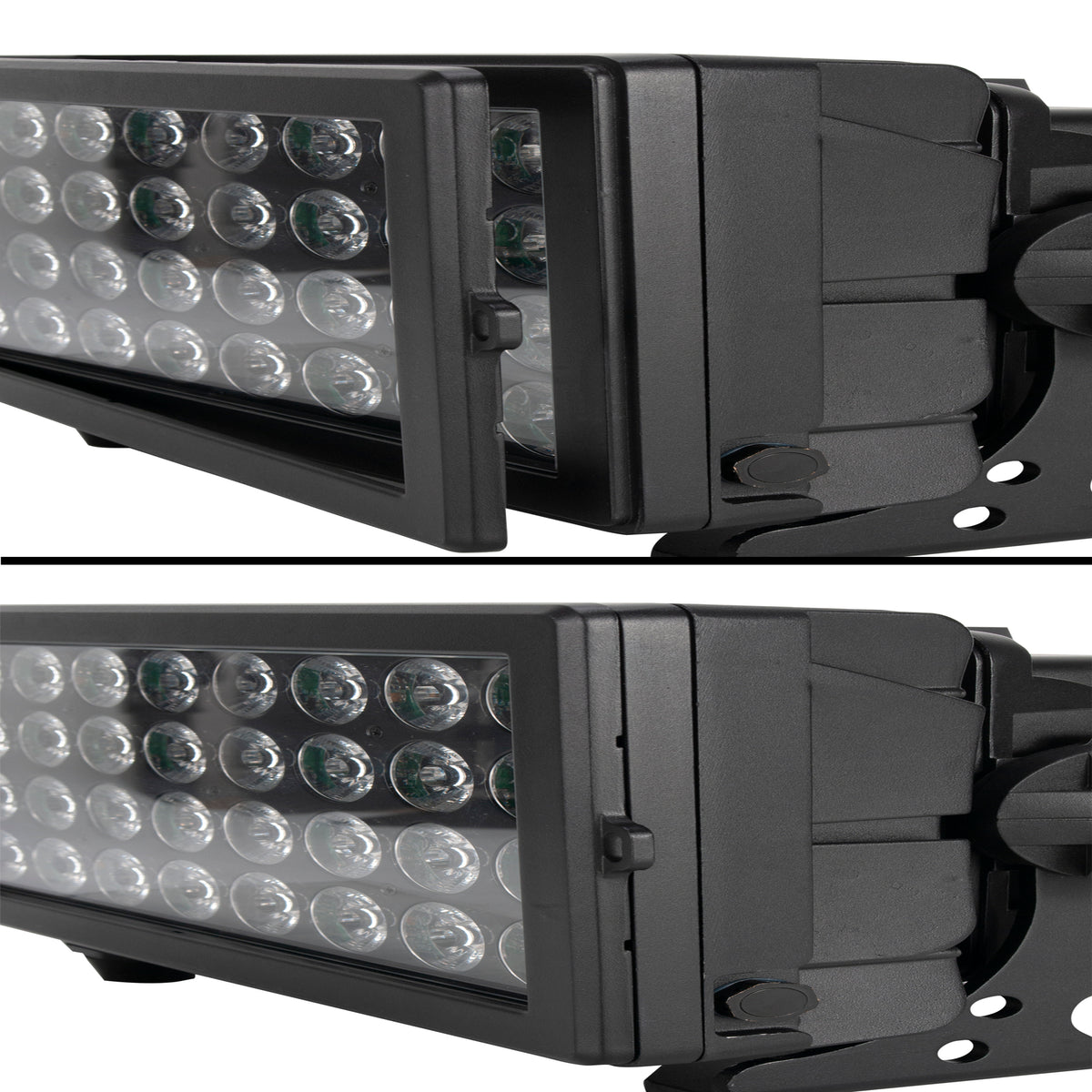

Magnetic Tool-Free Filter Swap
The frost filter attaches magnetically to the metal frame, letting you switch between the stock filter and the 100° option in seconds with no tools.
IP65 All-Weather Protection
All-metal construction with sealed locking power and DMX connections keeps the fixture operational through rain, dust, and sand at outdoor events.
Pixel Zone Creative Control
Eight individually controlled sections across the panel face let you build segmented chases, color splits, and dynamic patterns from a single fixture.
Technical Specifications
- Product Type IP65 Outdoor LED Wash/Blinder/Strobe + Frost Filter Kit
- Light Source 32 x 12W HEX (6-in-1) RGBAW+UV LEDs
- LED Life 50,000 hrs
- Native Beam Angle 24°
- Included Frost Filter 100° (ELP32L100)
- Lux 33,040 @ 1M / 1,322 @ 5M (Full On, No UV)
- Pixel Zones 8 Individually Controlled Sections
- Dimming 0-100% + 16-bit Fine Dimming
- Dimming Curves 5
- Display OLED with Touch Buttons
- DMX IP65 Locking 5-Pin XLR In/Out
- Power IP65 Locking Power In/Out
- Control DMX-512, RDM
- Daisy Chain 3 units at 120V / 6 units at 230V
- Power Consumption 220W Max
- Input Voltage AC 100-240V, 50/60Hz
- IP Rating IP65
- Dimensions 13.75" x 9" x 6.75" / 350 x 230 x 170mm
- Weight 24.25 lb / 11 kg
