(4) 32 HEX PANEL IP RGBAW+UV DMX Outdoor Wash/Blinder/Strobe Lights
(4) 32 HEX PANEL IP RGBAW+UV DMX Outdoor Wash/Blinder/Strobe Lights

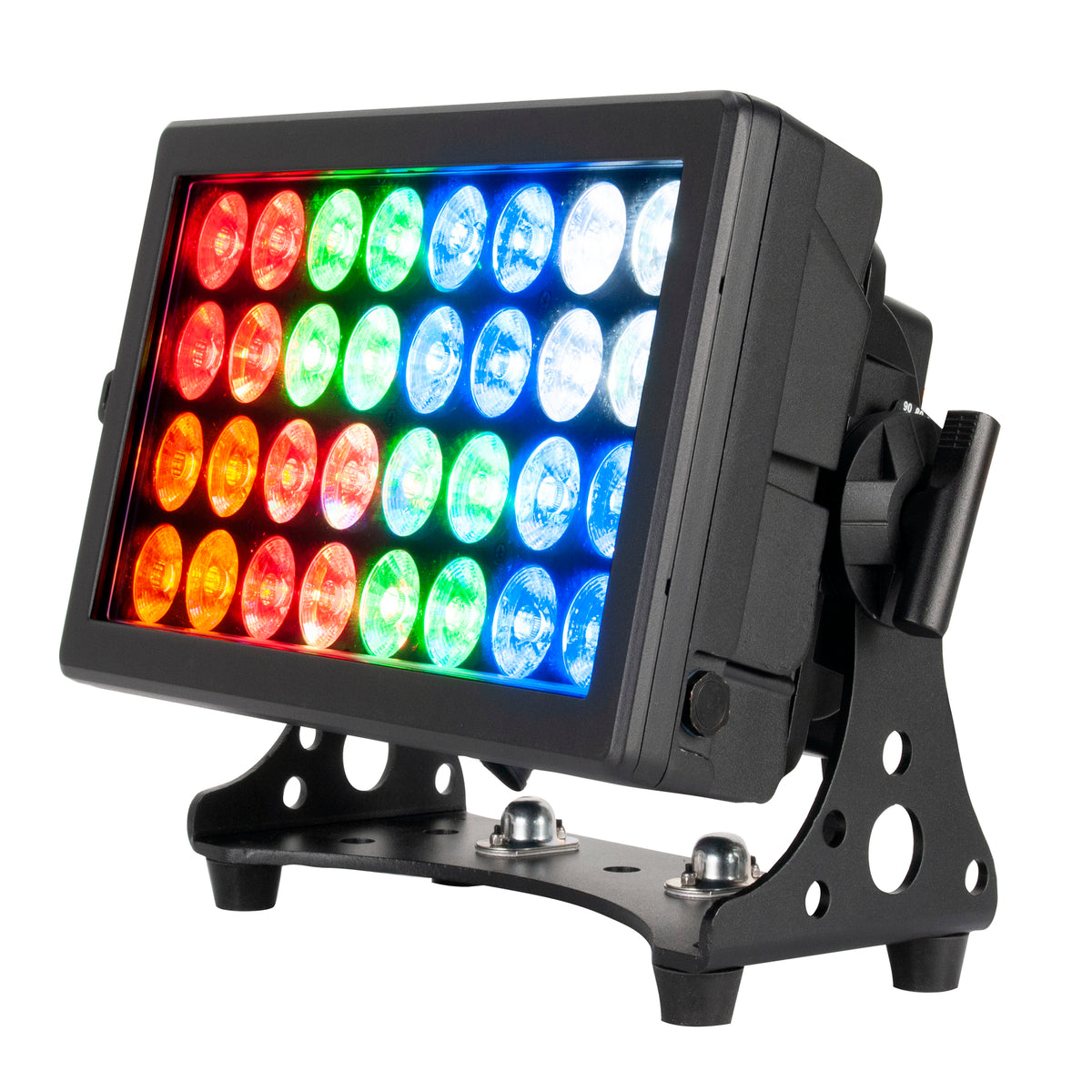

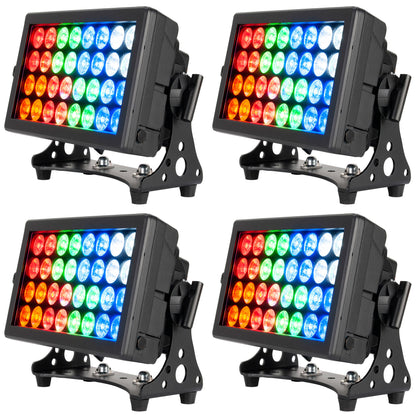

Four IP65 32-LED HEX Panel Wash/Blinder/Strobe Lights, RGBAW+UV, Pixel Control
Features
- 32 x 12W HEX LEDs (RGBAW+UV) per panel with pixel zone control
- Multi-function: wash, blinder, and color strobe in one fixture
- IP65-rated all-metal housing for outdoor and indoor events
- Flicker-free output for broadcast and film applications

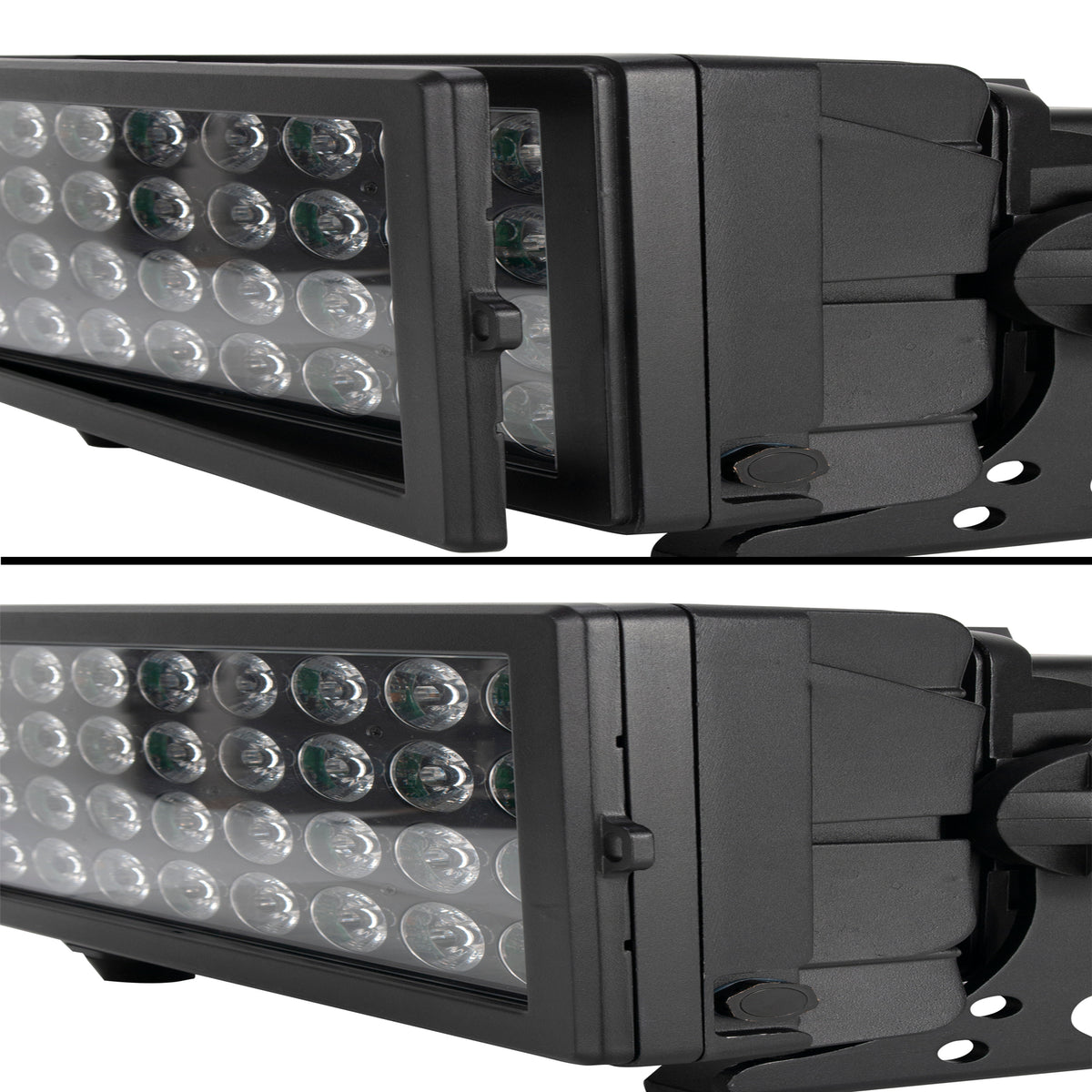

- Magnetic removable filter frame for adding diffusion
Couldn't load pickup availability
What's Included in the box

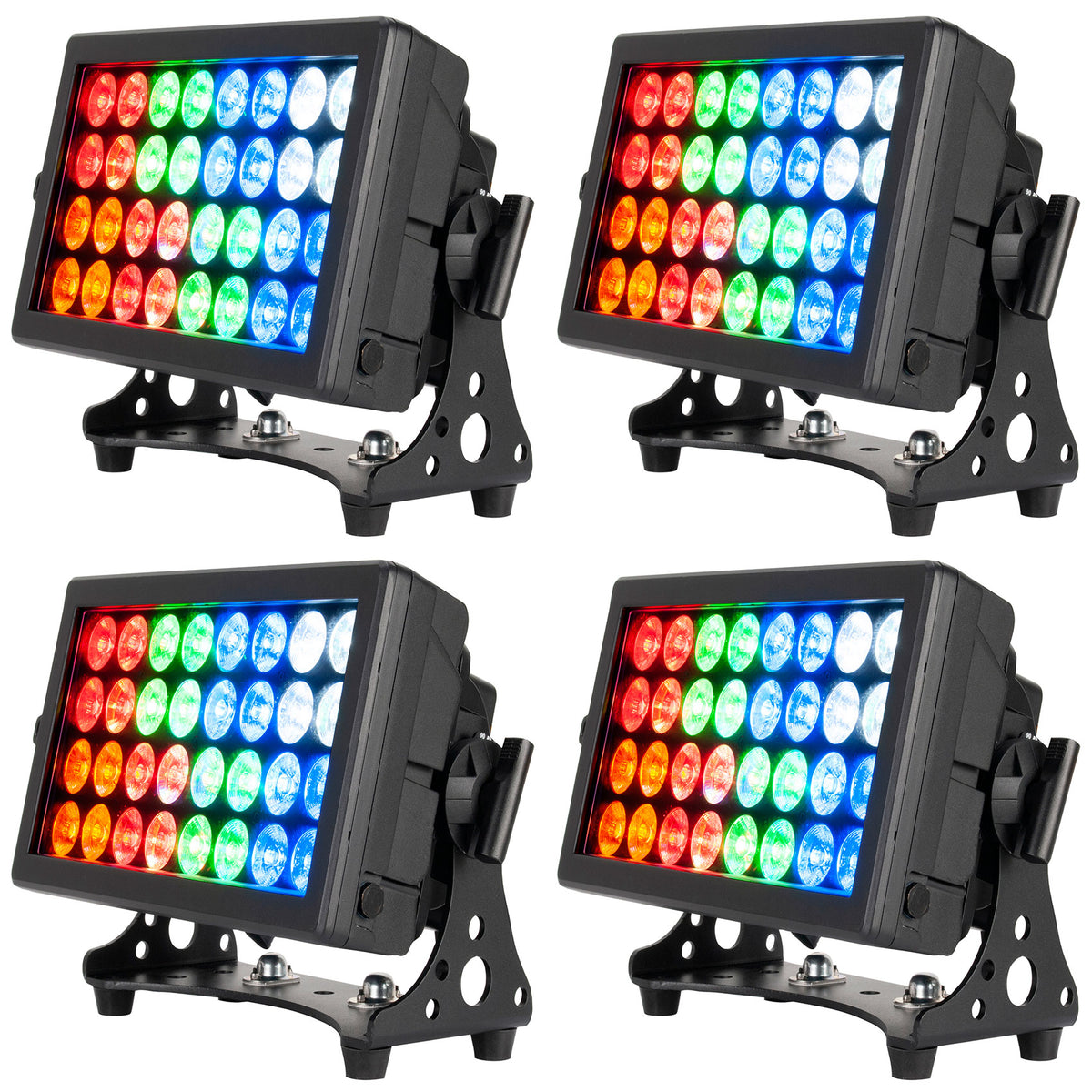

- (4) ADJ 32 HEX PANEL IP Lights
- (4) Removable Frost Filters with Metal Frame
- (4) IP65 Locking Power Cables
- (8) Safety Cables
SKU: SKU: (4) 32 HEX PANEL IP
View full details







Product Description

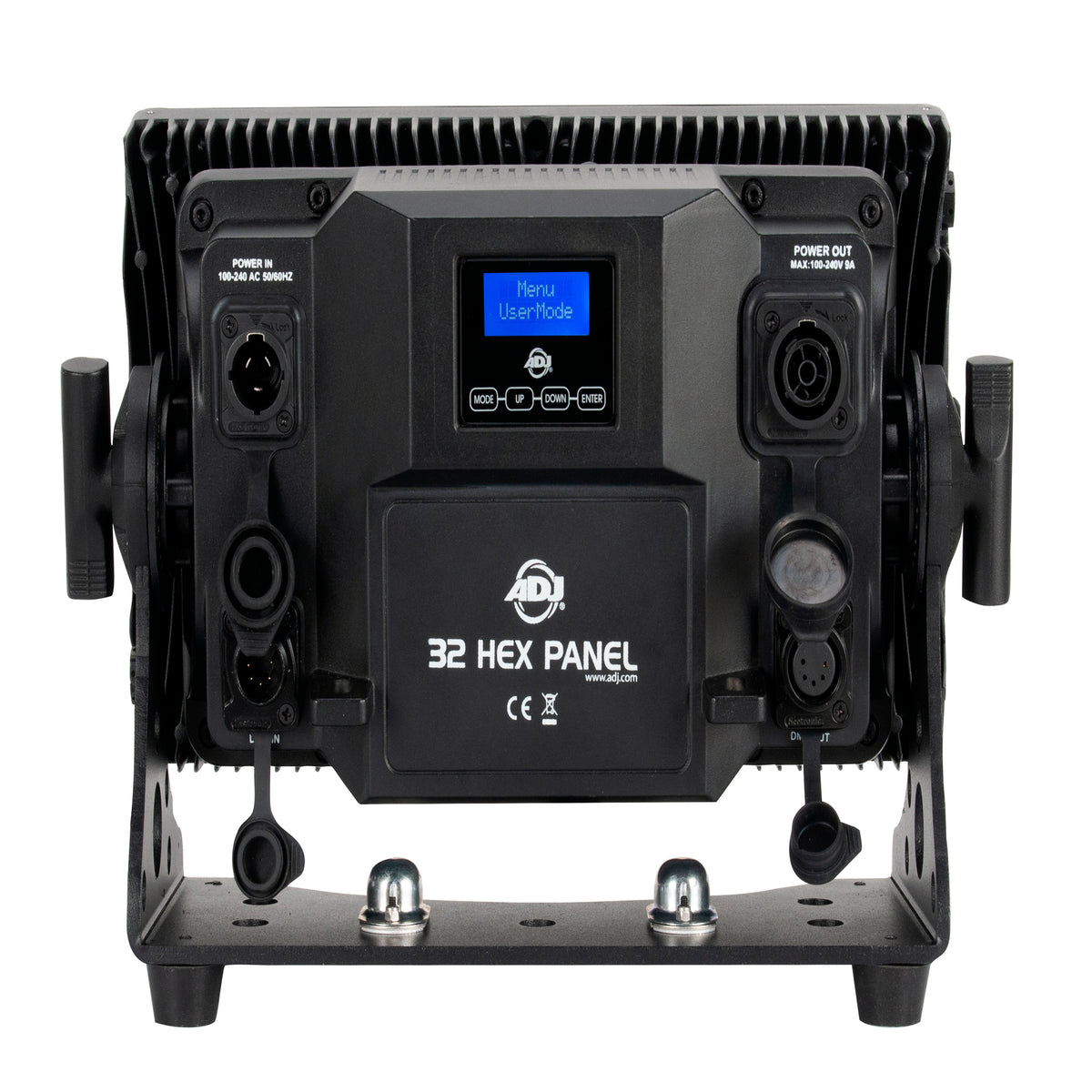

An OLED display with touch buttons on each unit makes addressing and navigation fast. IP65 locking 5-pin XLR DMX and locking power In/Out connections with rubber protective covers keep the weather seal intact for outdoor events, while daisy chaining supports up to 3 fixtures at 120V or 6 at 230V. Flicker-free output makes these panels broadcast and film-safe. Linear variable white temperature control, multiple dimming curves, and selectable gamma and LED refresh rate settings give you precise control over color rendering and output behavior. Each panel includes a heavy-duty bracket with a Sure-Lock system that secures the angle every 10 degrees, plus a magnetic removable filter frame for adding diffusion. At 220W max per panel and 24.25 lb, these are serious fixtures for touring, rental, and production use.
Features
Wash, Blinder, and Strobe Combined
Each panel handles three lighting roles from one housing, so you carry fewer fixtures while covering more cues on your show plot.
Pixel Zone Control
Eight individually controlled LED sections per panel allow pixel-mapped effects, color chases, and section-by-section color control from your console.
IP65 Outdoor Rating
Sealed all-metal construction with rubber-covered locking connections protects from dust, sand, moisture, and water at outdoor events.
Flicker-Free for Film
Adjustable LED refresh rates and gamma settings keep the output steady on camera, with no visible banding or strobing artifacts.

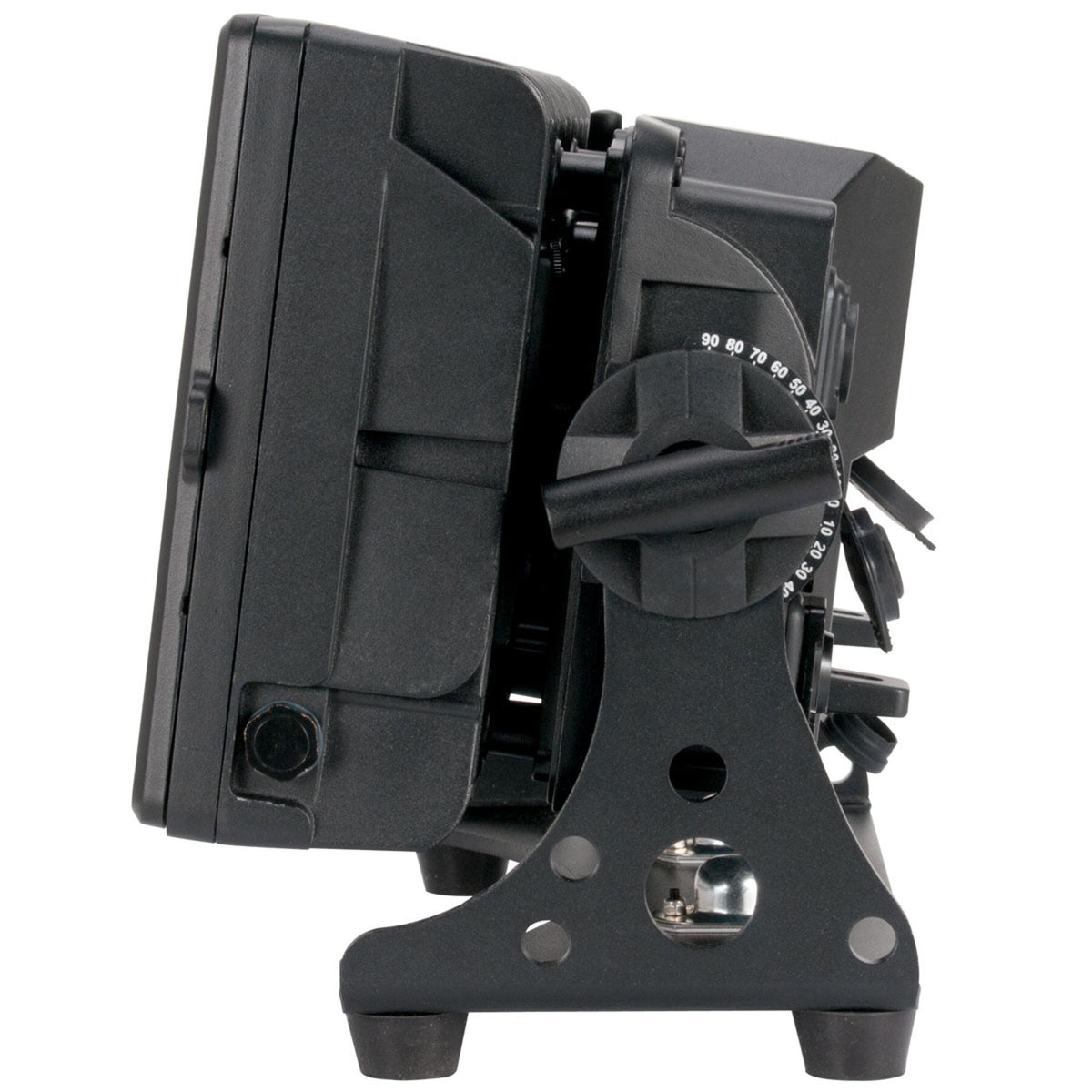

Sure-Lock Bracket
The heavy-duty mounting bracket locks securely every 10 degrees, so the fixture stays at the angle you set even during outdoor wind gusts.
Technical Specifications
- Product Type IP65 LED Panel Wash/Blinder/Strobe (4-Pack)
- Light Source 32 x 12W HEX (RGBAW+UV) LEDs per unit (50,000 hr)
- Beam Angle 24-degree
- Pixel Zones 8 individually controlled sections
- LUX 33,040 at 1M (full on, no UV)
- Dimming 0-100% with 16-bit fine dimming
- Dimming Curves 5 modes
- IP Rating IP65
- Power Consumption 220W max per unit
- Input Voltage AC 100-240V, 50/60Hz
- Daisy Chain 3 units at 120V, 6 at 230V
- Dimensions 13.75" x 9" x 6.75" (350 x 230 x 170mm) per unit
- Weight 24.25 lb (11 kg) per unit
