(4) ElectraPix Bar 16 Wireless DMX RGBAL+UV Outdoor Light Strip Bars
AMERICAN DJ
(4) ElectraPix Bar 16 Wireless DMX RGBAL+UV Outdoor Light Strip Bars
(4) ElectraPix Bar 16 Wireless DMX RGBAL+UV Outdoor Light Strip Bars
Four 1-Meter Battery-Powered IP65 RGBAL+UV Pixel Bars, Wireless DMX, Bluetooth
Features
- Sixteen 20W RGBAL+UV LEDs per bar with individual pixel control
- Rechargeable battery: 5 hours standard or 10 hours saver mode
- IP65-rated housing for outdoor rain, dust, and sand protection
- Aria X2 wireless DMX, Bluetooth, and IR remote control included
- Variable white temperature from 2,300K to 9,900K
Couldn't load pickup availability
What's Included in the box

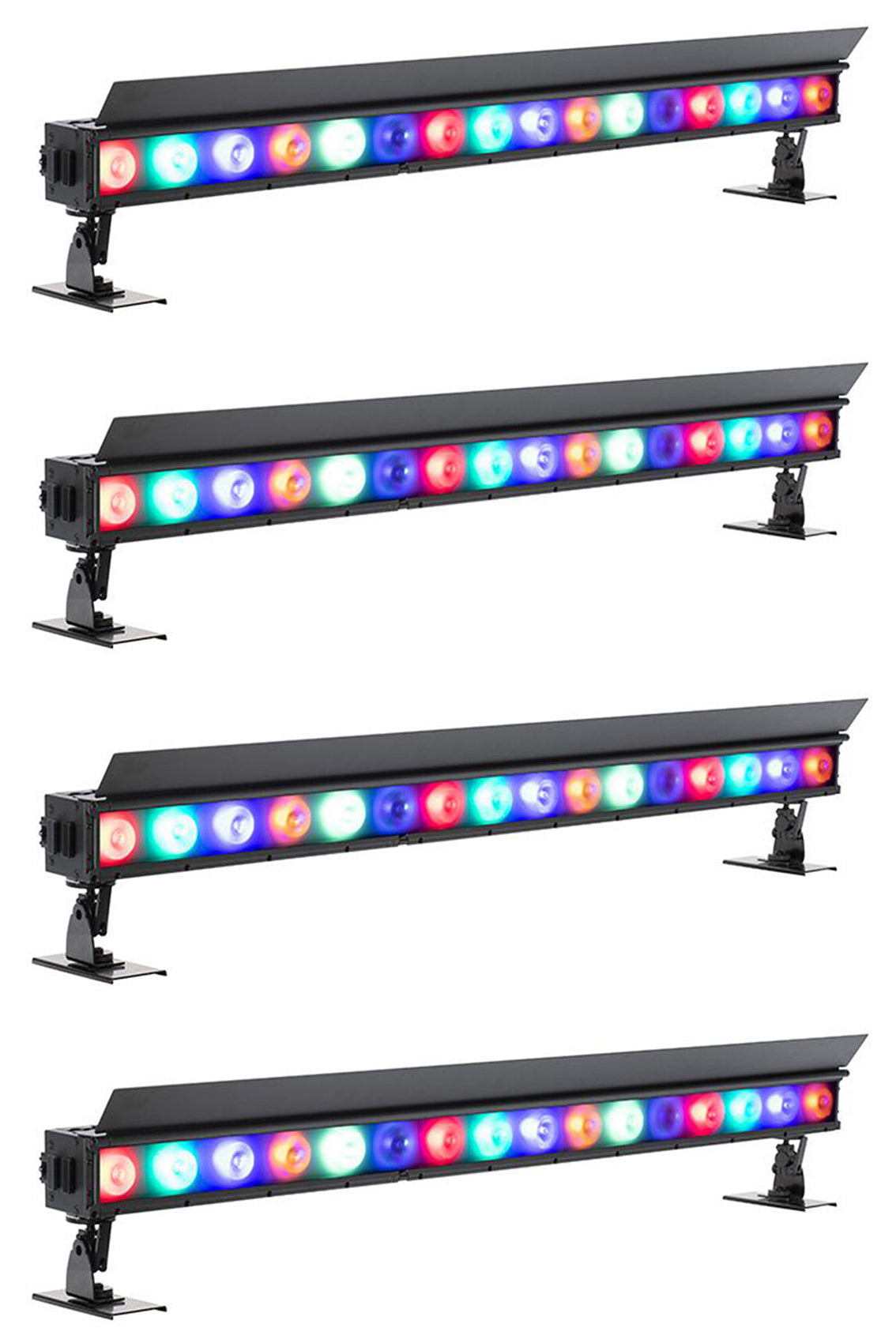

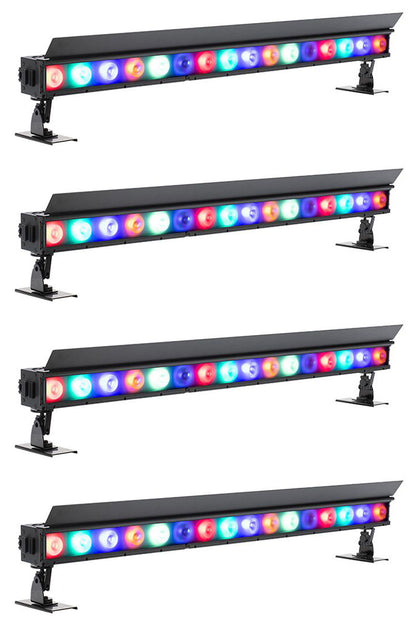

- (4) ADJ ElectraPix Bar 16 Fixtures
- (4) Outdoor Locking Power Cables
- (4) UCIR24 IR Remotes
- (4) 20-Degree Diffusion Filters
SKU: SKU: (4) ElectraPix Bar 16
View full details










Product Description

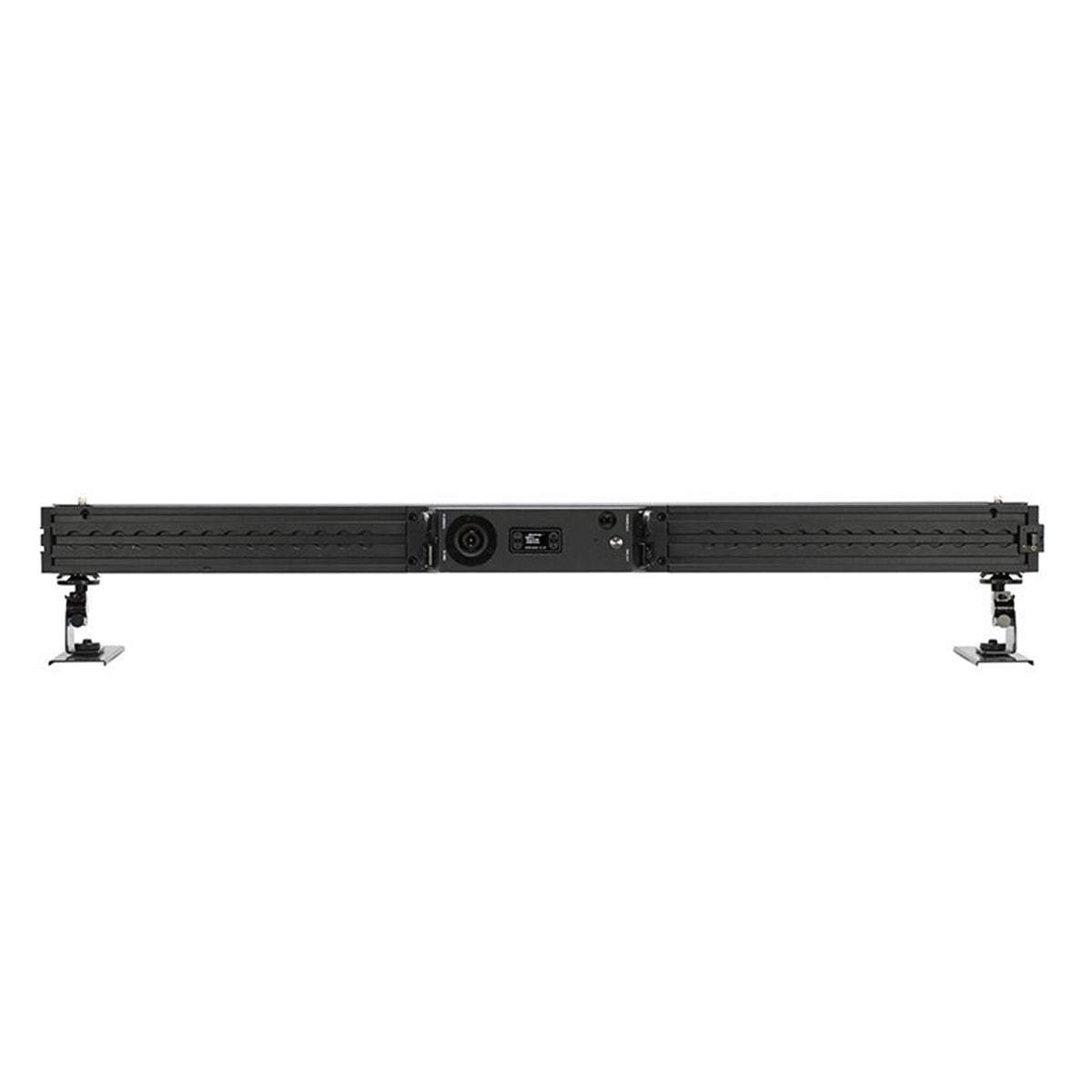

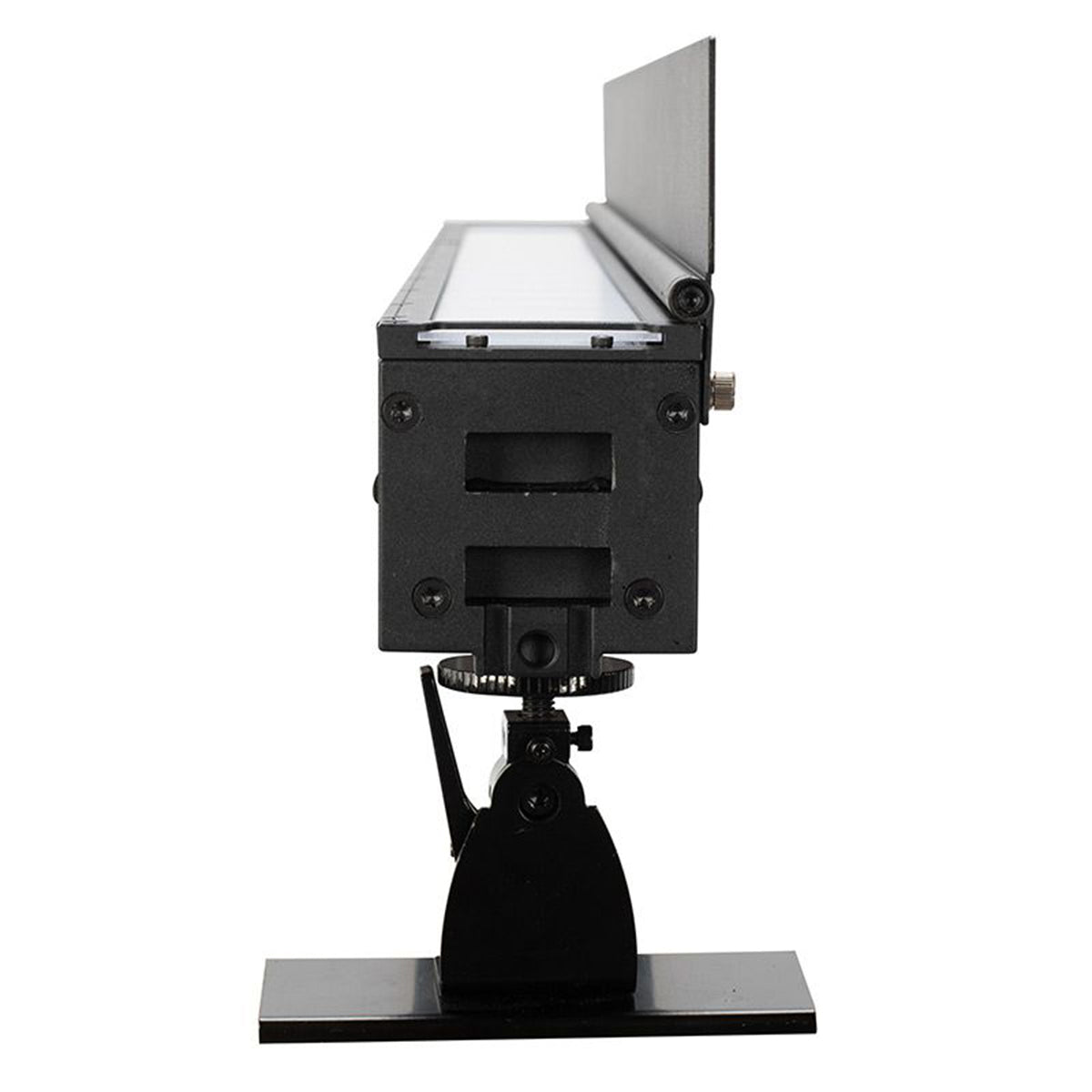

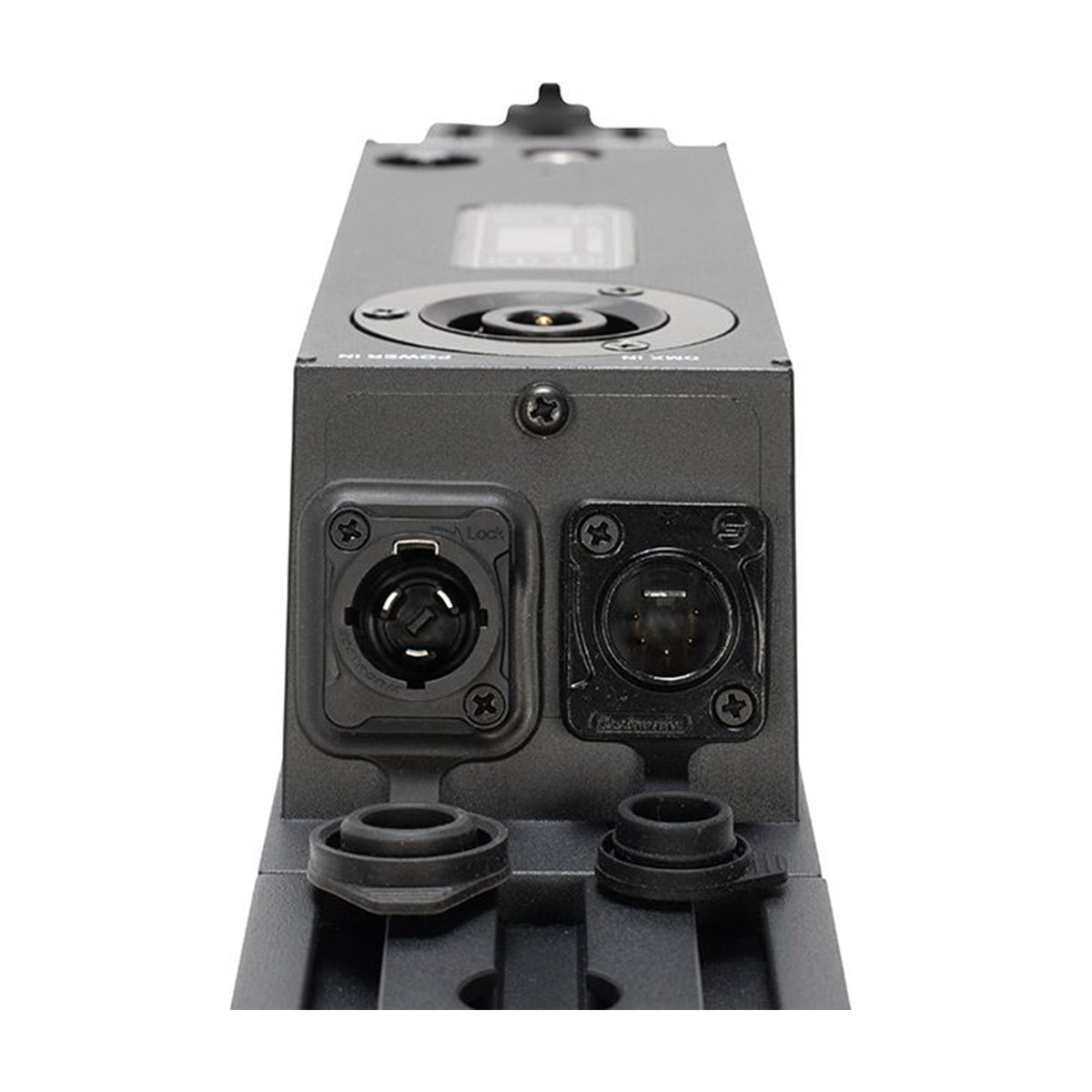

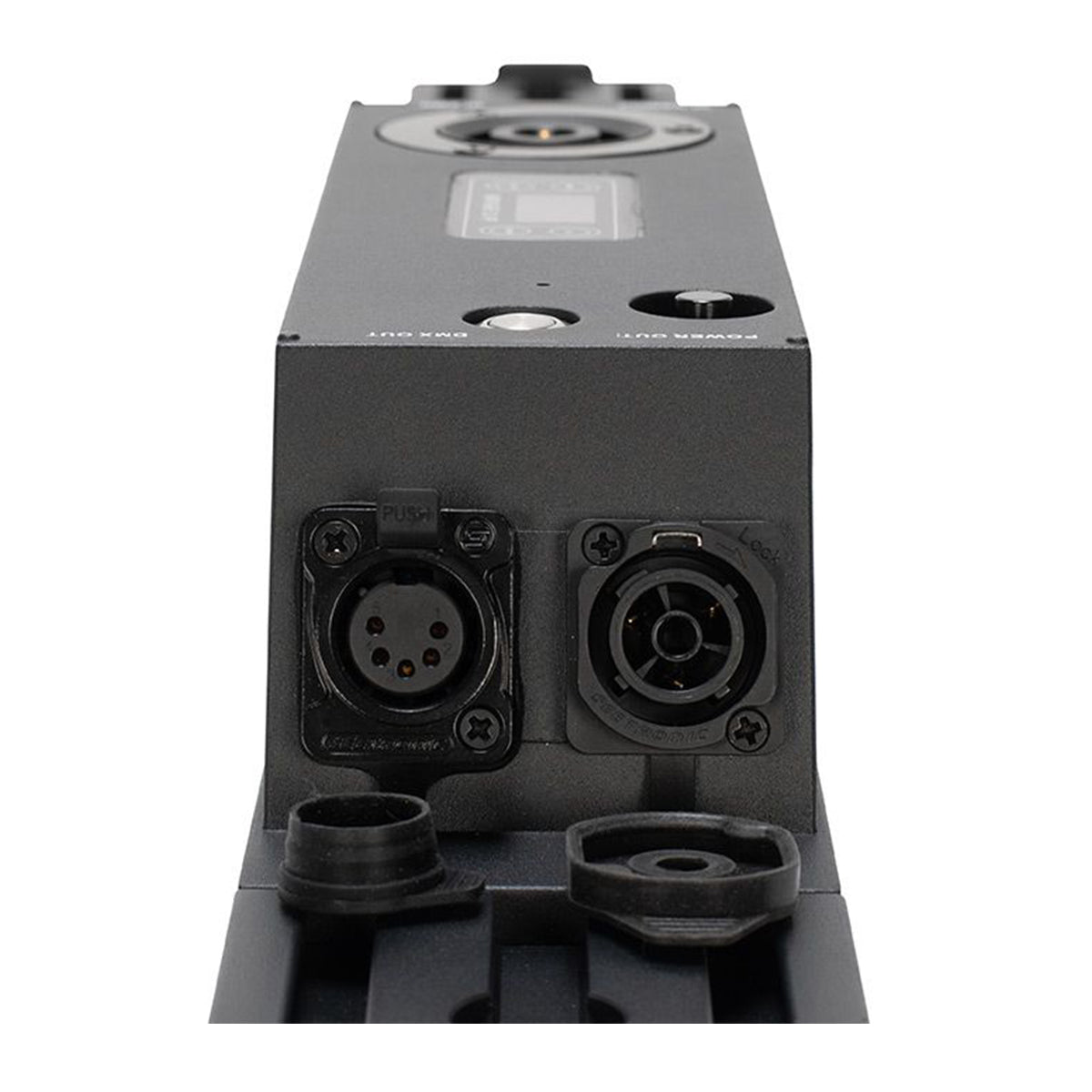

Control options cover DMX-512, ADJ Aria X2 wireless DMX, Bluetooth, and an included UCIR24 IR remote. RDM compatibility allows remote device management from the console. The variable white color temperature range runs from 2,300K to 9,900K with foreground and background LED programs built in. IP65-rated housing protects every fixture from rain, dust, and sand, with outdoor locking power sockets and 5-pin XLR DMX In/Out connections. An L Track system on each bar lets you attach accessories and rigging hardware, while adjustable angle feet allow floor placement and horizontal slide locks connect multiple bars end to end. Each bar includes a 20-degree diffusion filter. Six dimming modes, four dimming curves, electronic strobe from 0.3Hz to 11Hz, and adjustable refresh rates up to 25,000Hz round out the control. At 90W wall power consumption and a 7-hour full charge time, this set covers everything from architectural uplighting to concert production.
Features
Battery or Wall Powered
Rechargeable lithium-ion batteries deliver up to 10 hours of operation, and wall power keeps the bars running indefinitely for permanent installs.
Individual Pixel Control
Each of the sixteen 20W RGBAL+UV LEDs is independently controllable for pixel-mapped effects, color chases, and zone-based color design.
Wireless Control Options
Aria X2 wireless DMX, Bluetooth, and the included UCIR24 IR remote give you three cable-free control methods for quick setup.
IP65 All-Weather Housing
Sealed construction with outdoor locking connections protects the electronics from rain, dust, and sand at outdoor events and installations.
Wide White Temperature Range
Variable white from 2,300K to 9,900K with six preset options covers warm tungsten tones through cool daylight for architectural and stage use.
Technical Specifications
- Product Type IP65 Battery-Powered LED Pixel Bar (4-Pack)
- Foreground LEDs 16 x 20W Hex Color RGBAL+UV per bar
- Background LEDs 66 x 0.2W RGB per bar
- LED Life 50,000 hours
- Beam Angle 17-degree
- White Temperature Range 2,300K to 9,900K
- Battery Capacity 14,000 mAh, 22.2V
- Battery Life 5 hours standard, 10 hours saver
- Charge Time 7 hours
- IP Rating IP65
- Power Consumption 90W per bar
- Daisy Chain 10 at 120V, 18 at 230V
- Dimensions 3.38" x 45.82" x 7.53" (85.7 x 1163.6 x 191.2mm) per bar
