AMERICAN DJ

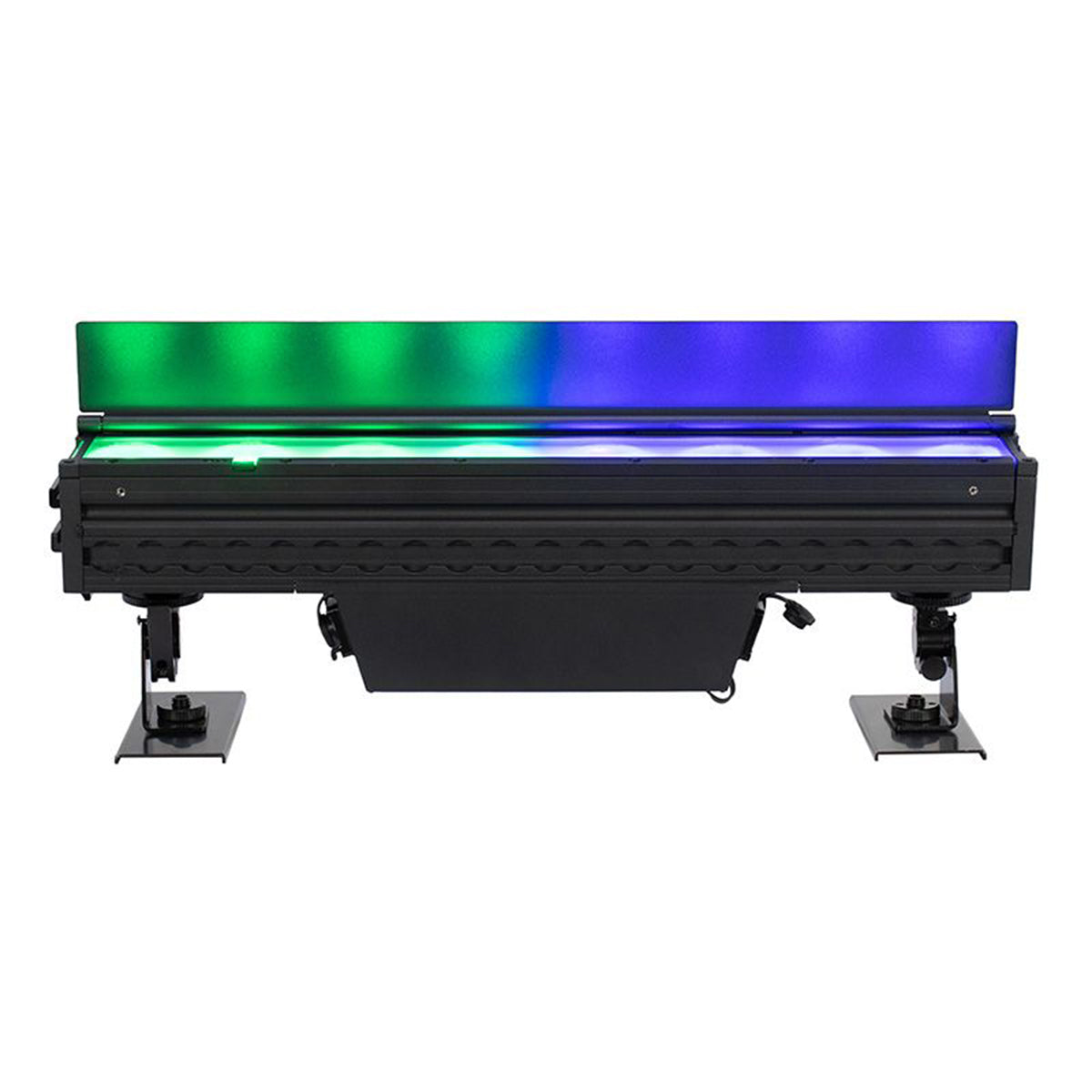

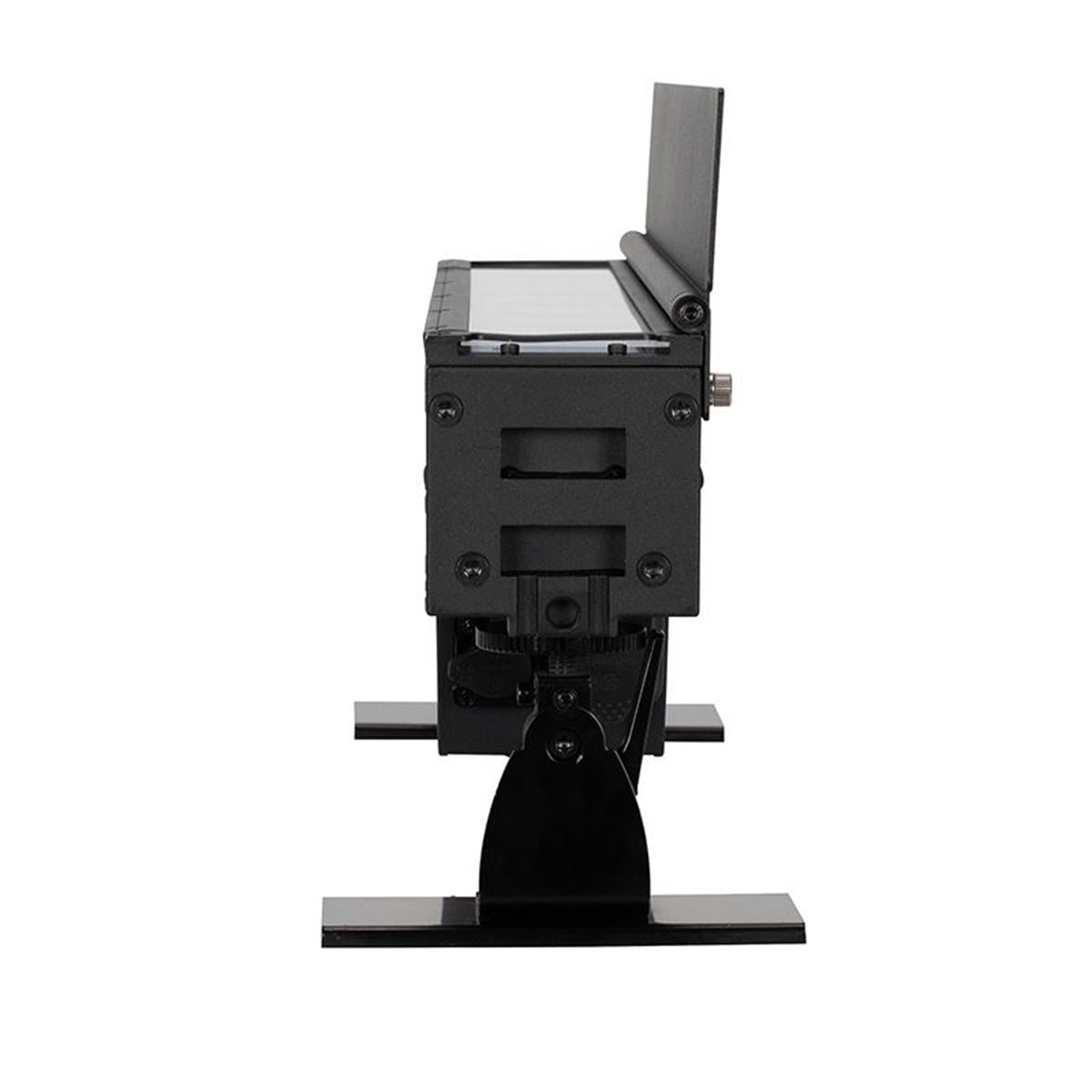

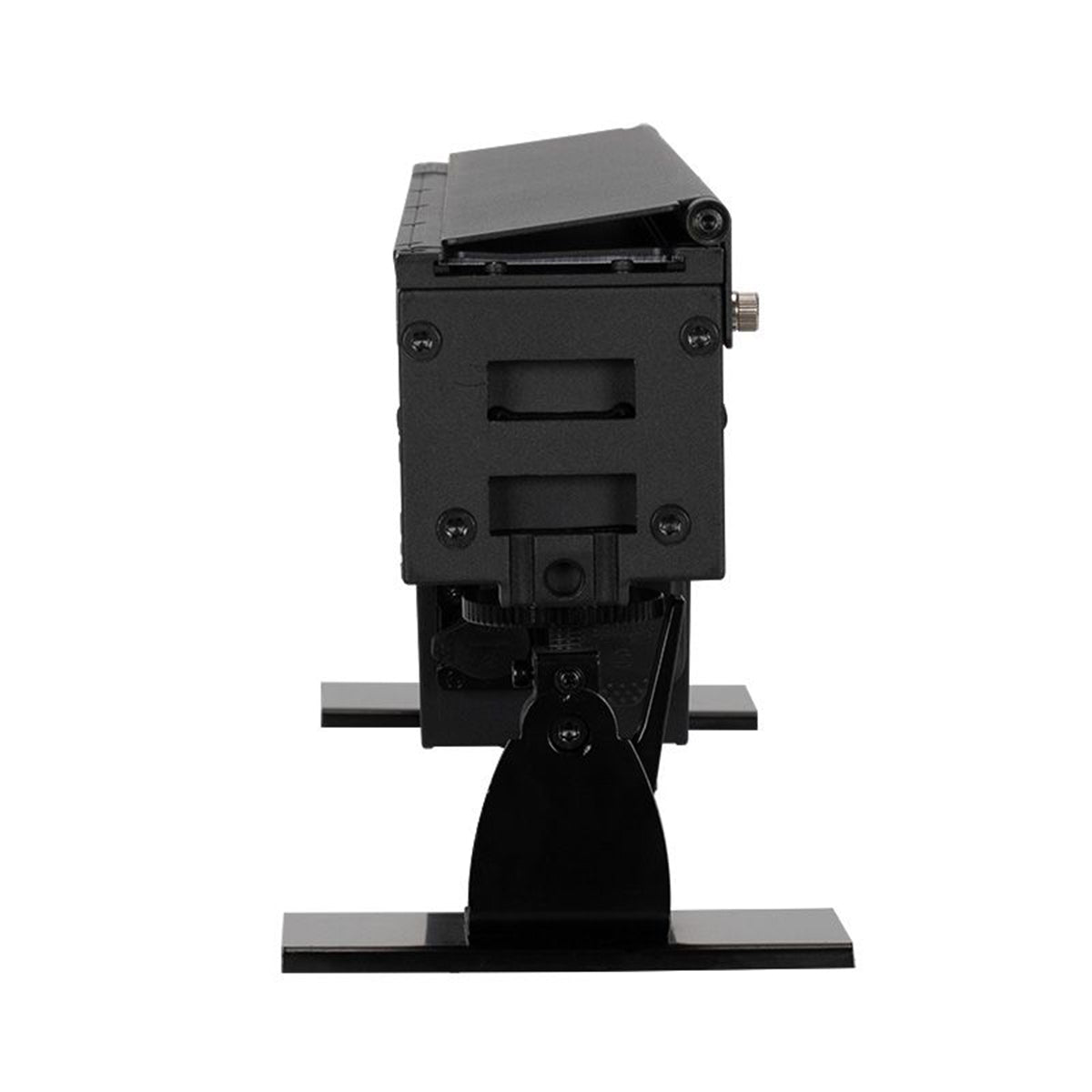

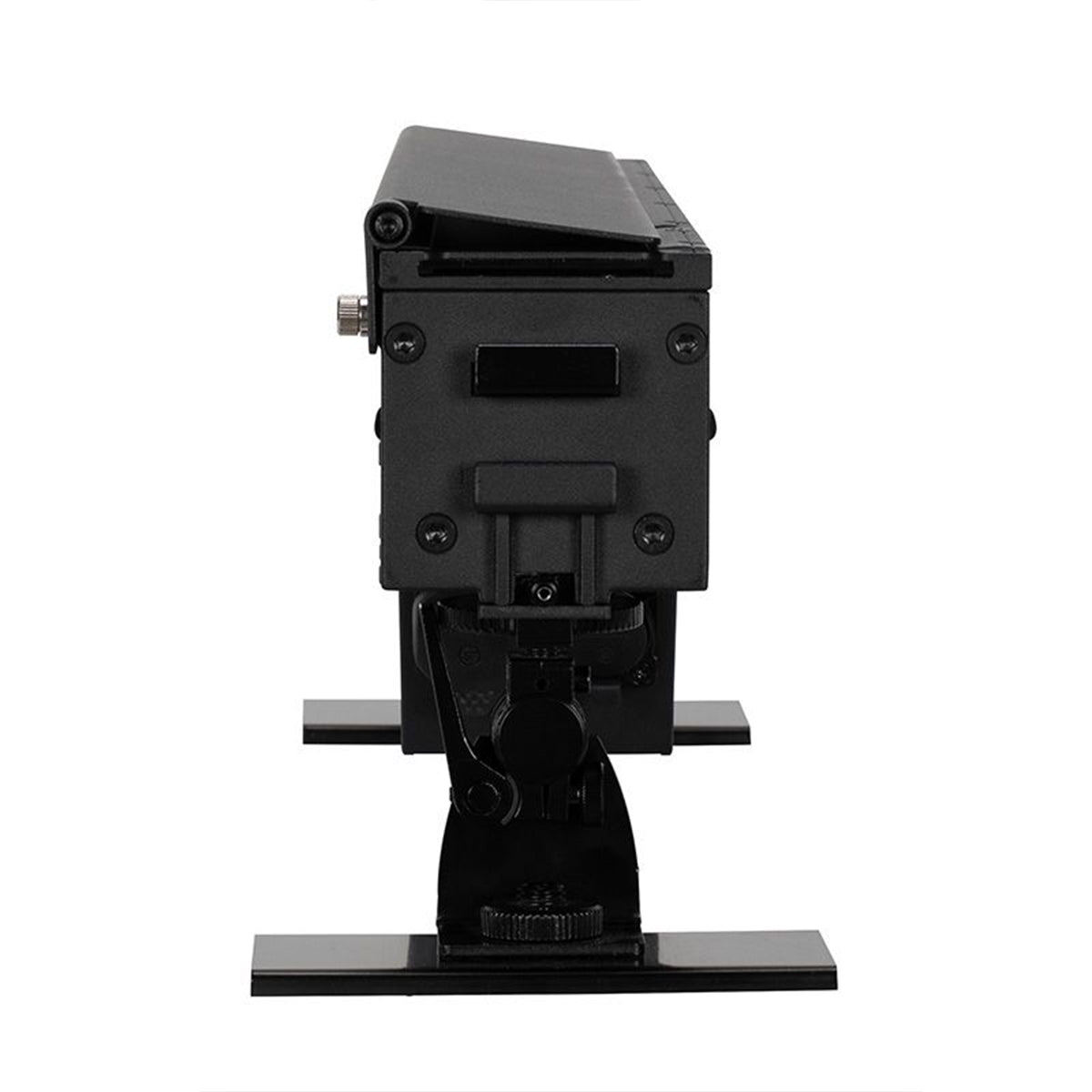

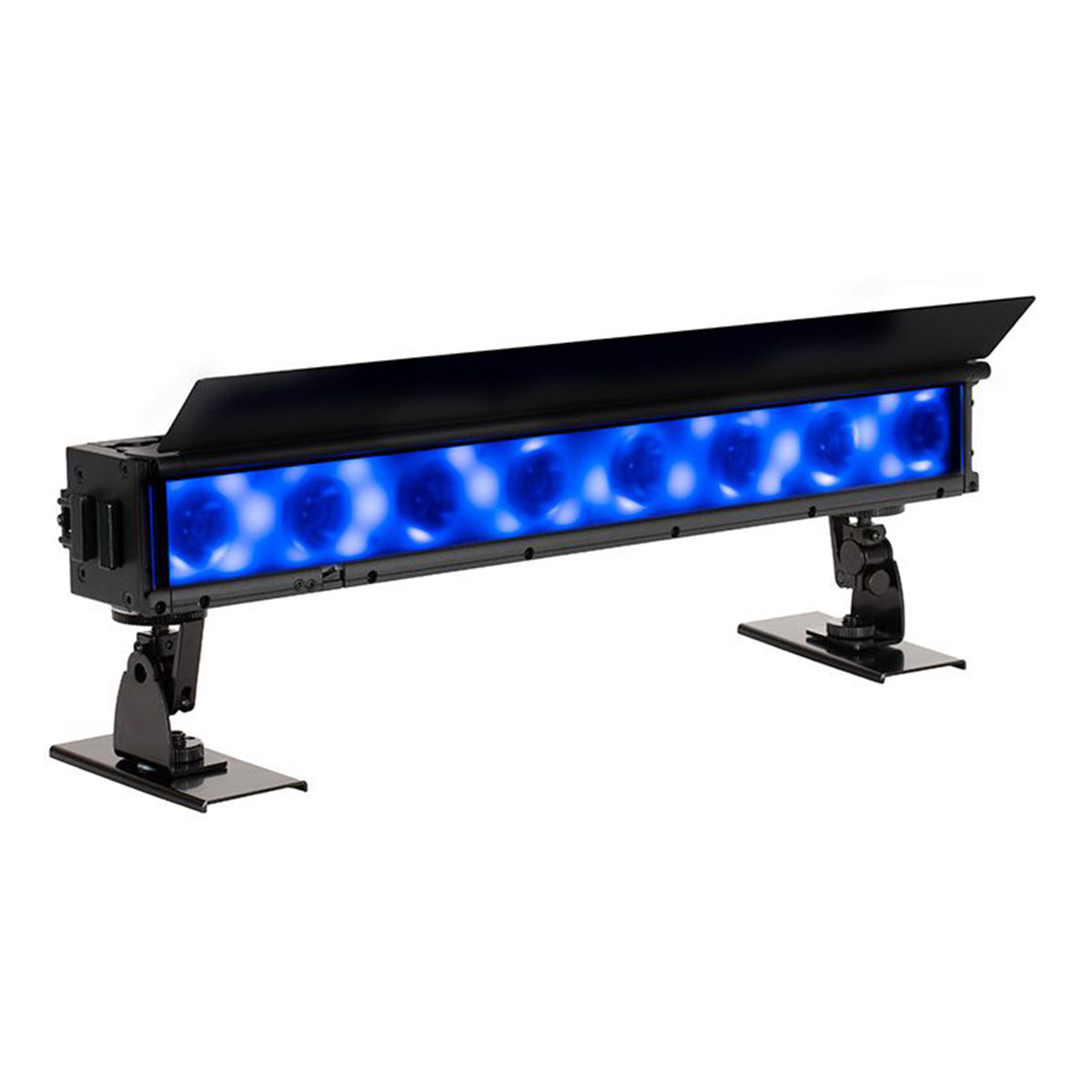

(4) ElectraPix Bar 8 Wireless DMX RGBAL+UV Bluetooth Wash Light Bars

(4) ElectraPix Bar 8 Wireless DMX RGBAL+UV Bluetooth Wash Light Bars

Four Half-Meter Battery-Powered IP65 RGBAL+UV Pixel Bars, Wireless DMX, Bluetooth
Regular price $3,799.96
Sale price $3,799.96 Regular price $5,279.80
Save 28%
Shipping calculated at checkout.
Features
    • Eight 20W RGBAL+UV LEDs per bar with individual pixel control
    • Up to 20 hours of rechargeable battery operation
    • IP65 housing protects from rain, dust, and sand
    • Aria X2 wireless DMX, Bluetooth, and IR remote included
    • Half-meter size fits tight spaces and connects to Bar 16 units
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

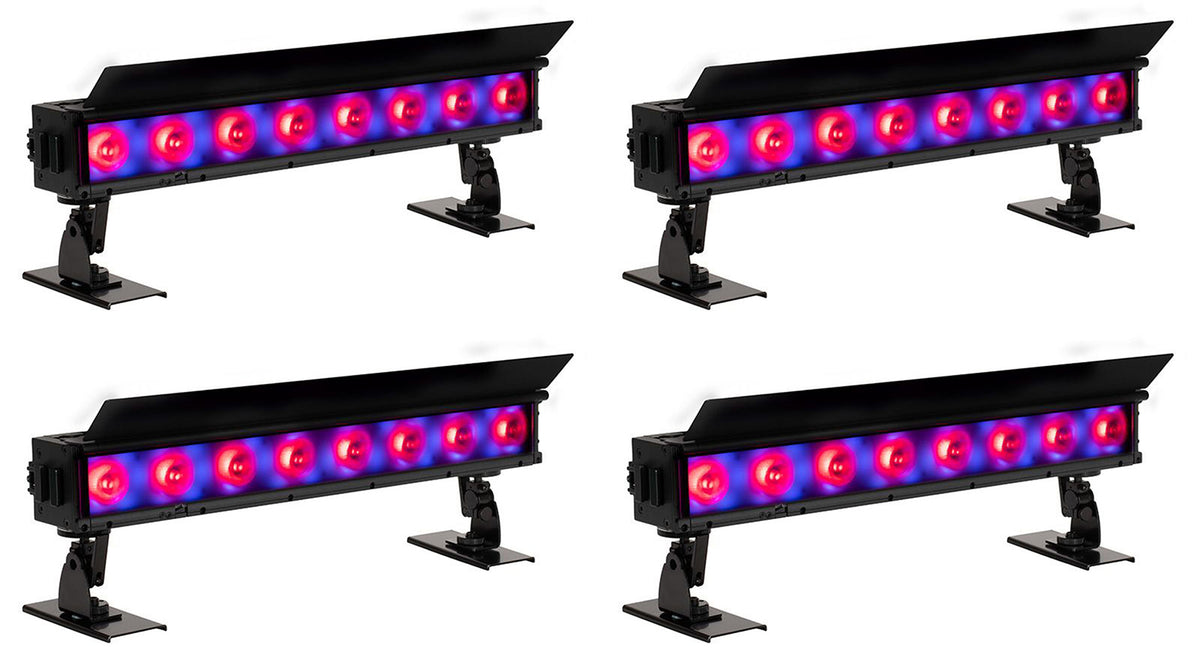

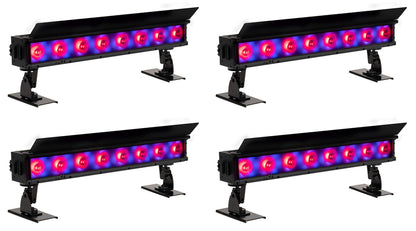

    • (4) ADJ ElectraPix Bar 8 Fixtures
    • (4) Outdoor Locking Power Cables
    • (4) UCIR24 IR Remotes
    • (4) 20-Degree Diffusion Filters

SKU: SKU: (4) ElectraPix Bar 8

View full details

Product Description

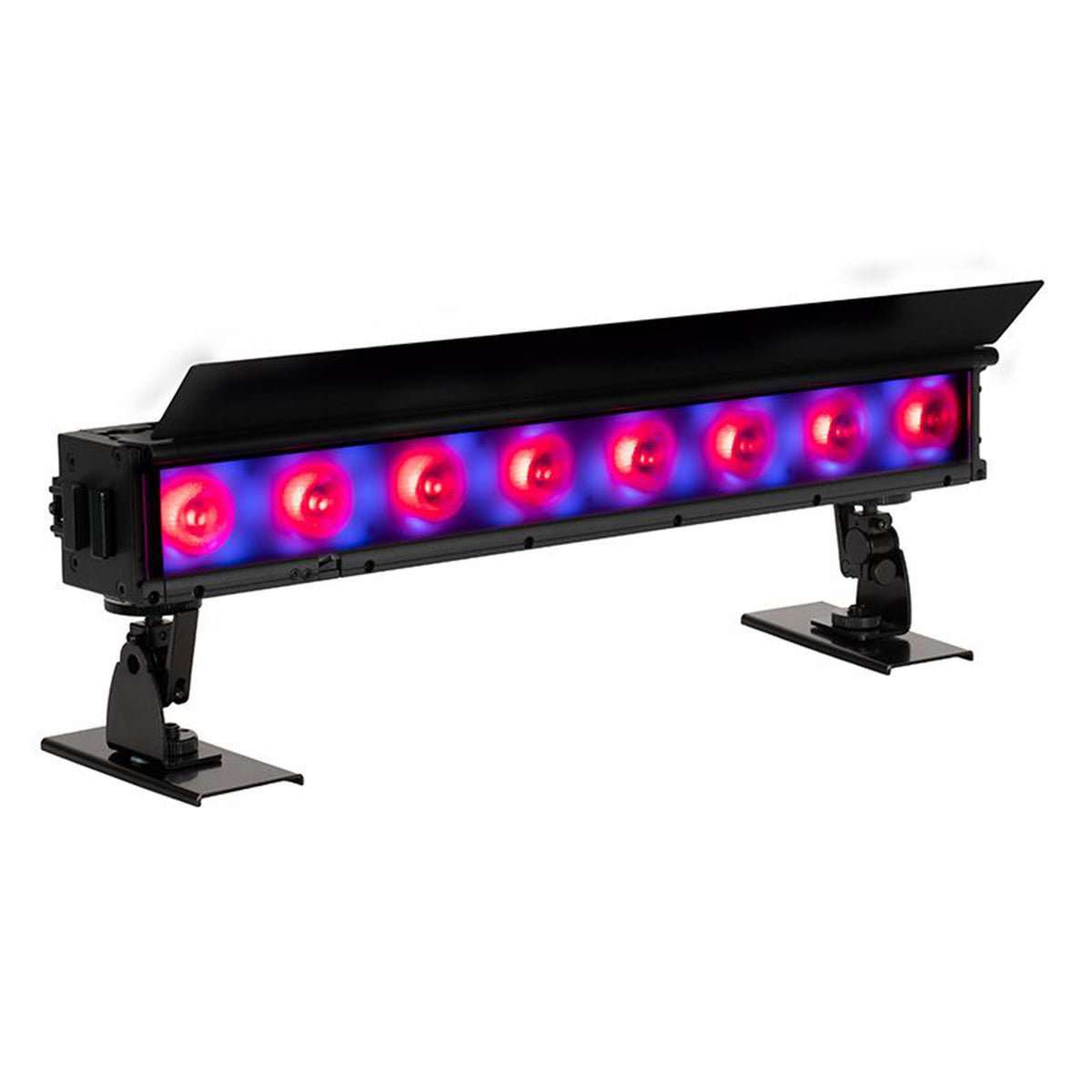

This four-pack of ADJ ElectraPix Bar 8 fixtures delivers a set of half-meter battery-powered, wireless DMX pixel bars built for indoor and outdoor lighting. Each bar carries eight 20W Hex Color RGBAL+UV LEDs with individual pixel control, plus 32 background RGB LEDs for added depth. The rechargeable lithium-ion battery provides up to 20 hours of operation, making these bars some of the longest-running battery fixtures in the ADJ lineup. Wall power is also an option for permanent installations.

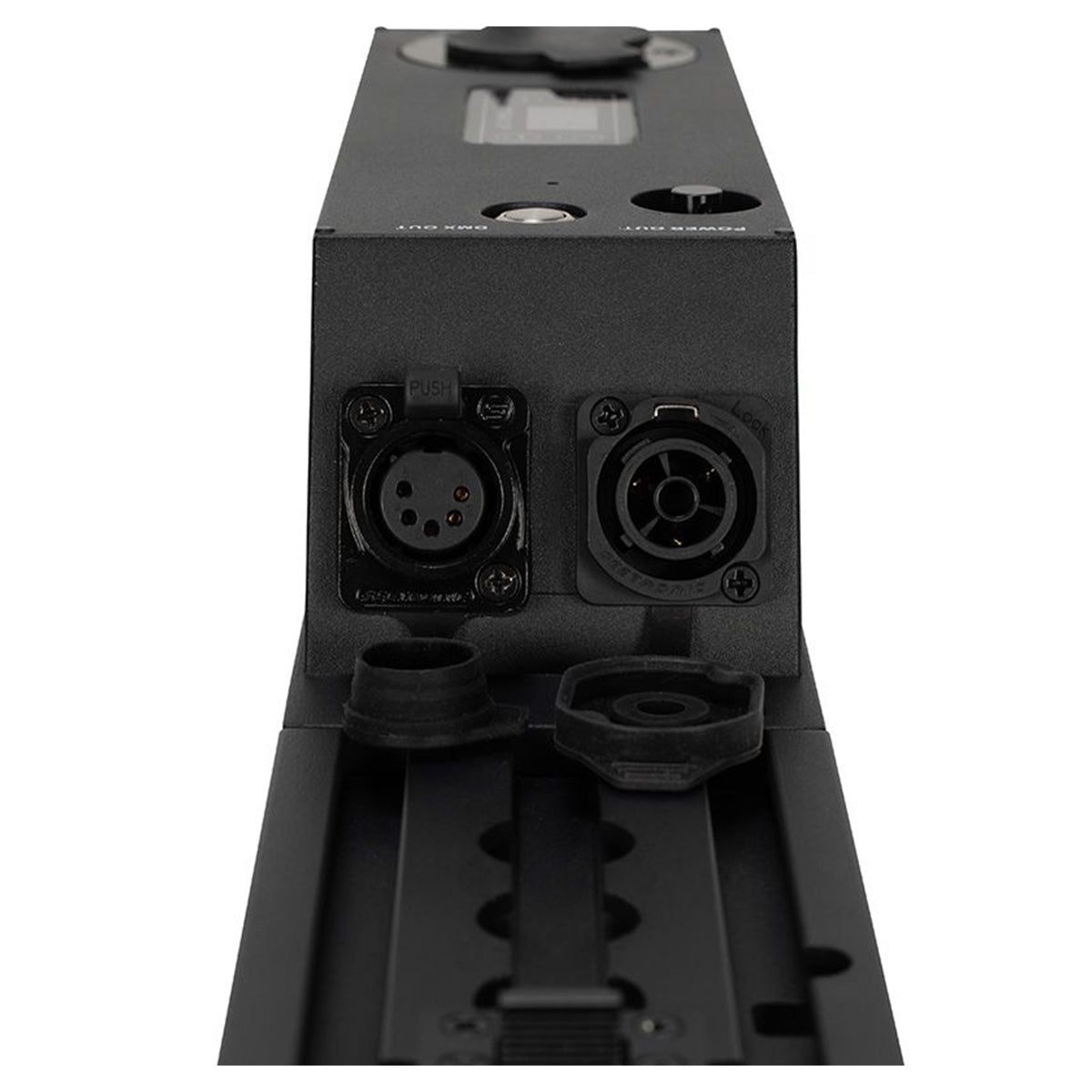

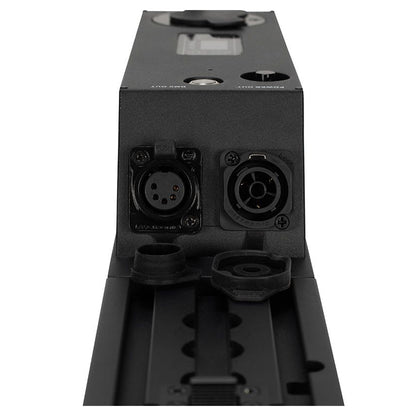

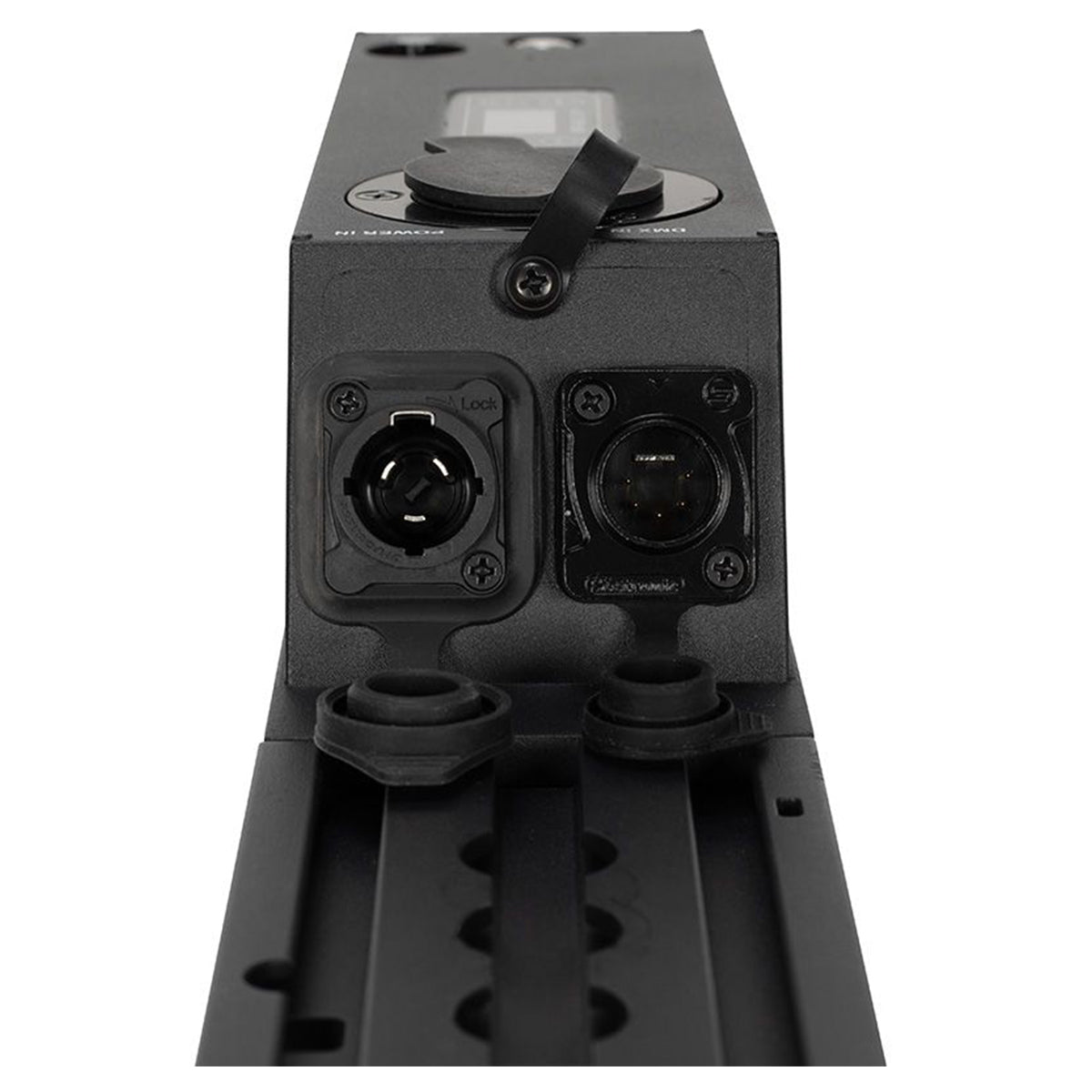

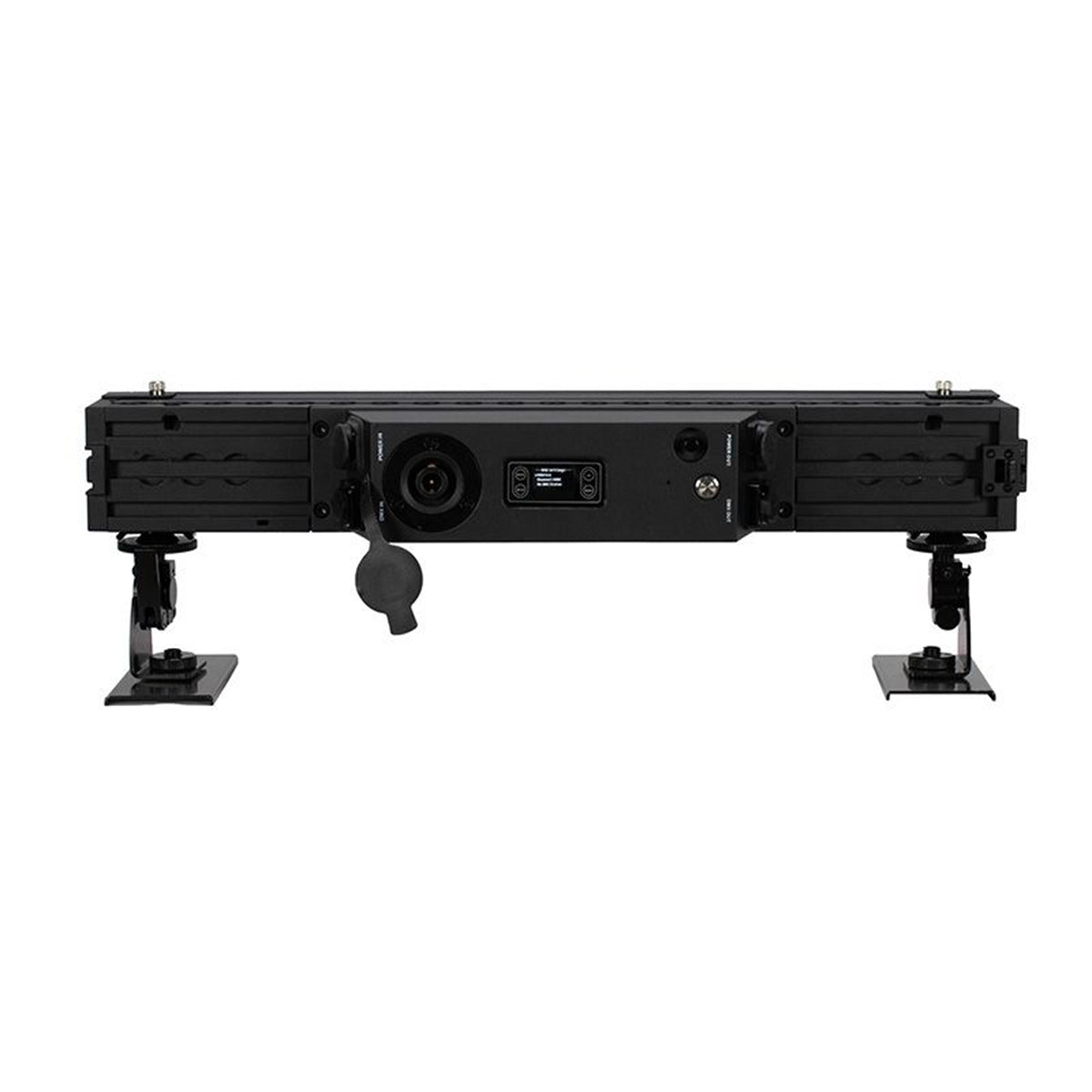

Control runs through DMX-512, ADJ Aria X2 wireless DMX, Bluetooth, and an included UCIR24 IR remote, with RDM compatibility for remote device management. Variable white color temperature spans 2,300K to 9,900K, and built-in foreground and background LED programs handle standalone operation. The IP65-rated housing stands up to rain, dust, and sand, with outdoor locking power sockets and 5-pin XLR connections. An L Track system lets you attach accessories, adjustable feet allow floor placement, and horizontal slide locks connect multiple bars end to end (the Bar 8 connects to both other Bar 8 units and the larger Bar 16). A 20-degree diffusion filter is included. Six dimming modes, four dimming curves, electronic strobe, and selectable refresh rates up to 25,000Hz provide full control. Each fixture draws 60W from wall power and charges fully in 6 hours. The half-meter size fits tight spaces where the full-meter Bar 16 would not.

Features

    • Up to 20 Hours on Battery

      The 7,000 mAh lithium-ion battery delivers up to 20 hours of operation per charge, cutting the need for power cables at remote locations.

    • Half-Meter Compact Size

      At roughly 23 inches wide, the Bar 8 fits tight architectural spaces and stage positions where a full-meter bar would be too large.

    • Individual Pixel Control

      Each of the eight 20W RGBAL+UV LEDs is independently addressable for pixel-mapped effects, chases, and zone-based color mixing.

    • Wireless Control Built In

      Aria X2 wireless DMX, Bluetooth, and the included UCIR24 IR remote give you three cable-free control options for fast, clean setups.

    • Connects to Bar 16

      Horizontal slide locks let you attach Bar 8 units to each other or to the larger ElectraPix Bar 16 for mixed-length arrays.

Technical Specifications

  • Product Type IP65 Battery-Powered LED Pixel Bar (4-Pack)
  • Foreground LEDs 8 x 20W Hex Color RGBAL+UV per bar
  • Background LEDs 32 x 0.2W RGB per bar
  • LED Life 50,000 hours
  • Beam Angle 17-degree
  • White Temperature Range 2,300K to 9,900K
  • Battery Capacity 7,000 mAh, 22.2V
