(4) EVS3 Vision Series 3.91mm Pixel Pitch RGB LED Video Panels

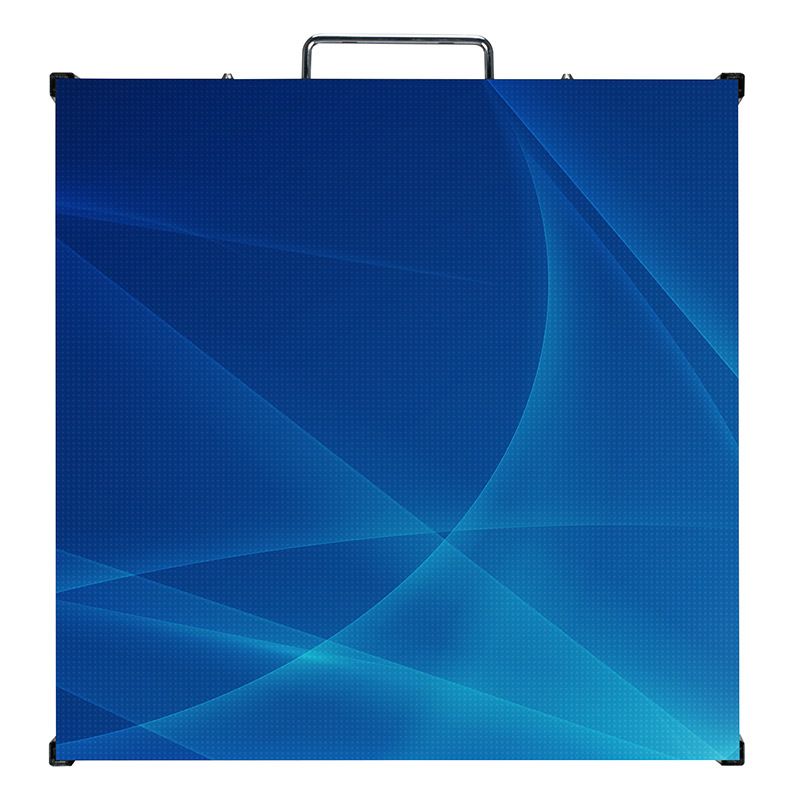

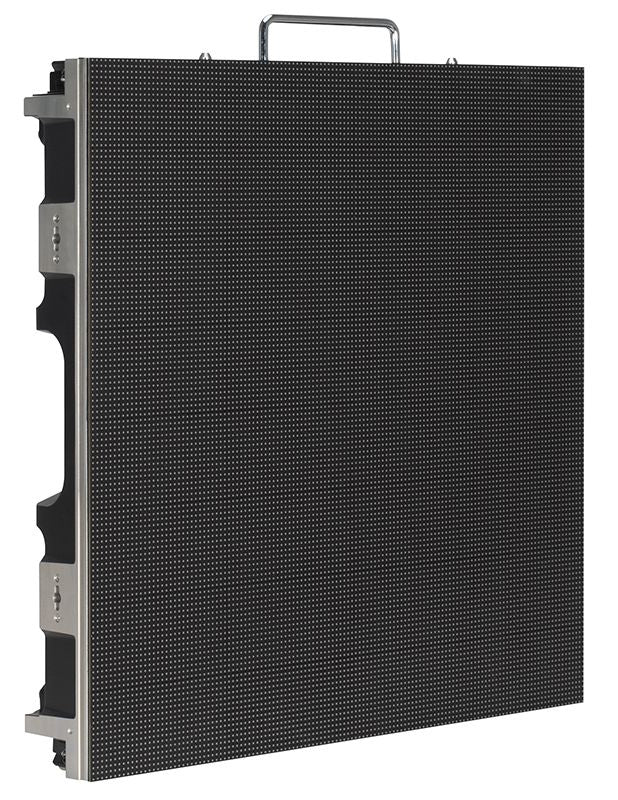

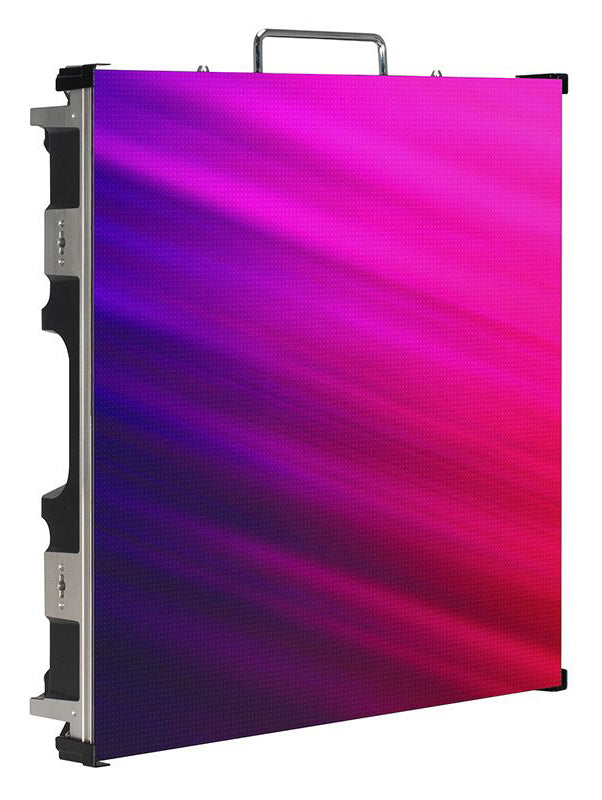

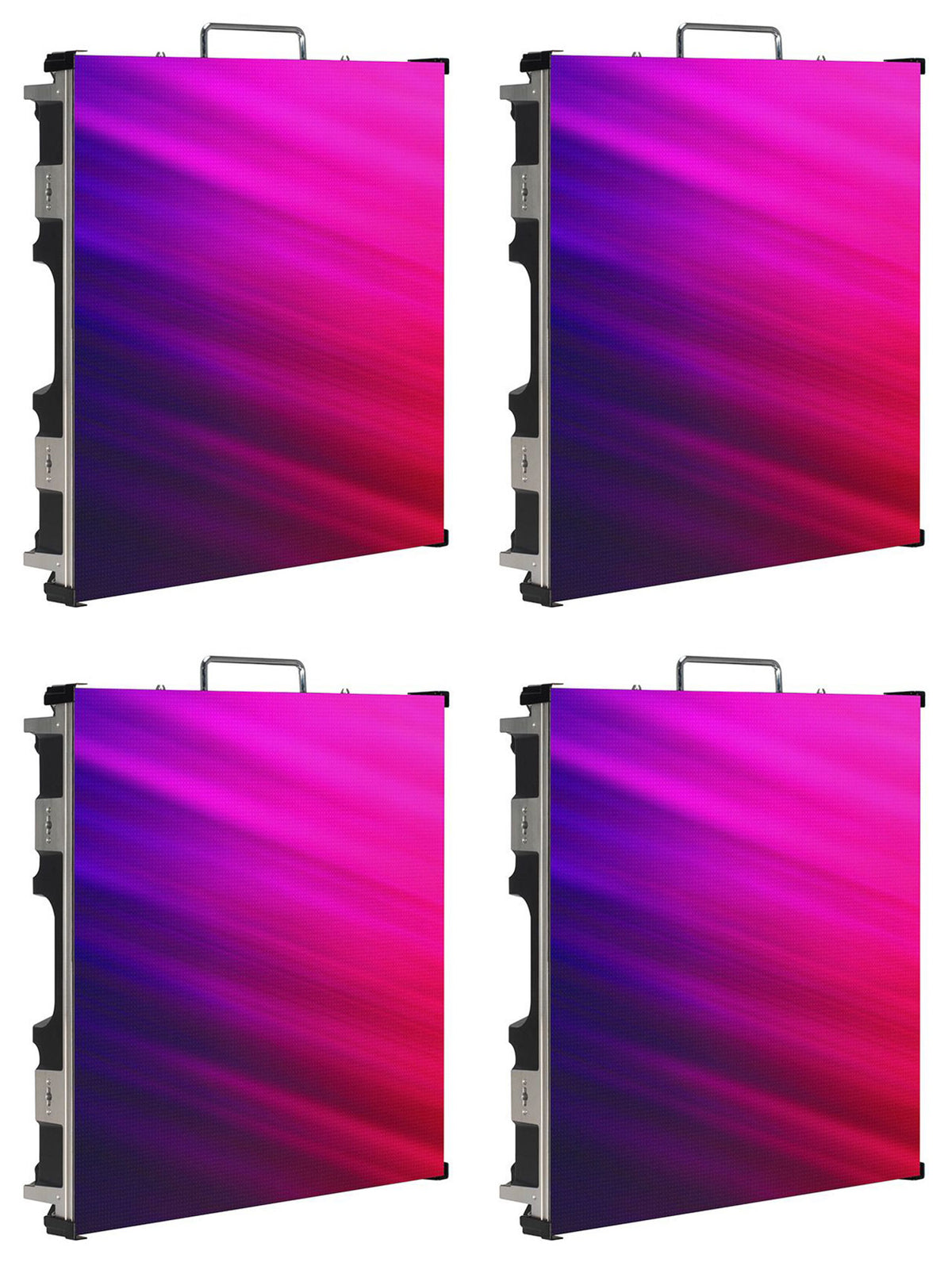

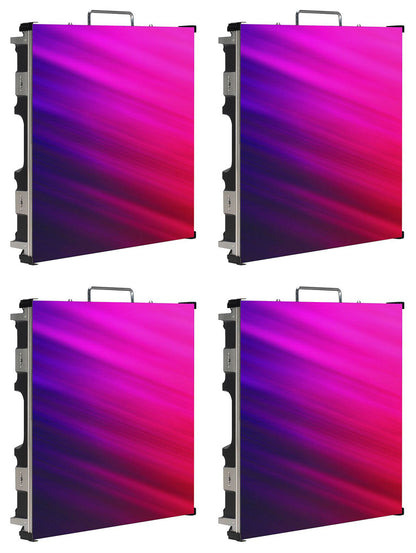

This four-pack of ADJ EVS3 LED video panels gives you enough surface area to build a compact video wall or a single large display for temporary events. Each panel has a pixel pitch of 3.91mm with a 3-in-1 RGB SMD2121 LED configuration, delivering 65,536 pixels per square meter with a brightness of 800 NITS. The 160-degree horizontal and 140-degree vertical viewing angles keep the image legible from off-axis positions.

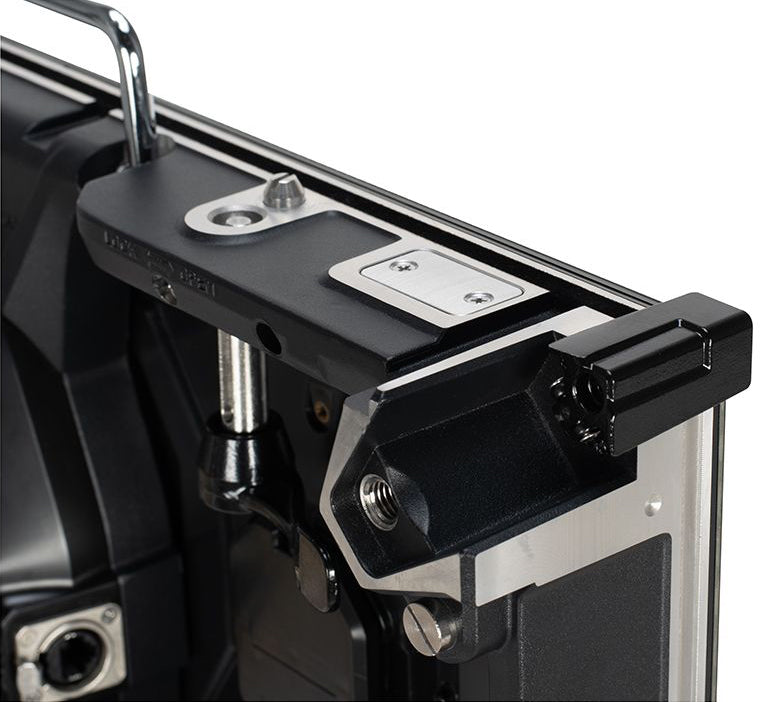

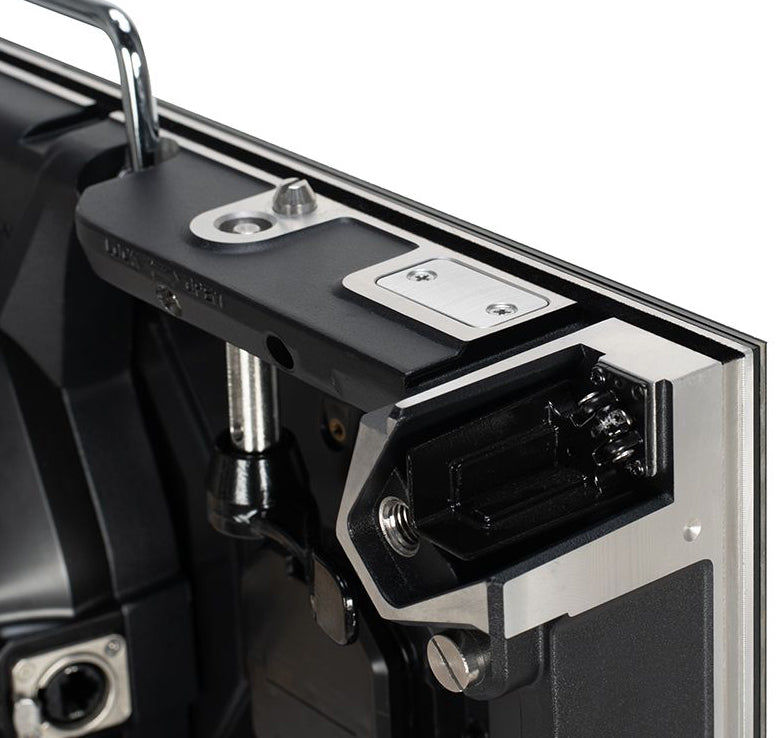

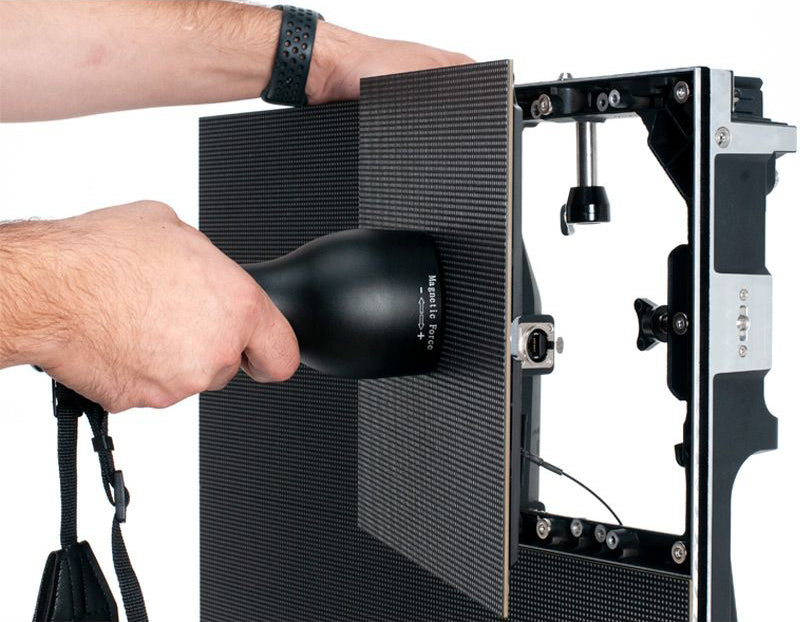

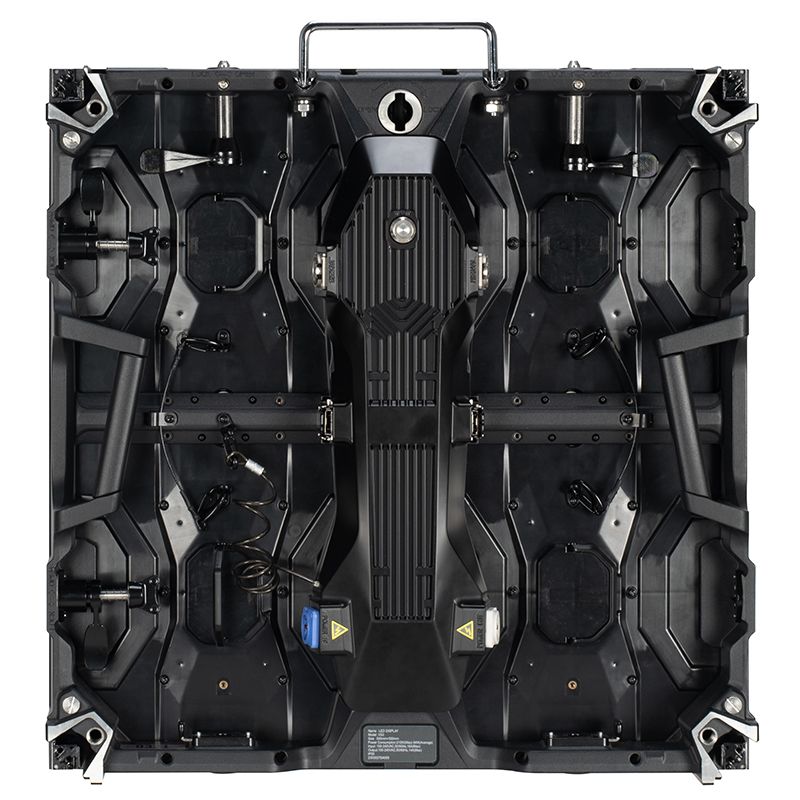

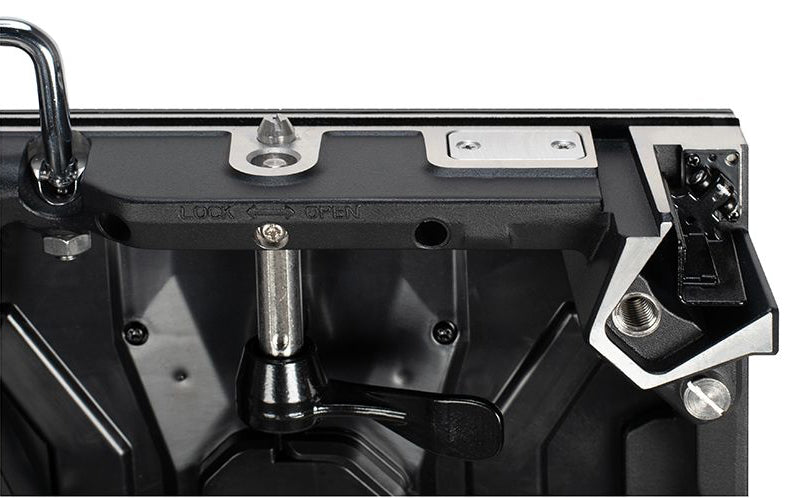

At 19.68" x 19.68" x 2.96" and 16.5 lb per panel, the EVS3 is sized for quick installation and breakdown. Four individual mini modules per panel are both front and rear serviceable, so a dead module can be swapped in the field without taking the entire panel offline. Corner protectors guard against transport and handling damage. The control system runs on Nova Star synchronous control via DVI, with a refresh rate of 3840Hz and support for input sources including Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI. Up to 20 panels hang vertically from the VSRB1 rigging bar (sold separately), and the VSFC8 flight case holds 8 panels (also sold separately). Average power consumption sits at 48W per panel (120W max), so four panels draw under 200W in typical content. Memory on Module technology stores panel calibration data directly on each module for consistent output after servicing.
