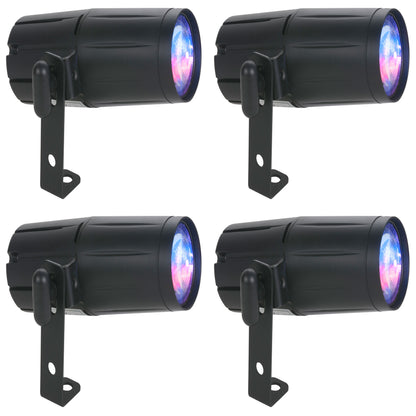

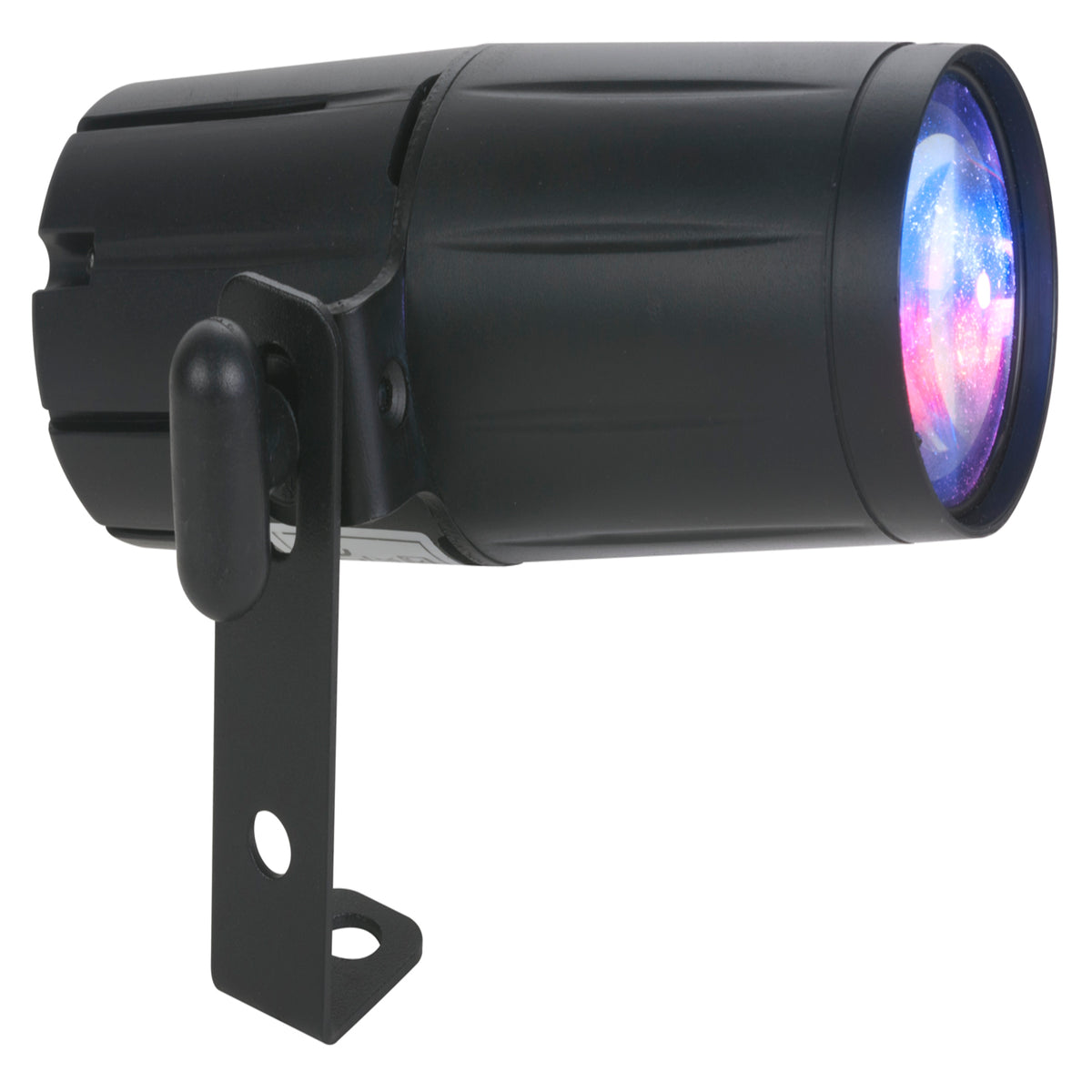

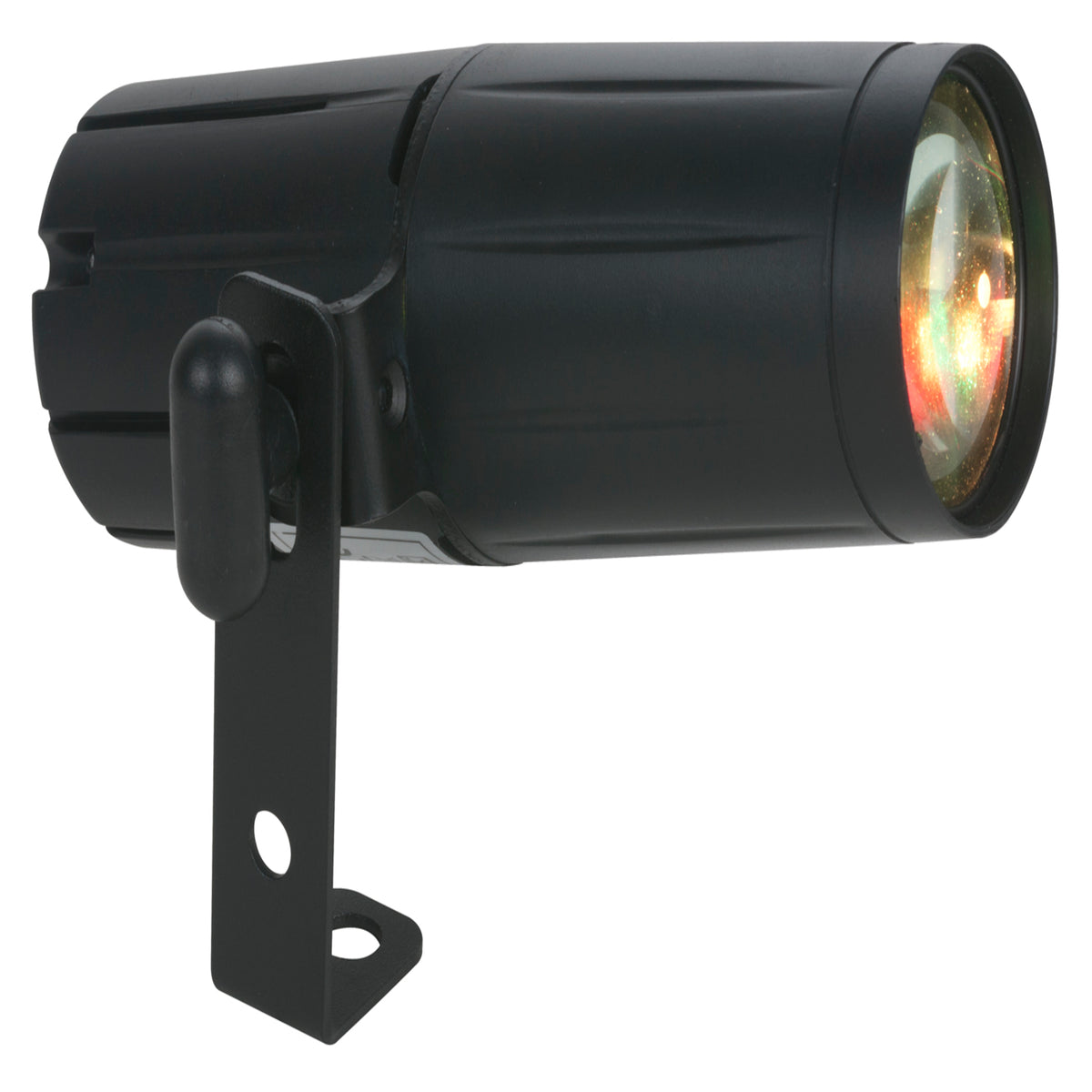

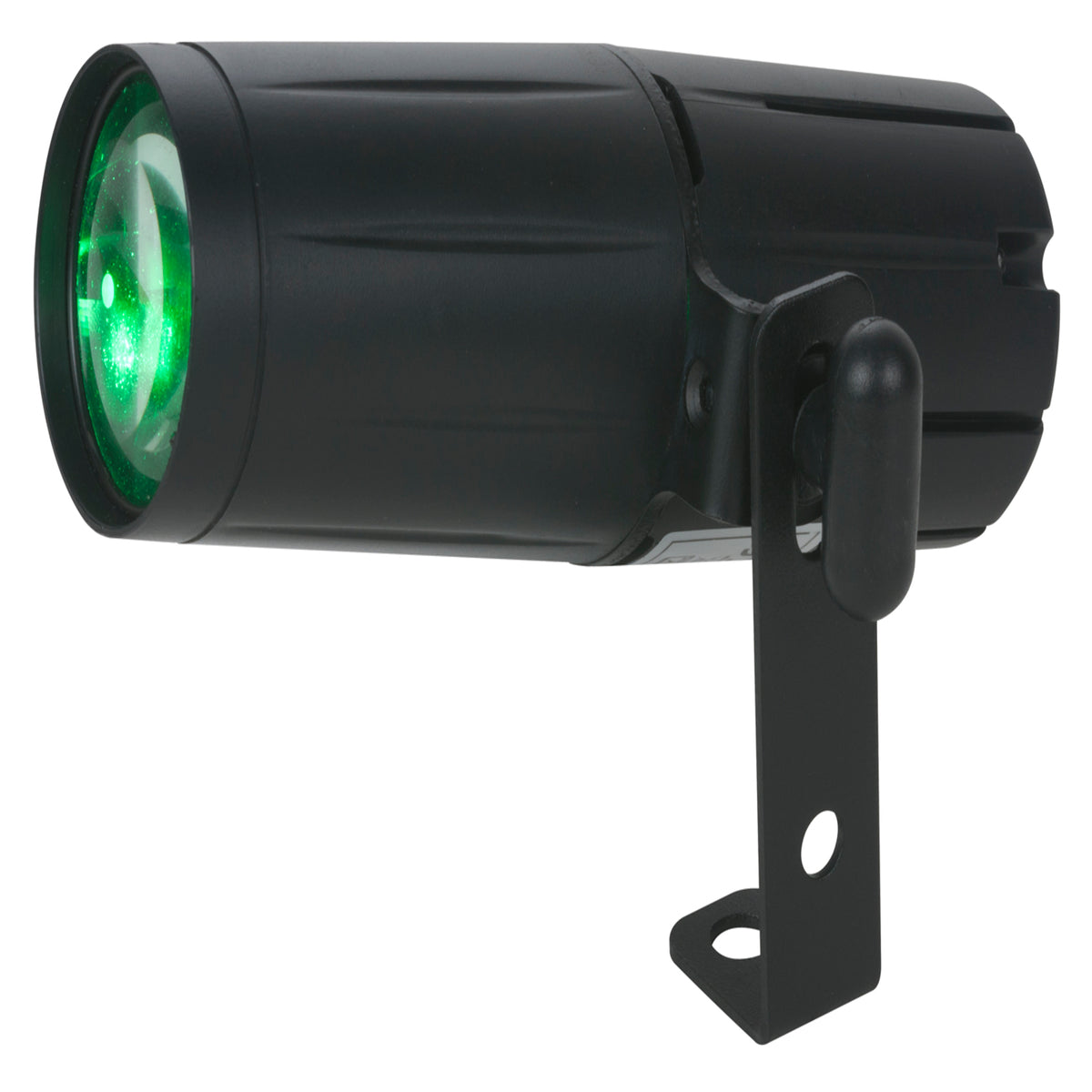

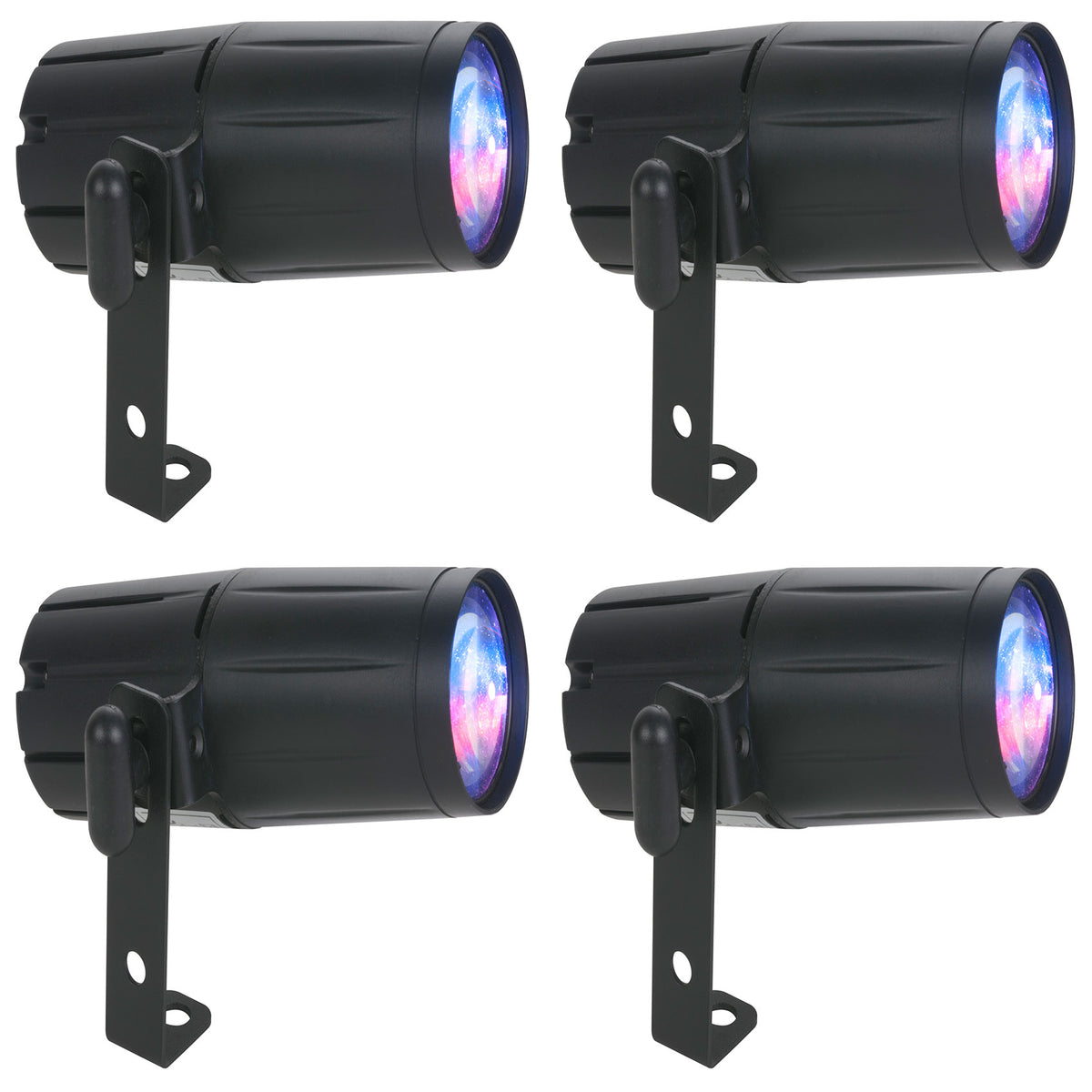

(4) PINSPOT LED QUAD DMX 8W RGBW Pinspot Lights with Remote
AMERICAN DJ
(4) PINSPOT LED QUAD DMX 8W RGBW Pinspot Lights with Remote
(4) PINSPOT LED QUAD DMX 8W RGBW Pinspot Lights with Remote
Four 8W RGBW Quad LED Pinspot Lights, 15-Degree Beam, DMX, IR Remote
Free Shipping
Features
- 8W RGBW Quad LED (4-in-1) with 15-degree beam per fixture
- Included ADJ UC IR remote for wireless color and mode control
- 6-channel DMX via 3-pin In/Out for multi-unit console control
- Flicker-free output at 740 lumens per unit
- Four operating modes: DMX, sound active, IR remote, auto run
Couldn't load pickup availability
What's Included in the box
- (4) ADJ Pinspot LED Quad DMX Lights
- (4) Mounting Brackets
- (4) Power Cables
- (4) ADJ UC IR Wireless Remotes
SKU: SKU: (4) PINSPOT LED QUAD DMX
View full details



Product Description
When you do connect to a DMX system, 6 DMX channels over 3-pin DMX In/Out let you control multiple units from a single controller. Additional operating modes include sound active, auto run programs, and IR remote control, so the fixtures adapt to the event scale. Electronic dimming from 0 to 100% and adjustable strobe speeds via the remote give you real-time control from across the room. Flicker-free operation keeps the output steady on camera for filmed events. Each fixture ships with a bracket and power cable. The 8W power draw per unit means four fixtures together pull just 44W max. At 1 lb and 8" x 4" x 2.75" per unit, the Pinspot LED Quad DMX stays compact and light for overhead mounting on pipe or truss.
Features
Full RGBW Color Mixing
Each 8W Quad LED blends red, green, blue, and white on a single diode, letting you dial in any color for table spotting and decor accent lighting.
Wireless IR Remote Included
The ADJ UC IR remote controls color fades, built-in shows, dimming, strobe, and blackout, so you can run the fixtures without a DMX console.
DMX Control Ready
Six DMX channels over 3-pin connections let you run multiple fixtures from a controller when the event calls for programmed cues.
Flicker-Free for Events
Flicker-free output at 740 lumens keeps the light steady on camera, which matters at filmed weddings, corporate events, and galas.
Compact 1 lb Design
At 1 lb and 8" x 4" x 2.75", each fixture mounts overhead on pipe or truss and stays out of the audience line of sight.
Technical Specifications
- Product Type RGBW LED Pinspot Light (4-Pack)
- Light Source 8W Quad (4-in-1) RGBW LED per unit (10,000 hr)
- Beam Angle 15-degree
- Lumens 740 at 1M
- DMX Channels 6
- DMX Connections 3-pin In/Out
- Operational Modes DMX, Sound Active, IR Remote, Auto Run
- Power Consumption 11W max per unit
- Input Voltage AC 100-240V, 50/60Hz
- Dimensions 8" x 4" x 2.75" (205 x 98 x 61mm) per unit
- Weight 1 lb (0.4 kg) per unit
