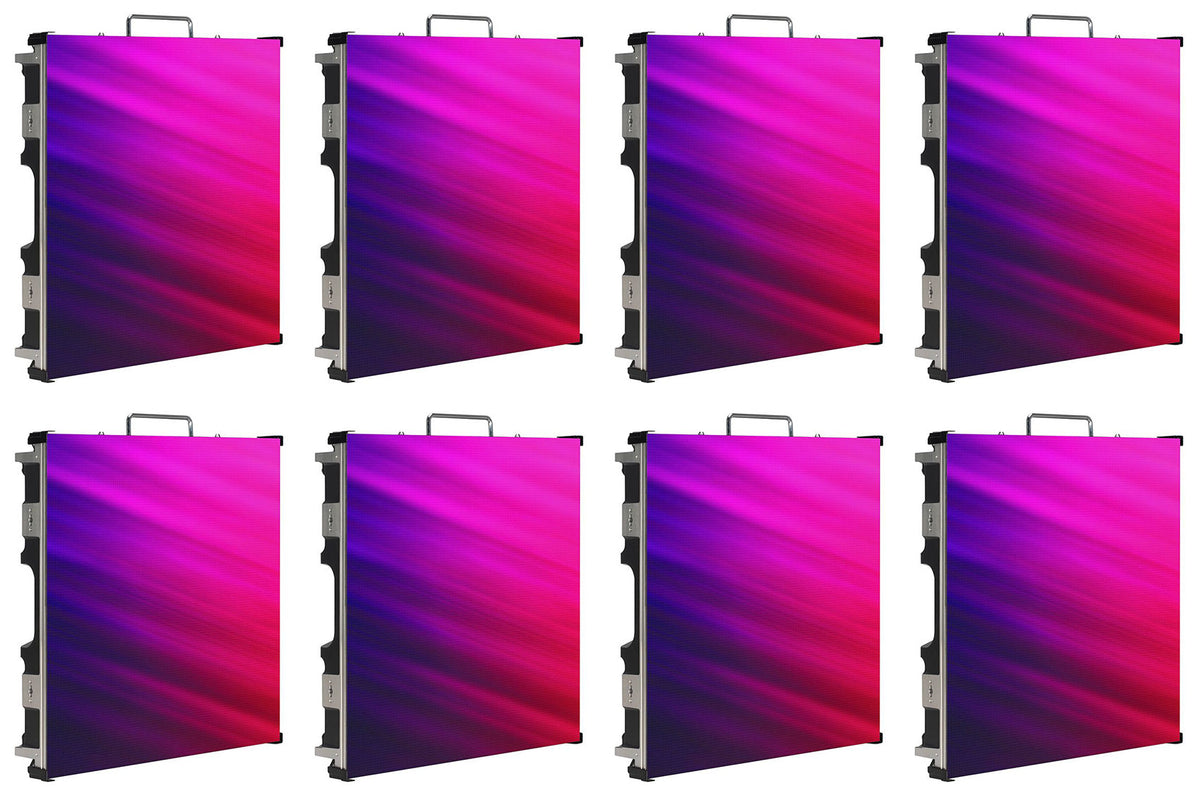

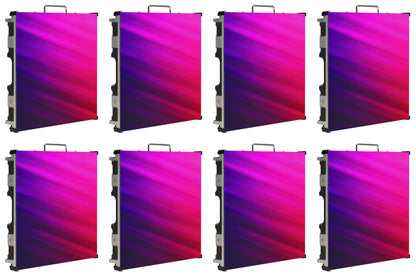

(8) EVS3 Vision Series 3.91mm Pixel Pitch RGB SMD2121 LED Video Panels

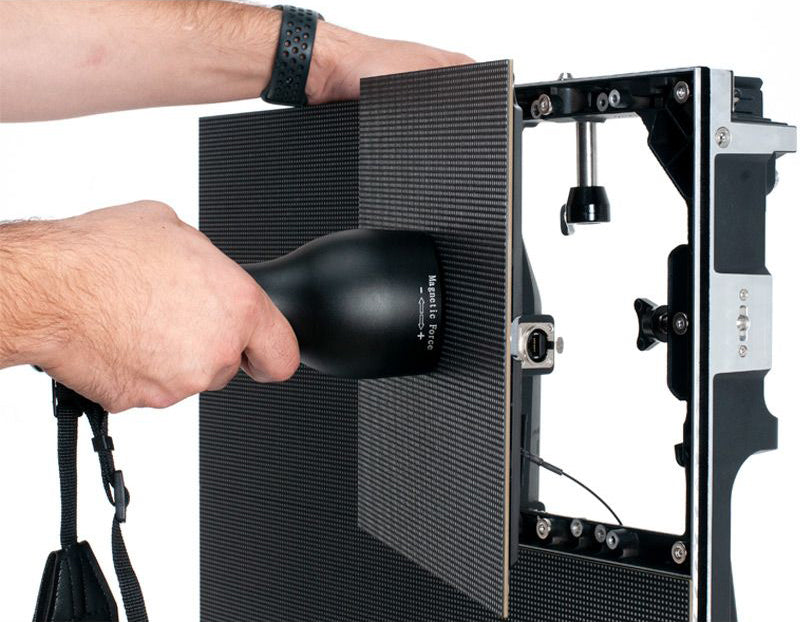

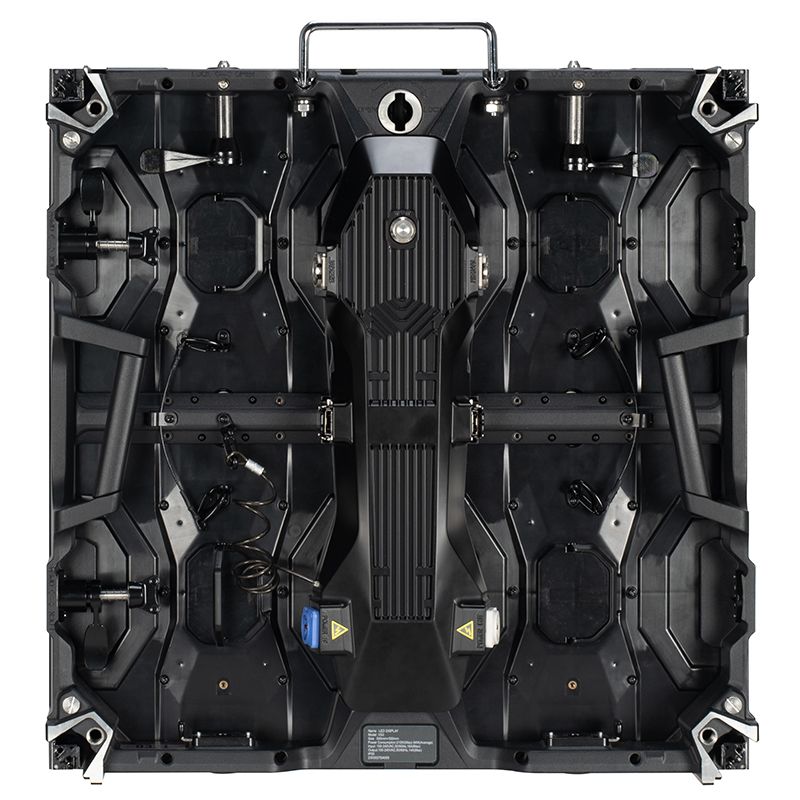

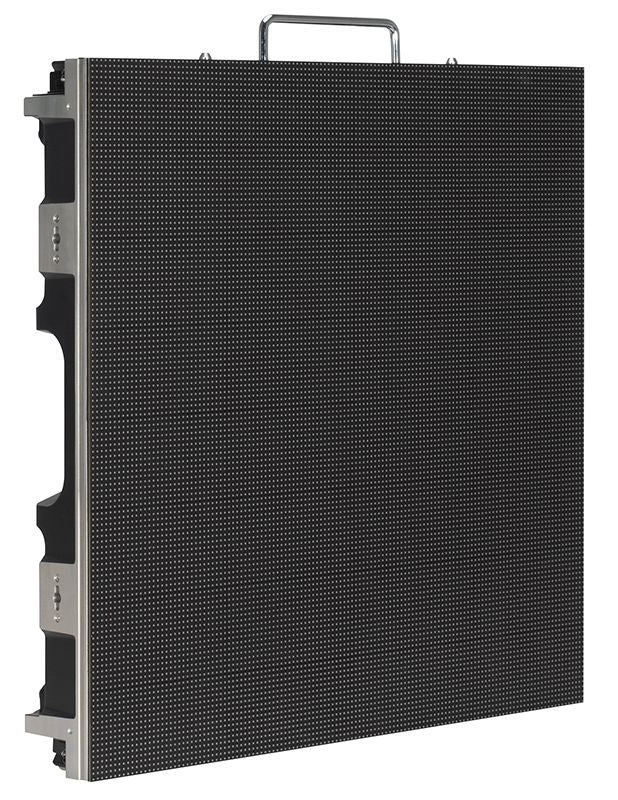

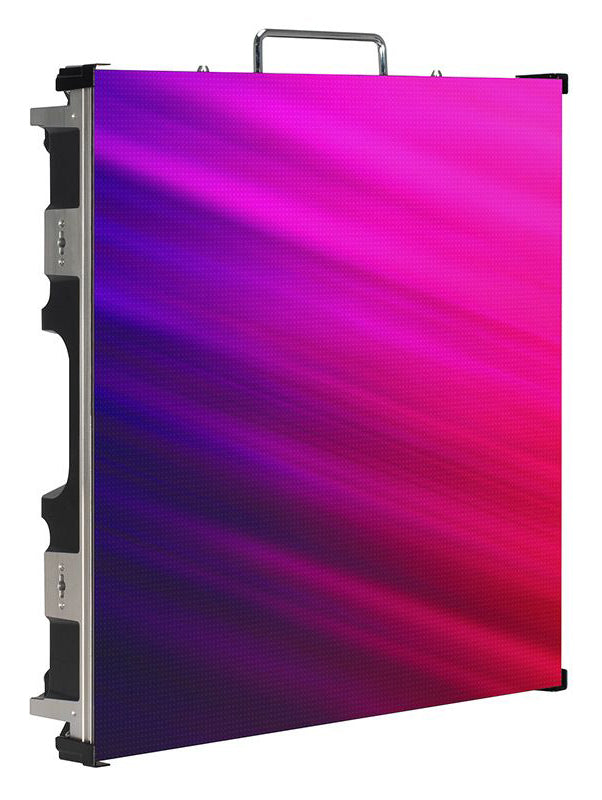

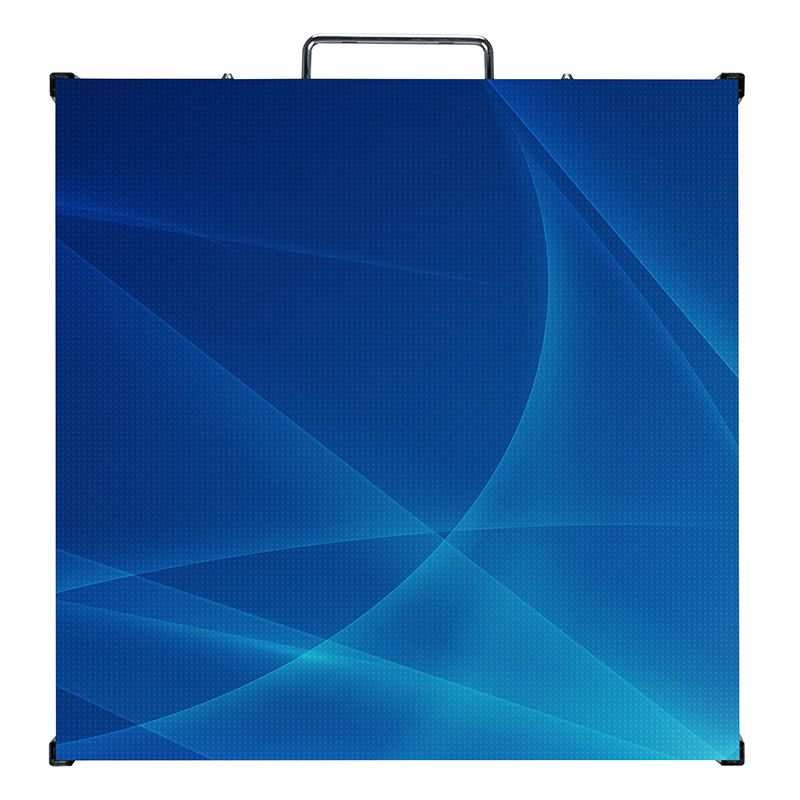

This eight-pack of ADJ EVS3 LED video panels gives you the building blocks for a high-impact video wall at events, stages, and houses of worship. Each panel runs a 3.91mm pixel pitch with 3-in-1 RGB SMD2121 LEDs and a 128x128 pixel density (65,536 pixels per square meter), producing bright, crisp images at 800 NITS. Four individual mini modules per panel are front and rear serviceable, so field repairs happen fast without pulling the whole panel out of the wall.

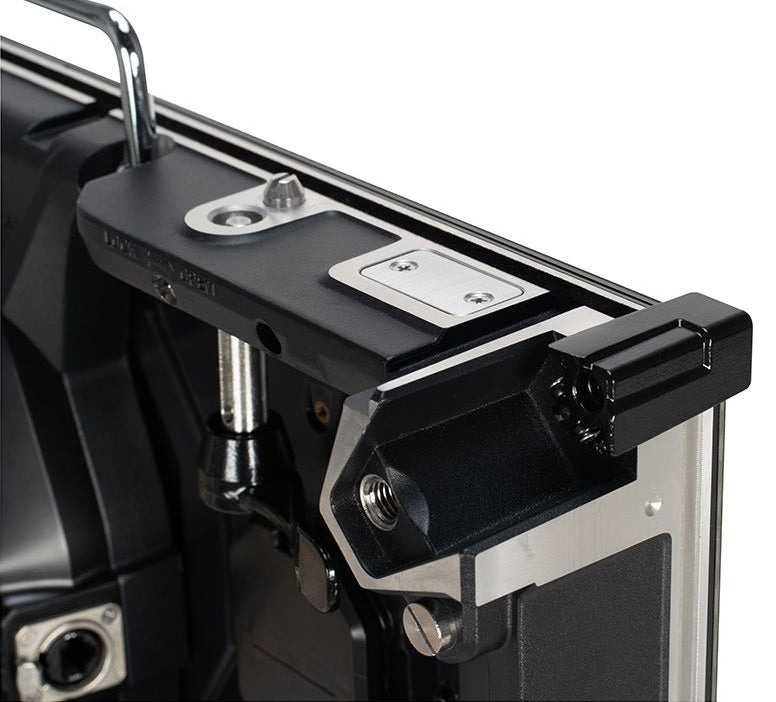

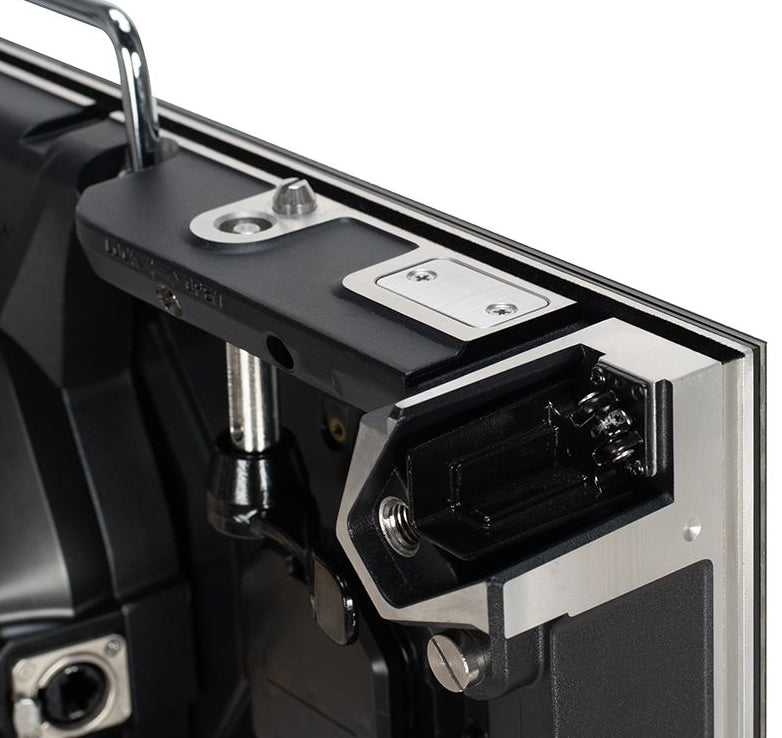

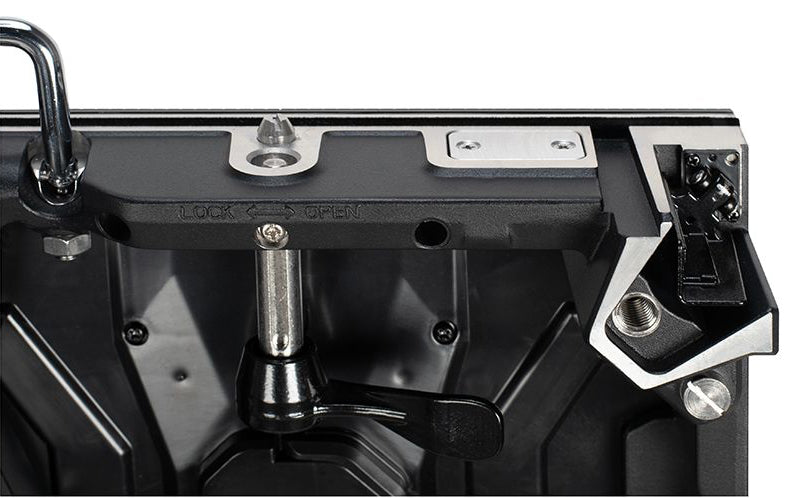

Corner protectors on every panel guard against damage during transport, setup, and teardown. At 19.68" x 19.68" x 2.96" and just 16.5 lb each, the panels are compact enough for quick rigging and easy handling. A wide viewing angle of 160° horizontal by 140° vertical at 9.75 ft keeps the image readable across a broad audience. The NovaStar synchronous control system accepts Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI inputs, so you can feed content from virtually any source.

Hang up to 20 EVS3 panels vertically with the VSRB1 rigging bar (sold separately), and store all eight panels in the VSFC8 flight case (sold separately). Memory on Module (MOM) technology saves calibration data directly to each module, keeping your wall consistent panel to panel. The EVS3 is designed for temporary installations only.
