(8) Saber Spot WW Compact 15W Warm White LED DMX Pinspot Lights
AMERICAN DJ
(8) Saber Spot WW Compact 15W Warm White LED DMX Pinspot Lights
(8) Saber Spot WW Compact 15W Warm White LED DMX Pinspot Lights
Eight Compact 15W Warm White LED Pinspots, 4° Beam, DMX Control, Frost Filters
Features
- Eight compact 15W warm white LED pinspots with 4° beam
- Built-in ACL lens for a razor-sharp concentrated light circle
- Two interchangeable frost filter lenses per fixture (10° and 45°)
- DMX-512 control with two channel modes and RDM support
- Compact metal housing at just 2.6 lb per fixture
Couldn't load pickup availability
What's Included in the box

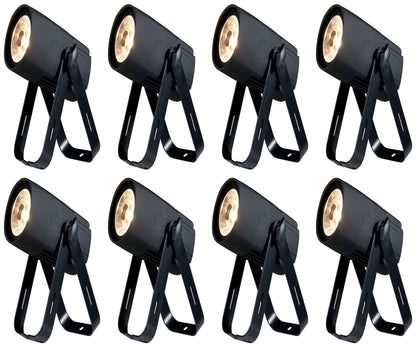

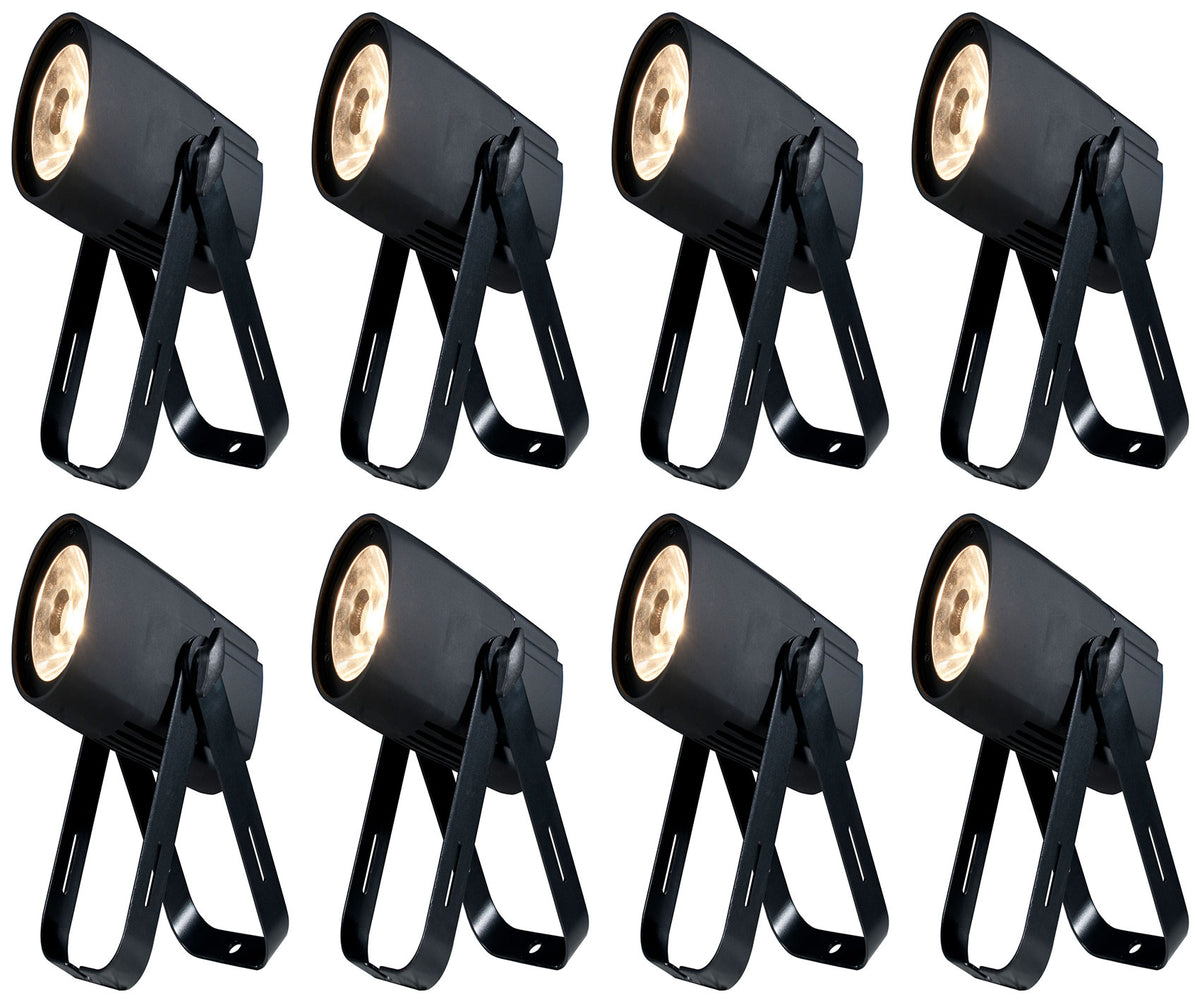

- (8) ADJ Saber Spot WW Compact 15W Warm White LED DMX Pinspot Lights
- (8) Locking Power Cords
- (16) Frost Filter Lenses (10° and 45°, two per fixture)
- (8) O-Rings for Frost Filter Lenses
SKU: SKU: (8) SABER SPOT WW
View full details




Product Description
All eight fixtures include DMX-512 control with two channel modes (1 or 2 channels), flicker-free operation, electronic dimming from 0 to 100%, and a 4-button digital display on the rear panel for quick setup. RDM support allows remote configuration from a compatible controller. Two interchangeable frost filter lenses (10° and 45°) ship with every unit, so you can soften and widen the beam when a broader wash is needed.
A scissor yoke lets you hang each fixture from truss or set it directly on the ground. Locking power connections handle daisy chaining, and the compact all-metal housing at 3.5" x 6.75" x 3.5" and 2.6 lb per fixture keeps rigging fast and unobtrusive. At 15W per unit, eight fixtures draw minimal power while delivering focused, warm-toned light.
Features
Razor-Sharp 4-Degree Beam

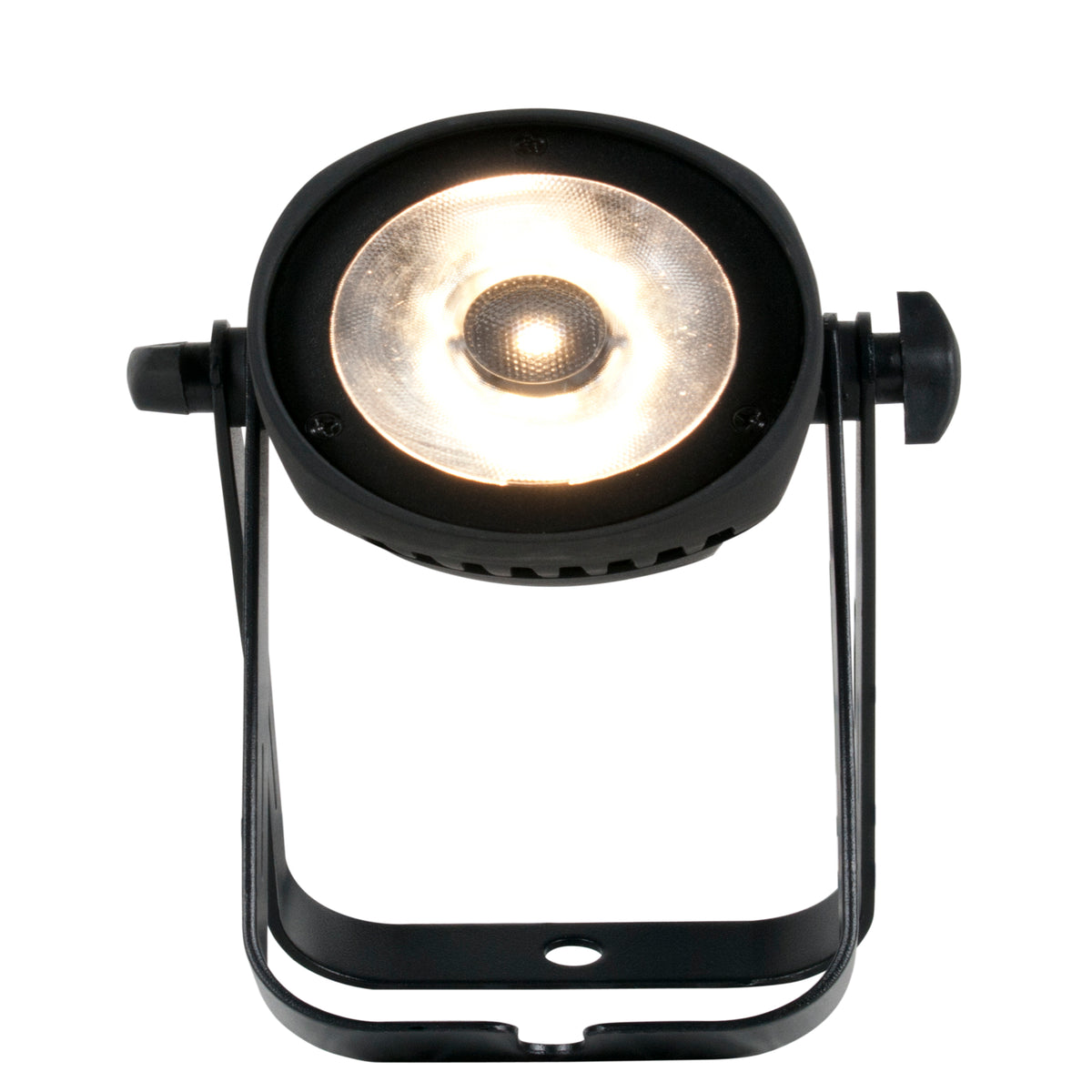

A built-in ACL lens focuses the 15W warm white LED into an ultra-tight 4° spot, placing a precise circle of light on centerpieces and display objects.
Adjustable Beam Spread
Two included frost filter lenses (10° and 45°) per fixture let you soften and widen the beam for broader accent lighting when the application requires it.
Flicker-Free Output
A 3.6kHz refresh rate and electronic dimming from 0 to 100% produce stable, camera-ready light for filmed events and live-streamed productions.
Compact Metal Build
At 3.5" x 6.75" x 3.5" and just 2.6 lb, each pinspot fits tight spaces on truss, tabletops, or ground without drawing visual attention.

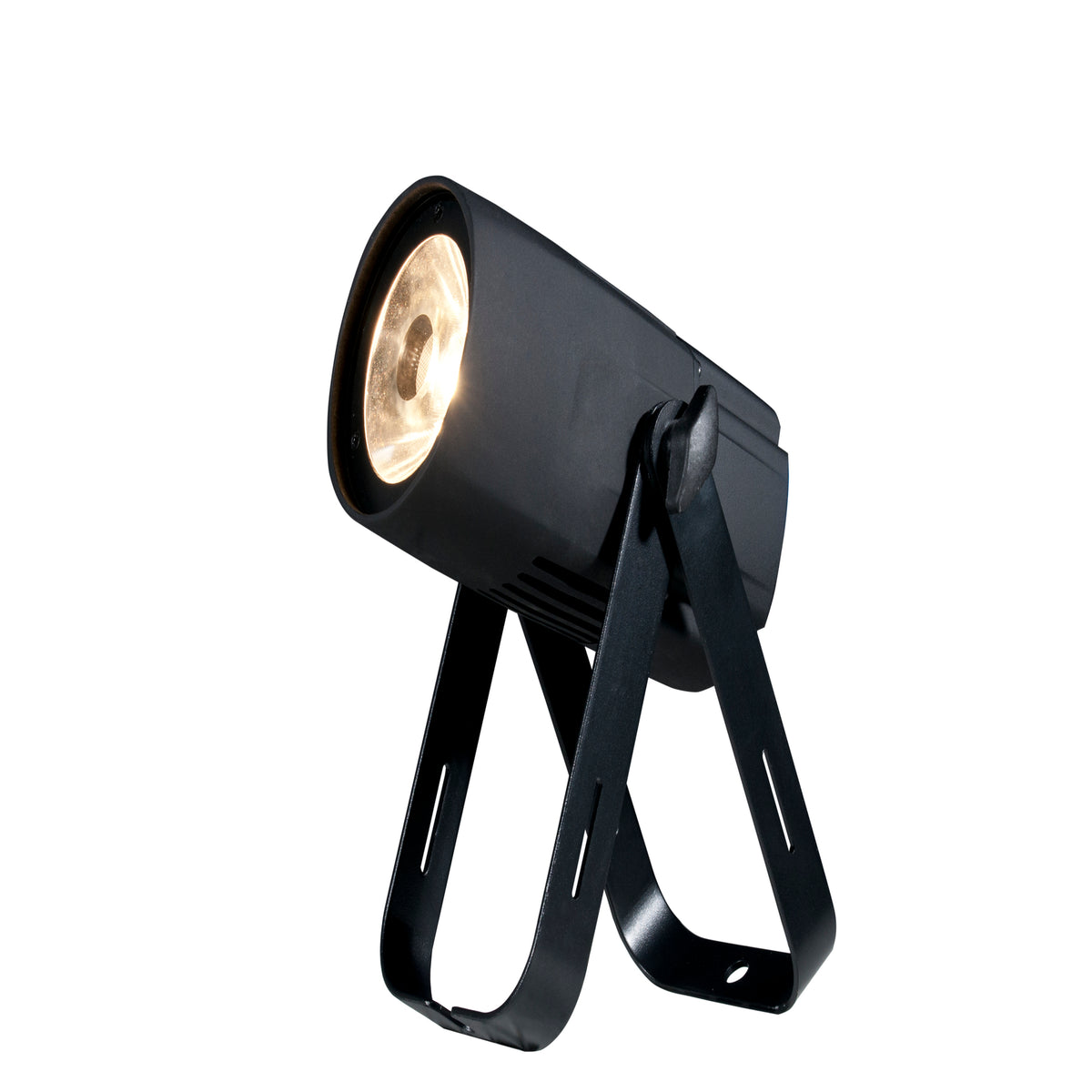

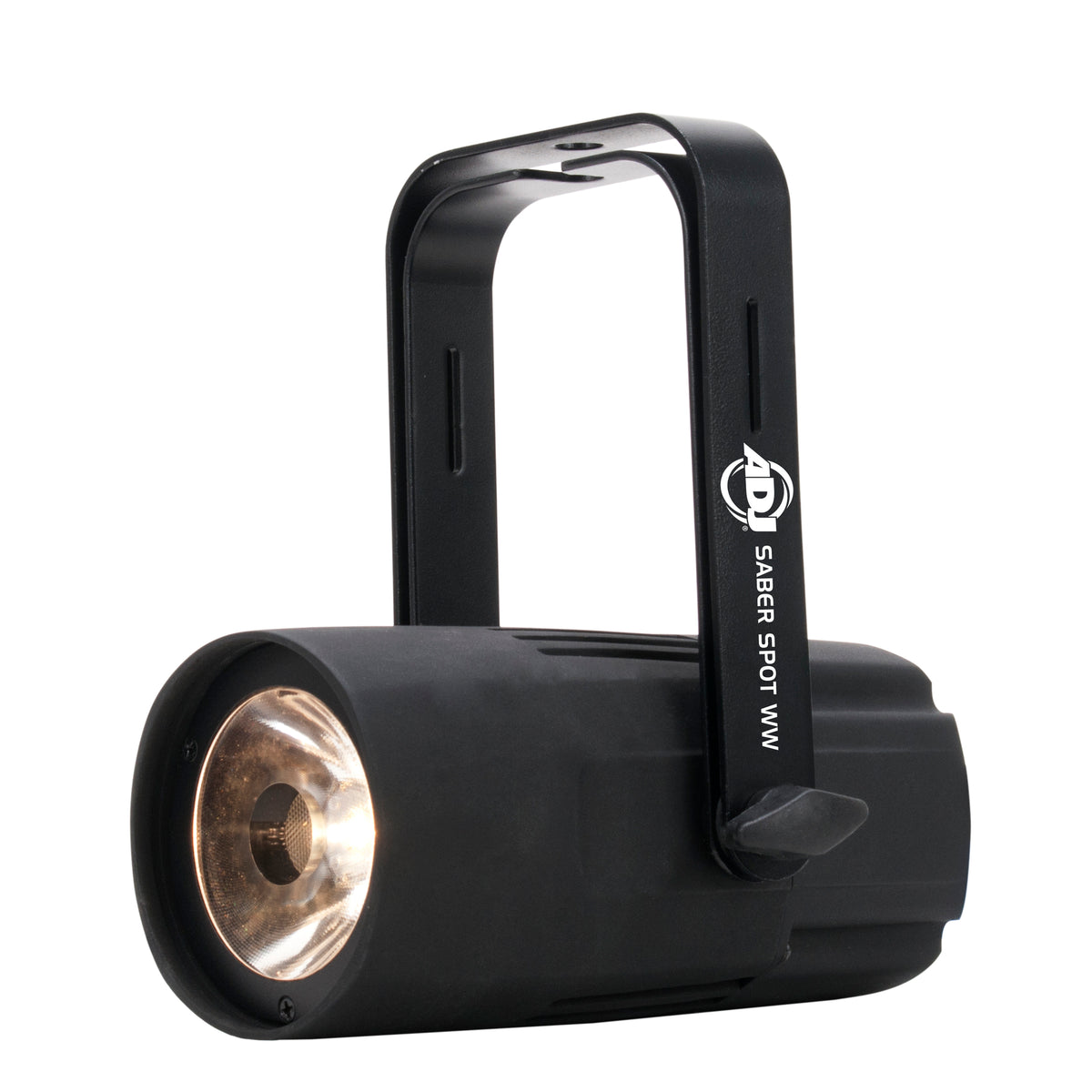

Flexible Mounting Options
A scissor yoke lets you hang each fixture from truss or set it flat on the ground, adapting to table spotting and overhead accent work alike.
Technical Specifications
- Product Type Compact Warm White LED Pinspot Light
- Bundle Quantity 8
- Light Source 15W Warm White LED
- Beam Angle 4°
- Included Frost Filters 10° and 45° (interchangeable)
- Refresh Rate 3.6kHz
- DMX Modes 1 or 2 Channel
- Control 3-Pin DMX In/Out Pigtails
- RDM Supported
- Input Voltage 100-240V, 50/60Hz
- Dimensions (per fixture) 3.5" x 6.75" x 3.5" / 88 x 170 x 87mm
- Weight (per fixture) 2.6 lb / 1.2 kg
