AC5PPCON12 [Used]

Product Description Specifications

AC5PPCON12 [Used]

  • AC5PPCON12 [Used]
  • AC5PPCON12 [Used]
1 2
Used

AMERICAN DJ

AC5PPCON12 [Used]

AC5PPCON12 [Used]

12-Foot 5-Pin DMX and Locking Power Combo Cable, Indoor Use

Free Shipping

$74.99
$74.99 $83.95
Save 10%
Shipping calculated at checkout.
Features
    • 12-foot combo cable with 5-pin DMX and locking power
    • Locking power connectors prevent accidental disconnects
    • 5-pin DMX supports standard and dual-universe applications
    • Braided tinned copper shield for clean DMX signal
    • PVC jacket with HDPE insulation for indoor use
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • (1) Accu-Cable AC5PPCON12 12-Foot 5-Pin DMX + Power Combo Cable

SKU: AC5PPCON12*

View full details

Product Description

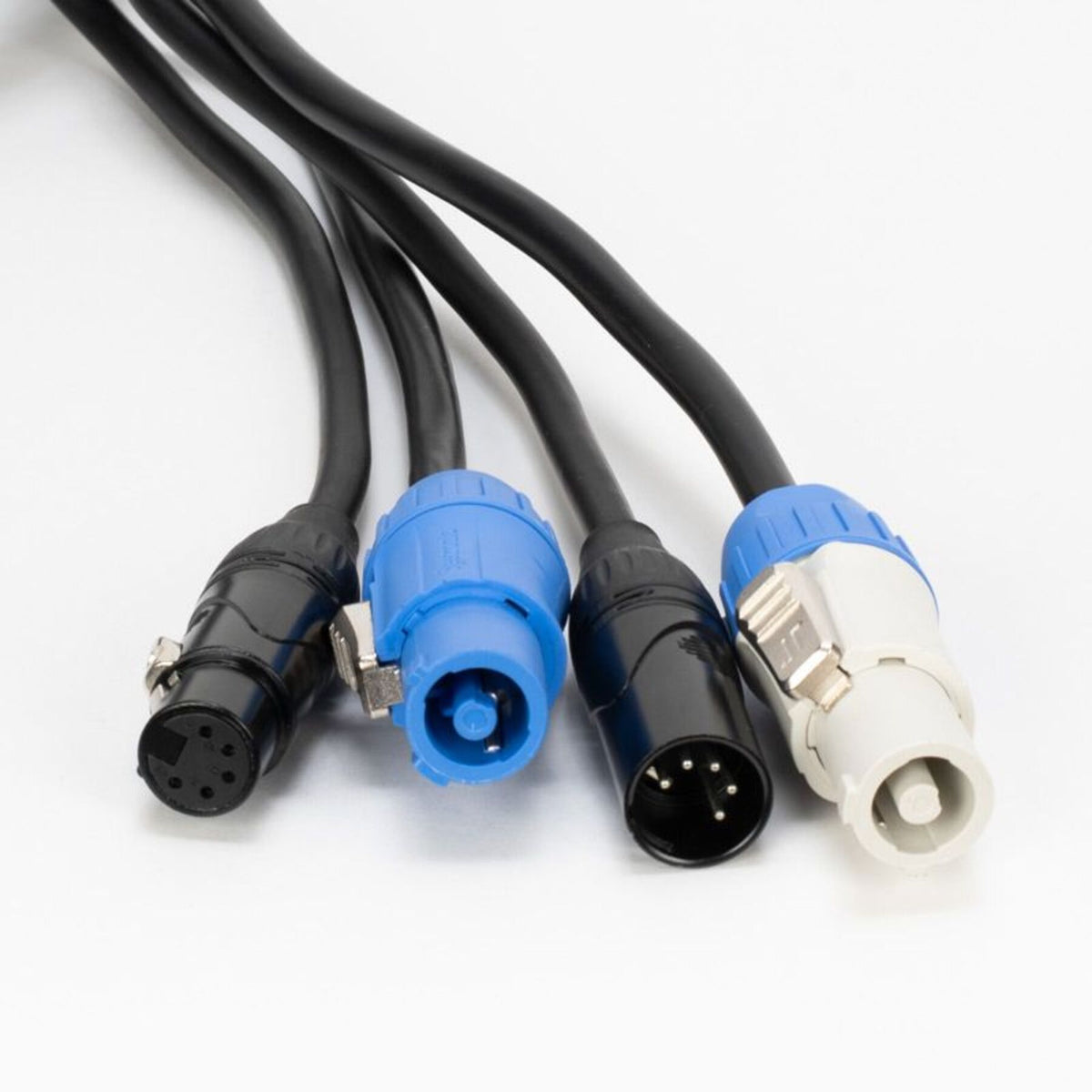

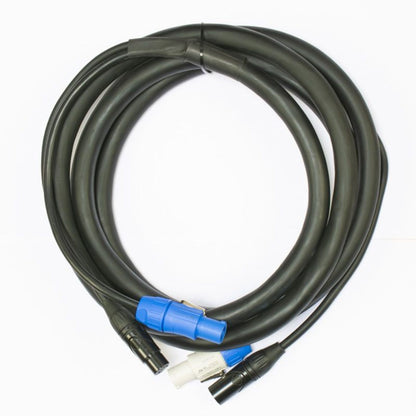

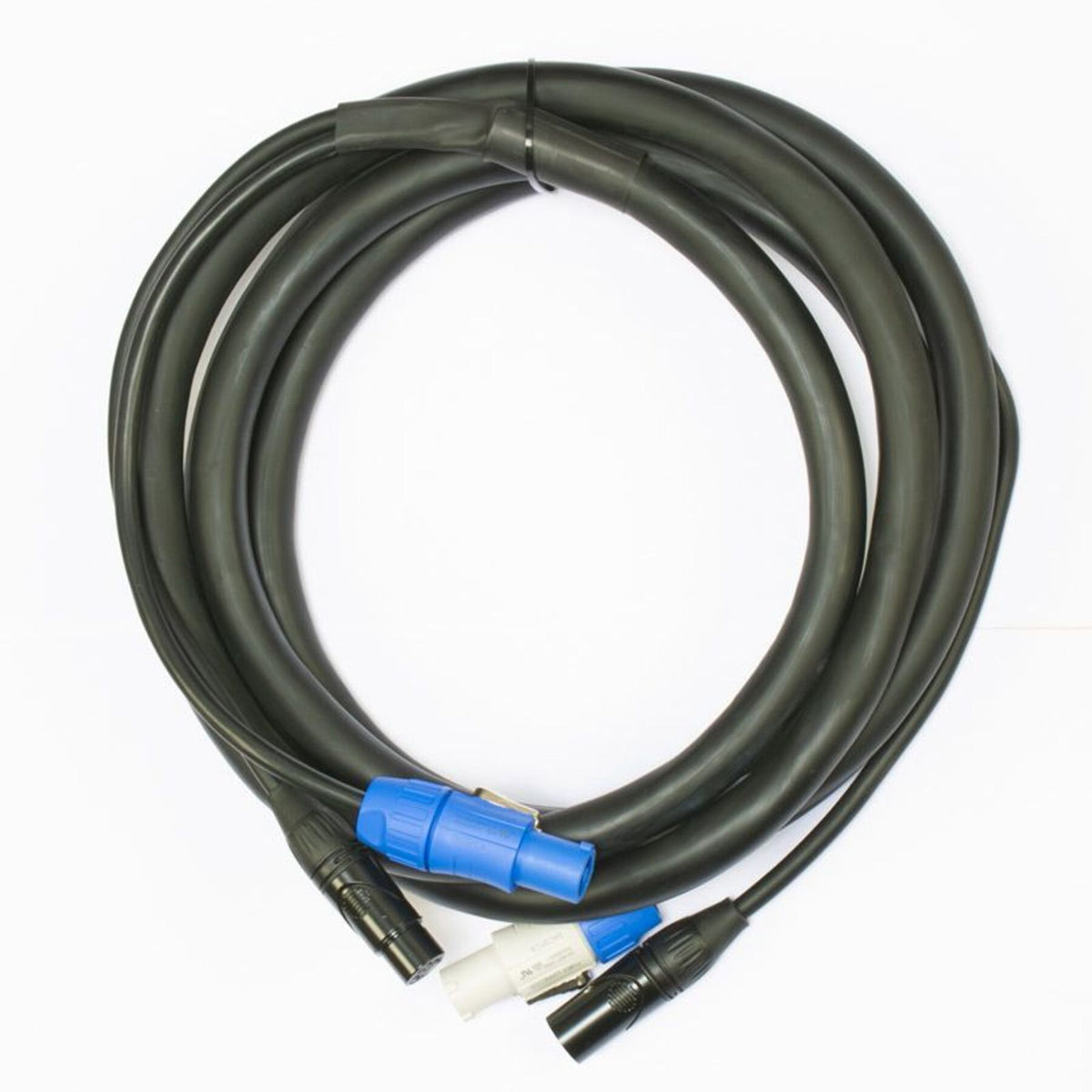

The Accu-Cable AC5PPCON12 is a 12-foot combo cable carrying 5-pin XLR DMX data and locking power in a single run. One cable replaces two between fixtures, cutting your cable count in half and keeping truss and floor runs cleaner. Male to female locking power connections grip securely and release with a twist, preventing accidental power drops during a show.

Inside, copper conductors with HDPE insulation, tinned copper DMX quads, and a braided tinned copper shield sit under a PVC jacket. The 5-pin DMX configuration supports standard DMX-512 control and dual-universe applications. The 12-foot length matches typical fixture-to-fixture spacing on truss and most stage layouts. For use in dry indoor locations only.

Features

    • Two Cables in One

      5-pin DMX data and locking power travel in a single 12-foot run, cutting cable count in half and keeping truss and floor runs organized.

    • 5-Pin DMX Flexibility

      The 5-pin configuration handles standard DMX-512 control and dual-universe applications, matching the connector standard used on many professional fixtures.

    • Locking Power Connectors

      Twist-lock connections grip securely and release only when turned intentionally, preventing accidental power drops during shows and rehearsals.

    • Shielded Signal Path

      Braided tinned copper shielding blocks electromagnetic interference, keeping DMX data clean even when running alongside power conductors in the same jacket.

    • Standard 12-Foot Length

      Matches typical fixture spacing on truss and stage layouts, connecting adjacent units without leaving excess cable coil hanging from the rig.

Technical Specifications

  • Product Type 5-Pin DMX + Locking Power Combo Cable
  • Length 12 ft (3.66m)
  • DMX Connectors 5-Pin XLR Male to Female
  • Power Locking Power In/Out
  • Conductor (66 x 0.20) x 3 Copper
  • DMX Pair 4 x 19 x 0.15 TC
  • Shield 8 x 16 x 0.12 Braided TC
