AC5PTRUE3 [Used]

AC5PTRUE3 [Used]

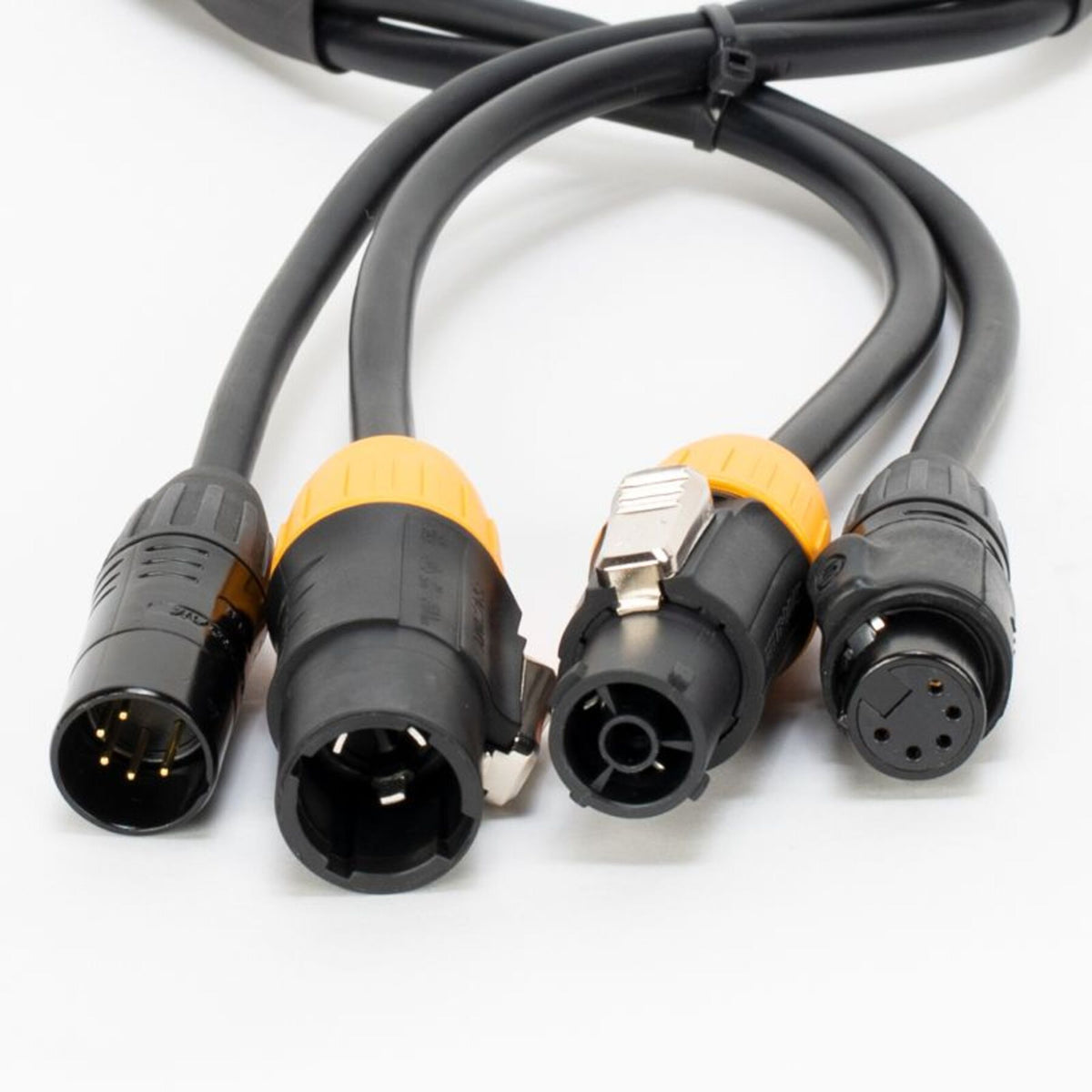

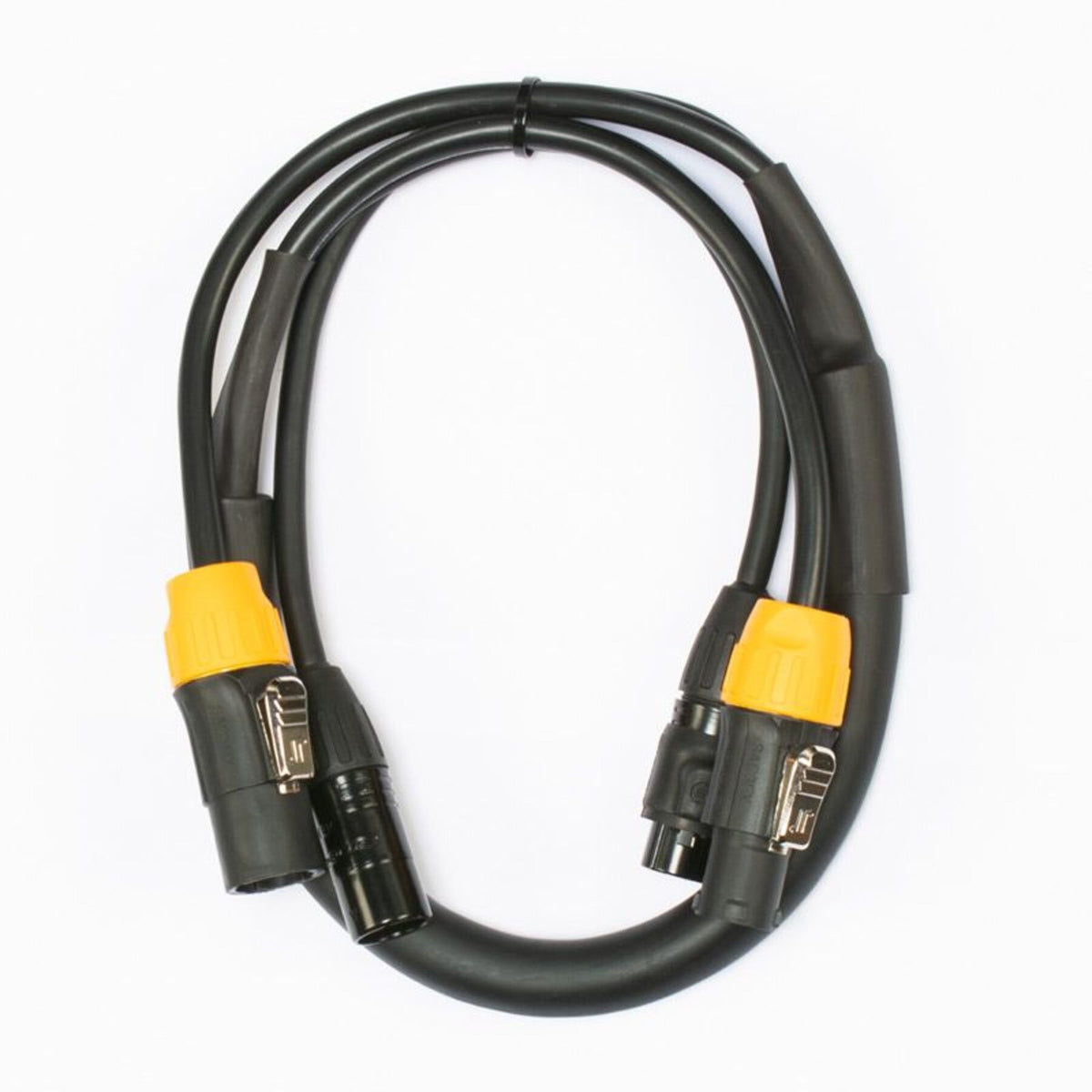

IP65 3' 5-Pin DMX and Locking Power Combo Cable for Short Fixture Jumps

Free Shipping

$53.19
$53.19 $75.95
Save 29%
Shipping calculated at checkout.
Features
    • IP65-rated connectors with rubber seals block moisture and dust
    • Combines 5-pin DMX data and locking power in a single cable
    • 3-foot (0.914M) length keeps cable runs tight between fixtures
    • Braided tinned-copper shield rejects electromagnetic interference
    • PVC jacket with copper conductors for repeated use
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • Accu-Cable AC5PTRUE3 DMX+Power Combo Cable

SKU: AC5PTRUE3*

View full details

Product Description

The Accu-Cable AC5PTRUE3 is a 3-foot combo cable that carries both 5-pin DMX data and locking power between fixtures, making it the right pick when your lights sit close together on a truss or ground rack. The IP65-rated connectors feature rubber ring seals on every male-to-female connection, keeping moisture and dust out of fixture sockets during temporary outdoor events or grimy indoor installs.

Under the PVC jacket you get three conductors of (66 x 0.20) copper for power, HDPE insulation, 2x19x0.15 tinned-copper signal conductors, and a 6x16x0.12 braided tinned-copper shield to keep the DMX signal free from interference. Like every cable in the AC5PTRUE series, both ends must connect to other IP65-rated connectors to maintain the moisture seal. At just 0.914 meters, the AC5PTRUE3 keeps cable loops tight and tidy between closely spaced fixtures, so you spend less time dressing cables and more time programming your show.

Features

    • Weather-Ready Connections

      IP65-rated connectors with rubber ring seals block moisture and dust, keeping fixture sockets protected during outdoor events and dusty indoor installs.

    • Single-Cable Simplicity

      Combines 5-pin DMX and locking power in one 3-foot cable, reducing clutter when you daisy chain fixtures sitting close together on a truss.

    • Clean Signal Path

      A 6x16x0.12 braided tinned-copper shield rejects electromagnetic interference so your DMX data stays solid even in busy RF environments.

    • Compact Run Length

      At 0.914 meters end to end, this cable keeps loops tight and tidy between closely spaced fixtures, saving time on cable management.

    • Tough Daily-Use Build

      A PVC outer jacket protects copper conductors and HDPE insulation, built to handle the repeated load-in and load-out cycles of touring rigs.

Technical Specifications

  • Product Type IP65 DMX+Power Combo Cable
  • Cable Length 3 ft (0.914M)
  • Connector Type 5-Pin DMX Male to Female + Locking Power Male to Female
  • IP Rating IP65
  • Jacket PVC
  • Power Conductors (66 x 0.20) x3 Copper
  • Insulation HDPE
