American DJ Data Distro 6 6-Way DMX/RDM Data Splitter 5-Pin XLR w/Mount Straps

The Data Distro 6 splits one DMX line into six outputs and supports both DMX512 and RDM, selected with a protocol switch on the unit. Six branches out of one input changes how you cable a rig: instead of one long daisy chain snaking across a stage, each truss position or zone gets its own short run.

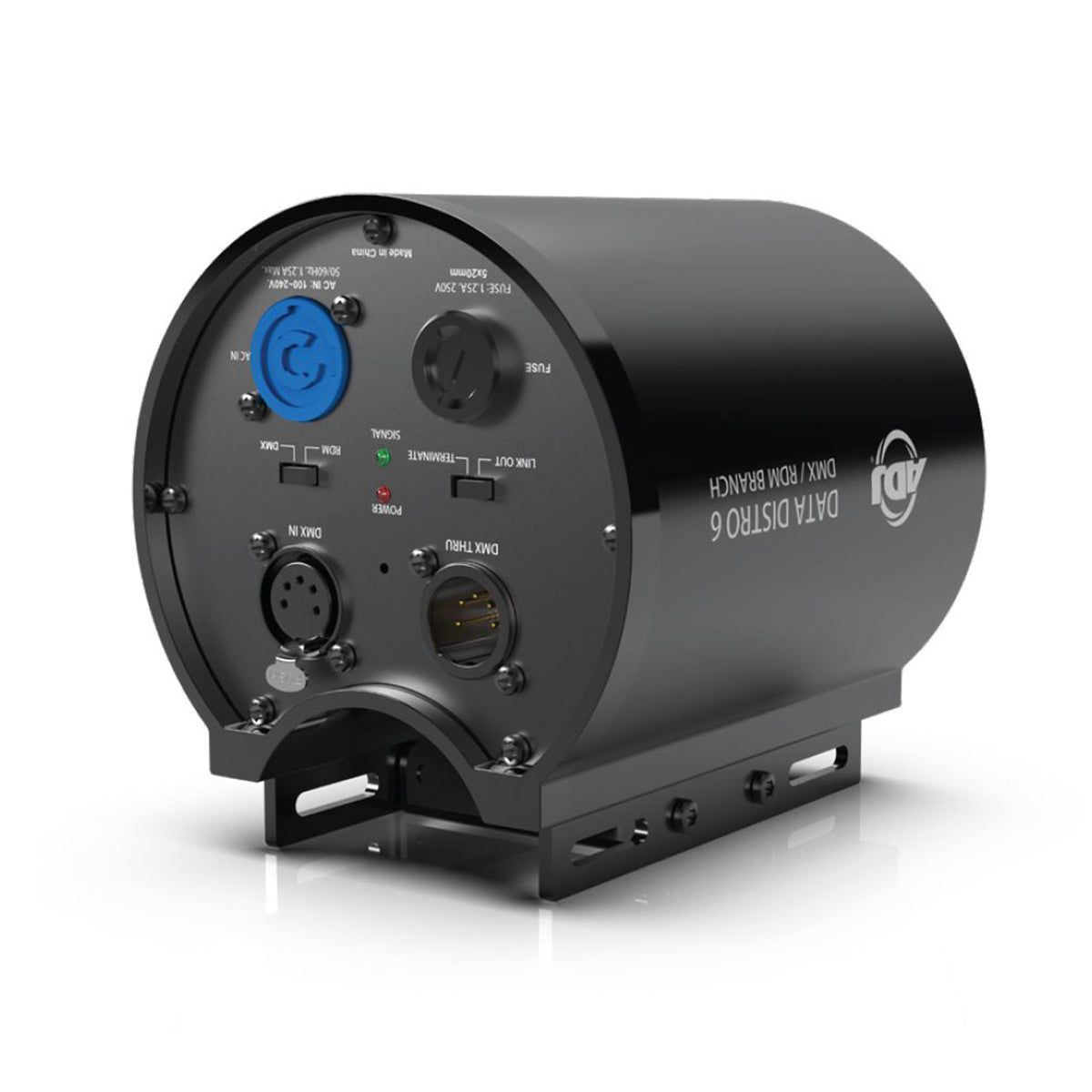

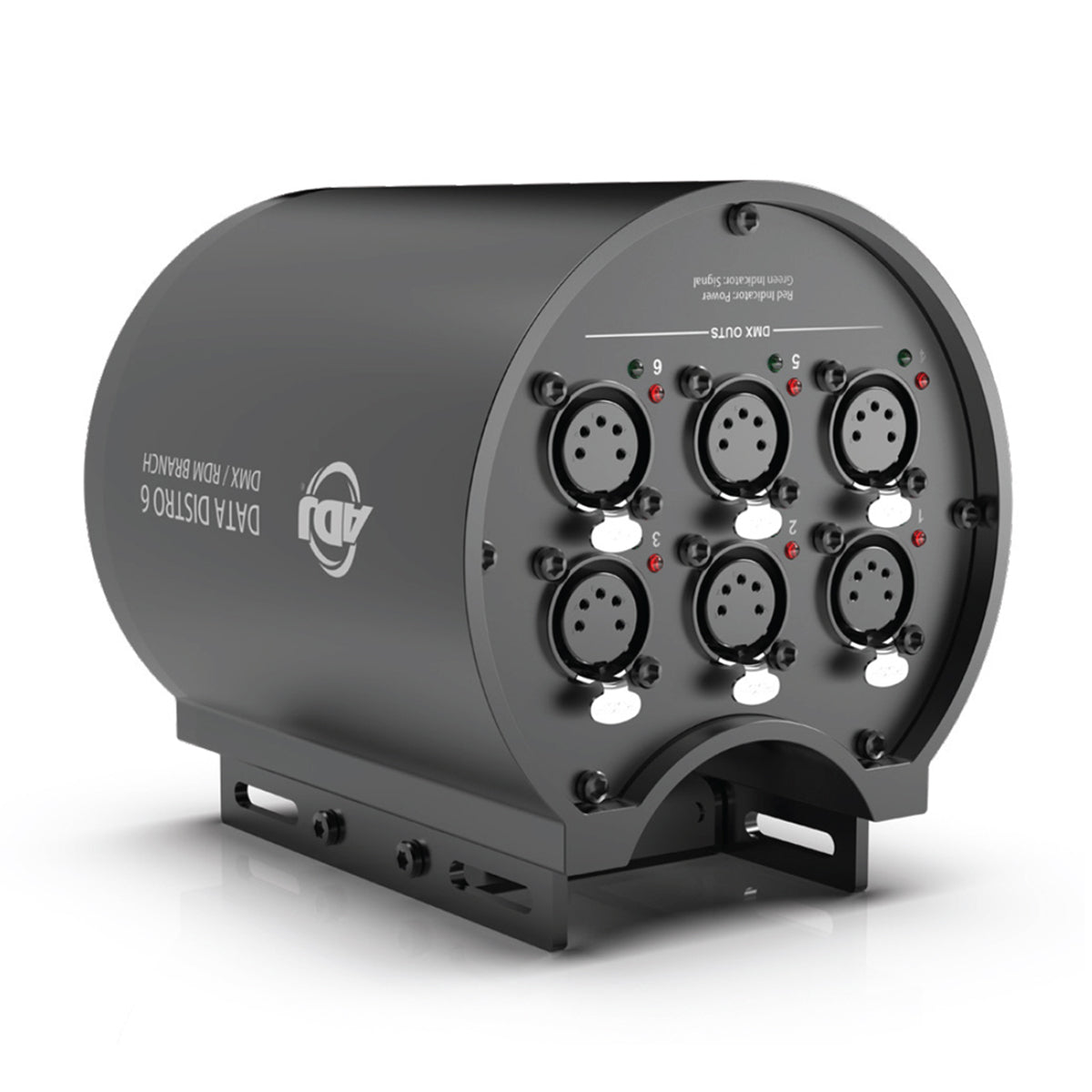

Connections are one 5-pin XLR input, one 5-pin thru and six 5-pin outputs, plus a link out termination switch for clean line termination at the end of a chain. RDM support means you can configure and monitor compatible fixtures from the console rather than climbing to each one.

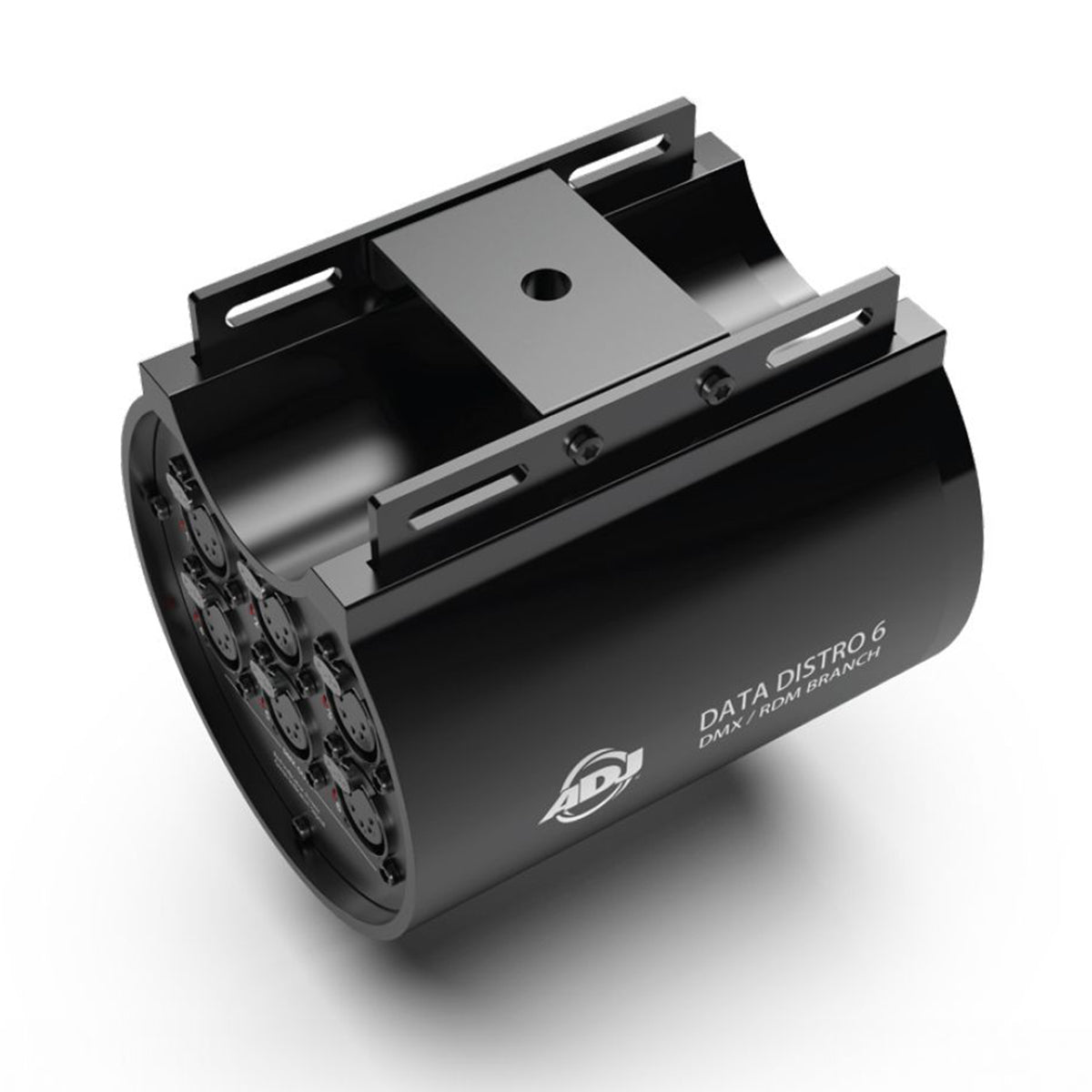

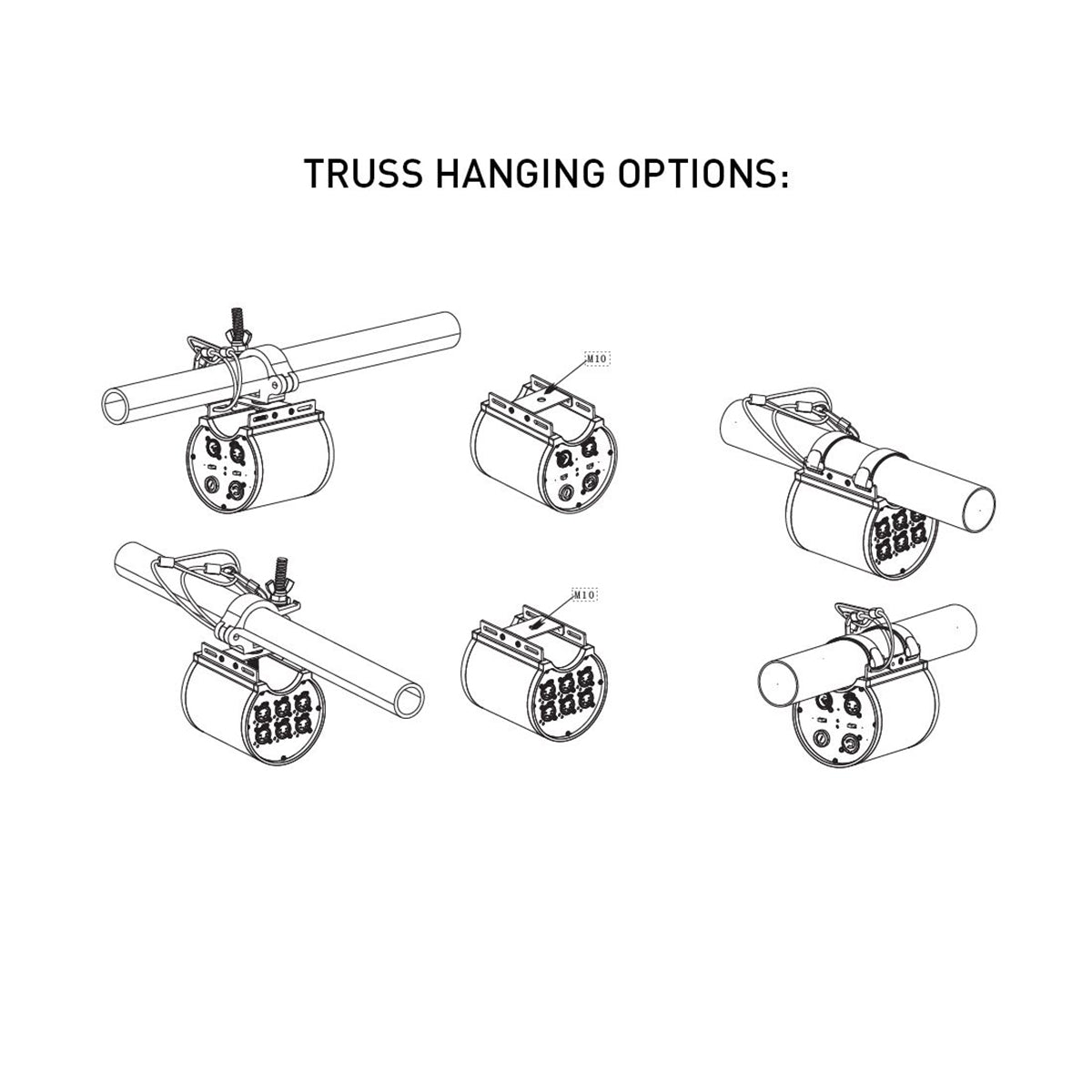

Mounting is built in. A truss mount with two Velcro straps gets the unit onto a pipe in seconds, or an M10 screw clamp can be used instead (clamp not included). At 1.83 lb and roughly 5" on each side, it lives in the air next to the fixtures it feeds, so cable runs stay short. The locking power socket keeps the unit from losing power to a bumped connector.

Power is 100-230V at 2.7W on 120V, with fuse protection, and the operating range covers -4°F to 113°F for cold warehouses and hot summer stages. It is CE and FCC compliant with IP20 rating, so indoor and covered positions. Good fits include touring rigs, festivals, houses of worship, theaters and rental inventories.
