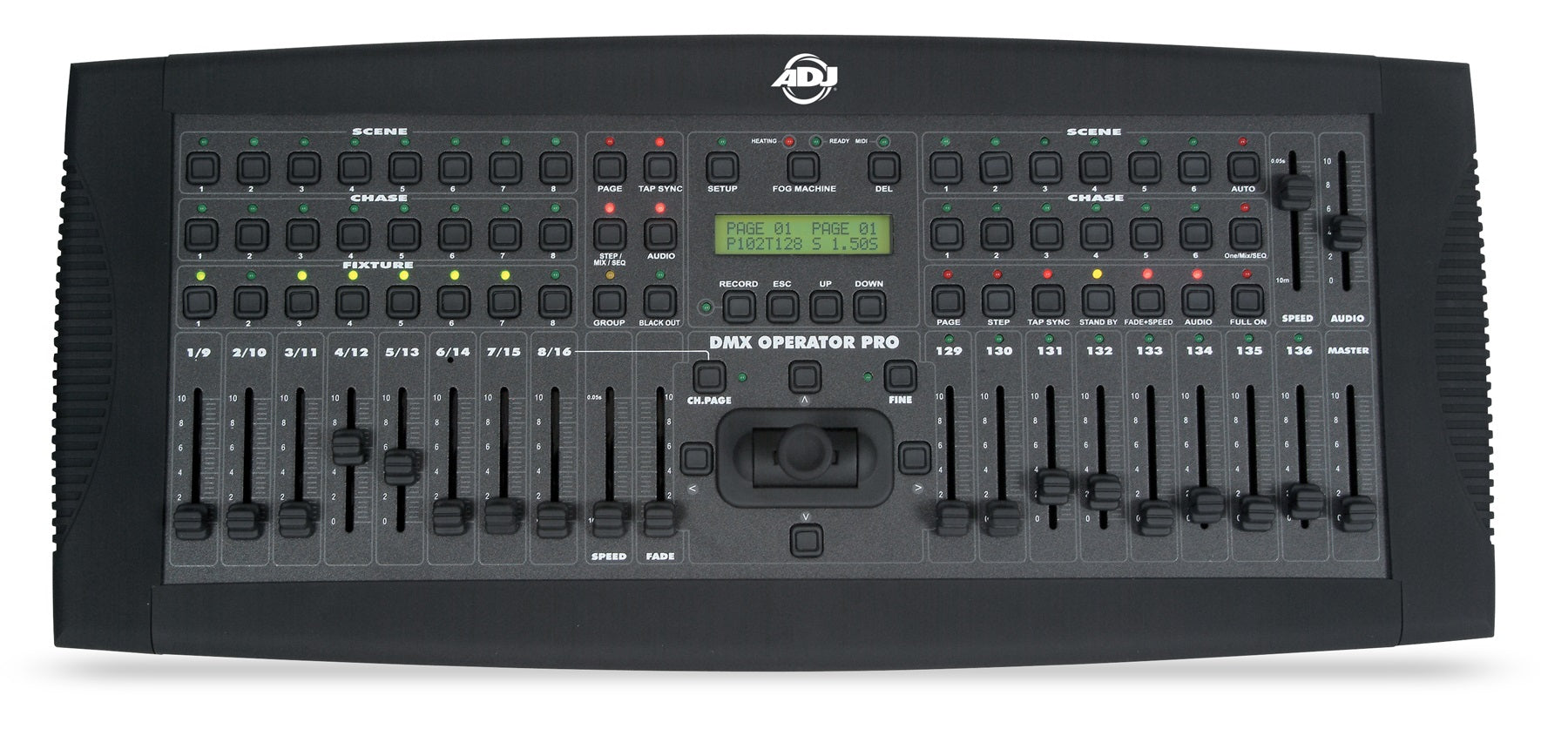

DMXOPERATOR PRO 136-Channel Pro Hybrid DMX Lighting Controller
AMERICAN DJ
DMXOPERATOR PRO 136-Channel Pro Hybrid DMX Lighting Controller
DMXOPERATOR PRO 136-Channel Pro Hybrid DMX Lighting Controller
136-Channel Hybrid DMX Controller, 8 Fixture Faders, MIDI, Flash Card Backup
Free Shipping
Features
- 136 DMX channels: 128 for intelligent lights, 8 for par cans
- Controls up to 8 fixtures at 16 channels each with joystick
- 96 programmable scenes and 8 chases with fade and speed
- 32MB compact flash card backs up all settings and scenes
- Built-in fog machine trigger button and MIDI control
Couldn't load pickup availability
What's Included in the box
- ADJ DMX Operator Pro Lighting Control Console
SKU: SKU: DMXOPERATOR PRO*
View full details
Product Description
Programming is straightforward: 96 scenes and 8 chases with adjustable fade time and speed cover the range from simple static looks to complex multi-step sequences. Tap Sync lets you override chase speed on the fly, an Audio button triggers scenes from the built-in microphone or a line-level input, and a Group button lets you control multiple fixtures at once. A fog machine trigger button is built in, so you can fire haze without reaching for a separate remote. Settings and scenes back up to a 32MB compact flash card, protecting your programming if the unit loses power. The DMX Operator Pro also supports MIDI control, so it integrates with MIDI-equipped setups for more advanced show control.
Features
Hybrid Moving and Conventional Control
Eight 16-channel intelligent fixture slots plus 8 dedicated par can channels let you run moving heads and static wash lights from one console.
Flash Card Backup
A 32MB compact flash card stores all your scenes and settings, protecting your programming against power loss and making it easy to transfer shows between units.
Joystick Pan and Tilt
A built-in joystick gives you real-time pan/tilt control of moving lights, so you can follow performers or reposition fixtures during a live show.
Built-In Fog Trigger
A dedicated fog machine trigger button fires haze from the console without reaching for a separate remote, keeping your hands on the board during the show.
MIDI Integration
Full MIDI controllability lets you sync scenes and chases to MIDI-equipped playback systems for more advanced, tightly timed show sequences.
Technical Specifications
- Product Type Hybrid DMX Lighting Controller
- Total DMX Channels 136 (128 Intelligent + 8 Par Can)
- Intelligent Fixtures 8 (16 channels each)
- Programmable Scenes 96
- Programmable Chases 8 (with fade and speed control)
- Backup 32MB Compact Flash Card
- Control DMX-512, MIDI
- Pan/Tilt Joystick
- Audio Trigger Built-in microphone + line-level input
- Fog Trigger Built-in button
- Features Tap Sync, Group Function, Step/Mix/Sequence, DMX Patching
