DOTZ MATRIX 4 x 4 COB RGB LED DMX Pixel Map Wash/Blinder Light

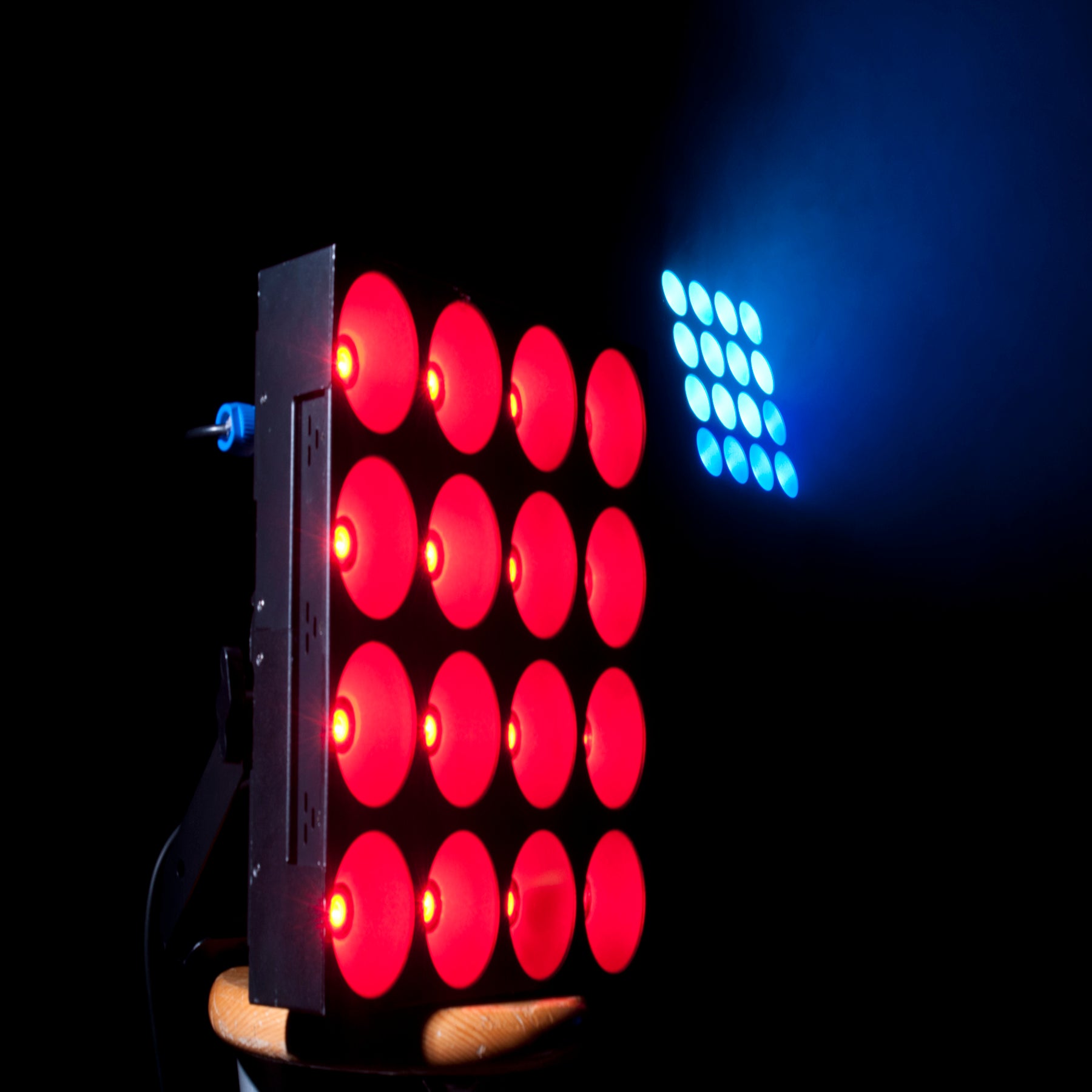

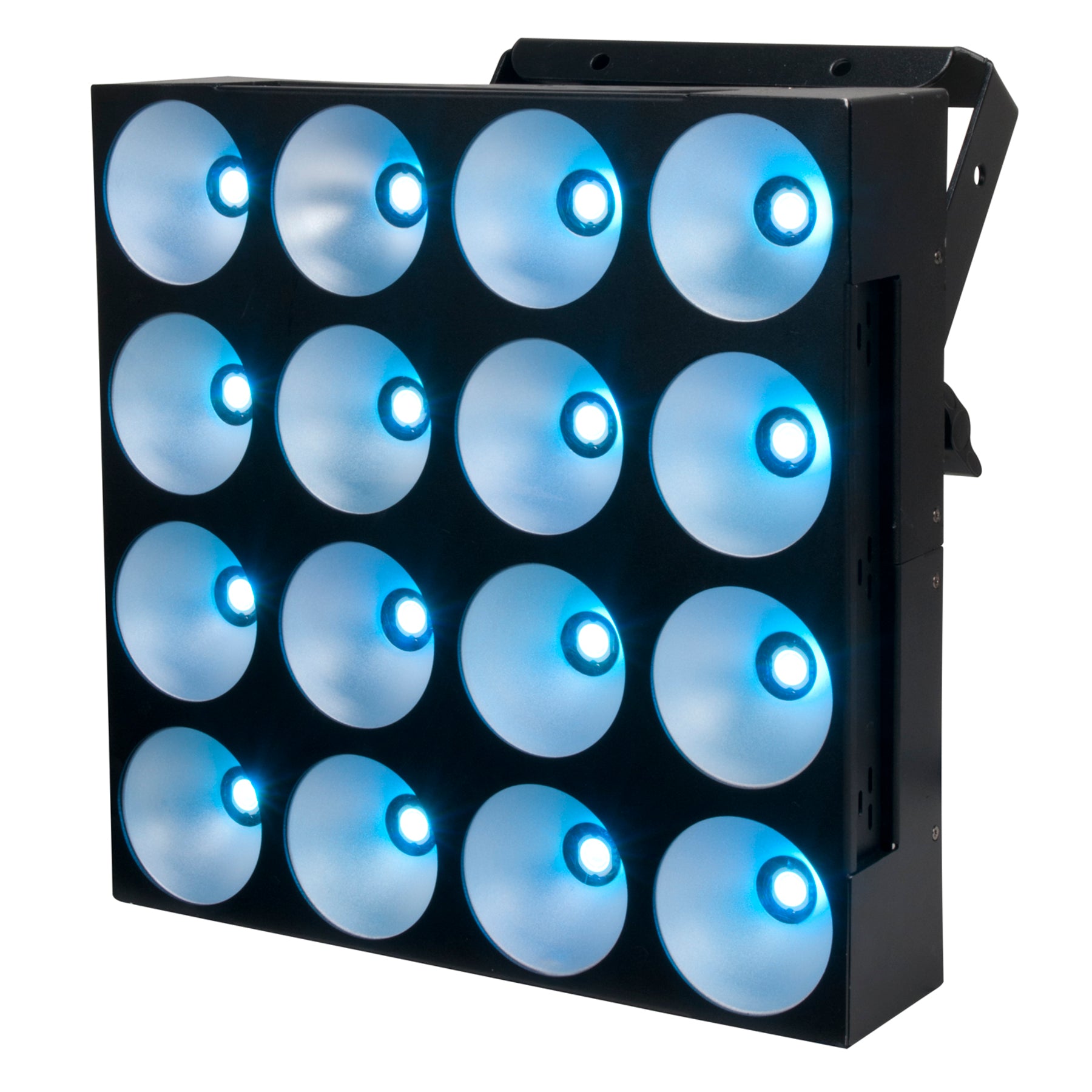

The ADJ Dotz Matrix is a 4x4 COB (Chip On Board) RGB LED panel that doubles as a wash, blinder, and pixel-mapped matrix for stage lighting, nightclub installs, and band rigs. Sixteen 30W COB TRI LEDs deliver even, shadow-free color mixing across the full RGB spectrum, and individual pixel control in the 48- and 53-channel DMX modes lets you create detailed visual effects that a standard wash light cannot match.

Five DMX channel modes (3, 6, 7, 48, and 53) give you flexibility from simple color wash to full pixel control. Four pixel flip options change pixel orientation for creative layout possibilities, and built-in preset colors, programs, auto run, and sound active modes let you run the fixture without a DMX console when the show calls for it. Flicker-free operation keeps the output camera-friendly, and five selectable dim curves (Standard, Stage, TV, Architectural, and Theatre) match the fixture to different production environments. A 60-degree beam angle covers stages and dance floors from moderate distances, outputting 2,630 LUX at 2 meters. At 18 lb and 13.75" x 6.75" x 14.75", the Dotz Matrix mounts on a single yoke and daisy chains power with up to 5 units at 120V on a 20A circuit.
