American DJ ADJ DP-DMX20L Portable 4-Channel Universal DMX Dimmer/Switch Pack

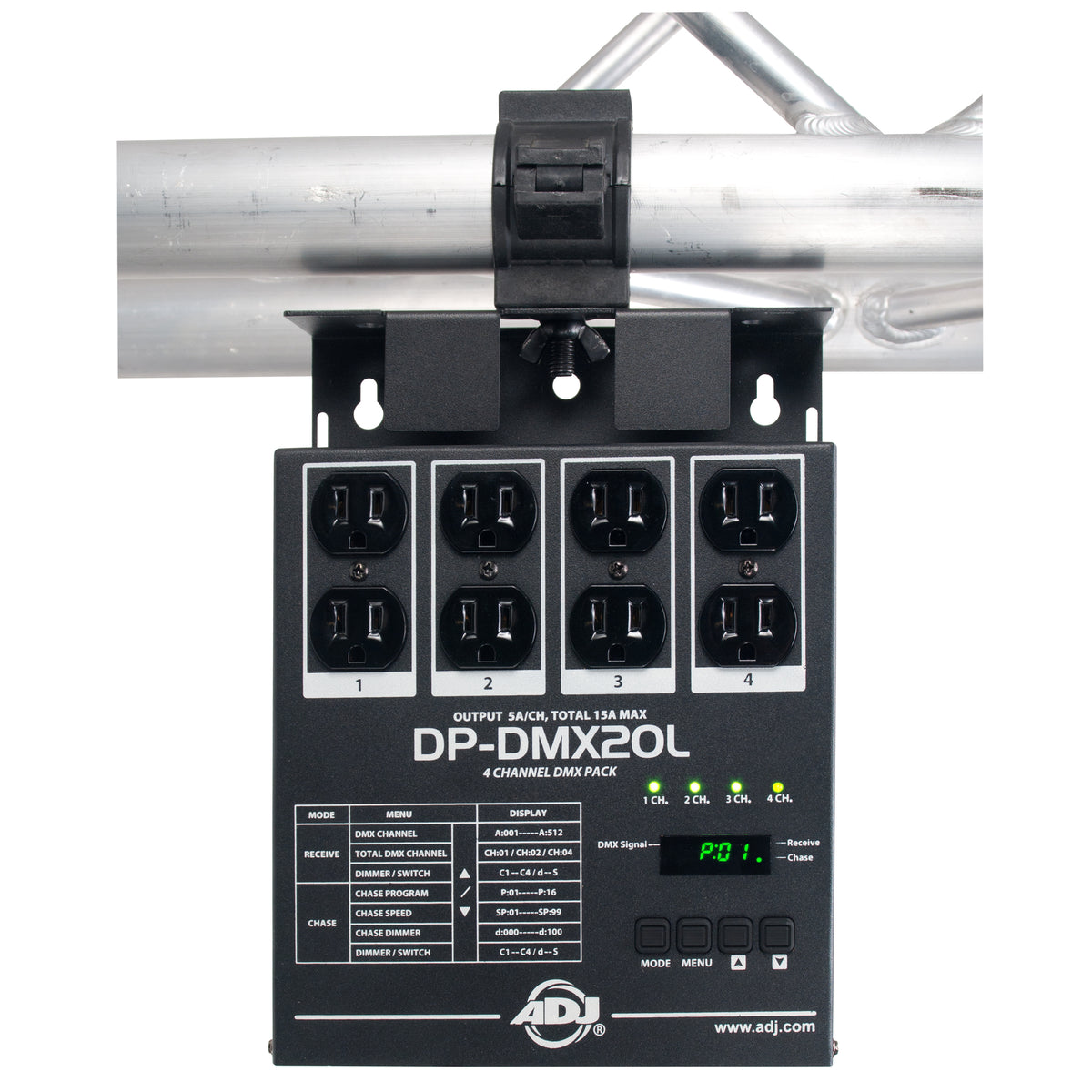

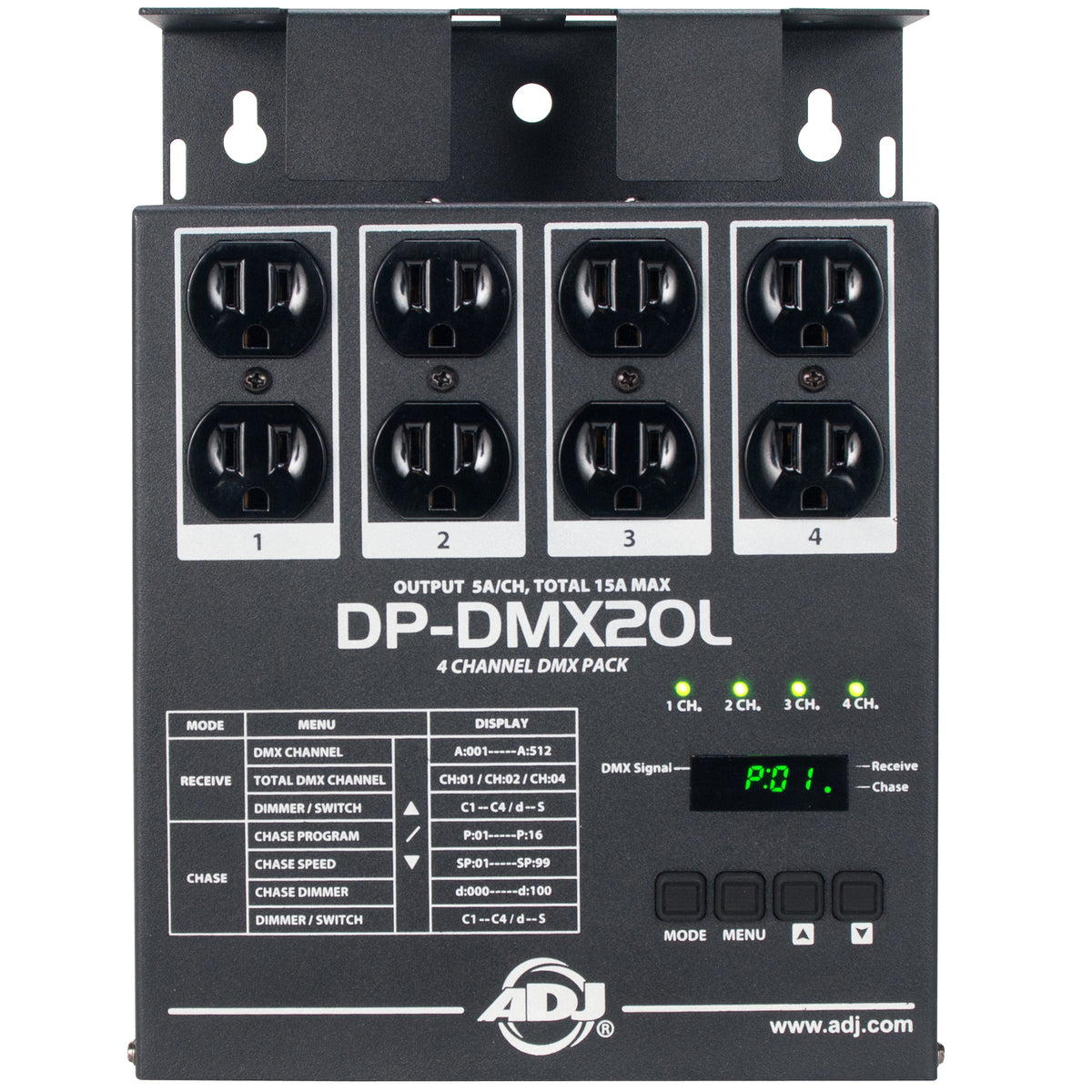

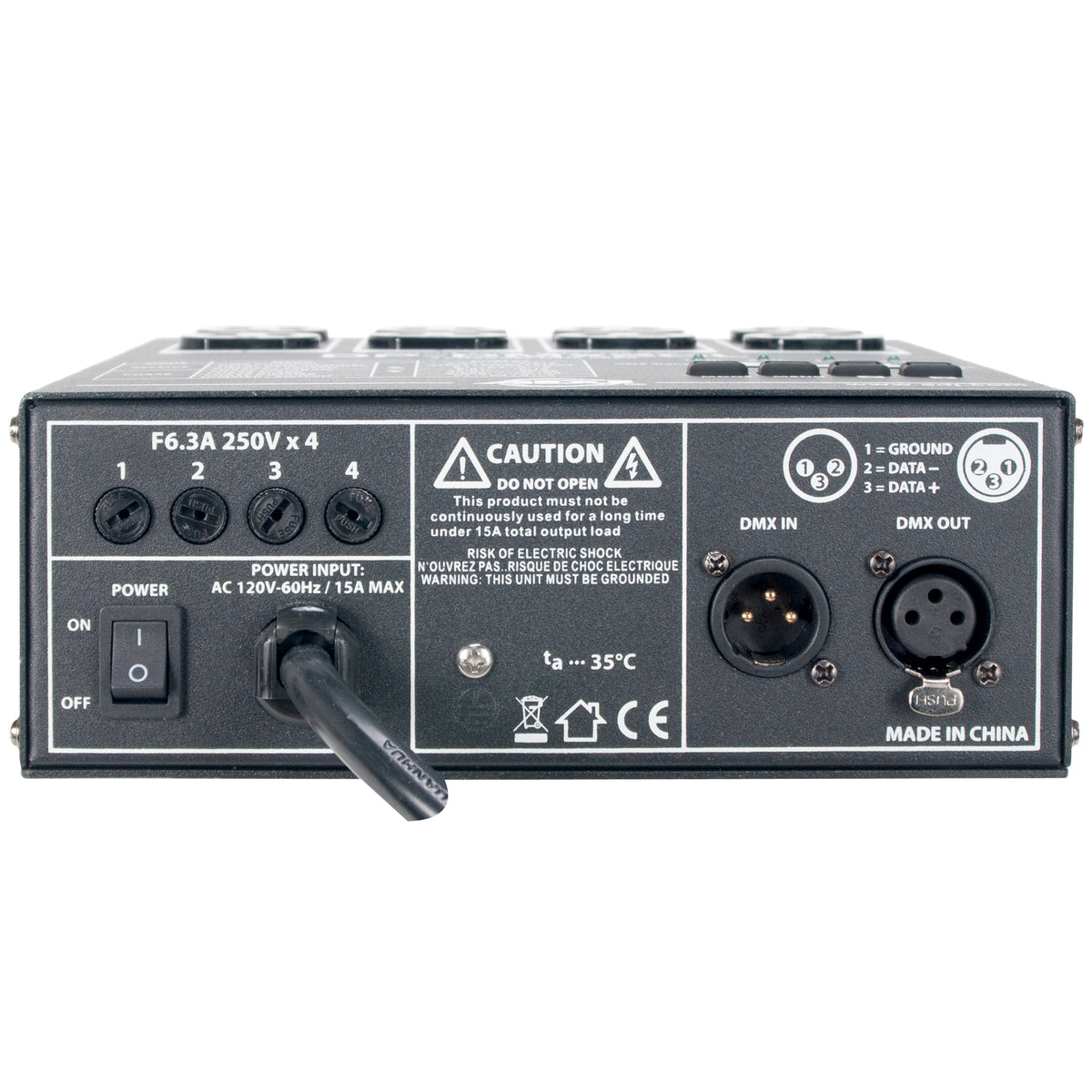

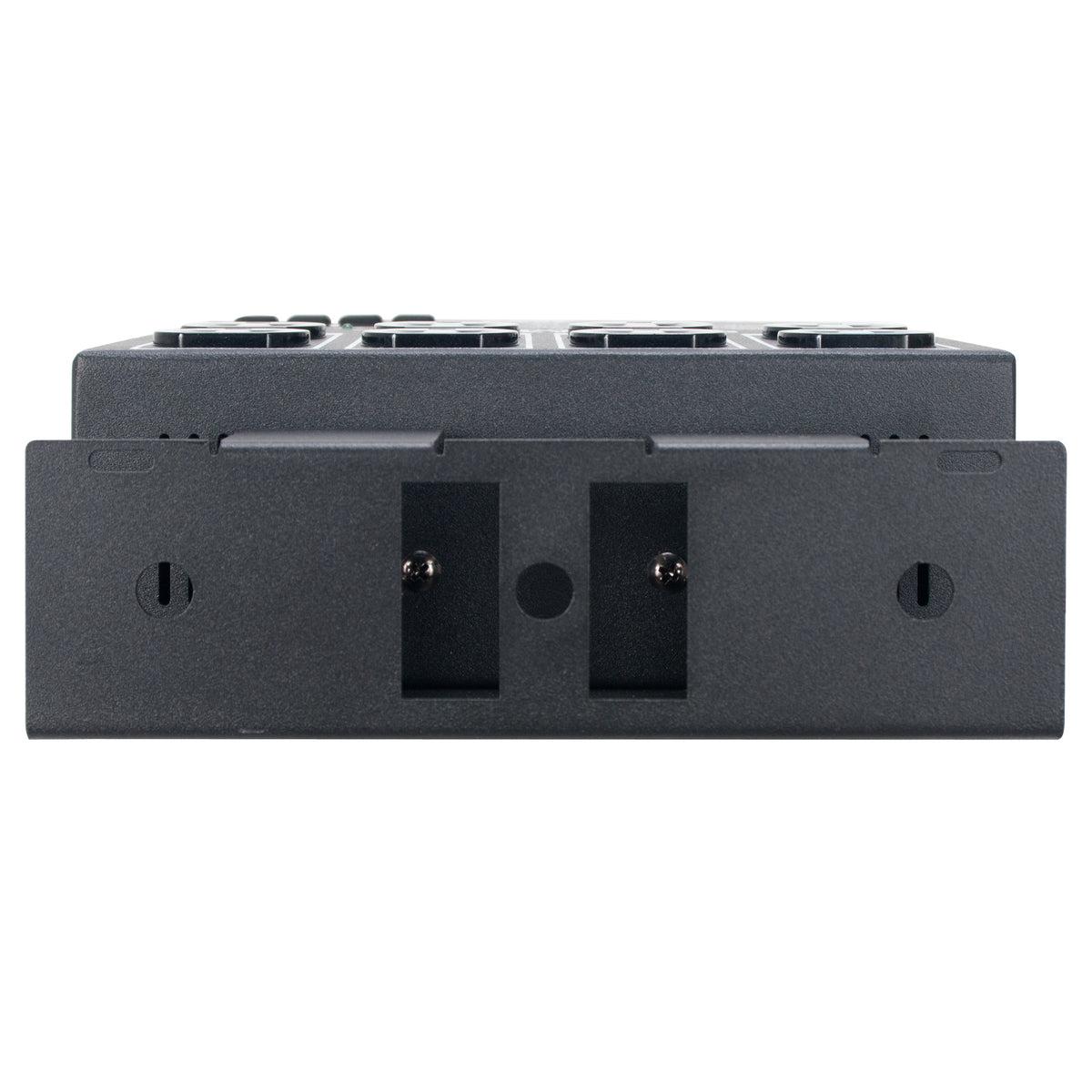

The DP-DMX20L is a four-channel dimmer and switch pack that puts DMX control on standard Edison-plug gear: par cans, work lights, practicals, and non-dim effects. Each channel is set to dim or switch independently, and the pack runs as a one, two, or four channel device, so it patches cleanly into small and large rigs. Two three-prong Edison sockets per channel let you plug more than one fixture into the same channel. Setup runs off a digital display for the DMX start channel, dim level, and menu options, and four LEDs show channel activity at a glance. Sixteen built-in chase sequences with speed and intensity control cover jobs where no console is present. Four external channel fuses swap out fast on the road instead of requiring the pack to be opened, and zero crossing circuitry protects transformer loads during switching. A reversible mounting panel on the rear makes truss or wall installation easier in either orientation, and power failure memory brings settings back after a drop. Maximum load is 6.3A per channel and 15A total on 120V power, and it pairs with desks including the DMX Operator Pro, Stage Setter-8, Scene Setter-24, and Stage Setter 24.
