DS4QC1

Product Description Specifications

DS4QC1

  • DS4QC1
  • DS4QC1
  • DS4QC1
  • DS4QC1
  • DS4QC1
1 5

AMERICAN DJ

DS4QC1

DS4QC1

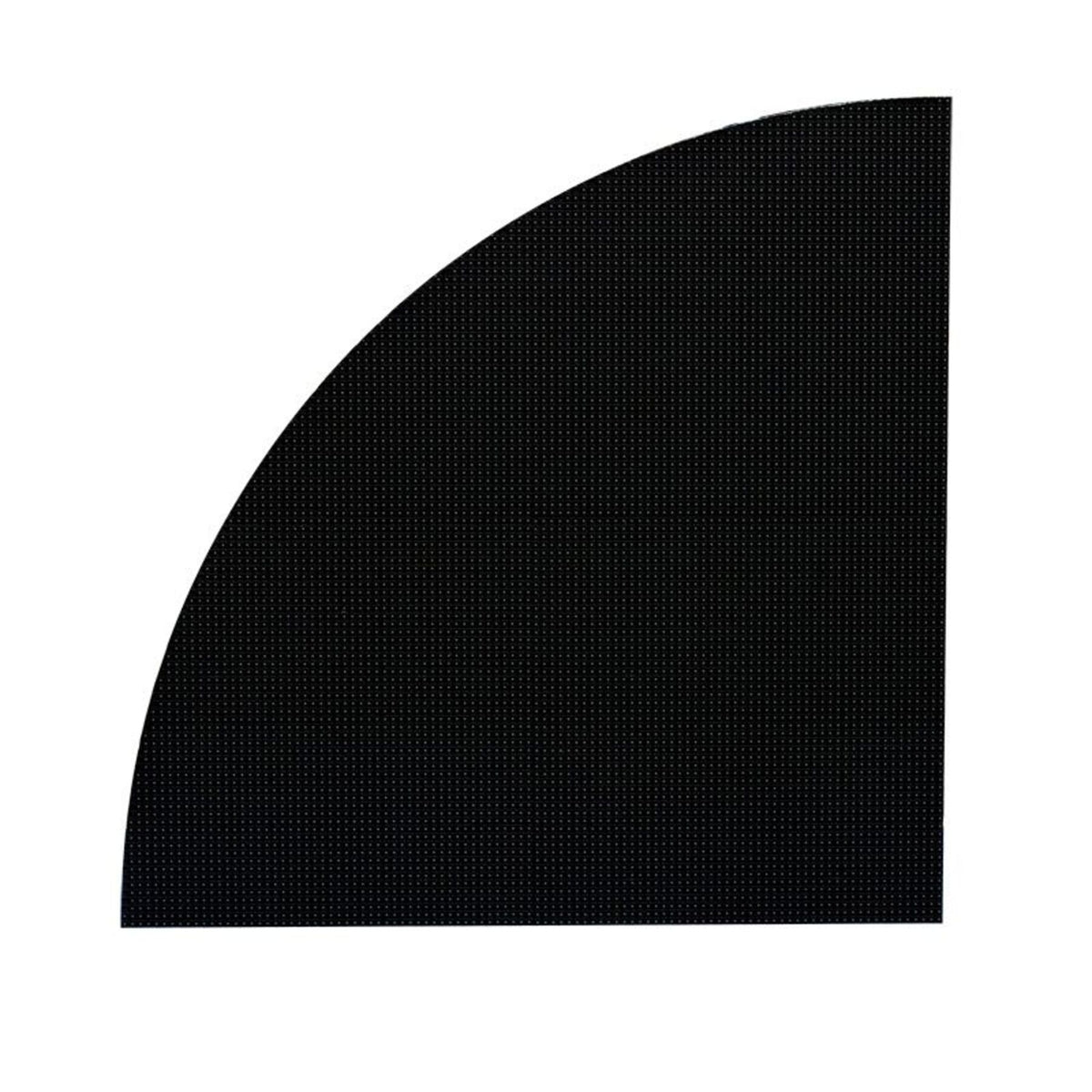

Quarter-Circle LED Video Panel, 4.8mm Pixel Pitch, 1200 NITS, 104 x 104 Pixels, Top-Left Orientation

Free Shipping

$694.95
$694.95 $661.52
Shipping calculated at checkout.
Features
    • Quarter-circle panel (top left) for curved and circular screen builds
    • 4.8mm pixel pitch with 104 x 104 pixels per panel
    • 1200 NITS brightness with 160-degree horizontal viewing angle
    • PowerCon and EtherCon in/out chain power and data between panels
    • Links with DS4, DS4T, and DS4HC panels on shared rigging
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • DS4QC1 quarter-circle LED video panel

SKU: DS4QC1

View full details

Product Description

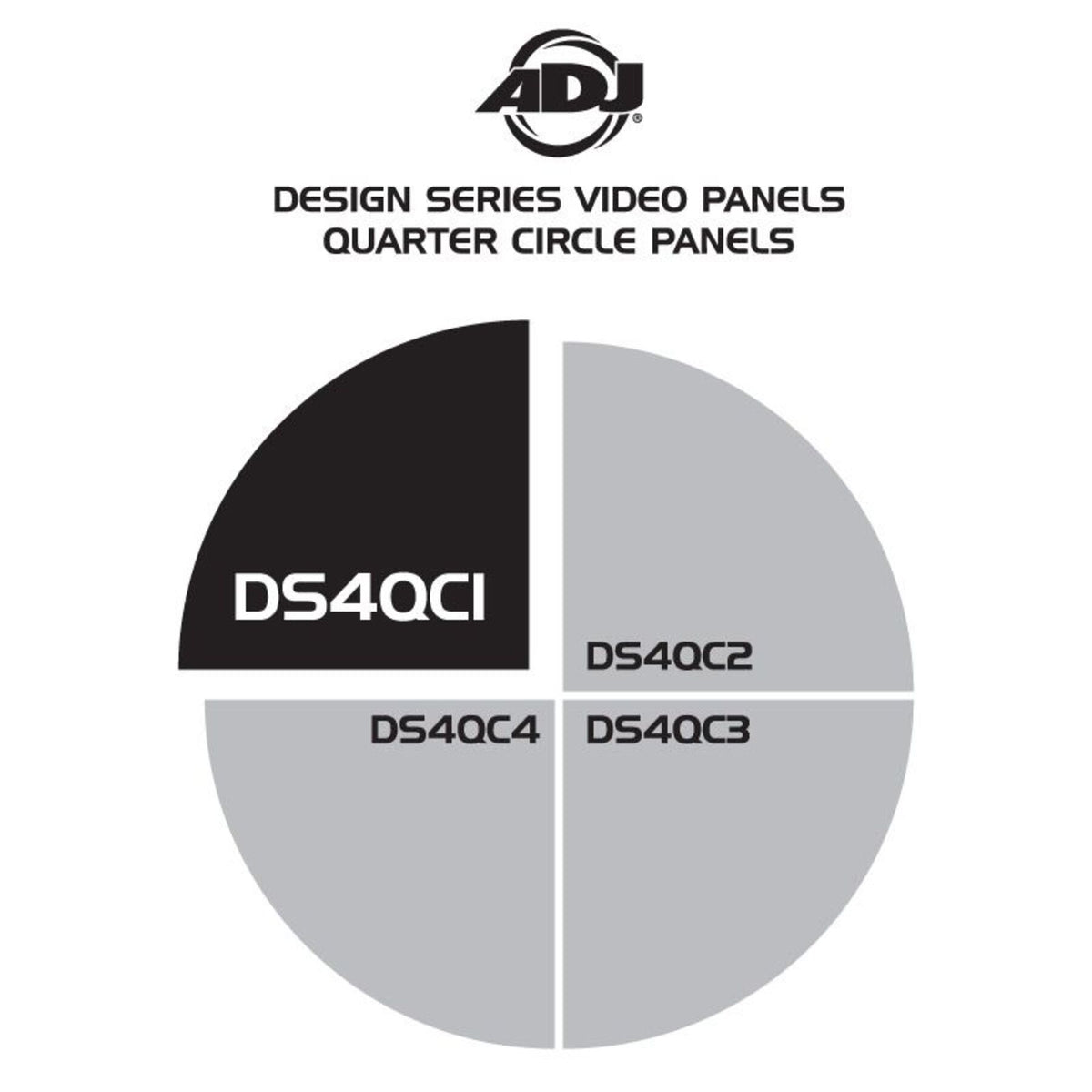

The DS4QC1 is the top-left quarter-circle panel in the ADJ Design Series modular video system. It carries a 4.8mm pixel pitch, 104 x 104 pixels per panel, and 1200 NITS of brightness from 3-in-1 SMD2020 LEDs, so it reads well under stage lighting from a minimum viewing distance of 12.5 feet. Because the Design Series mixes square (DS4), triangle (DS4T), quarter-circle (DS4QC), and rectangular (DS4HC) panels on shared rigging and data, this piece rounds off a corner of a screen or builds curved and circular shapes a square-only wall cannot. Viewing angles run 160 degrees horizontal and 120 degrees vertical, which keeps the image readable for audiences off to the side. Processing is 14-bit with a 1920Hz refresh rate and brightness adjustable across 100 levels, and control runs through a Nova Star synchronous system over DVI, with composite, S-Video, component, VGA, HDMI, and HD-SDI inputs supported. PowerCon in/out and EtherCon in/out chain power and data between panels, with control distance up to 100m over Ethernet cable or beyond 120m on fiber. Each panel weighs 14 lb, measures 20 x 20 x 3 inches, and draws 52.5W on average and 157.5W maximum, for touring productions and fixed installations alike.

Features

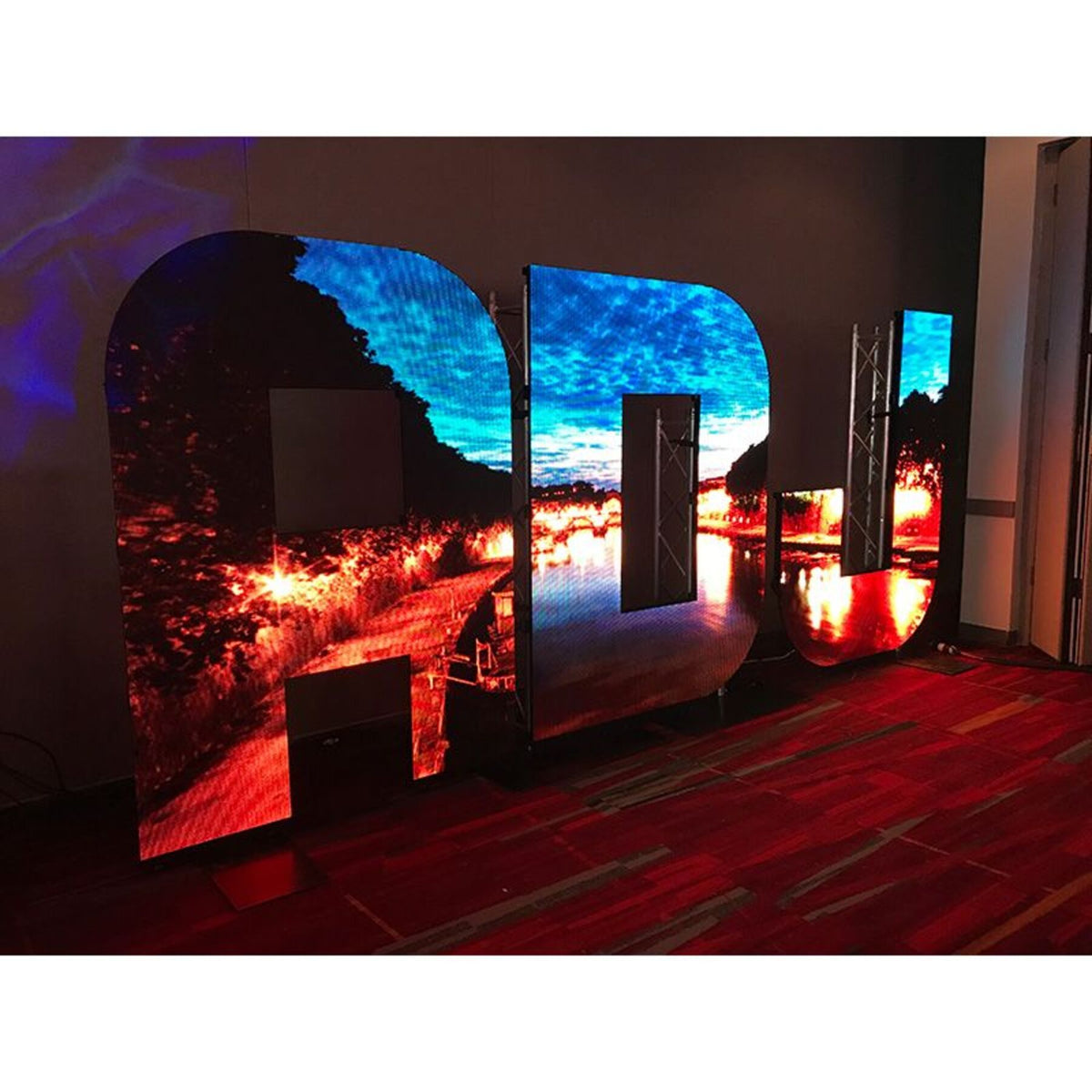

    • Curves A Square Wall Cannot Do

      The quarter-circle shape closes corners and builds round screens, combining with square, triangle, and rectangular Design Series panels on one rigging system.

    • Detail At Close Range

      A 4.8mm pixel pitch and 104 x 104 pixels per panel hold up from 12.5 feet out, which suits stages where the audience sits near the screen.

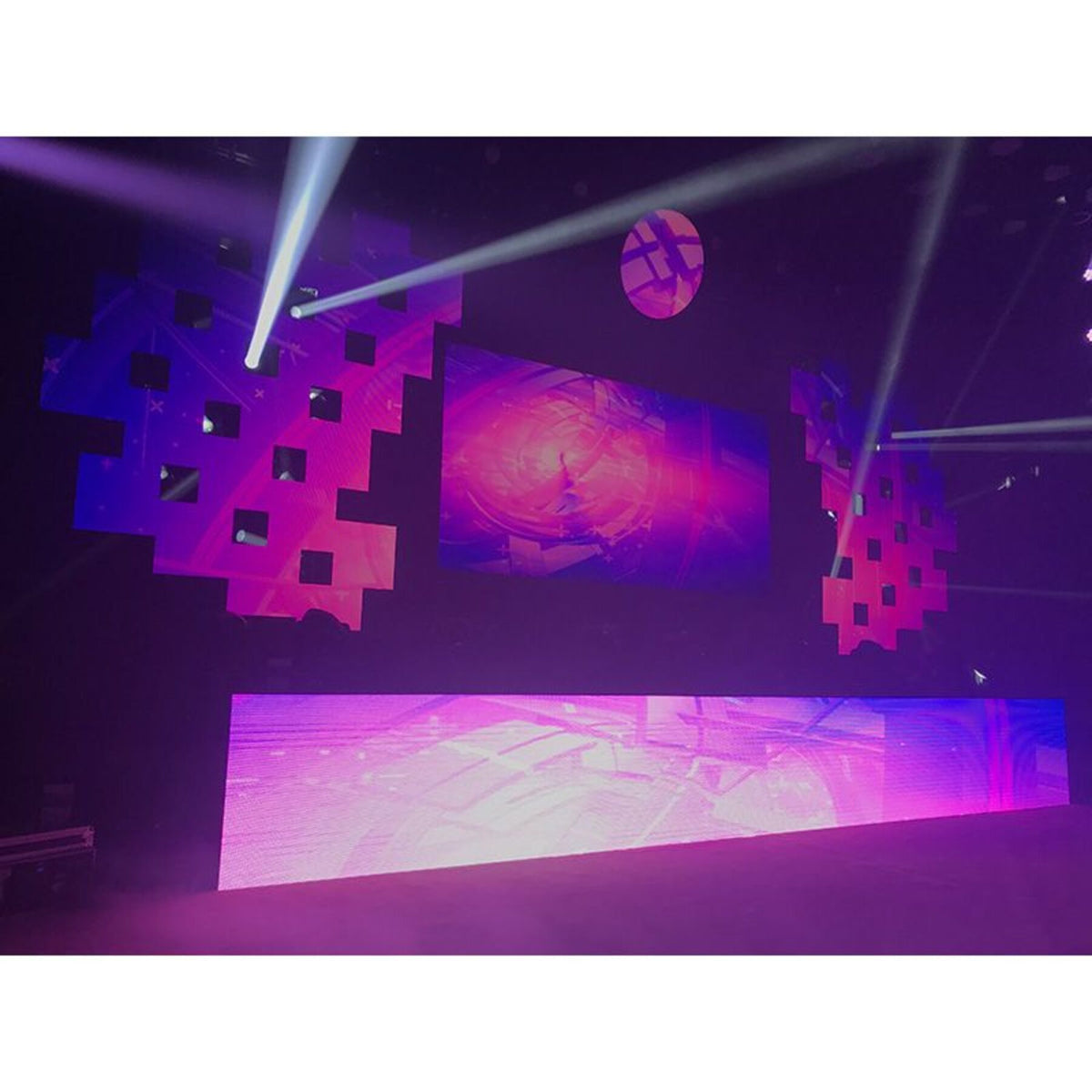

    • Bright Enough For Stage Light

      1200 NITS of output keeps content readable under wash and beam fixtures, with brightness adjustable across 100 levels.

    • Wide Audience Coverage

      Viewing angles of 160 degrees horizontal and 120 degrees vertical keep the picture usable for people standing well off to the sides.

    • Fast Panel Linking

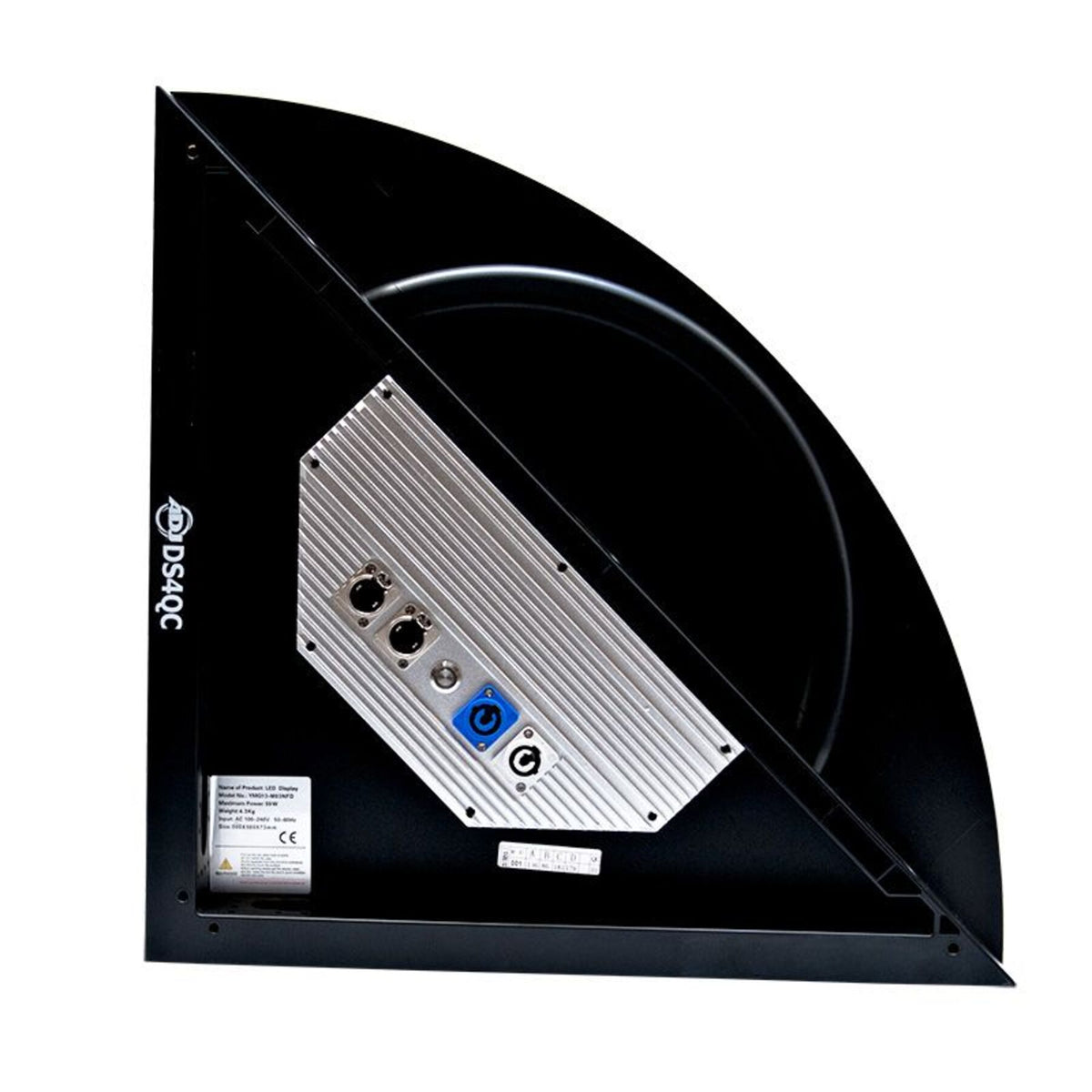

      PowerCon and EtherCon in/out connectors chain power and data panel to panel, cutting cable runs on touring builds and fixed installs.

Technical Specifications

  • Product Type Quarter-Circle LED Video Panel
  • Panel Orientation Top left (TL)
  • Pixel Pitch 4.8mm (0.19")
  • LED Configuration 3-in-1 SMD2020
  • Pixel Density 104 x 104 per panel; 43,264 per square meter
  • Brightness 1200 NITS
  • Brightness Adjustment 0-100% across 100 levels
