ECO BAR UV DMX 18 x 3 Watt Ultraviolet LED Bar Black Light w/ Remote
AMERICAN DJ
ECO BAR UV DMX 18 x 3 Watt Ultraviolet LED Bar Black Light w/ Remote
ECO BAR UV DMX 18 x 3 Watt Ultraviolet LED Bar Black Light w/ Remote
18x3W UV LED Bar, 120-Degree Beam, DMX Control, IR Remote, Daisy Chain Power
Free Shipping
Features

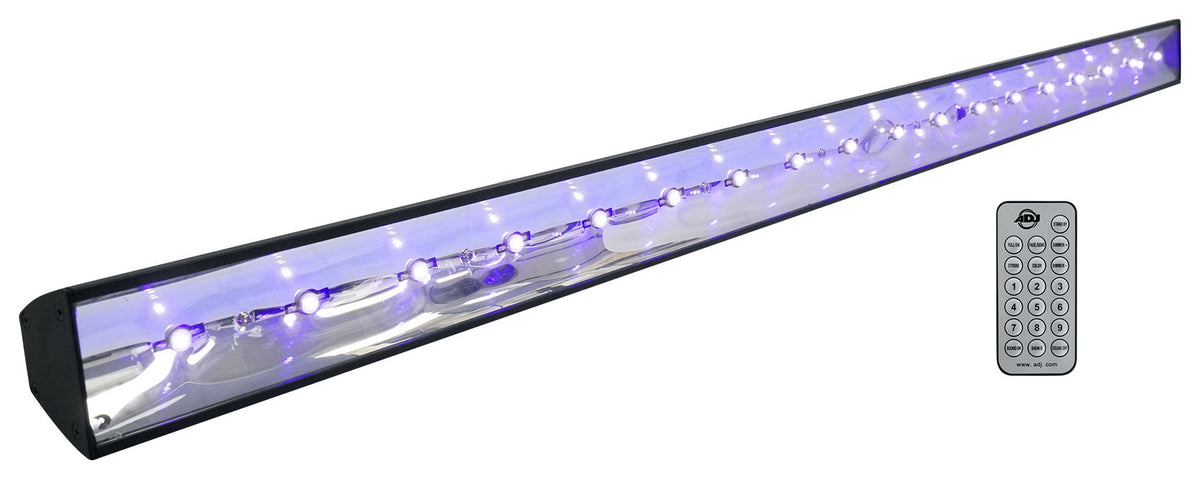

- 18 x 3W UV LEDs with a 120-degree beam for wide coverage
- DMX-512 control over 3 channels with strobe and dimming

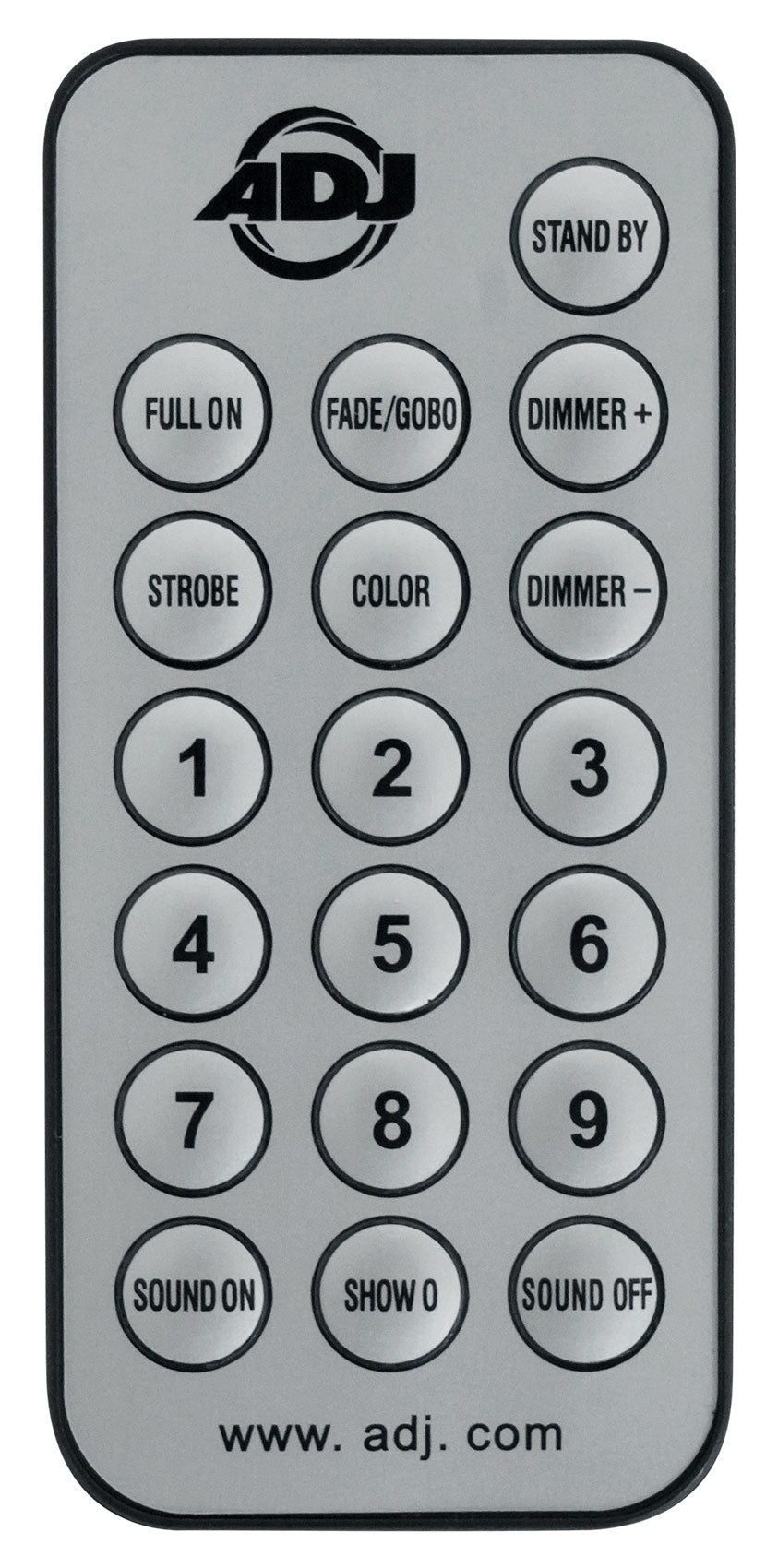

- Included UC IR wireless remote for cable-free operation

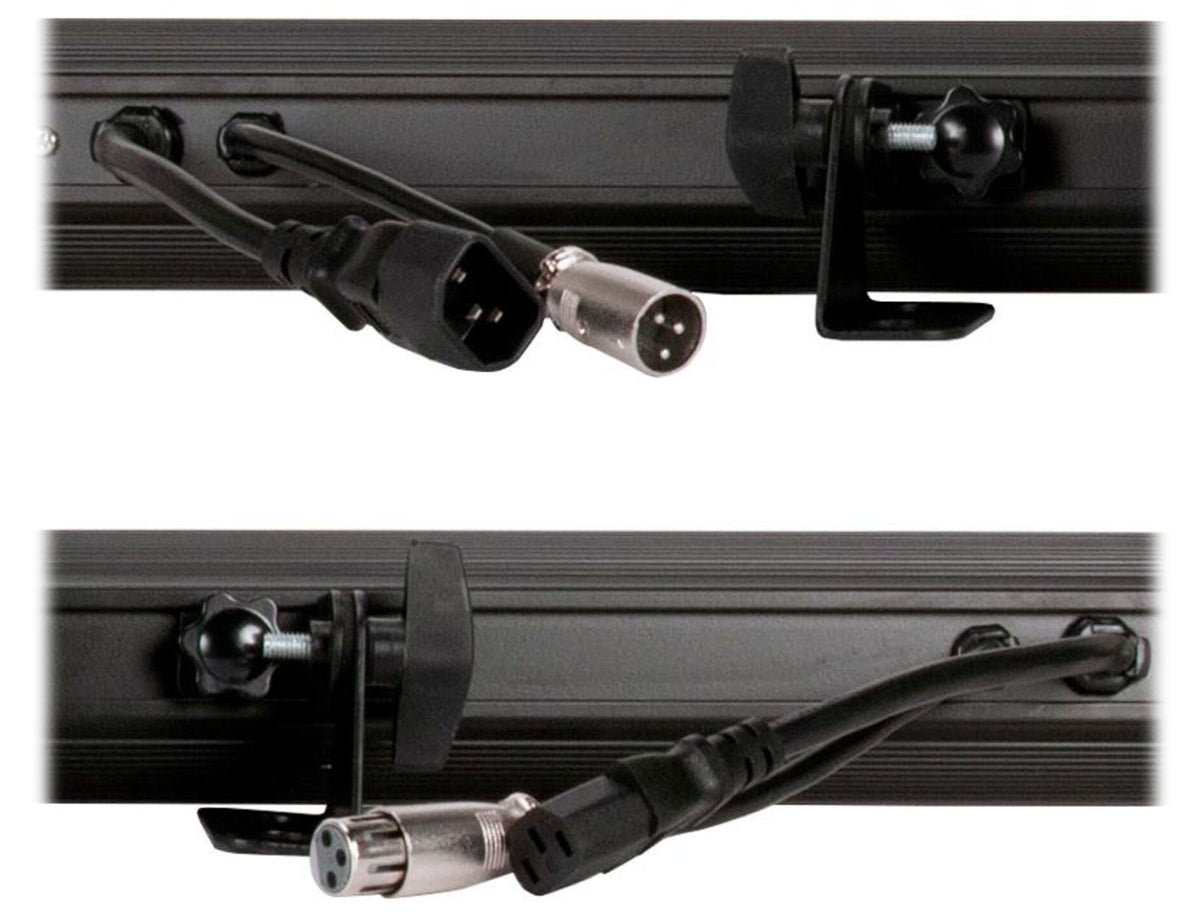

- Daisy chain power up to 10 units via IEC AC in/out

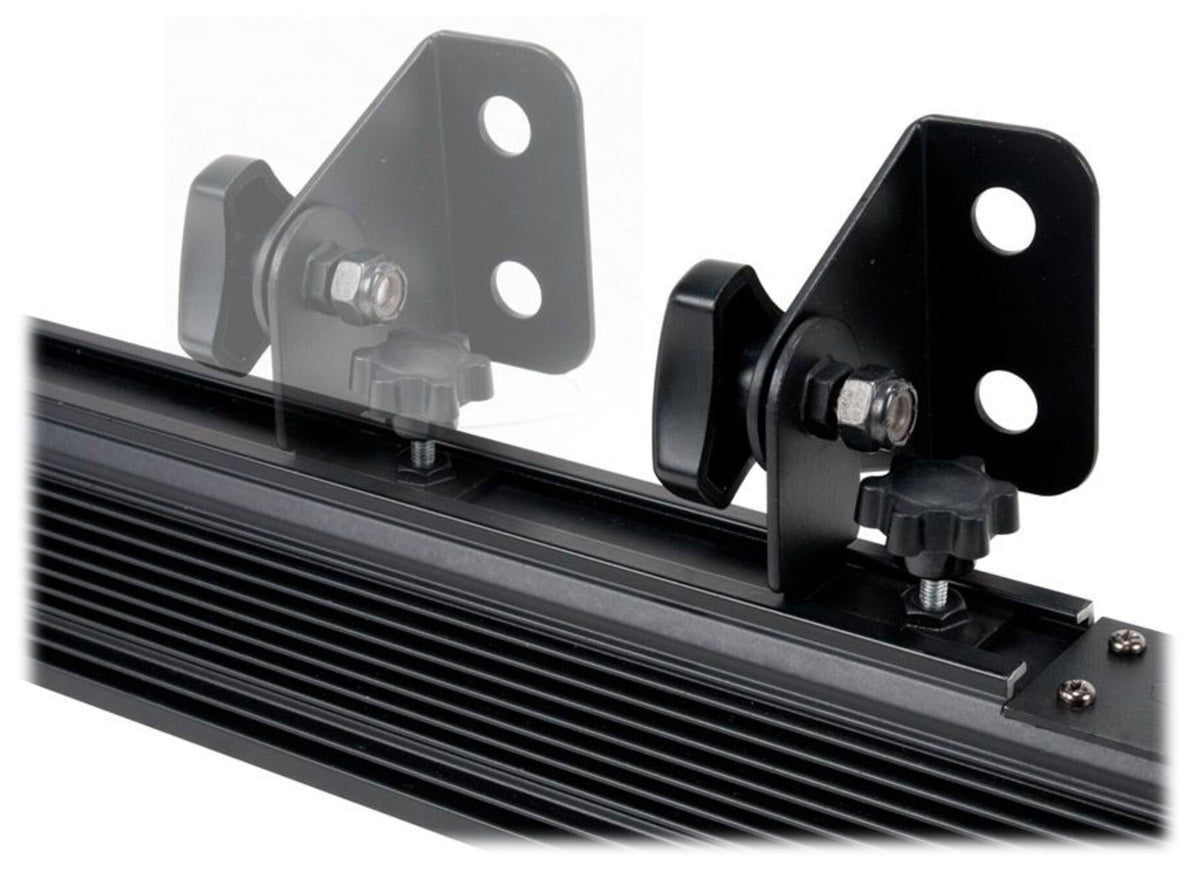

- Adjustable brackets for ceiling, wall, or floor mounting
Couldn't load pickup availability

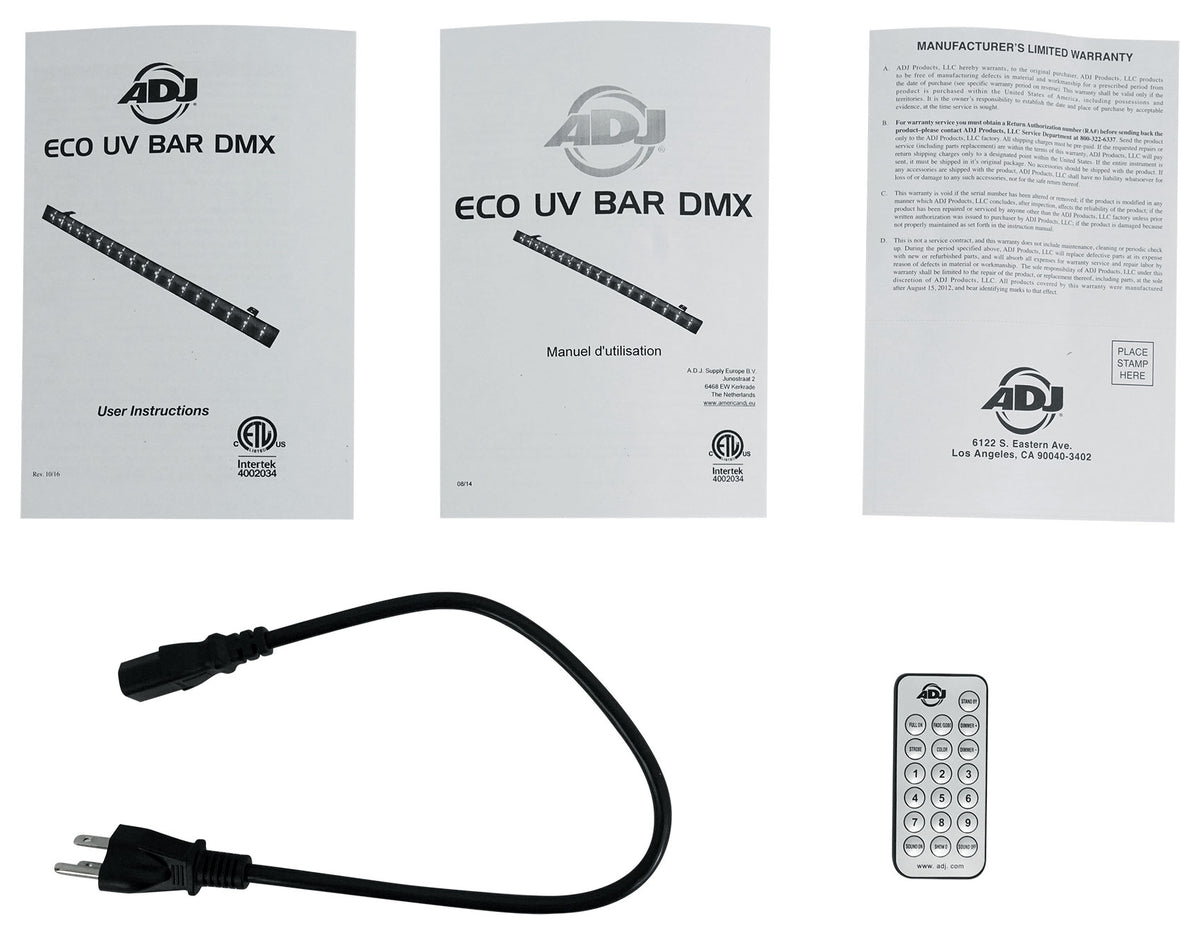

What's Included in the box
- ADJ ECO BAR UV DMX Ultraviolet LED Bar
- UC IR Wireless Remote
- Adjustable Mounting Brackets
SKU: SKU: ECO BAR UV DMX*
View full details







Product Description
Two operational modes, manual and DMX-512, keep things simple for plug-and-play installs or expand control for programmed shows. IEC AC in/out connectors let you daisy chain power for up to 10 units on a single run, which cuts the number of power drops you need to pull across a stage or venue wall. Adjustable mounting brackets let you hang the bar from a ceiling or truss, mount it on a wall, or set it on the floor for upward wall washing. The UV LEDs are rated at approximately 50,000 hours, so you are not swapping lamps mid-season. At 39.5" x 2.5" x 4.75" and 6 lb, the ECO BAR UV DMX covers a wide area from a compact, lightweight form factor that fits performance stages, theatrical productions, haunted houses, and any event where UV effects bring costumes, paint, and decor to life.
Features
Wide UV Coverage
Eighteen 3W UV LEDs and a 120-degree beam angle cover wide walls, floors, and stages with black light from a single bar, reducing the number of fixtures needed.
Daisy Chain Up to 10 Units
IEC AC in/out on the rear lets you link up to 10 ECO BAR UV DMX fixtures on one power run, cutting the cables and outlets needed across a venue.
DMX and Remote Control
Three DMX channels handle strobe and dimming for programmed shows, and the included IR remote gives quick color-free access to settings for simpler events.
Flexible Mounting
Adjustable mounting brackets let you hang the bar from truss or a ceiling, mount it flat on a wall, or set it on the floor for upward wall washing.
Long-Life UV LEDs
LEDs rated at approximately 50,000 hours mean you are not replacing lamps mid-season, keeping maintenance costs and downtime to a minimum.
Technical Specifications
- Product Type Ultraviolet LED Bar (Black Light)
- Light Source 18 x 3W UV LEDs
- Wavelength 395-405nm
- Beam Angle 120 degrees
- DMX Channels 3
- Operational Modes Manual, DMX-512
- Refresh Rate 1kHz
- LED Life Approx. 50,000 hours
- Power Draw 60W
- Power AC 100-240V, 50/60Hz
- Power Daisy Chain Up to 10 units (IEC in/out)
- DMX Connectors 3-pin XLR in/out
- Approvals cETLus (Control #4002034)
- Dimensions 39.5" x 2.5" x 4.75" / 1000 x 60 x 115mm
- Weight 6 lb / 2.4 kg
