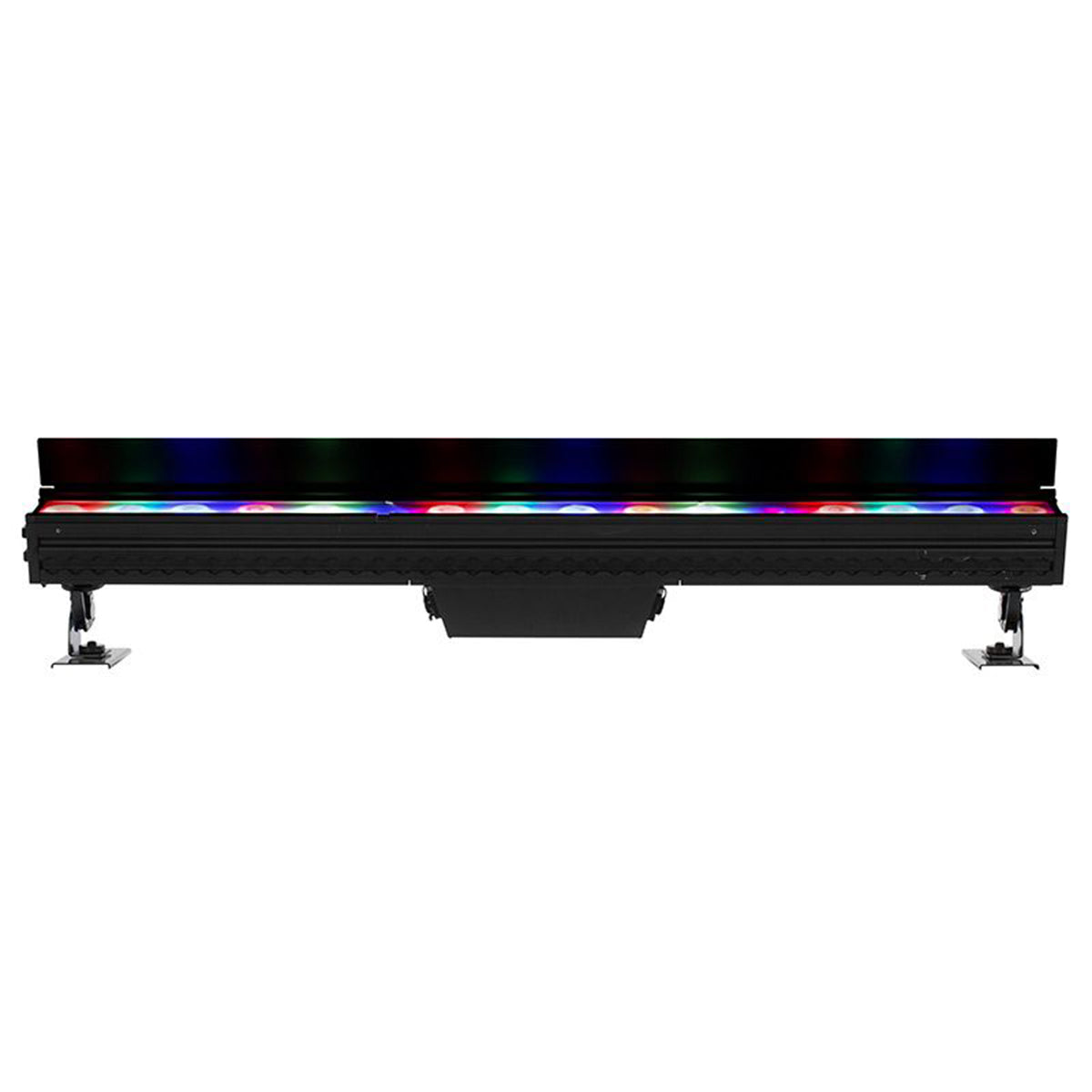

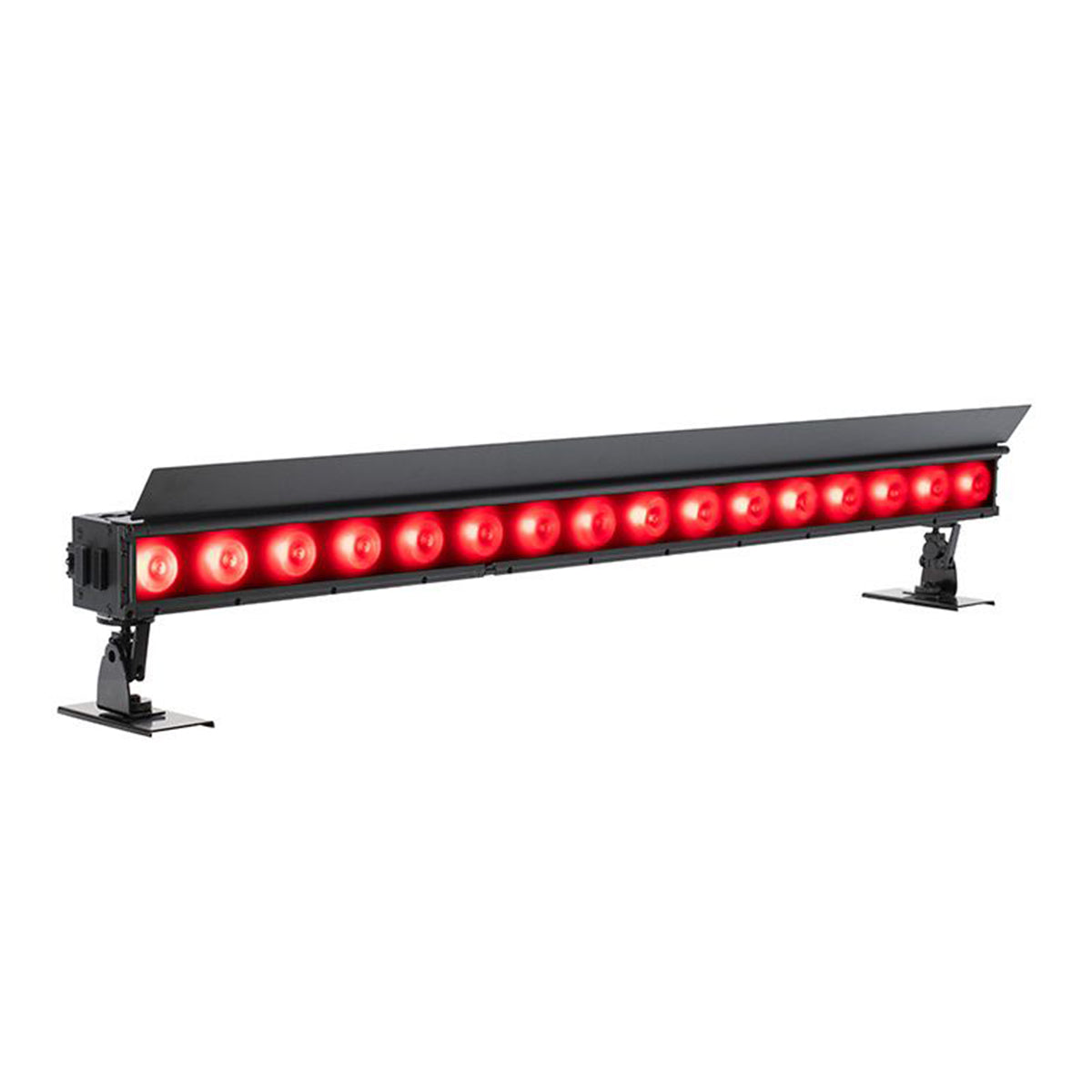

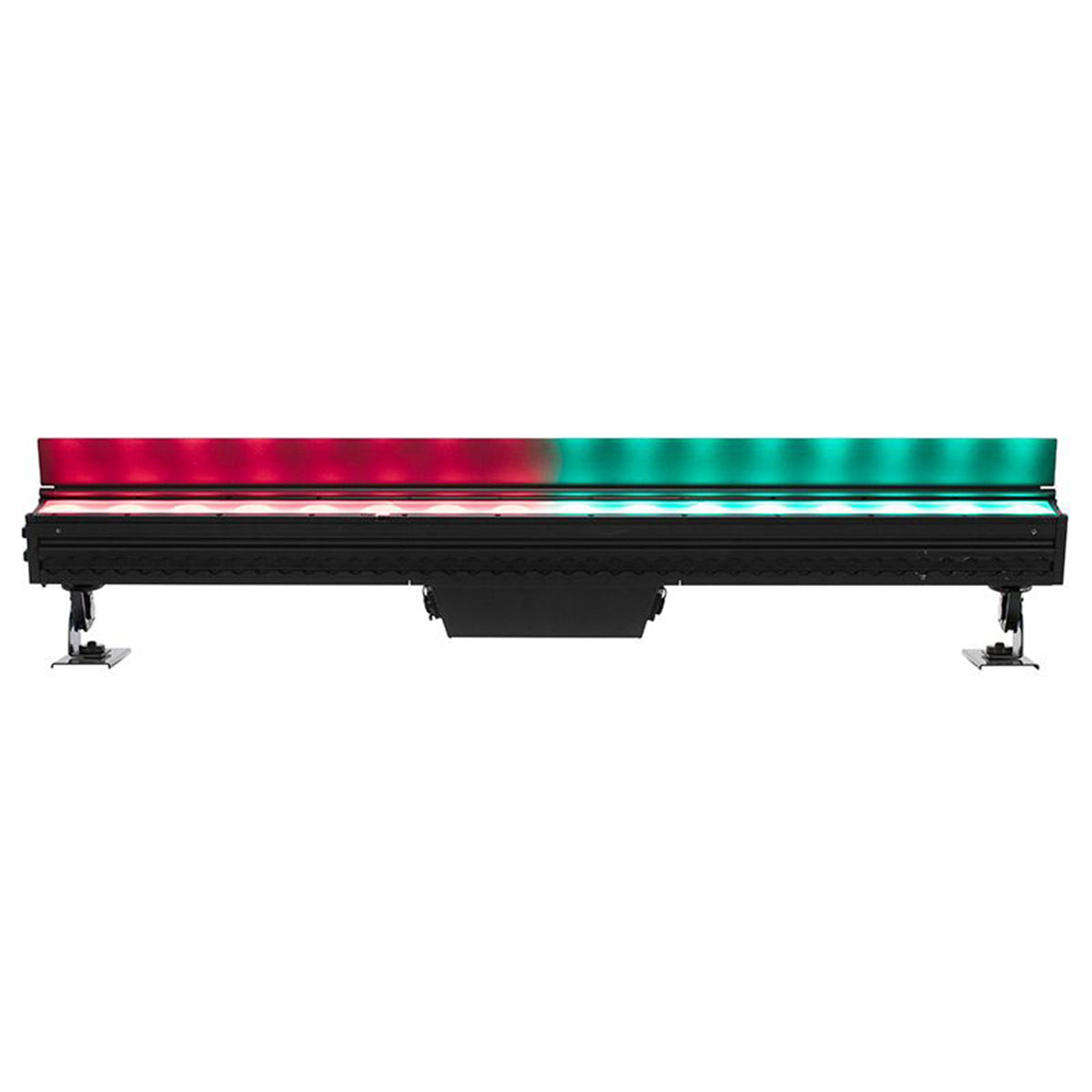

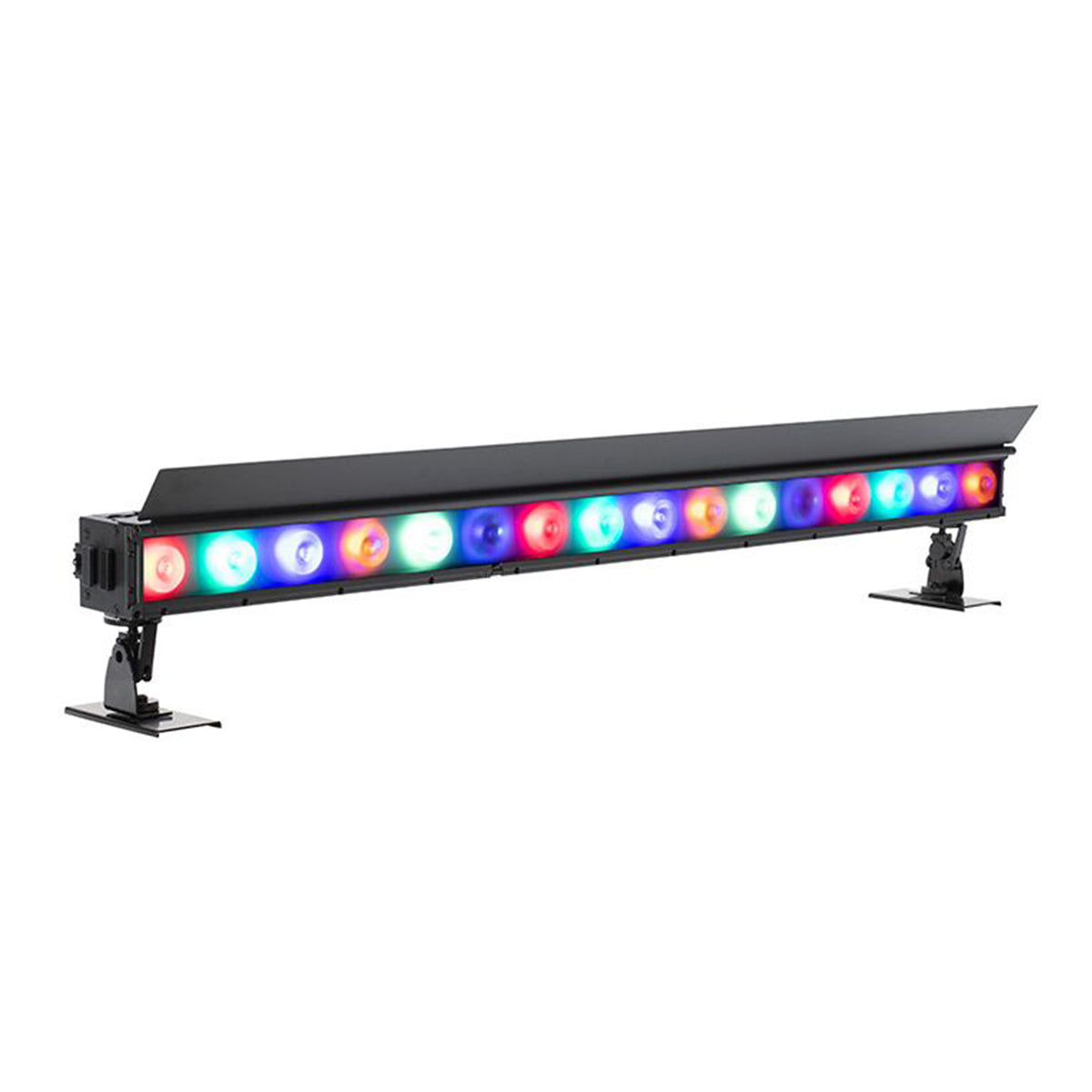

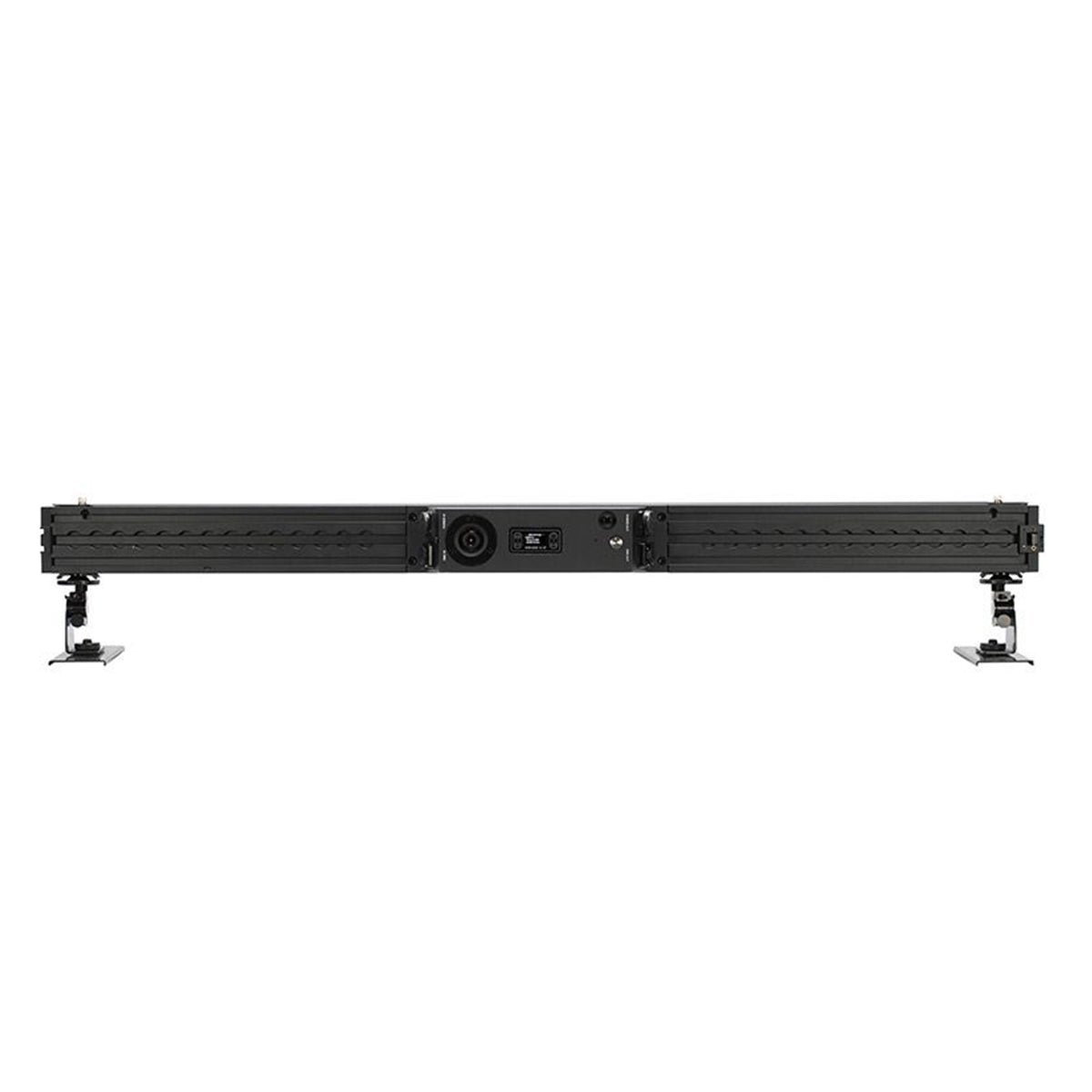

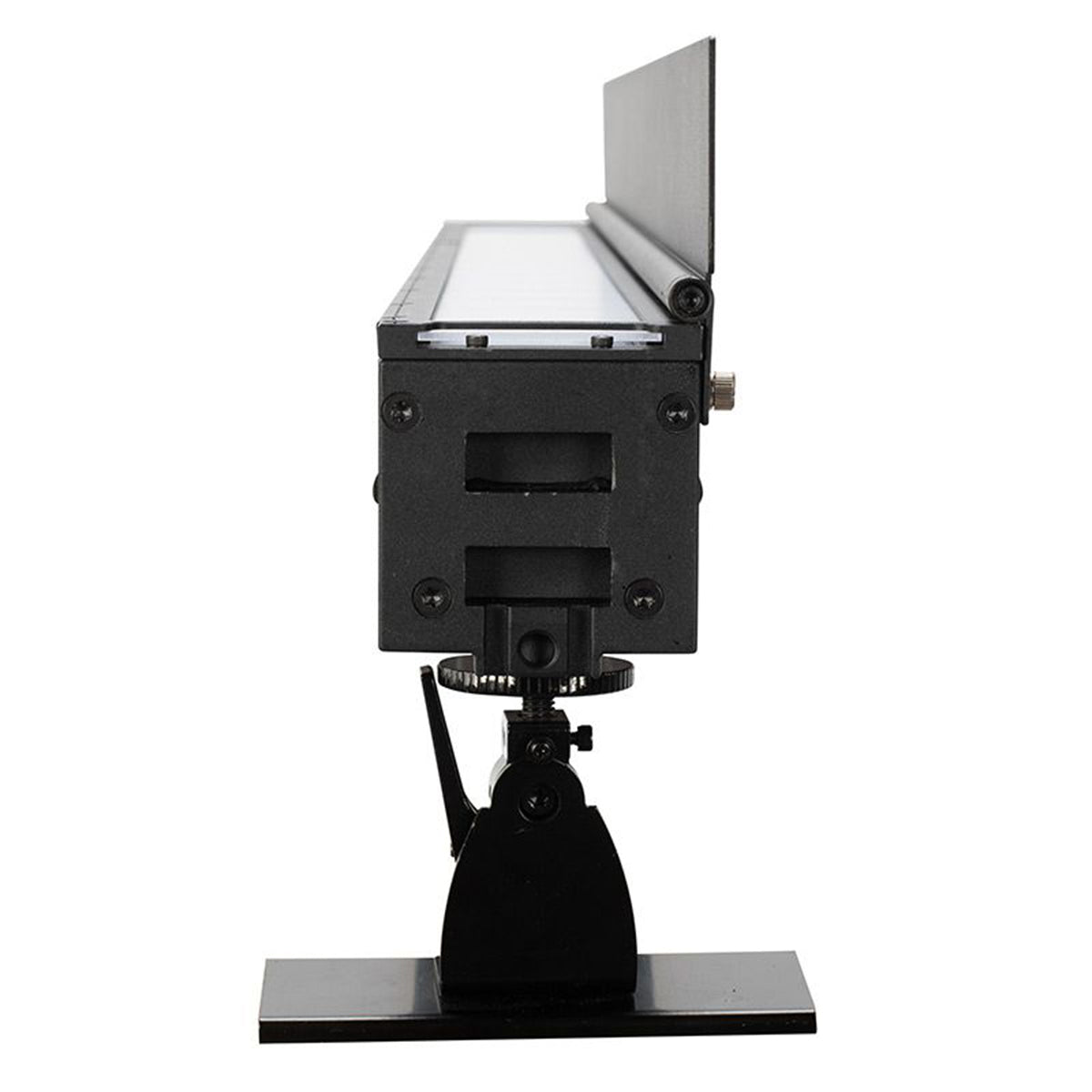

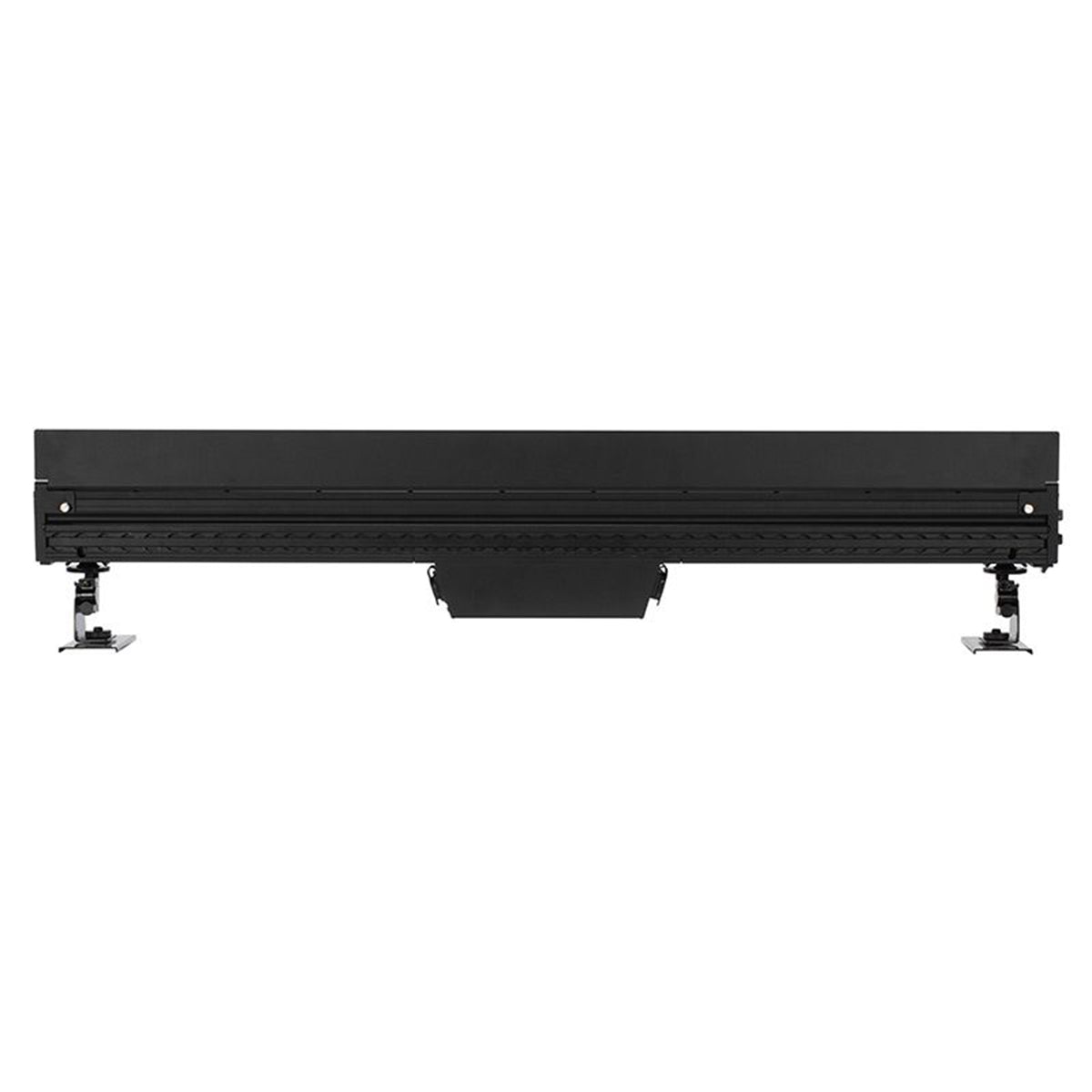

American DJ ElectraPix Bar 16 UV Outdoor Light Strip Bar
American DJ ElectraPix Bar 16 UV Outdoor Light Strip Bar
Battery-Powered 1M LED Bar, 16 x 20W RGBAL+UV Pixels, IP65, Includes Remote And Diffusion Filter
Features
- Sixteen 20W RGBAL+UV hex color LEDs with individual pixel control
- 5 hours standard or 10 hours saver mode at full output of battery operation per charge
- Aria X2 wireless DMX, Bluetooth, RDM, and IR remote control
- IP65 housing with outdoor locking power sockets
- 66 background RGB LEDs add a second layer of effect
Couldn't load pickup availability
What's Included in the box
- ElectraPix Bar 16
- Outdoor locking power cable
- UCIR24 wireless remote
- 20-degree diffusion filter
SKU: SKU: ElectraPix Bar 16
View full details









Product Description
Features
-
No Power Or Data Run
Battery runtime of 5 hours standard or 10 hours saver mode at full output plus Aria X2 wireless DMX puts fixtures where power drops and data cable cannot reach.
-
Six-Color Mixing
Sixteen 20W RGBAL+UV LEDs cover deep saturates, pastels, and UV, plus variable white from 2,300K to 9,900K for matching a room.
-
Rain-Ready Housing
IP65 construction and outdoor locking power connectors let the fixture work tents, patios, and gardens as well as indoor stages.
-
Effects From One Fixture
Pixel control across nine DMX modes and 66 background RGB LEDs create movement and layered looks inside a single unit.
-
Clean On Camera
Refresh rates from 900Hz to 25K, six dim modes, and four dim curves keep output steady for broadcast, streaming, and film work.
Technical Specifications
- Product Type Battery-Powered Linear LED Bar
- Light Source 16x 20W hex color RGBAL+UV foreground LEDs
- Background LEDs 66x 0.2W RGB
- Beam Angle 17 degrees
- White Color Temperature 2,300K - 9,900K
- Control DMX512, Aria X2 wireless DMX, Bluetooth, RDM, IR remote, manual mode
- DMX Channel Modes 5, 6, 9, 13, 21, 24, 96, 99, 114
- Dimming Electronic, 6 dim modes, 4 dim curves
- Strobe Electronic, 0.3Hz - 11Hz

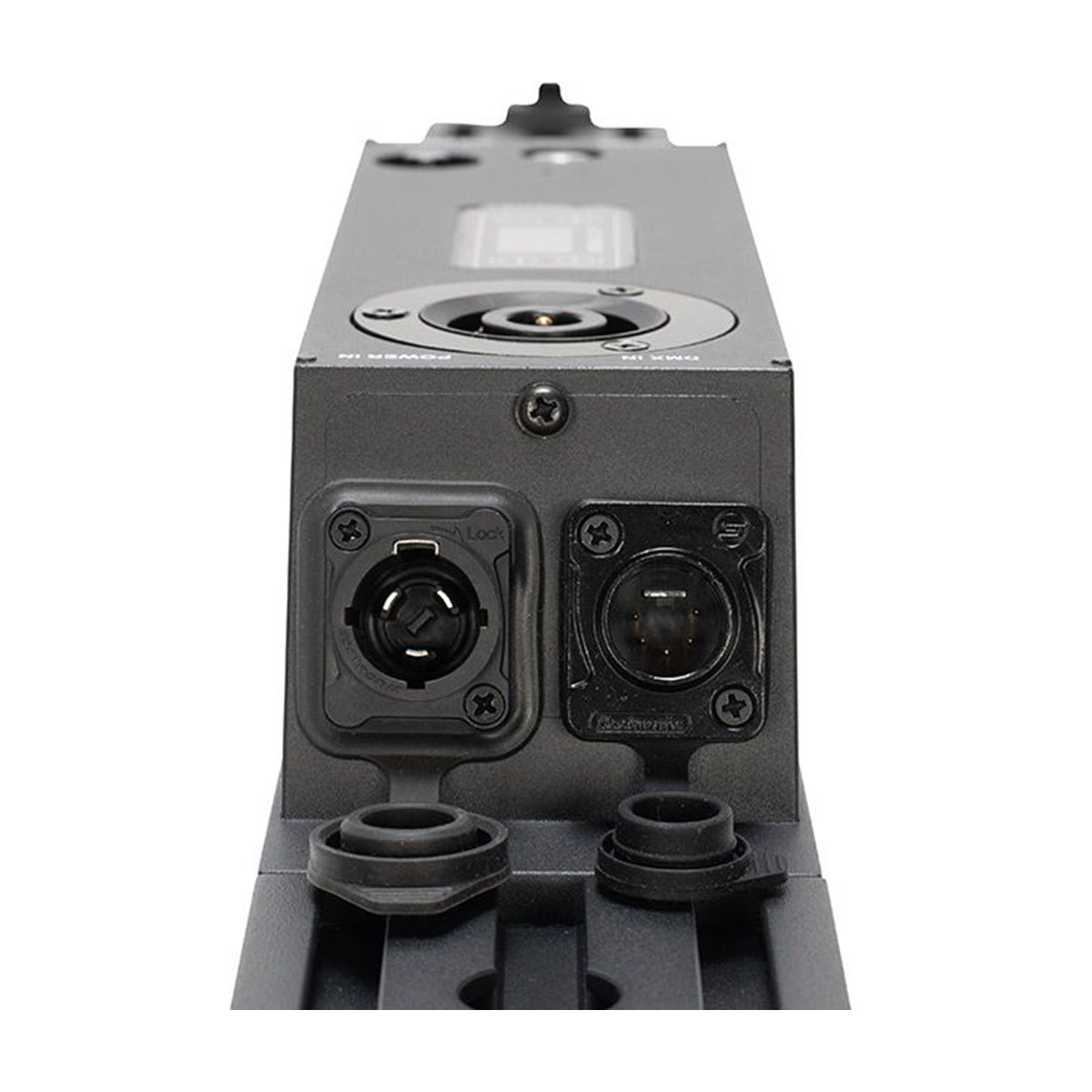

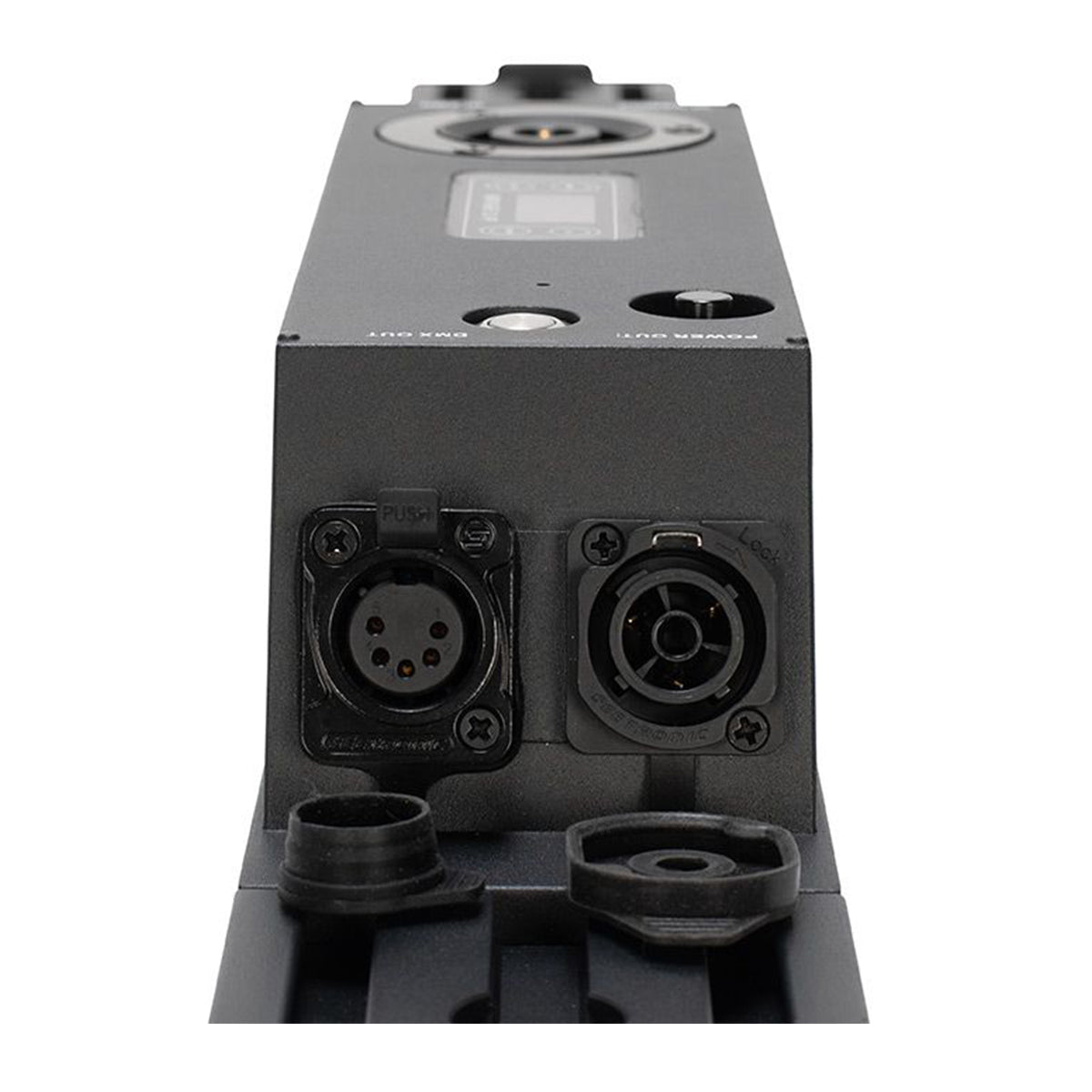

- Connections 5-pin XLR outdoor DMX in/out, outdoor locking power sockets, battery charging socket
- Power Input AC100-240V 50/60Hz
- Power Consumption 90W
- Daisy Chain 10 units at 120VAC, 18 units at 230VAC
- Battery Rechargeable lithium ion, 14,000mAh, 22.2V, 500 cycles
- Battery Runtime 5 hours standard or 10 hours saver mode at full output
- Charge Time 7 hours to full
- Certifications & Rating CE, cETLus (pending), FCC, IP65
- Dimensions 3.38" L x 45.82" W x 7.53" H
