AMERICAN DJ

ElectraPix Bar 16 Pak

Name: ElectraPix Bar 16 Pak
Brand: AMERICAN DJ
SKU: ElectraPix Bar 16 Pak
Price: 7719.99 USD
Availability: InStock

Four 1M Hex Color LED Bars, 16 Pixels Each, With Flight Case, Charging Bases, Remote And Filters

$7,719.99

$7,719.99 ~~$8,999.95~~

Save 14%

Shipping calculated at checkout.

Features

Sixteen 20W RGBAL+UV hex color LEDs with individual pixel control
5 hours standard or 10 hours saver mode at full output of battery operation per charge
Aria X2 wireless DMX, Bluetooth, RDM, and IR remote control
IP65 housing with outdoor locking power sockets
66 background RGB LEDs add a second layer of effect

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

What's Included in the box

4x ElectraPix Bar 16

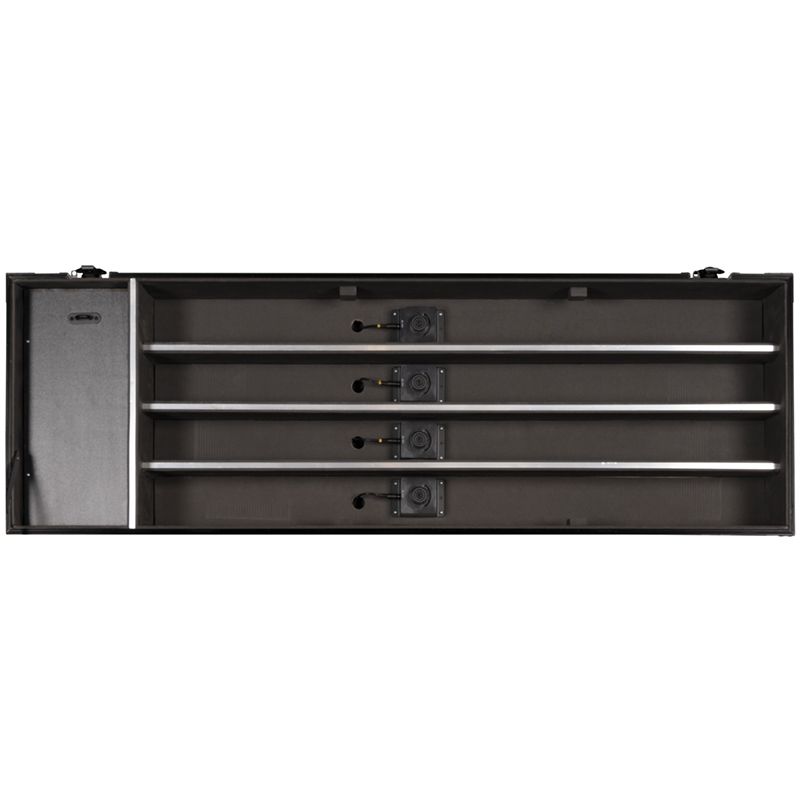

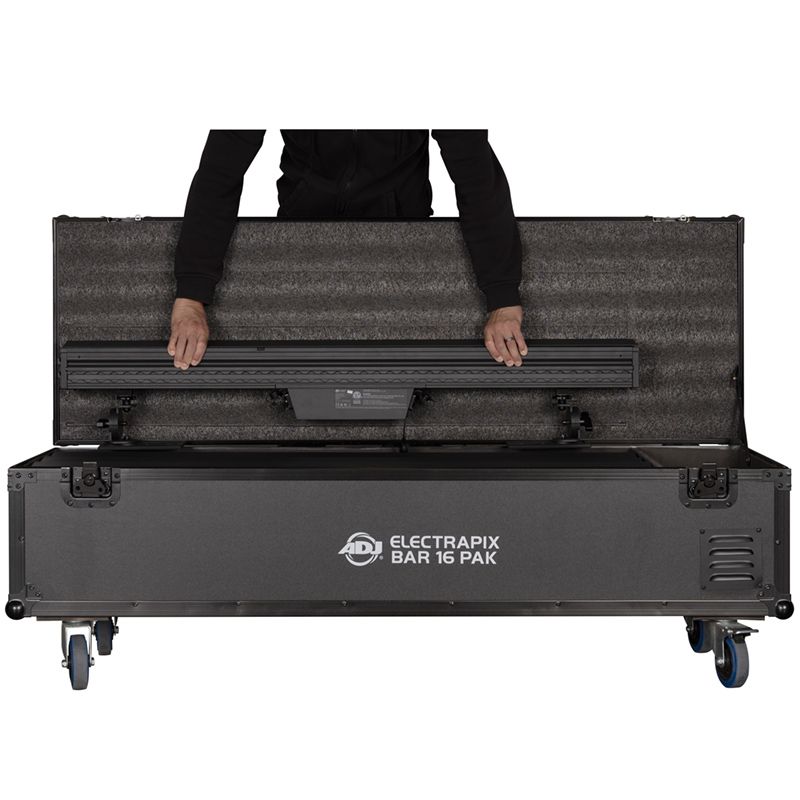

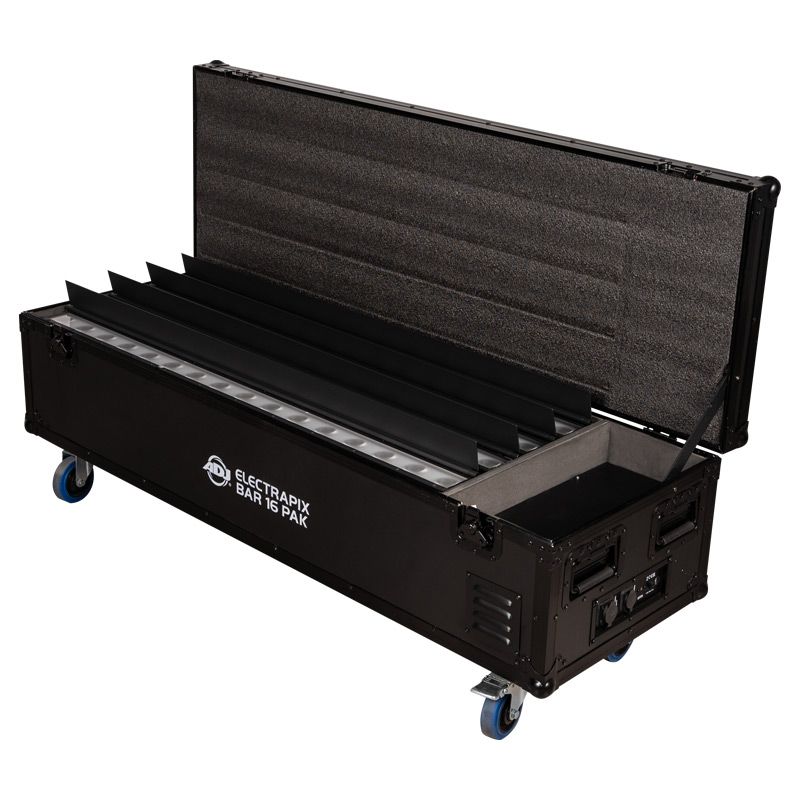

1x ElectraPix Bar 16 FC flight case
4x ElectraPix Bar 16 charging bases
4x Outdoor locking power cable
1x UCIR24 remote
4x 20-degree diffusion filter

SKU: SKU: ElectraPix Bar 16 Pak

View full details

Product Description

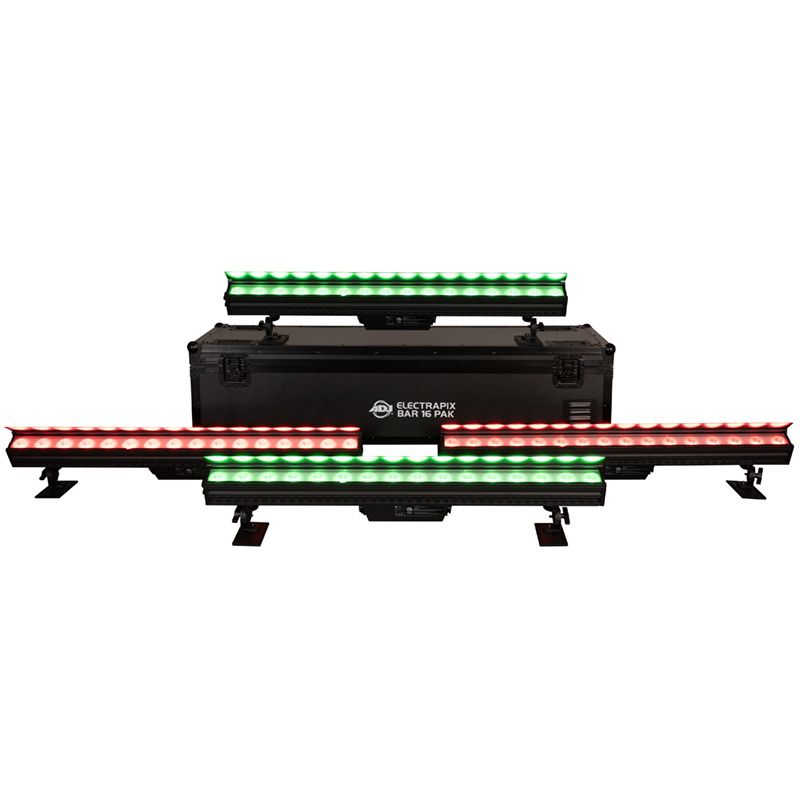

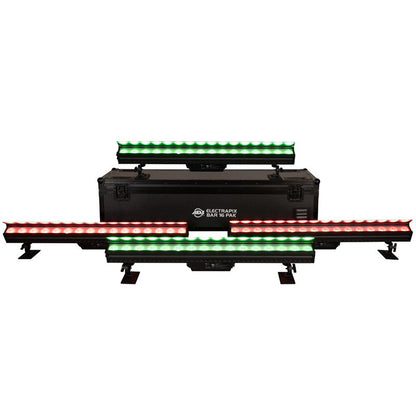

The ElectraPix Bar 16 Pak is an IP65-rated, battery-powered four-fixture package of 1-meter LED bars with sixteen 20W hex color (RGBAL+UV) LEDs per fixture and wireless DMX. Each bar runs 5 hours at full output in standard mode or 10 hours in saver mode from a 14,000mAh pack, and every bar has a charging slot in the case fed by one power cable. The heavy-duty flight case moves a full uplighting package as one item and charges every bar while packed. Individual pixel control across nine DMX modes plus 66 0.2W RGB background LEDs produce chases and layered looks, and variable white from 2,300K to 9,900K matches room and camera color. Control covers wired DMX512, Aria X2 wireless DMX, Bluetooth, RDM, the included UCIR24 remote, and on-board manual mode. Six dim modes, four dim curves, refresh rates to 25K, and electronic strobe keep output steady on camera. IP65 housing, outdoor locking power sockets, an OLED display, and the L Track system handle outdoor, floor, and rigged use.

Features

No Power Or Data Run

Battery runtime of 5 hours standard or 10 hours saver mode at full output plus Aria X2 wireless DMX puts fixtures where power drops and data cable cannot reach.
Six-Color Mixing

Sixteen 20W RGBAL+UV LEDs cover deep saturates, pastels, and UV, plus variable white from 2,300K to 9,900K for matching a room.
Rain-Ready Housing

IP65 construction and outdoor locking power connectors let the fixture work tents, patios, and gardens as well as indoor stages.
Effects From One Fixture

Pixel control across nine DMX modes and 66 background RGB LEDs create movement and layered looks inside a single unit.
Clean On Camera

Refresh rates from 900Hz to 25K, six dim modes, and four dim curves keep output steady for broadcast, streaming, and film work.

Technical Specifications

Product Type Battery-Powered Linear LED Bar Package
Light Source 16x 20W hex color RGBAL+UV foreground LEDs
Background LEDs 66x 0.2W RGB
Beam Angle 17 degrees
White Color Temperature 2,300K - 9,900K
Control DMX512, Aria X2 wireless DMX, Bluetooth, RDM, IR remote, manual mode
DMX Channel Modes 5, 6, 9, 13, 21, 24, 96, 99, 114
Dimming Electronic, 6 dim modes, 4 dim curves
Strobe Electronic, 0.3Hz - 11Hz

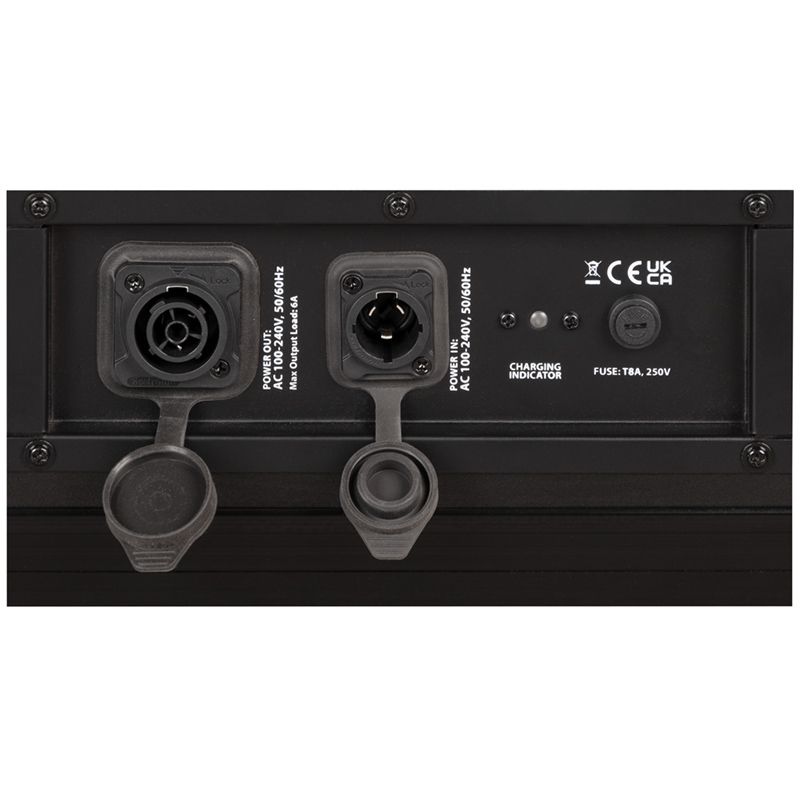

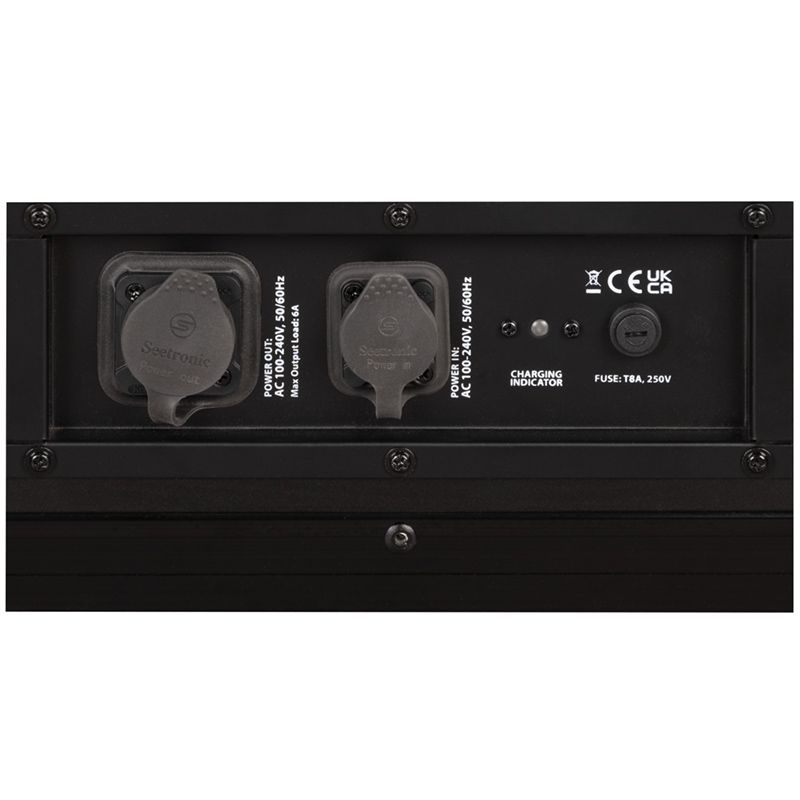

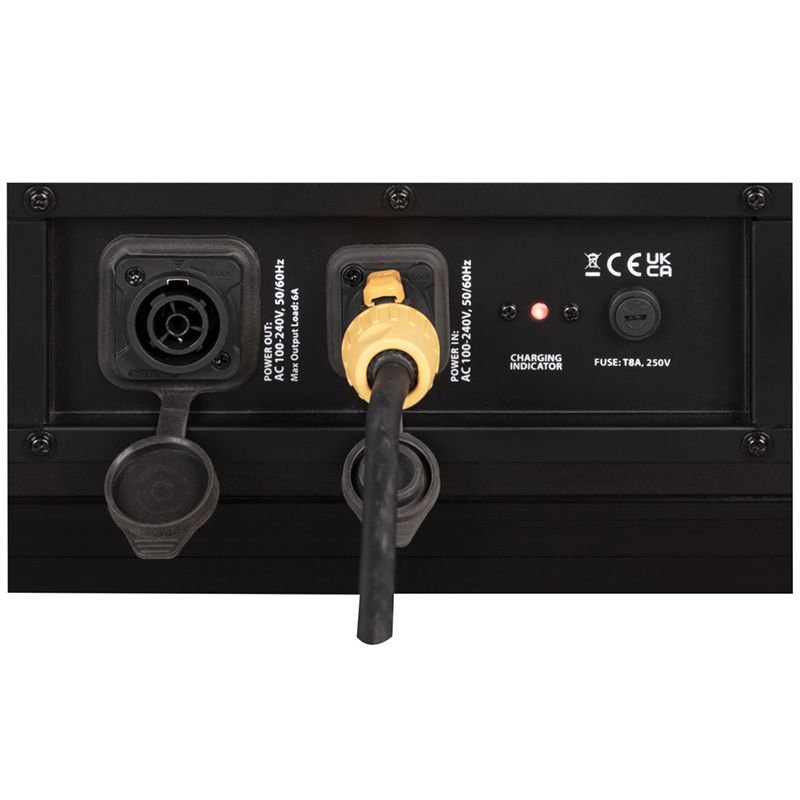

Connections 5-pin XLR outdoor DMX in/out, outdoor locking power sockets, battery charging socket
Power Input AC100-240V 50/60Hz
Power Consumption 90W per fixture
Daisy Chain 10 units at 120VAC, 18 units at 230VAC
Battery Rechargeable lithium ion, 14,000mAh, 22.2V, 500 cycles
Battery Runtime 5 hours standard or 10 hours saver mode at full output
Charge Time 7 hours to full
Certifications & Rating CE, cETLus (pending), FCC, IP65
Weight 26.9 lb
Dimensions 3.72" L x 45.6" W x 10.6" H

ElectraPix Bar 16 Pak
