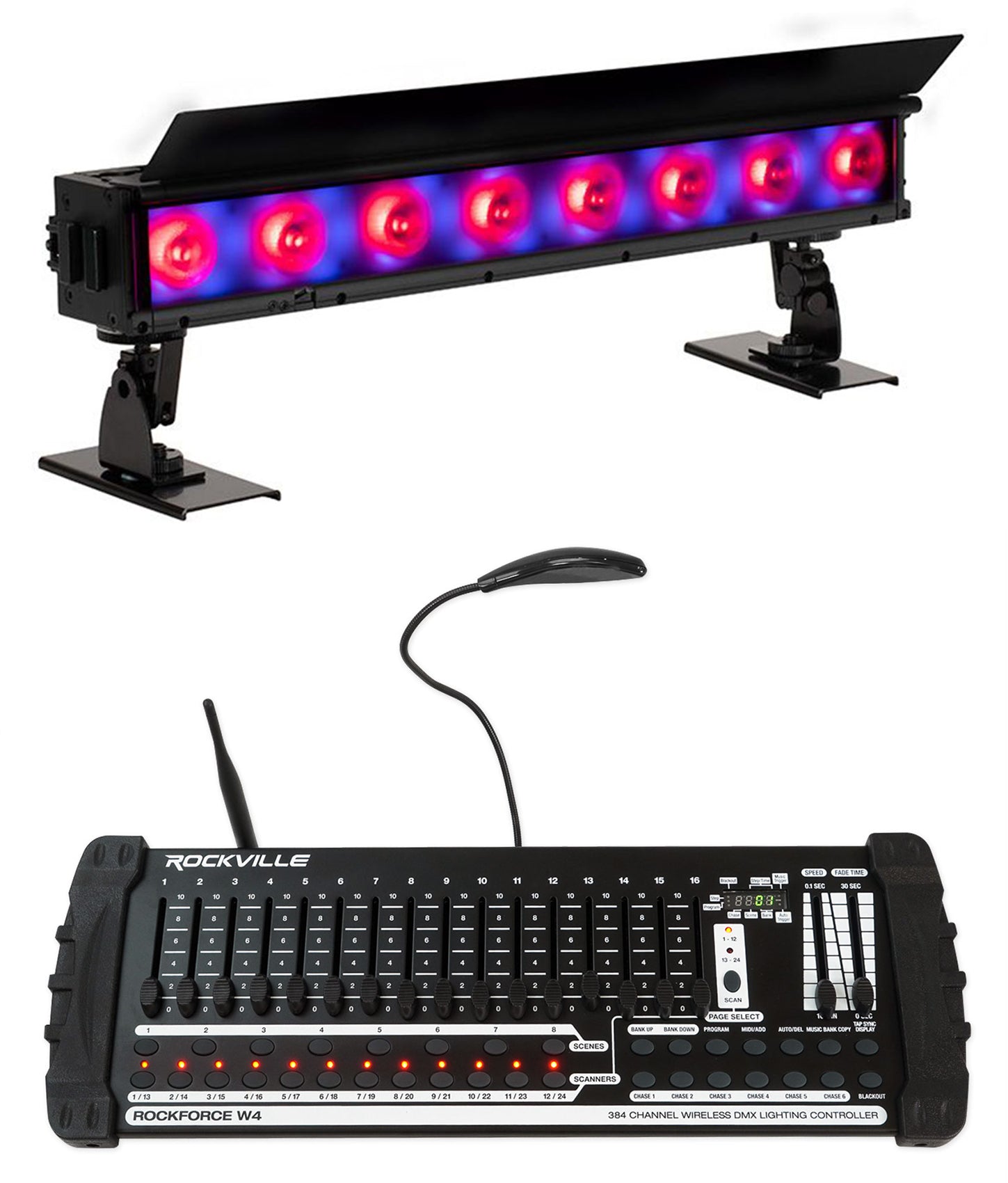

ElectraPix Bar 8 Wireless DMX RGBAL+UV IP65 Wash Light Bar+Control
AMERICAN DJ
ElectraPix Bar 8 Wireless DMX RGBAL+UV IP65 Wash Light Bar+Control
ElectraPix Bar 8 Wireless DMX RGBAL+UV IP65 Wash Light Bar+Control
8-Pixel IP65 RGBAL+UV LED Bar with 384-Channel Wireless DMX Controller
Features
- 8-pixel RGBAL+UV IP65 LED bar with up to 20-hour battery
- 384-channel wireless DMX controller with built-in transmitter
- Wireless link reaches fixtures up to 1,968 feet away
- 30 banks of 8 scenes, 6 chases, and 16 manual faders

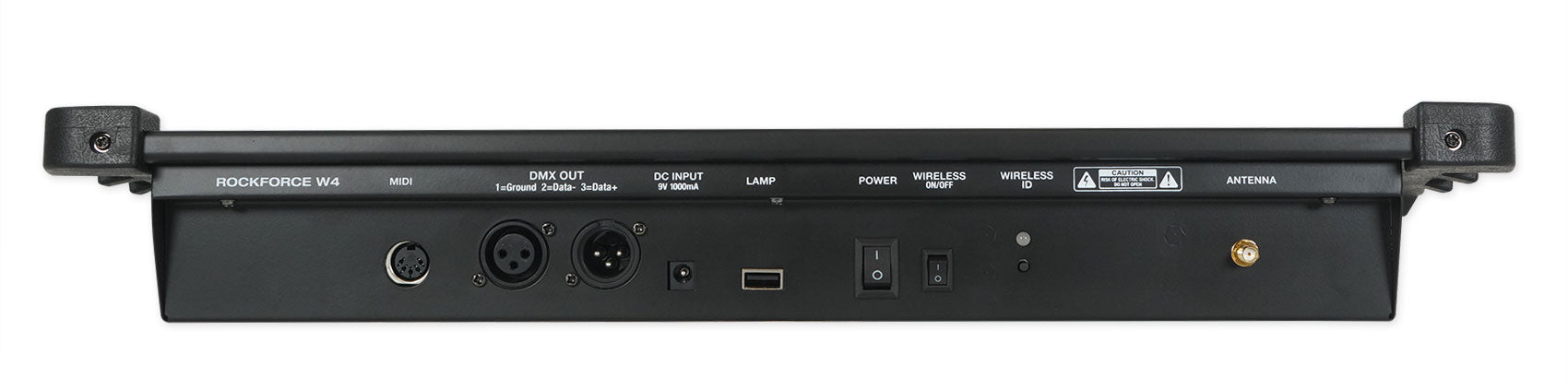

- Controller supports MIDI and is 4U rack-mountable
Couldn't load pickup availability
What's Included in the box

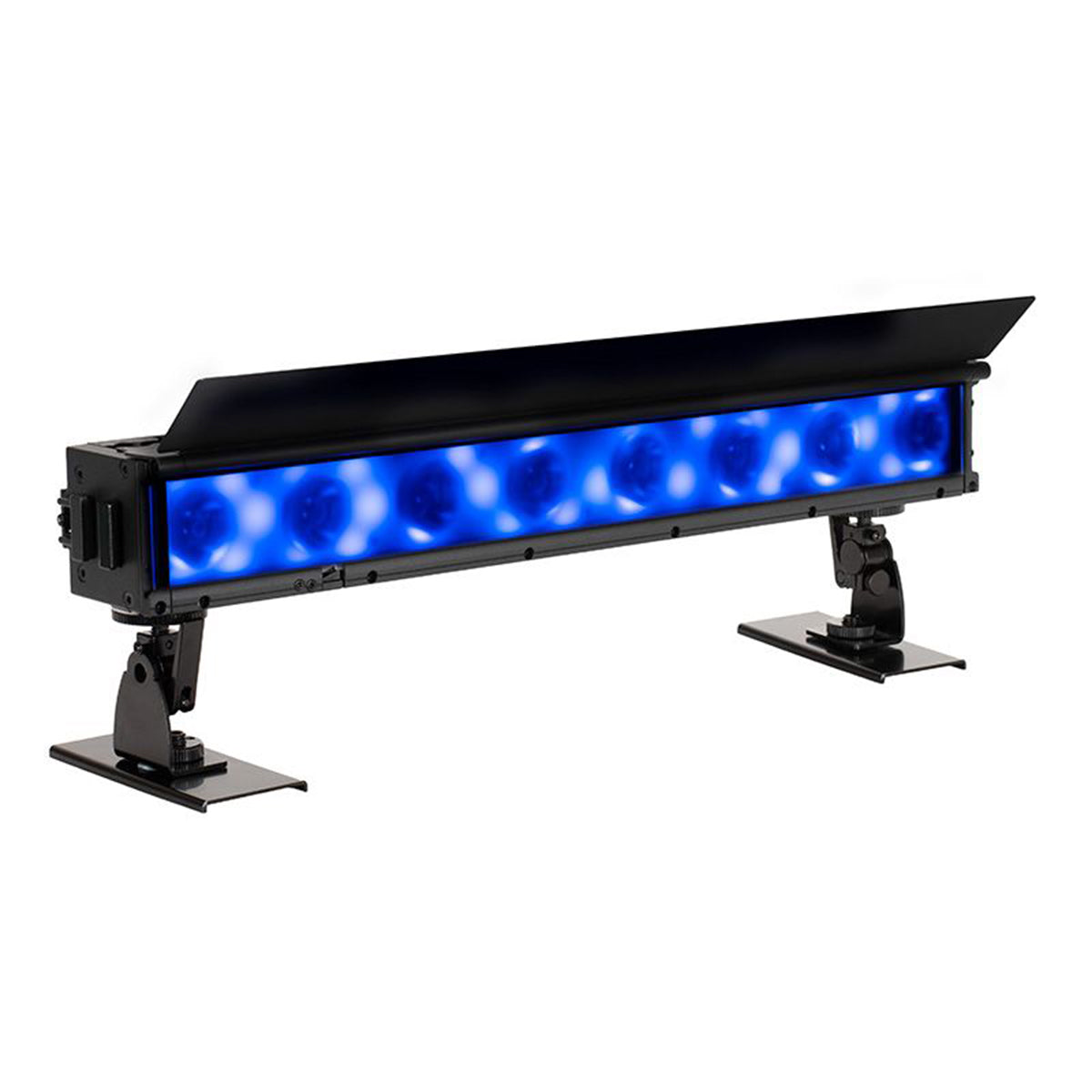

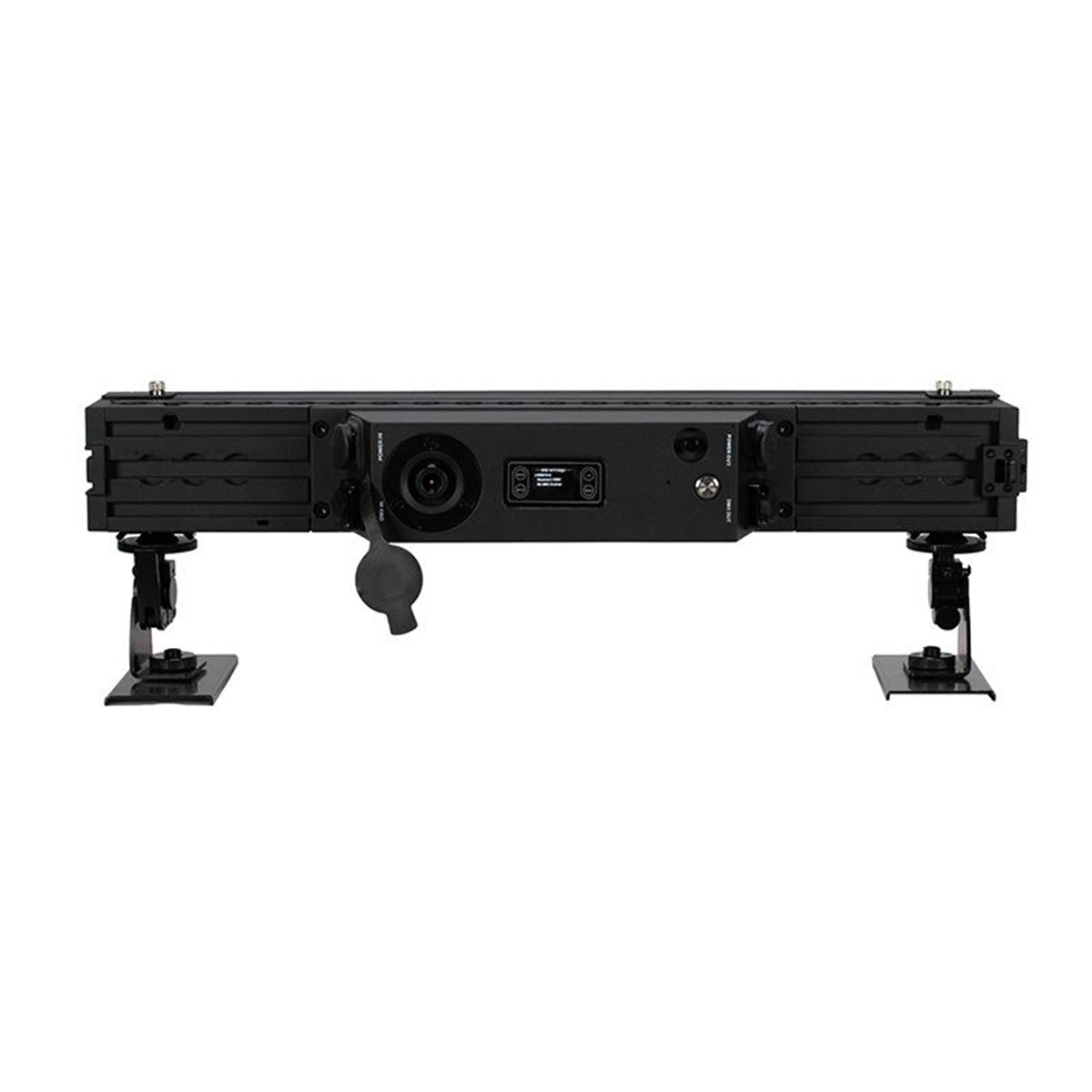

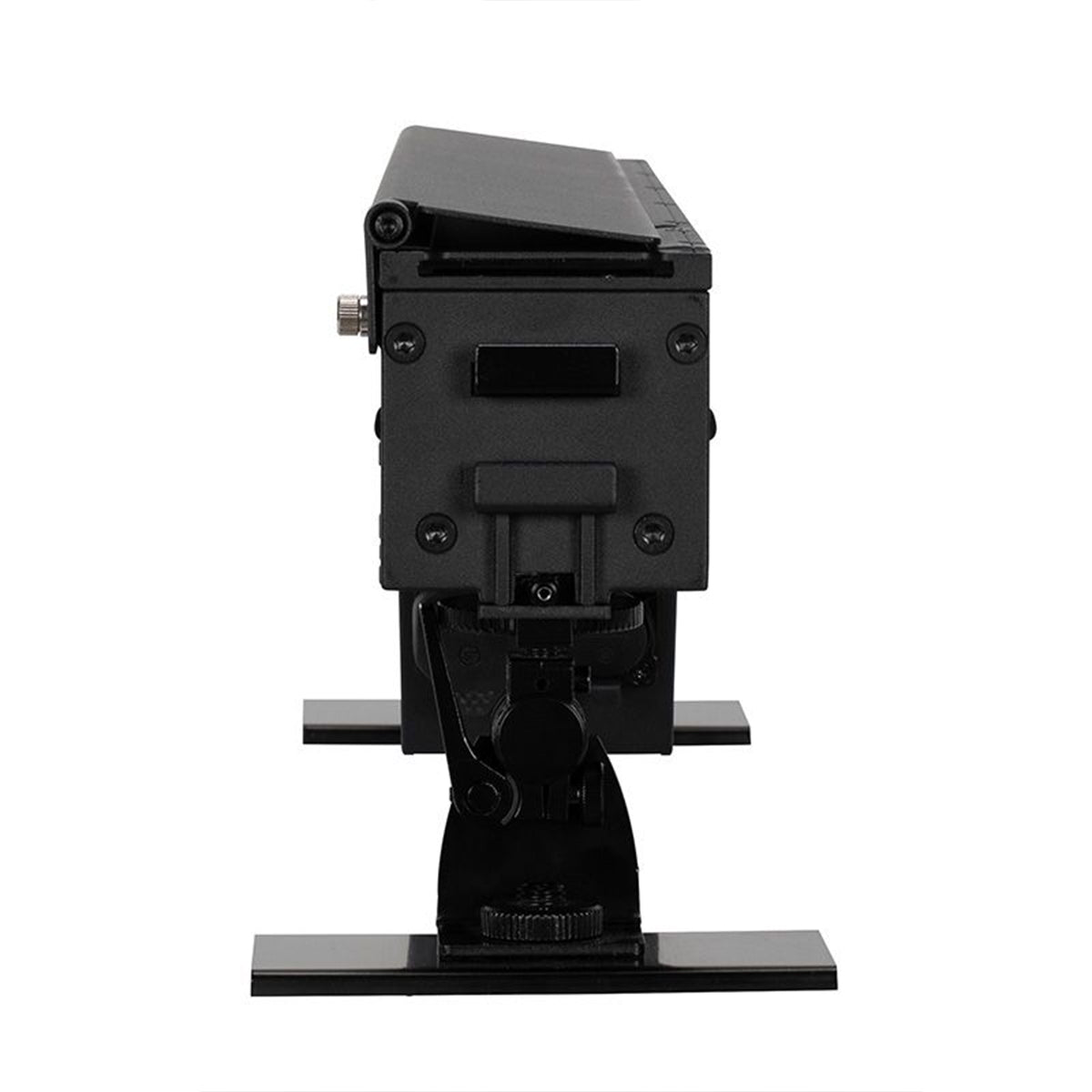

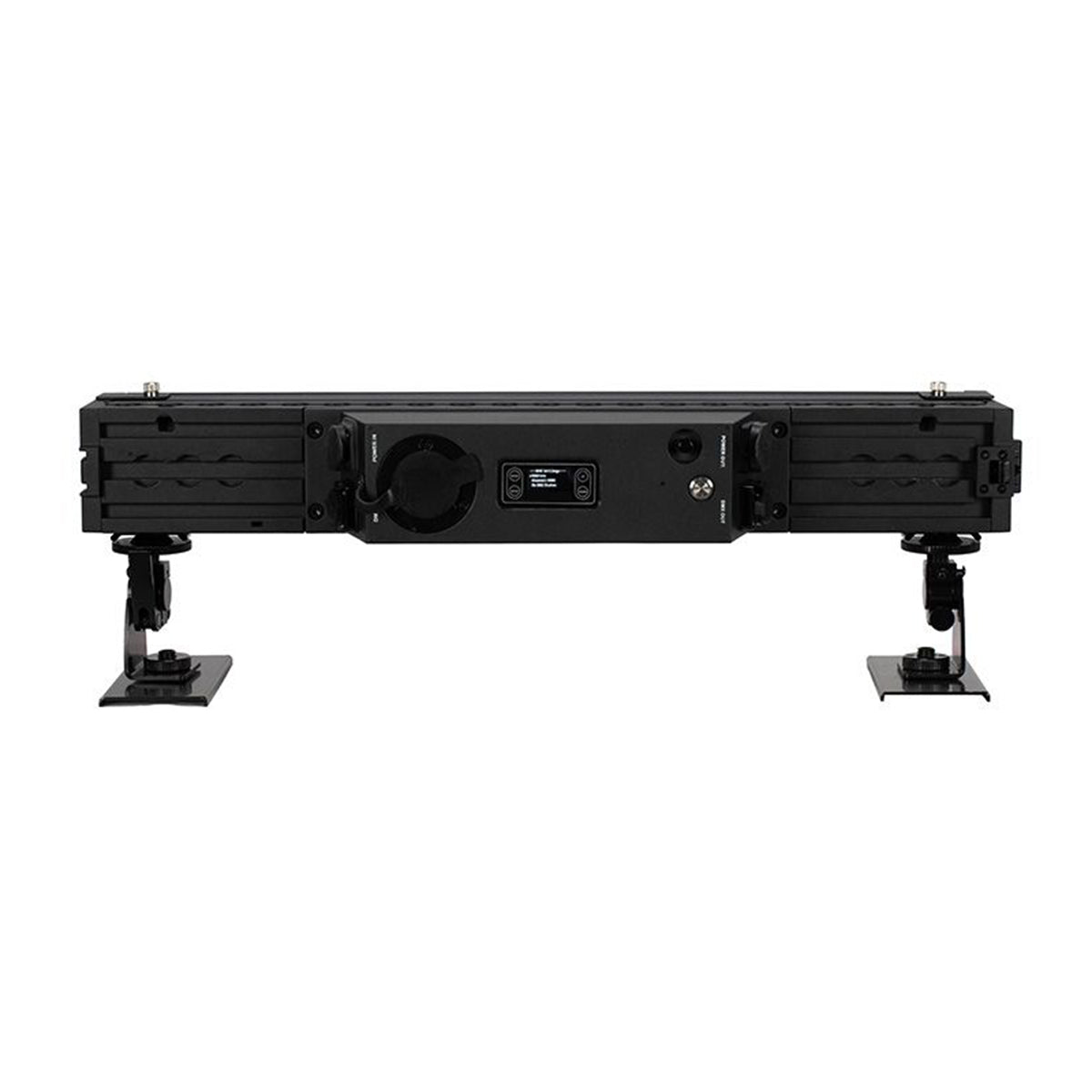

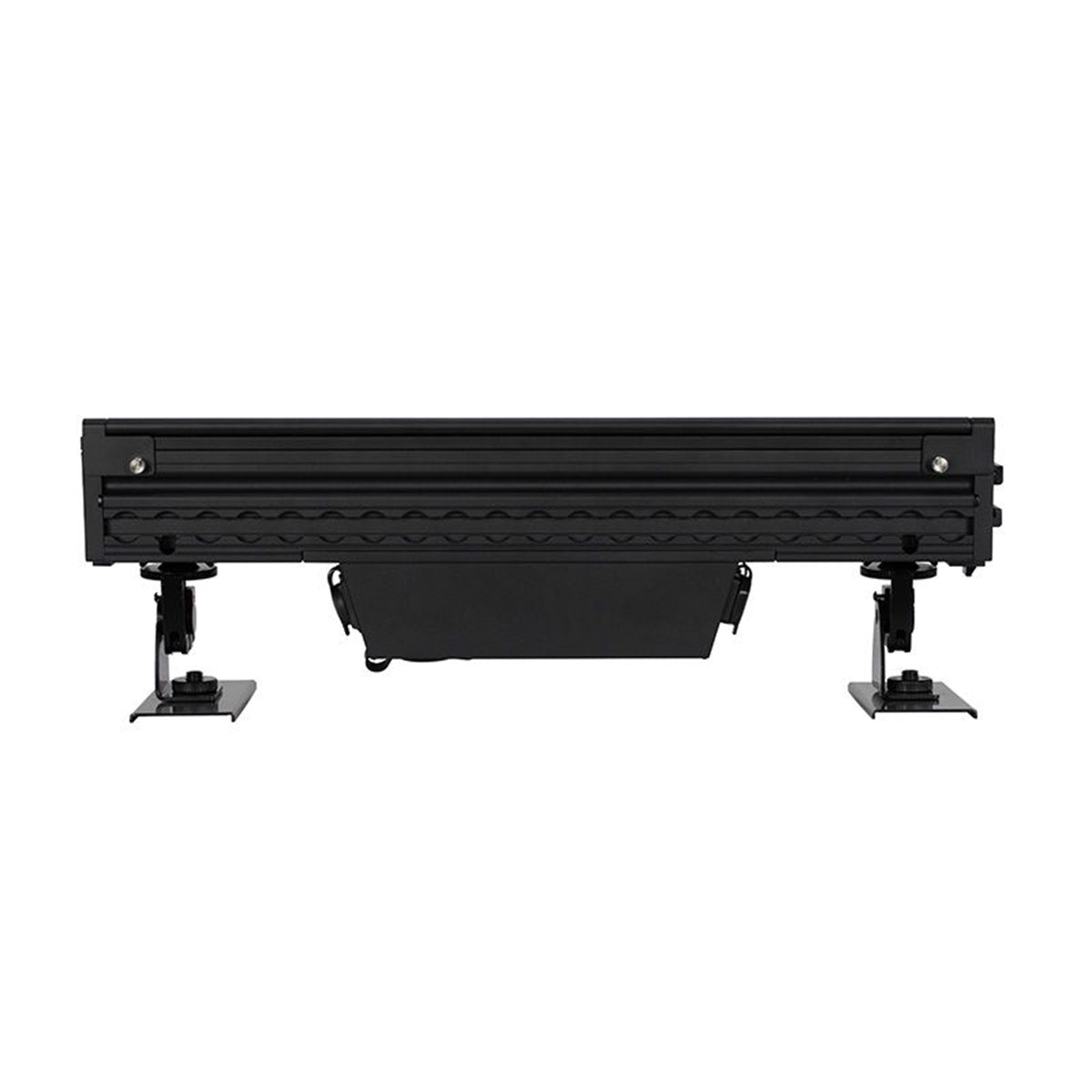

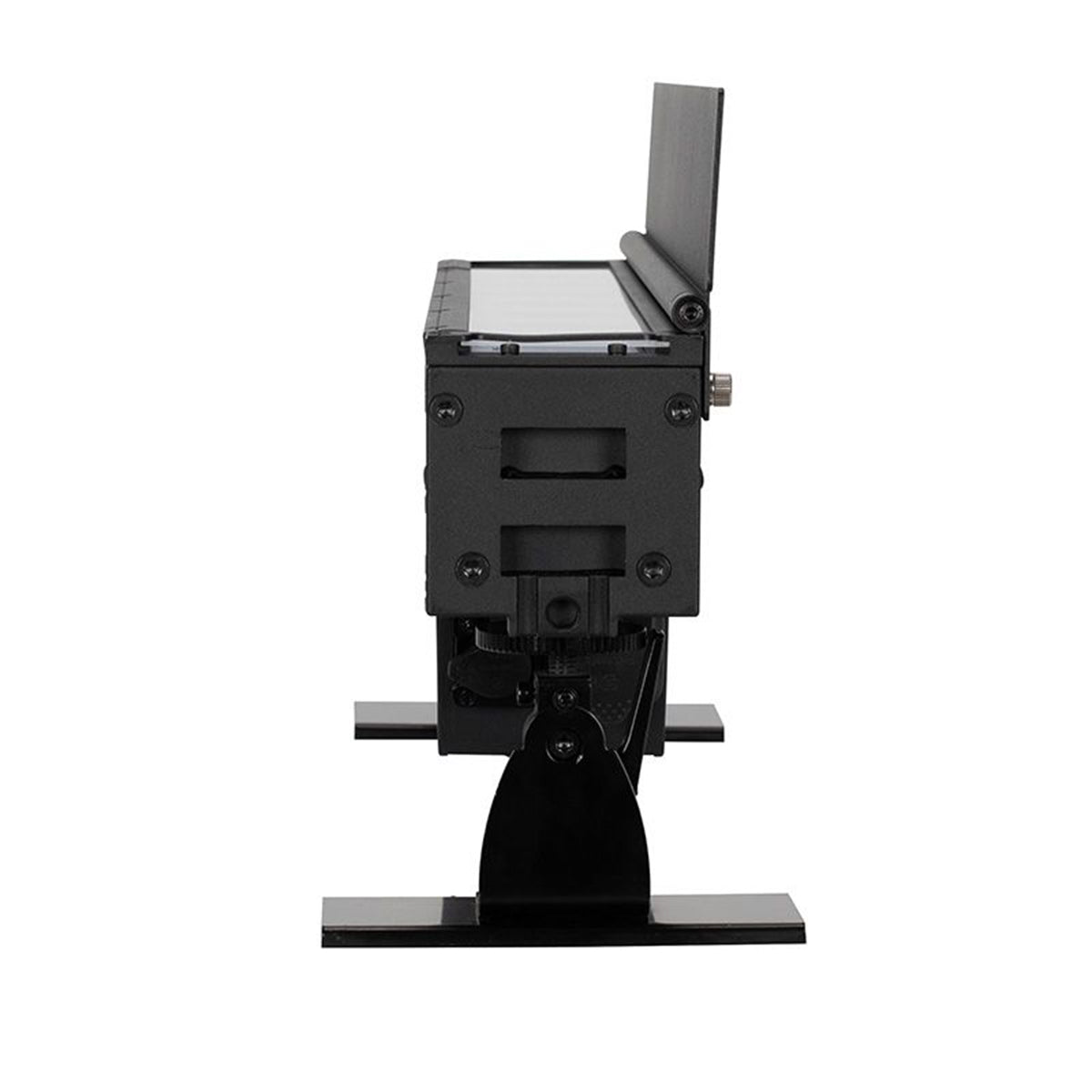

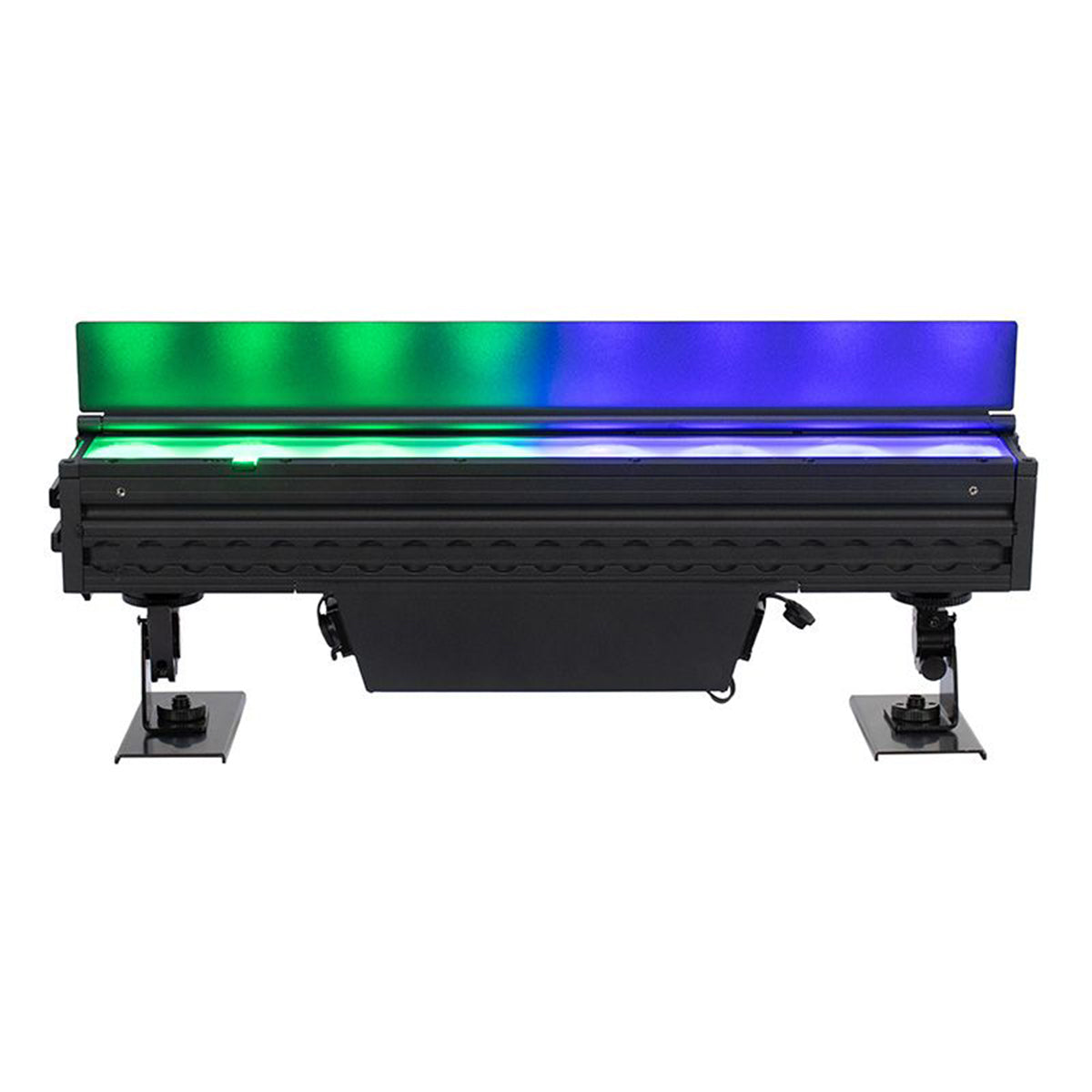

- ADJ ElectraPix Bar 8 LED Bar

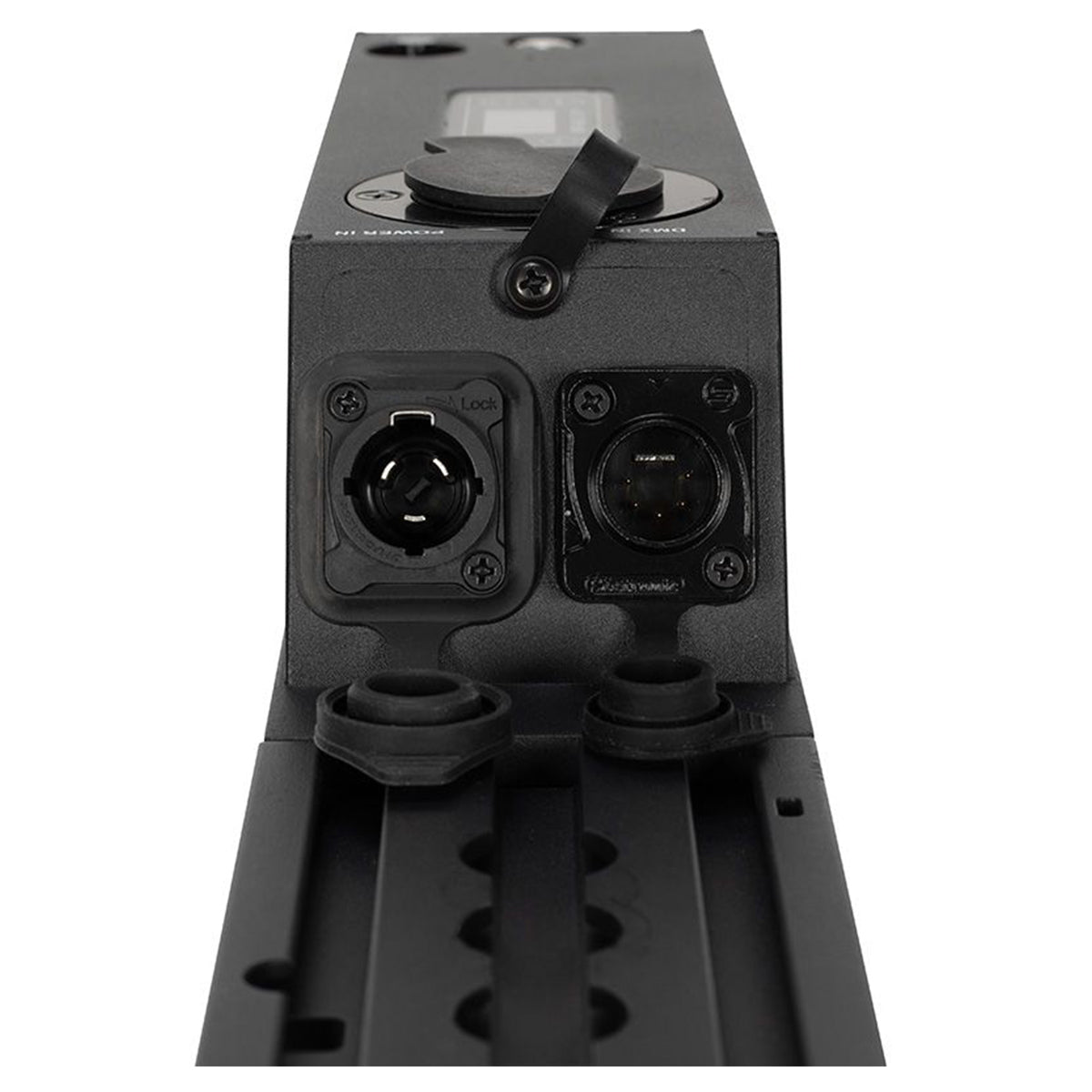

- Outdoor Locking Power Cable
- UCIR24 Remote
- 20-Degree Diffusion Filter

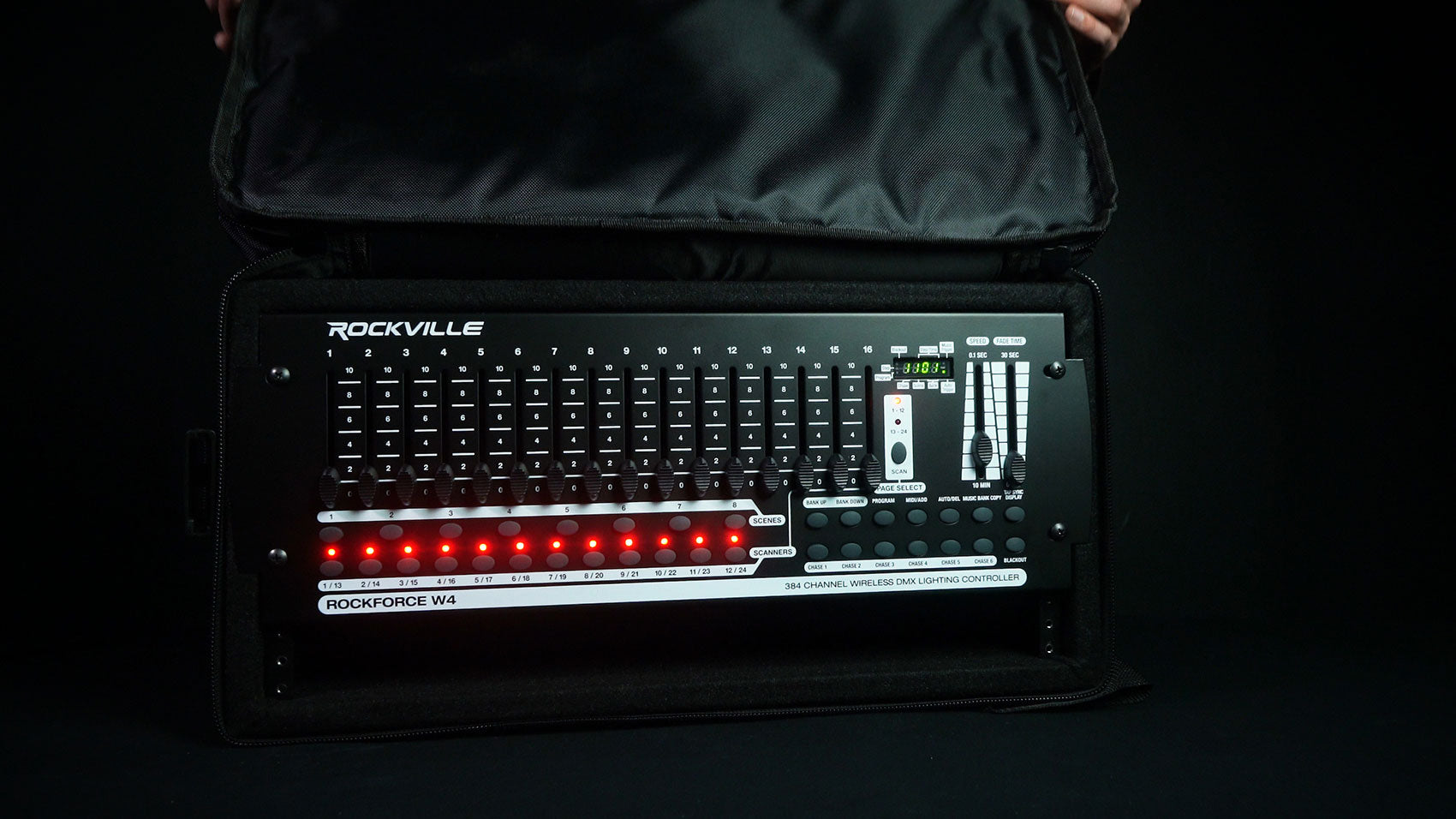

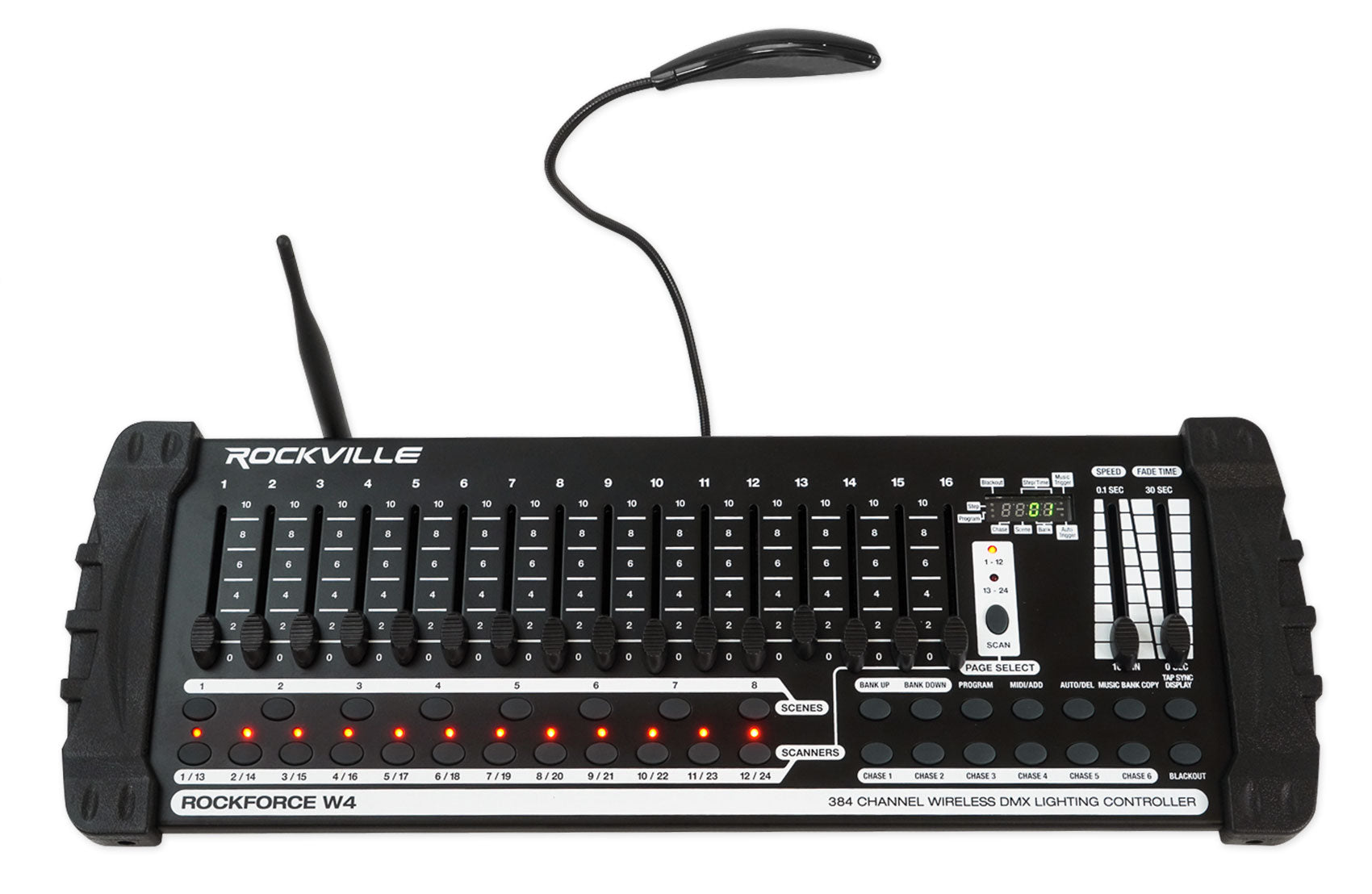

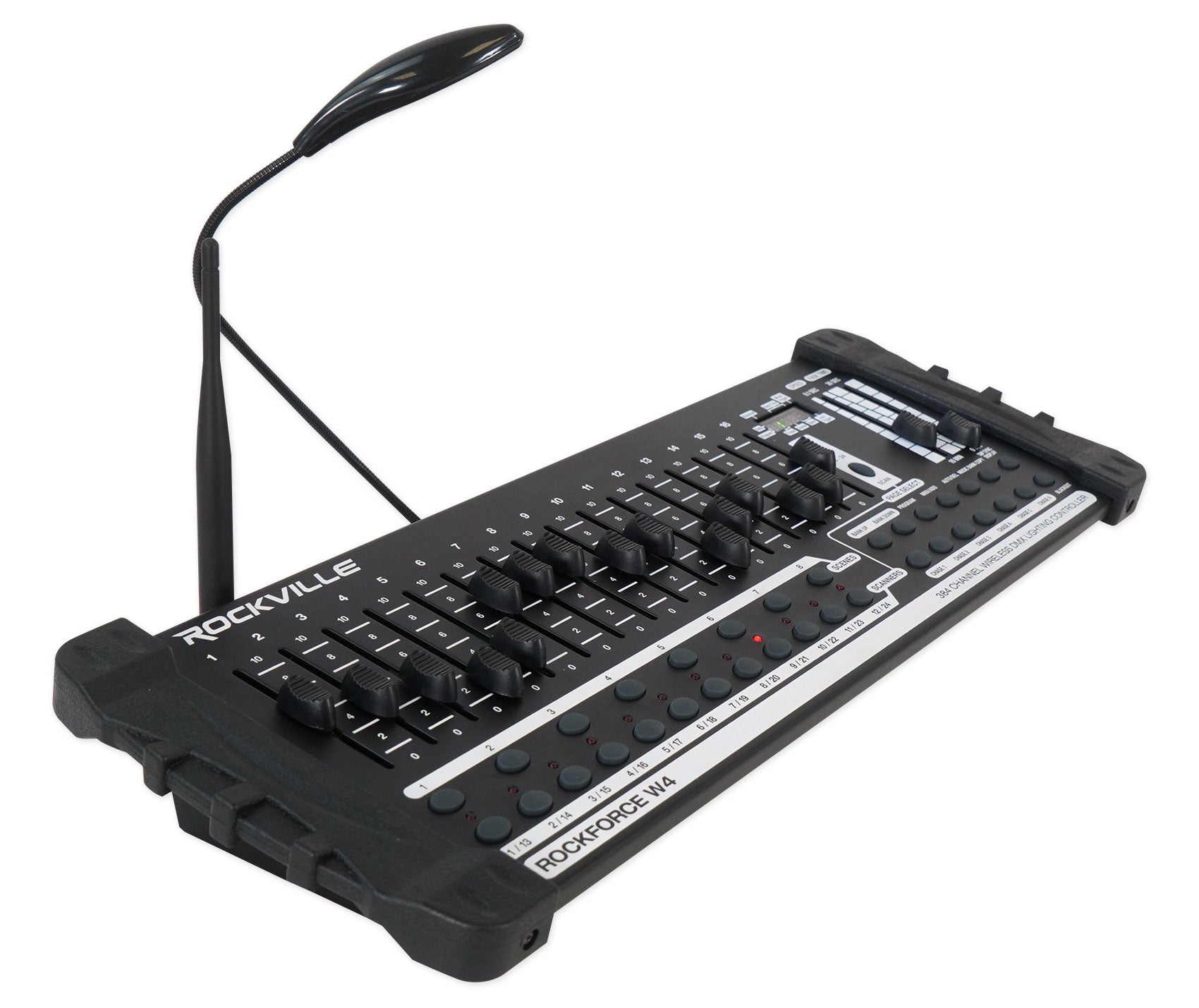

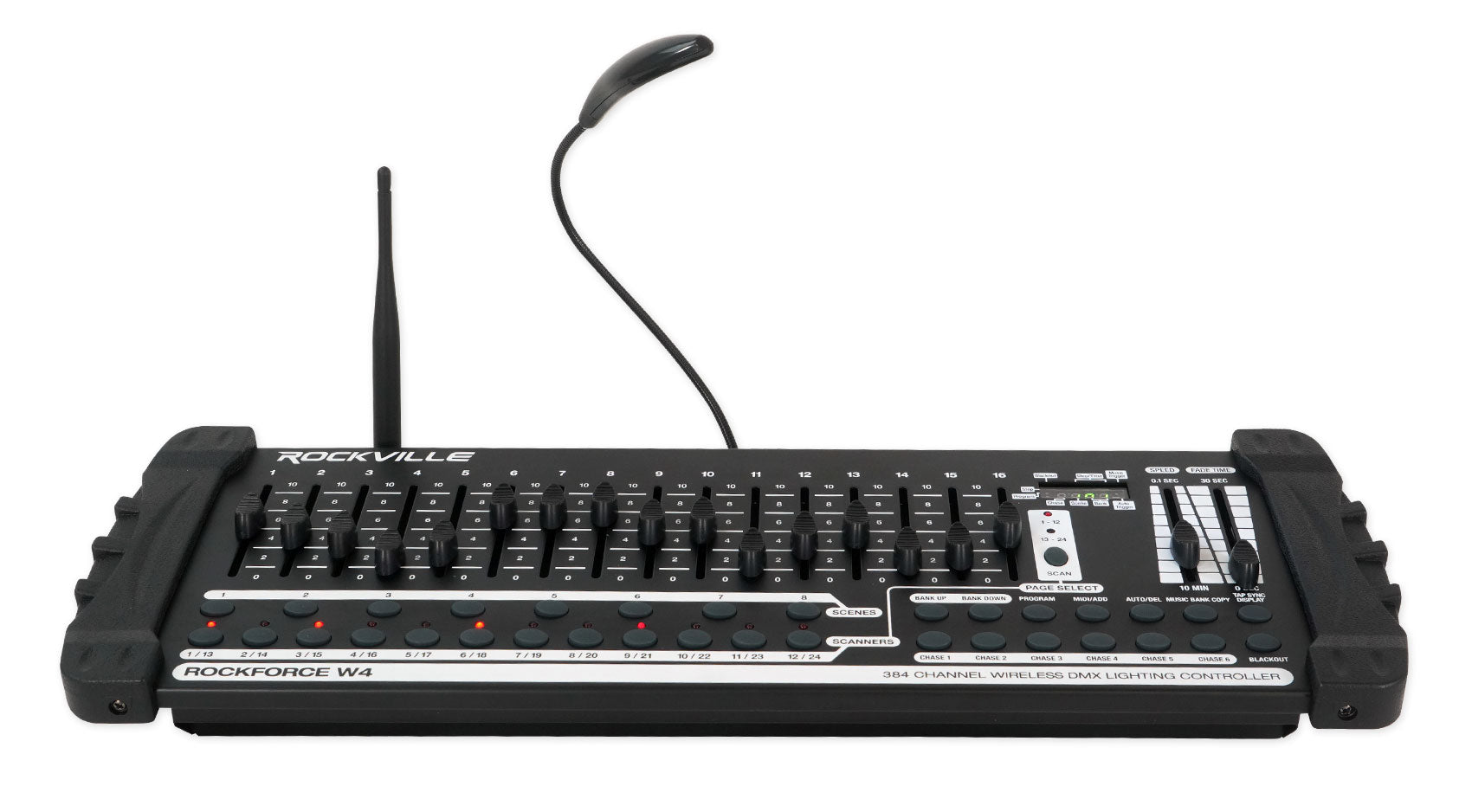

- Rockville ROCKFORCE W4 DMX Controller

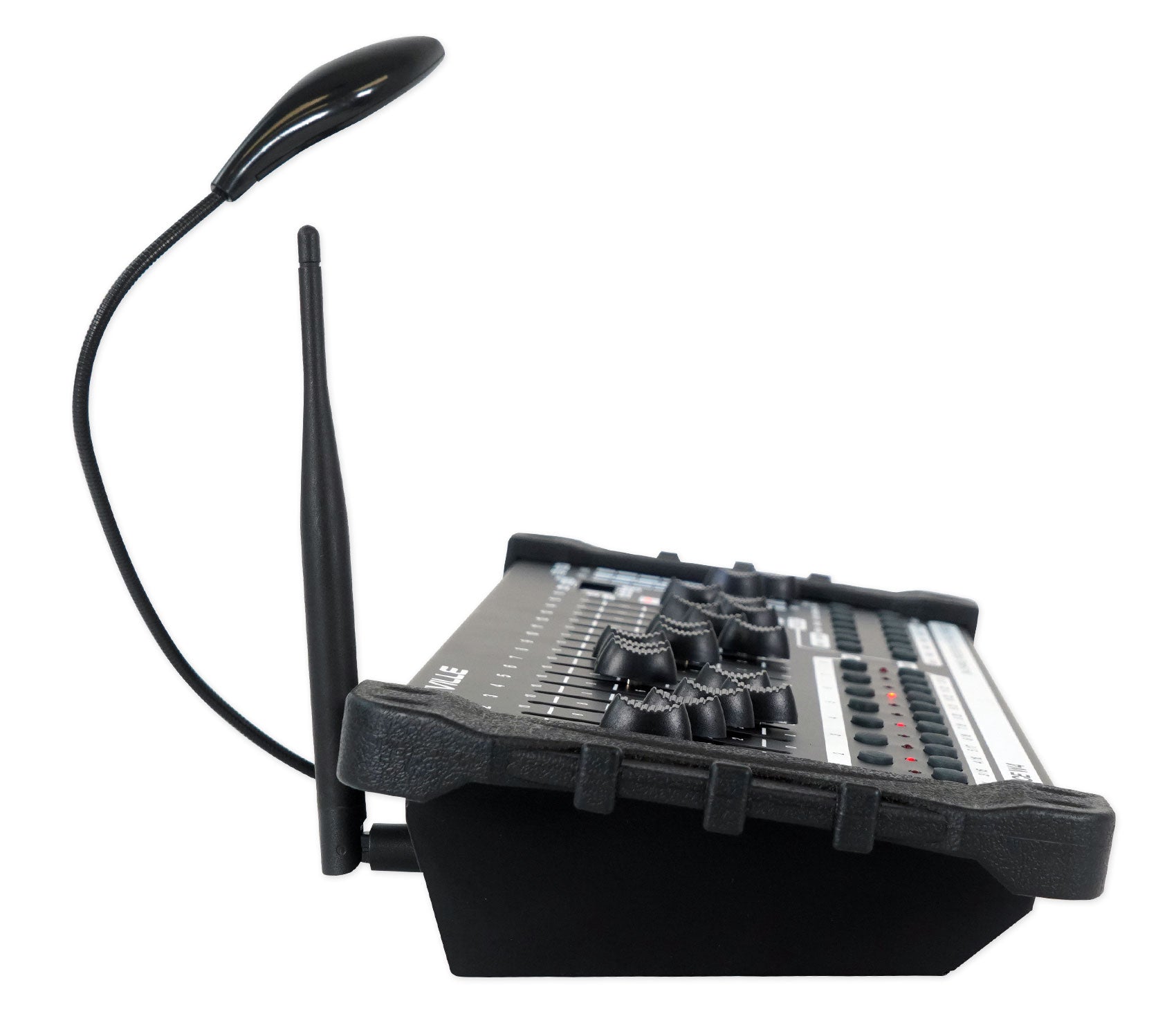

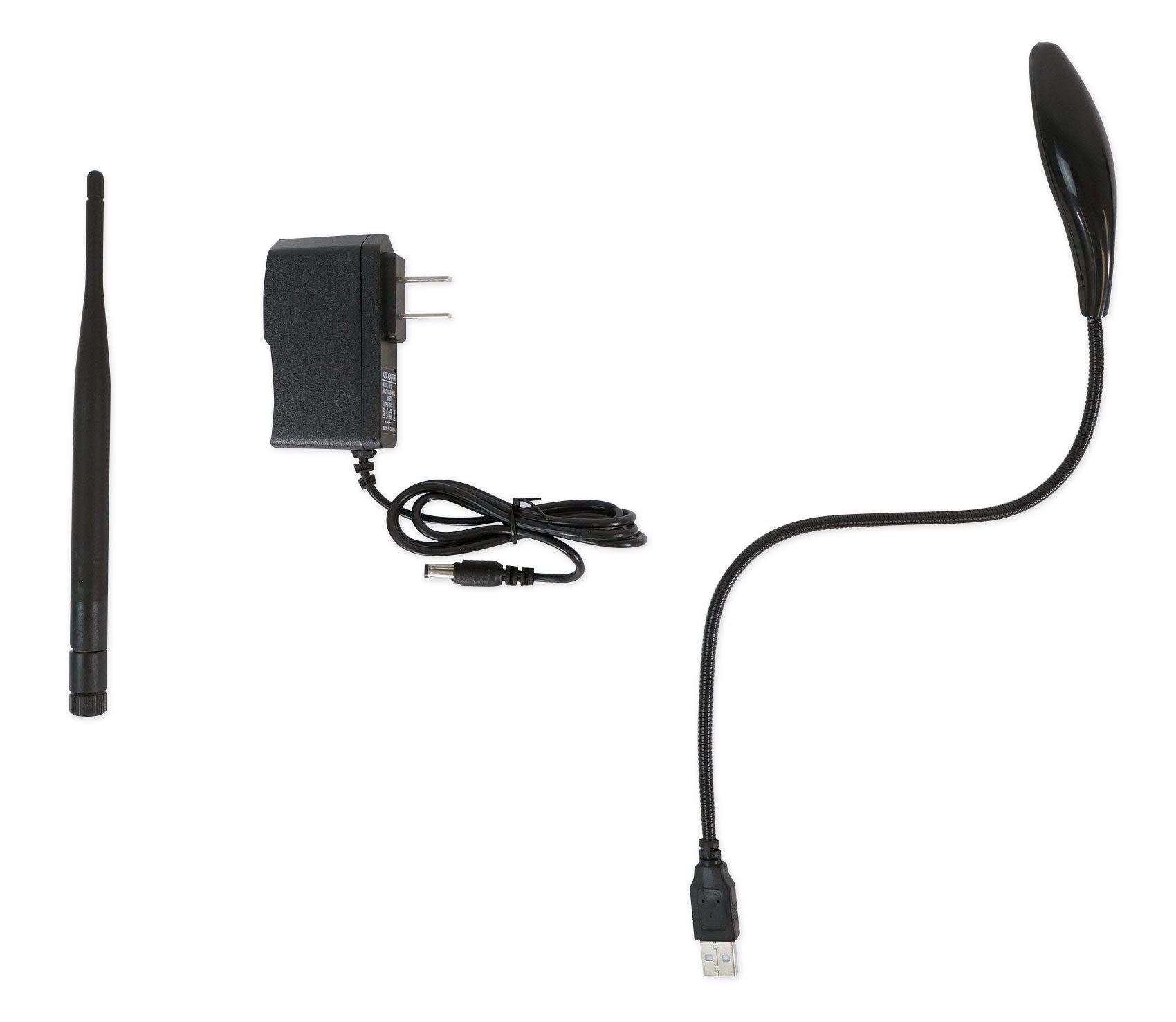

- USB LED Light for Controller
- Power Adapter (DC 9-12V)
- Wireless Transmitter Antenna
SKU: SKU: ElectraPix Bar 8+ROCKFORCE W4
View full details

























Product Description

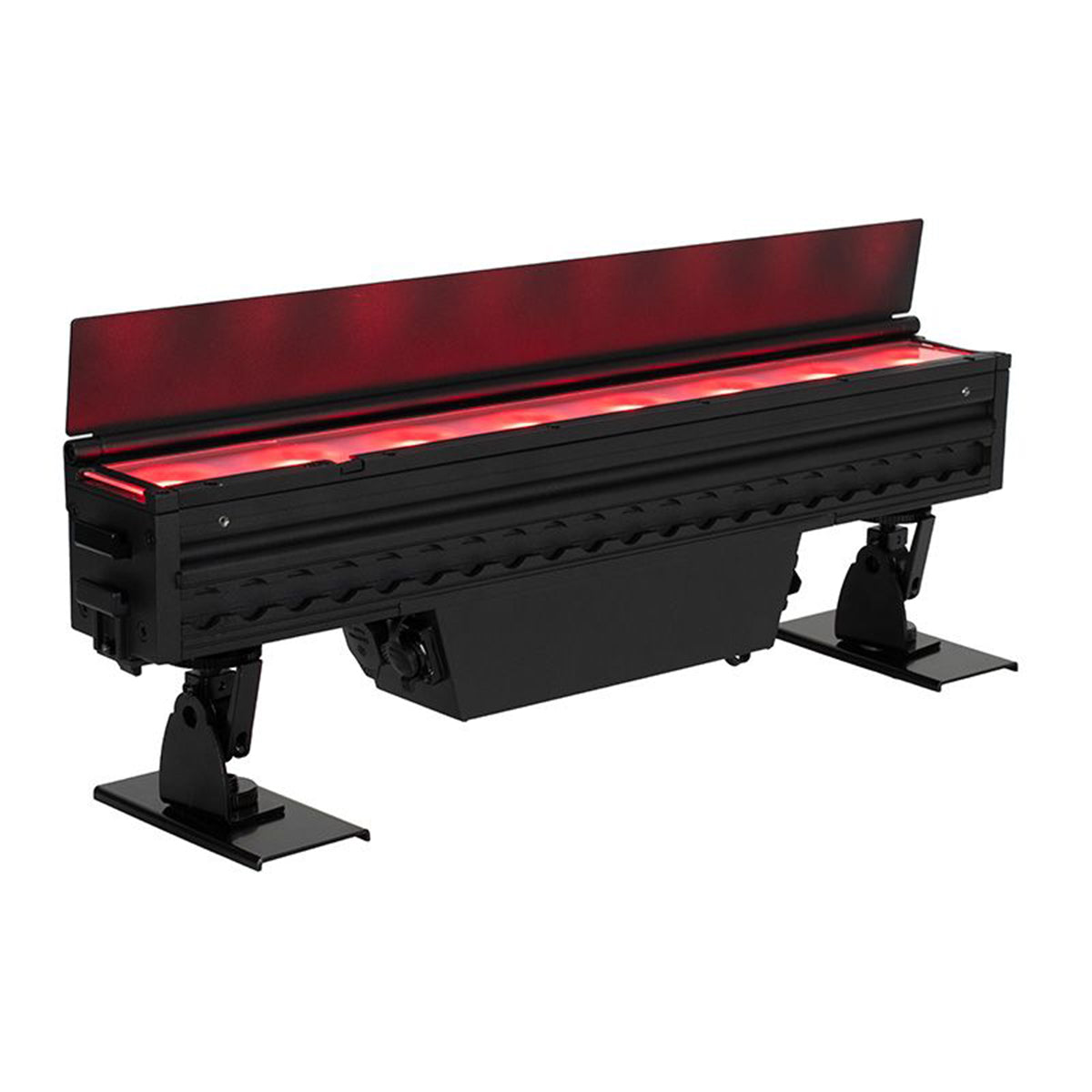

The ElectraPix Bar 8 accepts Aria X2 wireless DMX, giving you cable-free control of individual pixel effects, color temperature adjustments from 2,300K to 9,900K, and foreground/background LED programs. Its 7,000mAh battery runs up to 20 hours, and the IP65 housing handles rain and dust at outdoor events. The ROCKFORCE W4 controls up to 24 fixtures across 384 channels, with 30 banks of 8 programmable scenes, 6 chases, 16 manual faders, and MIDI integration. It racks in 4U or sits on a table with a USB gooseneck light for visibility in dark booths. For mobile DJs, event producers, and small production teams running outdoor or wireless rigs, this kit gives you a pixel LED fixture and a full-featured wireless DMX brain in one purchase, ready to talk to each other without a single cable between them.
Features
Cable-Free Lighting Rig

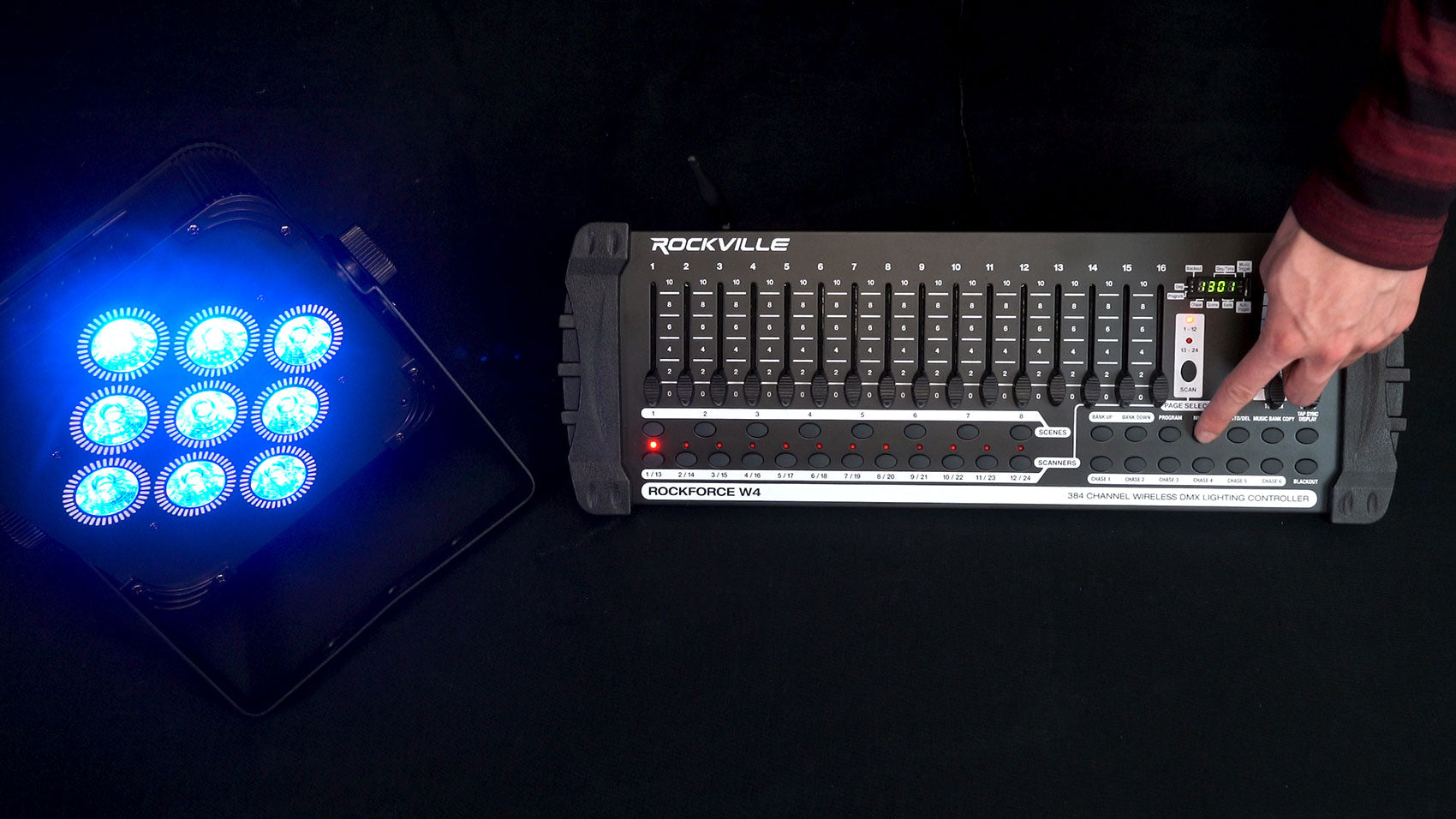

The ROCKFORCE W4 wireless transmitter talks directly to the ElectraPix Bar 8 up to 1,968 feet away, so there are no DMX cables to run between controller and fixture.
20-Hour Battery Operation
The Bar 8 runs up to 20 hours on its 7,000mAh lithium-ion battery, covering all-day outdoor events and remote locations without wall power.
Full Pixel Control

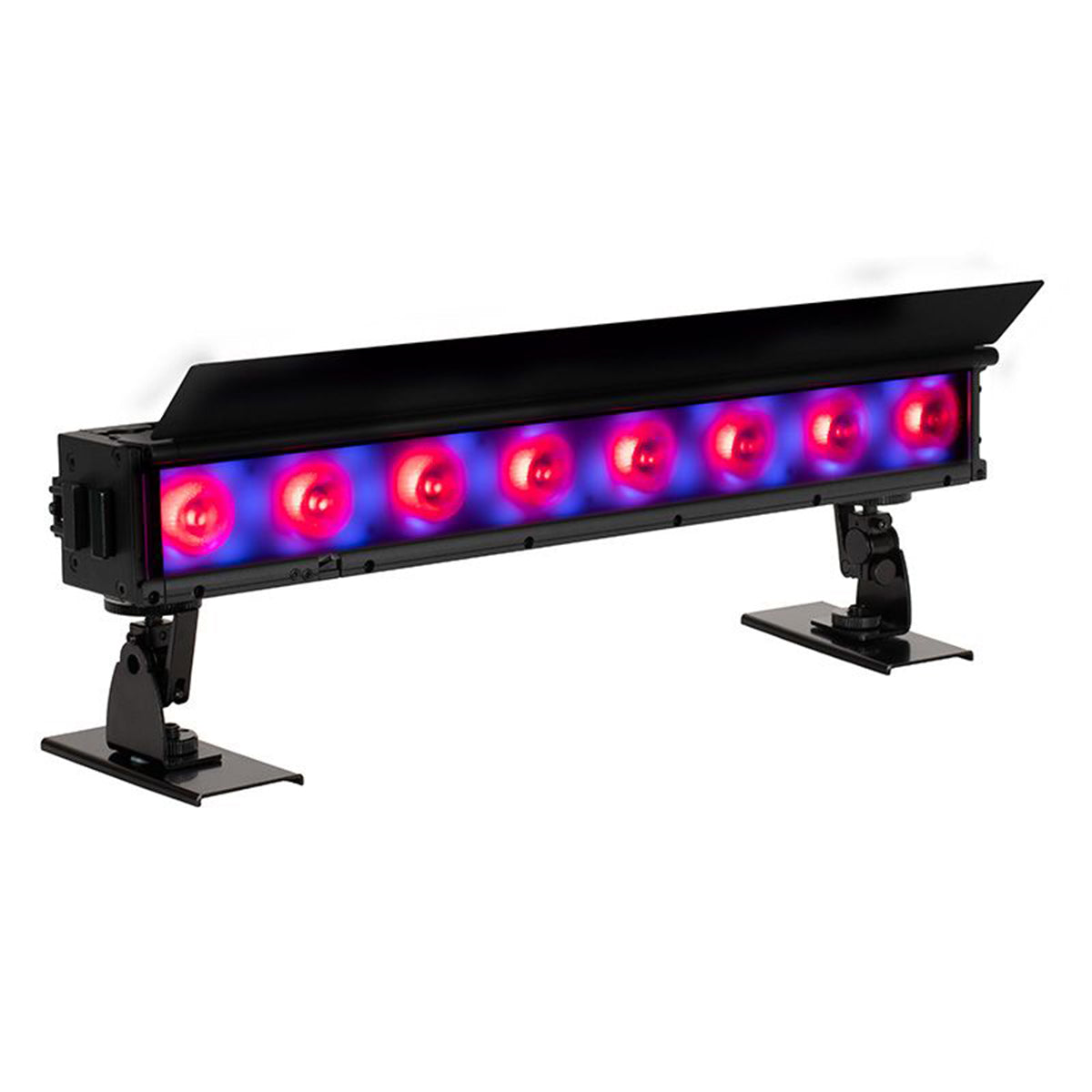

Eight individually addressable RGBAL+UV pixels across up to 66 DMX channels deliver detailed color chases and effects from a compact half-meter fixture.
Programmable Show Memory

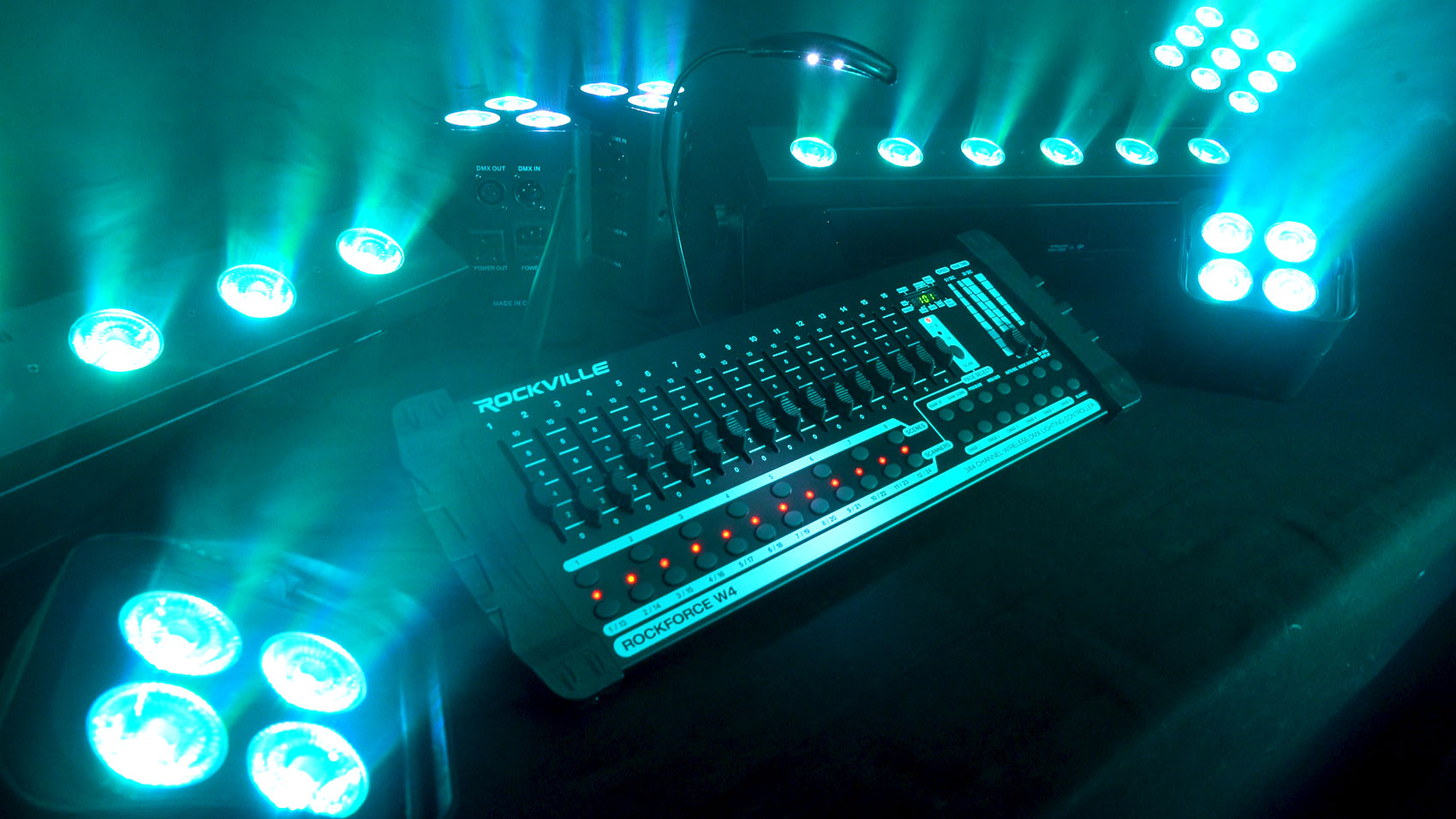

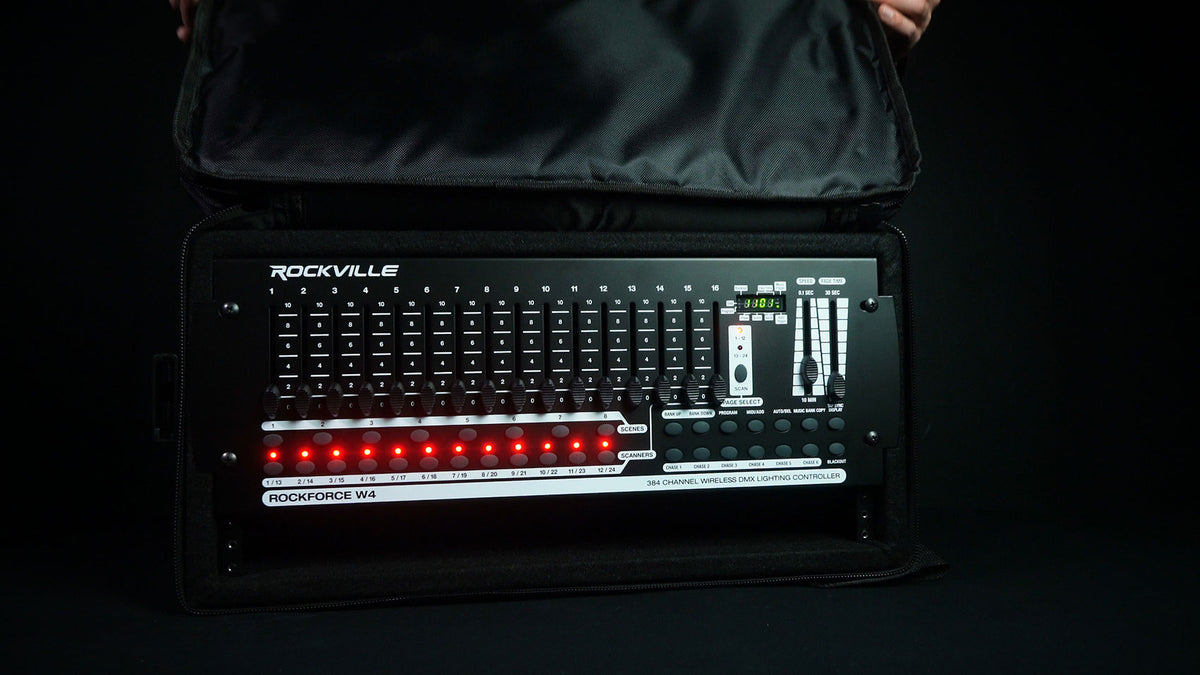

The ROCKFORCE W4 stores 30 banks of 8 scenes and 6 chases, so you can build repeatable shows and recall them at each gig without reprogramming.
IP65 Outdoor Protection
The bar is sealed against rain and dust for reliable performance at outdoor festivals, gardens, and temporary event installs where indoor fixtures would fail.
Technical Specifications
- Product Type IP65 LED Bar + Wireless DMX Controller Bundle
- LED Bar Foreground 8x 20W Hex RGBAL+UV
- LED Bar Background 32x 0.2W RGB
- LED Bar Battery 22.2V 7,000mAh, up to 20 hours
- LED Bar IP Rating IP65

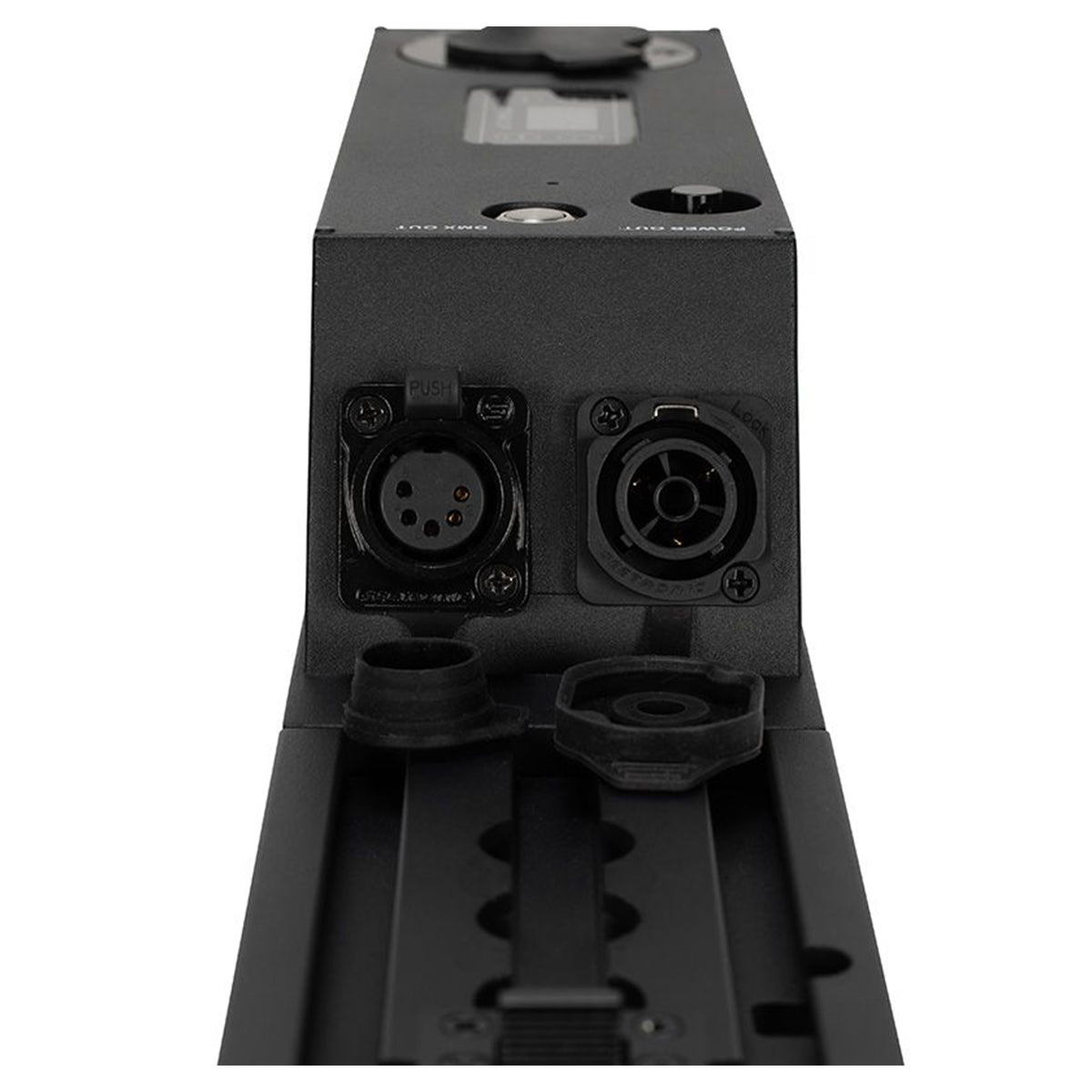

- LED Bar Control DMX-512, Aria X2, Bluetooth, RDM, IR
- LED Bar Beam Angle 17 degrees
- LED Bar Power AC 100-240V, 60W
- LED Bar Dimensions 3.37" x 23.24" x 9.79"
- Controller DMX Channels 384
- Controller Fixtures 24 (16 channels each)
- Controller Scenes 30 banks of 8
- Controller Chases 6
- Controller Wireless 2.4 GHz, 1,968 ft range
- Controller Power 110-240V, 50-60Hz, 10W
- Controller Dimensions 20.7" x 7.4" x 2.9"
- Controller Weight 6.2 lb
