American DJ Element H6 Pak (6) RGBAW+UV LED Outdoor Wireless DMX Wash Up-Lights

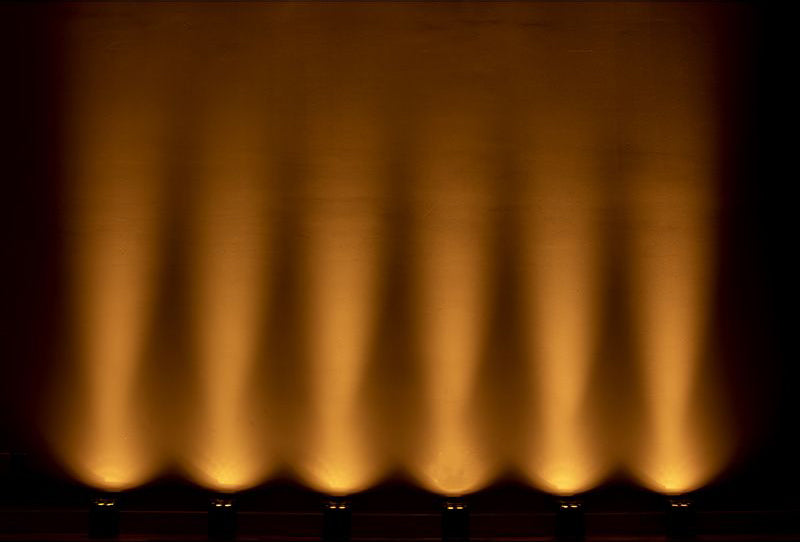

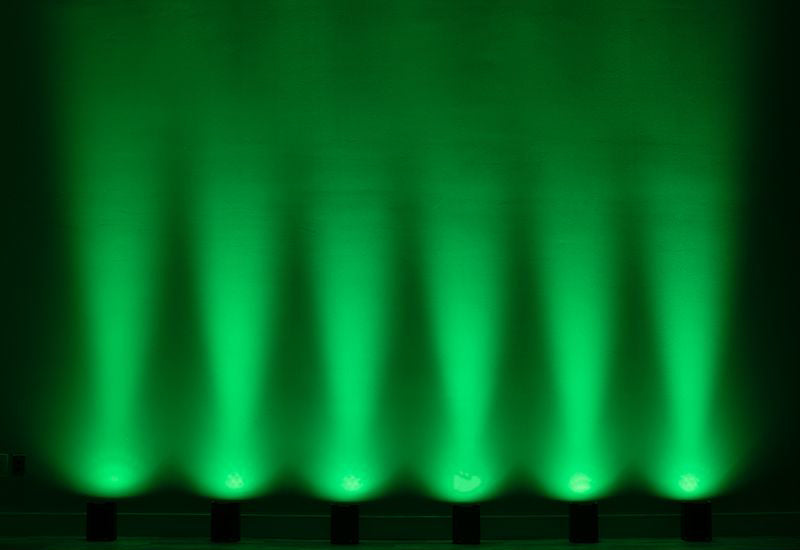

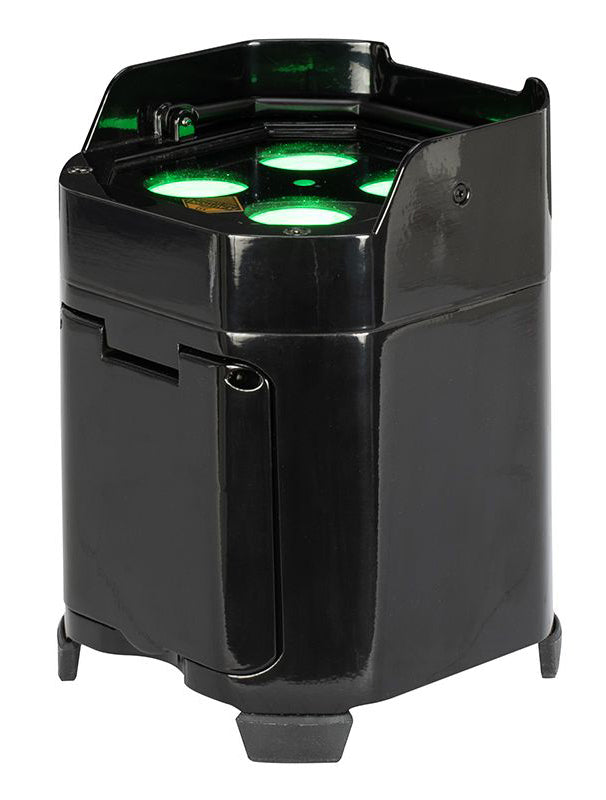

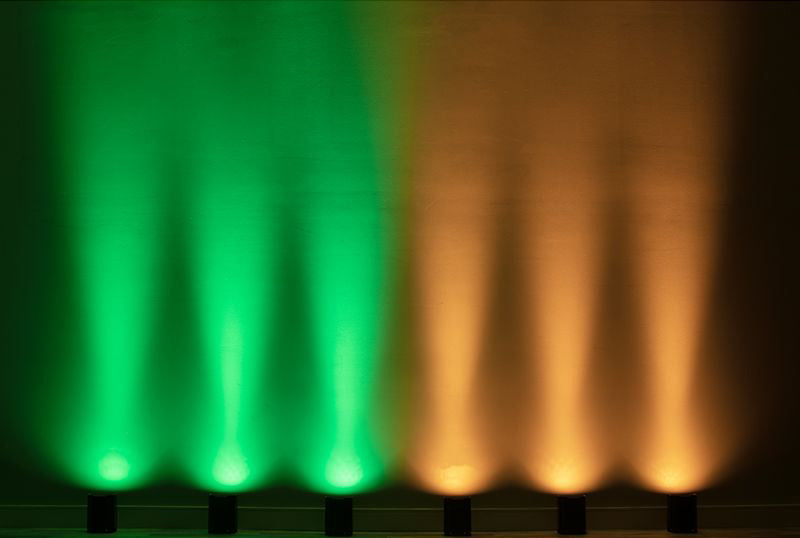

The ADJ Element H6 Pak is a complete up-lighting system built around six battery-powered LED wash fixtures that run with no cables on the floor. Each fixture uses four 20W RGBAW+UV LEDs, mixing red, green, blue, amber, white and UV across a wide palette plus 63 built-in color macros. A 17.6 degree beam angle and 28.7 degree field angle put 1117 LUX on a surface at 2M and 298 LUX at 4M, which covers wall washing, stage up-lighting and column accents.

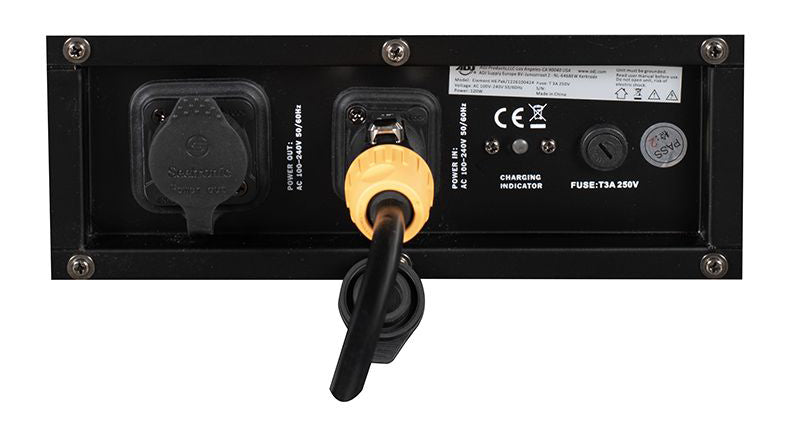

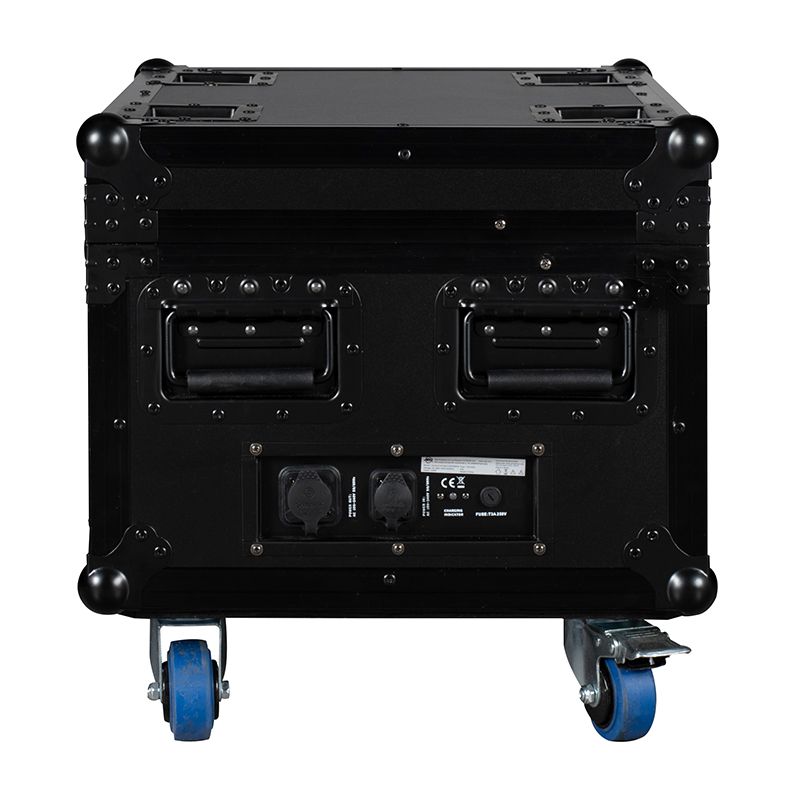

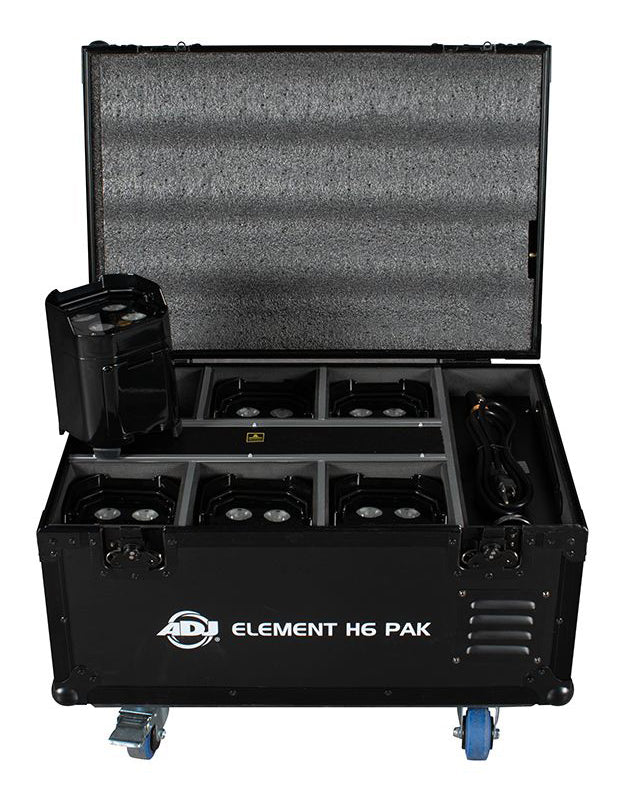

All six fixtures travel inside the Element H6 FC flight case, which charges them in place through six Mirage Q6 IPCB contact bases and power supplies. Set the fixtures out for the event, drop them back in the case, and they recharge without unpacking separate chargers. Battery life runs 6 hours in normal mode and 12 hours in energy save mode on a single color, with a 6-hour charge time and a charge indicator on every fixture.

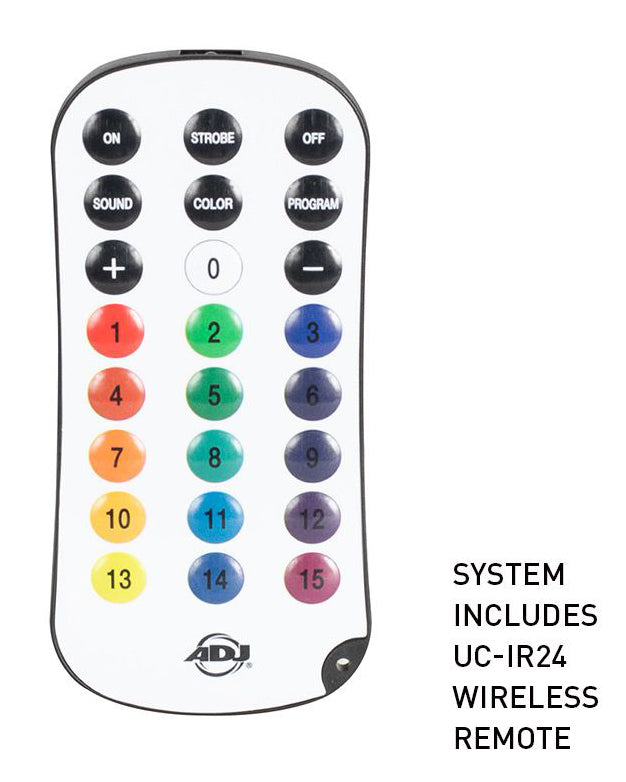

Control works two ways. The included UCIR24 infrared remote handles quick static color and program changes during a load-in, while built-in Aria X2 wireless DMX gives full control from a console anywhere in the room across seven channel modes. Five operational modes cover RGBAW+UV dimmer, auto run with 13 programs, static color and wireless DMX. Dimming spans 0-100% with six dim modes and four dim curves, plus flicker-free output for camera work and a 0.2Hz-11Hz strobe.

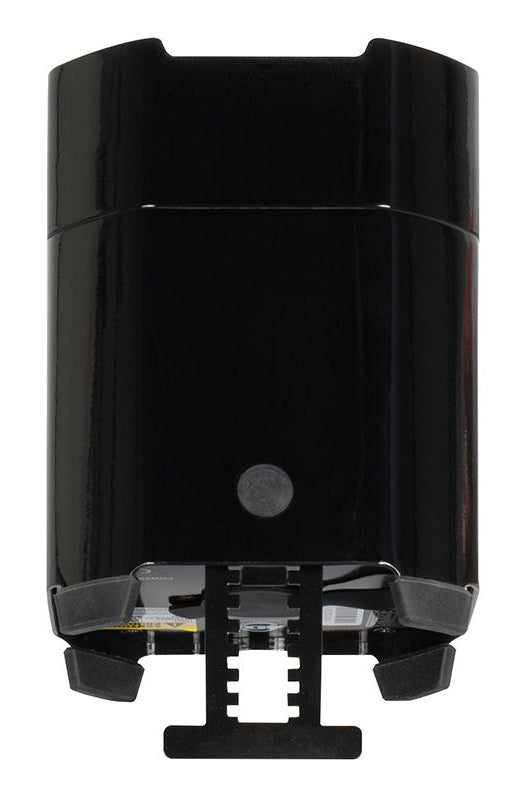

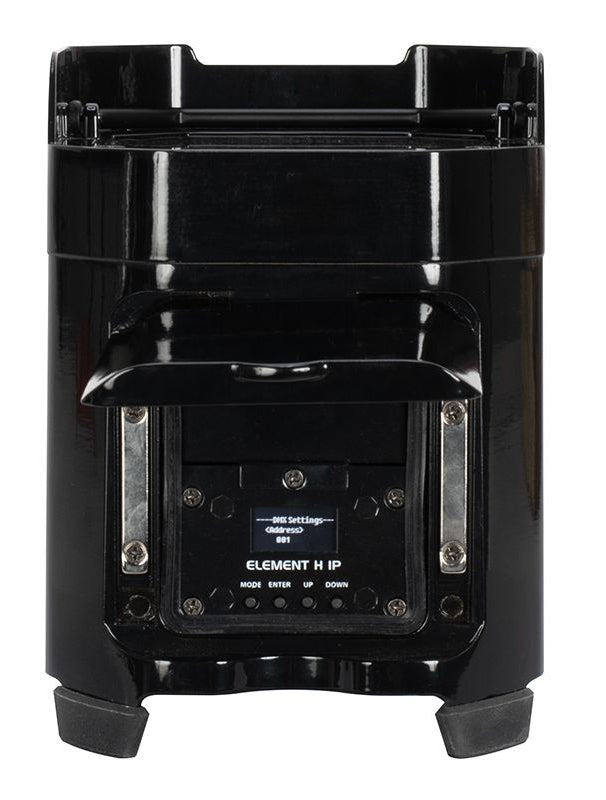

The IP54 housing gives partial protection from dust and water splashes, so the same fixtures work indoors and for temporary outdoor use. Each fixture weighs 5.3 lb, has a built-in kickstand for floor angles and a 4-touch button OLED display behind the cover panel. LEDs are rated at 50,000 hours and there is no duty cycle limit.
