Encore FR Pro Color 400W RGBALC LED DMX Fresnel Beam Wash Light
Encore FR Pro Color 400W RGBALC LED DMX Fresnel Beam Wash Light

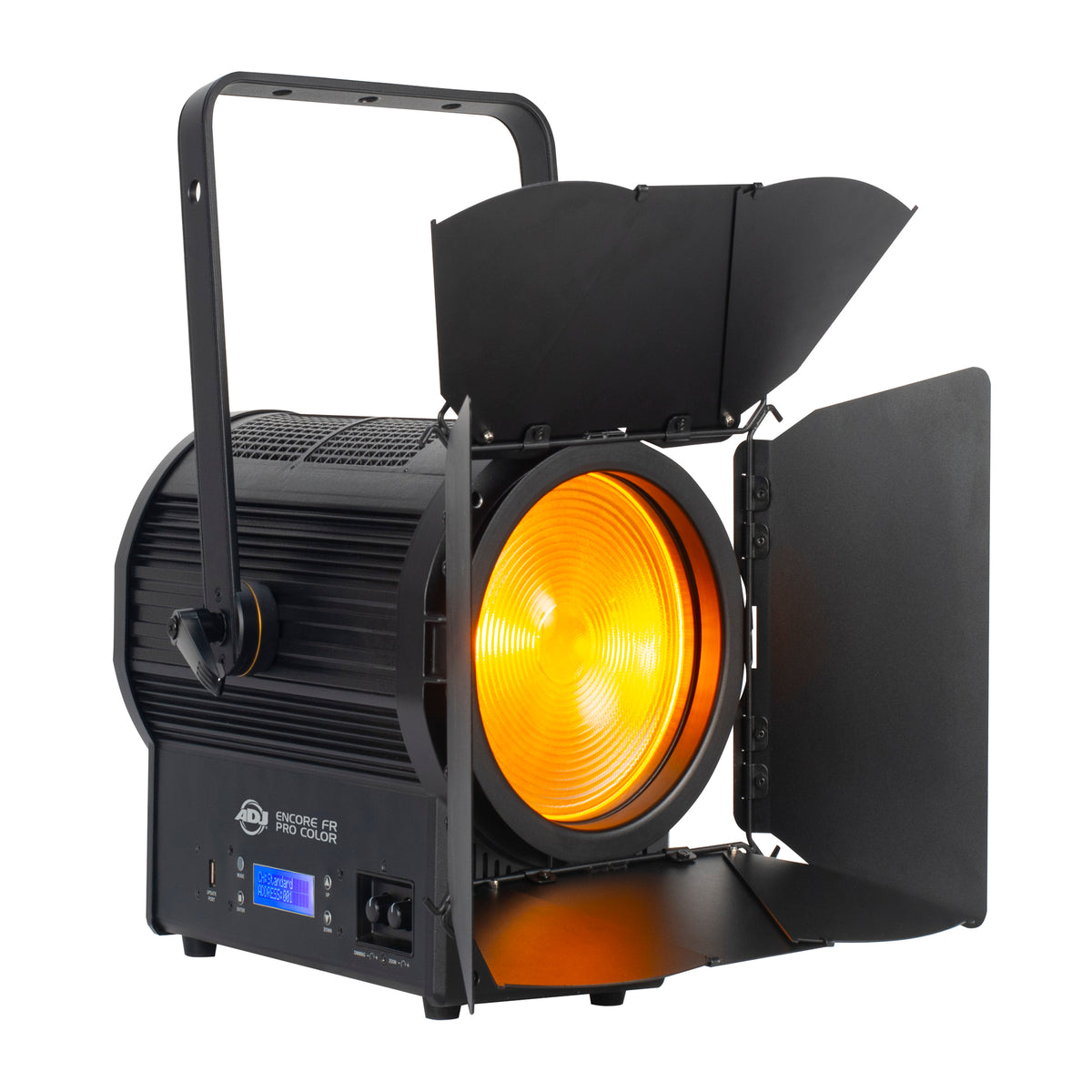

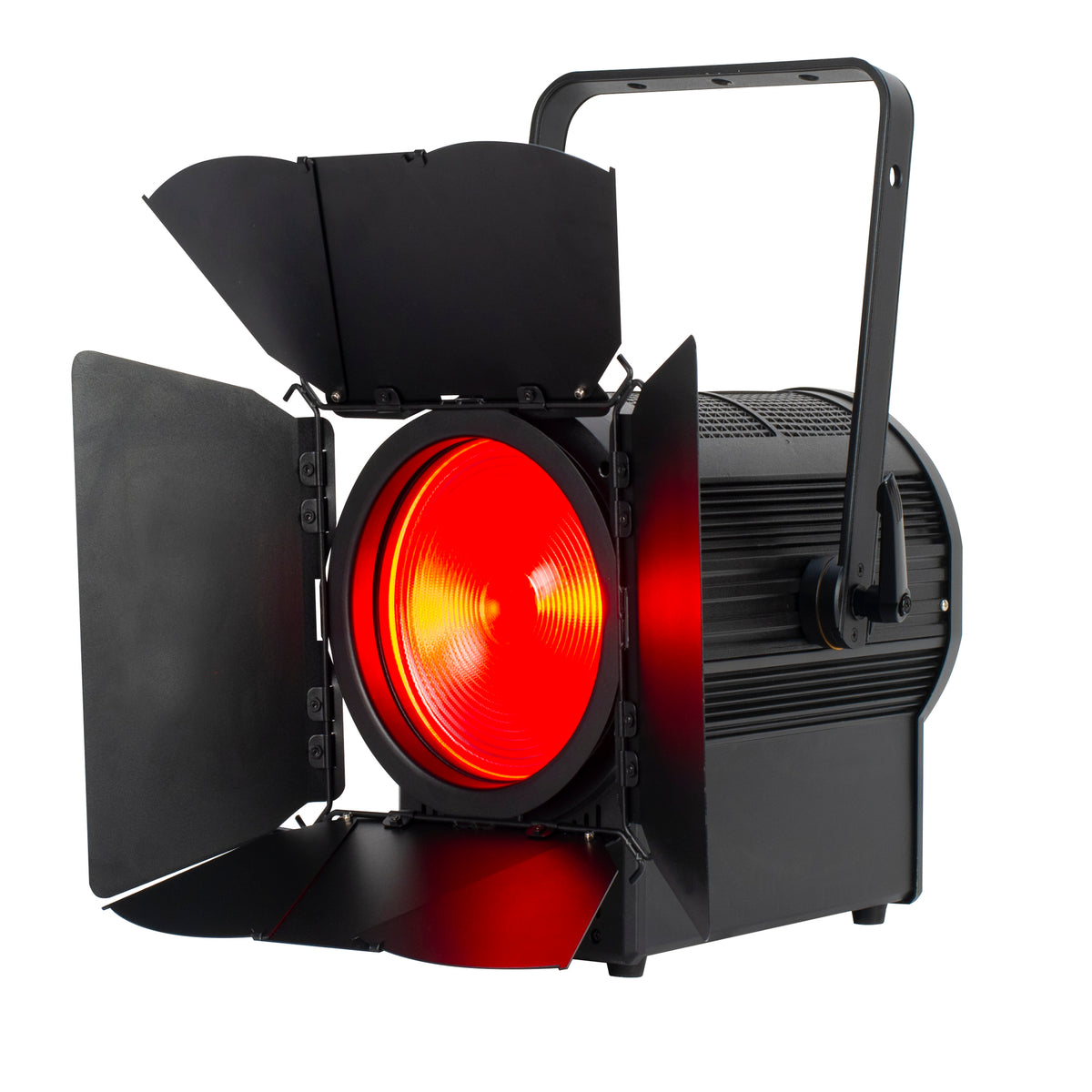

400W 6-In-1 RGBALC LED Fresnel, 7" Lens, Motorized Zoom, Barn Doors Included
Features
- 400W 6-in-1 RGBALC LED engine with CRI 94+ and 11,000+ lumens
- 7-inch Fresnel lens with motorized zoom from 9 to 37 degrees
- CMY color mixing and tunable white from 2,400K to 8,500K
- Five DMX modes up to 19 channels with RDM support
- Locking power in/out for daisy chaining fixtures
Couldn't load pickup availability
What's Included in the box
- (1) Encore FR Pro Color LED Fresnel Fixture

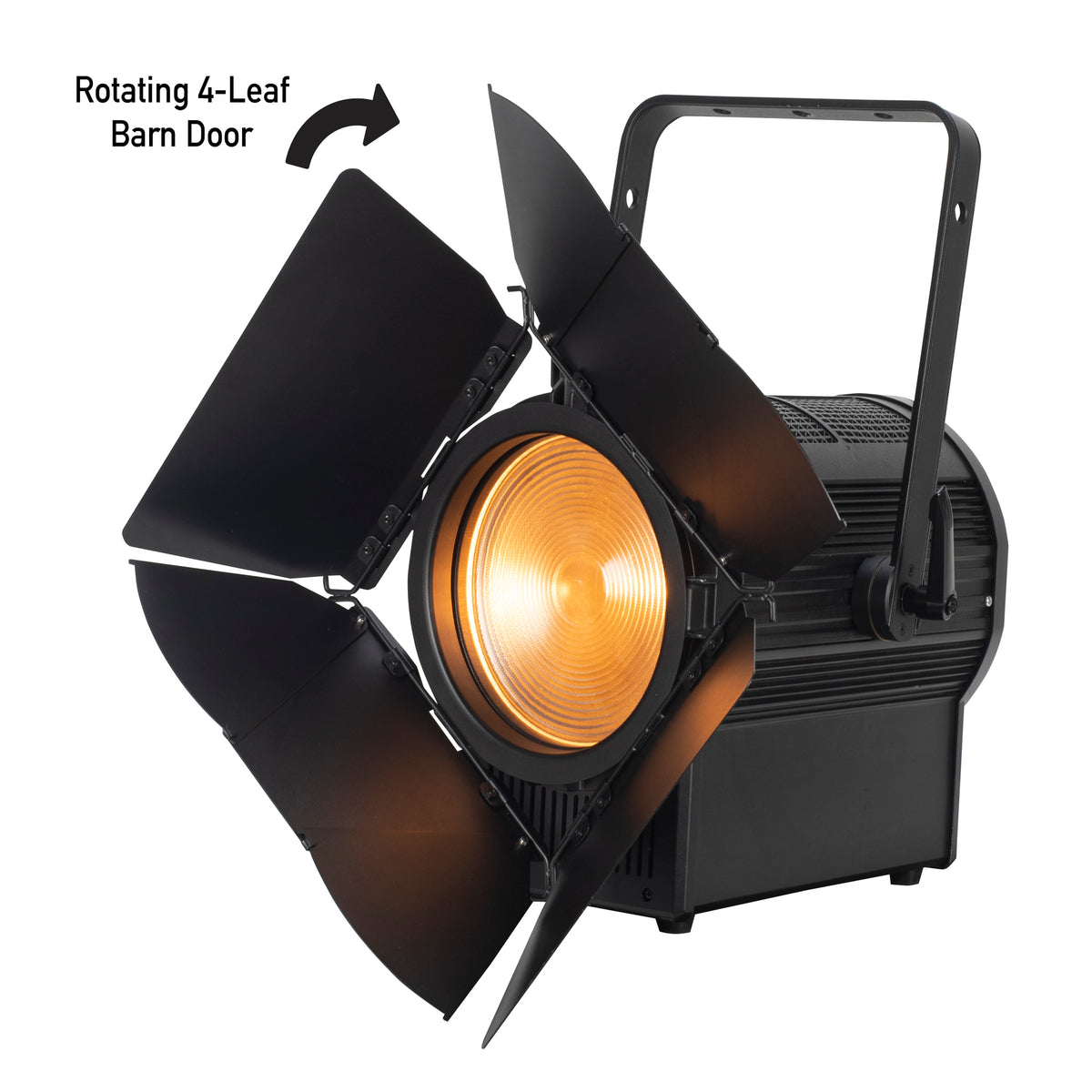

- (1) Barn Doors
- (1) Locking Power Cable
- (2) Safety Cables
SKU: SKU: Encore FR Pro color*
View full details










Product Description

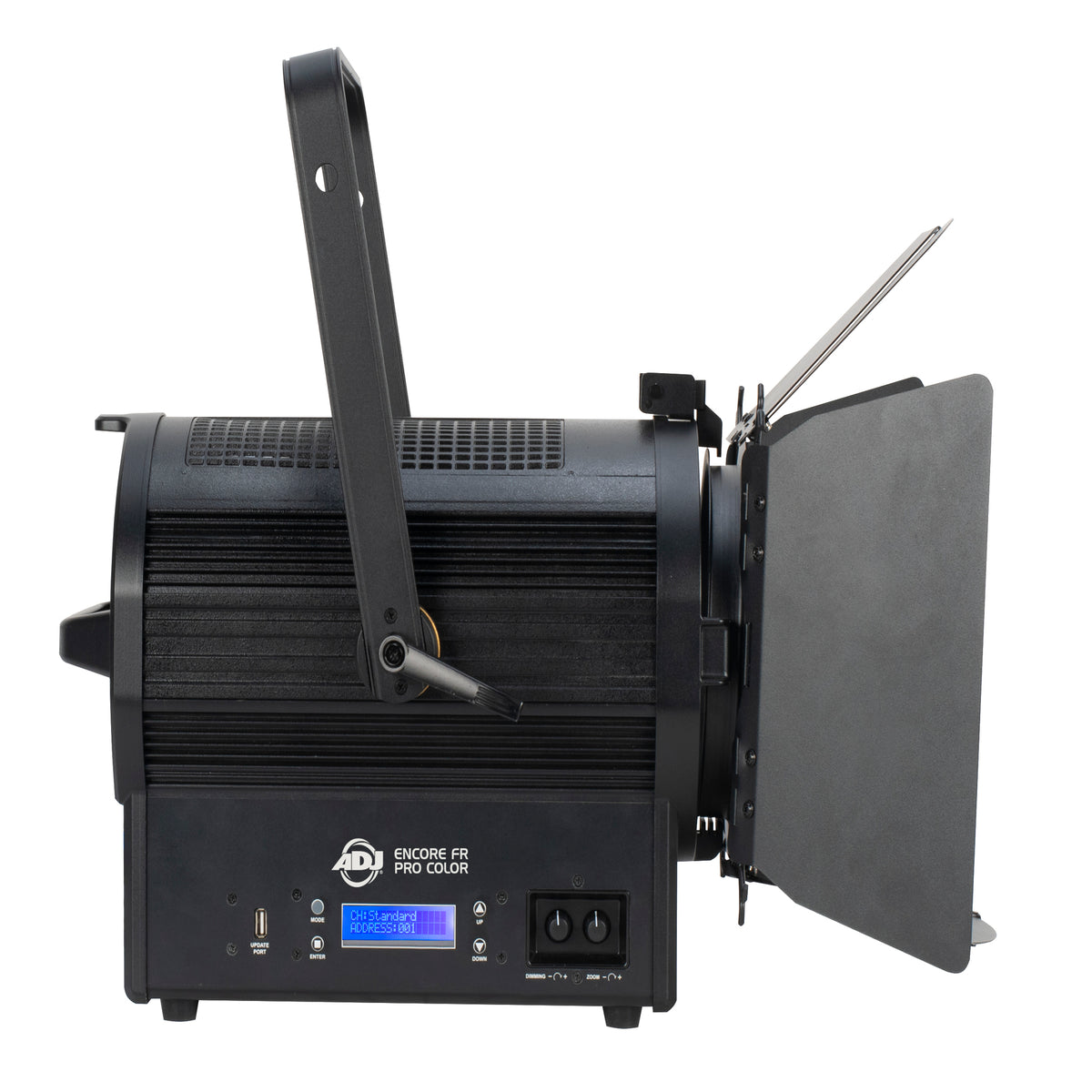

The fixture pushes over 11,000 lumens total, with 23,179 LUX at 2M when zoomed in. Five DMX channel modes (up to 19 channels), 6 dim curves, and adjustable refresh rates from 900 to 25,000Hz give lighting designers granular control over output behavior. RDM support, a USB service port, and a 4-button LCD control panel round out the on-board feature set. Locking power in and out lets you daisy chain fixtures on a single circuit: 2 units at 110V or 5 at 240V. The fixture ships with barn doors, a locking power cable, and two safety cables.
Features
Full-Spectrum 6-In-1 LED Engine
Red, green, blue, amber, lime, and cyan LEDs produce a complete color range with CMY mixing and tunable white from 2,400K to 8,500K.
Motorized Zoom Control
Adjustable from 9 to 37 degrees via DMX or on-board controls, so you can shift between spot and wash without climbing a ladder.
High CRI for Broadcast and Film
A CRI rating of 94+ means skin tones and set colors render accurately on camera, making this fixture suitable for broadcast work.
Flexible DMX and RDM Integration
Five DMX channel modes, 6 dim curves, and RDM support let you program detailed cue lists and monitor fixtures remotely.

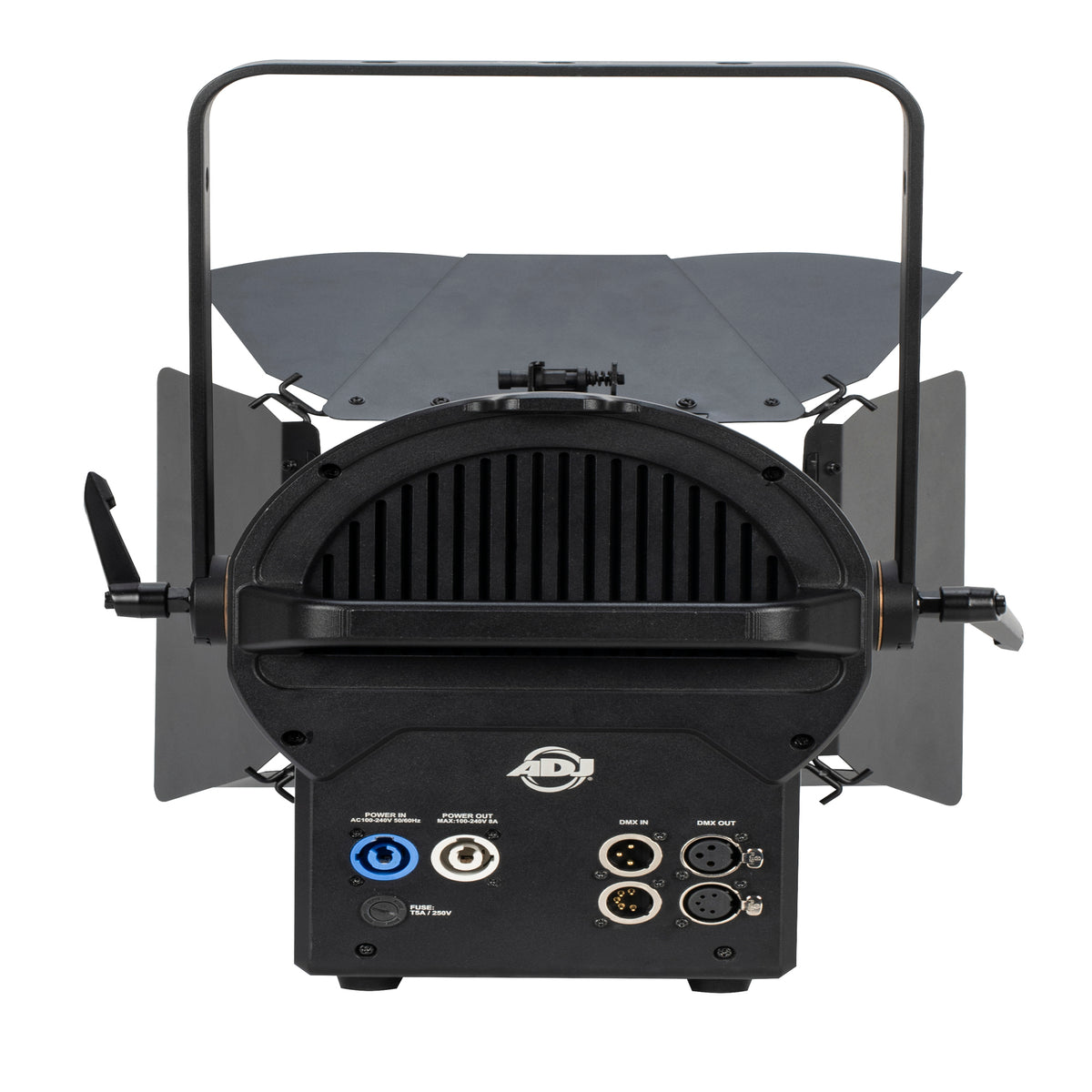

Daisy-Chain Power Linking
Locking power input and output connections let you run multiple fixtures off a single circuit: up to 2 at 110V or 5 at 240V.
Technical Specifications
- Product Type LED Fresnel Beam Wash Light
- Light Source 400W 6-in-1 LED (Red, Green, Blue, Amber, Lime, Cyan)
- LED Life Expectancy 50,000 hours
- Total Lumen Output 9,237 (full on, zoomed out)
- LUX 23,179 @ 2M (zoomed in); 2,860 @ 2M (zoomed out)
- Beam Angle 9 to 37 degrees (motorized zoom)
- Max Field Angle 49.9 degrees
- Color Temperature Tunable, 2,400K to 8,500K
- CRI 94+
- DMX Channel Modes 14, 17, 19, 13 CMY, 19 CMY
- Dim Curves 4 (Square, Linear, Inv. Square, S-Curve)
- Refresh Rate 68 presets from 900 to 25,000Hz
- Power AC 100-240V, 50/60Hz
- Max Power Consumption 420W
- Power Linking 2 units @ 110V; 5 units @ 240V
- Dimensions 16.6" x 14.18" x 19.29"
- Weight 21.8 lb / 9.9 kg
- Certifications CE, cETLus (Pending), IP20
