ENCORE FR20 DTW

The ADJ Encore FR20 DTW is a compact 2-inch Fresnel fixture with a 17W warm white LED engine and a dim to warm feature. As the level comes down, the color temperature warms the way a tungsten source does, which is why this fixture reads naturally in restaurants, galleries, retail displays, small theaters and accent positions where an LED that stays at one temperature looks wrong.

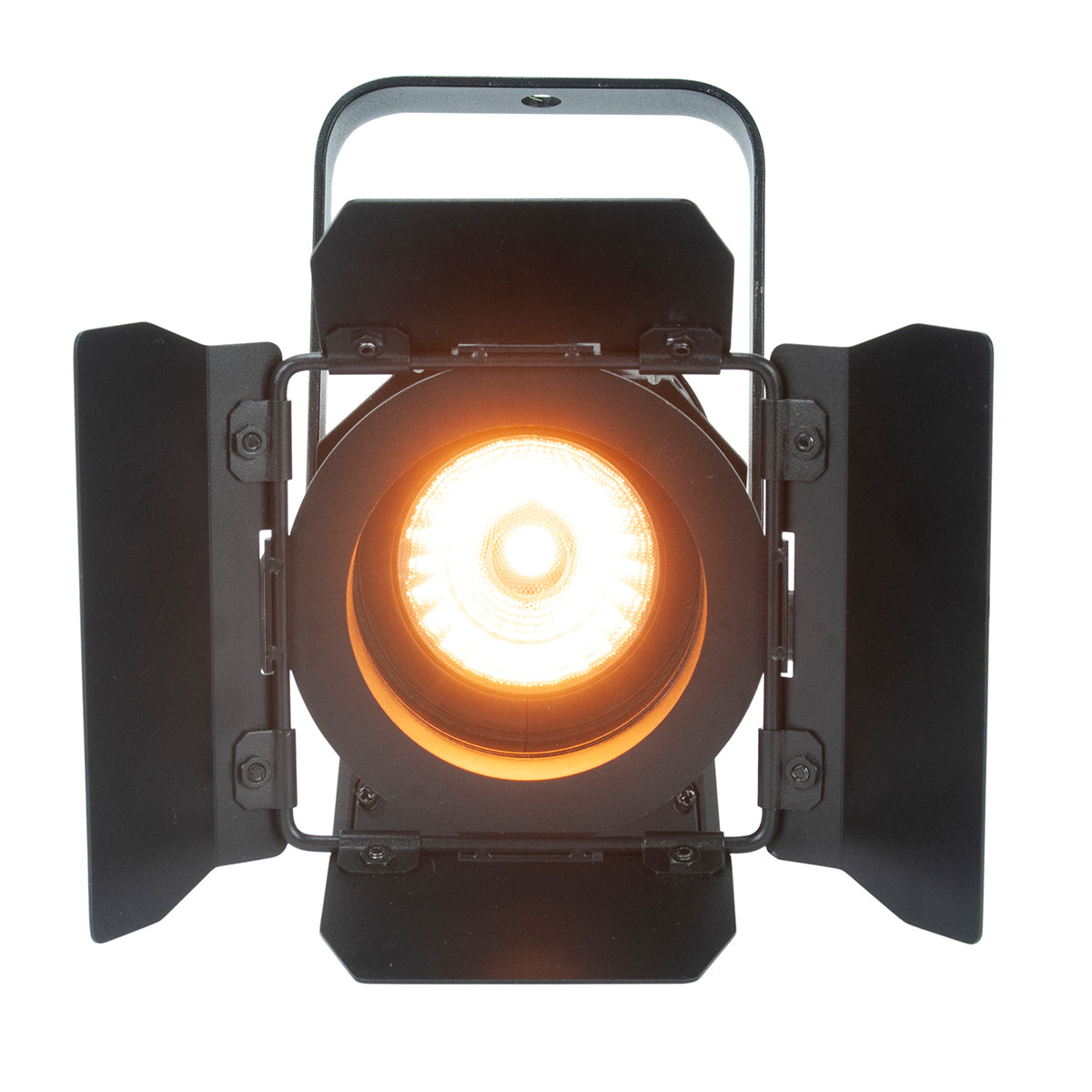

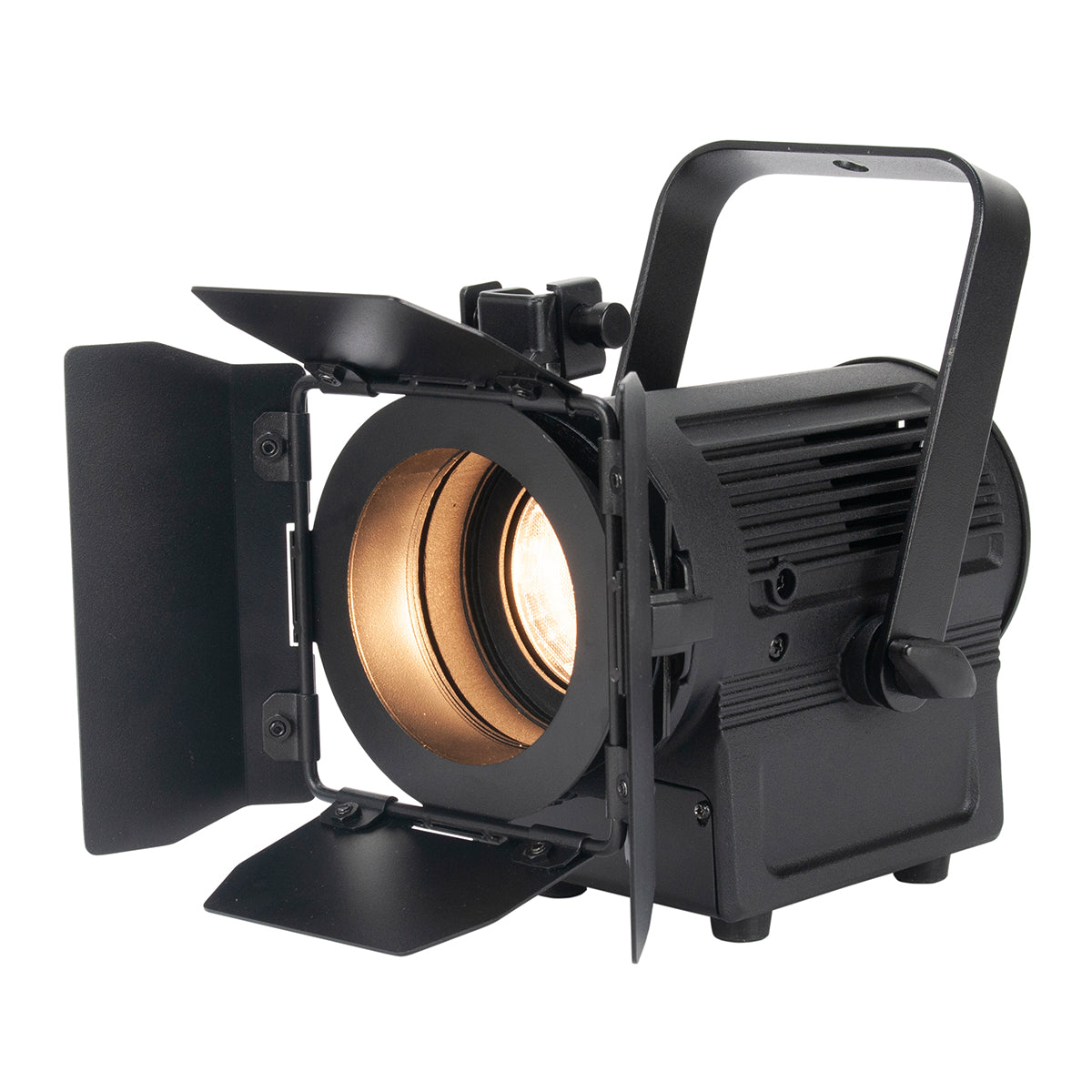

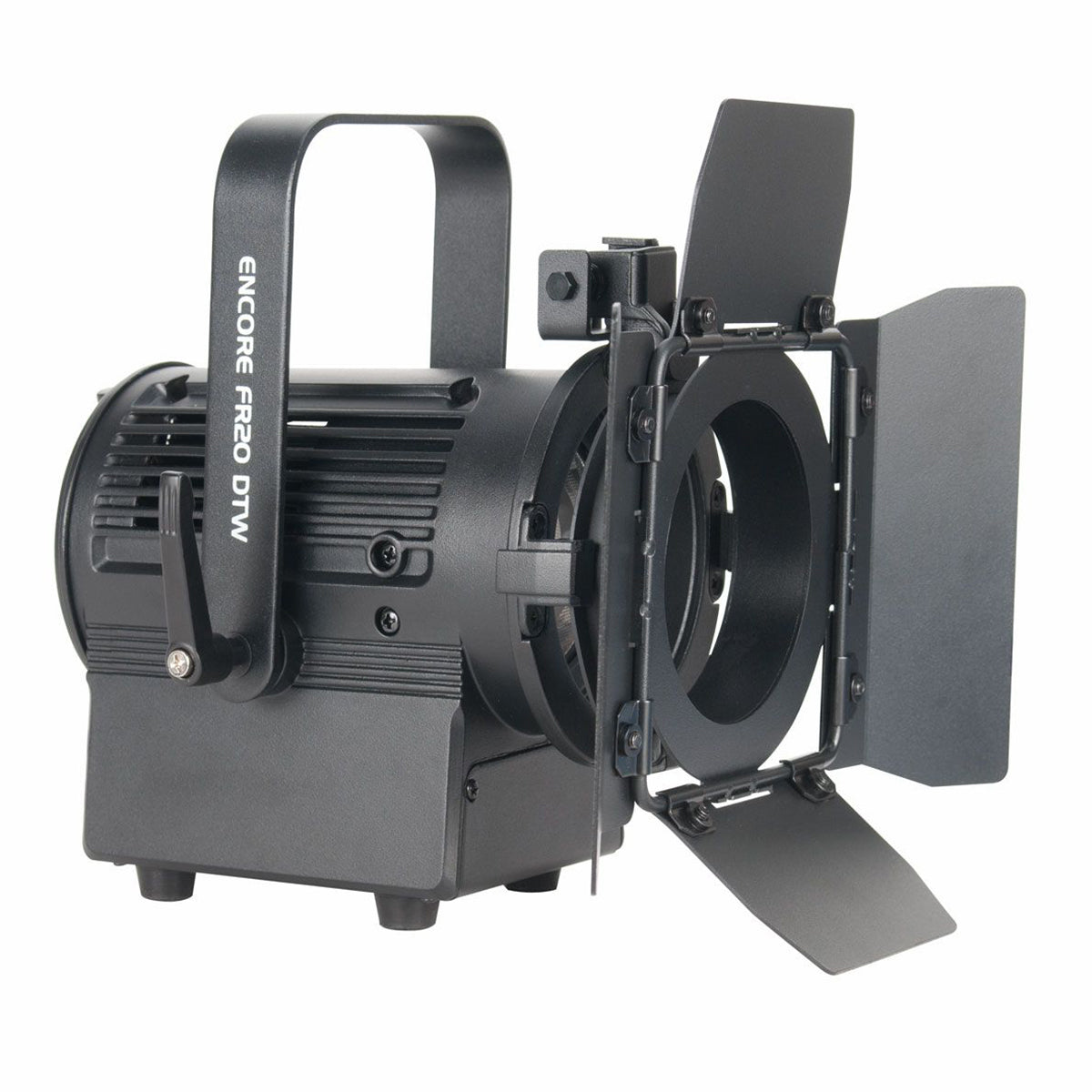

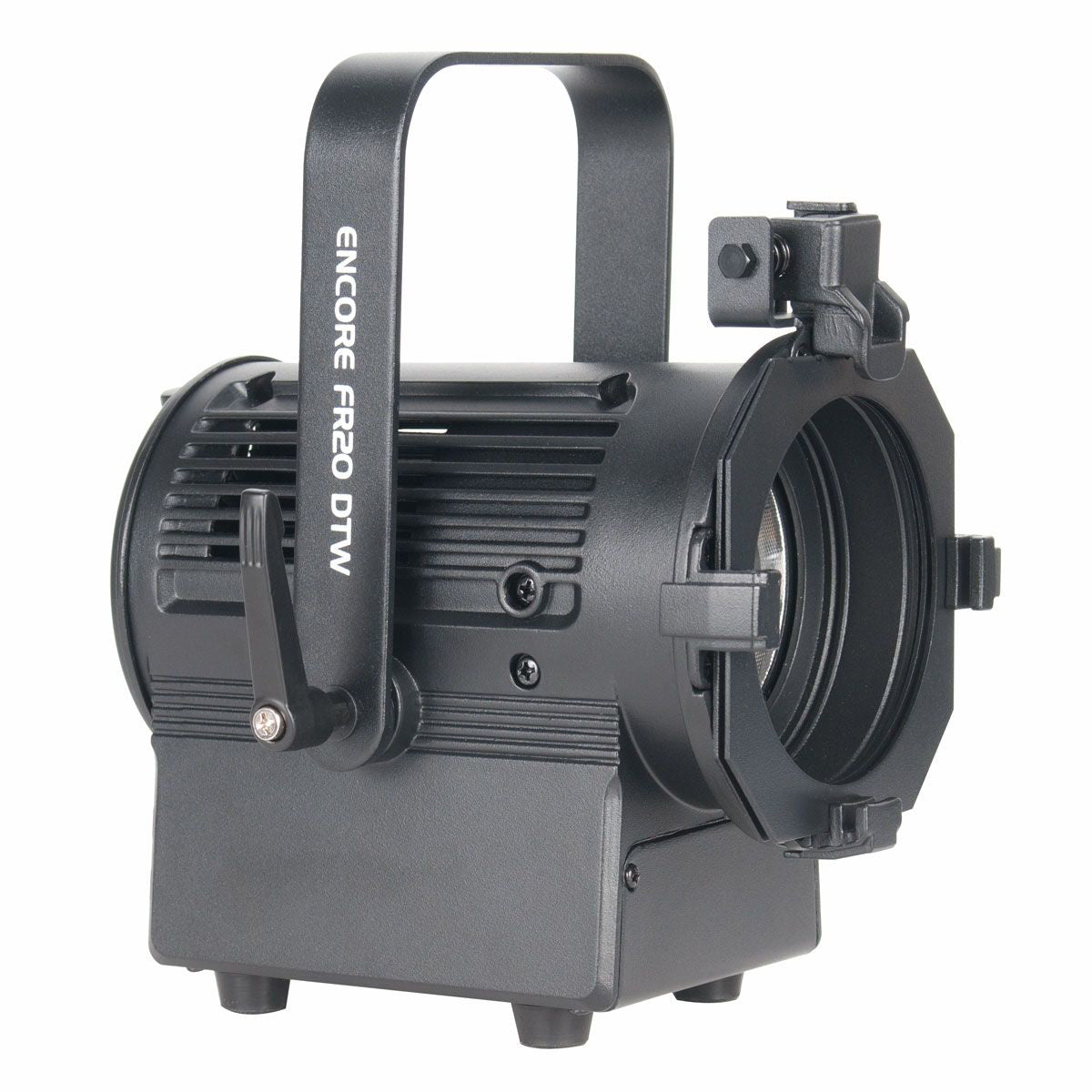

Output is 3000K at a CRI of 92, with a 19 degree beam angle and 600 LUX at 3M. The included frost filter opens the beam to 45 degrees when a softer, wider pool is needed, and removable barn doors crop the beam edge. A gold snoot cuts front lens glare from audience or customer sightlines, and a gel frame accepts color media (sold separately).

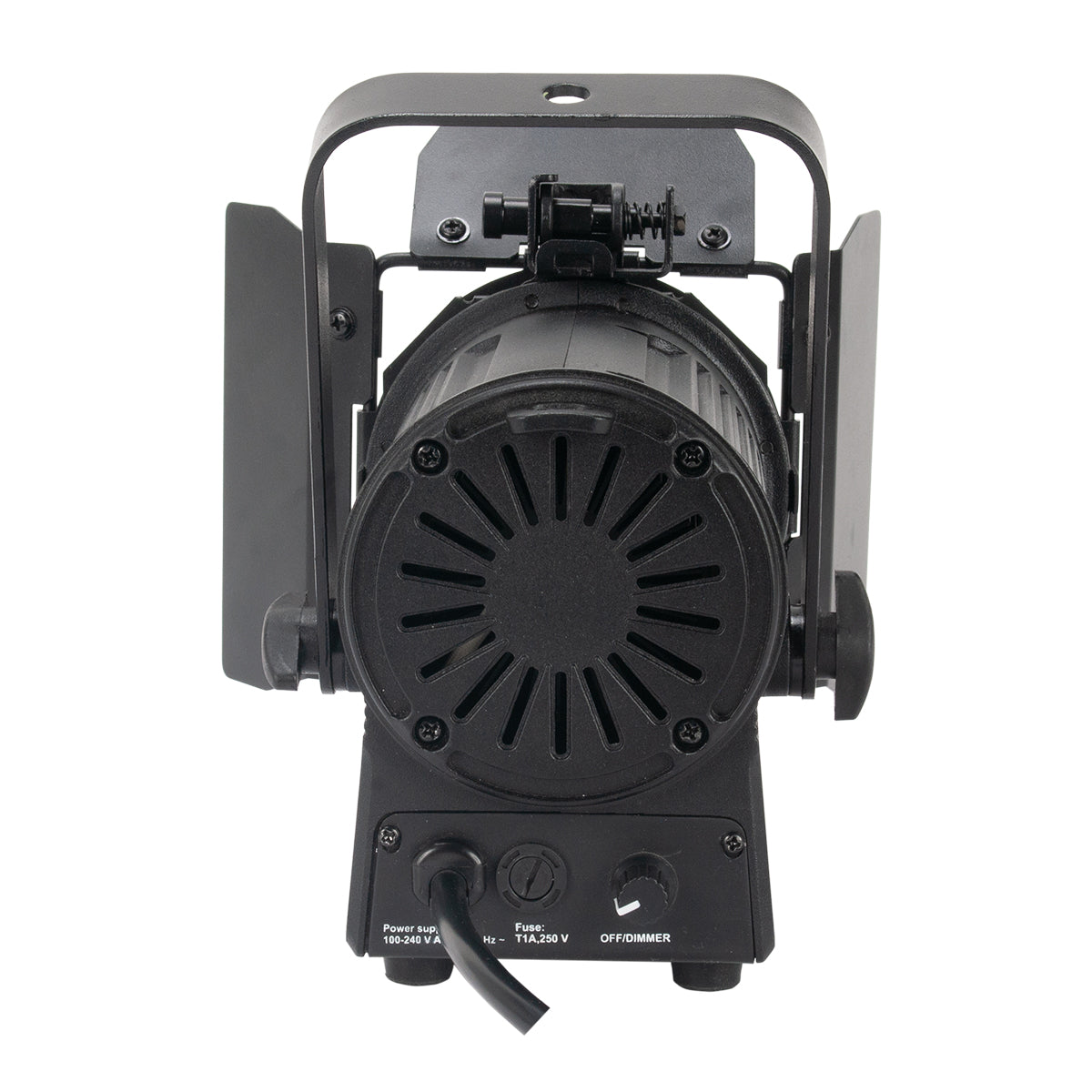

Dimming works through an on-board potentiometer from 0 to 100%, or through Triac wall dimmers and dimmer packs. The fixture is compatible with Lutron and Leviton wall dimmers and with ADJ dimmer packs including the DP-415R, DP-DMX20L and Uni Pak II, so it drops into architectural circuits that have no DMX at all.

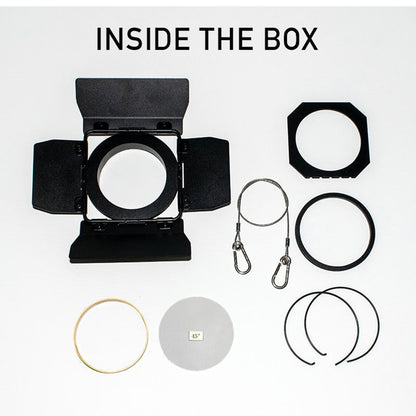

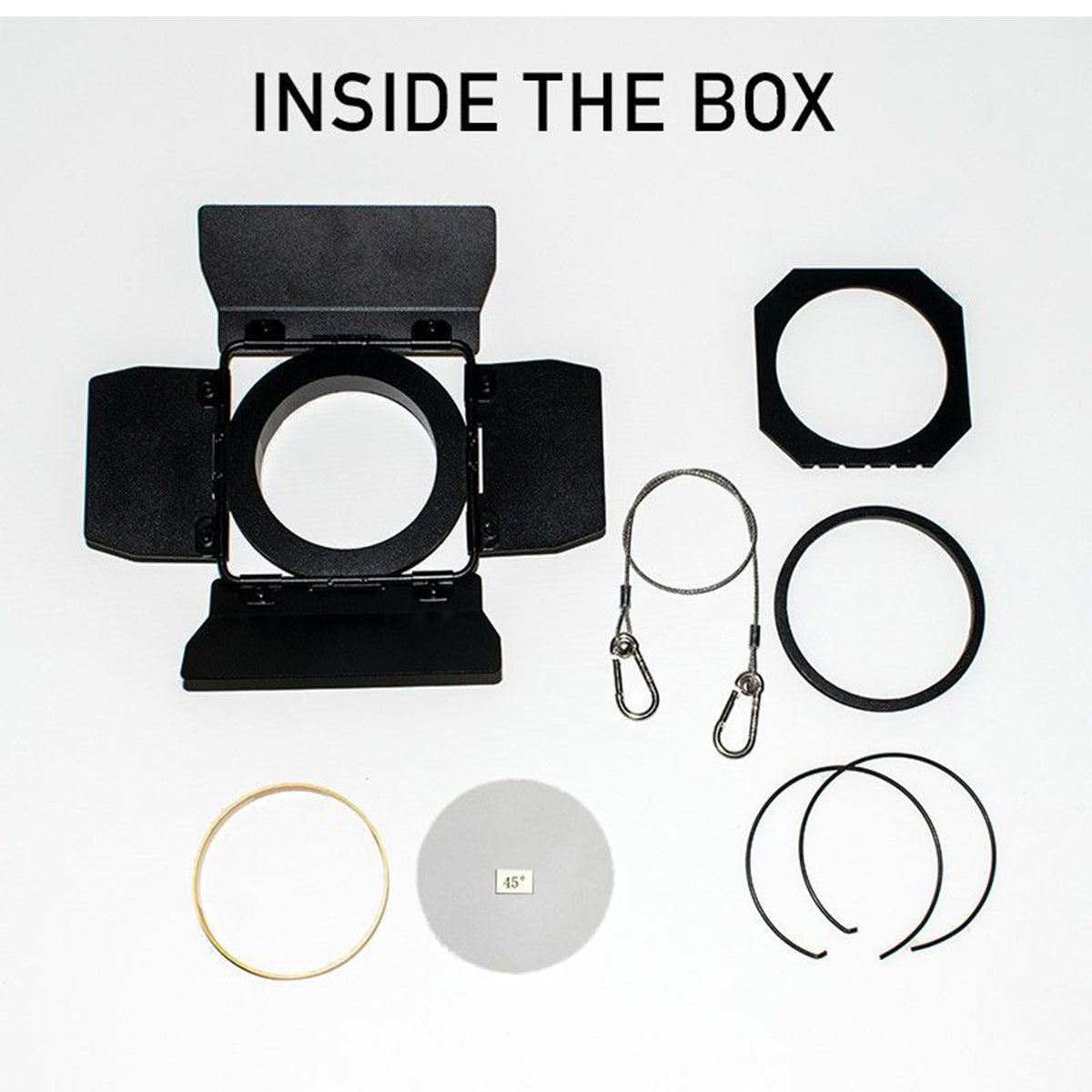

A hanging bracket, safety cable, two retainer rings and a metal spacer are included. The fixture runs on AC 100-240V at 50/60Hz, measures 10.25" x 5.25" x 8.25" and weighs 5 lb, with LED life rated at 50,000 hours.
