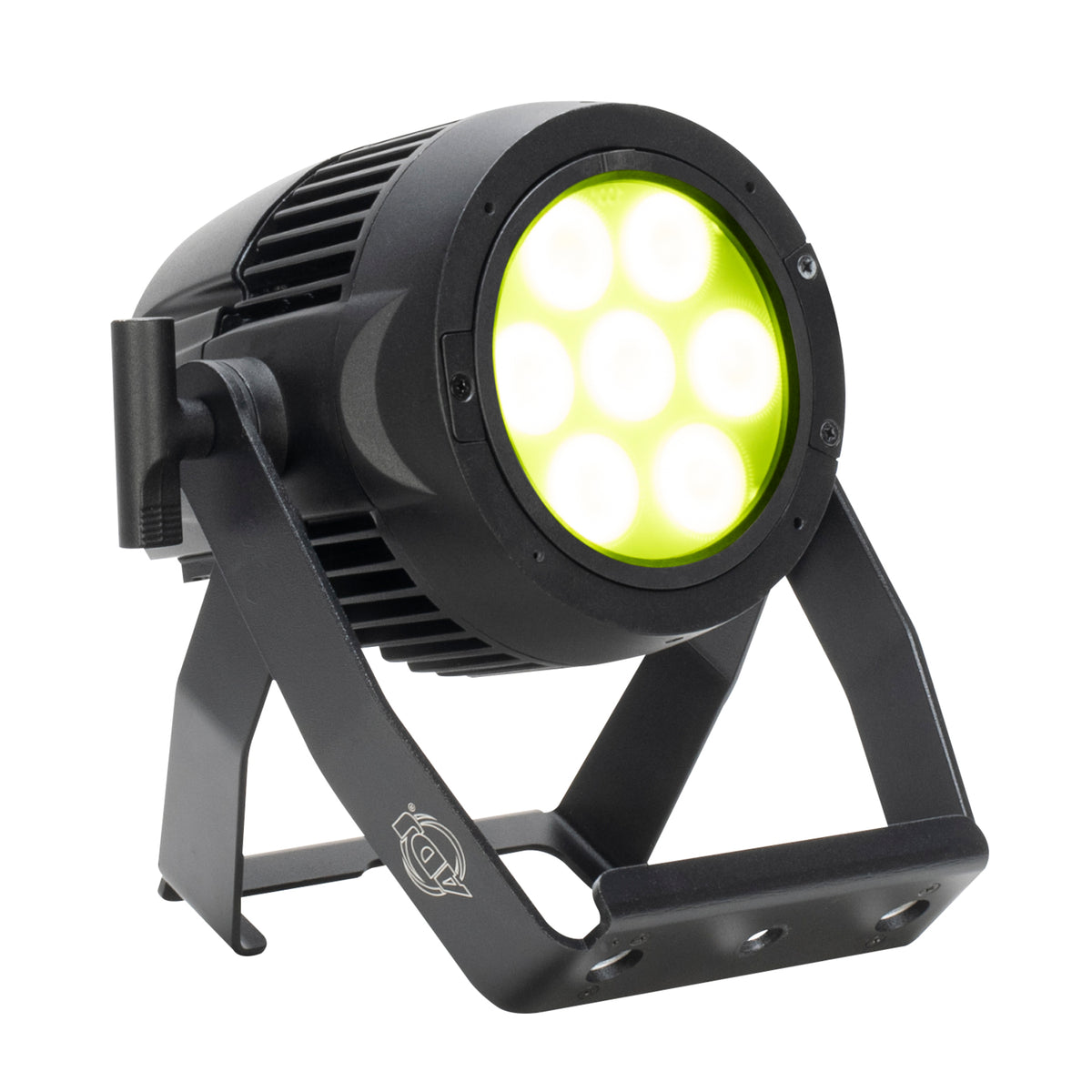

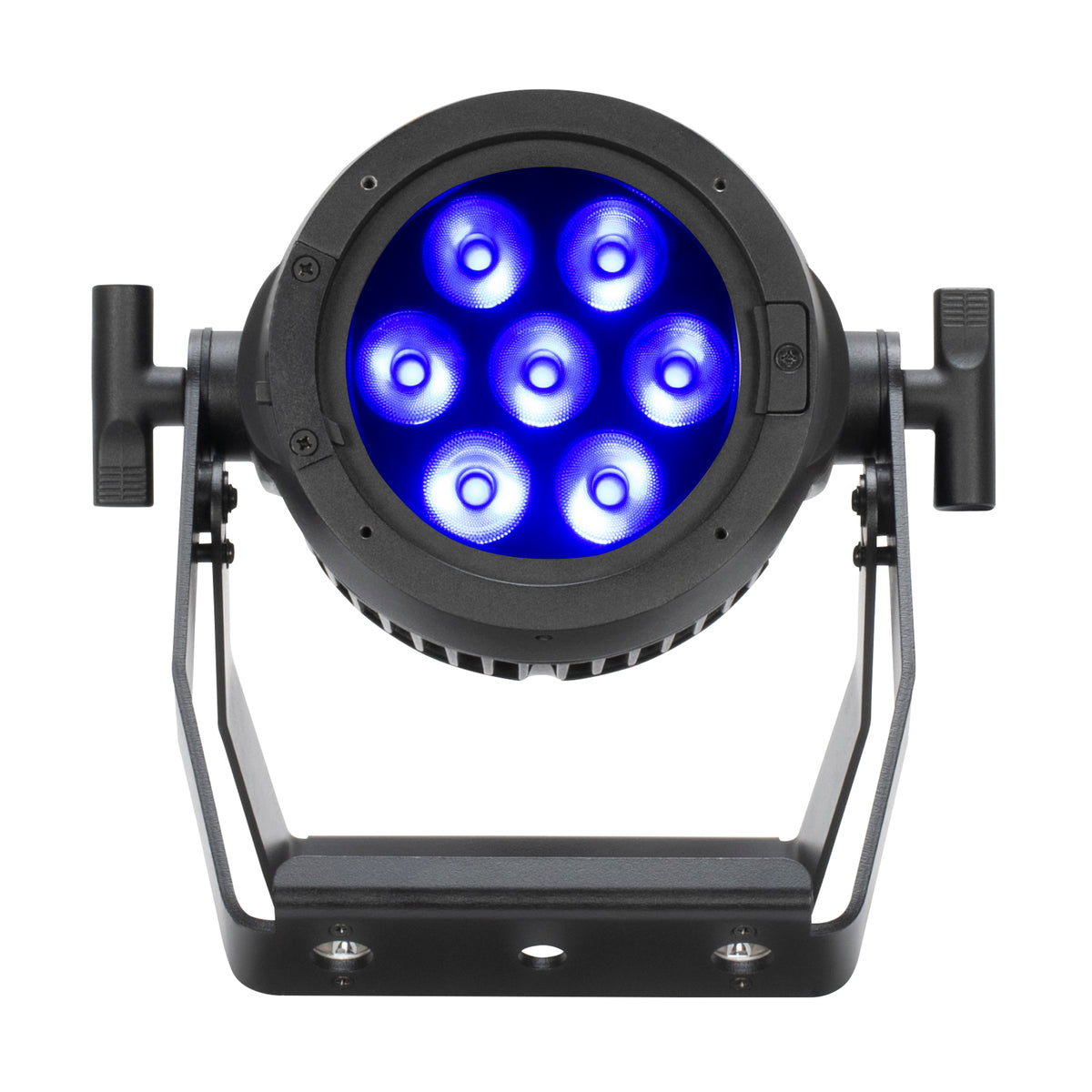

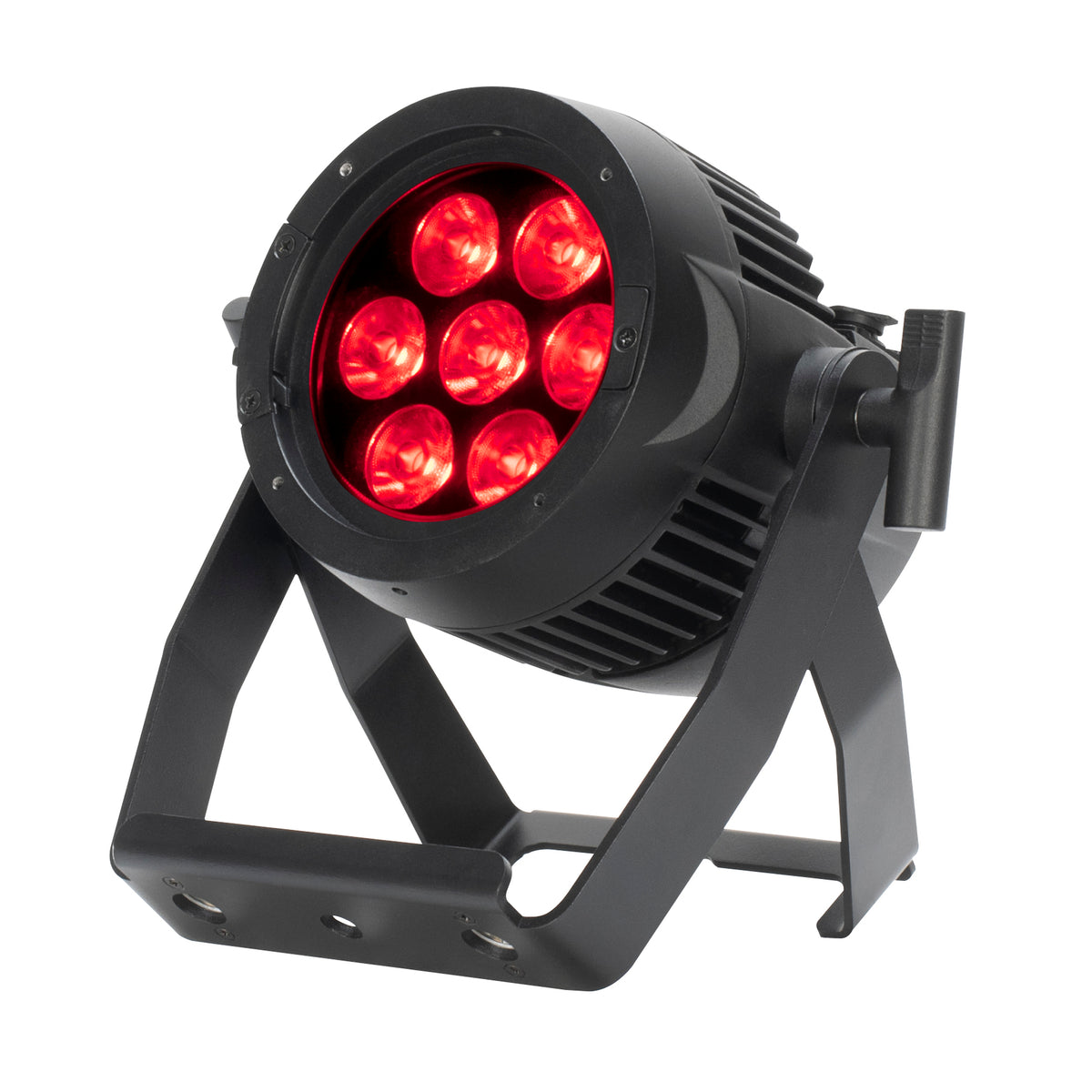

American DJ Encore LP7IP 7 x 20W IP65 Outdoor RGBL LED DMX Par Can Wash Light
AMERICAN DJ
American DJ Encore LP7IP 7 x 20W IP65 Outdoor RGBL LED DMX Par Can Wash Light
American DJ Encore LP7IP 7 x 20W IP65 Outdoor RGBL LED DMX Par Can Wash Light
IP65 LED Par Wash, 7 x 20W RGBL
Free Shipping
Features
- 7 x 20W RGBL quad LEDs deliver 2,500 lumens of mixed color
- IP65 rating protects against rain, snow, dust, and sand
- Linear white color temperature control from 2700K to 7000K
- Included 25 degree frost filter widens the 10 degree beam
- 103W max draw chains 10 fixtures on one 120V circuit
Couldn't load pickup availability
What's Included in the box
- American DJ Encore LP7IP Outdoor RGBL LED DMX Par Can Wash Light
- 25 Degree Frost Filter
- Power Cord
SKU: SKU: Encore LP7IP
View full details








Product Description

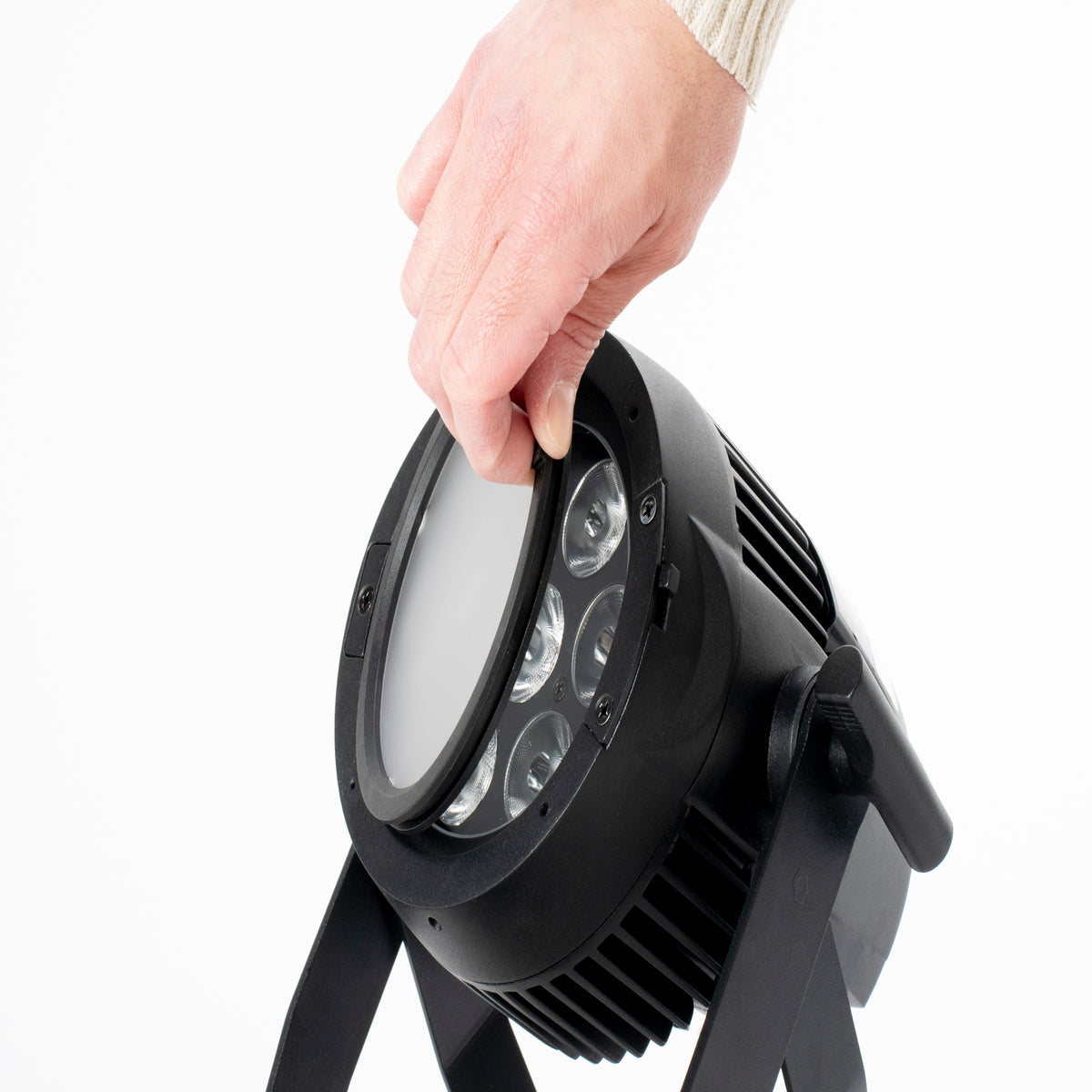

The native beam angle is 10 degrees, tight enough for uplighting drapes, columns, and architectural details. Snap in the included 25-degree frost filter and the fixture becomes a wide, even wash; extra frost options are sold separately and snap into the front of the fixture.

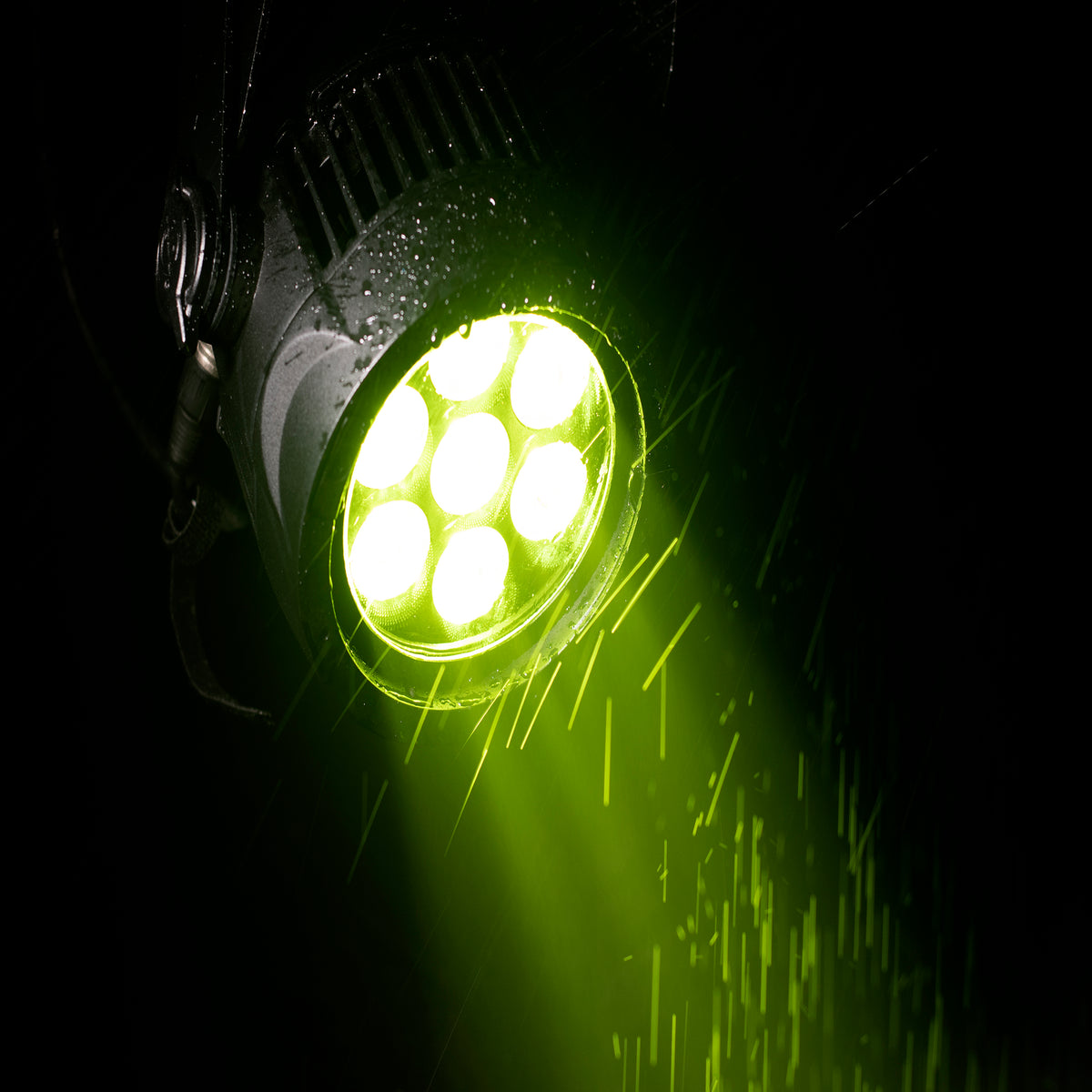

IP65 sealing means rain, snow, dust, and sand stay out, which is what makes this par usable at outdoor stages, festival grounds, and tented events, then equally at home in a club. The all-metal housing, scissor yoke, and safety eye handle repeated transport.
Control covers six DMX modes from 4 to 16 channels, static color, RGBL dimmer, program, and DMX operational modes, six dimming modes, four dim curves, and a 4-button menu with digital display. RDM support handles remote management, and adjustable refresh rates up to 25,000Hz keep the fixture flicker free for TV, film, and streaming.
Maximum draw is 103W, allowing 10 fixtures to daisy chain at 120V and 20 at 220V through locking outdoor power In/Out. IP-rated 5-pin DMX connections with rubber covers handle data outdoors, while standard 5-pin DMX cable works fine indoors. At 7.5 lb the par is easy to place on truss or floor.
Features
-
Four Emitters, Deeper Color
Seven 20W quad LEDs mix red, green, blue, and lime for 2,500 lumens, with an R9 of 76.6 keeping deep reds from going flat.
-
Rated For Weather
IP65 sealing with rubber-covered locking power and 5-pin DMX connections keeps rain, snow, and dust out at outdoor events.
-
Two Beam Widths
A 10-degree native beam handles uplighting and accents; the included 25-degree frost filter snaps in for broad, even washes.
-
Ten Fixtures Per Circuit
Maximum draw of 103W lets 10 pars link at 120V and 20 at 220V, cutting the number of runs back to power distro.
-
Control To Match The Rig
Six DMX modes, four dim curves, RDM support, and refresh rates up to 25,000Hz cover console rigs and camera work alike.
Technical Specifications
- Product Type Outdoor LED Par Can Wash Light
- Light Source 7 x 20W quad RGBL LEDs (4-in-1: red, green, blue, lime)
- Beam Angle 10 degrees (includes 25 degree removable frost filter)
- CRI 84
- CRI R9 76.6
- Lumens 2,500
- Linear Color Temperature Control 2700K to 7000K
- Preset Color Temperatures 2700K, 3200K, 4000K, 5600K, 6500K
- Color Control 16-bit fine control (red, green, blue, lime)
- Color Macros 64 built-in

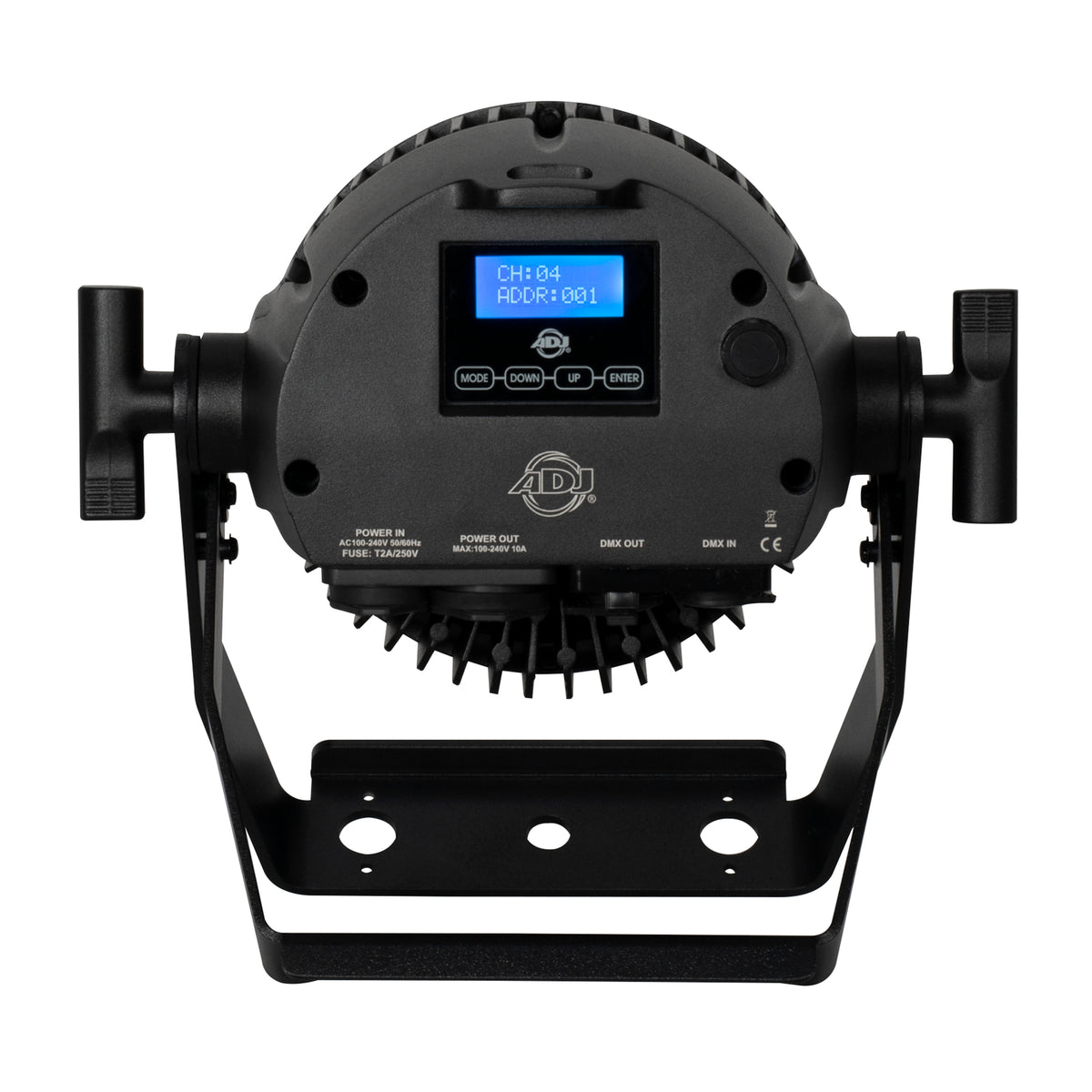

- Display 4-button DMX digital display on rear panel
- Operational Modes Static color, RGBL dimmer, program, DMX
- Dimming Modes 6 selectable (standard, stage, TV, architectural, theatre, stage 2)
- Dim Curves 4 selectable (linear, square, inverse square, S-curve)
- Refresh Rate Adjustable, 14 presets from 900Hz to 25,000Hz
- Electronic Dimming 0-100%
- DMX Modes 6 modes: 4, 7, 8, 10, 13, 16 channel
- Protocol Support RDM, wired digital communication network
- Data Connections 5-pin XLR DMX, IP rated sockets with rubber covers
- Power Connections Locking outdoor In/Out
- Ingress Protection IP65 against liquid, snow, dust, and sand

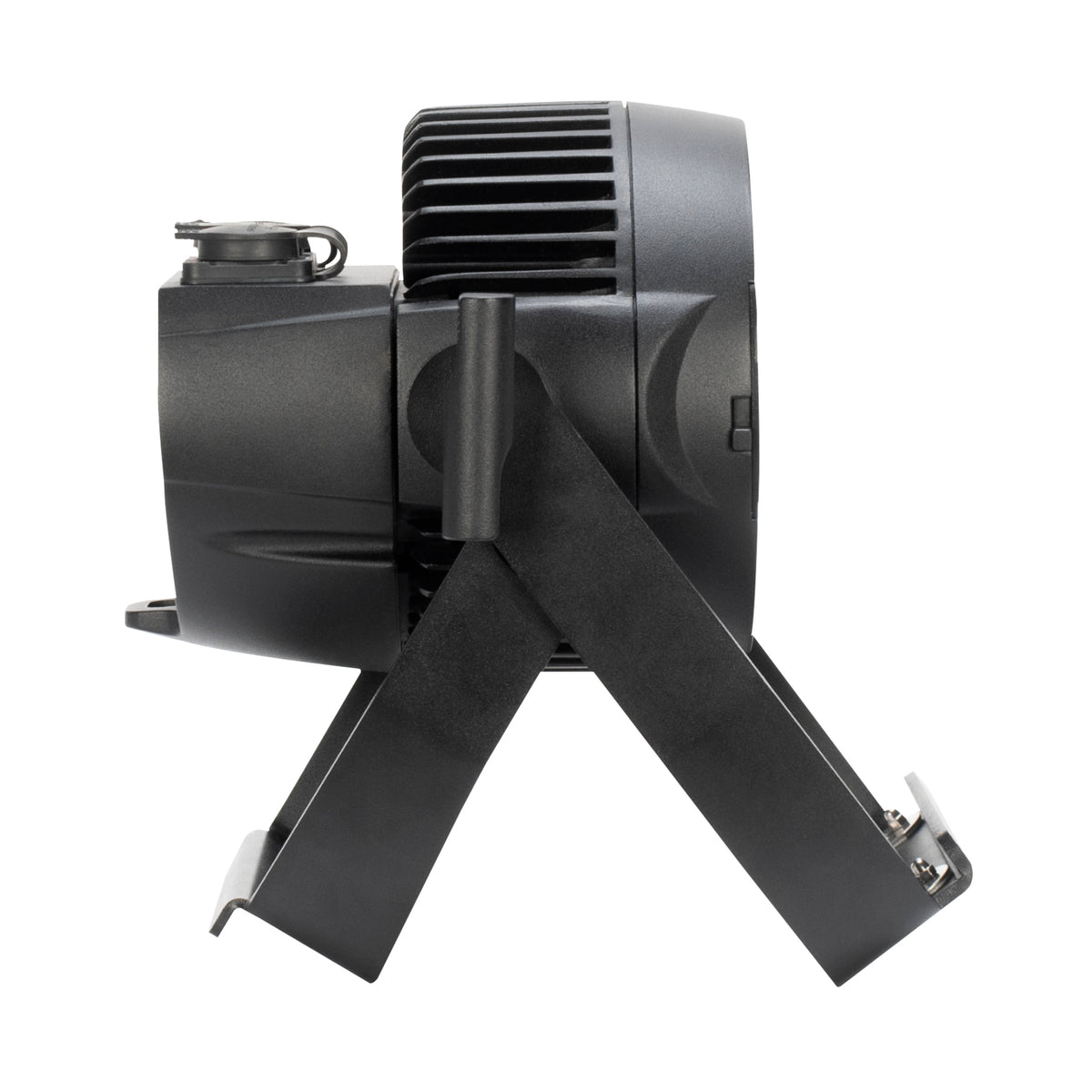

- Construction All metal with scissor yoke and safety eye
- Voltage AC 100-240V, 47/63Hz multi-voltage
- Daisy Chain 10 at 120V, 20 at 220V
- Max Power 103W
- Certification cETLus (Control #4010765)
- Weight 7.5 lb
- Dimensions 8.65" x 6.5" x 9.5"
