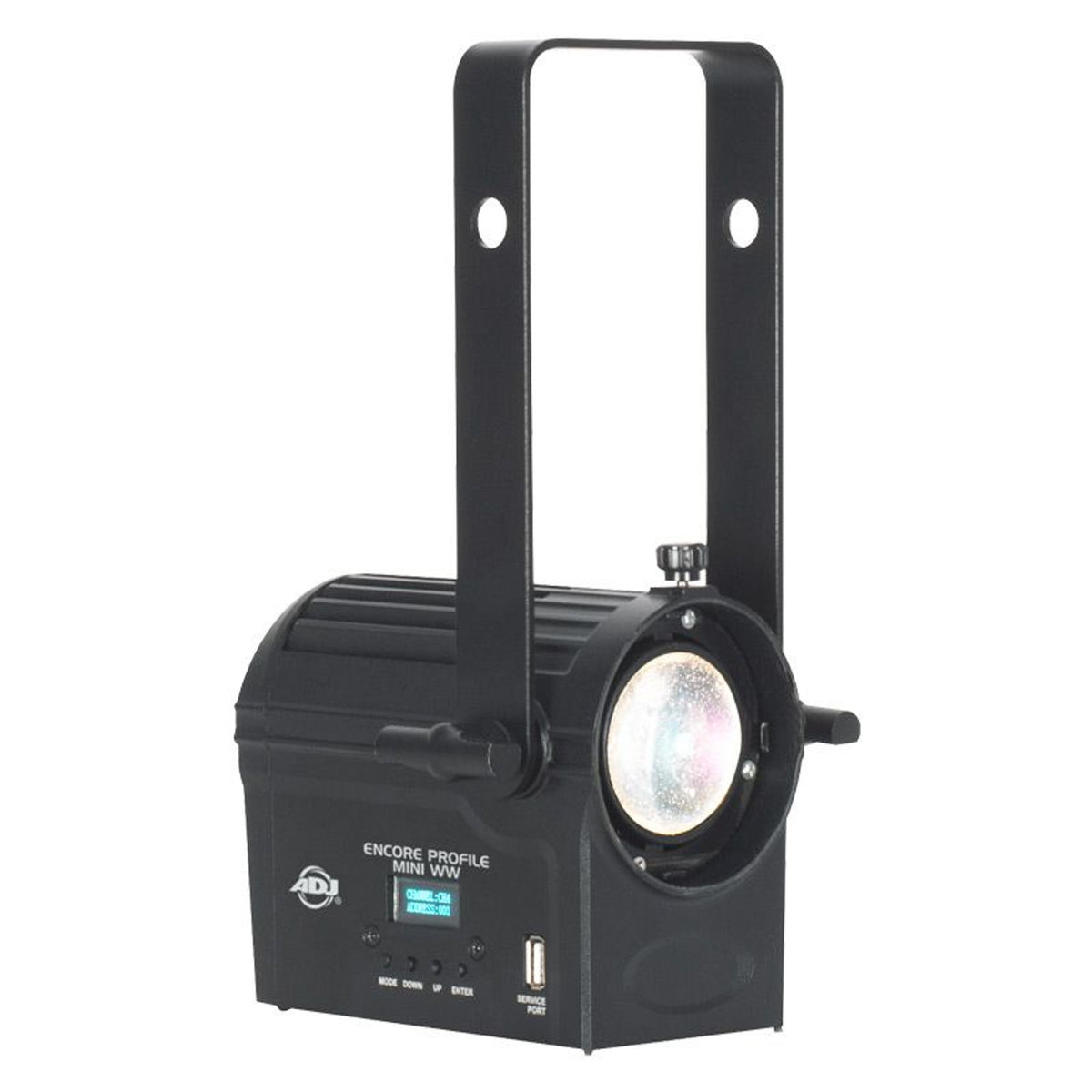

Encore Profile Mini WW 40W Warm White LED DMX Ellipsoidal Spot Light
AMERICAN DJ
Encore Profile Mini WW 40W Warm White LED DMX Ellipsoidal Spot Light
Encore Profile Mini WW 40W Warm White LED DMX Ellipsoidal Spot Light
Compact 40W Warm White LED Ellipsoidal, 3000K, 900 Lumens, CRI Over 98
Free Shipping
Features
- 40W warm white LED engine produces 900 lumens at 3000K
- CRI above 98 for accurate skin tones and scenic rendering
- Convection cooled for completely silent operation
- Gobo holder included, accepts metal and glass patterns
- IP65 locking power supports daisy chaining up to 25 units at 120V
Couldn't load pickup availability
What's Included in the box
- ADJ Encore Profile Mini WW Ellipsoidal
- IP65 Locking Connector to Edison Power Cable
- EP Mini GH Gobo Holder
SKU: SKU: Encore Profile Mini WW*
View full details









Product Description

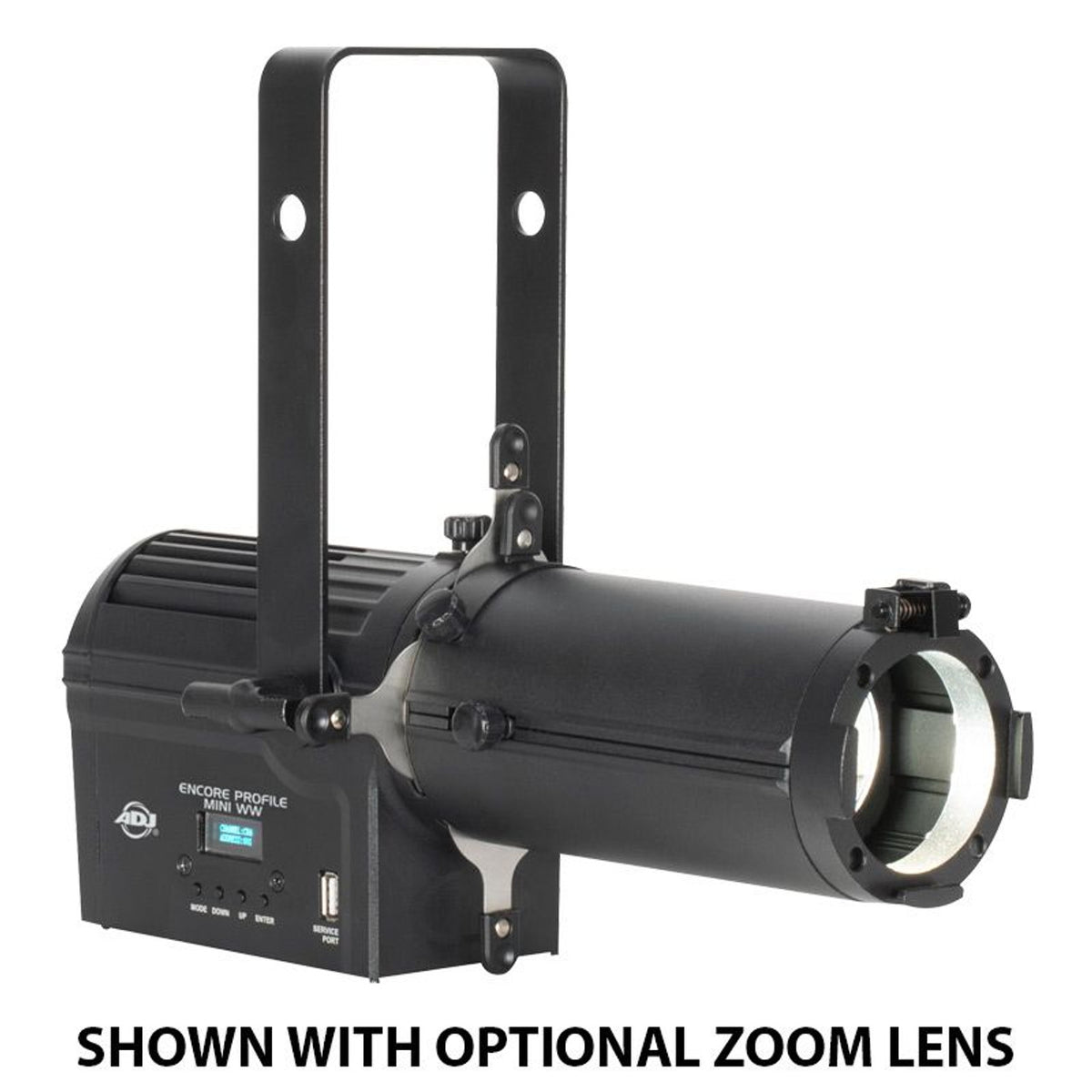

Two optional zoom lenses adapt the beam to your throw distance: the EP Mini Lens 1530 covers 15 to 30 degrees, and the EP Mini Lens 2550 covers 25 to 50 degrees (both sold separately, one is required for the fixture to project properly). A gobo holder comes in the box, and the fixture accepts both metal and glass gobos for pattern projection. Convection cooling keeps the fixture completely silent during performances. Three DMX channel modes (2, 3, and 6 channels), adjustable refresh rates from 900 to 25,000 Hz, variable dimming curves, and RDM support give you full control from any console. IP65 locking power connectors allow daisy chaining up to 25 units at 120V. At 4 lb without a lens, the Mini WW is light enough for single-clamp rigging and compact enough to tuck into tight positions on a lighting plot.
Features
High CRI Warm White
A CRI above 98 at 3000K renders skin tones and fabrics naturally, making this fixture ideal for theater and broadcast work.
Silent Convection Cooling
Fan-free design produces zero mechanical noise, letting the fixture sit close to performers without mic bleed.
Gobo Pattern Projection
The included holder accepts metal and glass gobos for scenic breakup patterns, logos, or architectural texture.

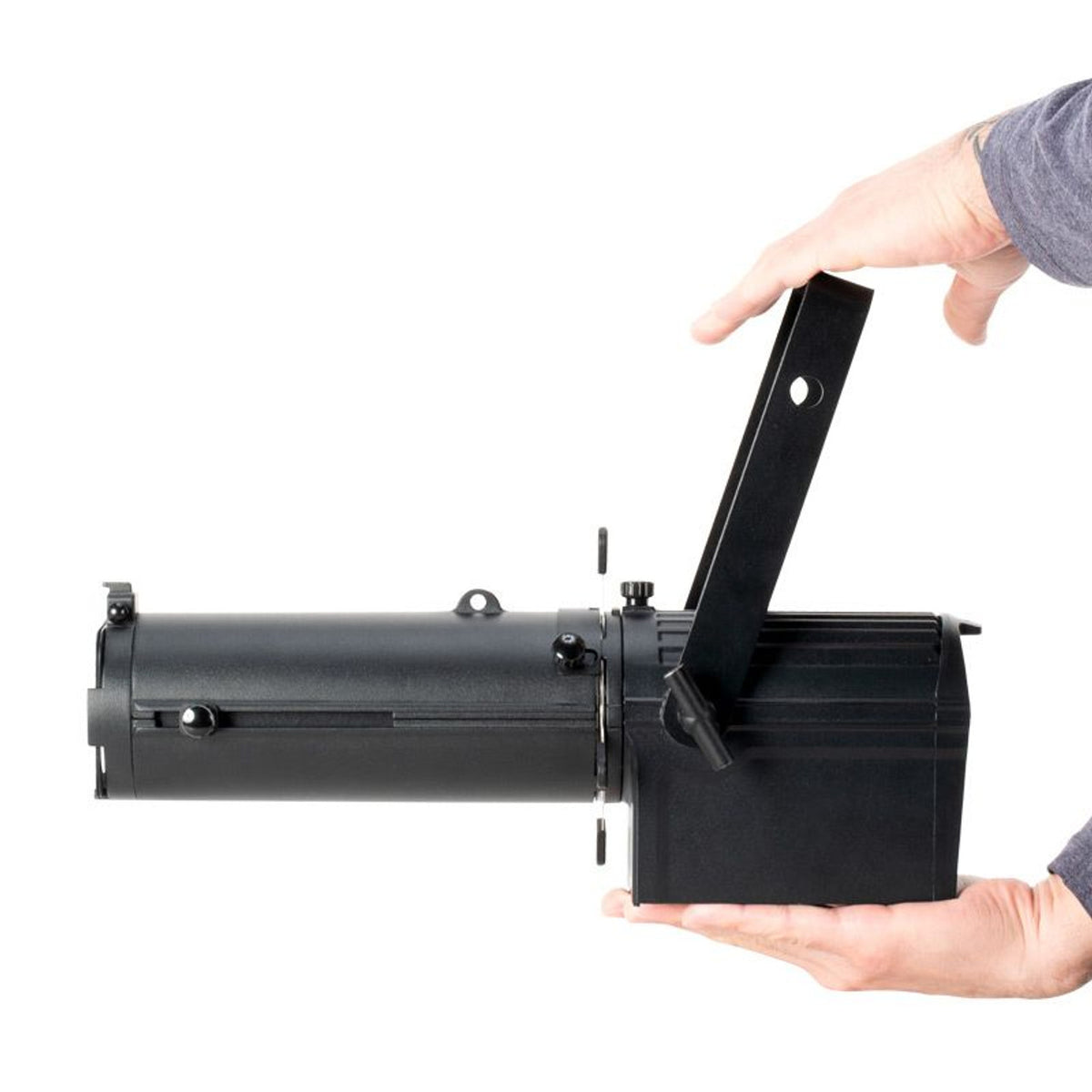

Compact and Lightweight
At 4 lb without a lens, this ellipsoidal hangs on lightweight truss or clamps and fits tight positions on any plot.
Flicker-Free Output
Adjustable refresh rates from 900 to 25,000 Hz keep the beam steady on camera for broadcast and film applications.
Technical Specifications
- Product Type Compact Warm White LED Ellipsoidal
- Light Source 40W Warm White LED
- CRI Greater Than 98
- Lumens 900 Total
- Color Temperature 3000K
- LED Life 50,000 Hour Average
- DMX Modes 3 (2, 3, 6 Channel)
- Refresh Rate Adjustable, 900 to 25,000 Hz
- Cooling Convection (Fan-Free)
- Power AC 100-240V, 50/60 Hz, 45.6W Max at 120V
- Power Linking 25 Units Max at 120V, 53 Units Max at 230V

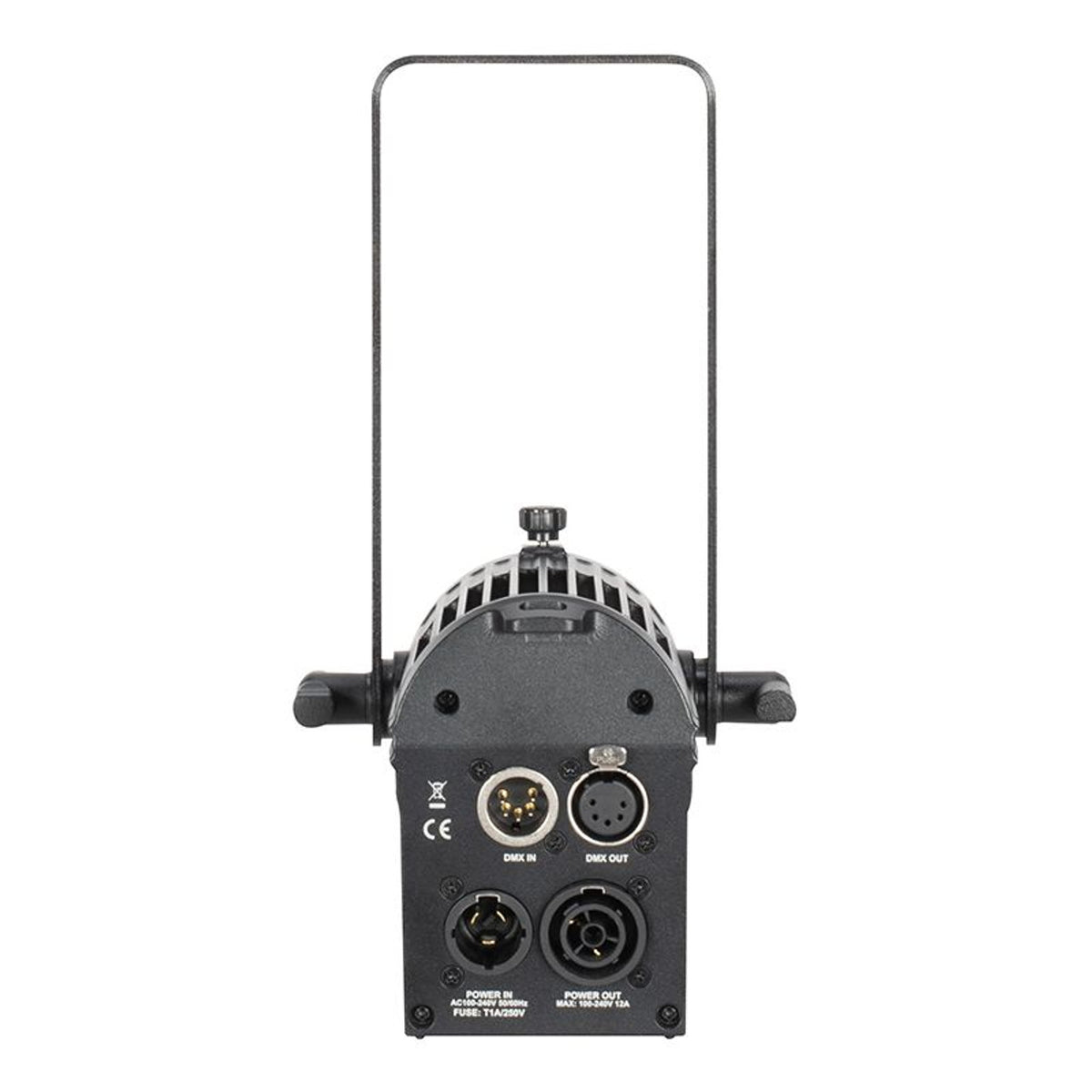

- Connections Locking 5-Pin XLR In/Out, IP65 Locking Power In/Out
- Dimensions (L x W x H) 8.8 x 5.7 x 10.9 in / 224 x 144 x 276 mm (No Lens)
- Weight 4.0 lb / 1.8 kg
