AMERICAN DJ

EVS3

EVS3

3.91mm Pixel Pitch LED Video Panel

Free Shipping

$799.99
$799.99 $1,259.95
Save 36%
Shipping calculated at checkout.
Features
    • 3.91mm pixel pitch delivers 65,536 pixels per square meter
    • Front and rear serviceable with four replaceable modules
    • 800 NITS brightness with a 5000:1 contrast ratio
    • 3840Hz refresh rate keeps the wall clean on camera
    • Corner protectors fitted to survive transport and setup
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • American DJ EVS3 LED Video Panel with Corner Protectors

SKU: EVS3

View full details

Product Description

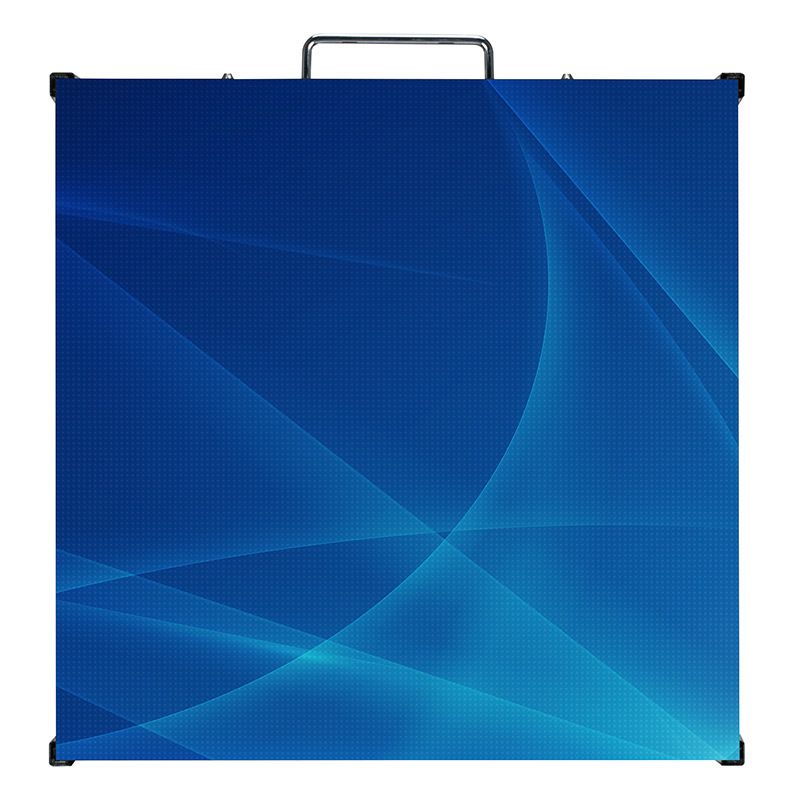

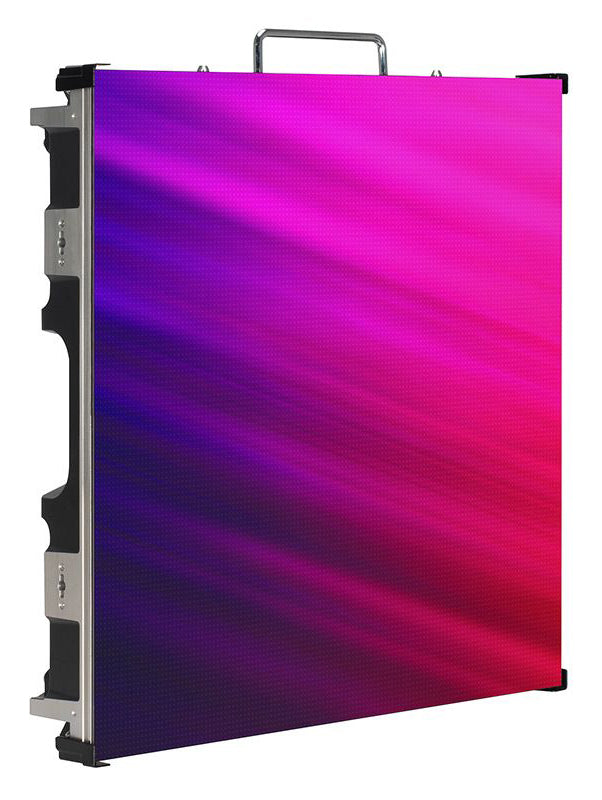

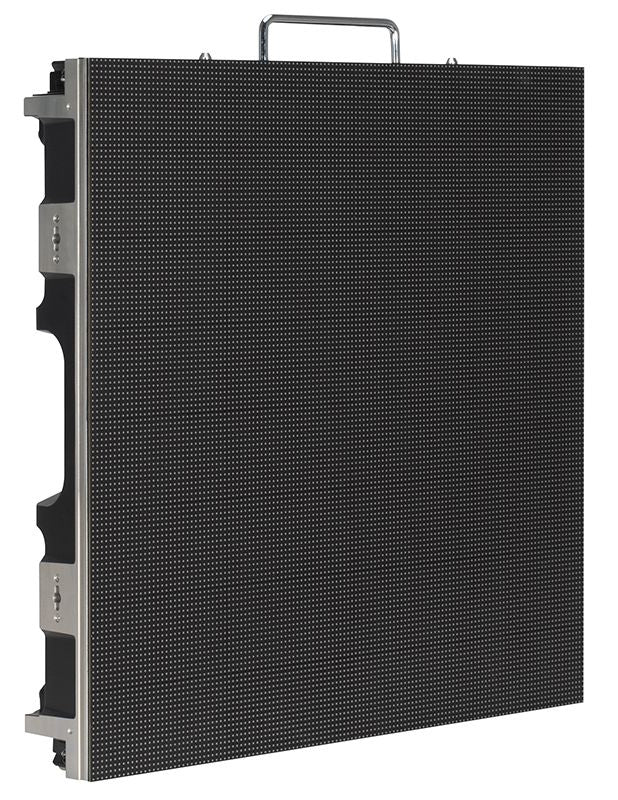

The ADJ EVS3 is a 500mm LED video panel for temporary installations that need a real image, not a blur. Pixel pitch is 3.91mm using 3-in-1 RGB SMD2121 LEDs, giving a 128x128 pixel grid per panel and 65,536 pixels per square meter, which holds detail at the close viewing distances typical of corporate stages, DJ walls, and house of worship platforms.

Each panel carries four individual mini modules and is serviceable from the front and the rear. That is the practical difference on a wall build: a dead module comes out without dropping the panel or reaching behind a rigged wall. Memory on Module keeps calibration data with the module itself, so a swap does not mean recalibrating.

Optically, output is 800 NITS with a 5000:1 contrast ratio, 14-bit processing, and viewing angles of 160 degrees horizontal and 140 degrees vertical at 9.75 ft. Refresh rate is 3840Hz with 1/16 scan, which keeps the wall clean on camera. Brightness adjusts across 100 levels from 0 to 100%, and correction can be applied per pixel, module, or cabinet.

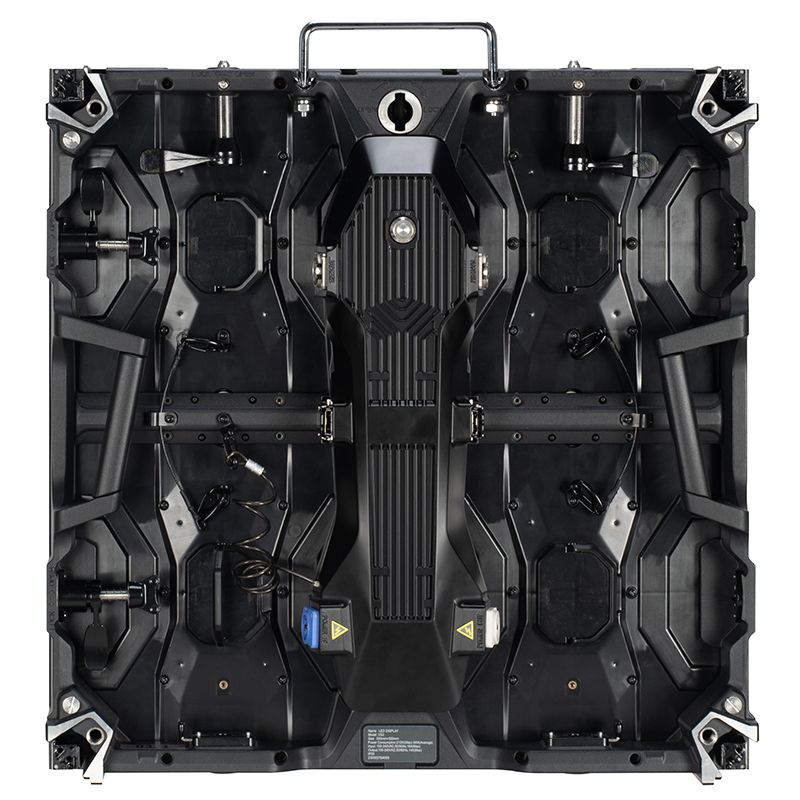

Control runs on a Nova Star synchronous system via DVI, accepting Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI sources over ethernet up to 120m or fiber beyond that. Power is 100-240V with locking power and data In/Out, averaging 48W and peaking at 120W per panel.

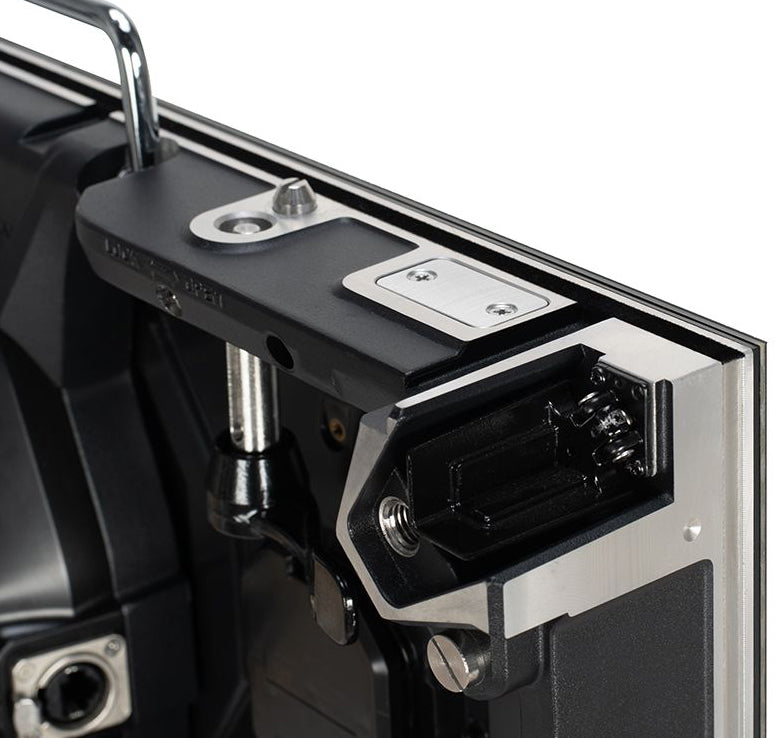

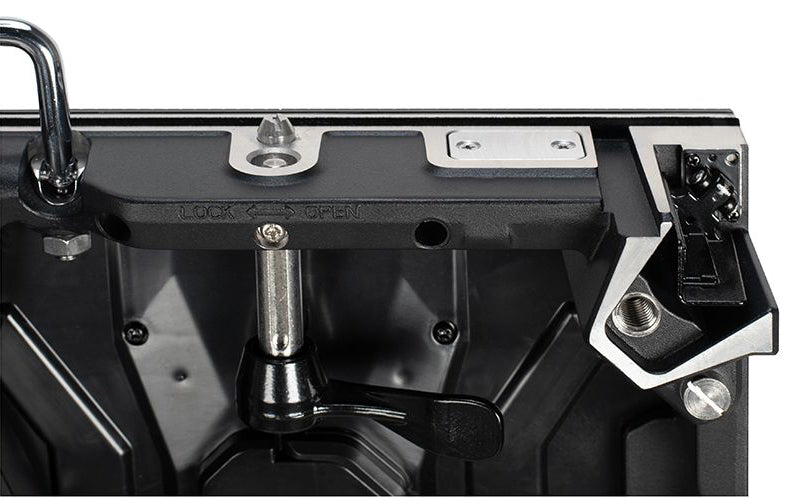

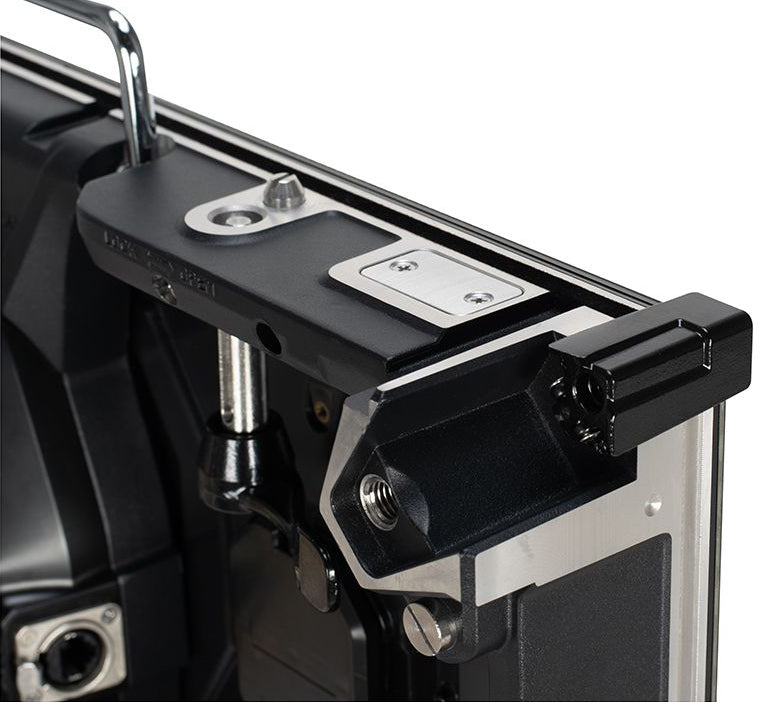

Panels measure 19.68 x 19.68 x 2.96 inches at 16.5 lb with corner protectors fitted. Up to 8 fit in the VSFC8 flight case, and the VSRB1 rigging bar hangs up to 20 vertically. Intended for temporary use, not permanent installation.

Features

    • Detail At Close Range

      A 3.91mm pixel pitch packs 65,536 pixels into each square meter, so the wall still resolves cleanly for audiences standing a few feet away.

    • Service It From Either Side

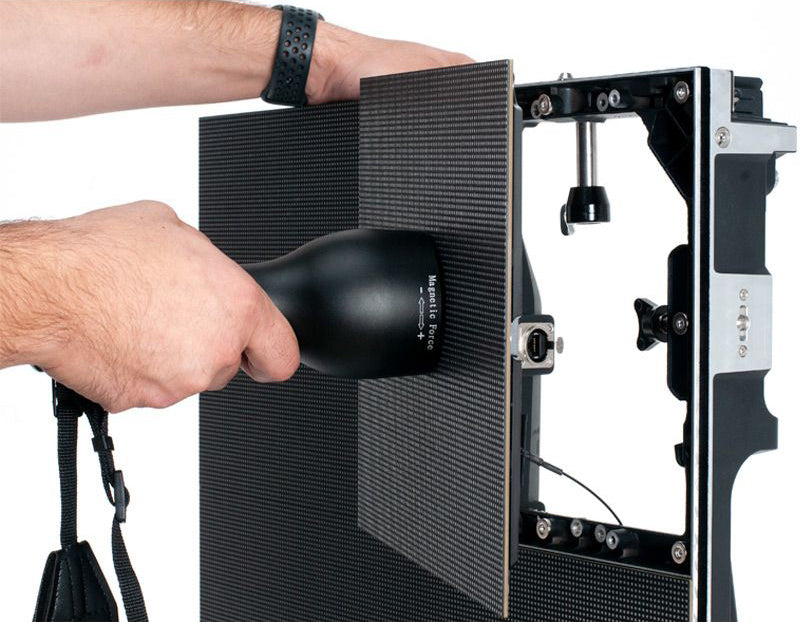

      Four modules per panel come out from the front or the rear, so repairs happen without dropping panels out of a rigged wall.

    • Calibration Travels With The Module

      Memory on Module stores calibration data on the module itself, so swapping a failed unit does not mean recalibrating the wall.

    • Camera Ready Image

      A 3840Hz refresh rate with 14-bit processing and 5000:1 contrast keeps the wall free of banding and scan lines on broadcast cameras.

    • Rigs And Packs Efficiently

      Eight panels fit the VSFC8 flight case and the VSRB1 rigging bar hangs 20 vertically, with corner protectors guarding edges in transit.

Technical Specifications

  • Product Type LED Video Panel
  • Pixel Pitch 3.91mm (0.15 in)
  • LED Configuration 3-in-1 RGB SMD2121 LED
  • Pixel Density 128x128, 65,536 per square meter
  • Module Quantity 4, front and rear serviceable
  • Memory on Module Yes
  • Brightness 800 NITS
