EVS3 Vision Series 3.91mm Pixel Pitch RGB SMD2121 LED Video Panel

The ADJ EVS3 is a 3.91mm pixel pitch LED video panel built for temporary installations where high-resolution visuals need to hold up under stage lighting and fast-paced event production. Each panel packs 65,536 pixels per square meter in a 128 x 128 configuration using 3-in-1 RGB SMD2121 LEDs, and the 800-NITS brightness with a 5000:1 contrast ratio delivers punchy images even on brightly lit stages. A 160-degree horizontal and 140-degree vertical viewing angle means the audience sees consistent color from most positions in the venue.

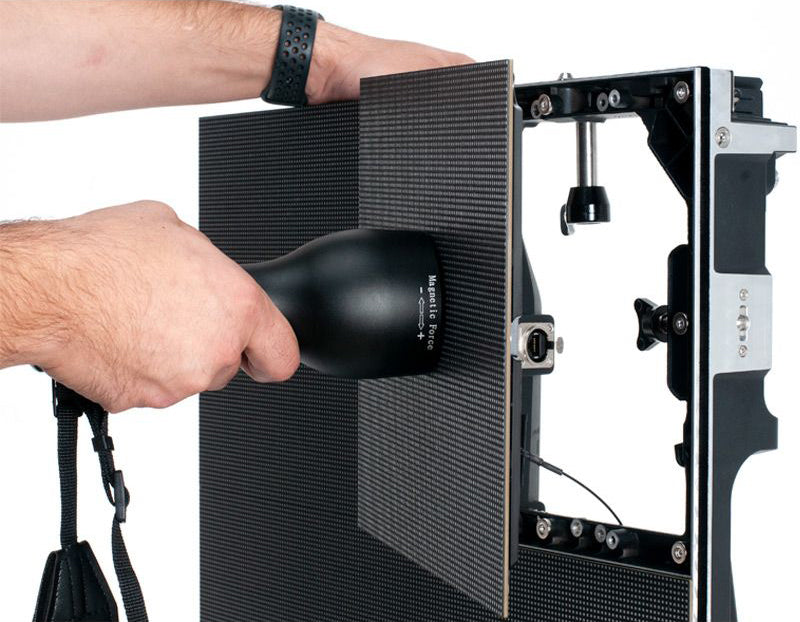

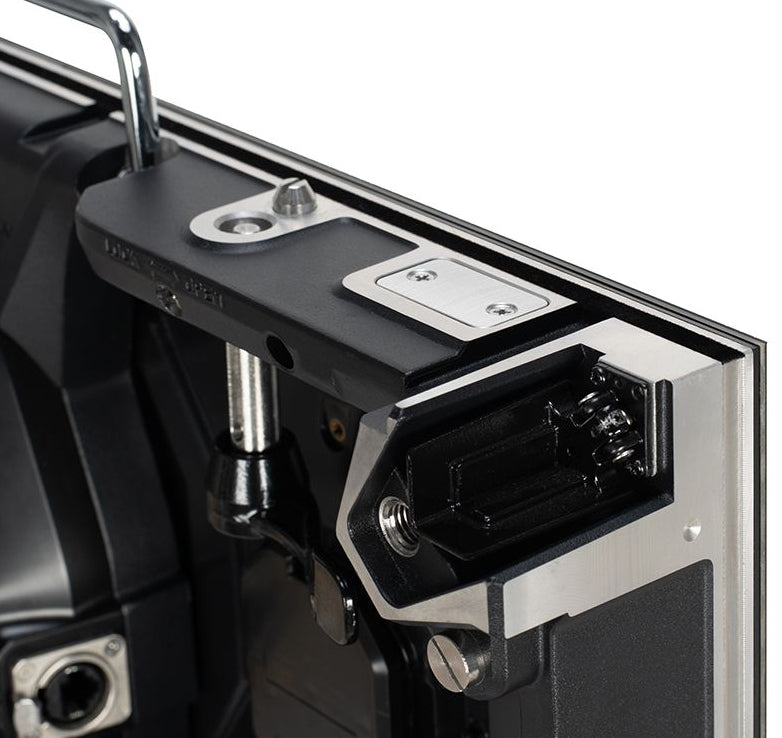

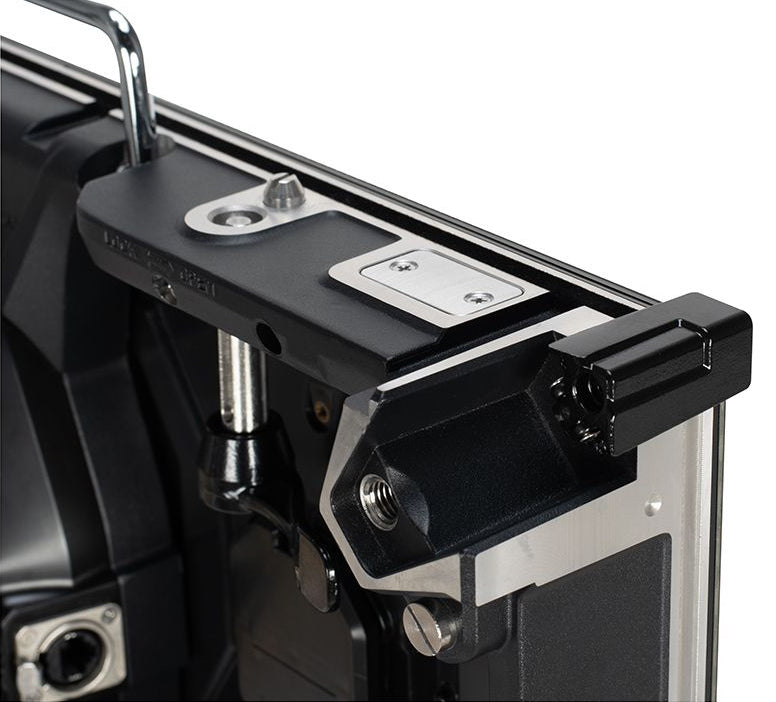

Four individual mini modules per panel are front and rear serviceable, so a single failed module can be swapped without removing the panel from the rig. Corner protectors guard the edges during transport, setup, and teardown. The panel accepts Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI inputs through a Nova Star synchronous control system with DVI. Up to 8 panels fit in the optional VSFC8 flight case, and up to 20 can hang vertically from the optional VSRB1 rigging bar. At 19.68 x 19.68 x 2.96 inches and 16.5 lb, each panel is light enough for a single stagehand to handle. cETLus listed.
