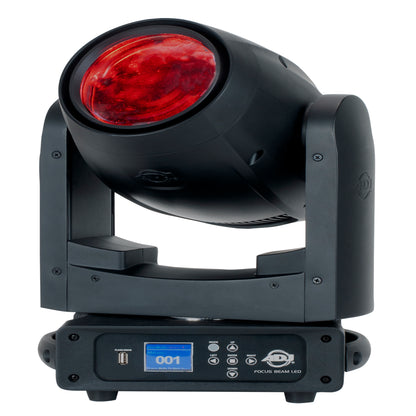

American DJ ADJ FOCUS BEAM LED 80 Watt CW LED DMX RDM Moving Head Light

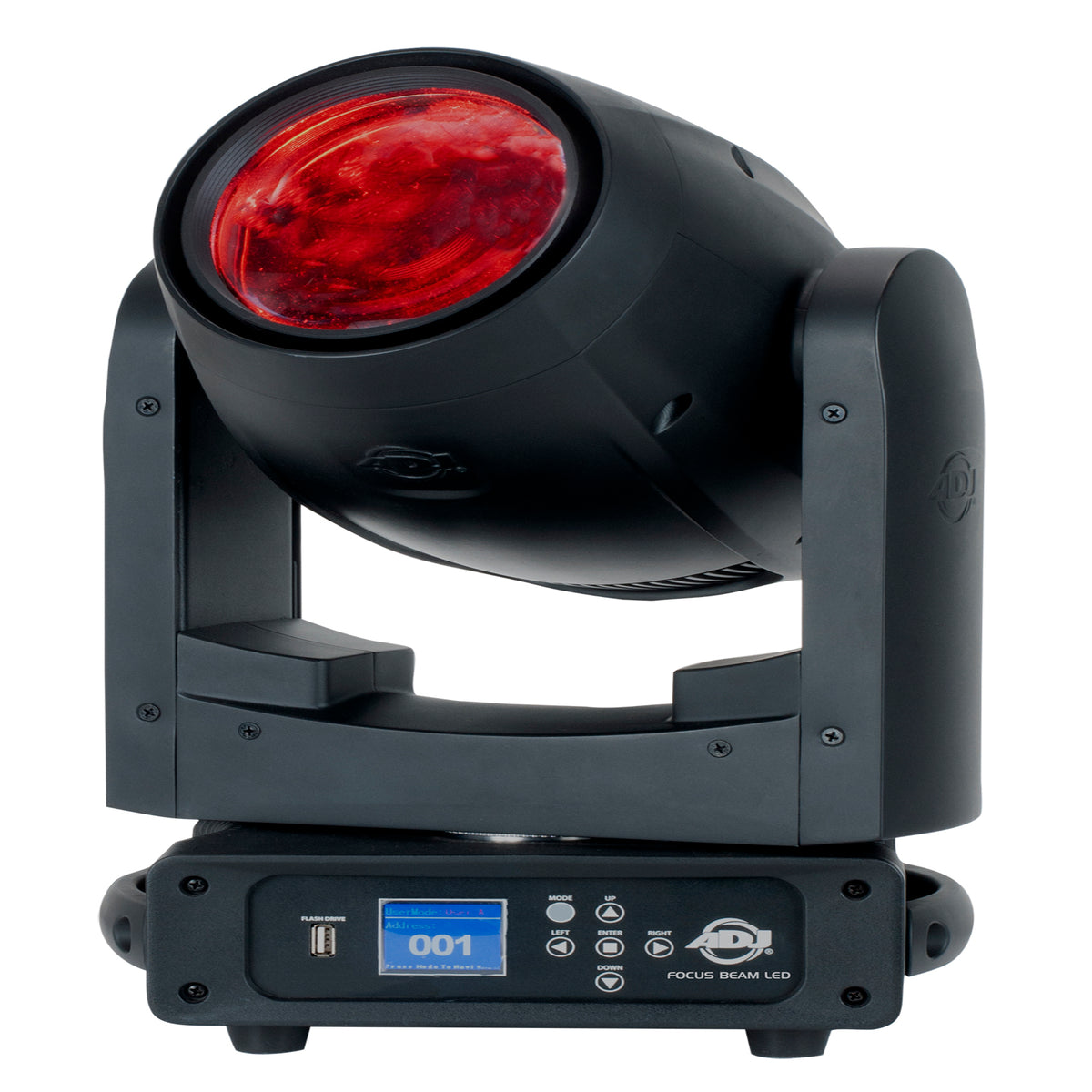

The Focus Beam LED is a compact moving head built around a single 80W cool white LED engine and an optical system that produces a tight 2.5-degree beam at 7400K. It is a beam fixture first: narrow, defined shafts of light that cut through haze and read from the back of the room.

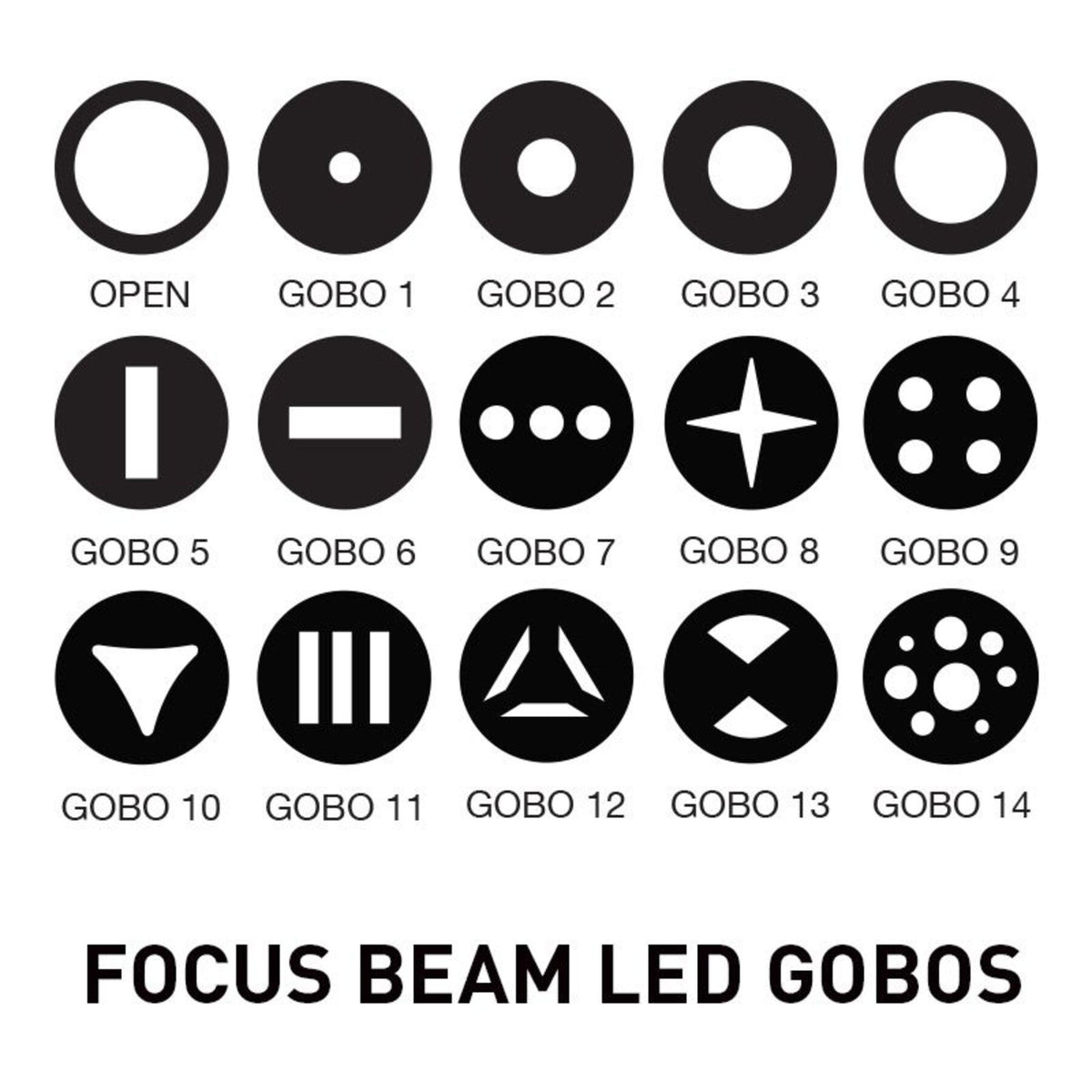

Thirteen dichroic colors plus white and a metal wheel with 15 fixed gobos plus open supply the palette, and a gobo shake effect adds movement without touching pan and tilt. Two rotating, indexable prisms, an 8-facet circular and a 6-facet linear, split the beam into aerial patterns, while motorized focus keeps gobo edges sharp at different throw distances. A built-in linear frost filter runs 0 to 100%, softening the beam into a wash when a scene needs a broader look from the same fixture.

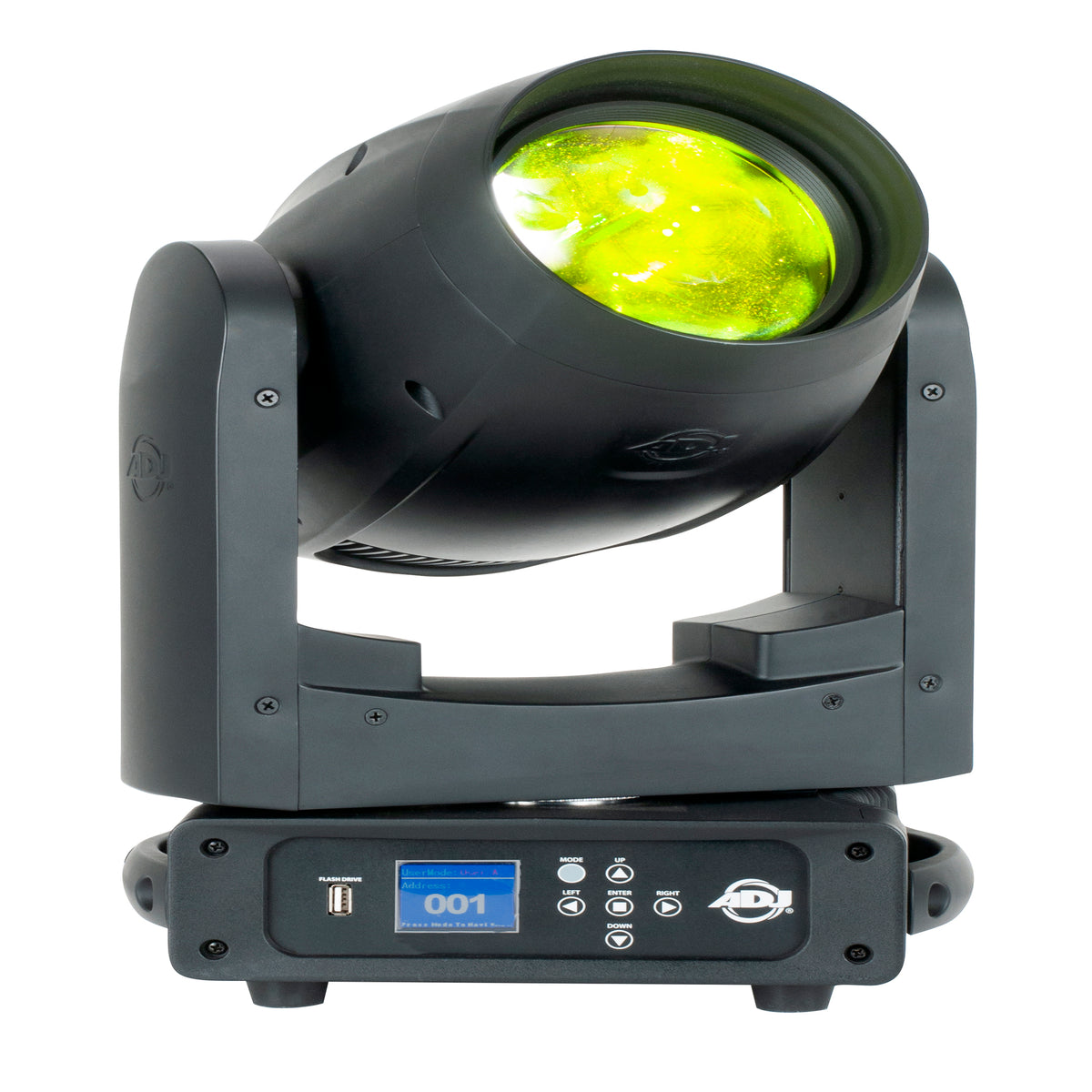

Control runs over DMX512 and RDM in 16- or 18-channel modes, with 16-bit pan and tilt across 630 and 270 degrees. Six dimming presets, dim speed from 0.1 to 10 seconds, LED refresh rates from 900Hz to 25kHz and gamma settings from 1.0 to 2.8 let you match the fixture to camera work or to the rest of a rig. A touch display with five buttons handles setup at the unit, and a rear USB port takes firmware updates.

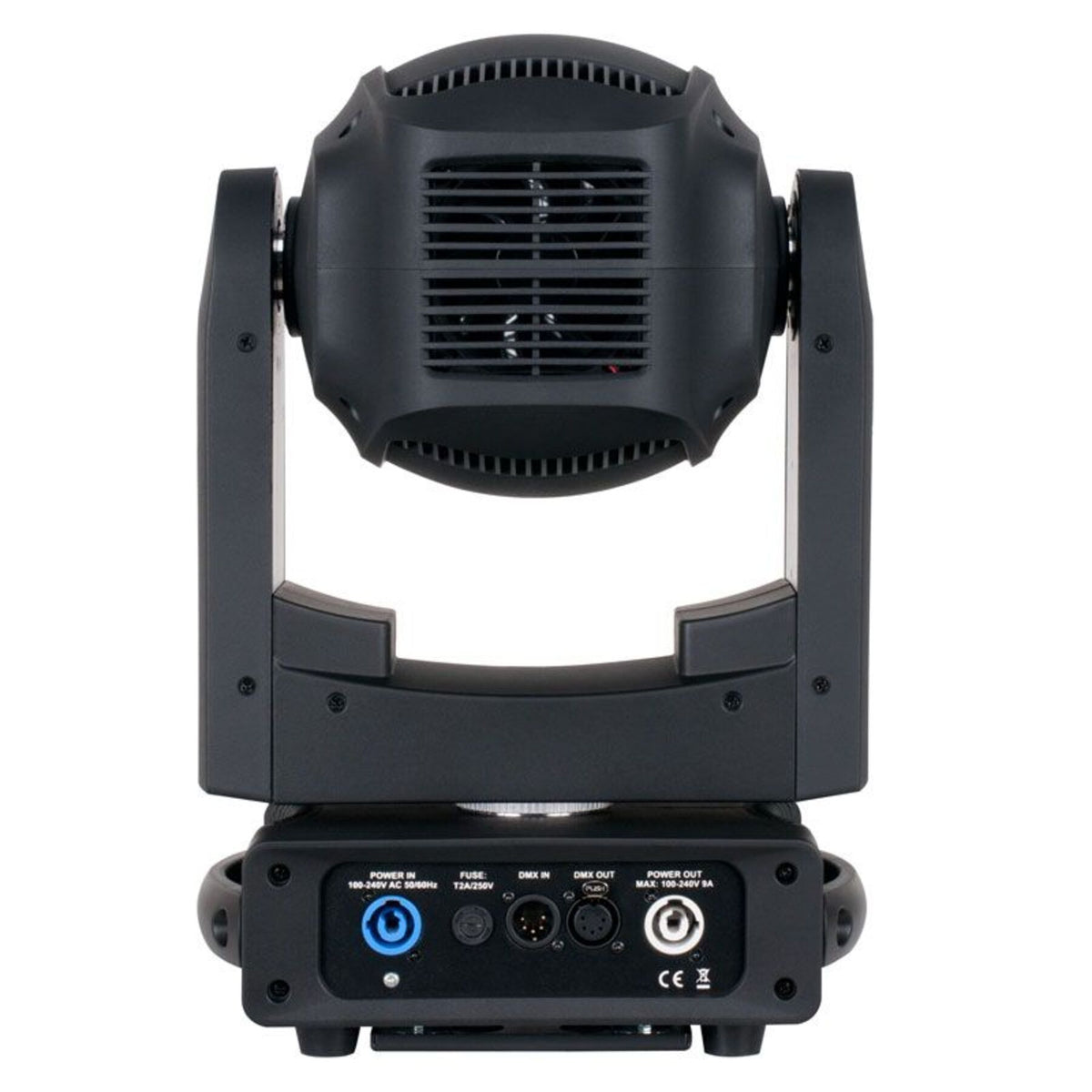

Seetronic locking power in and out daisy-chains up to 15 units at 120V or 30 at 230V, and 5-pin DMX in/out links data down the run.

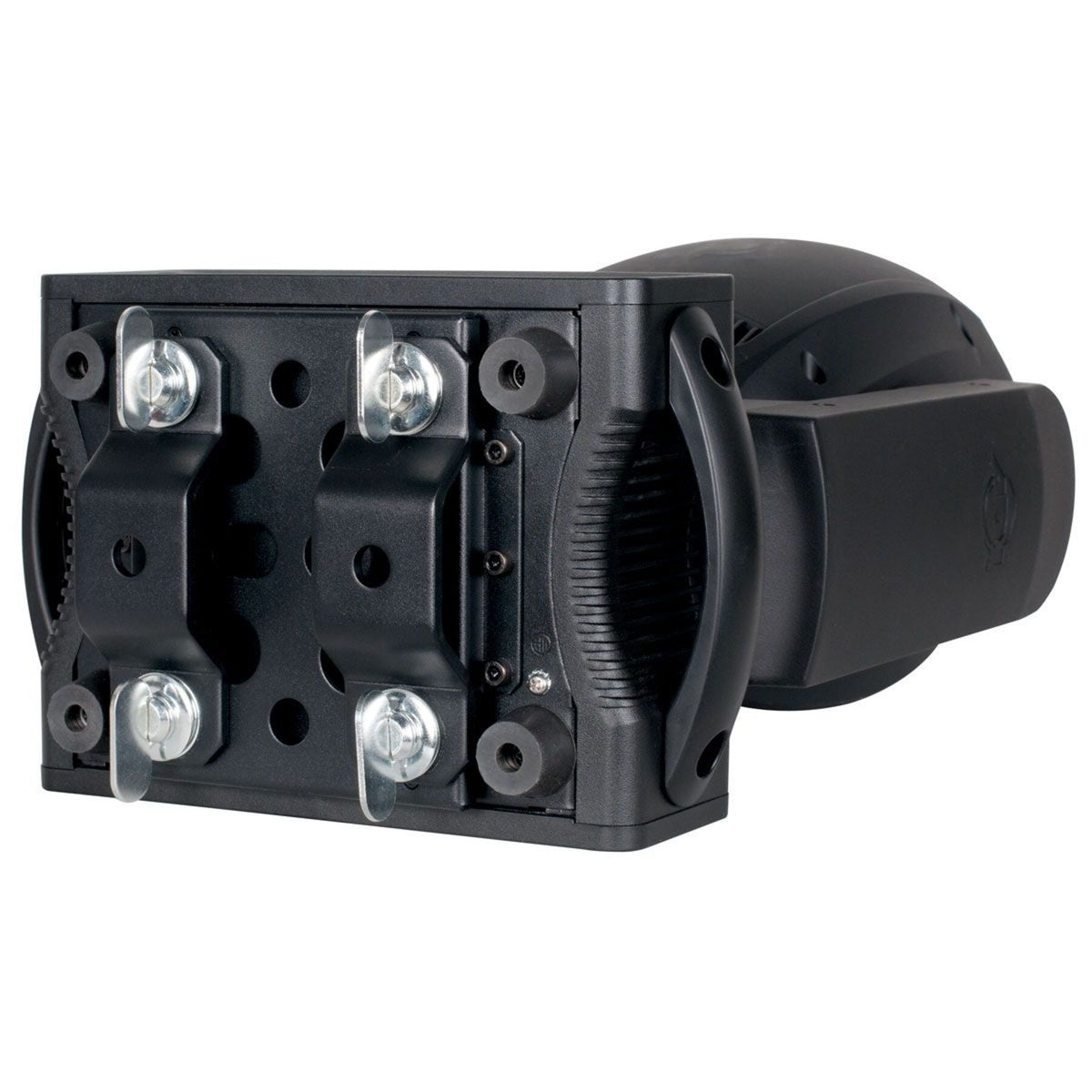

At 27 lb and under 18 inches tall, it suits fixed installations and mobile event work, and it fits the ADJ DRC MH road case.
