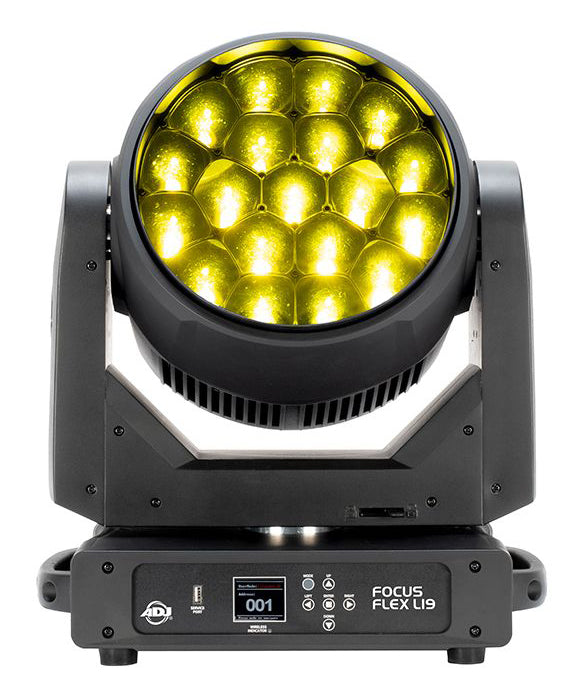

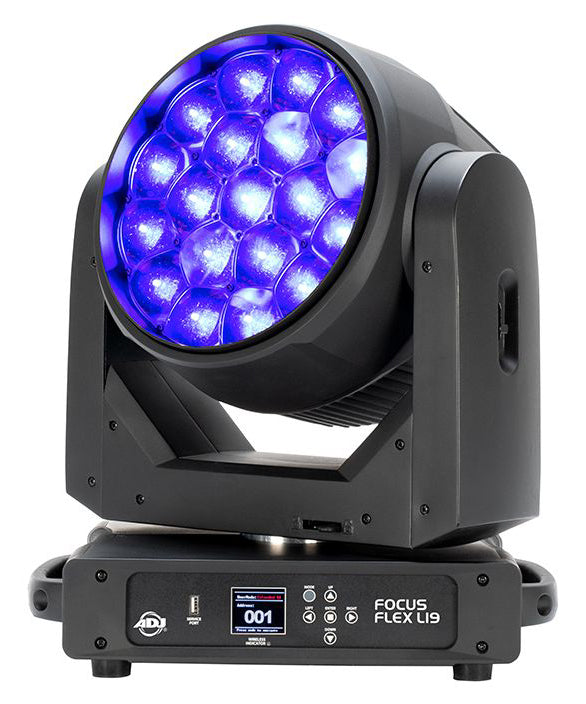

Focus Flex L19 x 40W RGBL LED DMX Moving Head Light w/Pixel FX
AMERICAN DJ
Focus Flex L19 x 40W RGBL LED DMX Moving Head Light w/Pixel FX
Focus Flex L19 x 40W RGBL LED DMX Moving Head Light w/Pixel FX
19 x 40W RGBL LED Moving Head Wash, 5 to 50 Degree Zoom, Pixel Control
Features
- 19 x 40W RGBL LEDs with individual pixel control for mapped effects
- Motorized zoom from 5 to 50 degrees for beams and washes
- Virtual CMY and 2700K to 10,000K linear white temperature control
- Supports DMX512, ArtNet, sACN, KlingNet, and wireless DMX
- Color calibrated LEDs for consistent output across fixtures
Couldn't load pickup availability
What's Included in the box
- ADJ Focus Flex L19 Moving Head
- 180mm Omega Brackets (2)
- 1.83M Locking Power Cable
- Safety Cable
SKU: SKU: Focus Flex L19*
View full details











Product Description

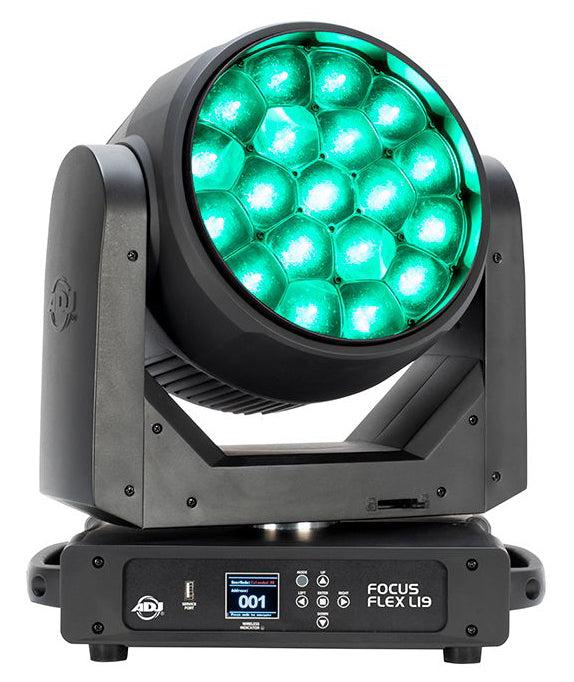

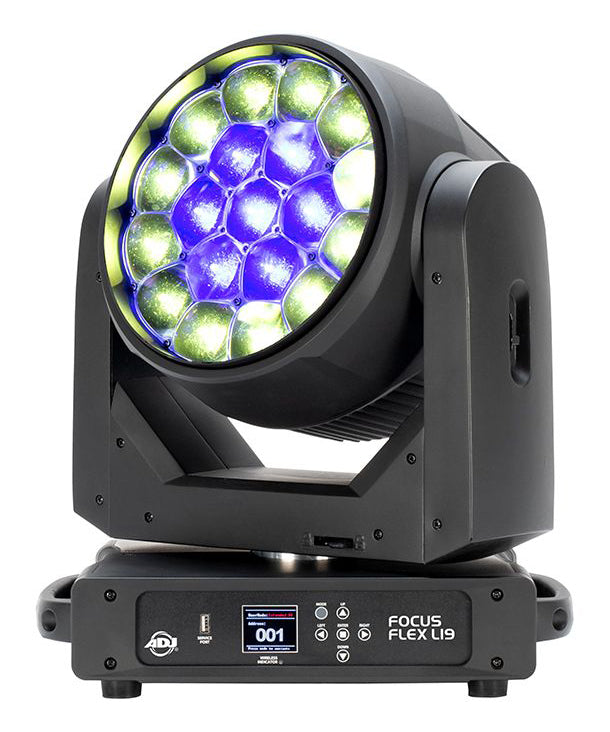

All 19 LEDs are color calibrated at the factory so units from different batches match in output. Built-in pixel effect programs with speed and fade control let you run dynamic patterns without a media server, and six DMX modes (up to 104 channels) give lighting designers full per-pixel access when they need it. The fixture supports DMX512, ArtNet, sACN, KlingNet, and wireless DMX. Pan covers 540/630 degrees and tilt covers 250 degrees, both with 16-bit fine resolution and locking positions for transport. At 42 lb with locking power and 5-pin XLR plus RJ45 connections, the Focus Flex L19 is built for touring, rental, and permanent installation in concert halls, clubs, and churches.
Features

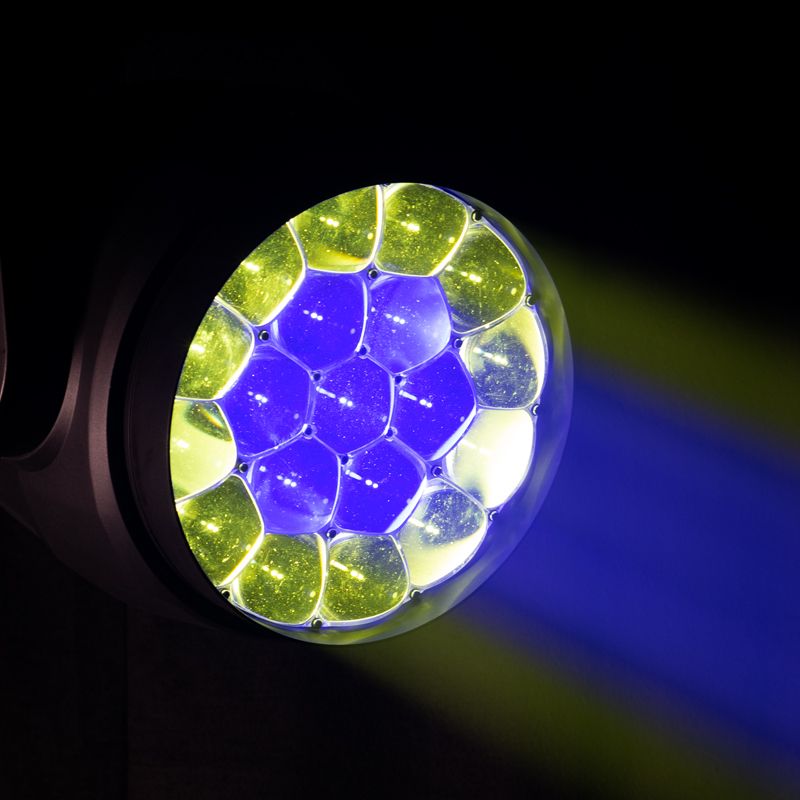

Pixel-Mapped Wash Effects

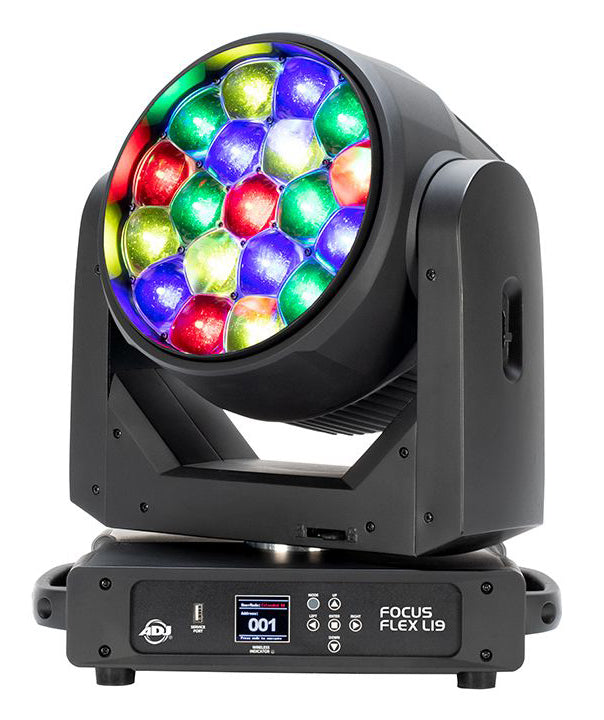

19 individually controllable RGBL LEDs generate dynamic pixel patterns from built-in programs or full per-pixel DMX access.
Beam to Wash Zoom
Motorized zoom from 5 to 50 degrees lets you switch between tight aerial beams and wide stage washes from a single fixture.
Multi-Protocol Control
DMX512, ArtNet, sACN, KlingNet, and wireless DMX compatibility lets the L19 drop into any control ecosystem.
Factory Color Calibration
Every LED is calibrated during production so units from different manufacturing batches produce matching output on the same rig.
Flexible White Matching
Linear white color temperature from 2700K to 10,000K with 10 presets lets you match tungsten, daylight, or LED sources on stage.
Technical Specifications
- Product Type RGBL LED Moving Head Pixel Wash
- Light Source 19 x 40W RGBL LEDs (50,000 hr)
- CRI 84.2
- Lumens 7,814 (Zoomed Out, Full On)
- Color Temperature 2700K to 10,000K
- Beam Angle 4.3 to 29 Degrees
- Field Angle 5 to 50 Degrees
- Pan 540/630 Degrees (16-Bit Fine)
- Tilt 250 Degrees (16-Bit Fine)
- DMX Modes 6 (22, 31, 40, 104, CMY 31, CMY 34 Channel)
- Control DMX512, ArtNet, sACN, KlingNet, Wireless DMX

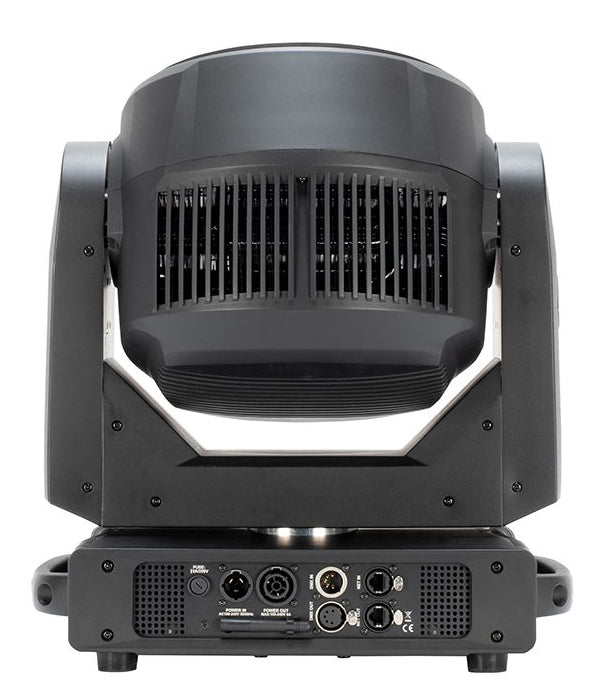

- Connections 5-Pin XLR In/Out, RJ45 In/Out, Locking Power In/Out
- Power AC 100-240V, 50/60 Hz, 990W Max
- Dimensions (L x W x H) 10.16 x 15.04 x 18.51 in / 258 x 382 x 470 mm
- Weight 42 lb / 19 kg
