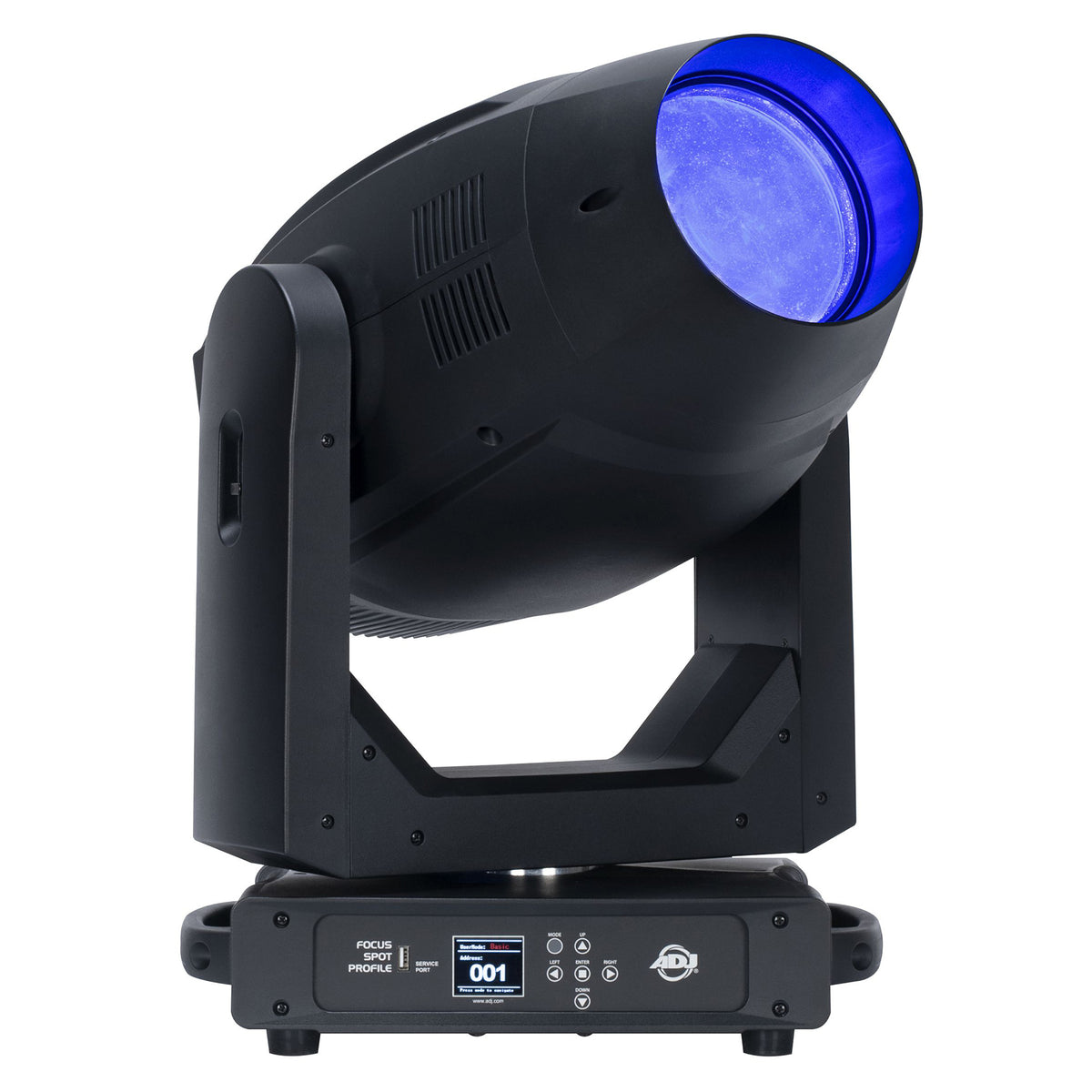

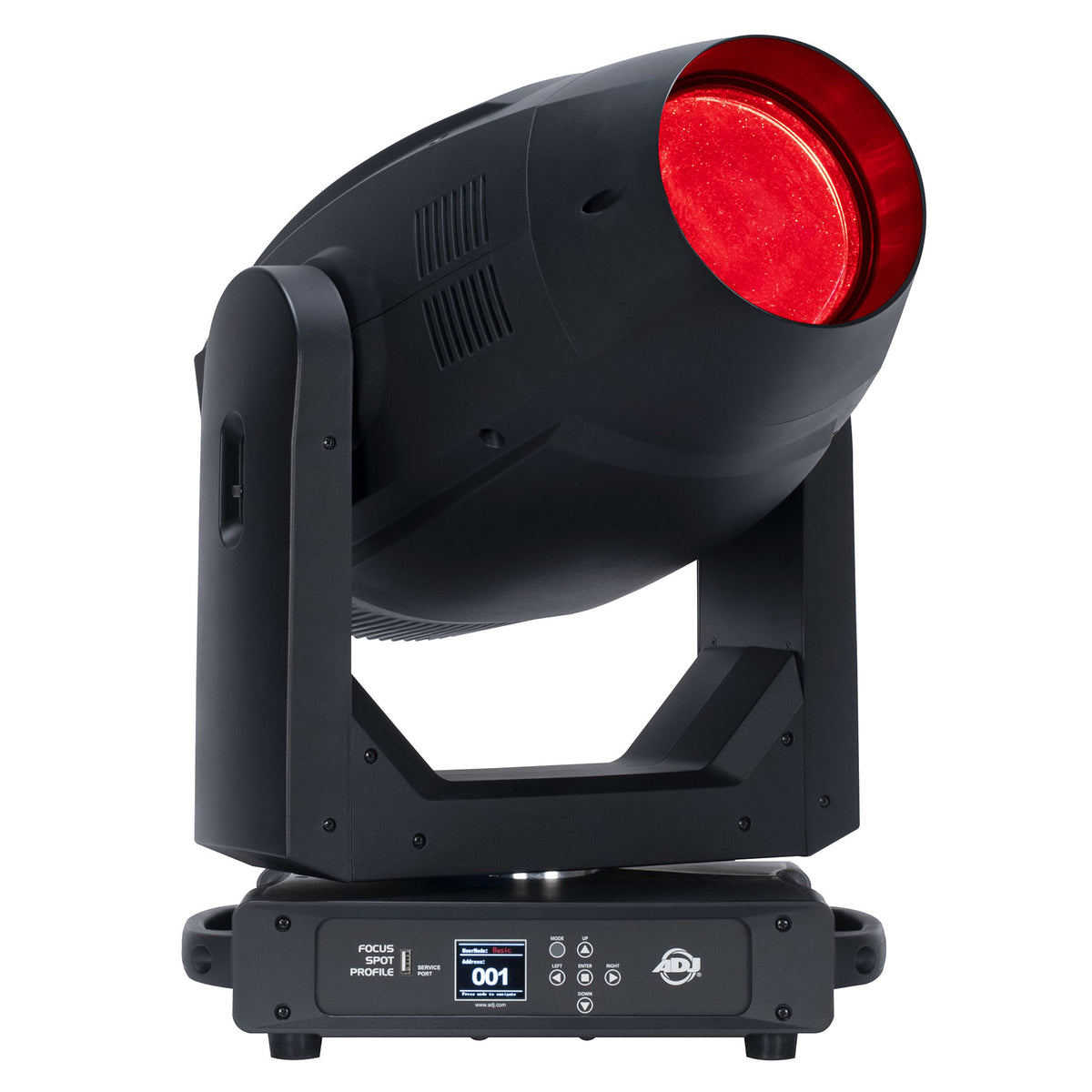

FOCUS PROFILE

The Focus Profile is the brightest fixture in the Focus Series and the one built for precise beam shaping. A 400W LED engine puts out 20,000 total lumens at a native 6,700K with CRI above 70, or 6,200K and CRI above 87 with the CRI filter in place.

The framing system is what sets it apart. Four independently controllable, rotating shutter blades cut the beam to shape, so you can key a podium, frame a set piece or keep light off a projection screen without gel or tape. Add a motorized iris, motorized zoom from 7 to 45 degrees, motorized focus, an animation wheel and a replaceable medium frost filter, and the fixture covers most of what a theatrical profile is asked to do.

Color runs on full CMY mixing with variable CTO from 2700K to 6700K, plus a separate wheel holding six dichroic filters: four primaries along with CTB and CRI correction. Two gobo wheels carry seven replaceable, indexed rotating glass gobos and eight static glass gobos, and twin bi-directional rotating prisms open up aerial work.

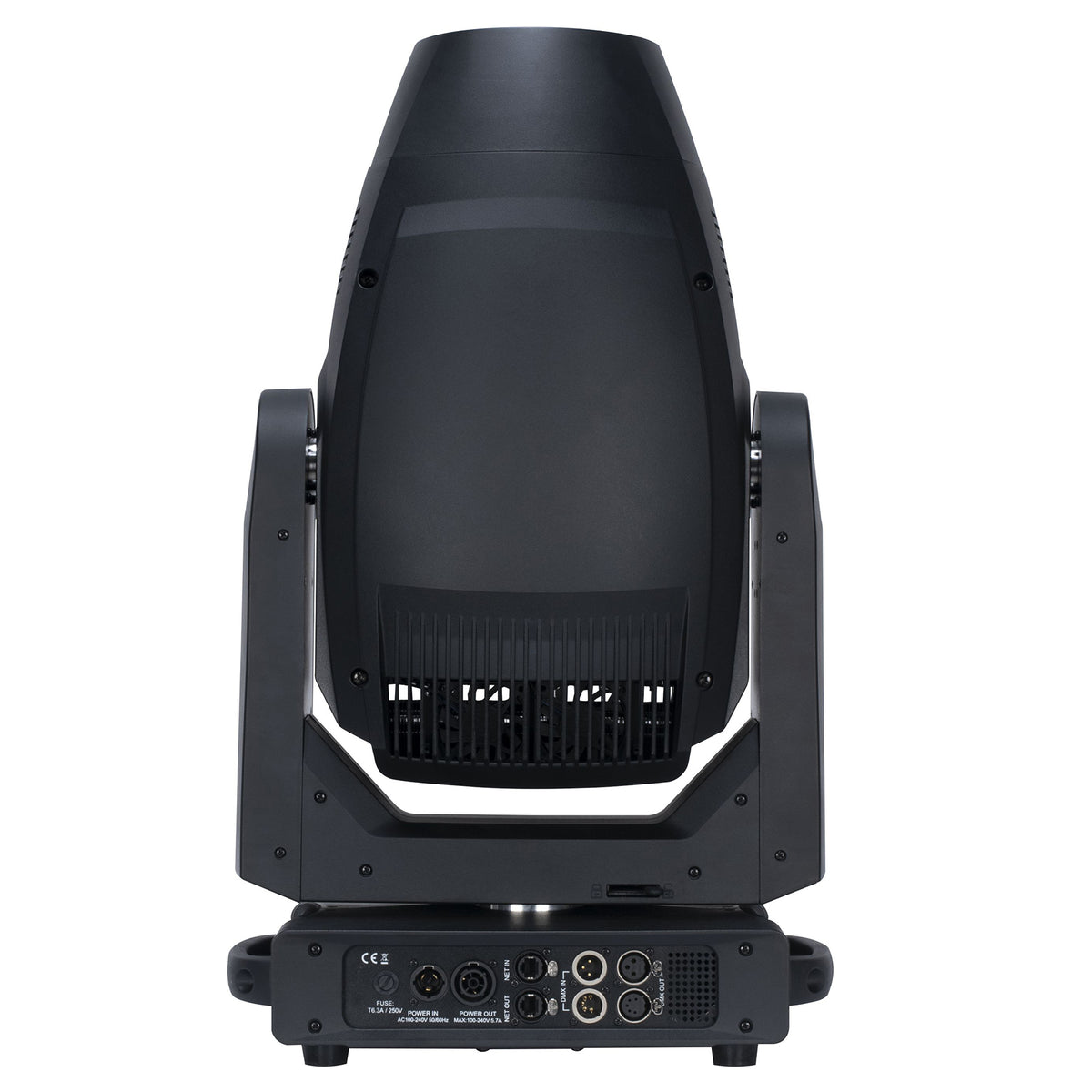

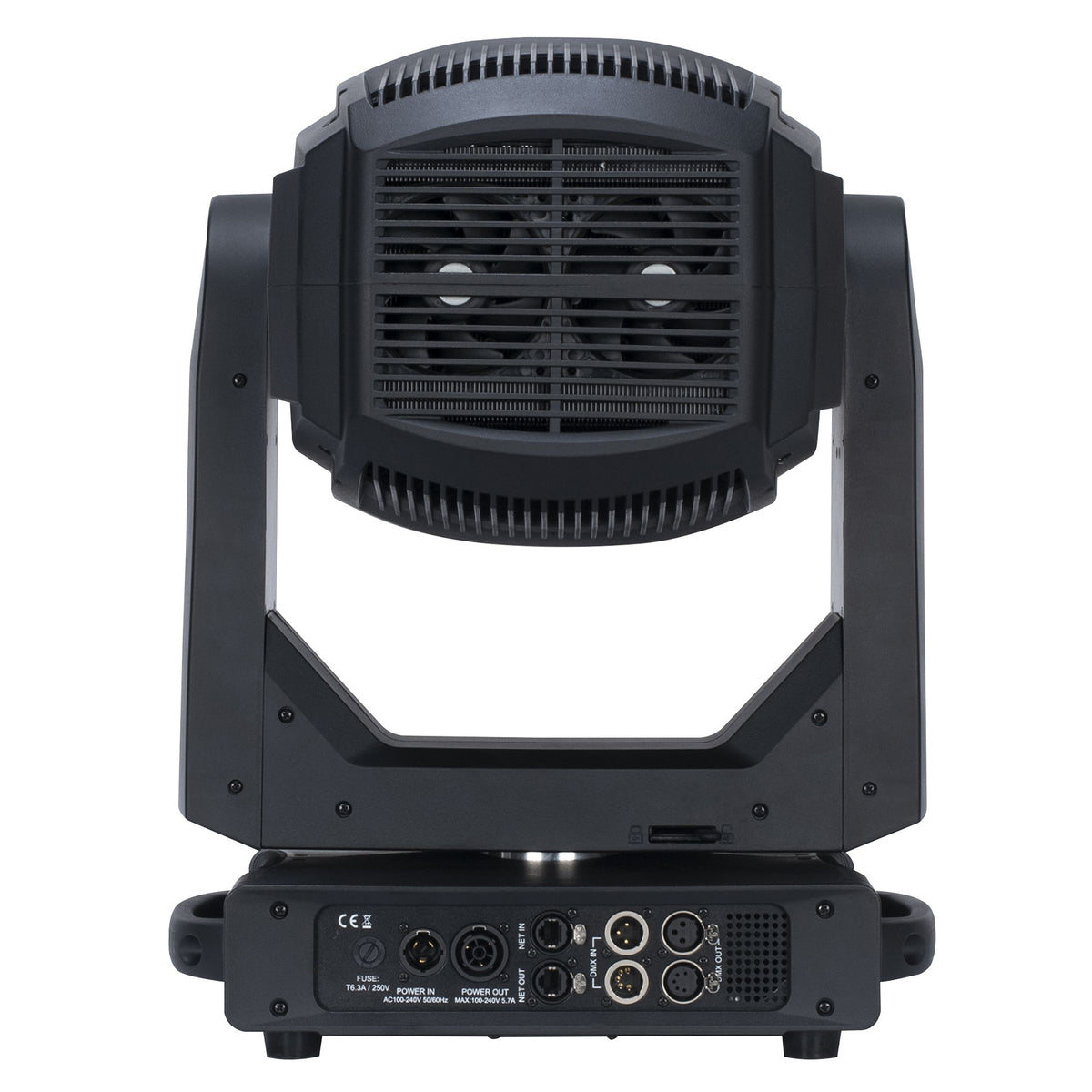

Control covers three DMX channel modes at 36, 40 and 51 channels plus RDM, with 3- and 5-pin XLR in/out and RJ45 Art-Net in/out. A 6-button touch panel and a full-color, 180-degree reversible LCD handle setup, and 8/16-bit movement resolution applies to 540 degrees of pan and 270 of tilt.

The fixture weighs 61.2 lb, runs on 100-240V with a 560W maximum draw and operates from -13F to 113F ambient. It is aimed at theatrical work, concert touring and event production.
