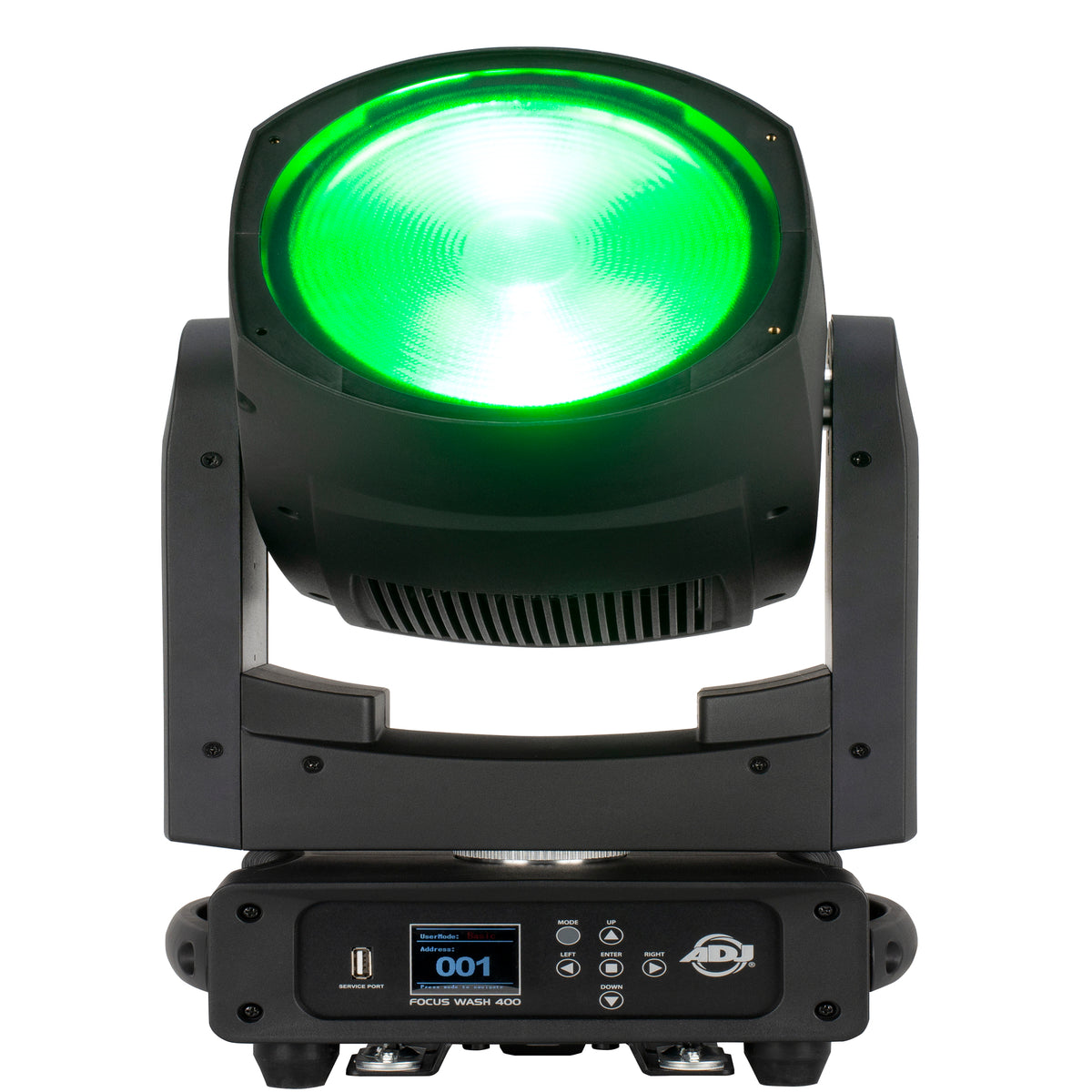

Focus Wash 400 RGBACL 400-Watt LED DMX Moving Head Wash Light
AMERICAN DJ

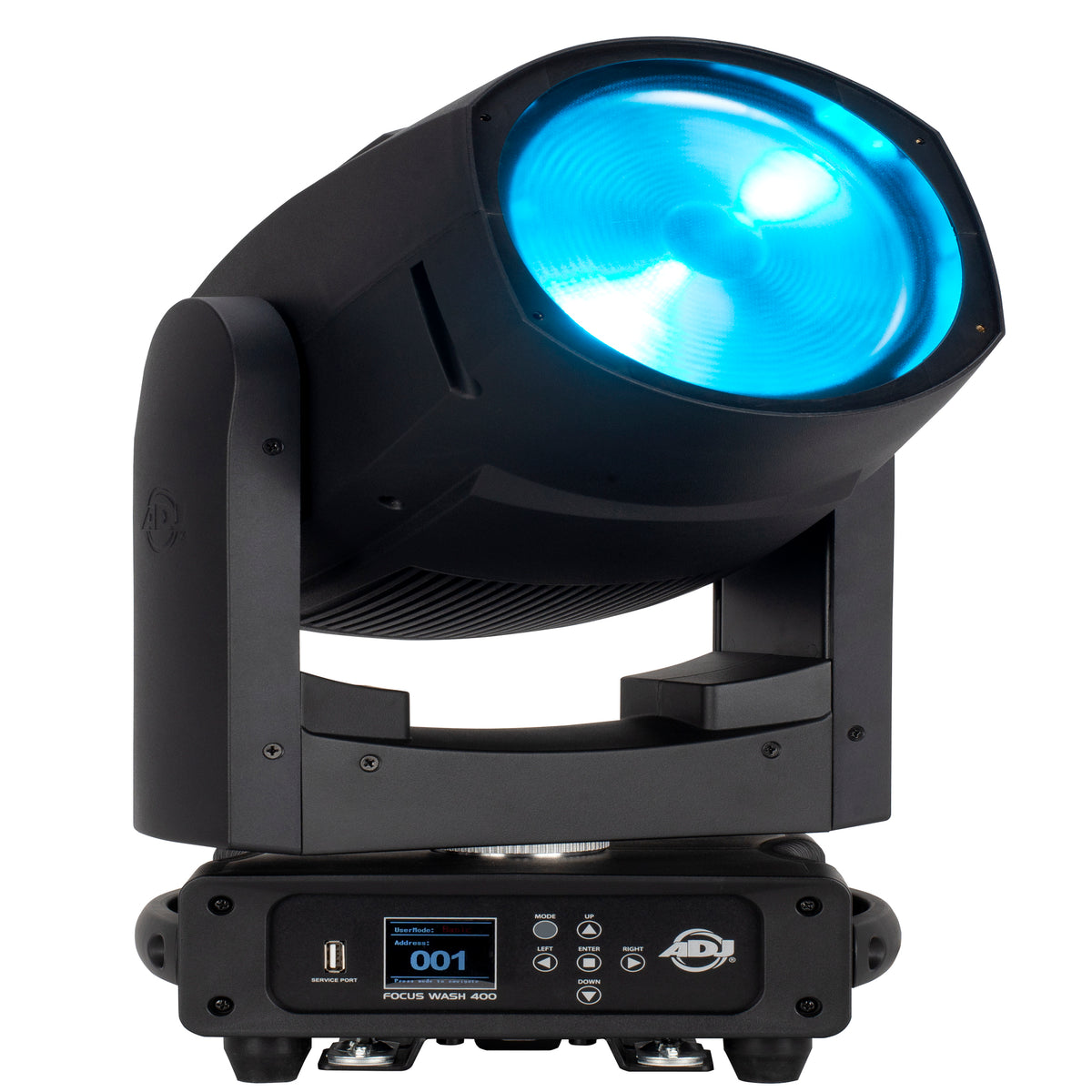

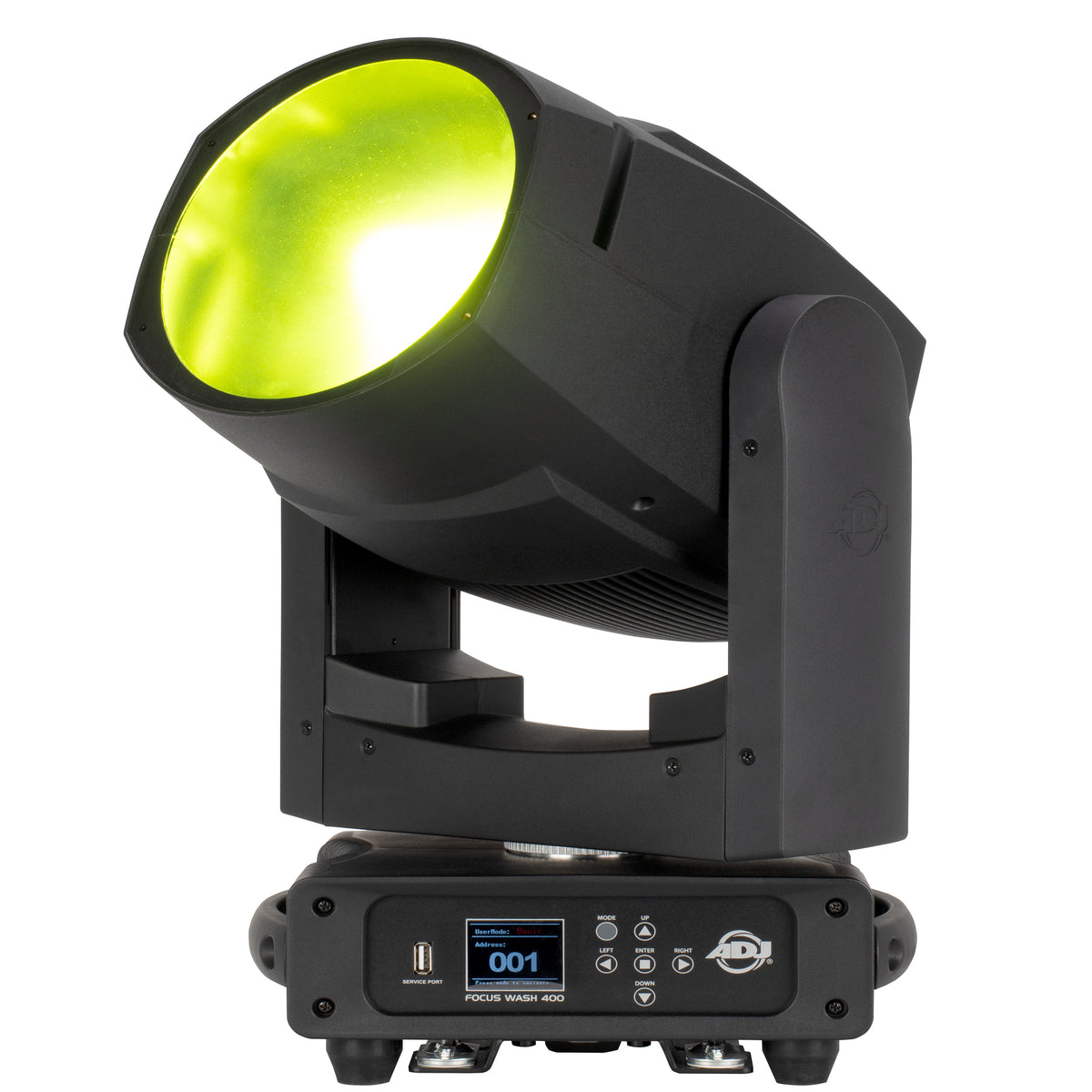

Focus Wash 400 RGBACL 400-Watt LED DMX Moving Head Wash Light
Focus Wash 400 RGBACL 400-Watt LED DMX Moving Head Wash Light
400W RGBACL LED Moving Head Wash, 10 to 41 Degree Zoom, CRI 90+, Virtual CMY
Features
- 400W RGBACL LED delivers 4,600 lumens with CRI above 90
- 6-inch Fresnel lens with 10 to 41 degree motorized zoom
- Virtual CMY color mixing and 2700K to 10,000K white control
- Flicker-free operation with refresh rates up to 25 kHz
- Quiet fan mode for noise-sensitive broadcast and theater use
Couldn't load pickup availability

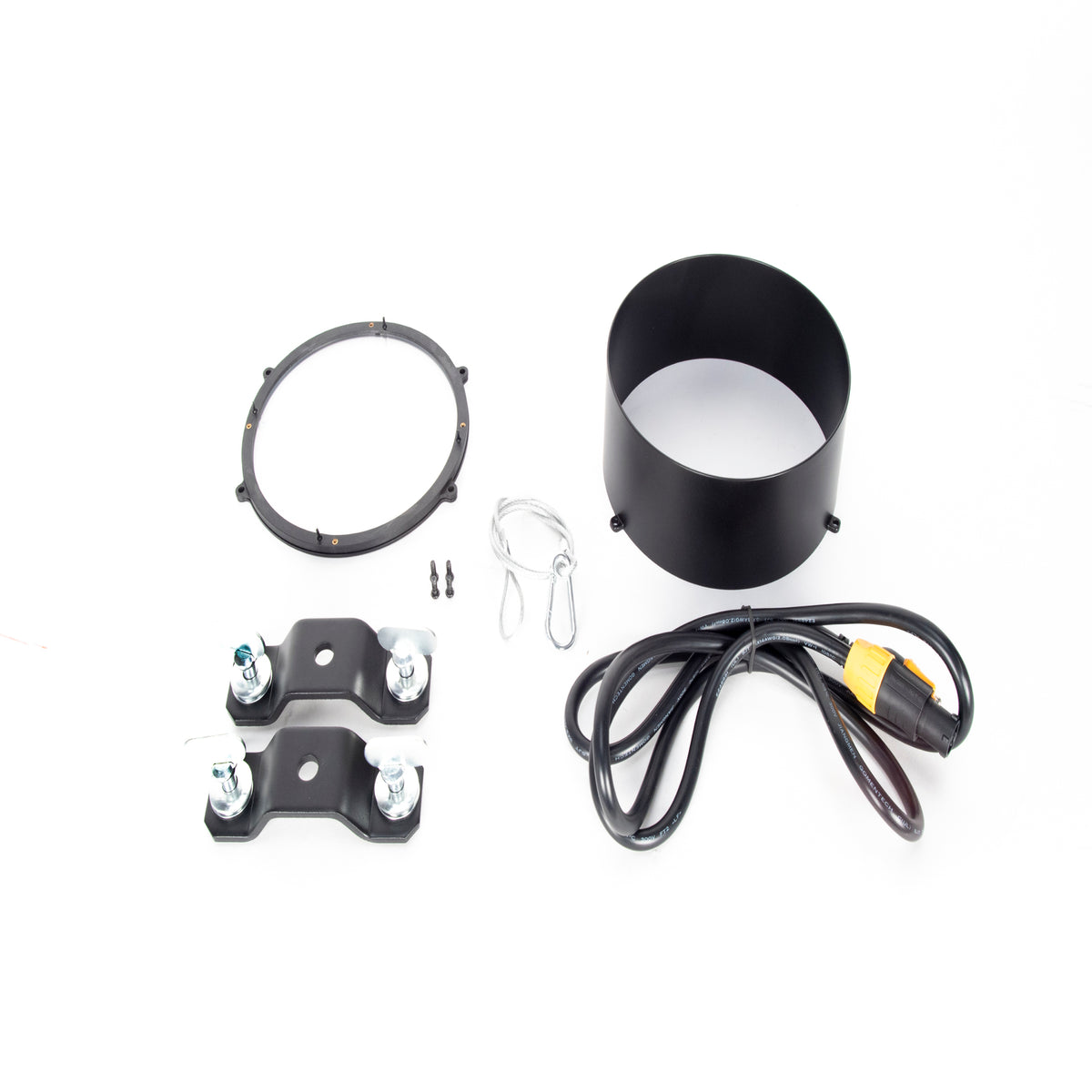

What's Included in the box
- ADJ Focus Wash 400 Moving Head
- Snoot
- 1x40 Degree Linear Lens

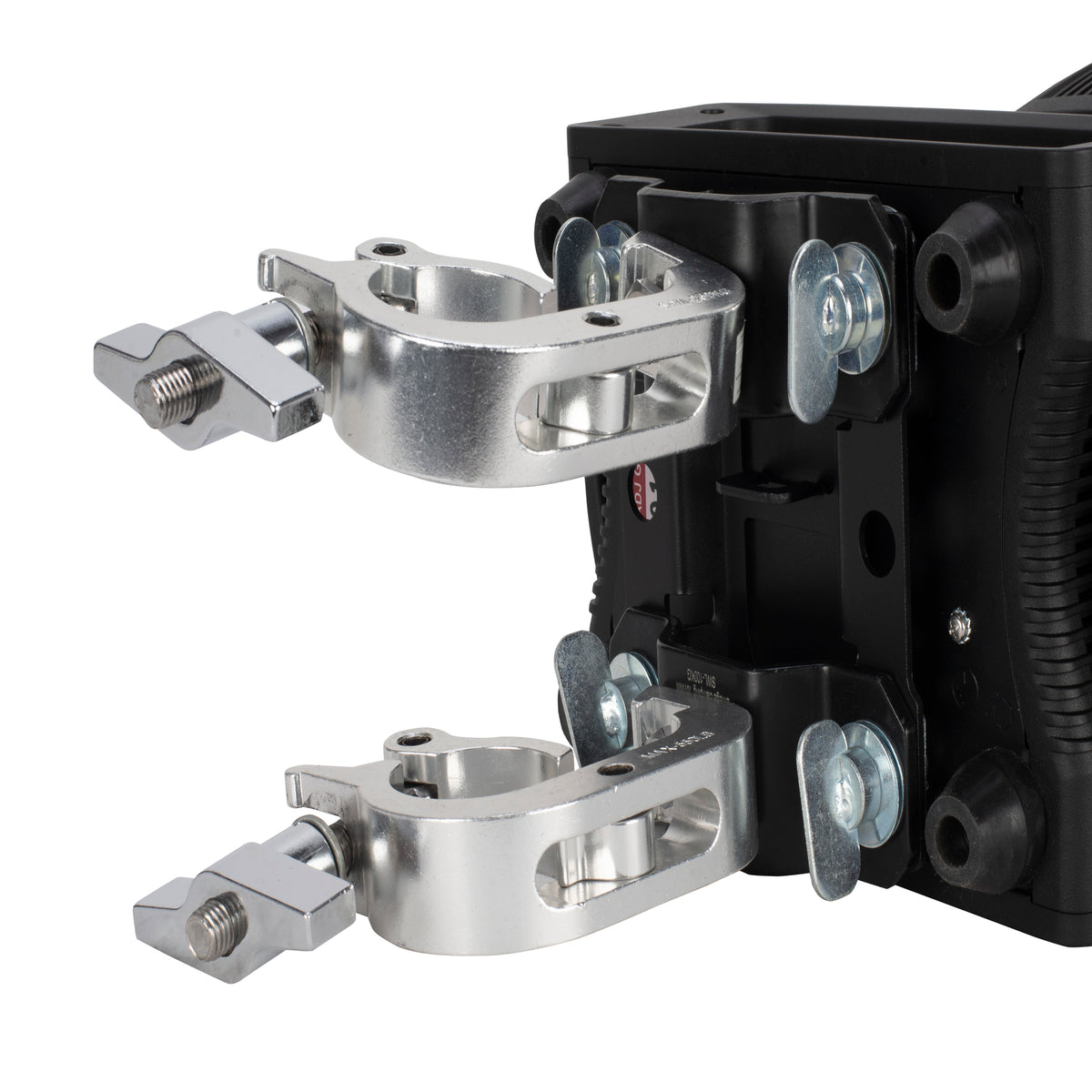

- 2 Omega Brackets
- Safety Cable
- IP65 Locking Power Cable
SKU: SKU: Focus Wash 400*
View full details











Product Description
Designed for broadcast and film as well as live events, the Focus Wash 400 offers flicker-free operation, adjustable refresh rates from 900 Hz to 25 kHz, a quiet fan mode, and user-selectable dimming curves, modes, and speeds. Five DMX channel modes (Basic 17, Standard 22, Extended 24, CMY Standard 18, CMY Extended 24), RDM, and a USB firmware update port provide deep control options. Locking 3-pin and 5-pin XLR plus IP65 locking power connections handle signal and power distribution. Pan range is not listed in the source, but the fixture ships with a snoot, a 1x40-degree linear lens, two omega brackets, and a safety cable. At 23.5 lb, it hangs on standard truss and fits into touring rigs.
Features
Six-Color LED Engine
RGBACL mixing with CRI above 90 and CRI R9 of 87.3 produces accurate skin tones and vibrant reds that three-color fixtures miss.
Fresnel Lens Wash
A 6-inch Fresnel lens with 10 to 41 degree motorized zoom creates an even, soft-edged wash from tight to wide angles.
Virtual CMY Matching
A virtual CMY channel lets you pick colors with hardware or software CMY tools, matching this fixture to native CMY rigs.
Broadcast-Grade Dimming
Adjustable refresh rates from 900 Hz to 25 kHz, selectable dimming curves, and quiet fan mode keep output clean on camera.
Flexible White Control
Linear white temperature from 2700K to 10,000K with 5 presets matches tungsten, daylight, and LED fixtures on the same stage.
Technical Specifications
- Product Type RGBACL LED Moving Head Wash
- Light Source 400W RGBACL LED (Red, Green, Blue, Amber, Cyan, Lime)
- LED Life 50,000 Hour Average
- CRI 90+
- CRI R9 87.3
- Lumens 4,600 Total
- Zoom 10 to 41 Degrees (Motorized, 6 in Fresnel)
- Field Angle 19 to 54 Degrees
- Color Temperature 2700K to 10,000K (Linear and 5 Presets)
- DMX Modes 5 (Basic 17, Standard 22, Extended 24, CMY Standard 18, CMY Extended 24)
- Refresh Rate Adjustable, 900 Hz to 25 kHz

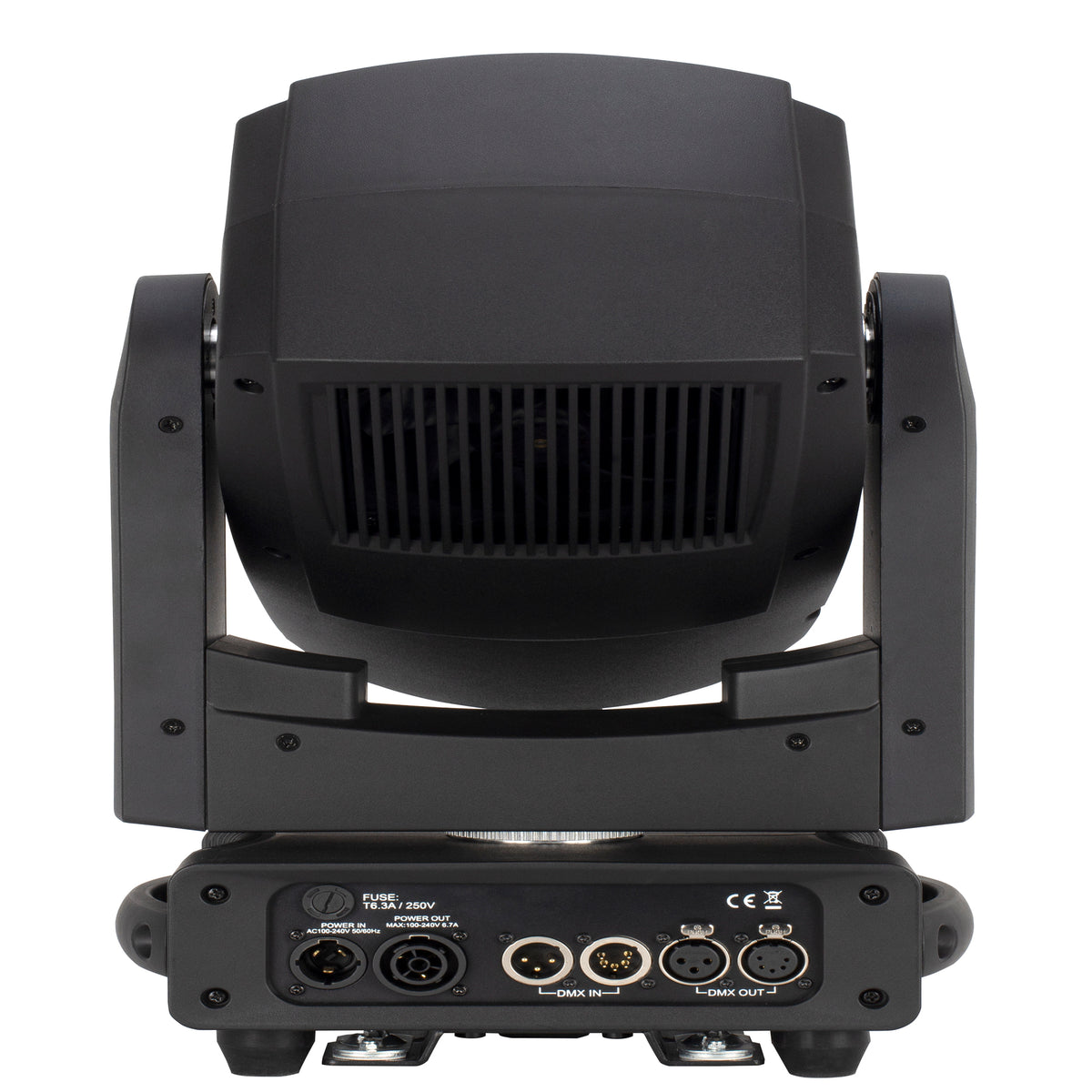

- Connections Locking 3-Pin and 5-Pin XLR In/Out, IP65 Locking Power In/Out
- Power AC 100-240V, 47/63 Hz, 460W Max at 120V
- Noise 46 dB at 3 ft
- Dimensions (L x W x H) 10.96 x 8.4 x 22.37 in (with Snoot) / 278 x 213 x 568 mm
- Weight 23.5 lb / 10.7 kg
