Hydro Beam CMY

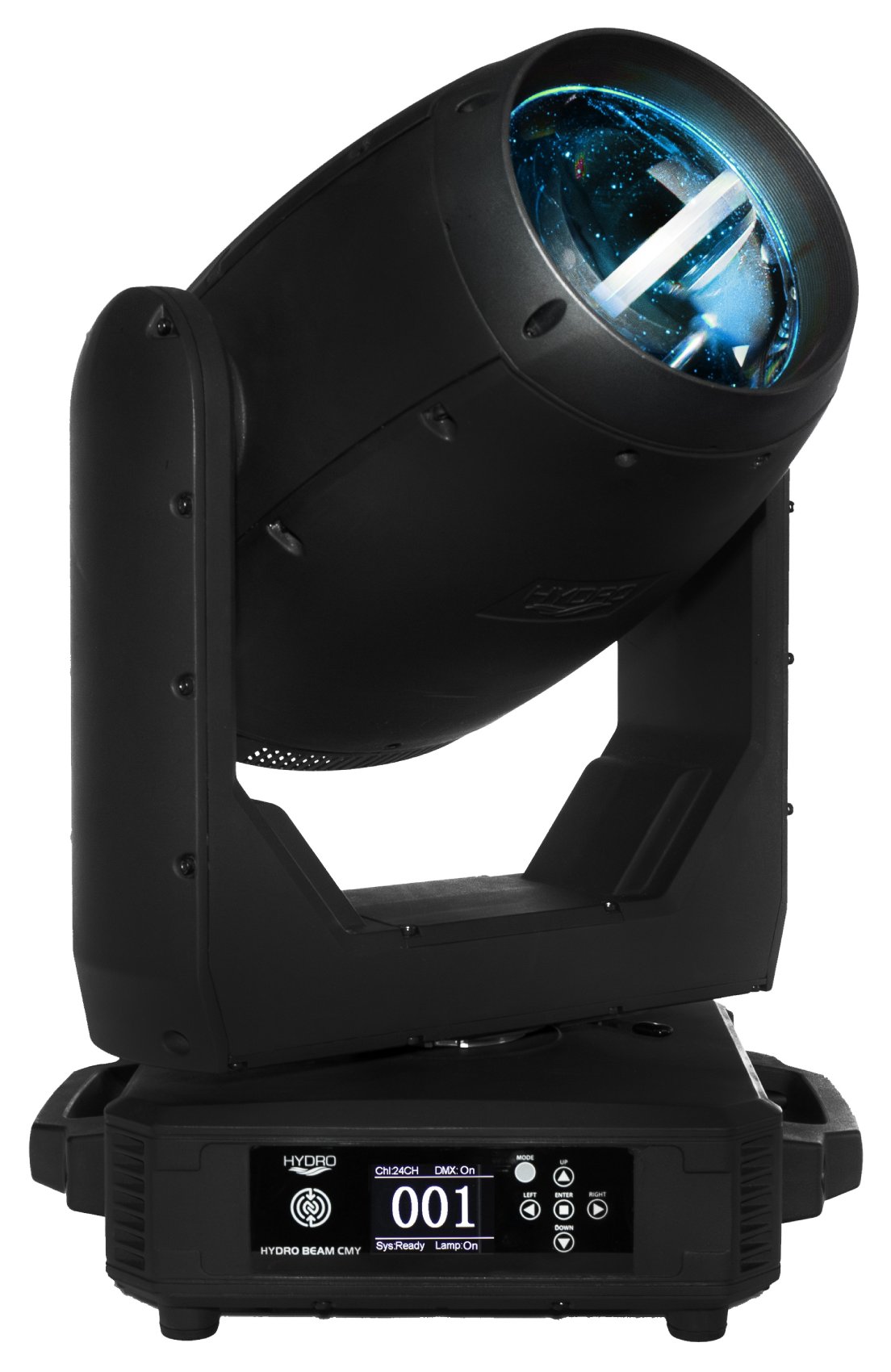

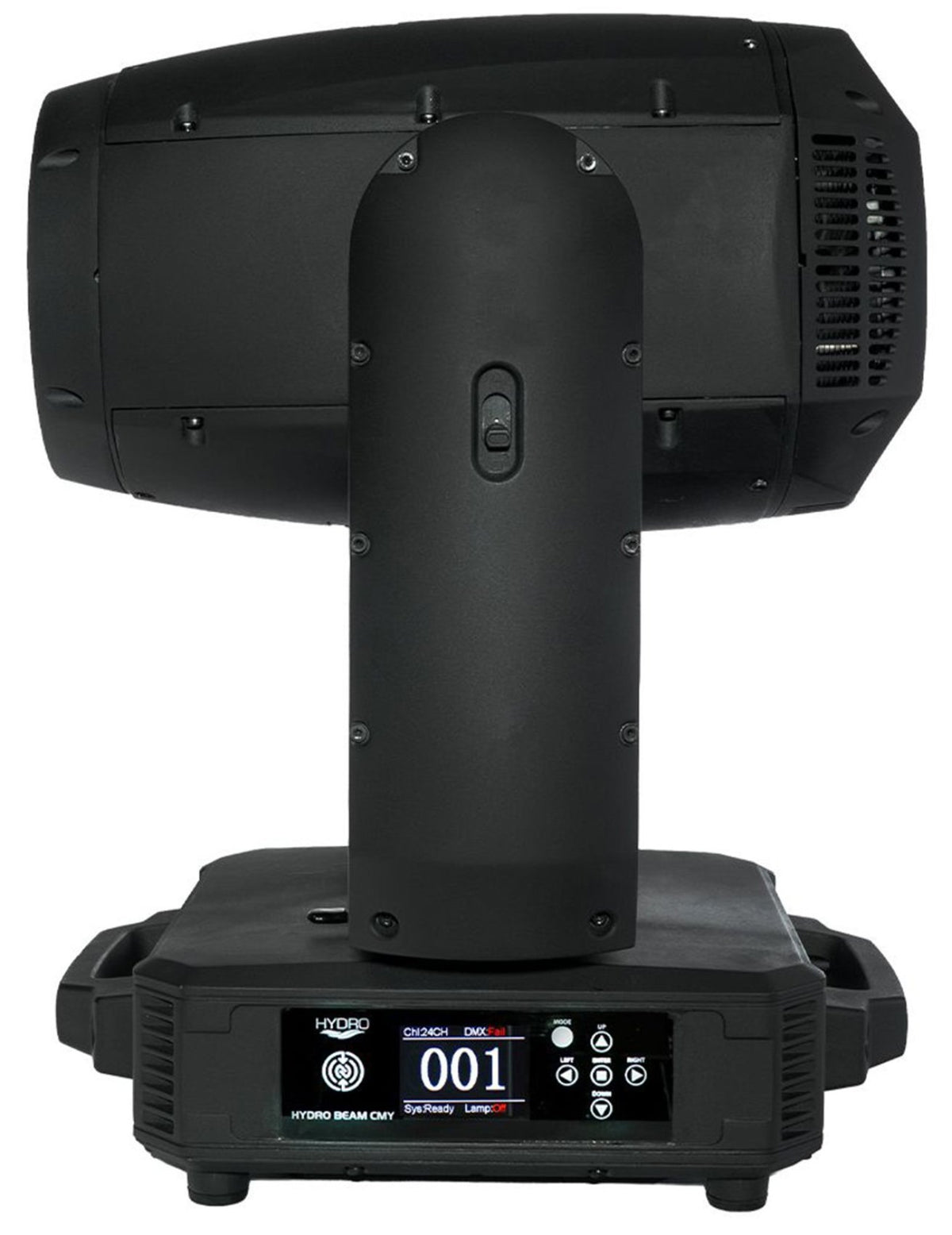

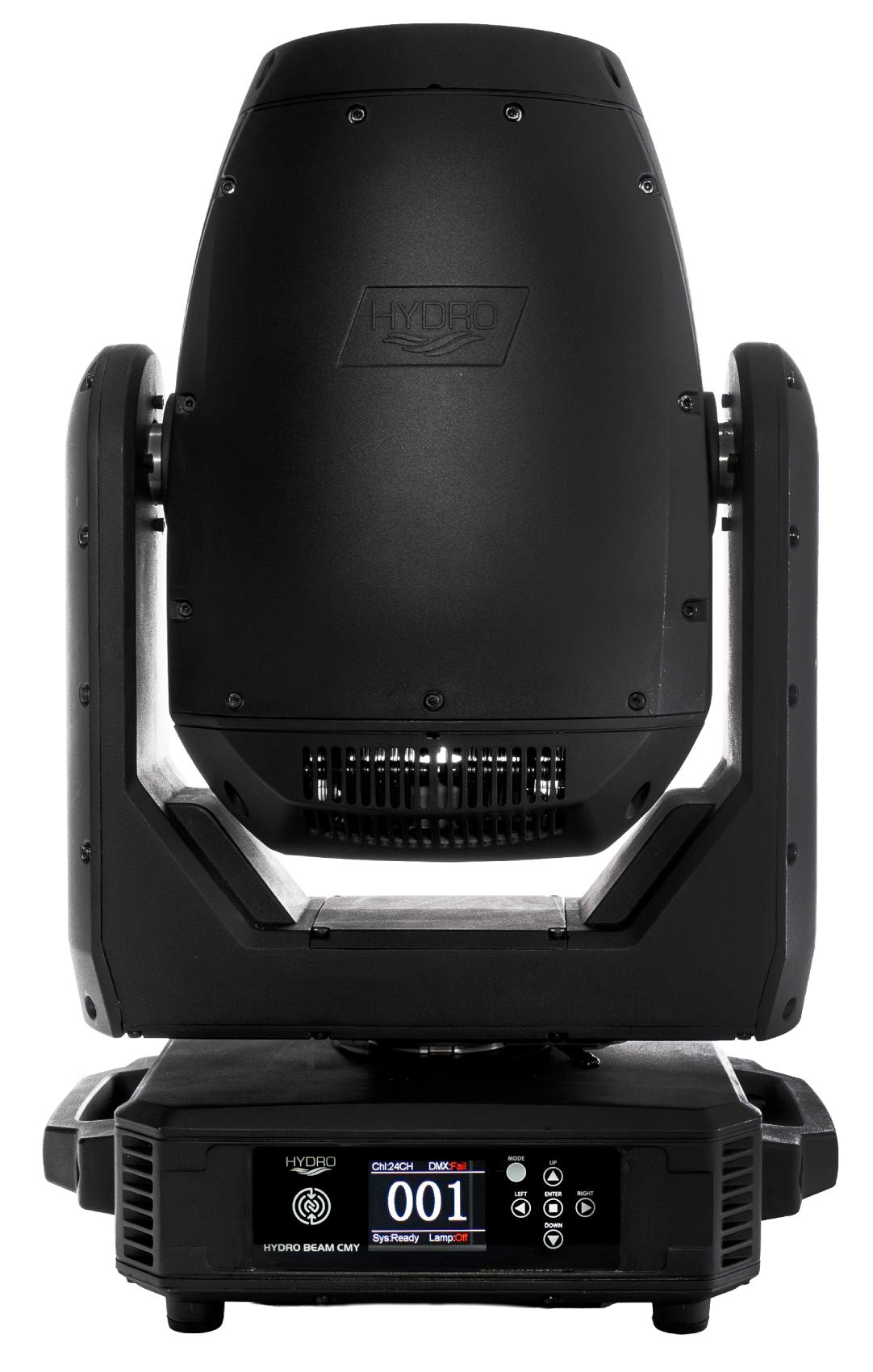

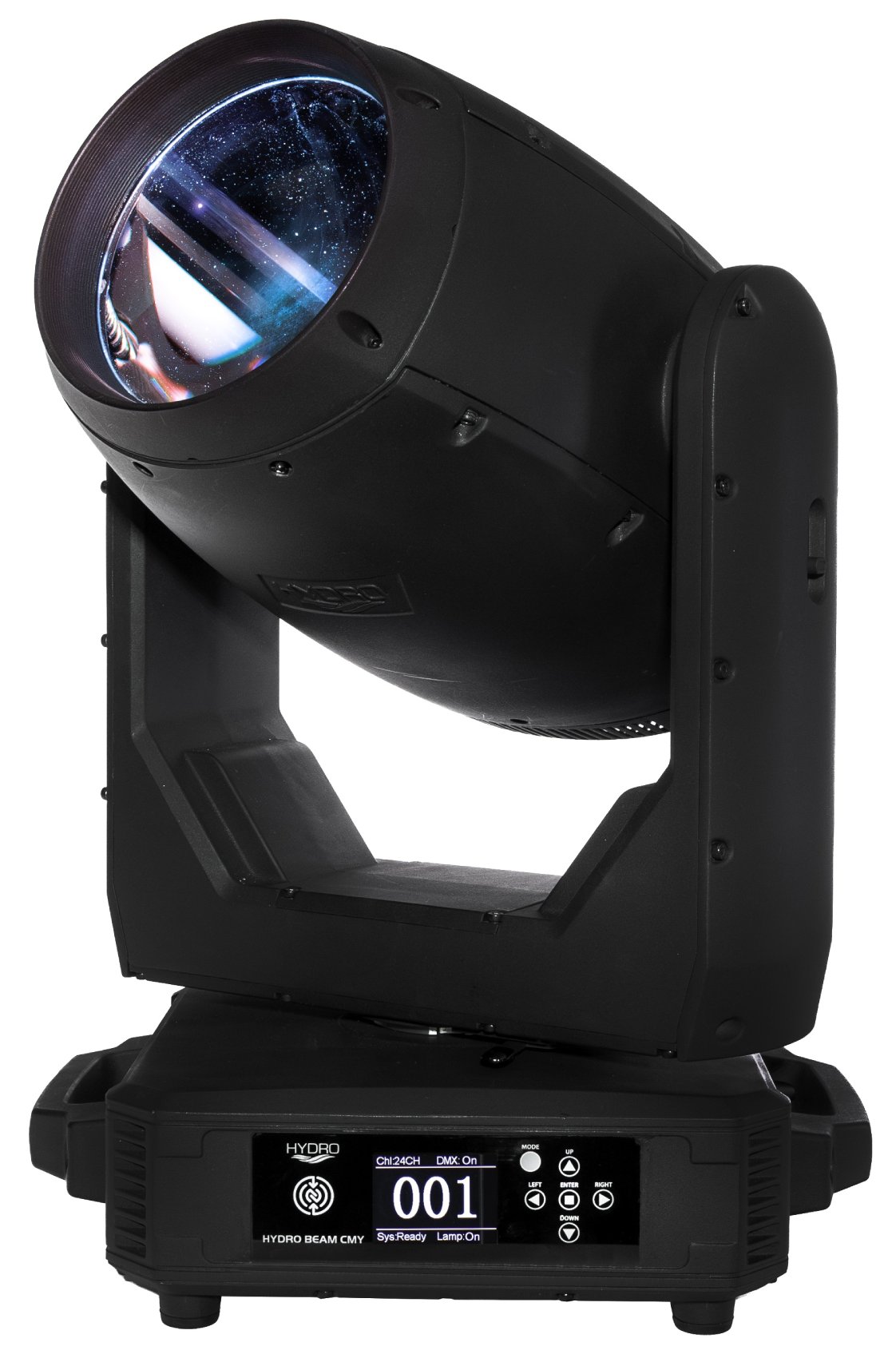

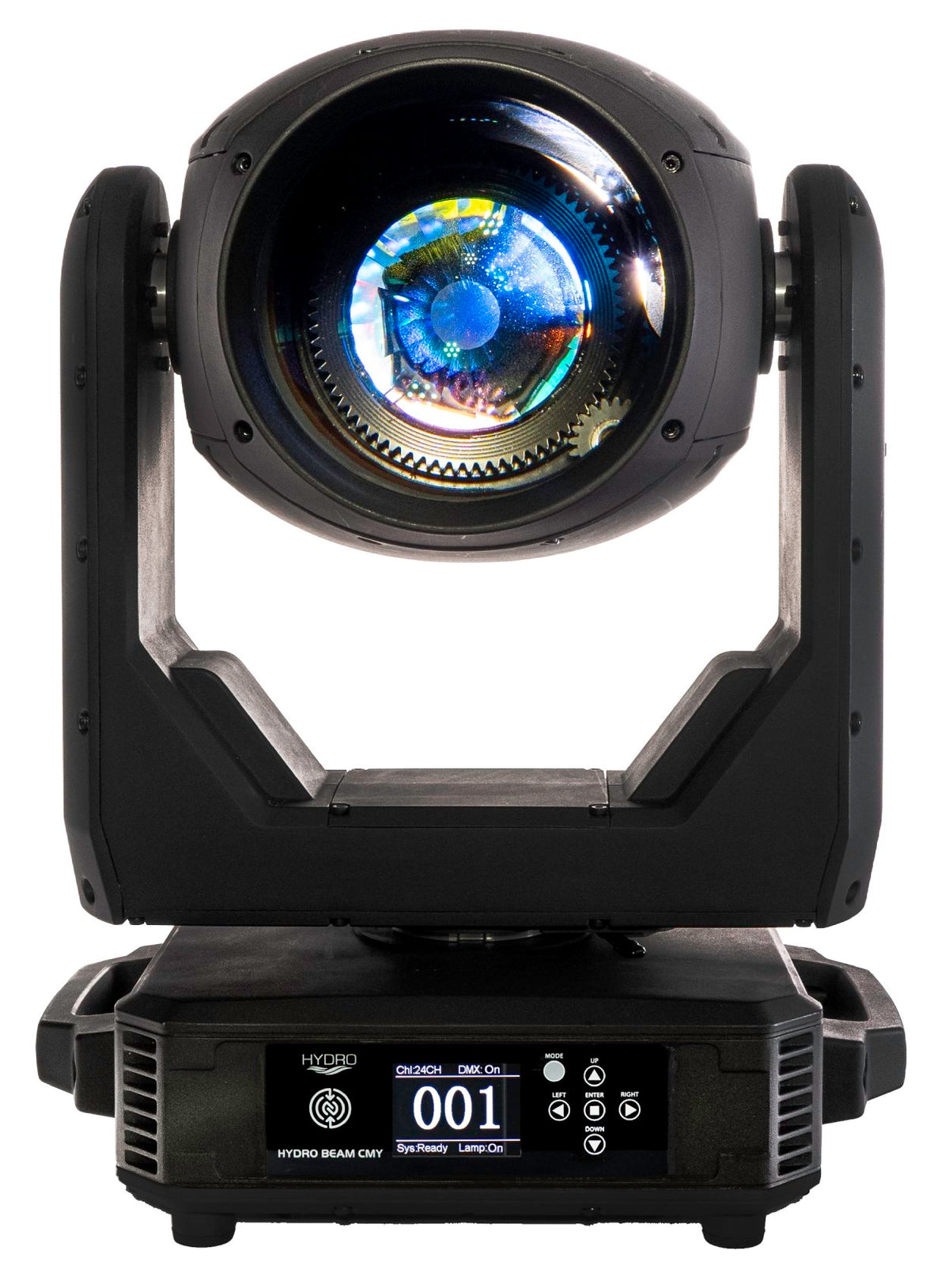

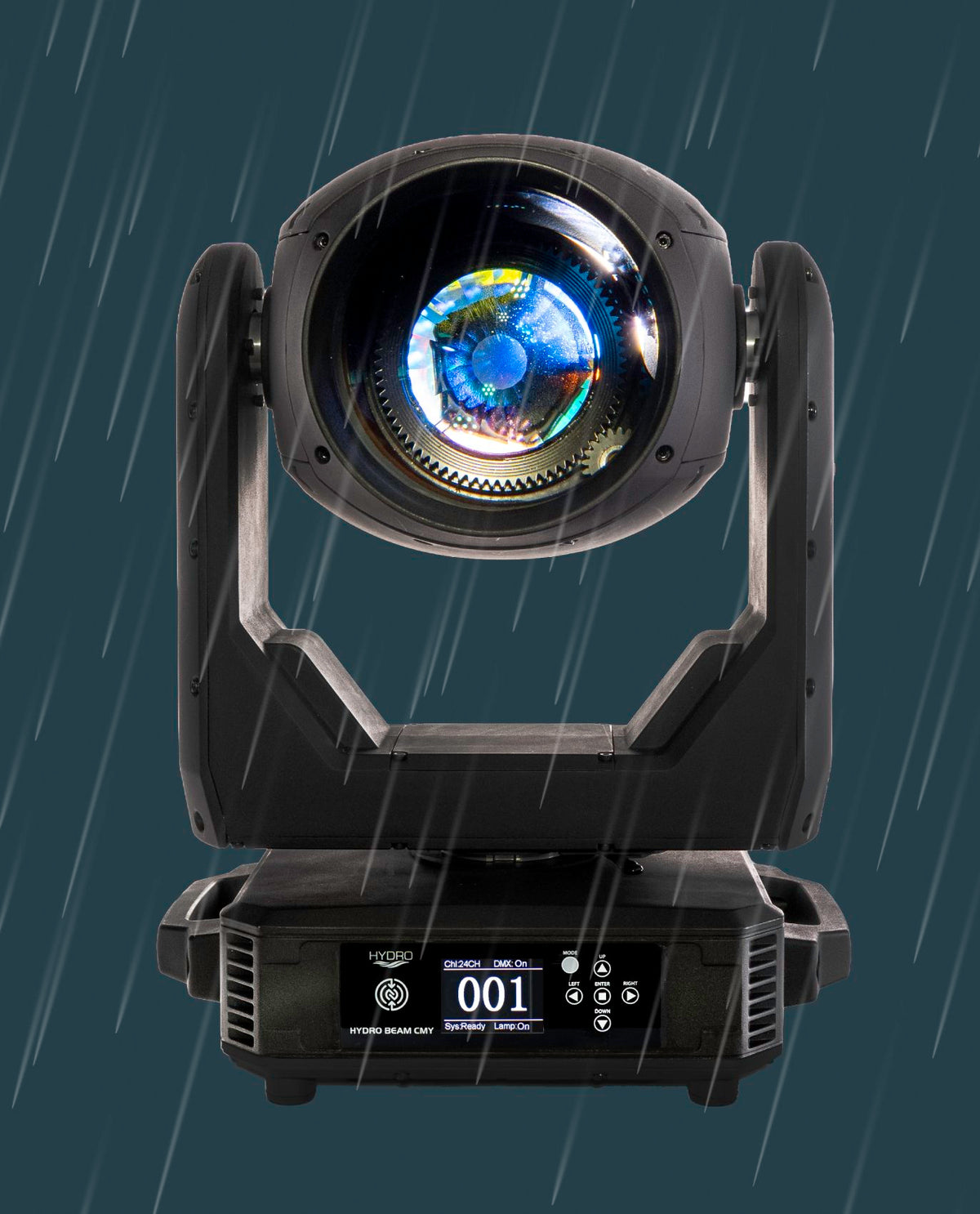

The Hydro Beam CMY is an IP65-rated moving head beam built for outdoor festivals, stadium tours, theme parks, and large indoor productions. An OSRAM Sirius HRI 310W PRO discharge lamp behind precision optics and a glass lens produces a 2-degree beam that stays tight and readable across a big venue, cutting through haze, fog, and ambient stage light.

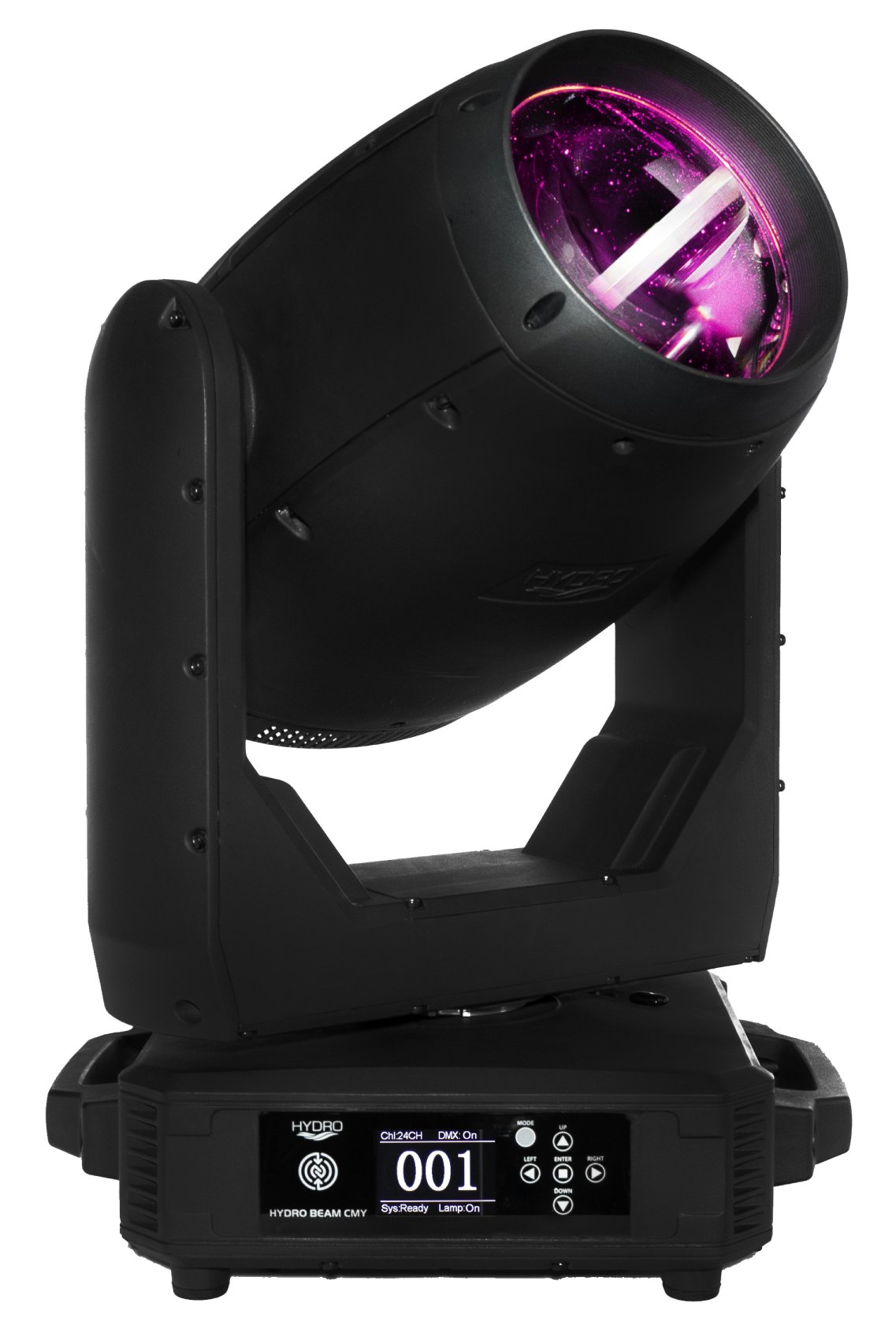

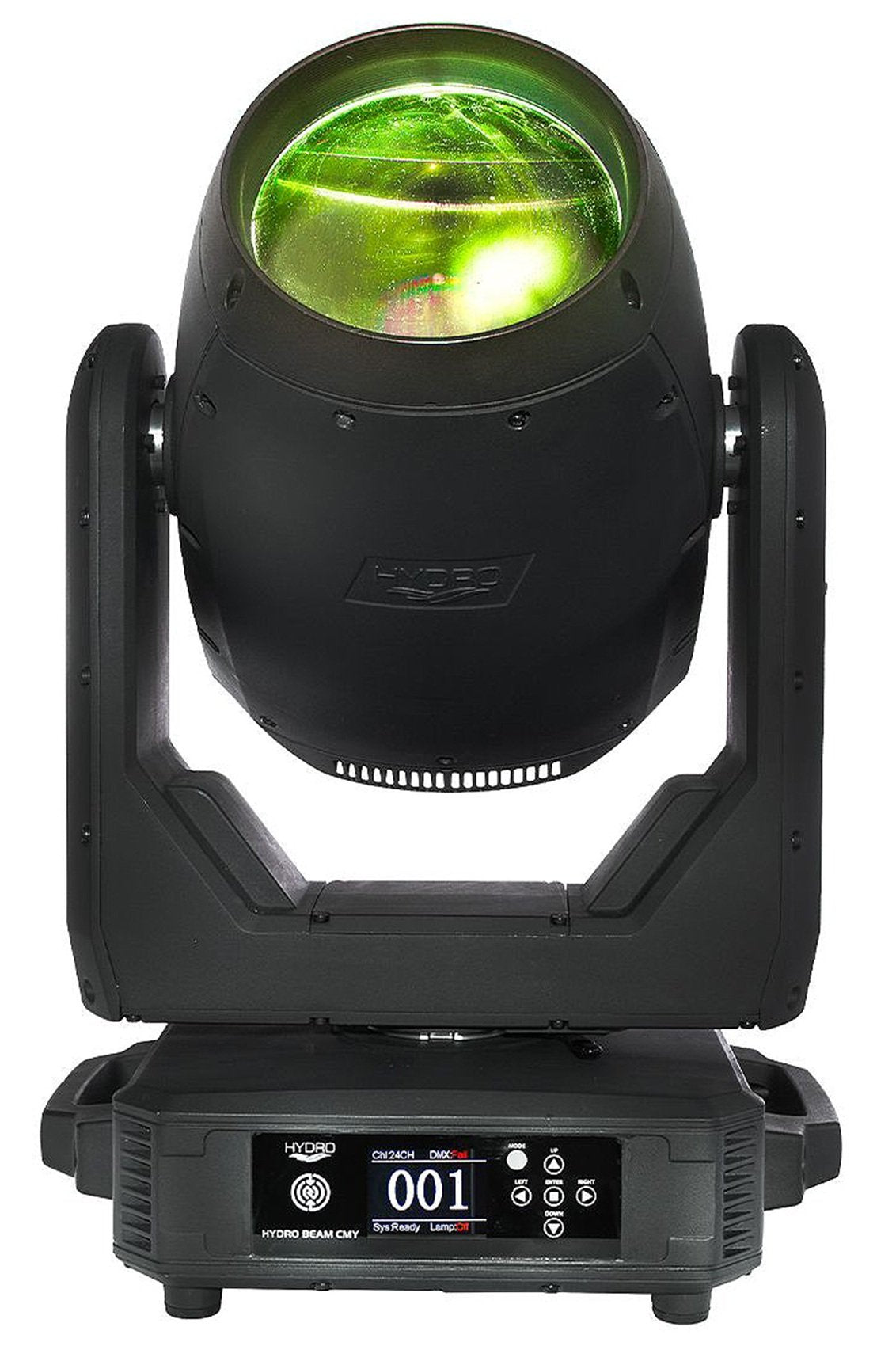

Color comes from a CMY mixing system paired with a 14-position dichroic wheel that includes CTO at 3200K, CTB at 9000K, and UV. The wheel indexes for split colors and there is a separate multi-color effect. Pattern work runs off a GOBO wheel with 17 static designs plus open, four of which are beam reducers, with a shake effect for movement. Two rotating prisms, a 16-facet circular and a 6-facet linear, work on their own or overlaid, and a frost filter turns the beam into a soft wash when a scene calls for one.

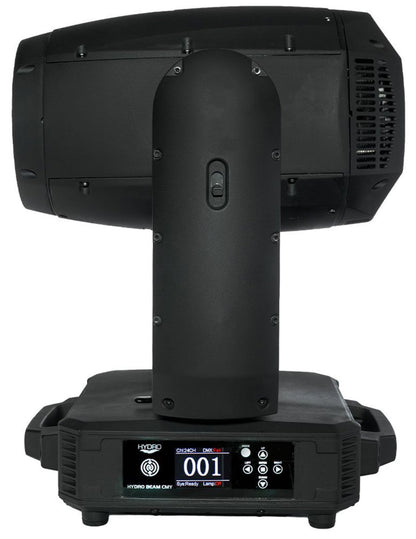

Movement uses 3-phase pan and tilt motors covering 540 degrees of pan and 270 of tilt with 16-bit fine control, and motorized focus with 16-bit precision keeps projections sharp at any throw distance.

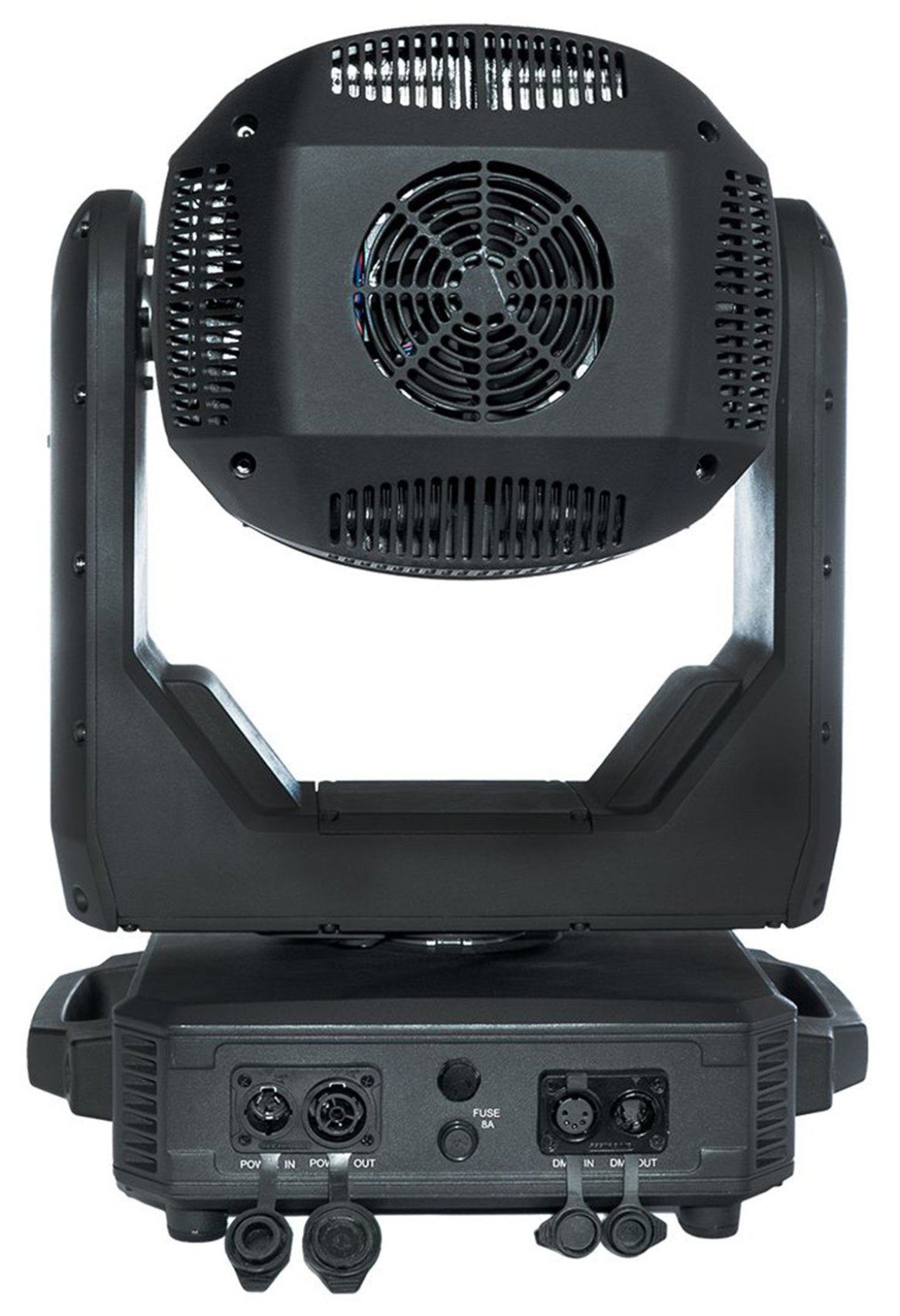

Control runs over DMX512 with RDM in 20- or 24-channel modes, plus integrated Aria X2 wireless DMX and remote fixture management with NFC configuration and over-the-air firmware updates. IP65-rated locking power and Seetronic DMX connectors daisy-chain up to 32 fixtures on a data line.
