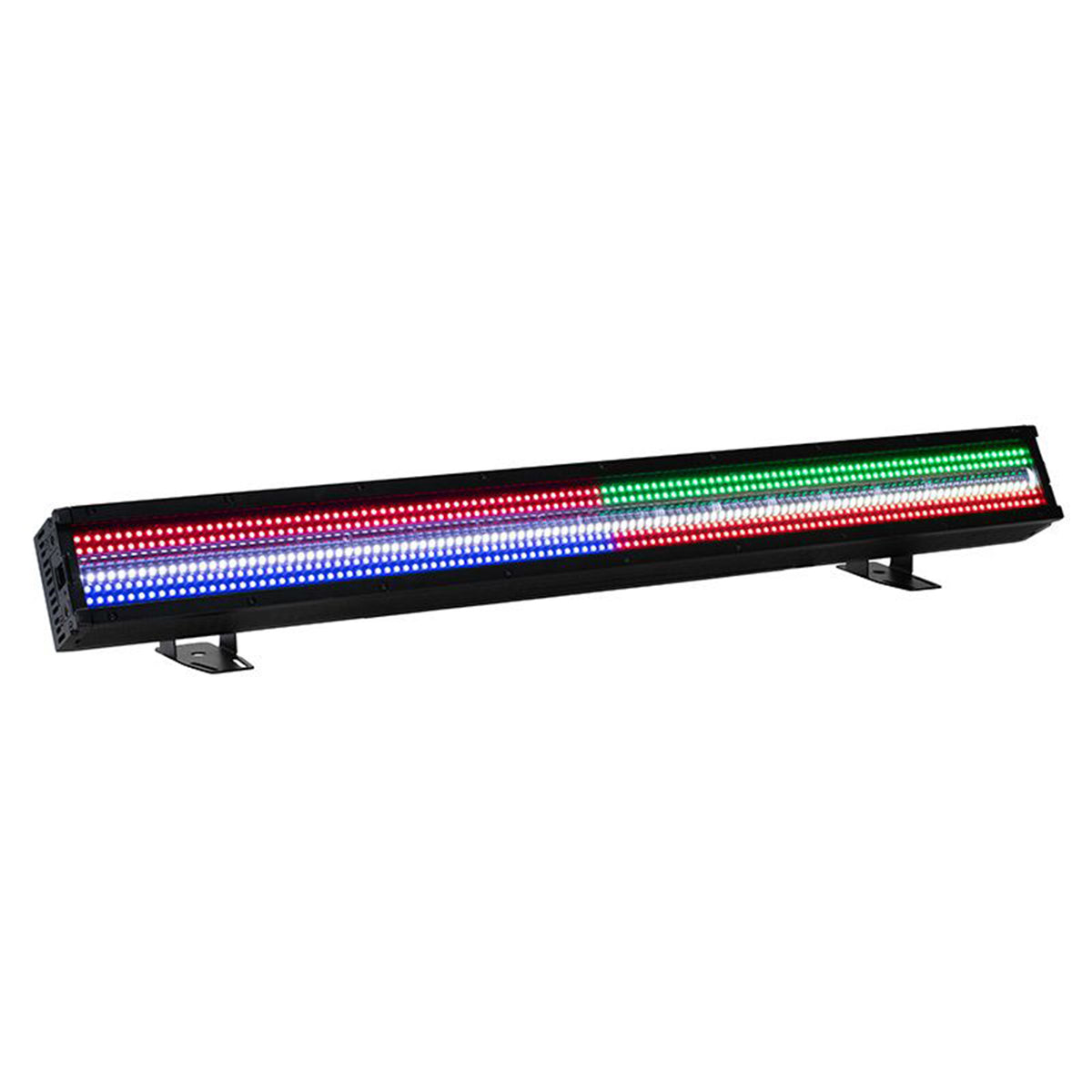

Jolt Bar FXIP RGB SMD LED DMX 214W Strobe/Blinder/Wash Effect Light
Jolt Bar FXIP RGB SMD LED DMX 214W Strobe/Blinder/Wash Effect Light
IP65 1-Meter LED Strobe/Blinder Bar, 32 RGB Zones, 16 White Zones, Wireless DMX
Features
- IP65-rated for temporary outdoor use in any weather
- 448 RGB + 112 cool white SMD LEDs across 48 control zones
- Built-in Aria X2 wireless DMX (WiFly EXR compatible)
- Frost lens assembly included for softened pixel output
- Alignment bracket joins multiple bars for continuous effects
Couldn't load pickup availability
What's Included in the box
- (1) American DJ Jolt Bar FXIP LED Bar
- (1) IP65 6-Foot Locking Power Cable
- (1) Frost Filter Assembly
- (2) Omega Receiver Brackets
SKU: SKU: Jolt Bar FXIP*
View full details











Product Description

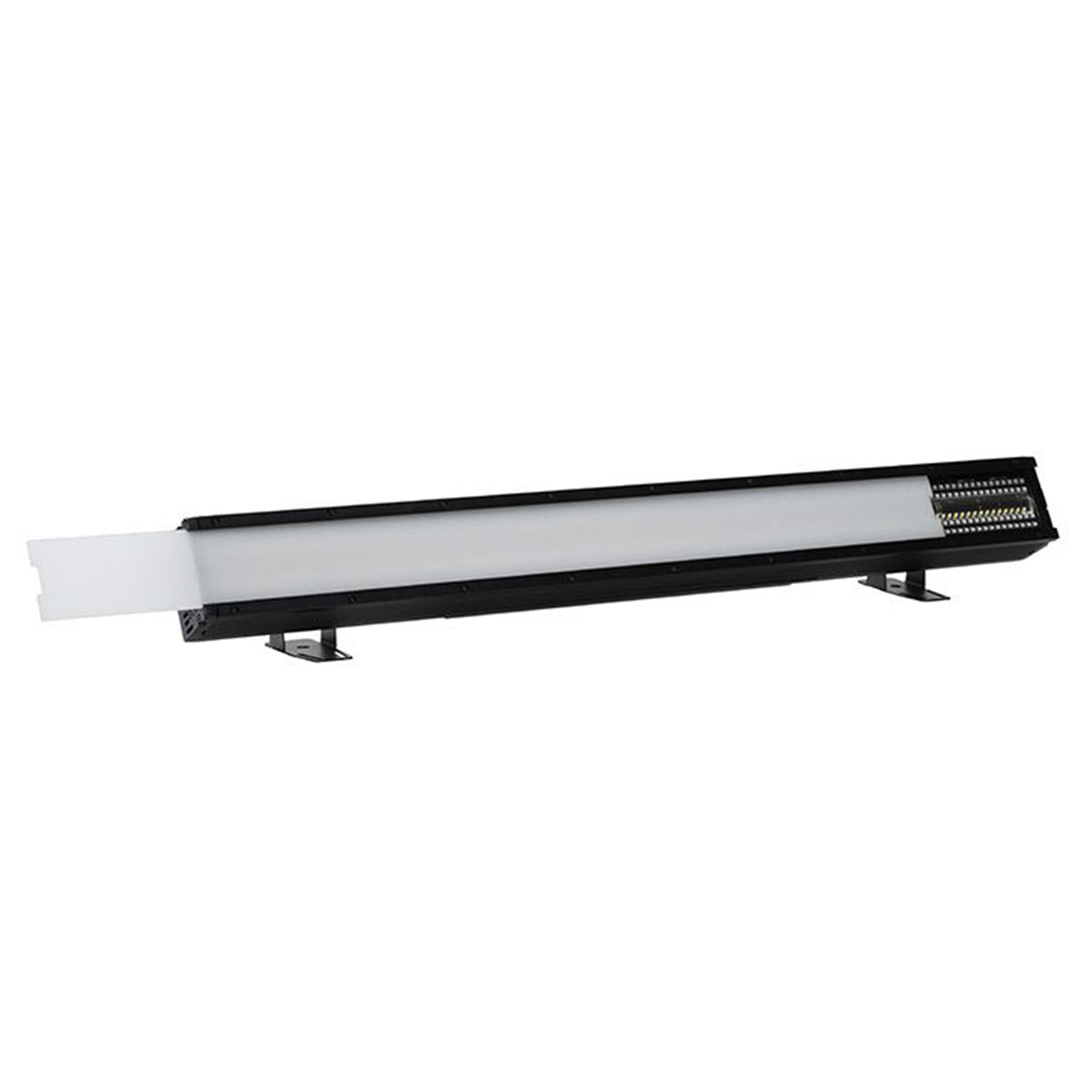

The fixture ships with a frost lens assembly that snaps onto the front, blurring the individual pixel dots for a softer look. An alignment bracket lets you join multiple bars end-to-end for continuous chase effects across a wider span. Built-in Aria X2 wireless DMX (also compatible with WiFly EXR) eliminates signal cables, and 13 DMX modes from 6 to 126 channels let you choose the level of control you need. The IP65-rated locking power and 5-pin DMX in/out sockets are positioned on each side for clean cable routing. At 20.5 lb and running 214W at 120V, the Jolt Bar FXIP is built for concert tours, festival stages, and large-scale event production where you need high-output strobe and color effects from a weather-resistant fixture.
Features

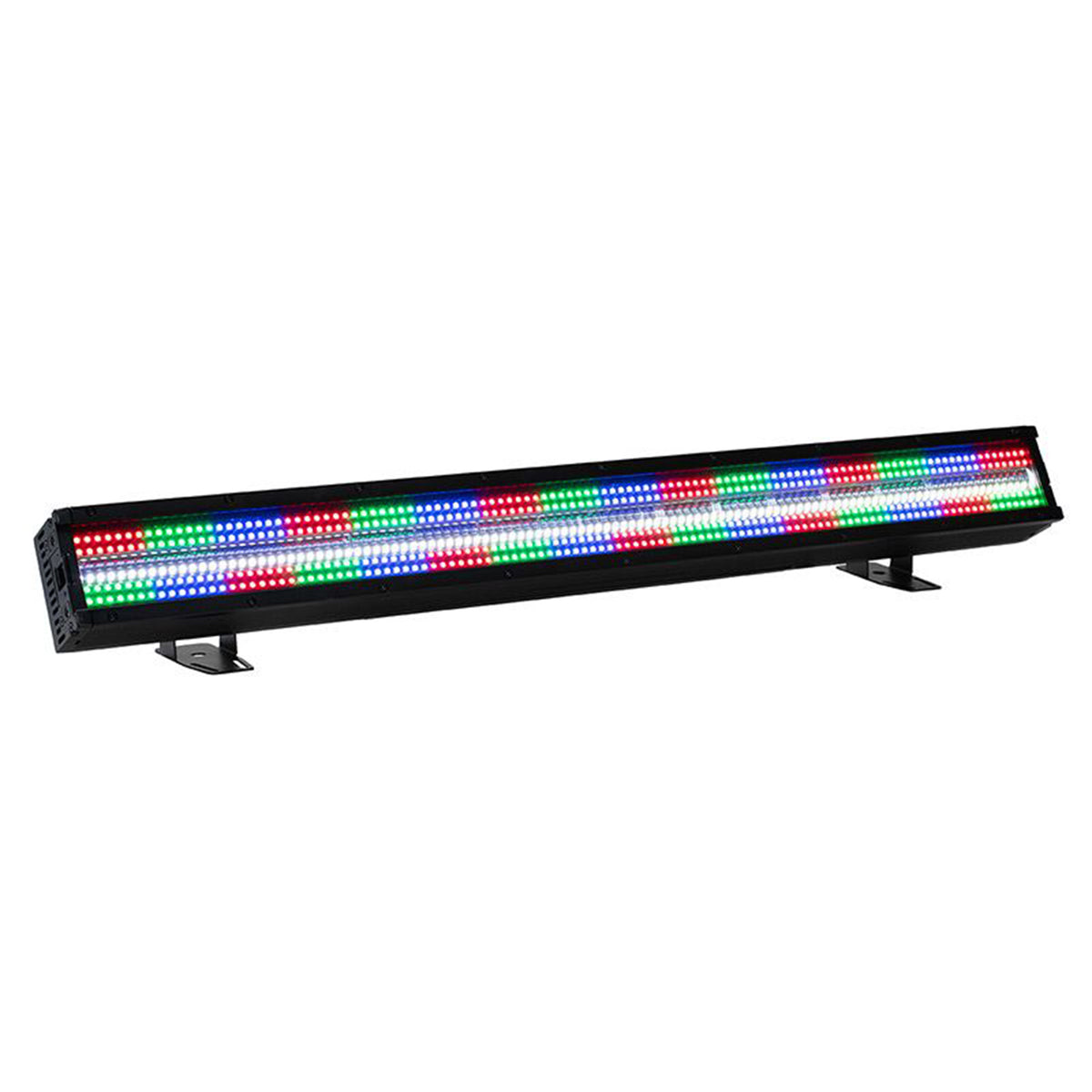

48 Independent Control Zones
32 RGB and 16 cool white zones let you program detailed chases, strobes, and color washes across the full 1-meter length of the bar.
Weather-Sealed IP65 Build

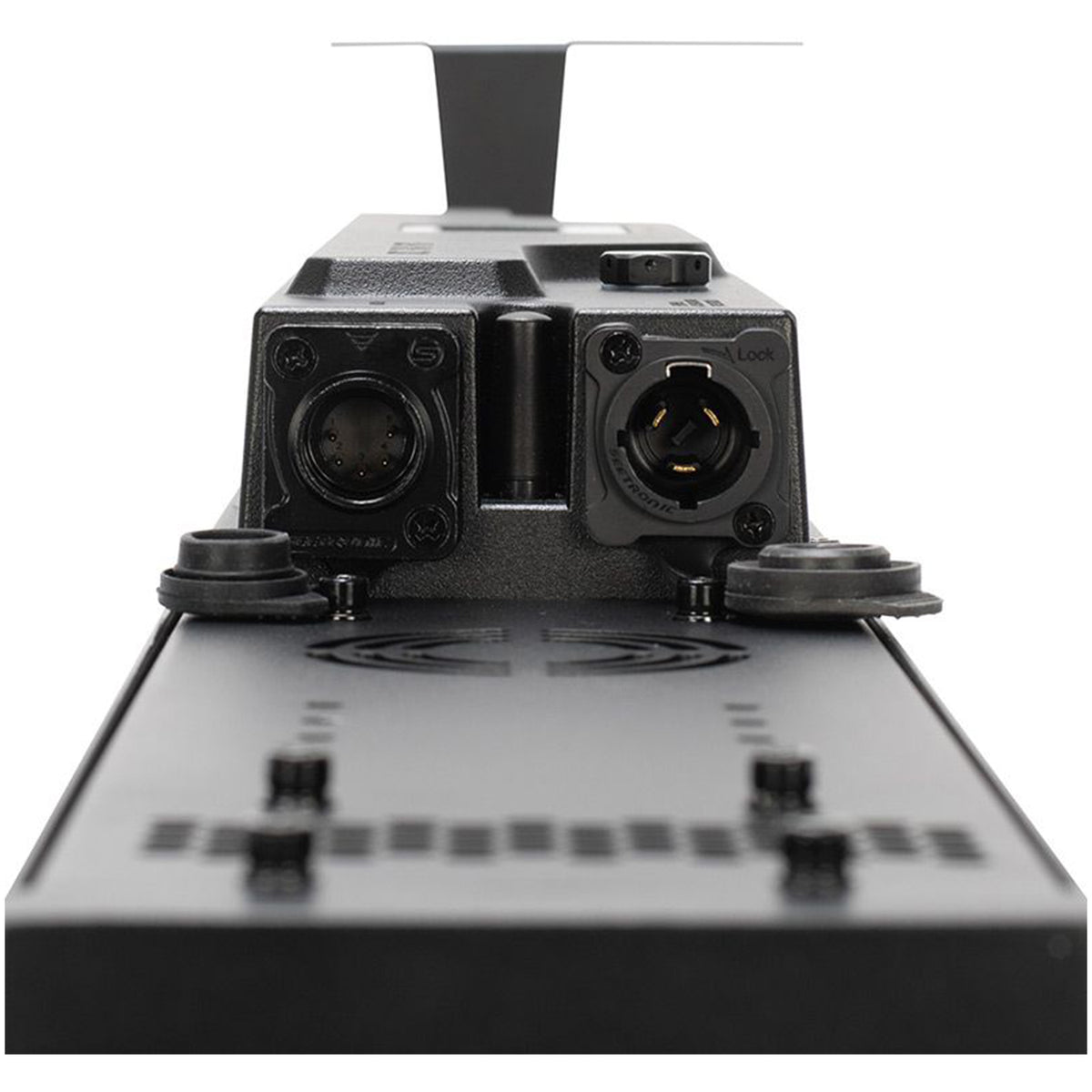

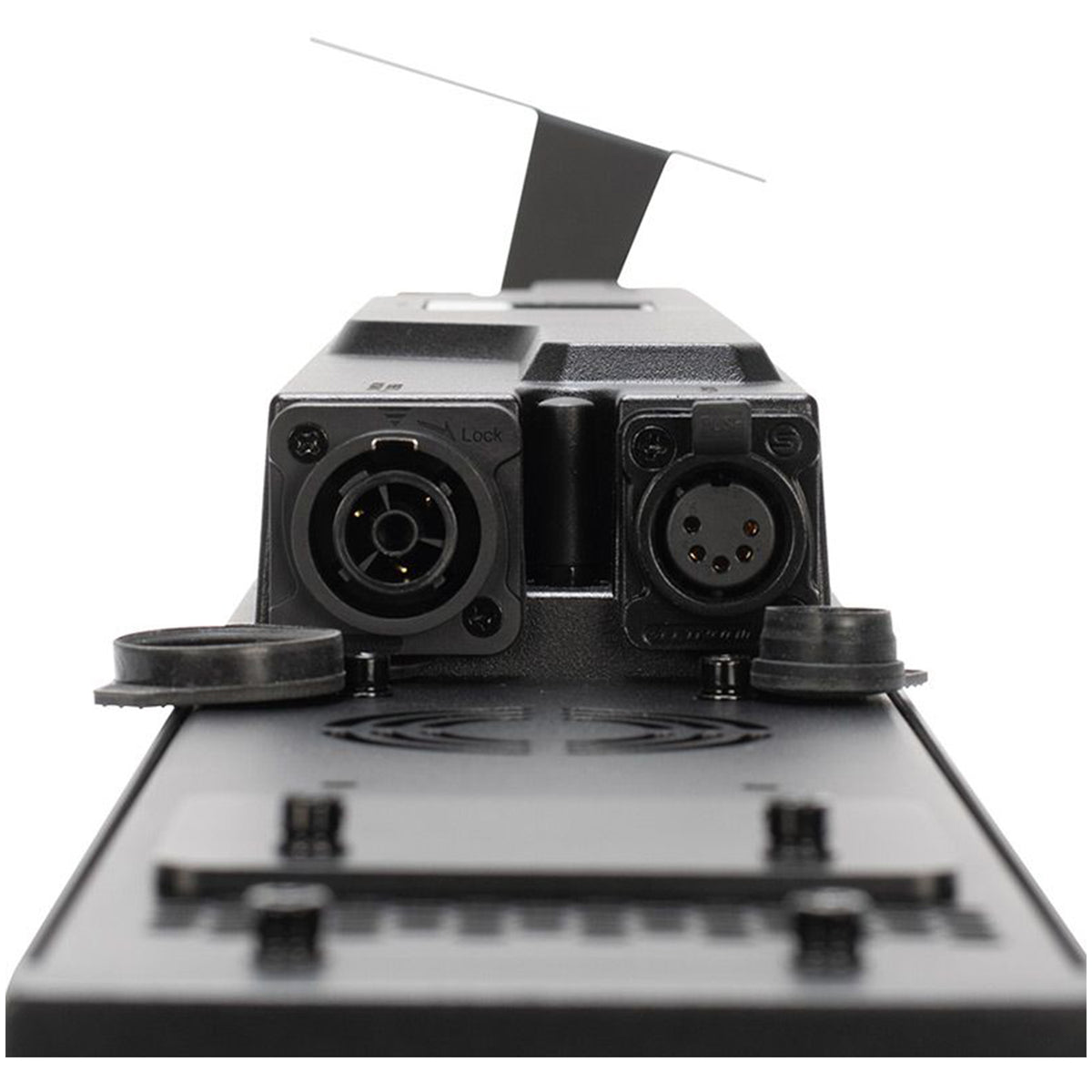

Locking IP65 power and DMX connections with sealed housing let you run the fixture at outdoor concerts and festivals without protective covers.
Wireless DMX Built In
Aria X2 wireless DMX eliminates signal cables between the console and the fixture, simplifying outdoor rigging and reducing setup time.

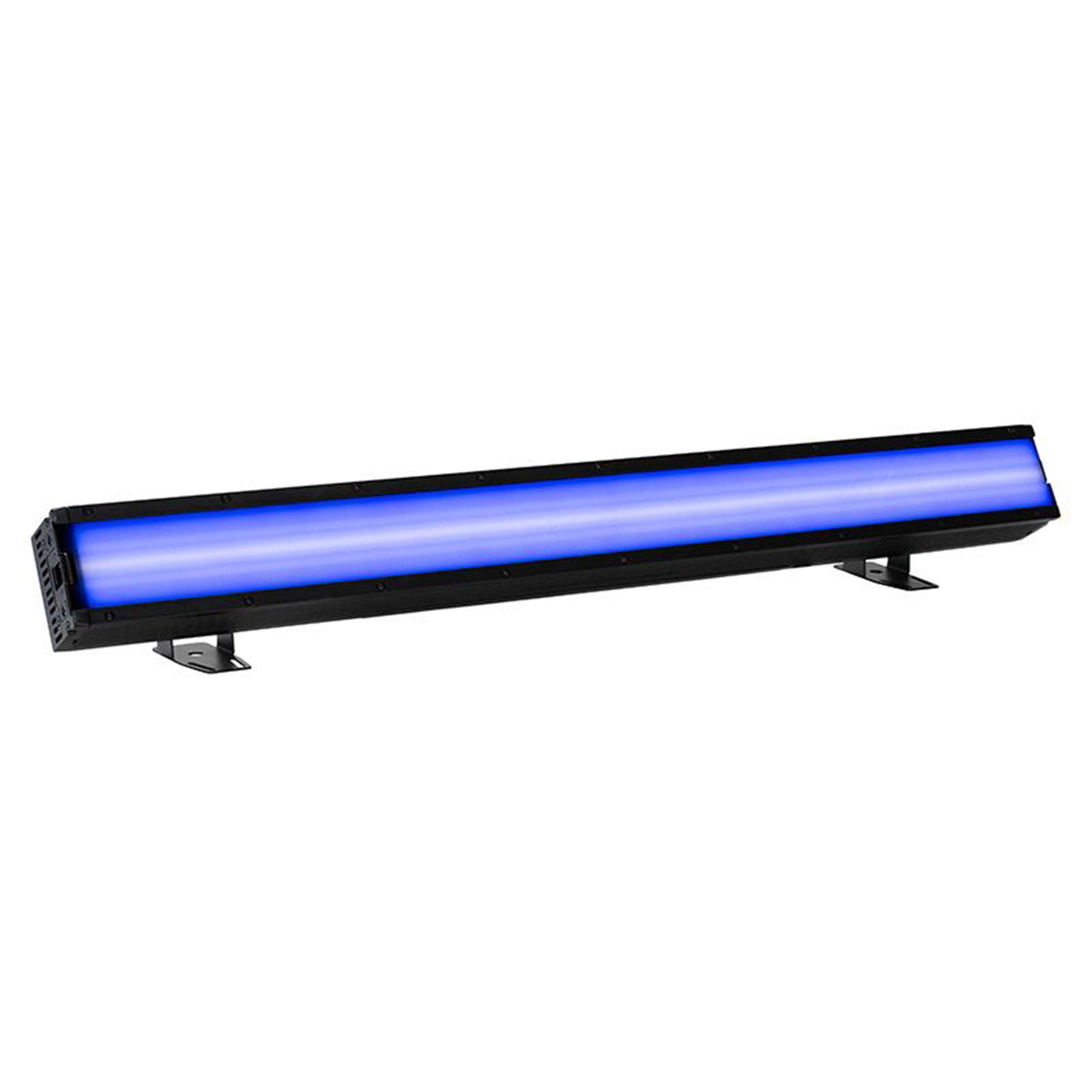

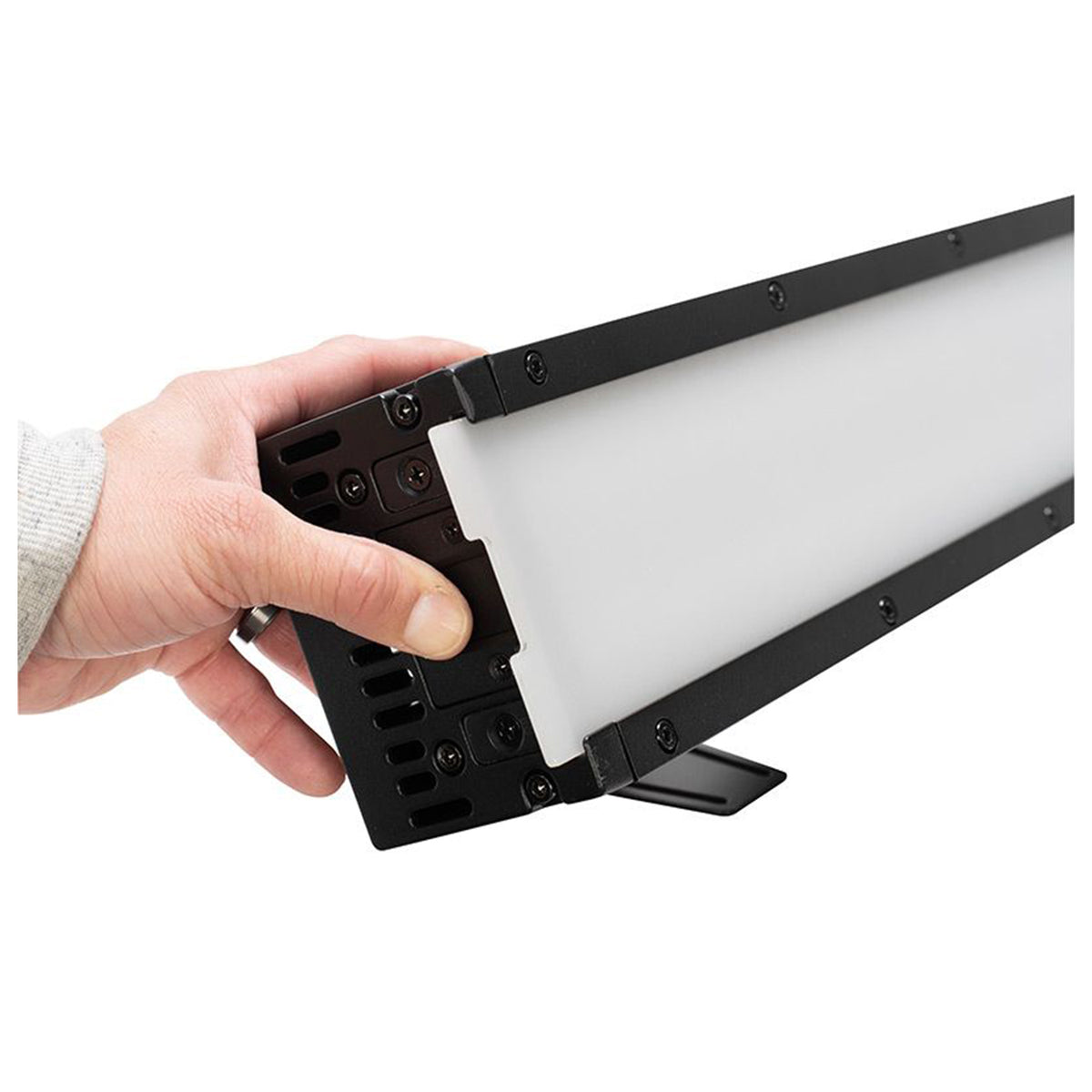

Frost Lens for Softer Output
The included snap-on frost lens assembly blurs individual pixel dots, giving you a different visual look that you can swap between shows.
Continuous Multi-Bar Chases
The included alignment bracket joins multiple Jolt Bar FXIP units end to end, creating continuous zone chase effects across a wider span of truss.
Technical Specifications
- Product Type IP65 LED Strobe/Blinder/Wash Bar
- Light Source 448x 0.5W RGB SMD + 112x 5W Cool White SMD
- RGB Zones 32
- Cool White Zones 16
- Beam Angle 78 degrees (117 degree field)
- Cool White Color Temp 6900-7400K
- CRI 89
- LED Life 50,000 hours
- DMX Modes 6, 9, 13, 16, 18, 32, 32A, 38, 43, 64, 78, 112, 126 channels
- Wireless DMX Aria X2 (WiFly EXR compatible)
- Max Strobe Rate 25Hz
- Refresh Rate 900Hz - 25kHz (adjustable)
- Power Connection IP65 Locking In/Out
- Max Power 214W at 120V
- Power Linking 6 units at 120V, 12 at 230V
- Dimensions (LxWxH) 5.42" x 39.4" x 4.19"
- Weight 20.5 lb
- Protection Rating IP65
