American DJ Jolt MFX 360 RGBL SMD LED Blinder Strobe Effect Strip Light ADJ
AMERICAN DJ
American DJ Jolt MFX 360 RGBL SMD LED Blinder Strobe Effect Strip Light ADJ
American DJ Jolt MFX 360 RGBL SMD LED Blinder Strobe Effect Strip Light ADJ
Dual-Sided Rotating LED Bar, 42.44" Long, Amber Vintage Side And Cool White Strobe Side, Brackets Included
Features
- Amber COB vintage side and cool white strobe side in one bar

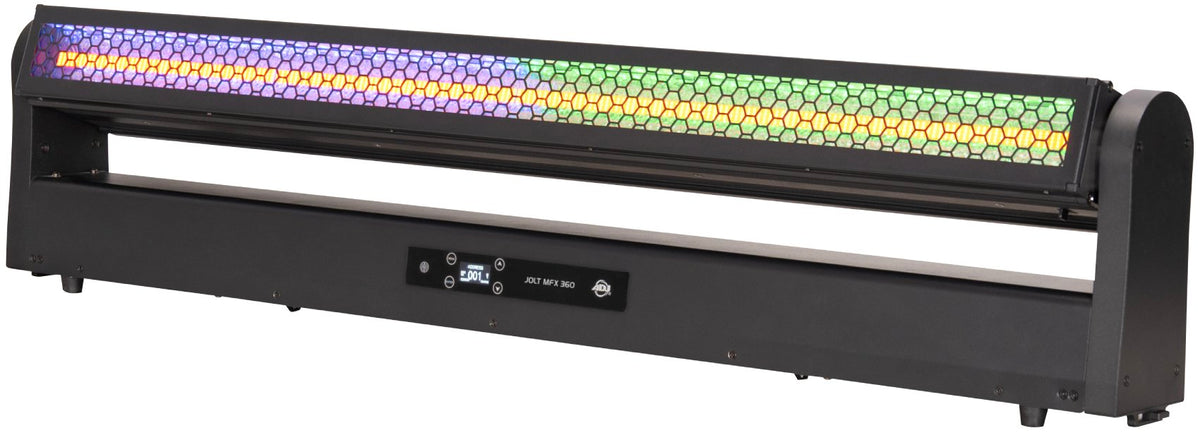

- 4x 100W amber COB LEDs plus 140x 0.8W RGBL SMD LEDs

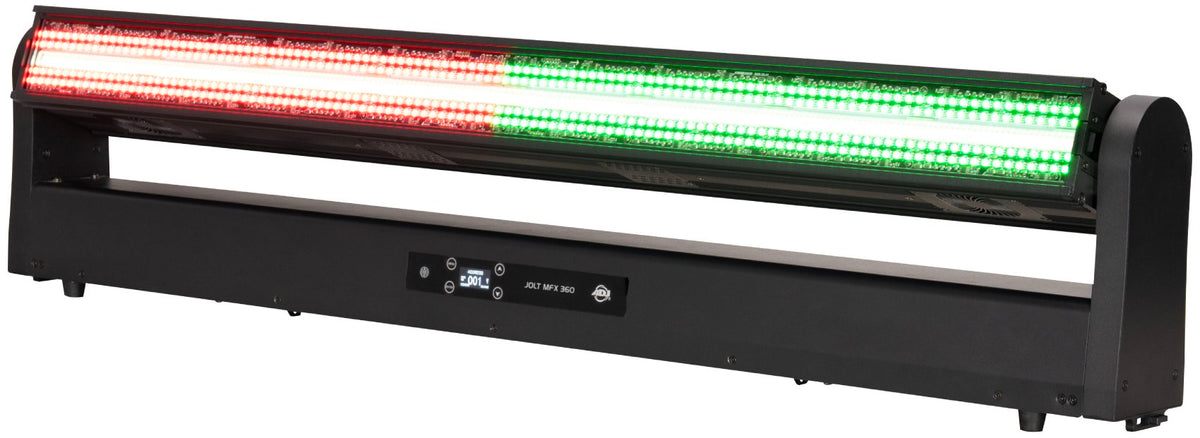

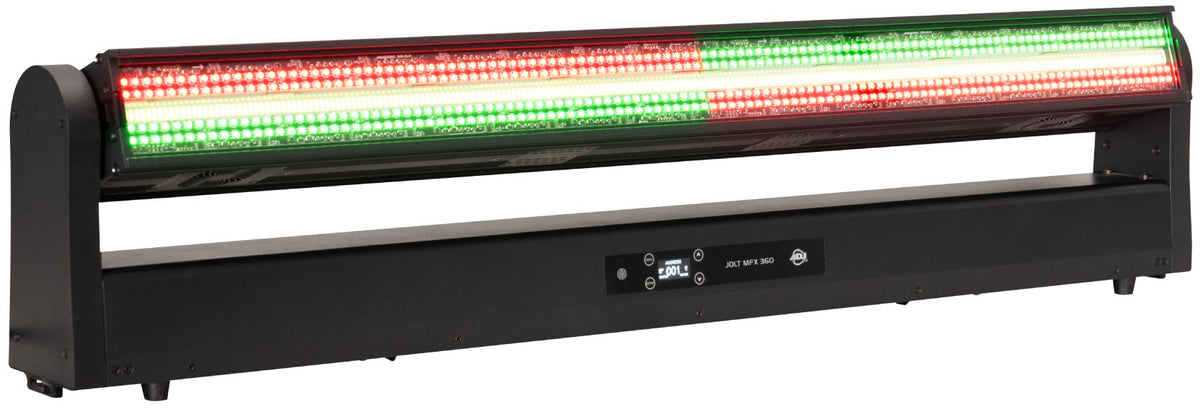

- 448x 1W cool white plus 448x 0.5W RGB SMD LEDs
- 360-degree continuous tilt rotation with tilt lock
- DMX, Art-Net, sACN, Aria X2 wireless and NFC control
Couldn't load pickup availability
What's Included in the box
- Jolt MFX 360 Dual-Sided LED Effect Bar
- IP65 3x14AWG 6.5 ft Locking Power Cable
- Safety Cable
- 2x 107mm Omega Brackets
SKU: SKU: Jolt MFX 360
View full details












Product Description
Fast motorized tilt flips between the two almost instantly, and 360-degree continuous rotation in both directions creates hybrid looks no static fixture can produce. Spin it slowly during a warm amber moment, then snap to the strobe side on a drop.
Zone control is deep: 4 amber LEDs and 20 RGBL zones on the vintage side, 16 cool white and 32 RGB zones on the Jolt Bar side, with 128 background macros and separate program macros for each LED type. A lens slot on the Jolt Bar side accepts optional frost, black, and linear effect filters.
Control covers DMX with RDM, Art-Net, sACN, Aria X2 wireless, and NFC configuration across 12 channel modes from 16 to 229 channels. Connections are Seetronic 5-pin XLR and locking RJ45 for data, plus IP65 locking power in and thru. Magnetic end caps align fixtures placed end to end, and a tilt lock holds position. The bar measures 42.44" long and weighs 40.4 lb.
Features
-
Two Fixtures, One Bar
A warm amber vintage blinder face and a cool white strobe face share one chassis, covering nostalgic and high-energy looks from one position.
-
Instant Effect Changes
Fast motorized tilt flips between the two faces in a beat, so you can move from soft amber ambience to hard strobe on a cue.
-
Hybrid Rotating Looks
360-degree continuous rotation in both directions creates spinning, blended effects across both faces that a static bar cannot produce.
-
Deep Zone Control
Twenty RGBL zones on the vintage side and 48 zones on the Jolt Bar side support pixel mapping, chases, and 128 background macros.
-
Networked Control Options
DMX with RDM, Art-Net, sACN, Aria X2 wireless, and NFC configuration cover console, network, and phone-based setup workflows.
Technical Specifications
- Product Type Dual-Sided Rotating LED Strobe / Blinder Effect Bar

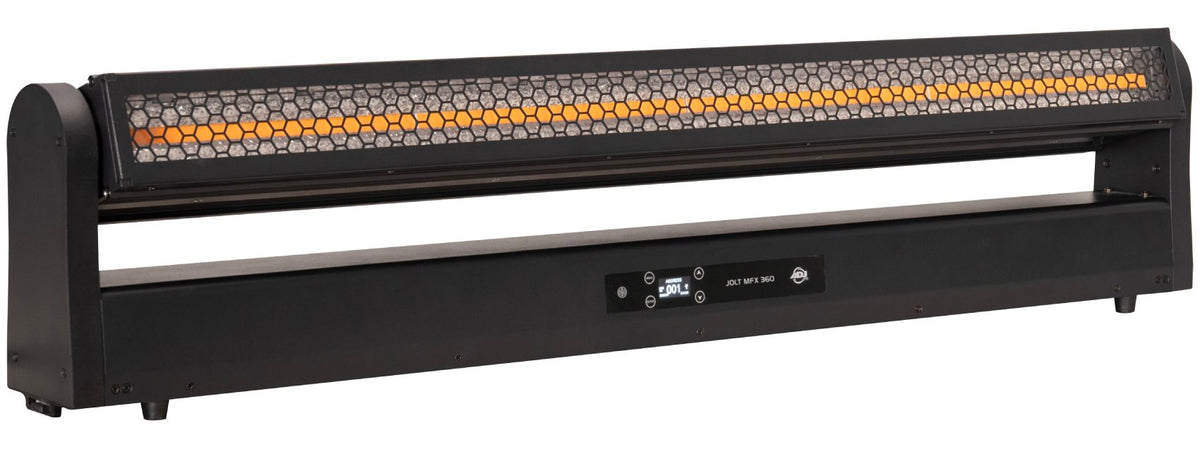

- Vintage Side Source 4x 100W COB Amber (1800K) LEDs, 588-592nm, CRI 60

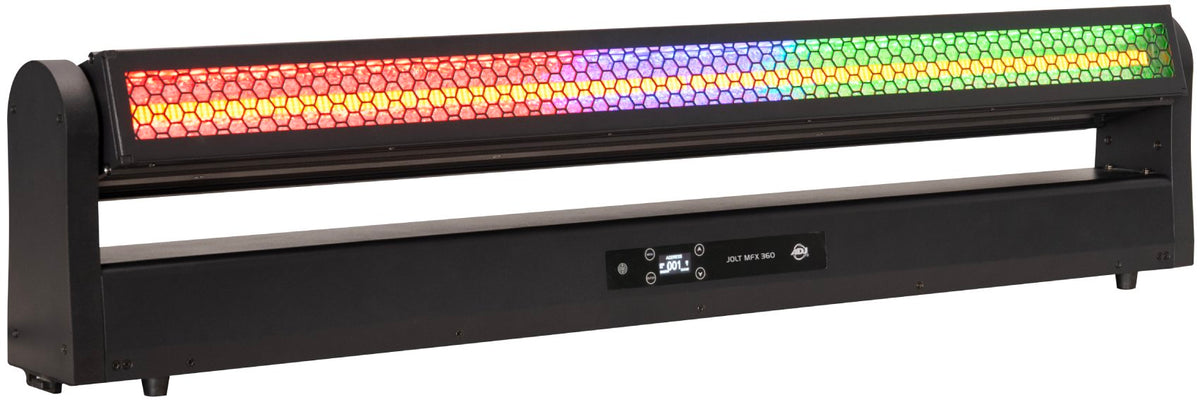

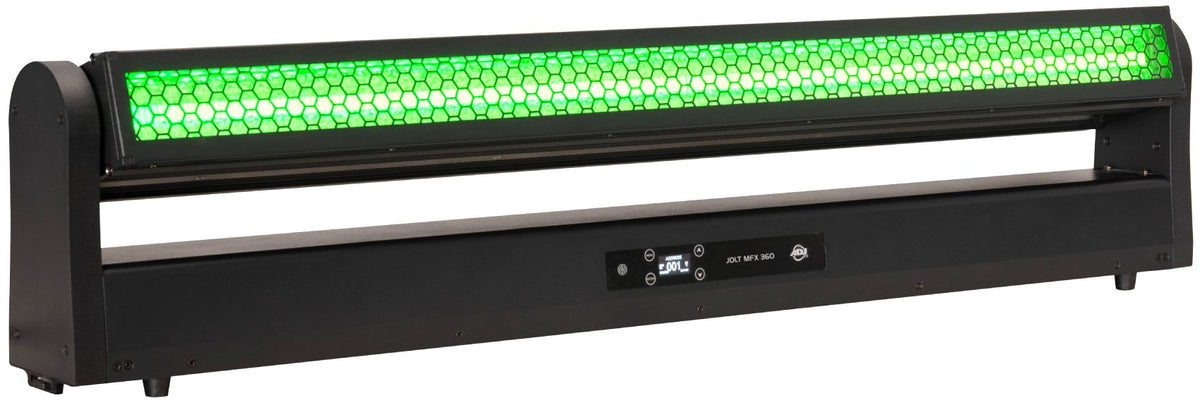

- Vintage Side Background 140x 0.8W RGBL SMD LEDs
- Vintage Side Beam / Field Angle 120 Degrees / 140 Degrees

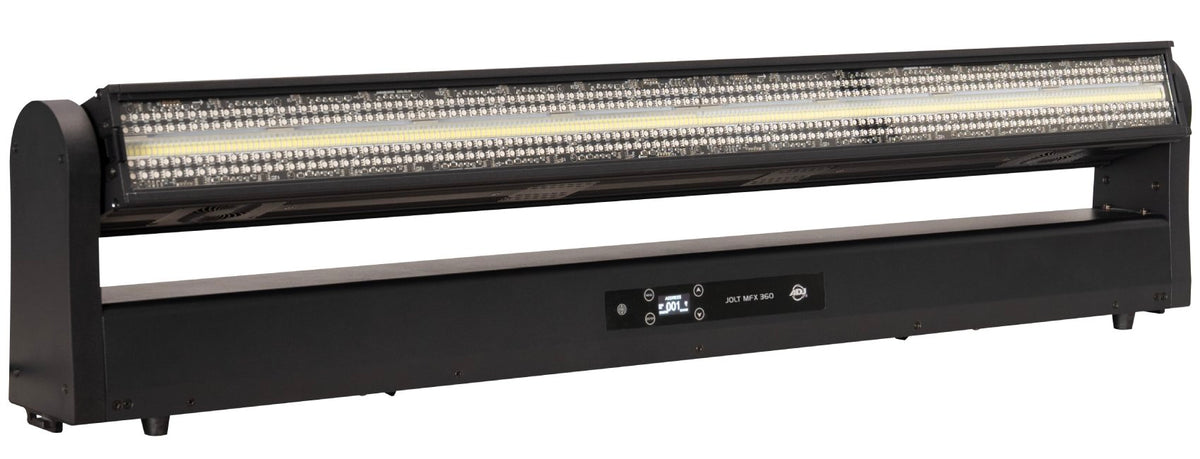

- Jolt Bar Side Source 448x 1W Cool White (6500K) SMD LEDs, CRI 73

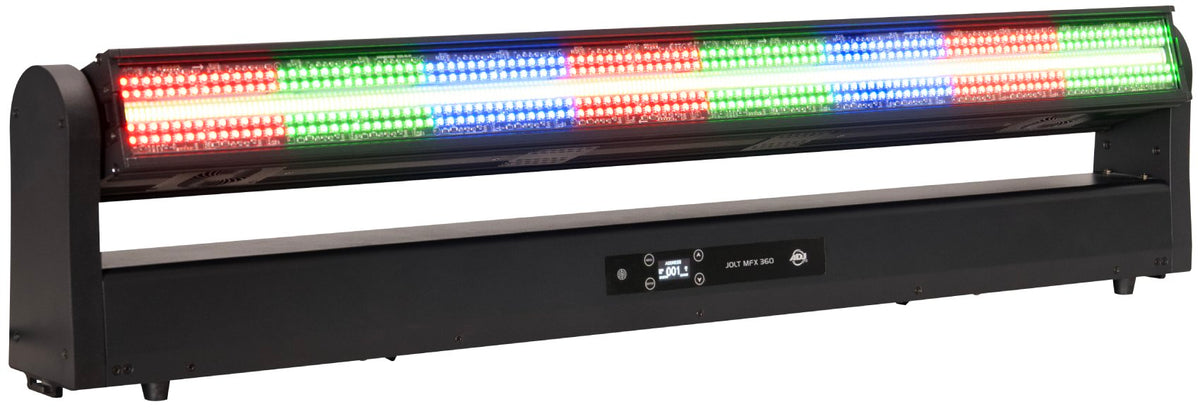

- Jolt Bar Side Background 448x 0.5W RGB SMD LEDs
- Jolt Bar Side Beam / Field Angle 60 Degrees / 80 Degrees
- LED Life 50,000 Hours (Average)
- Zones 4 Amber, 20 RGBL, 16 Cool White, 32 RGB
- Macros 128 Background Macros Plus 6 Program Macros Per LED Type
- Movement 360 Degree Continuous Tilt in Both Directions, Tilt Lock
- Control Protocols DMX, Art-Net, sACN, Aria X2, NFC, RDM
- DMX Modes 16, 31, 36, 42, 79, 96, 99, 105, 203, 220, 223 and 229 Channel
- Dim Modes 6 Presets (Standard, Stage, TV, Architectural, Theatre, Stage 2)
- Dim Curves 4 Presets (Linear, Square Law, Inv Square Law, S Curve)
- Dimming 0-100%
- Strobe Rate 0.35Hz to 25Hz, Linear, Pulse and Random
- Refresh Rate 900Hz - 25kHz

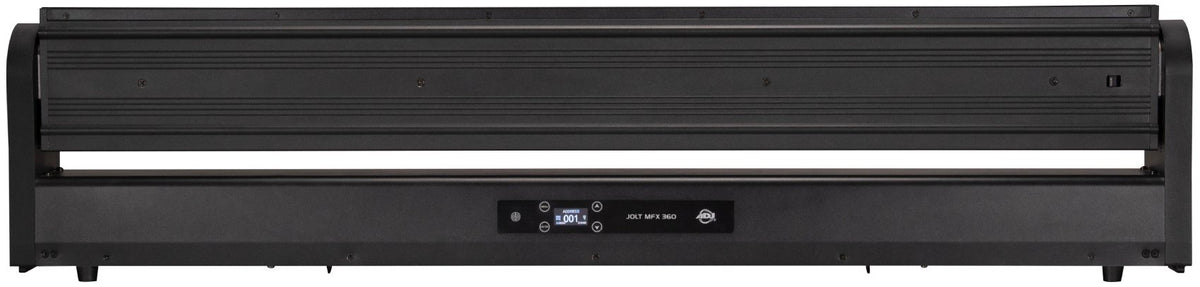

- Display OLED Menu with 4 Touch Buttons

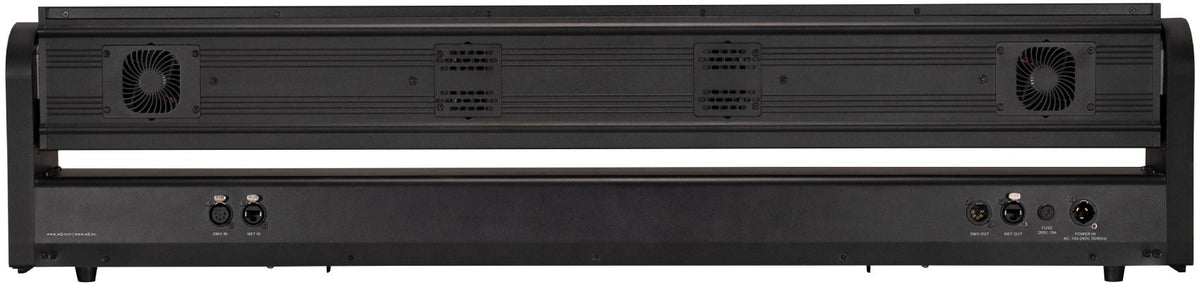

- Data Connections Seetronic 5-Pin XLR Locking DMX In/Thru, Seetronic RJ45 Locking In/Thru
- Power Connections IP65 Power Locking In/Thru
- Electrical 100-240V, 50/60Hz Auto Sensing
- Max Power Consumption 780W (7.09A @ 110V, 3.55A @ 220V)
- Max Power Link 2 Units @ 110/120V, 4 Units @ 220/240V
- Fuse T6.3A/250V Glass Fuse (5x20mm)
- Optional Filters JBFXBLKF Black, JBFX1X60LF and JBFX60X1LF Linear Effect Filters
- Approvals and Ratings CE, cETLus (Pending), IP20
- Dimensions 42.44" L x 5.08" W x 11.02" H
- Weight 40.4 lb
