Jolt Panel FXIP RGBW SMD LED DMX Strobe/Wash Light OLED Display
Jolt Panel FXIP RGBW SMD LED DMX Strobe/Wash Light OLED Display
214W IP65 RGBW LED Strobe/Wash Panel, 46 Color Zones, Built-In OLED Display
Features
- 800 RGB and 48 cool white SMD LEDs across 46 zones
- IP65-rated for indoor and outdoor use on any stage
- Built-in Aria X2 wireless DMX skips extra cabling
- OLED display with 4-button menu for on-unit DMX setup
- Locking power and DMX sockets daisy chain multiple fixtures
Couldn't load pickup availability
What's Included in the box
- Jolt Panel FXIP RGBW SMD LED wash light
- 6 ft IP65-rated locking power cable
- Frost filter
SKU: SKU: Jolt Panel FXIP*
View full details







Product Description
Aria X2 wireless DMX is built into the fixture, so it distributes data without running a physical DMX line to every unit, and it also works with ADJ's WiFLY EXR wireless DMX system. A channel on the front accepts light shaping filters that blur the pixel dots for a softer look, and an OLED display with a 4-button menu handles dimming modes, color macros, LED refresh rate, and DMX addressing without a separate controller.

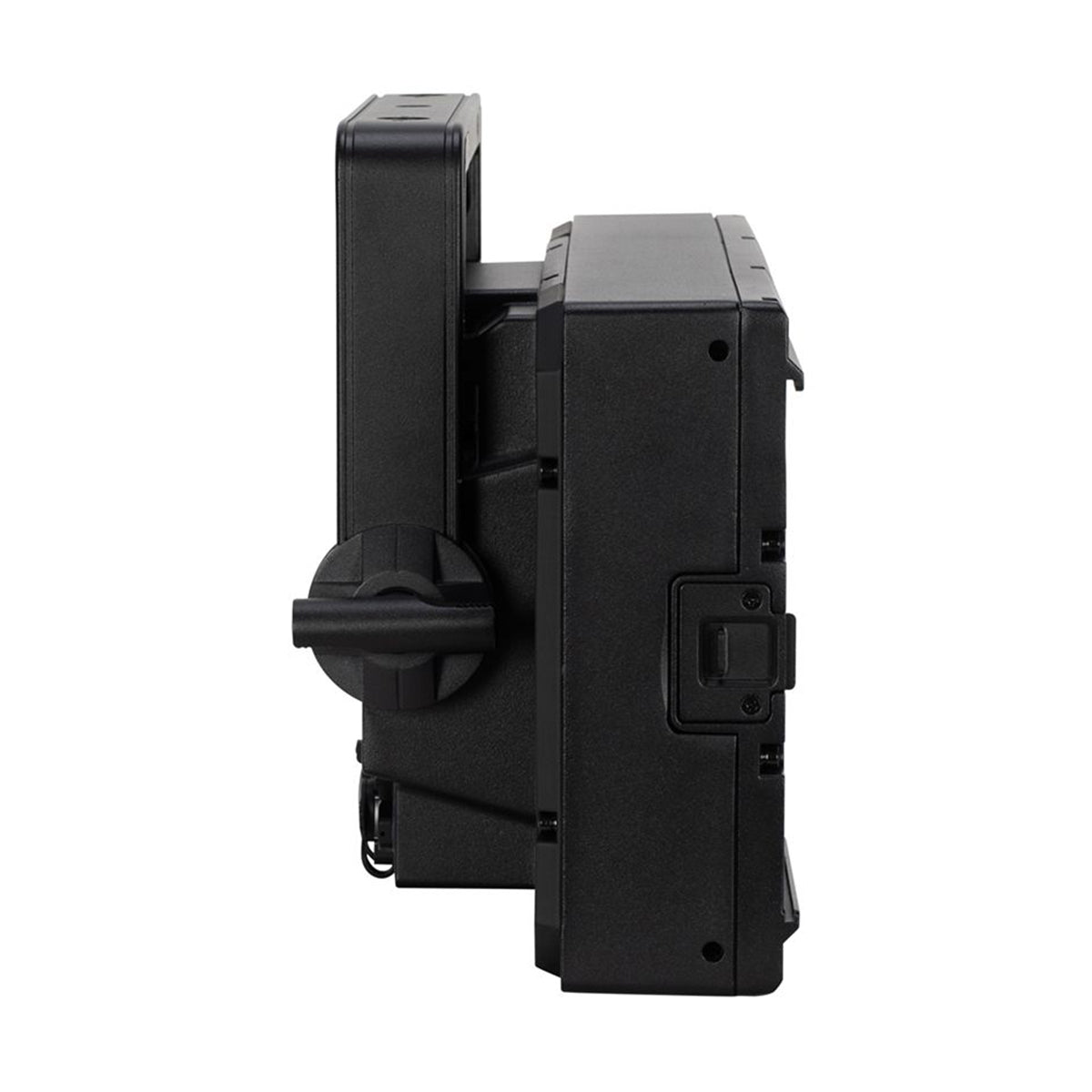

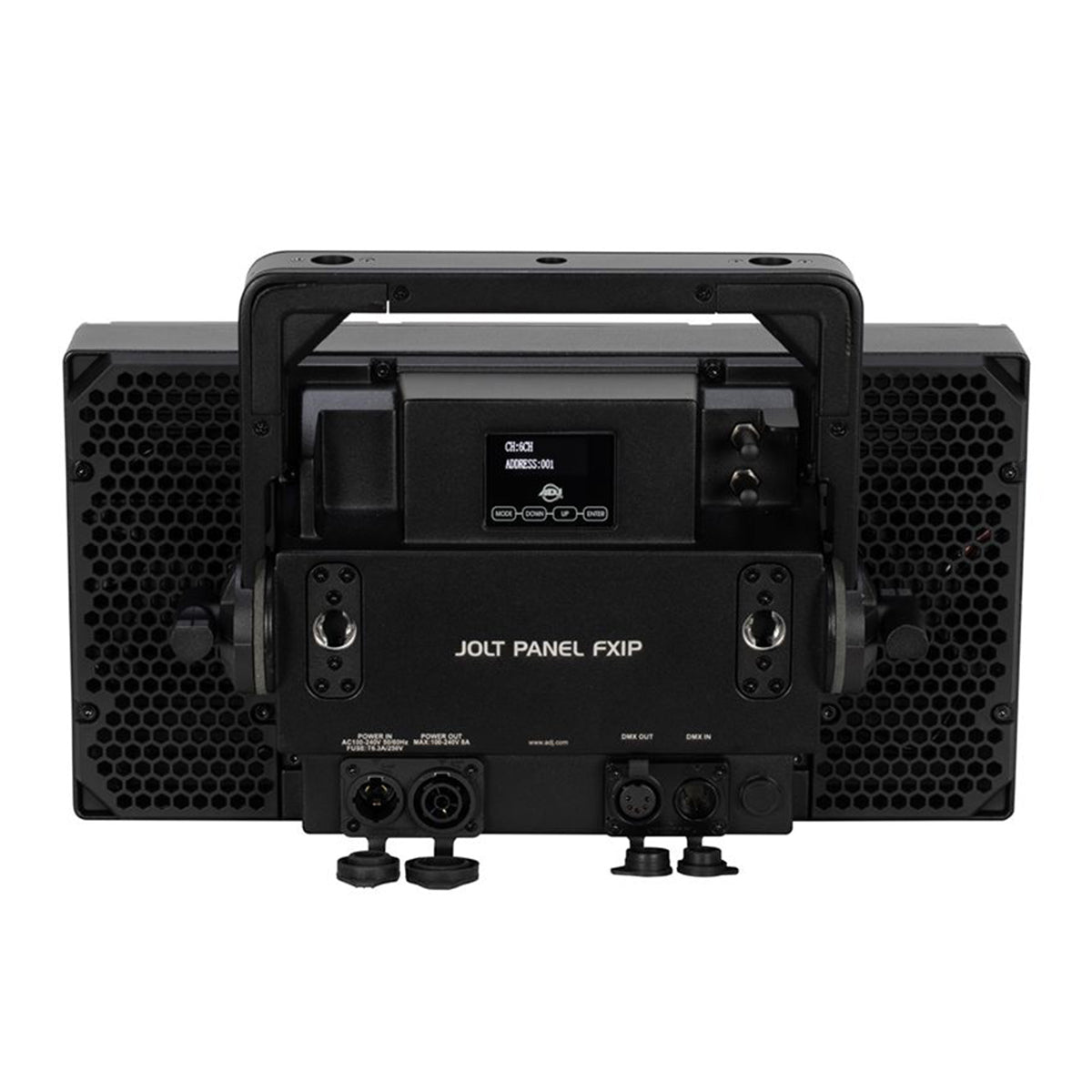

Rear-panel connections include IP65-rated locking 5-pin DMX in/out and locking power in/out sockets for daisy chaining multiple units, along with mounting holes for an optional omega bracket. At 13.67 lb and rated for both outdoor and indoor use, the Jolt Panel FXIP fits nightclub installs, concert stages, and festival productions that need bright, flexible lighting in one compact housing.
Features
One Fixture, Multiple Looks

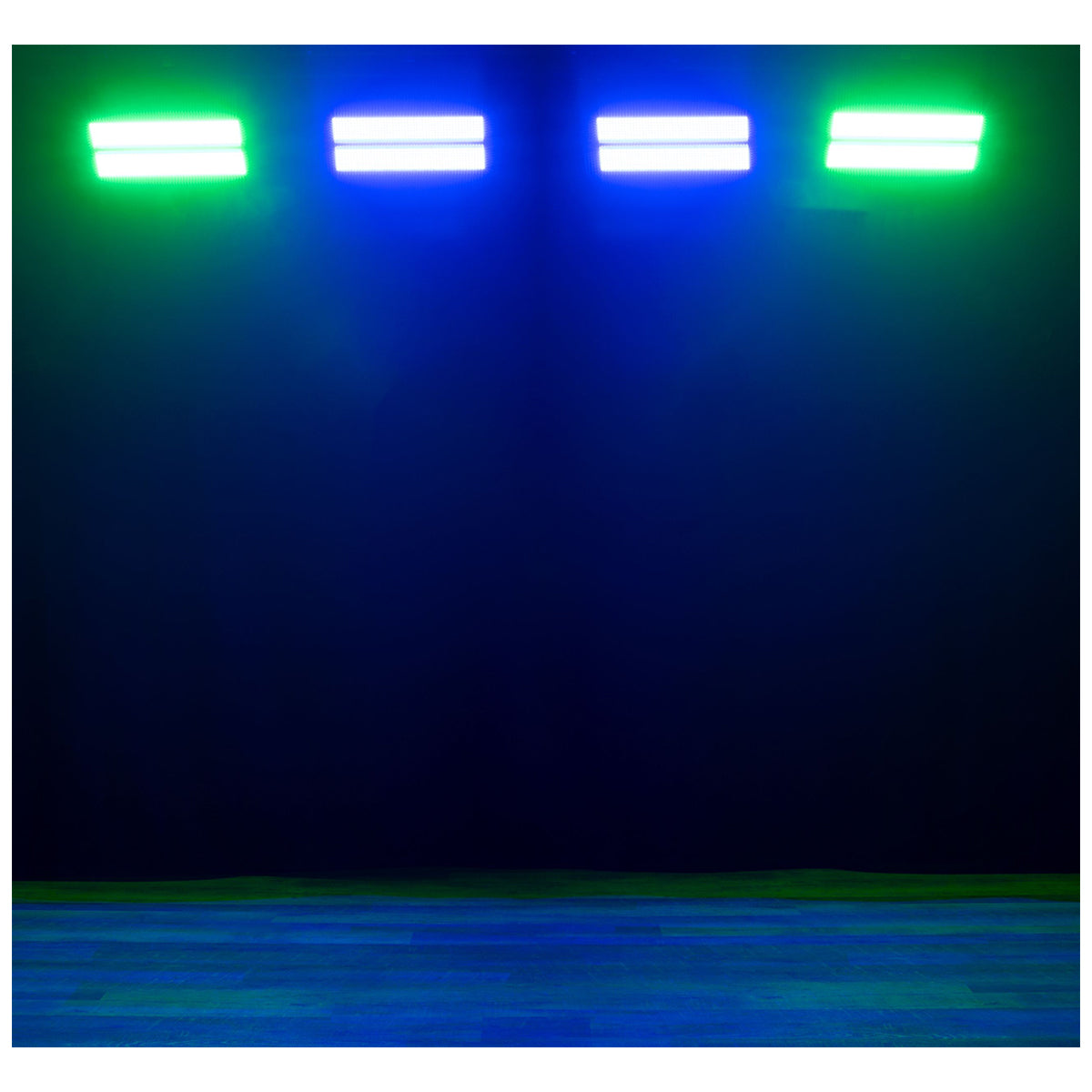

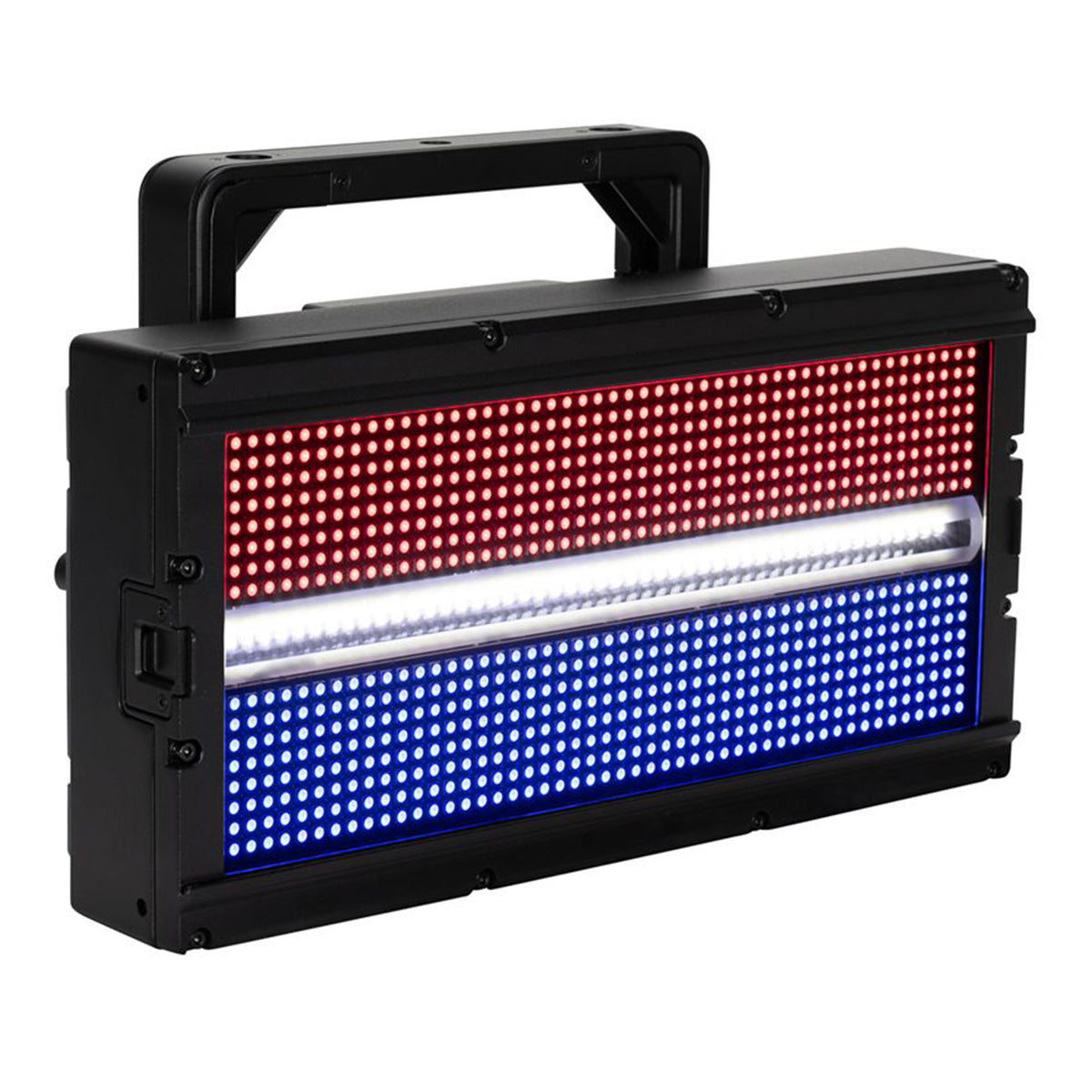

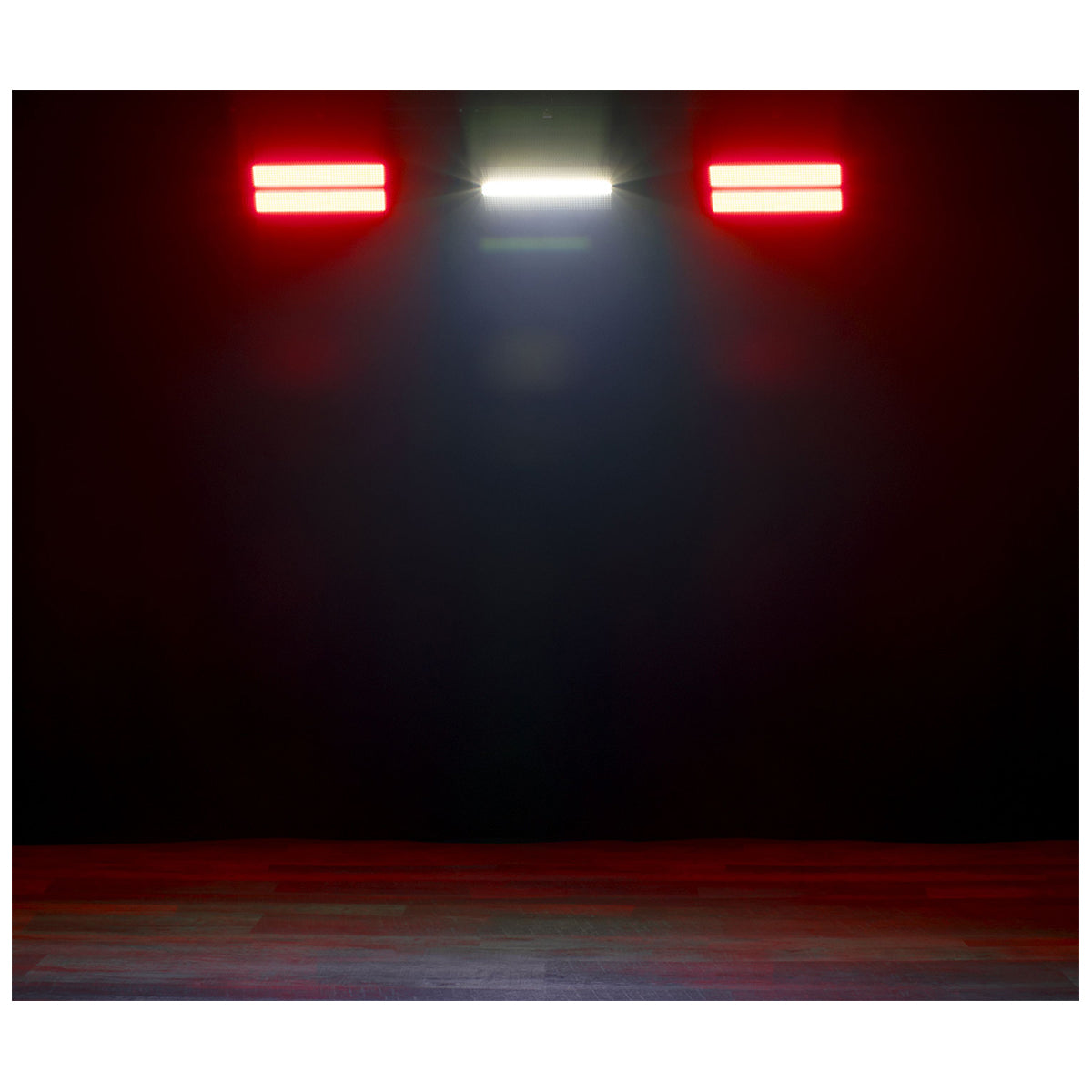

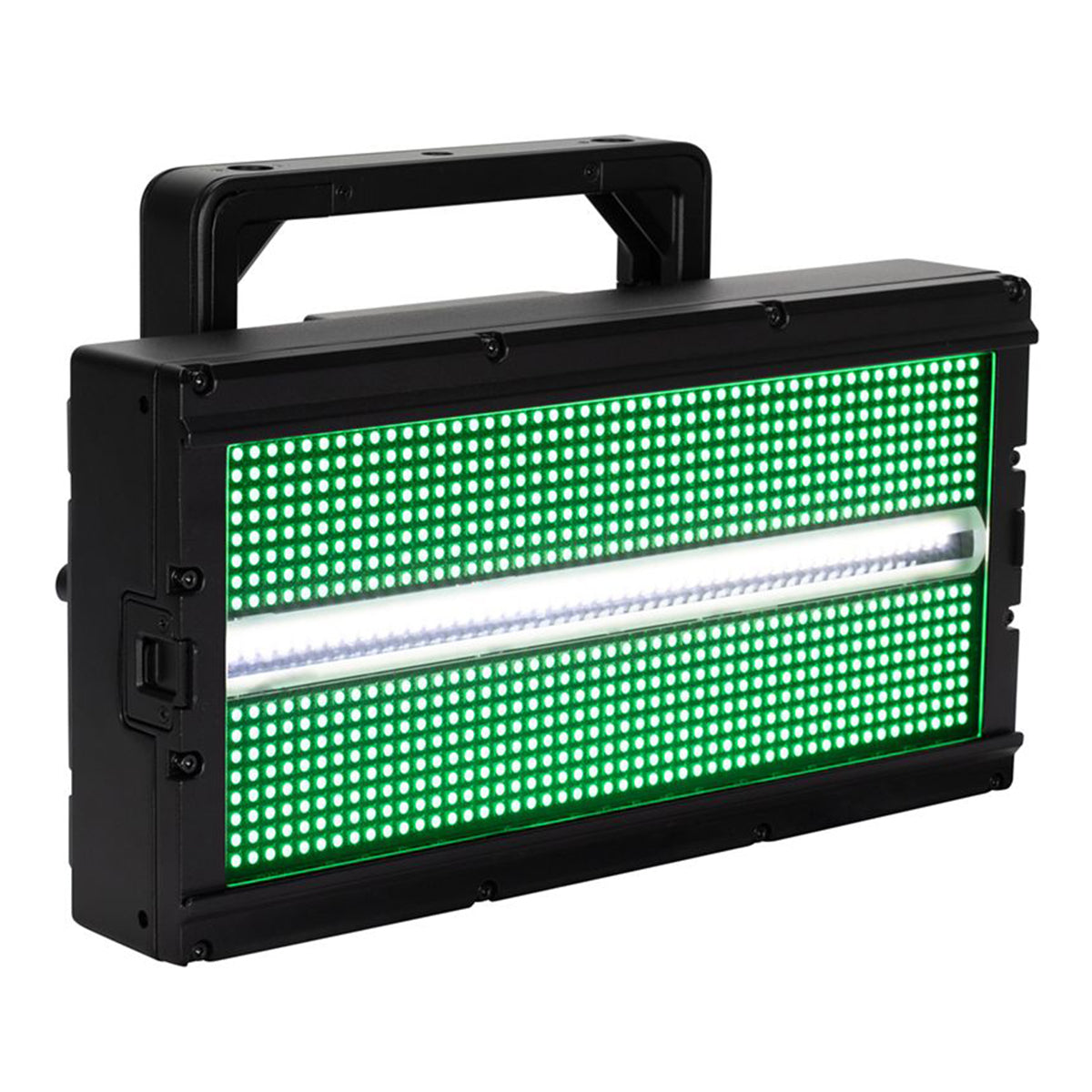

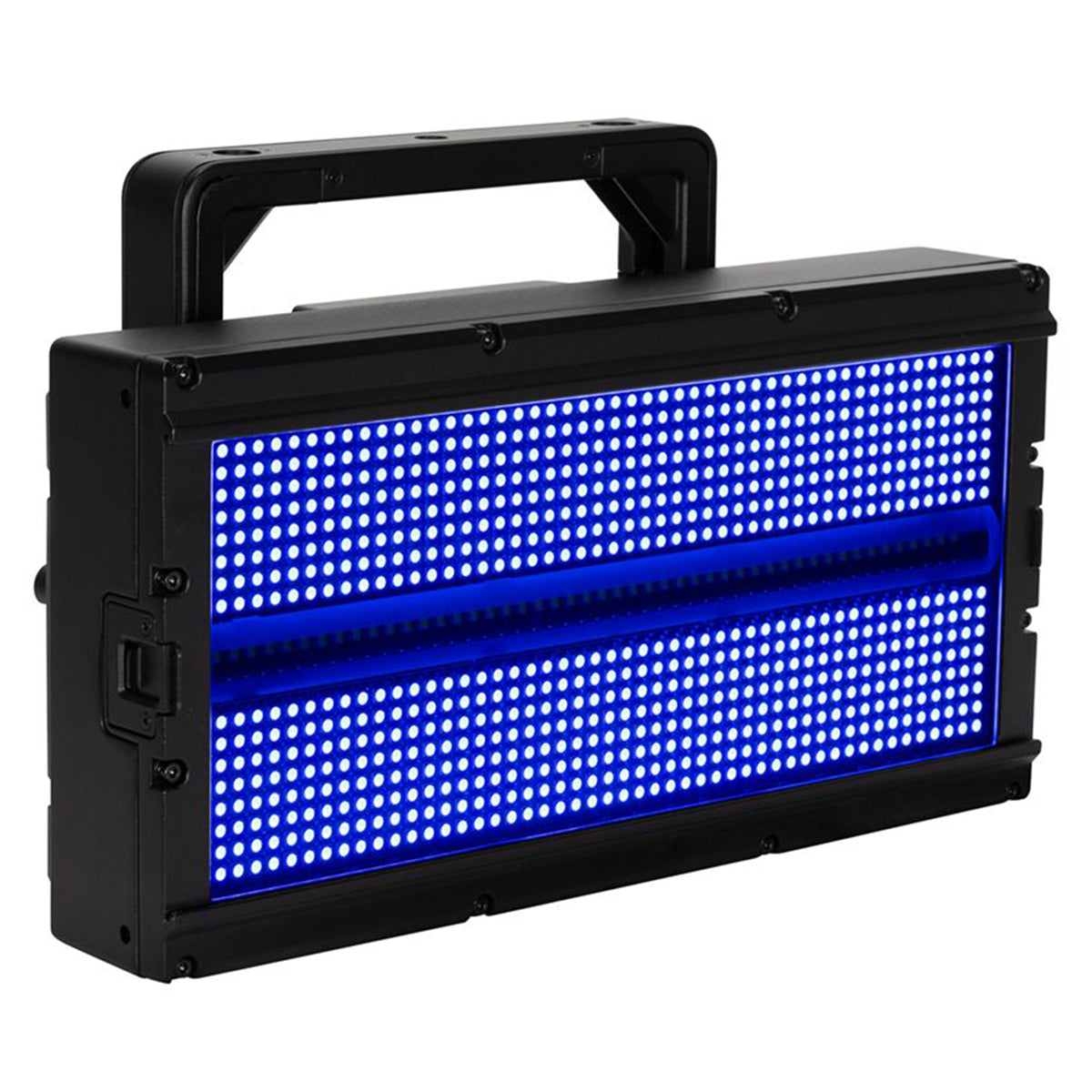

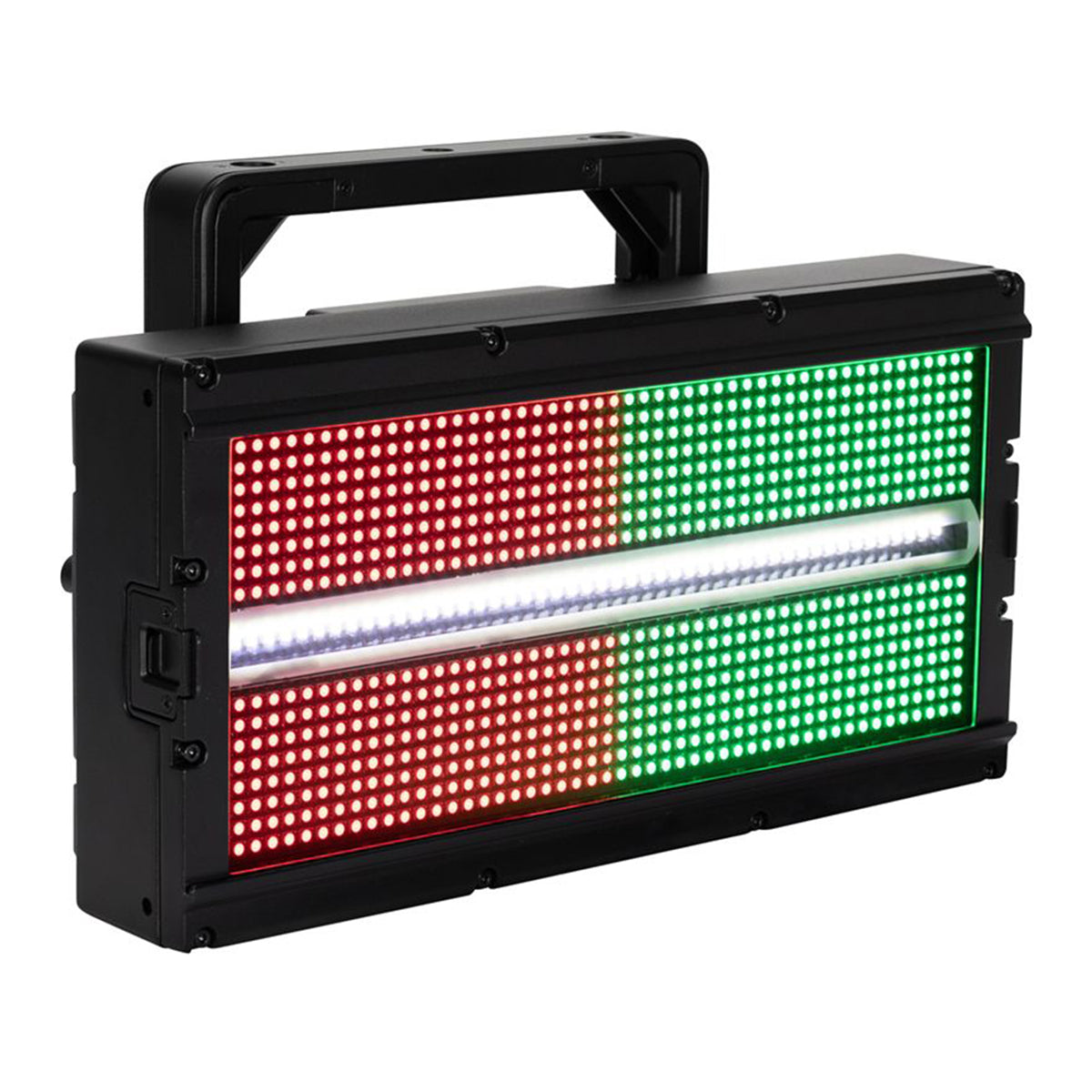

800 RGB and 48 cool white LEDs split into 46 zones switch between bright strobe flashes, full color washes, and chase effects from a single unit.
Weatherproof Reliability
An IP65 rating on the housing, data, and power connections lets the panel run outdoors through weather that would sideline a standard fixture.
Wireless Data Without Extra Hardware
Built-in Aria X2 wireless DMX distributes control signal to the fixture without running a physical DMX cable to every unit on the rig.
Onboard Control At A Glance
The OLED display and 4-button menu let a technician set dimming modes, color macros, and DMX addressing directly at the fixture.
Built To Daisy Chain
Locking IP65 power and DMX in/out sockets let several panels share one circuit and one data line for a cleaner rig.
Technical Specifications
- Product Type IP65 RGBW LED Strobe/Wash Light Panel
- Light Source 800 x 0.5W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
- Beam Angle 73° Beam, 111° Field
- LED Zones 40 RGB, 6 Cool White
- CRI 69.4
- DMX Channel Modes 10 modes (6-141 channels)
- Control Protocols DMX, Aria X2, RDM
- Max Power Consumption 214W @120V
- IP Rating IP65
- Weight 13.67 lb
- Dimensions 16.42" W x 10.38" H x 6.06" L
