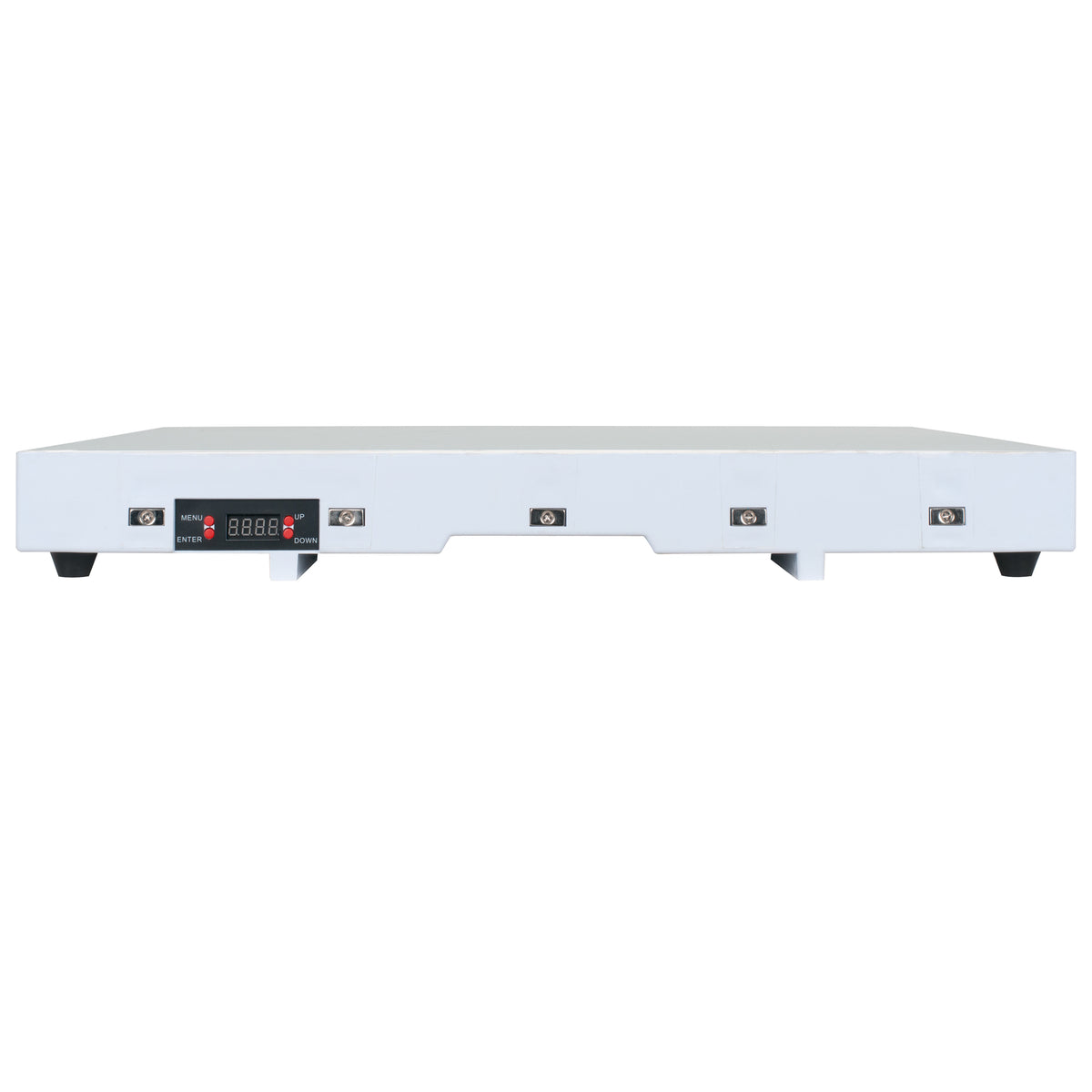

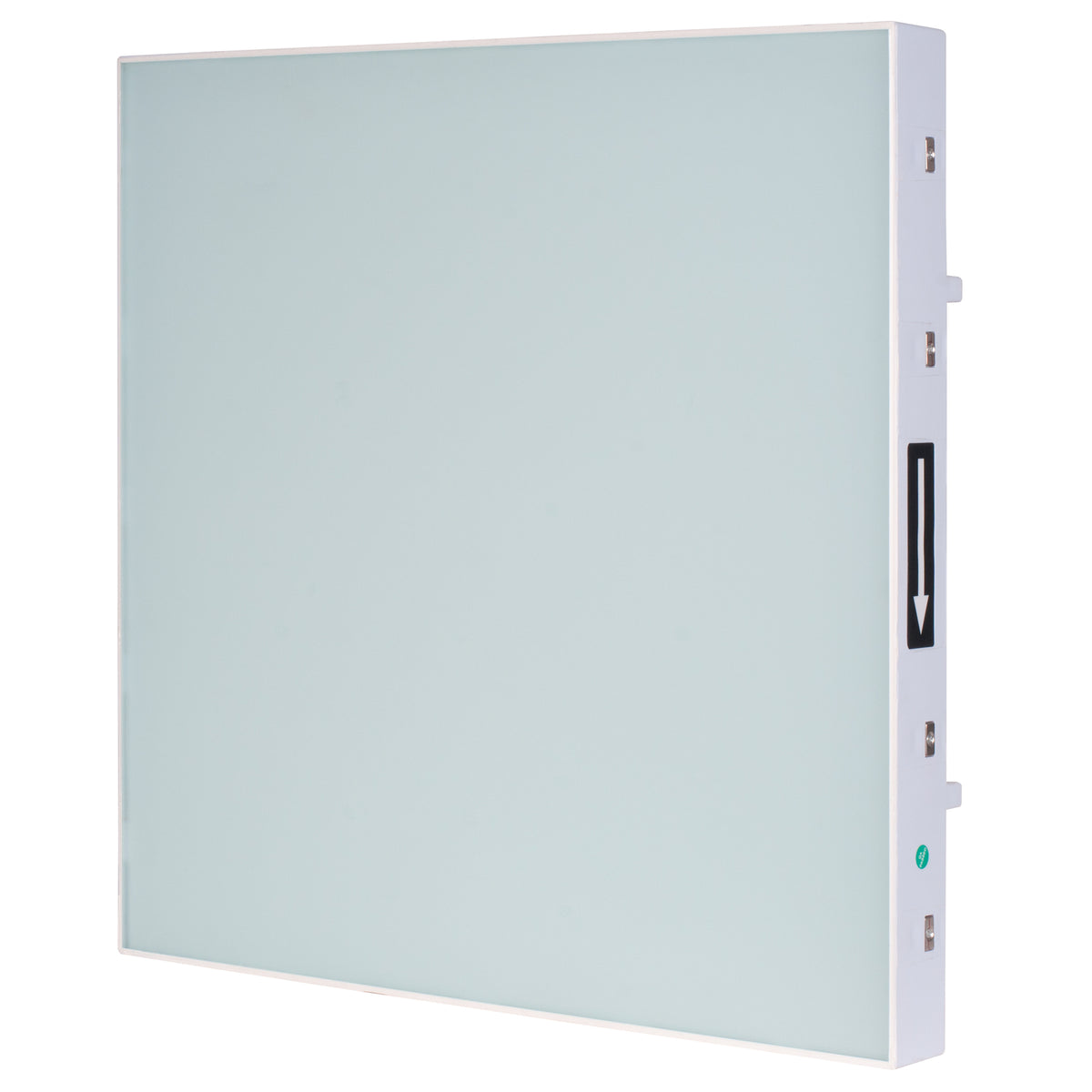

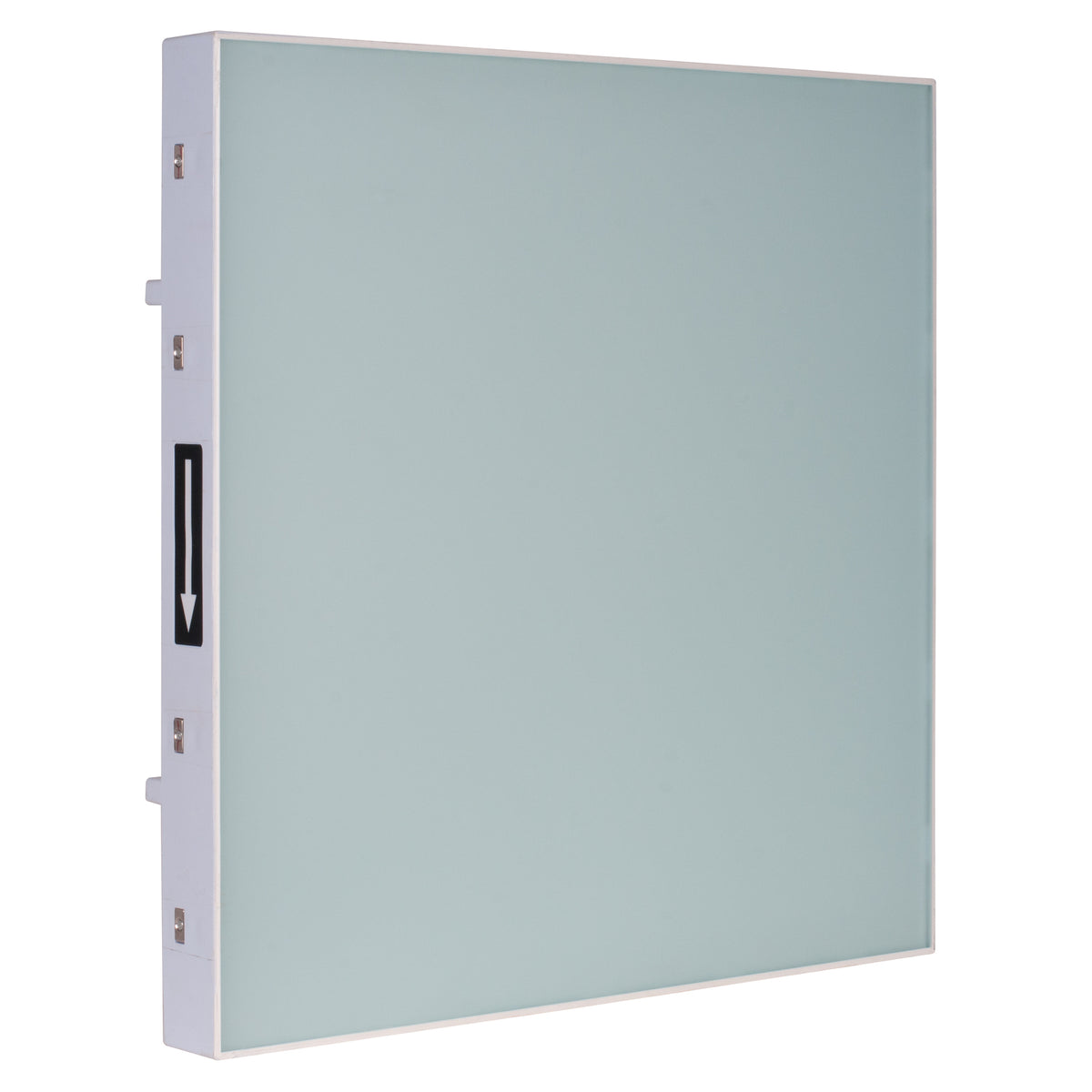

MDF2 15W Single RGB LED DMX Magnetic Dance Floor Panel

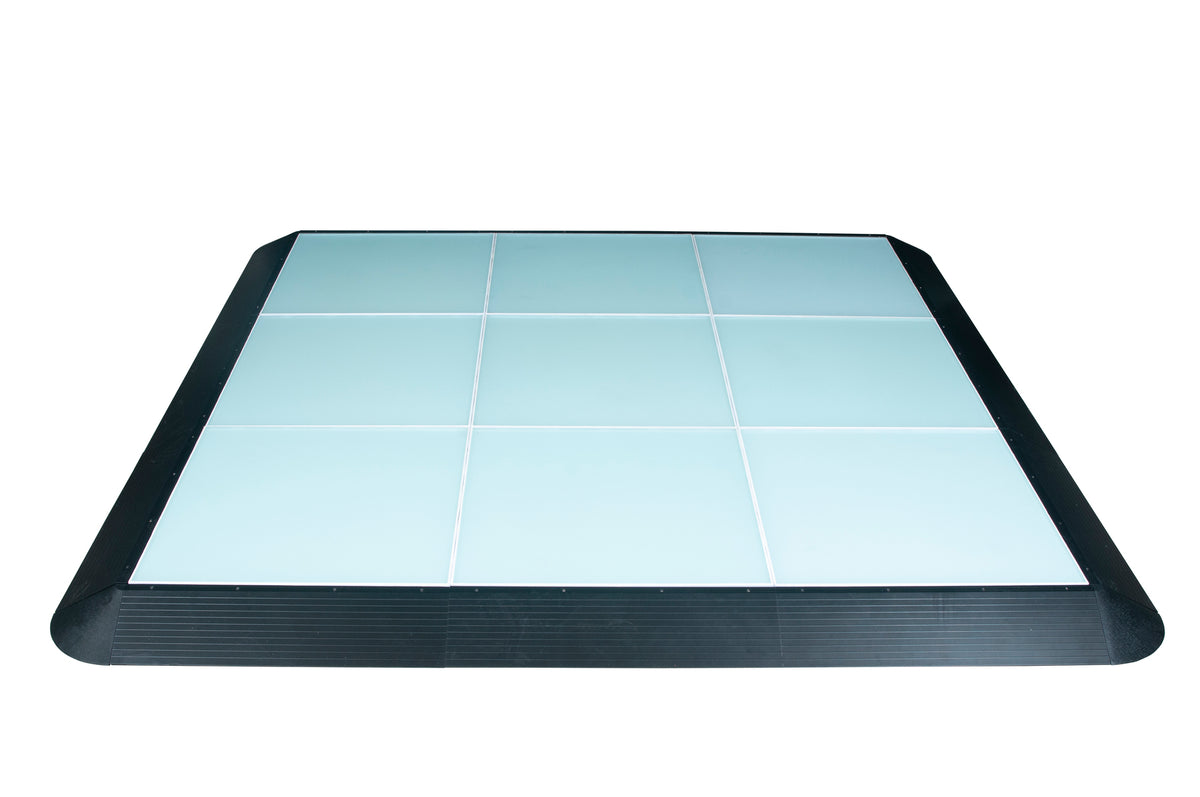

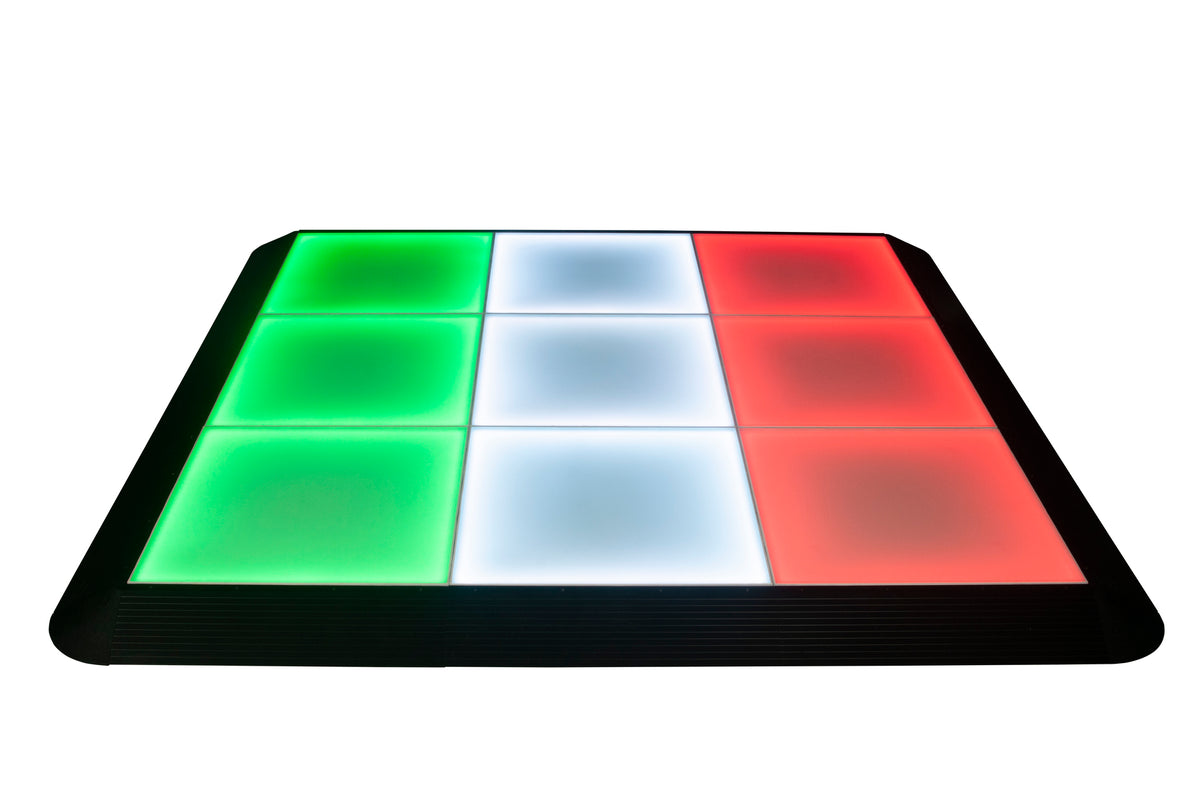

The ADJ MDF2 is a single panel from ADJ's Magnetic Dance Floor system, built to snap together with other MDF2 panels into a portable, glowing LED dance floor for events and permanent installs. Each panel uses 3-in-1 RGB LEDs behind an opaque tempered glass surface, producing a wide range of vibrant colors across a 160 degree viewing angle.

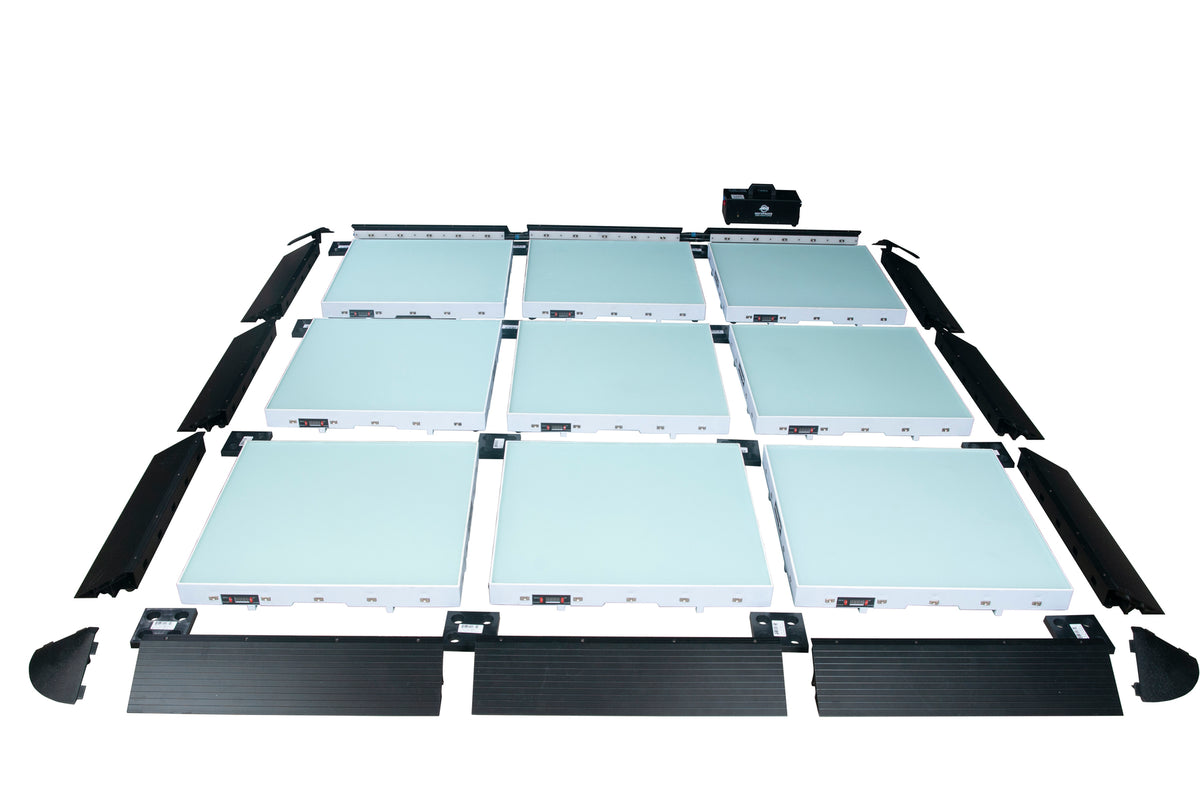

At 23.62 inches square and just 2.76 inches tall, a single MDF2 panel weighs 26.57 lb but is rated to bear up to 300 kg per square meter, more than enough for a packed dance floor. Panels connect through an innovative magnetic locking system with a cable-free power and data connection between adjacent units, so a row of panels goes together without loose cables underfoot. Power and DMX then run to each row through a dedicated MDF2PR power ramp, sold separately, with a choice of power supplies sized for 9, 15, 20, 40, 117, or 156 panel layouts.

The system supports DMX512 control with 3, 5, 7, or 10 channel modes, along with SD controller options for sound-activated or automatic playback. Because setup and breakdown are fast, the MDF2 fits both temporary event use by mobile entertainment companies and permanent installation in nightclubs and bars.
