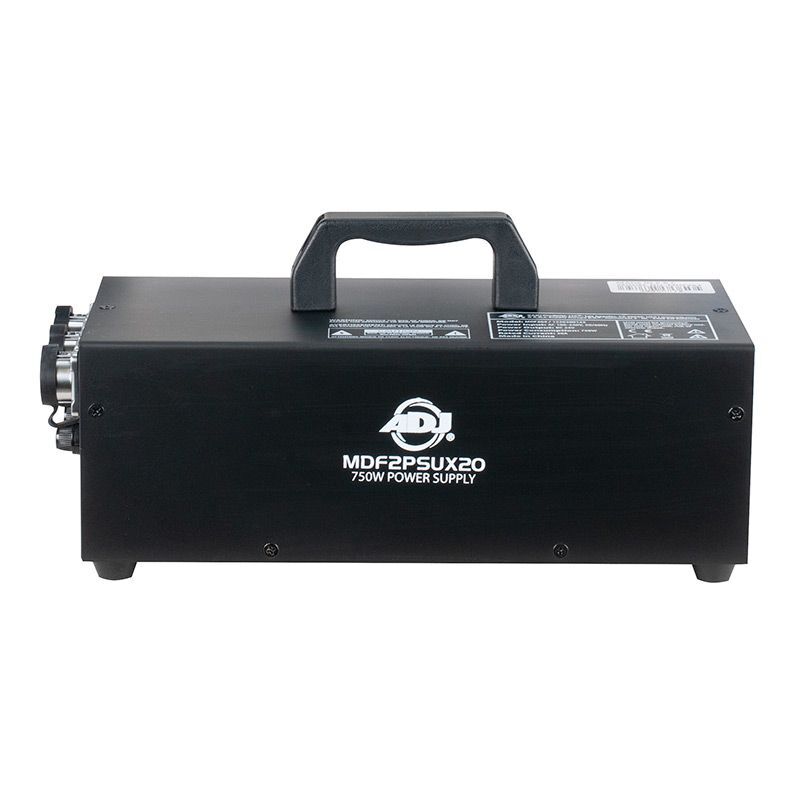

MDF2PSUX20 750W Power Supply For Up To 20 MDF2 Dance Floor Panels

Product Description Specifications

MDF2PSUX20 750W Power Supply For Up To 20 MDF2 Dance Floor Panels

  • MDF2PSUX20 750W Power Supply For Up To 20 MDF2 Dance Floor Panels
  • MDF2PSUX20 750W Power Supply For Up To 20 MDF2 Dance Floor Panels
  • MDF2PSUX20 750W Power Supply For Up To 20 MDF2 Dance Floor Panels
1 3

AMERICAN DJ

MDF2PSUX20 750W Power Supply For Up To 20 MDF2 Dance Floor Panels

MDF2PSUX20 750W Power Supply For Up To 20 MDF2 Dance Floor Panels

750W Power Supply, Powers Up To 20 MDF2 Dance Floor Panels

Free Shipping

$559.00
$559.00 $879.95
Save 36%
Shipping calculated at checkout.
Features
    • Powers up to 20 MDF2 dance floor panels
    • 750W output with 24VDC power delivery
    • Current overload protection with tiered trip times
    • Rated for -4°F to 158°F operating range
    • Sized for mid-size dance floor installations
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • MDF2PSUX20 power supply
    • Power cable

SKU: MDF2PSUX20*

View full details

Product Description

The ADJ MDF2PSUX20 is a 750W power supply built to run up to 20 MDF2 LED dance floor panels from a single unit, sized for mid-size dance floor layouts at weddings, parties, and club installs. Its metal enclosure delivers 24VDC output with tiered current overload protection, cutting off within 1.5 to 5.5 seconds if the load runs 20 to 30 amps over the maximum rating.

Rated for an operating range of -4 to 158 degrees Fahrenheit, the PSUX20 can sit in a truck, storage room, or unconditioned venue space without issue. At 30 lb, it stays manageable for a one-person carry despite the added output over the smaller PSUX9 model.

For an MDF2 installation sized between the smallest 9-panel layout and larger touring configurations, the PSUX20 is the power supply built to match a 20-panel dance floor.

Features

    • Sized For A Mid-Size Floor

      Powering up to 20 MDF2 panels, the PSUX20 fits dance floor layouts larger than a compact 9-panel setup.

    • Built-In Overload Protection

      Tiered current overload protection trips within seconds under heavy overload, protecting both the panels and the power supply.

    • Rugged Build

      A metal enclosure and 30 lb construction give the PSUX20 the durability needed for repeated load-in and load-out.

    • Ready For Any Venue

      An operating range of -4°F to 158°F lets the PSUX20 handle everything from a hot storage truck to a cold outdoor event.

    • Scales With The System

      As part of ADJ's MDF2 power lineup, the PSUX20 lets an installation grow from a small floor to a mid-size one without changing panel types.

Technical Specifications

  • Product Type Power Supply For LED Dance Floor Panels
  • Panel Capacity Up To 20 MDF2 Panels
  • Output 750W, 24VDC

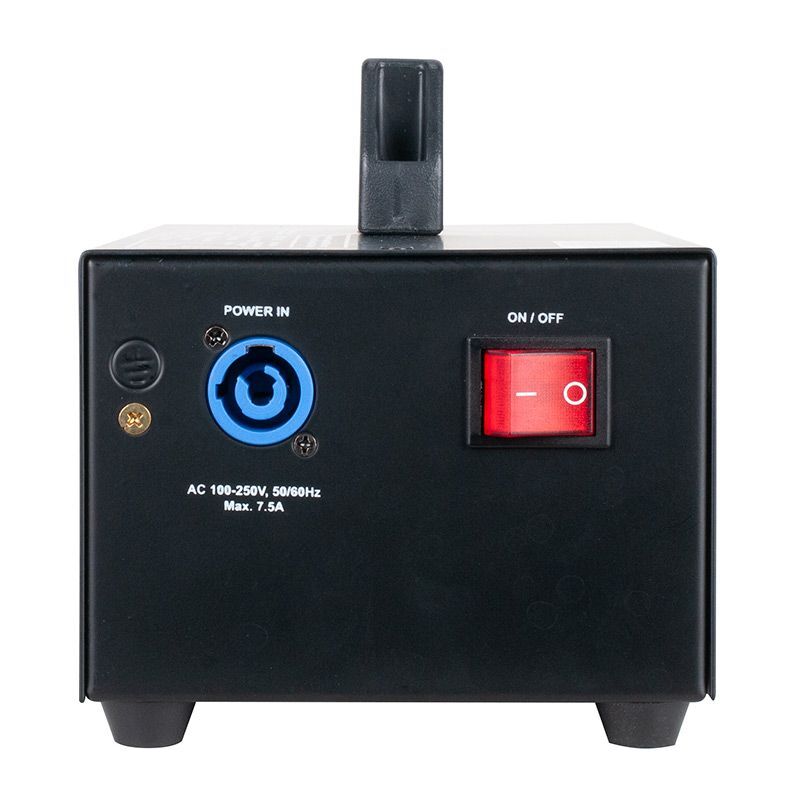

  • Input Voltage AC 100-240V, 50/60Hz
  • Max Load Current 90A
  • IP Rating IP20
  • Operating Temperature -4°F to 158°F (-20°C to 70°C)
