American DJ ADJ MDF3 15W 3-in-1 RGB LED DMX Magnetic Single Dance Floor Panel

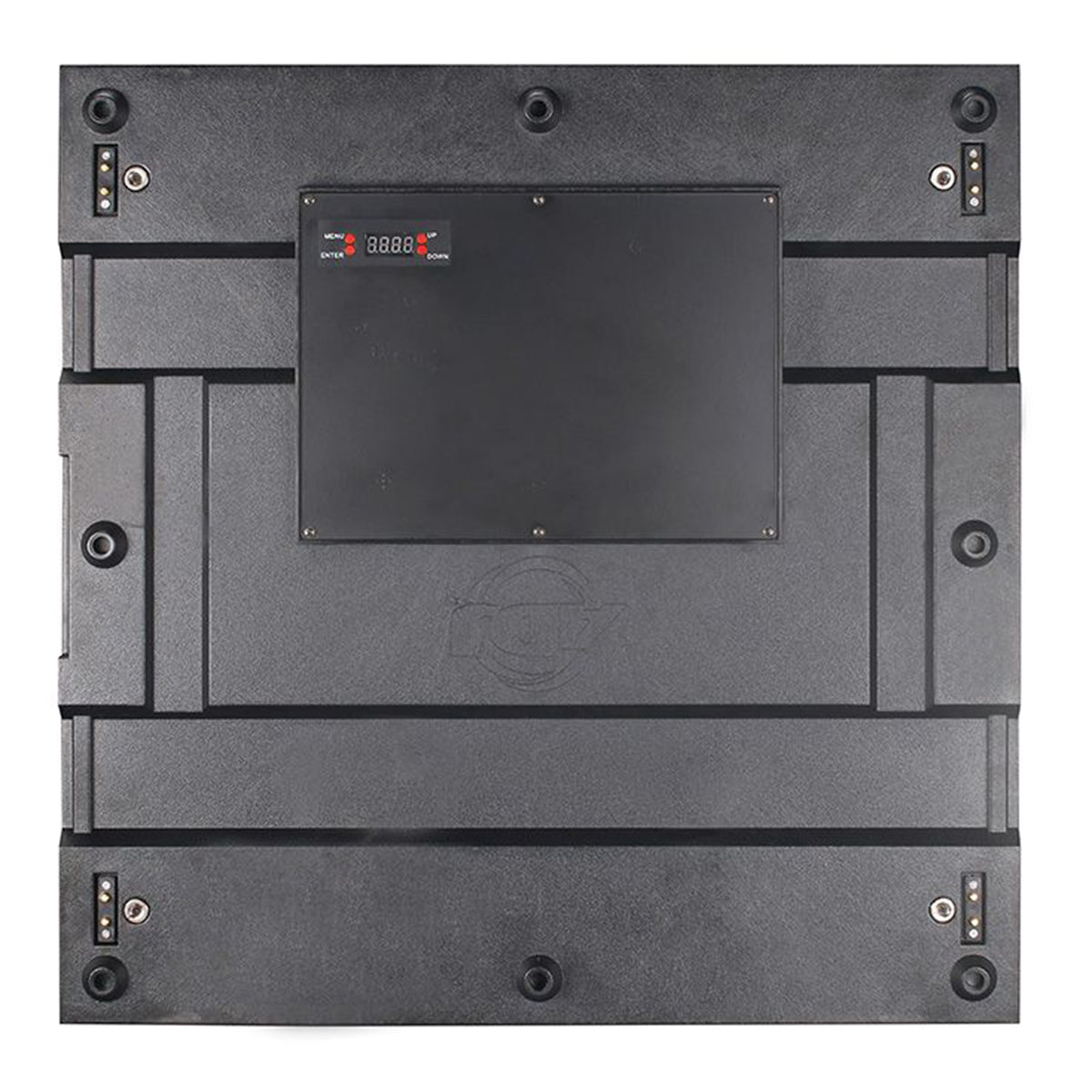

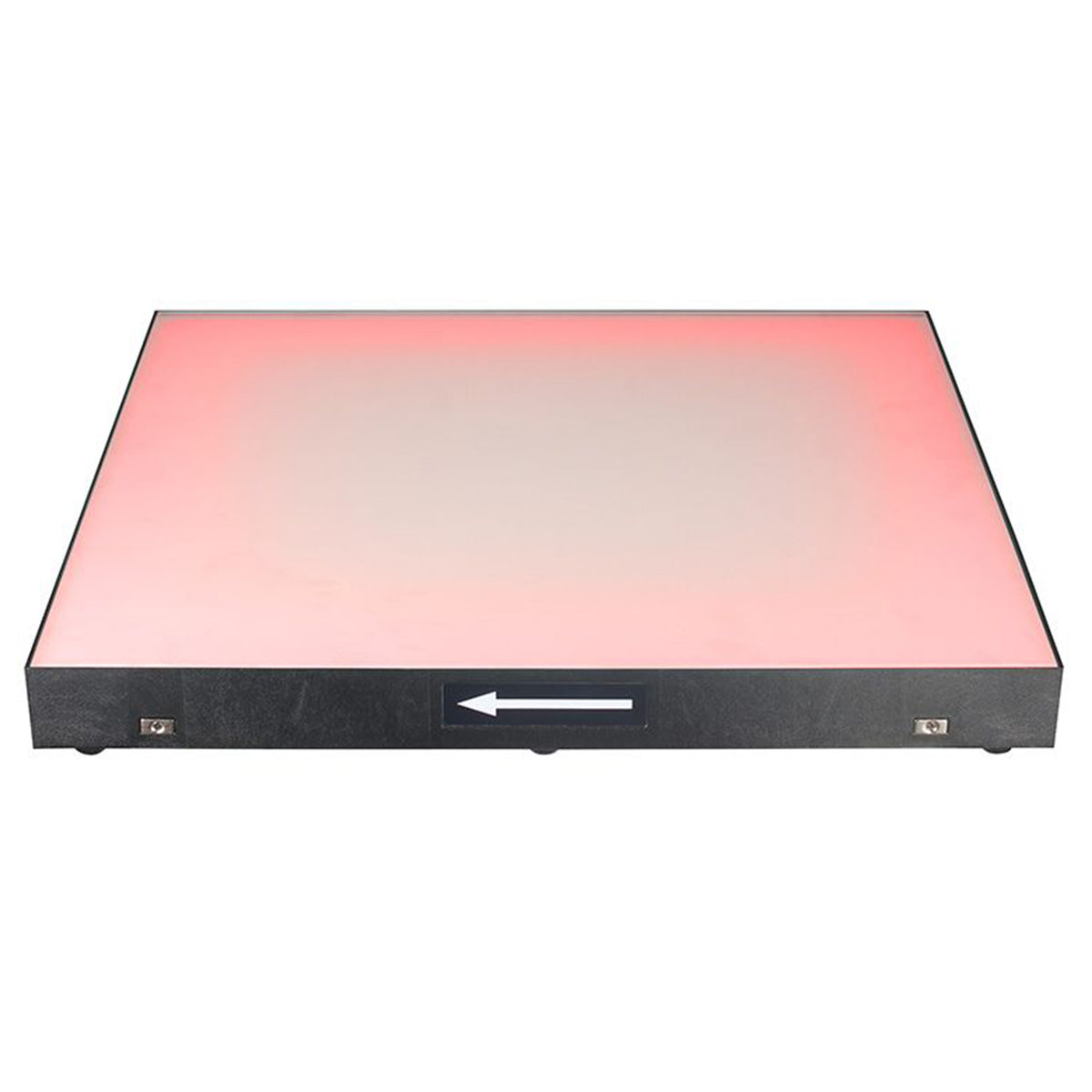

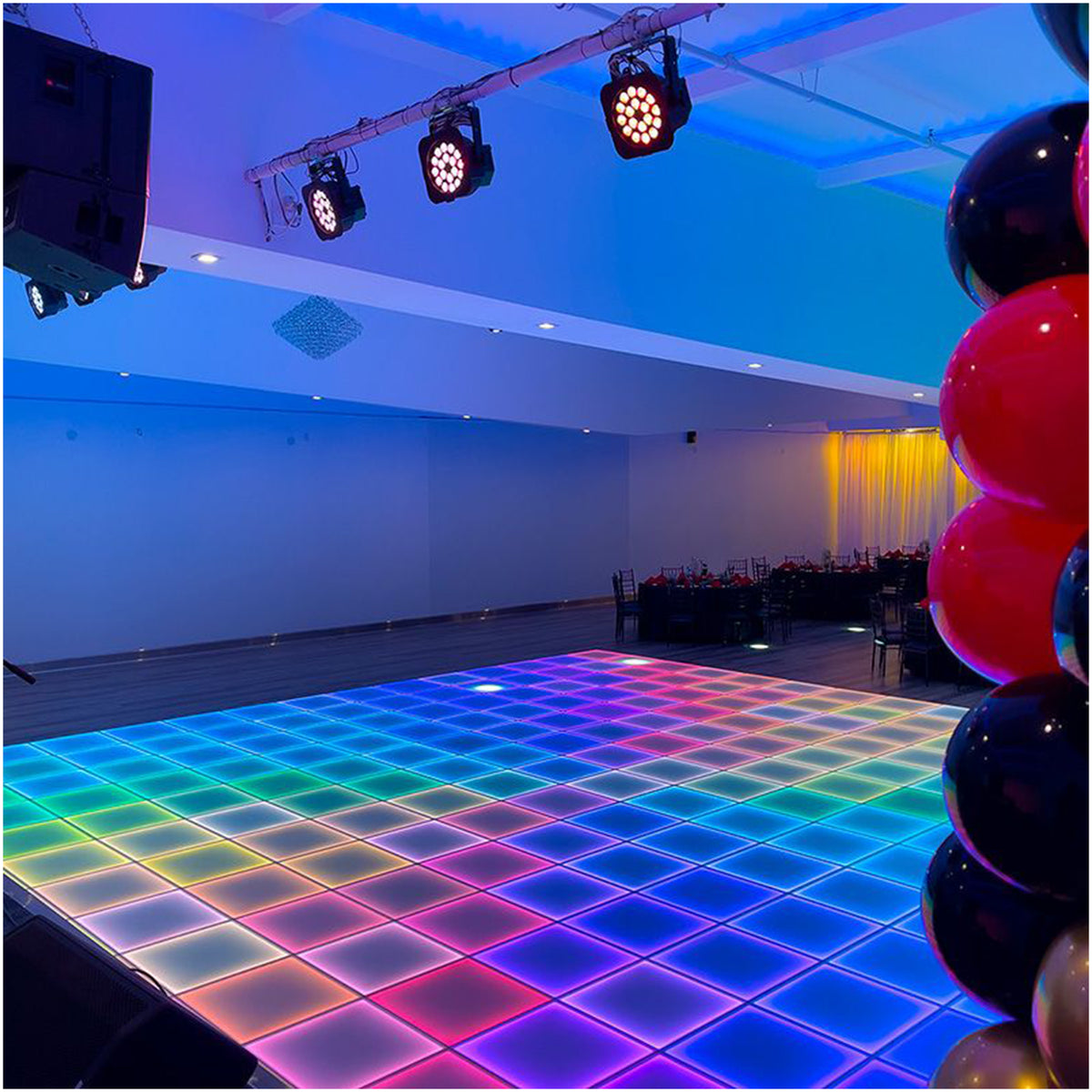

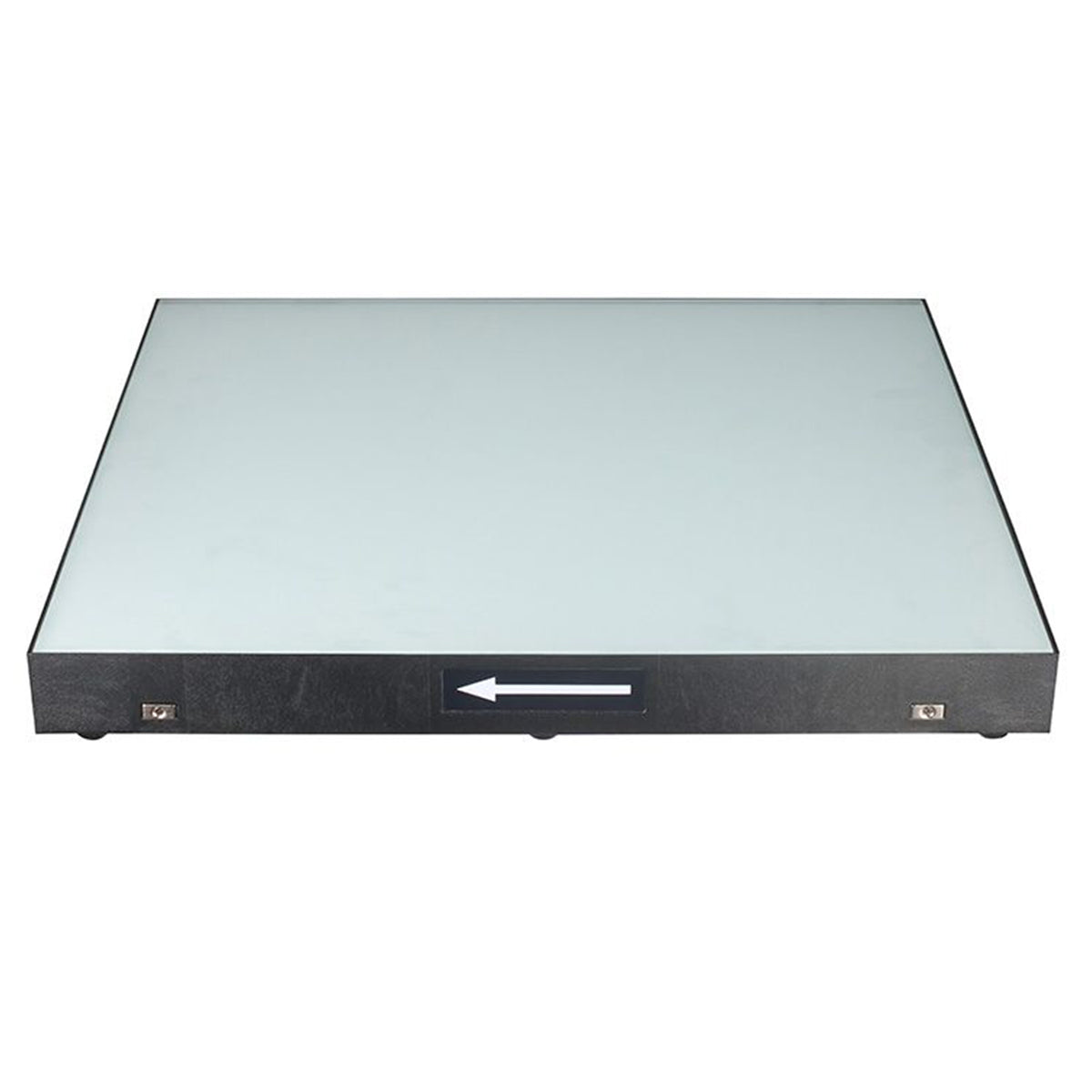

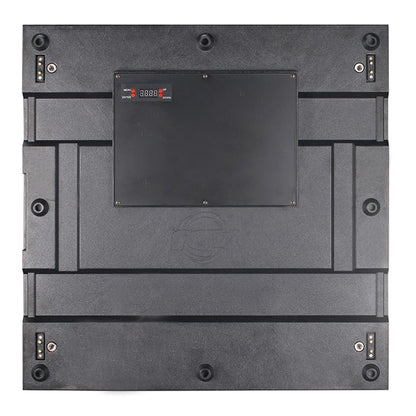

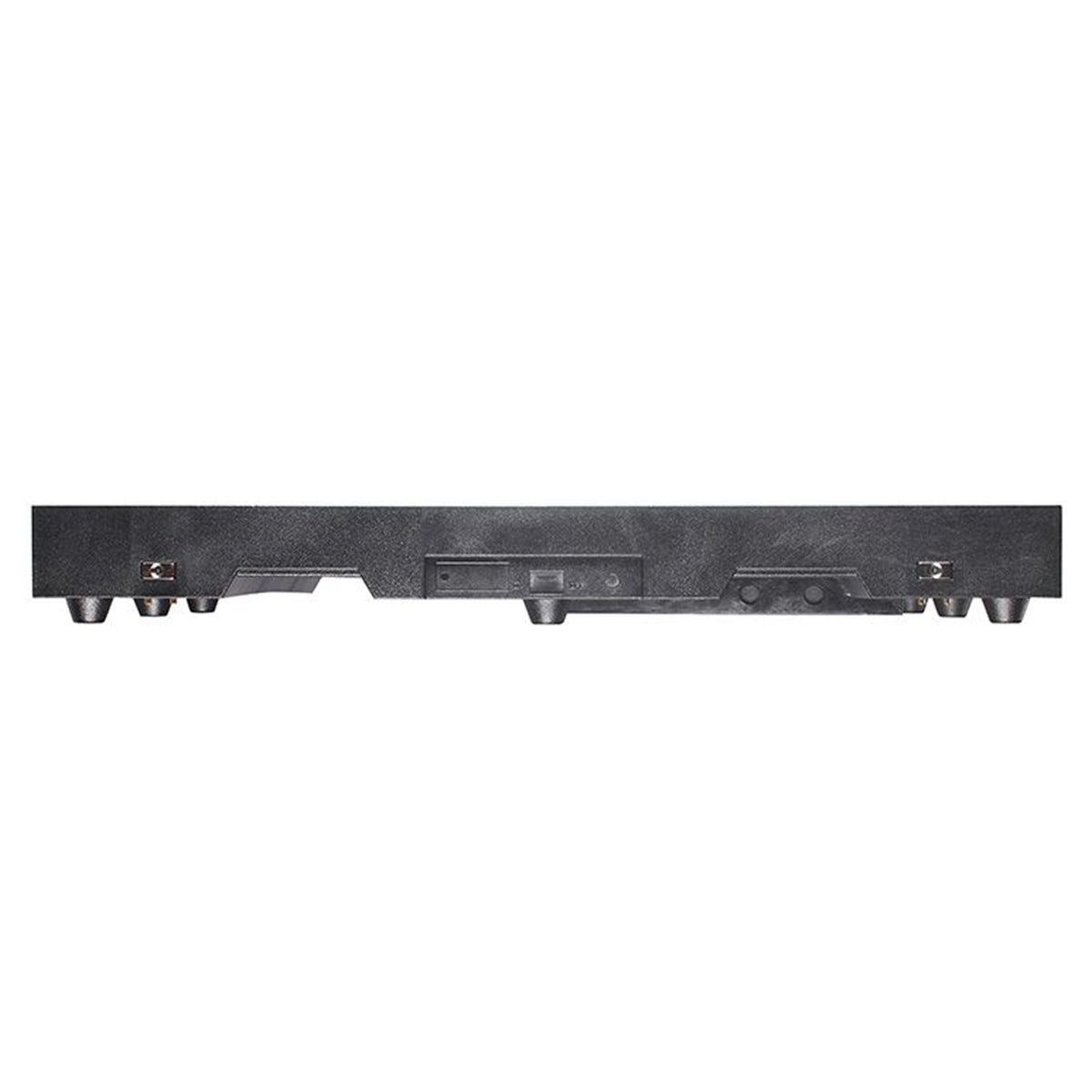

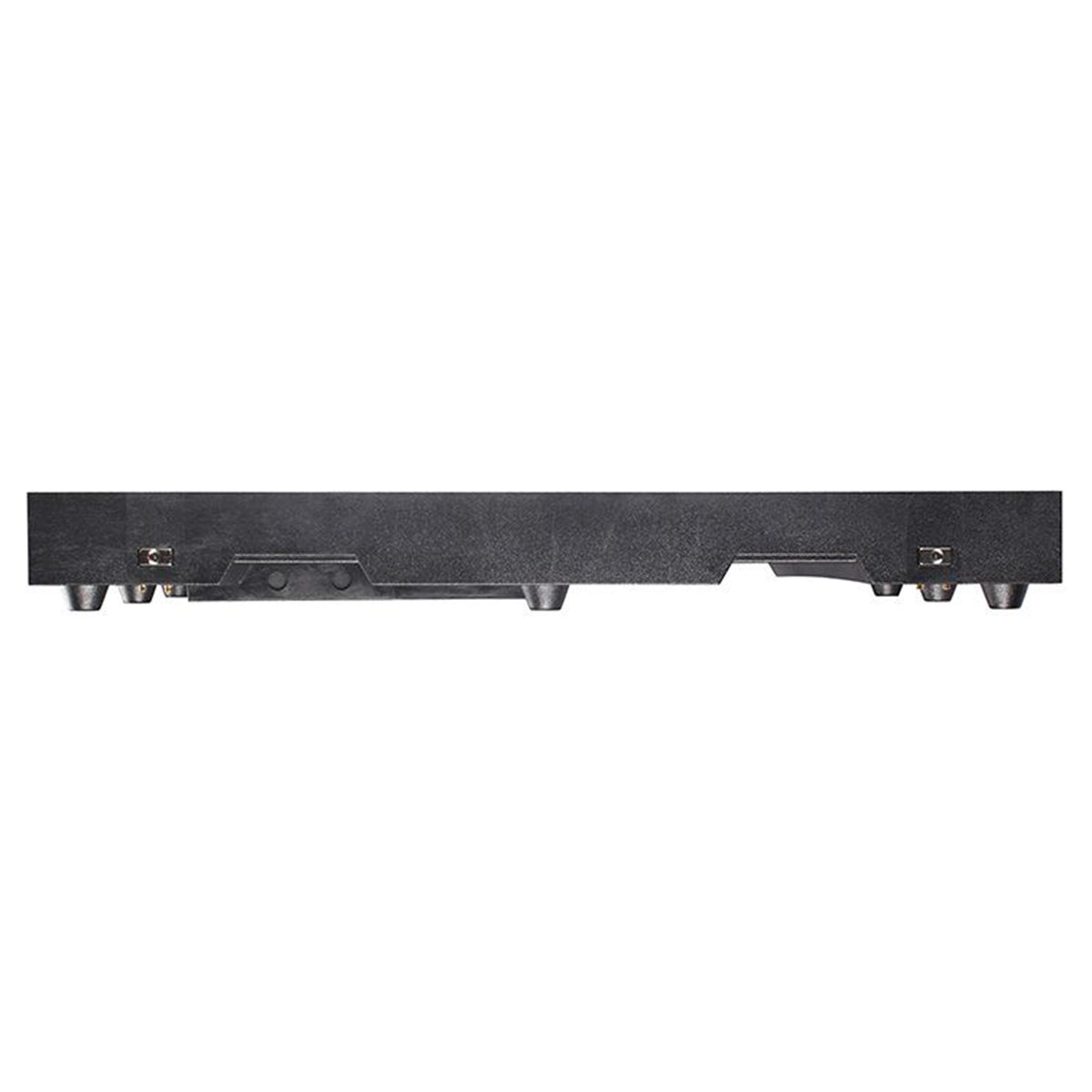

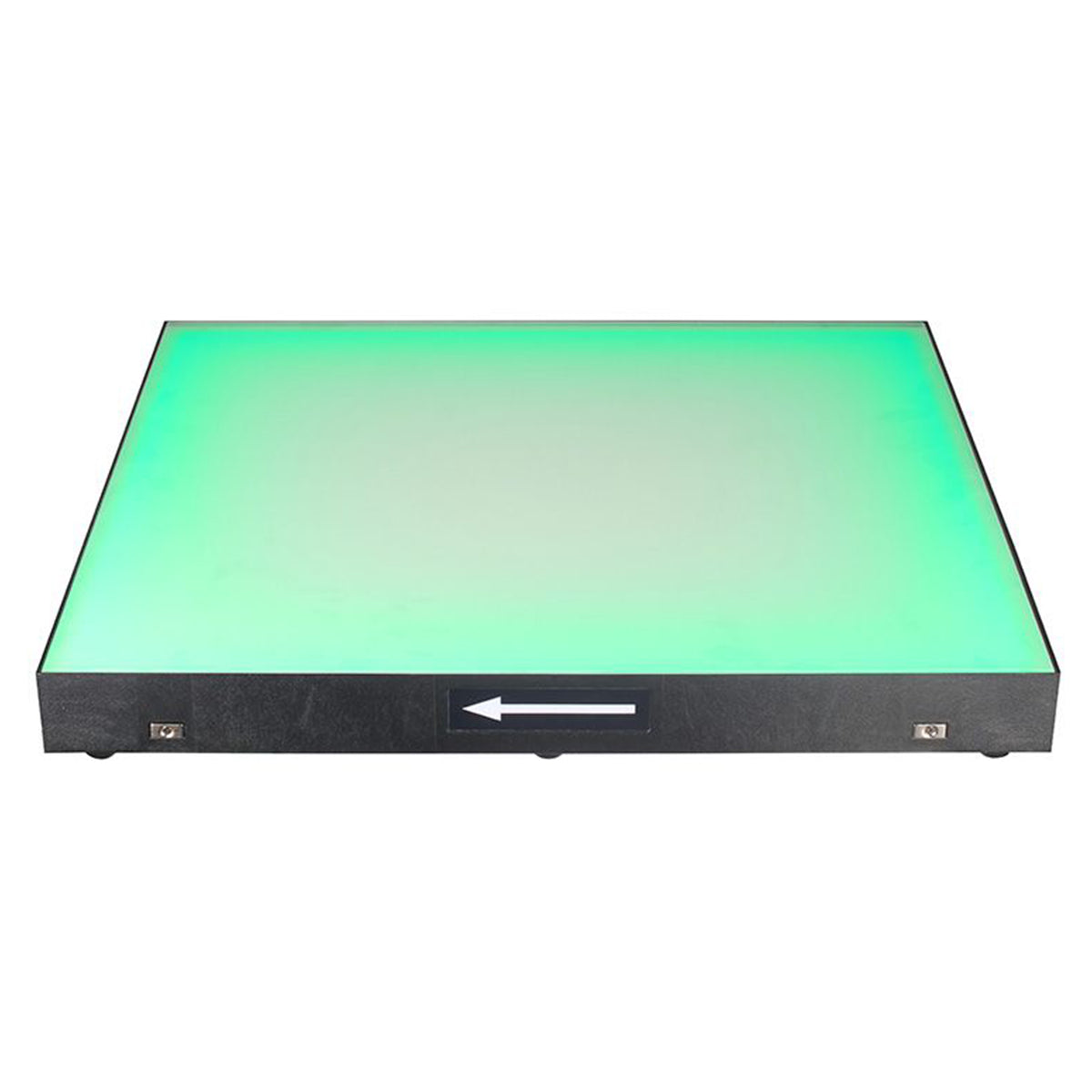

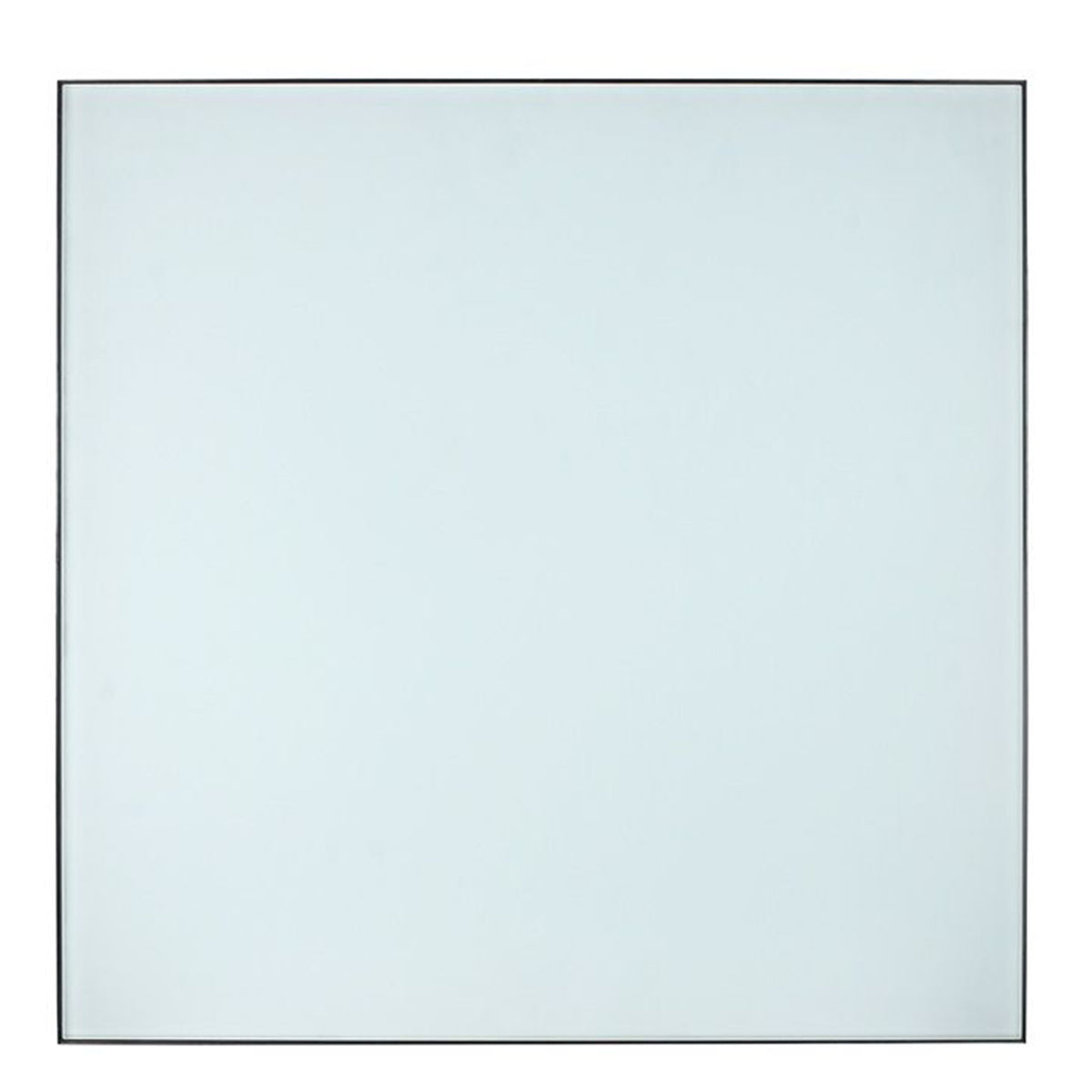

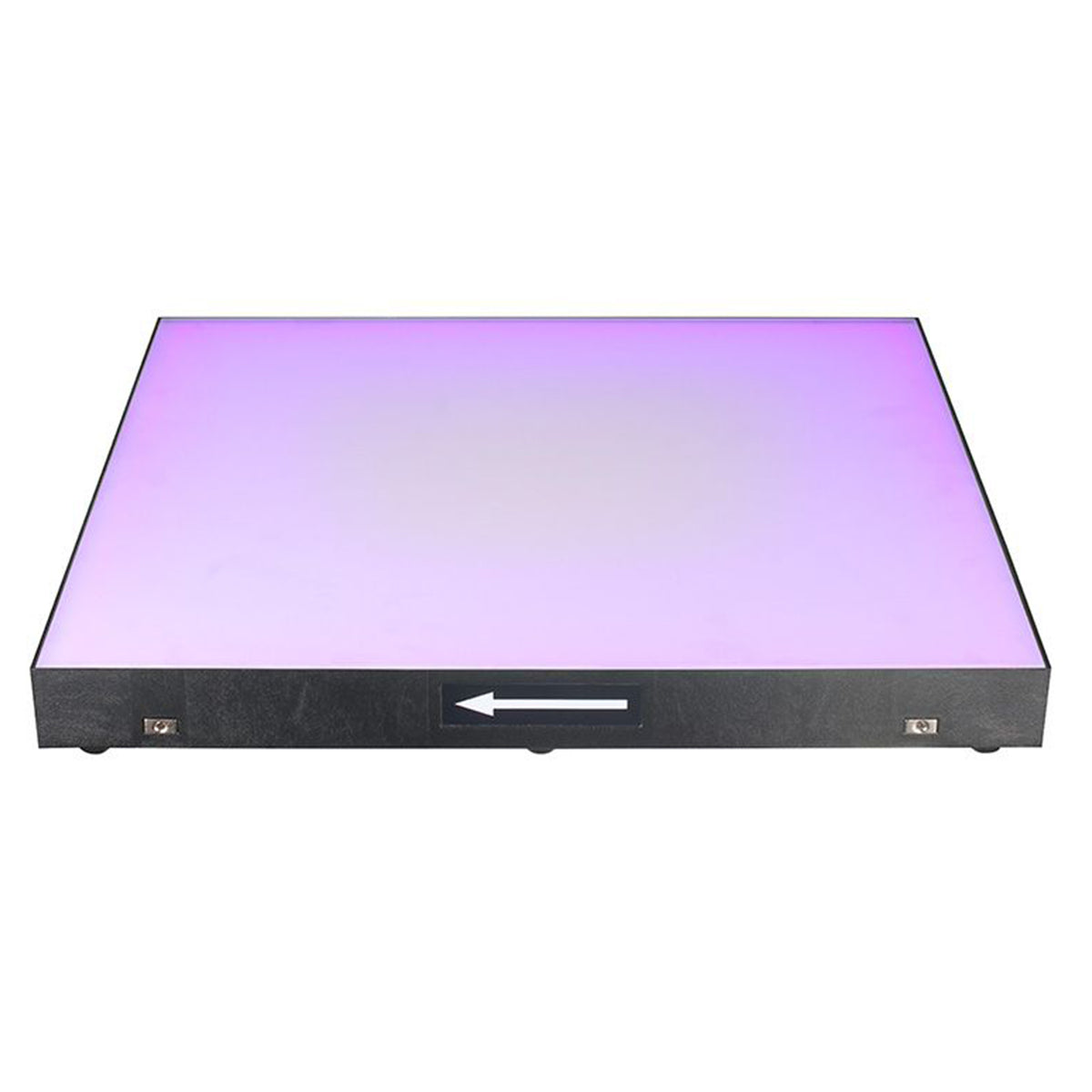

The ADJ MDF3 is a single modular LED dance floor panel measuring 23.62 inches square, lit by 3-in-1 RGB color mixing LEDs that make its opaque surface glow across a wide color range. It is the updated panel in the magnetic dance floor line, and the changes are the kind installers notice. An upgraded housing and a rebuilt power connection system use gold-plated copper strips and springs underneath the panels for a reliable link between adjacent units, which is the joint that decides whether a floor stays lit all night. A service panel makes maintenance a field job rather than a shop job. An upgraded PCB adds RDM support for remote fixture addressing, and an onboard battery lets you set DMX addressing and modes before the event, with no power connected to the panels: configure the floor in the shop, roll it in, plug it in. Control covers DMX512 console and SD controller operation in 3, 5, 7, or 10 channel modes, with sound, audio, and remote options. Each panel stands 2.76 inches tall, weighs 26.57 lb, and holds up to 61.5 lb/ft2. Power supply options run from a 9-panel configuration to a 156-panel floor, and edge and corner ramps let the floor sit safely at parties and events. Panels, ramps, and power supplies are sold separately.
