AMERICAN DJ

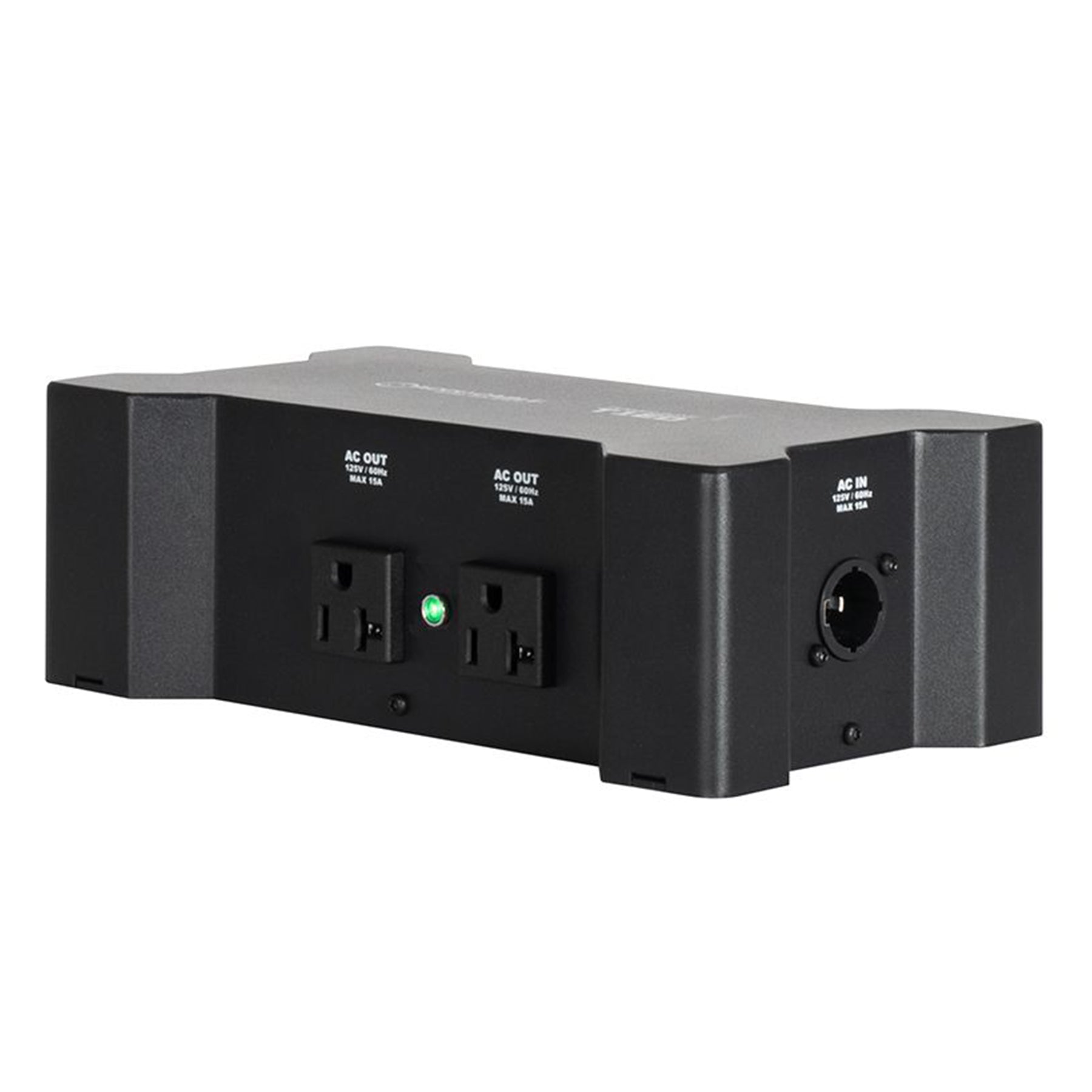

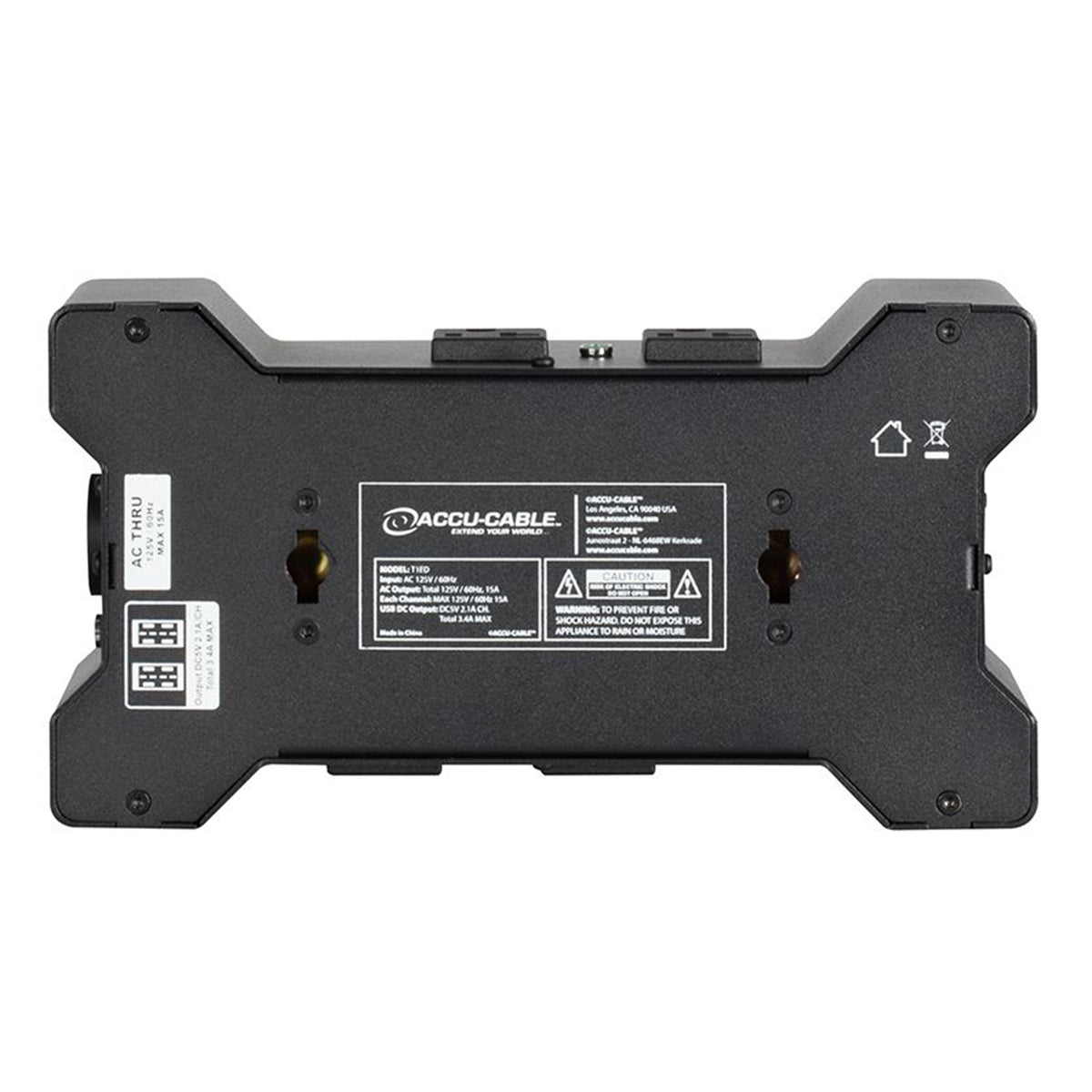

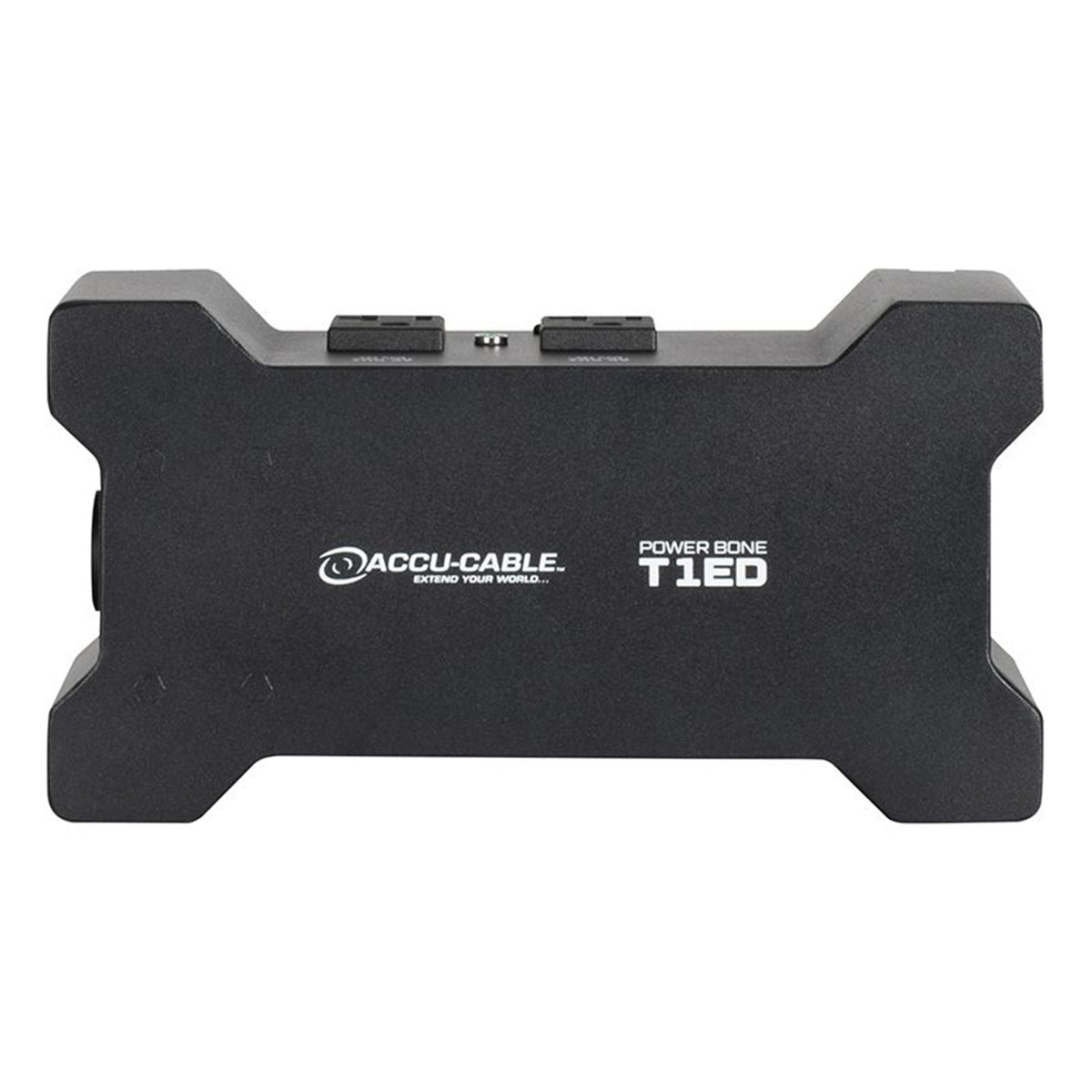

Power Bone T1ED 6-Port Power Distribution Box

Power Bone T1ED 6-Port Power Distribution Box

6-Port Power Distribution Box, 4 Edison Outputs, 2 USB Ports, IP65 Locking Input

Free Shipping

Regular price $144.95
Sale price $144.95 Regular price $195.95
Save 26%
Shipping calculated at checkout.
Features

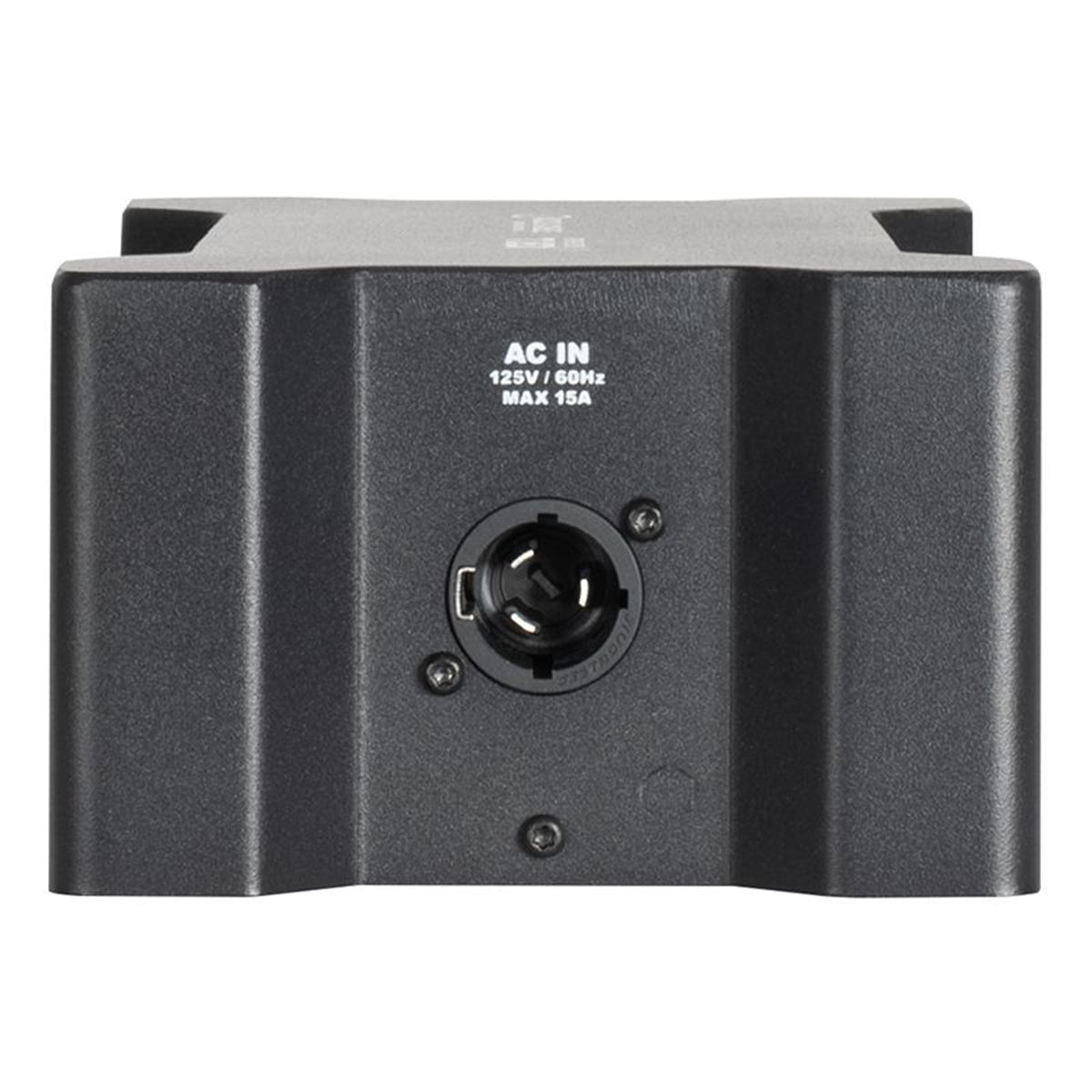

    • IP65 locking power input and thru connections

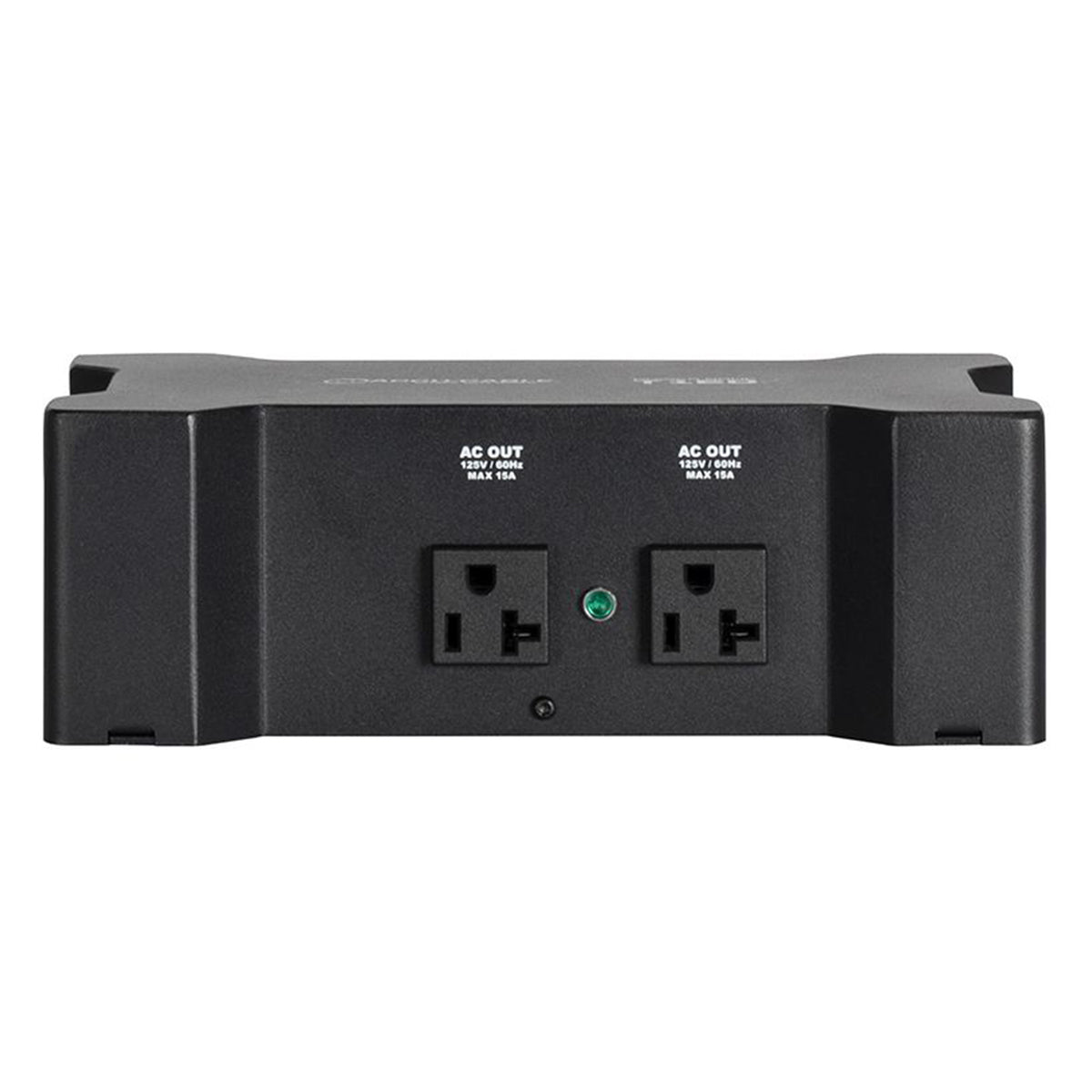

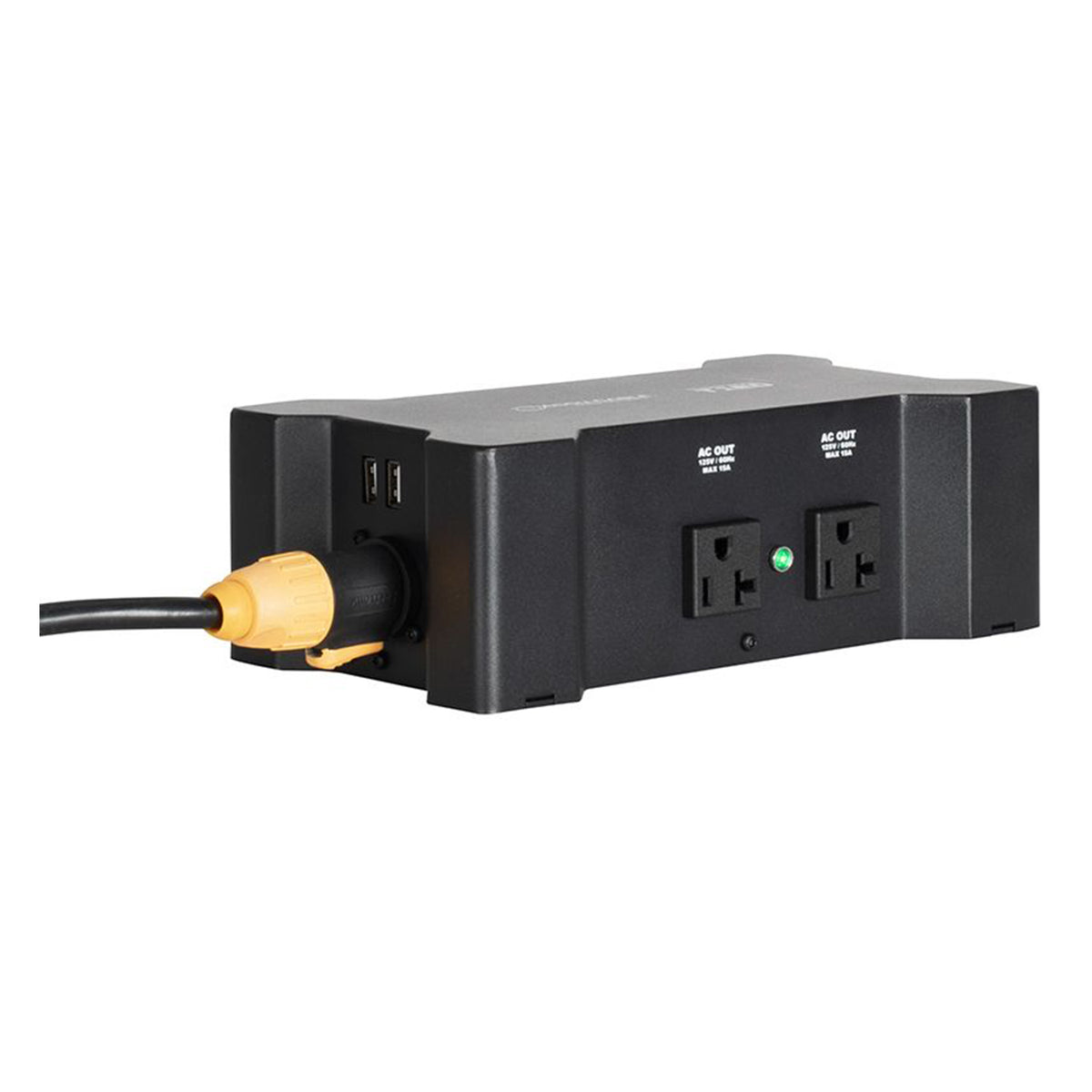

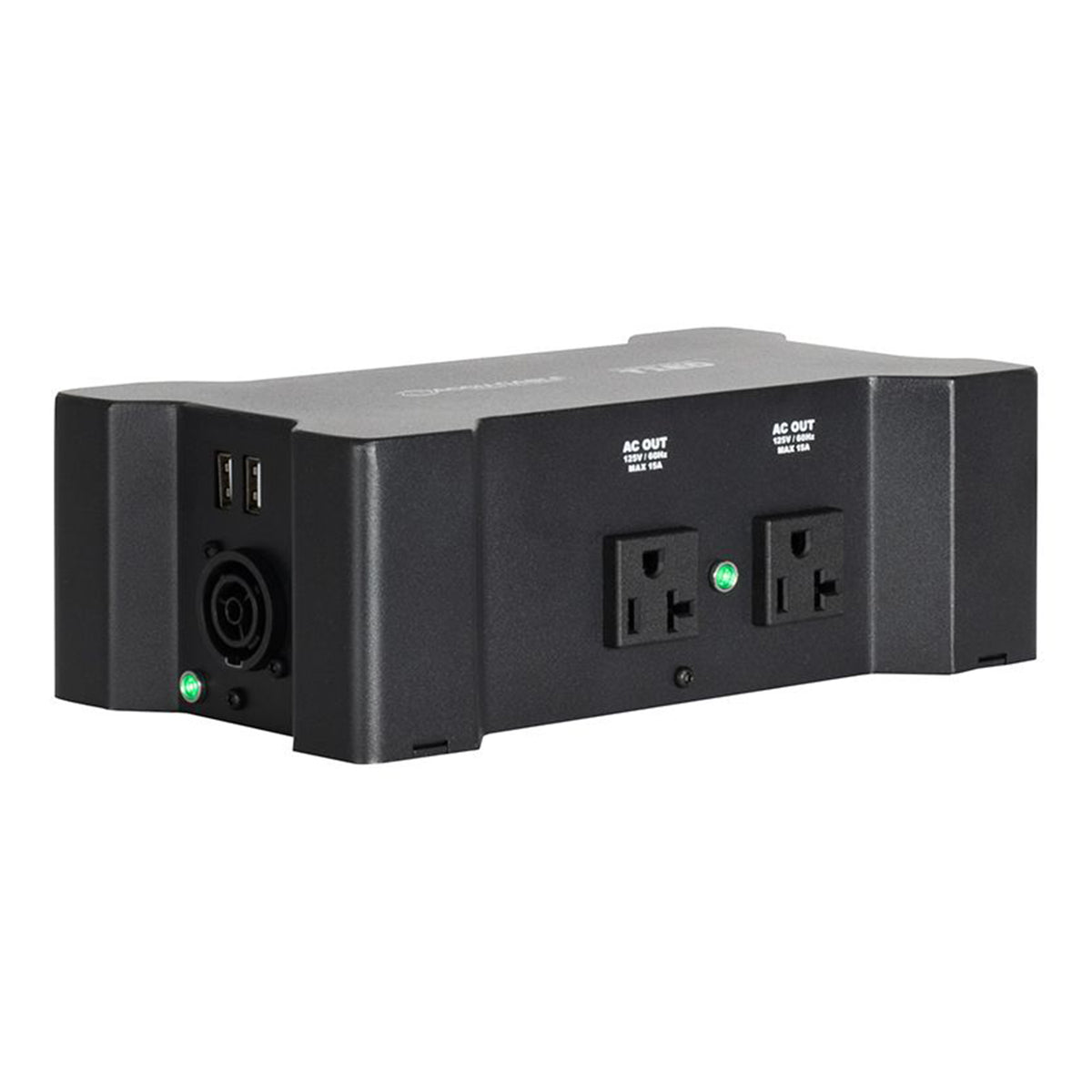

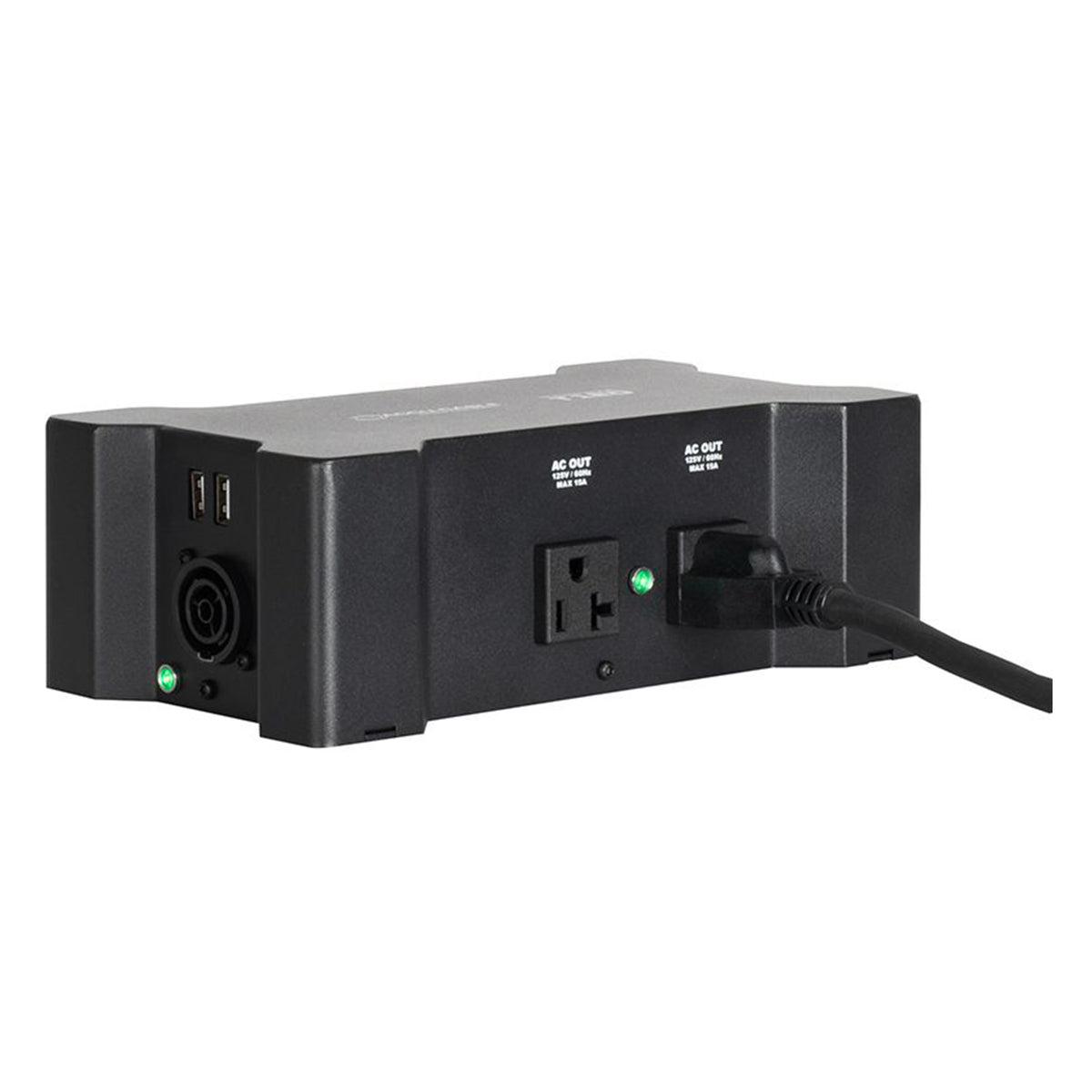

    • Four indoor Edison output sockets included

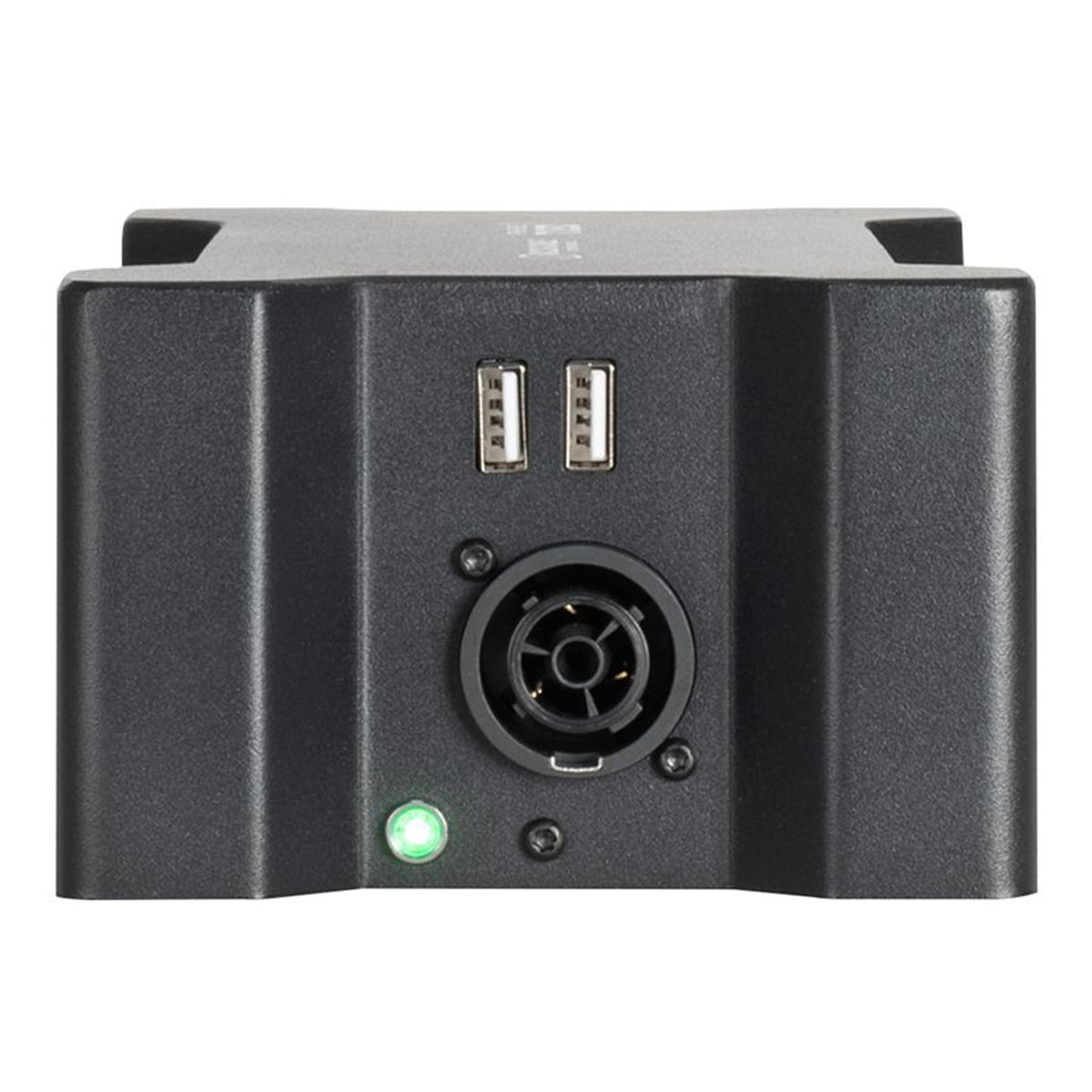

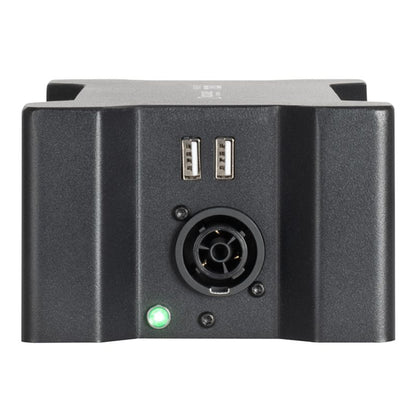

    • Two USB outputs at 5V-2.1A and 5V-1.3A
    • LED indicators show power status on input and outputs
    • Maximum daisy chain current draw of 15A
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

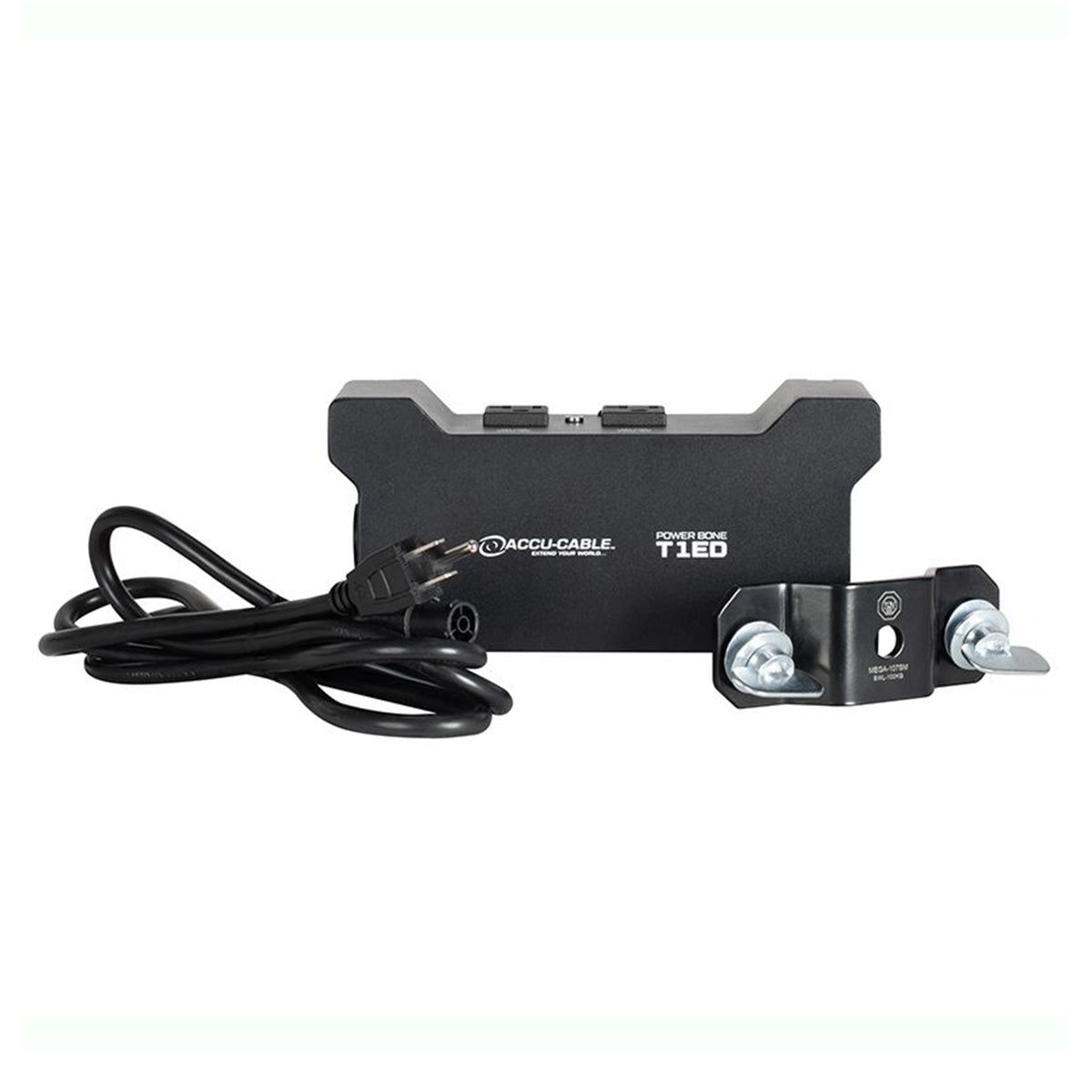

    • Power distribution box

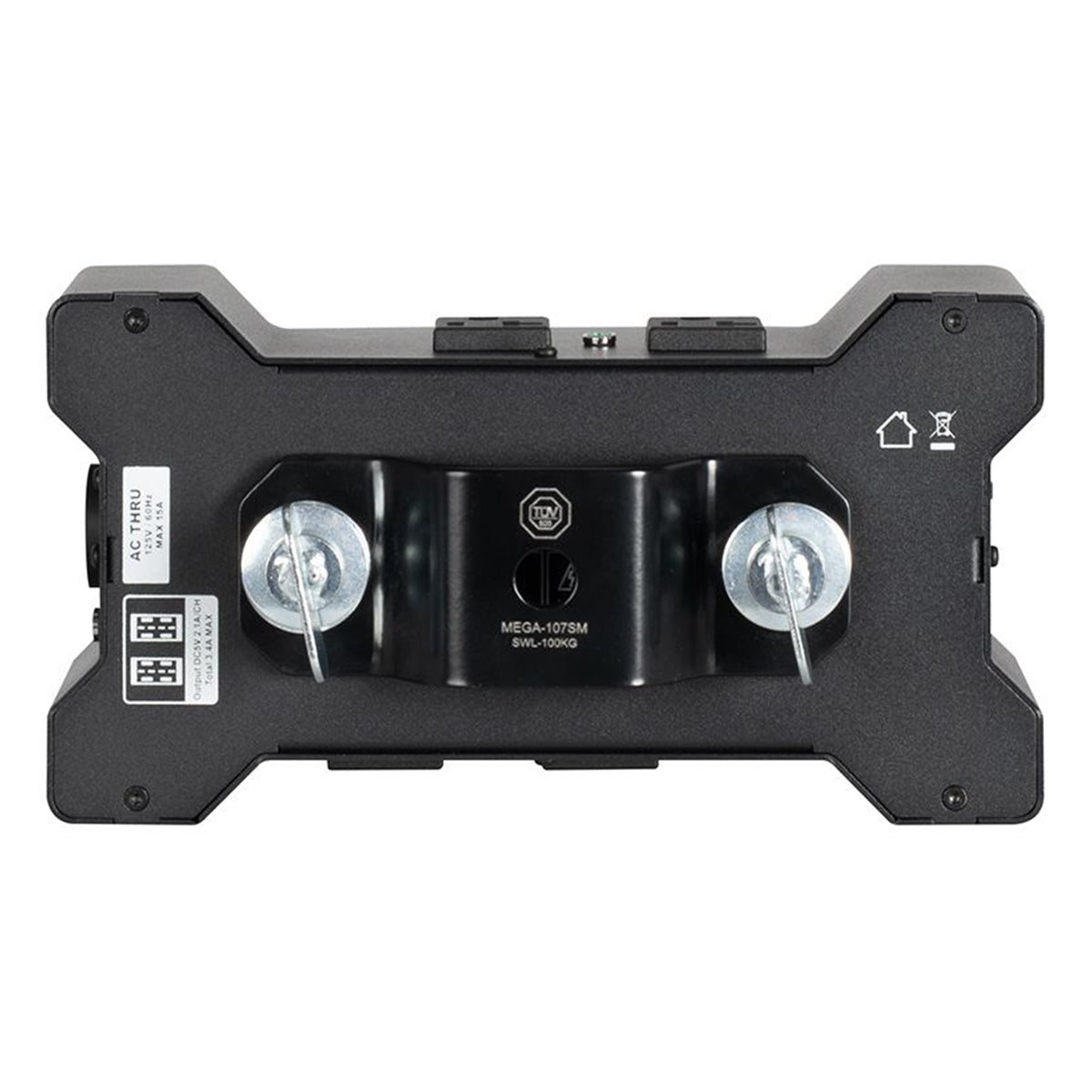

    • Quick-release locking omega bracket

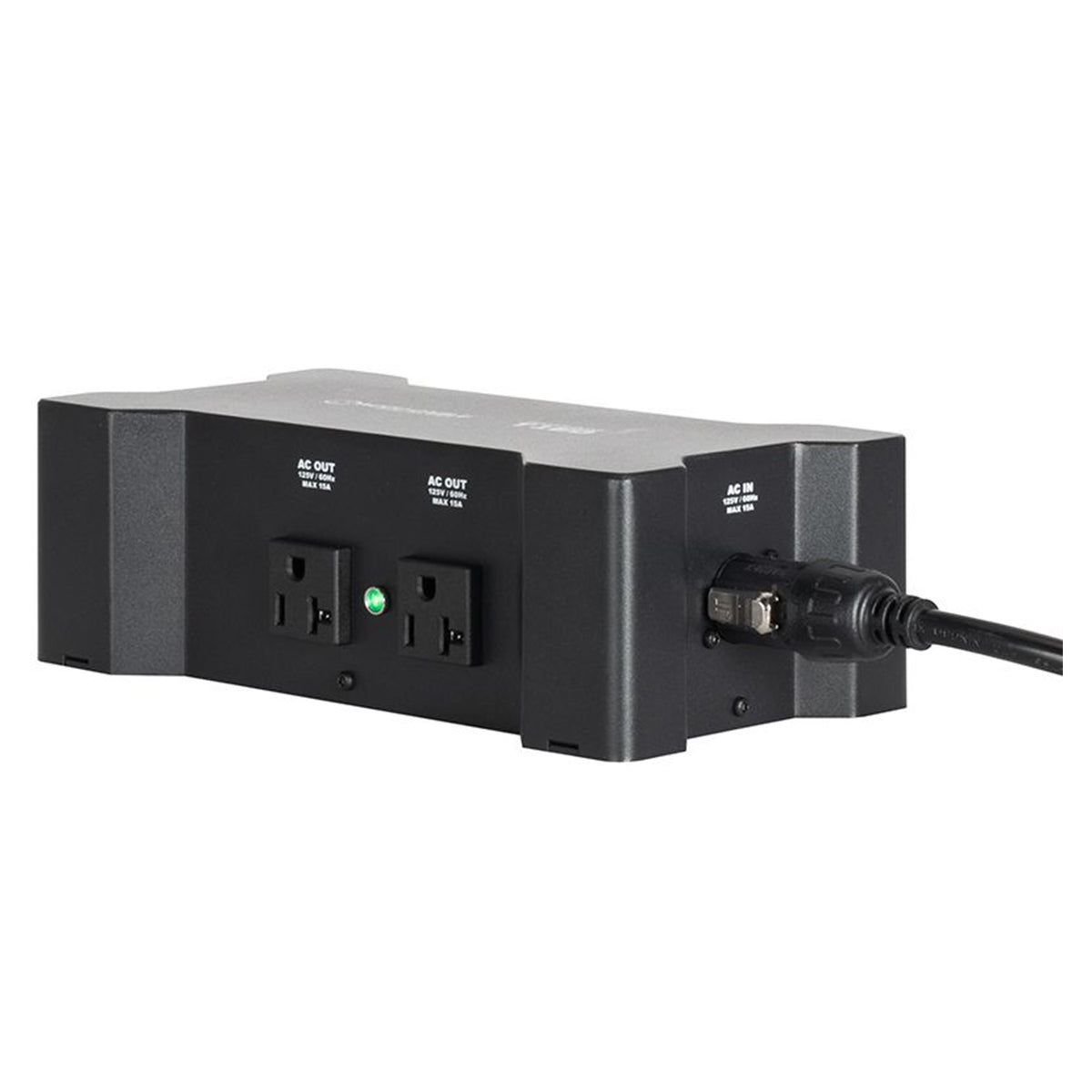

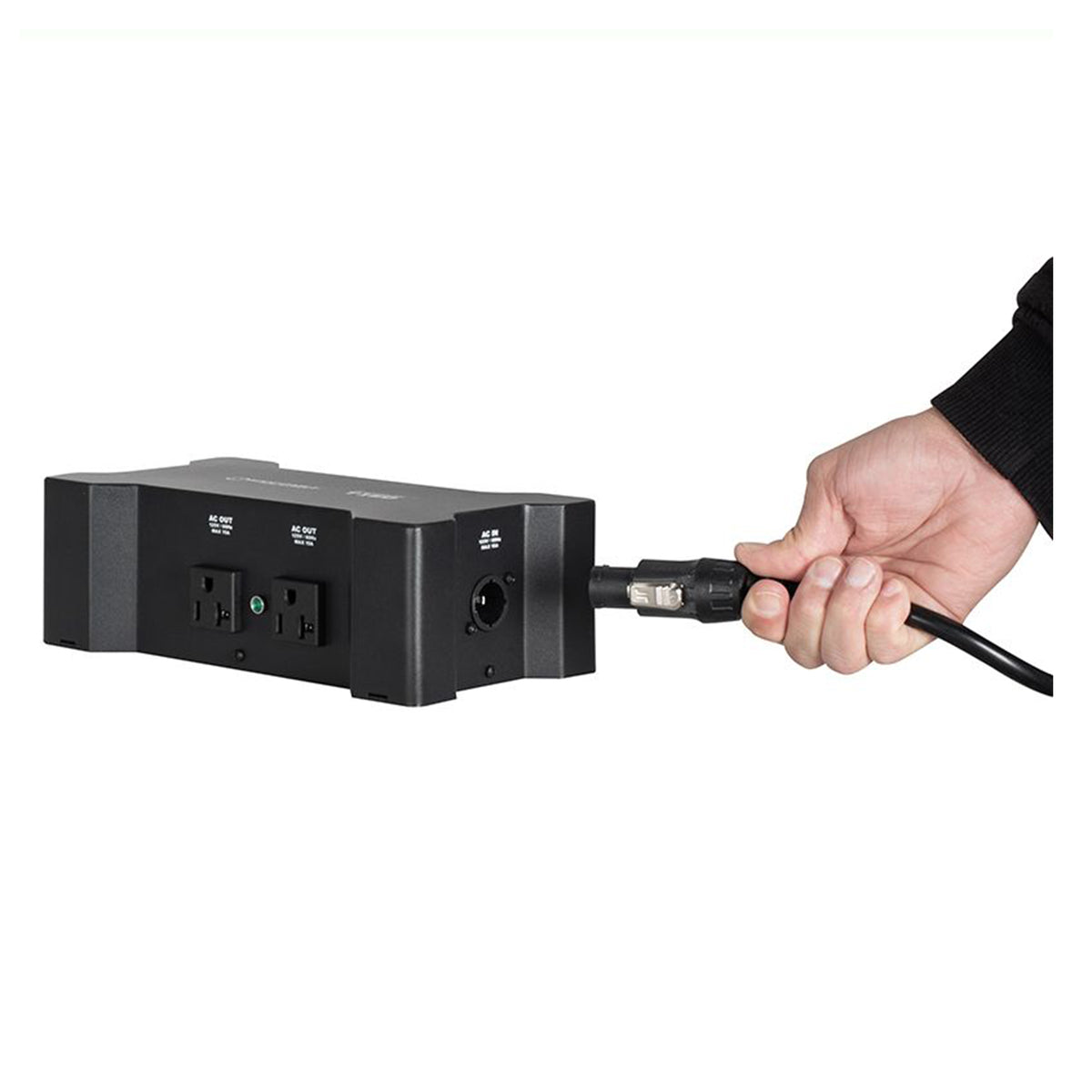

    • 6ft, 12-gauge IP65 locking power connector to Edison cable

SKU: SKU: Power Bone T1ED*

View full details

Product Description

The Power Bone T1ED gives a mobile production or fixed install a single point to distribute power to multiple devices from one IP65 locking input connection. Two Seetronic IP65 locking power ports handle input and thru connections, while four standard indoor Edison sockets and two USB outputs (5V-2.1A and 5V-1.3A) cover both AC-powered gear and USB-charging devices from the same box. LED indicators on the input and each output show power status at a glance, useful for confirming a connection is live without tracing cable back to the source. The unit supports a maximum daisy chain current draw of 15A, letting multiple Power Bone units link together to extend a power run across a stage or venue. Its IP20 rating limits use to dry locations, so it's built for indoor events or under-cover outdoor setups rather than direct rain exposure. At 8.85" x 4.72" x 4.37" and 3.96 lb, it's compact enough to mount to truss with the included quick-release omega bracket or tuck into a road case, and the included 6ft IP65 locking-to-Edison cable gets it connected to power without a separate cable order.

Features

    • Single-Point Power Distribution

      One IP65 locking input feeds four Edison outlets and two USB ports from a single connection.

    • USB Charging Built In

      Two USB ports at 5V-2.1A and 5V-1.3A charge phones, tablets, and other devices alongside AC-powered gear.

    • Status At A Glance

      LED indicators on the input and outputs confirm power is live without tracing cable back to the source.

    • Daisy-Chain Ready

      A 15A max daisy chain draw lets multiple units link together to extend a power run.

    • Easy Mounting

      The included quick-release omega bracket secures the unit to truss or a mounting point in seconds.

Technical Specifications

  • Product Type Power Distribution Box
  • Power Input 100-240VAC, 50/60Hz
  • Outputs 4x Edison, 2x USB (5V-2.1A, 5V-1.3A)
  • Max Daisy Chain Draw 15A
  • IP Rating IP20 (dry location use)
  • Weight 3.96 lb (1.8 kg)
  • Dimensions 8.85" x 4.72" x 4.37" (225 x 120 x 111mm)
