Saber Spot RGBL Compact 20W LED DMX RDM ACL Pinspot Light
Saber Spot RGBL Compact 20W LED DMX RDM ACL Pinspot Light
20W RGBL LED Pinspot, 5.7-Degree Beam, ACL Lens, DMX/RDM
Free Shipping
Features
- 20W RGBL LED with advanced ACL lens for a tight 5.7-degree beam
- 63 built-in color macros and 13 color-changing programs
- White temperature presets from 2000K to 9900K
- DMX and RDM compliant with 12 channel modes
- Two frost filter lenses included (10-degree and 45-degree)
Couldn't load pickup availability

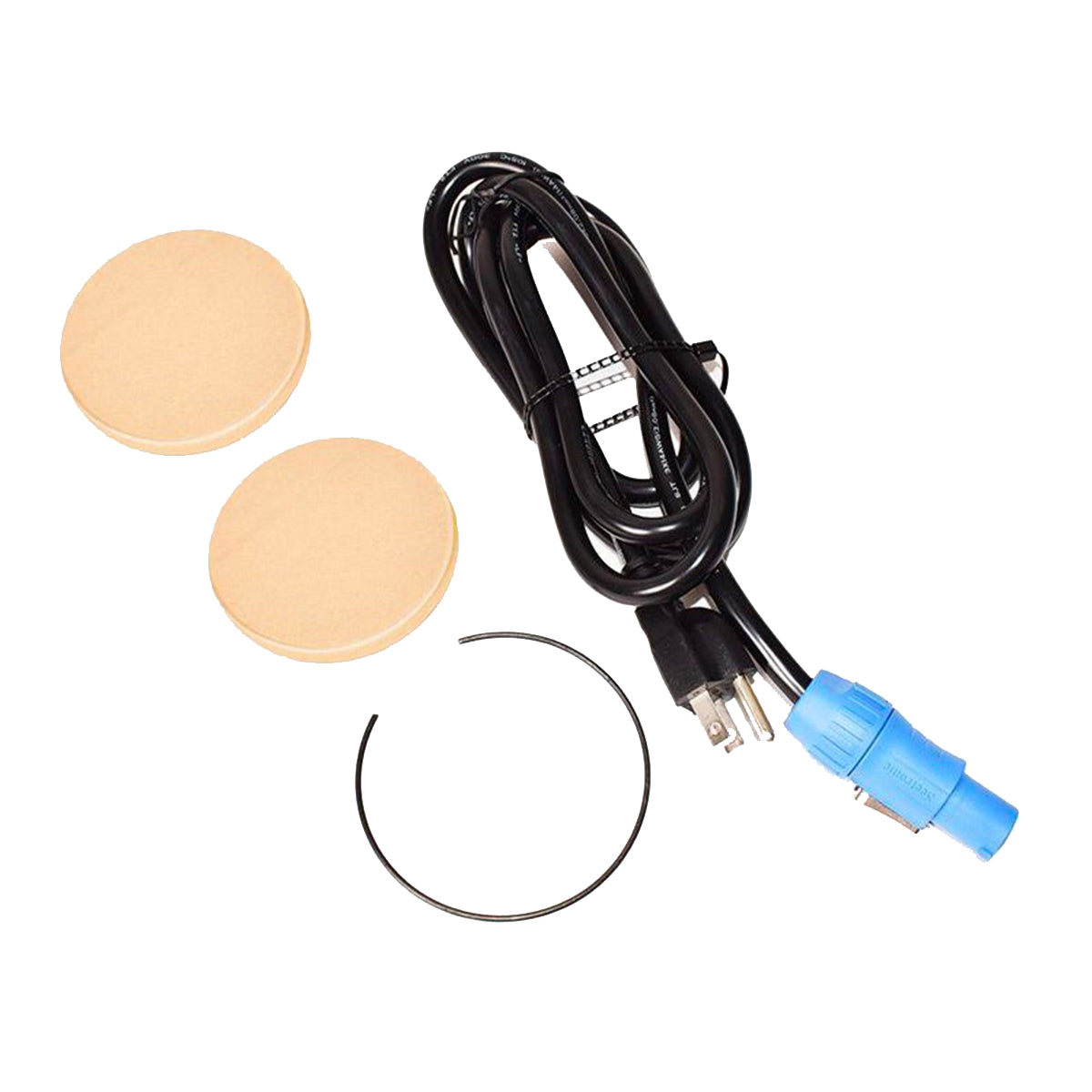

What's Included in the box
- ADJ Saber Spot RGBL Pinspot
- 1.83m Indoor Locking Power Cord
- Frost Filter Lenses (10-degree and 45-degree)
- Metal Clip Ring for Frost Filter Lens
SKU: SKU: Saber Spot RGBL*
View full details










Product Description
DMX and RDM compliance across 12 channel modes means the fixture integrates into any existing control setup, and RDM lets you assign and configure it remotely. Electronic dimming from 0 to 100%, a 3.6 KHz LED refresh rate for flicker-free camera output, and a 4-button digital display round out the controls. Two interchangeable frost filter lenses (10-degree and 45-degree) come with the fixture, so you can widen the beam when a softer wash is needed. Indoor locking power in/thru connections support linking up to 57 units at 120V, and a scissor yoke lets you hang the fixture or set it on the ground. The housing weighs 3.2 lb and measures 6.69" x 5.31" x 8.46".
Features
Tight 5.7-Degree Beam
The ACL lens throws a sharp, narrow spot that picks out tables, mirror balls, and objects with precision from across a room.
Full Color Range
63 color macros, 13 programs, and white presets from 2000K to 9900K give you any color or temperature without an external controller.
12 DMX Channel Modes
RDM compliance and 12 selectable modes let the fixture drop into simple or complex control setups with remote configuration.
Flicker-Free on Camera
A 3.6 KHz refresh rate keeps output clean for video, broadcast, and live-streamed events without visible banding.

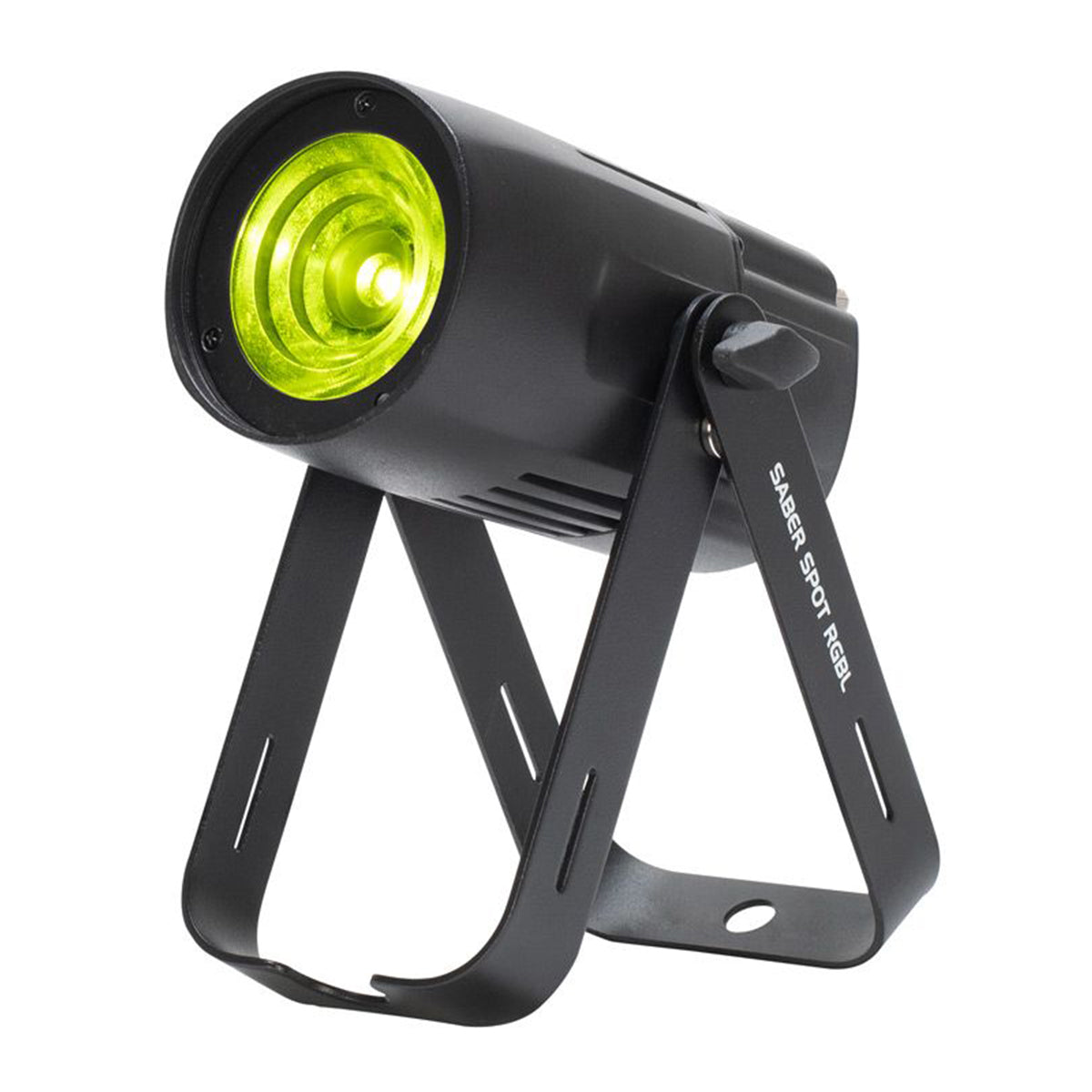

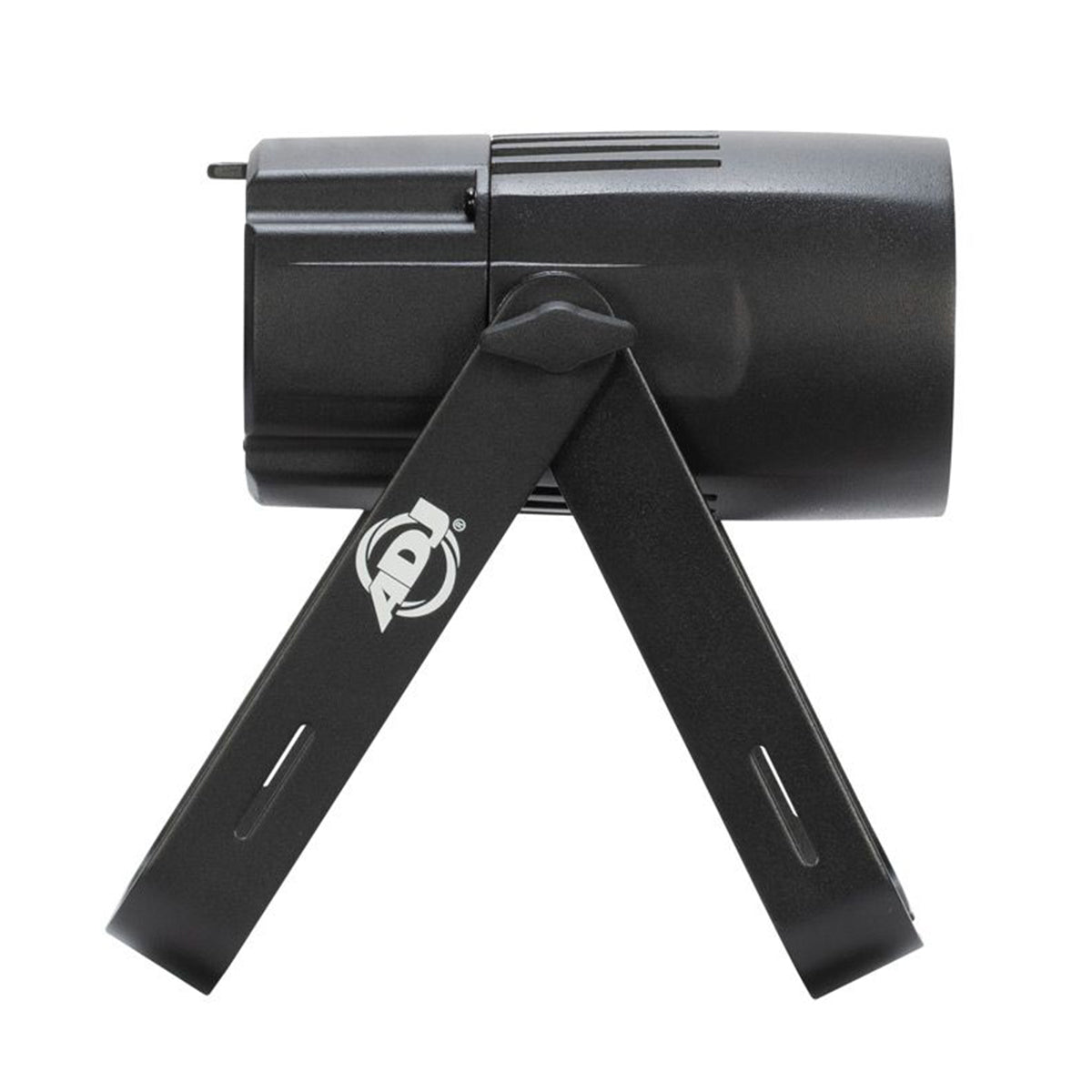

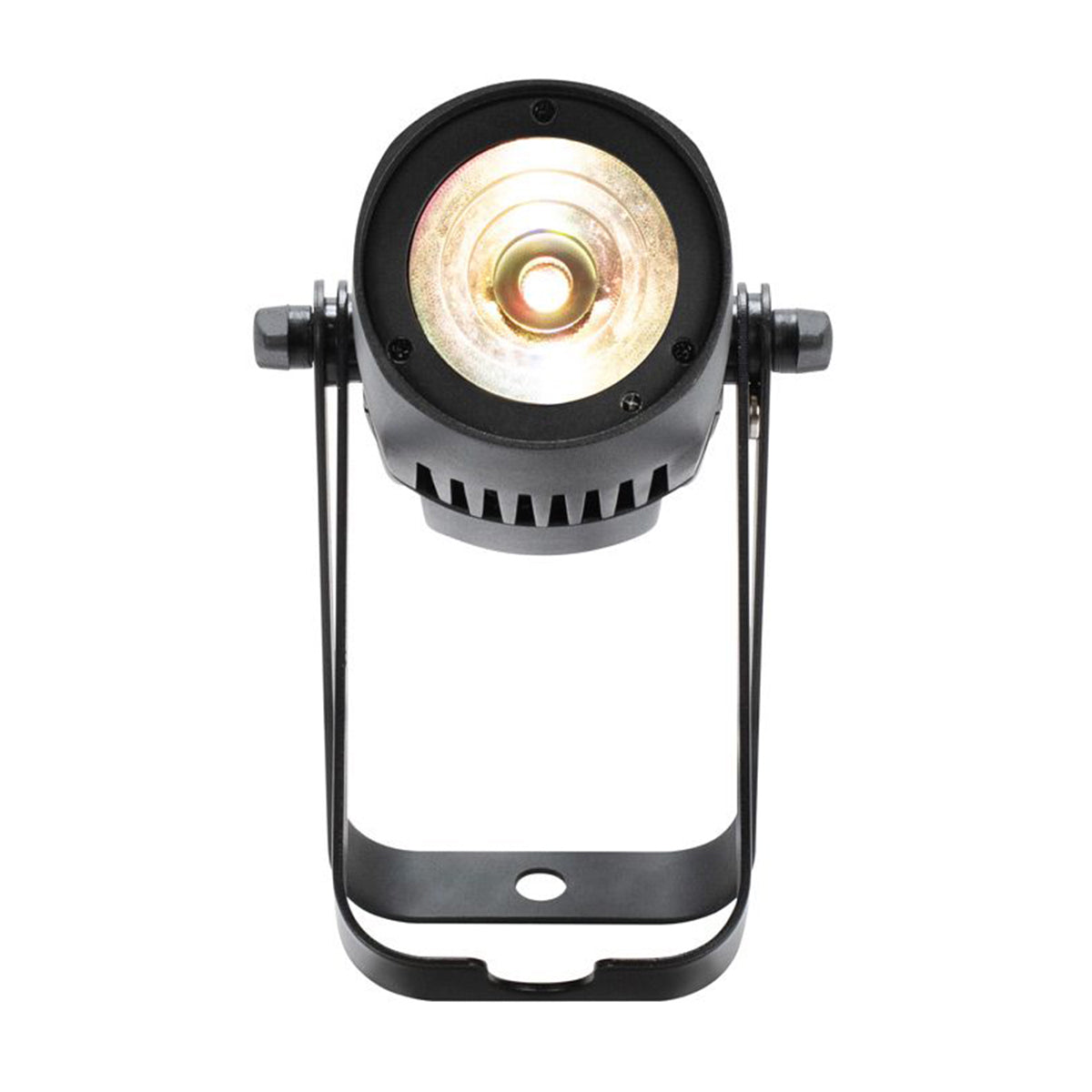

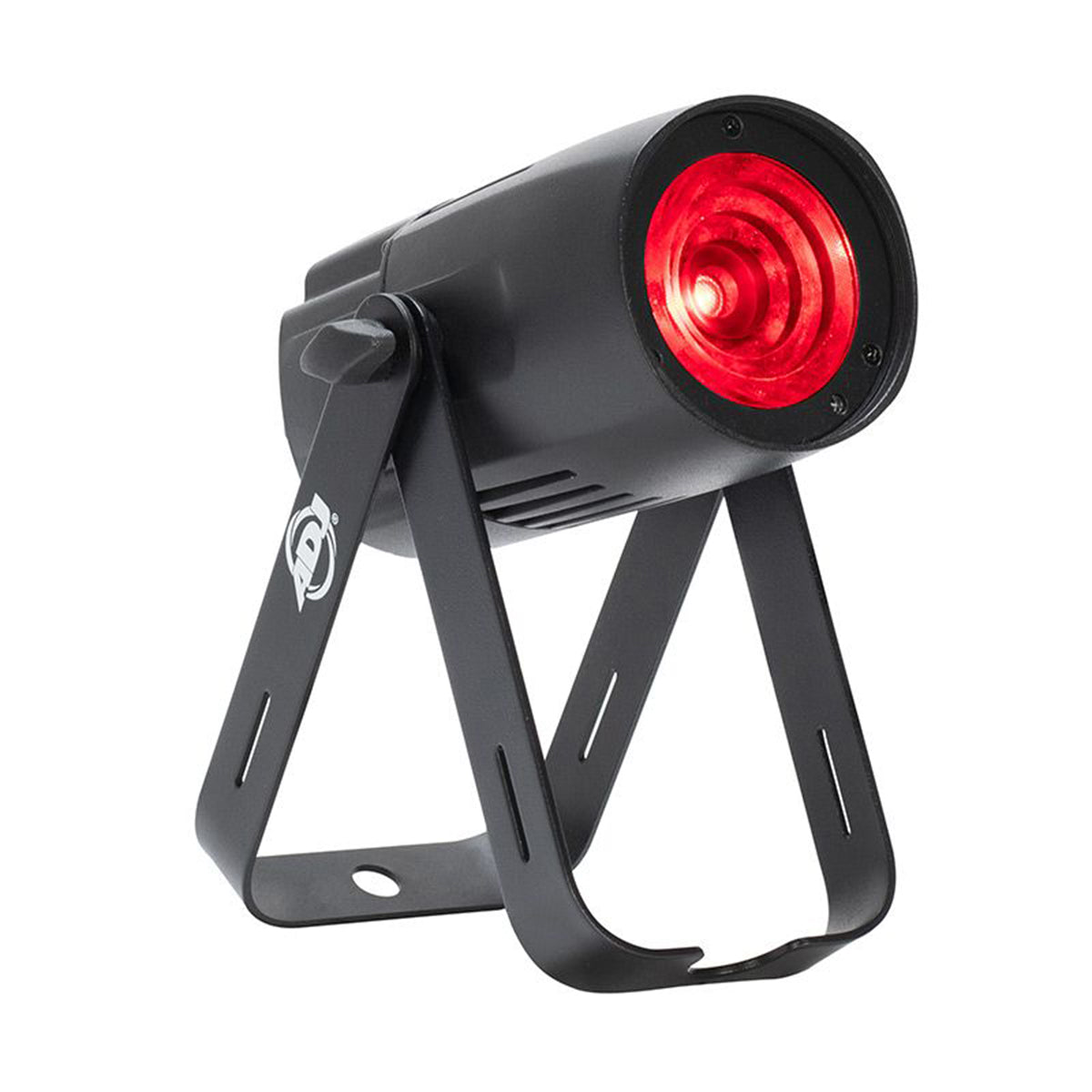

Compact and Mountable
At 3.2 lb with a scissor yoke, the pinspot hangs from truss or sits on the ground, fitting into tight rigging spaces.
Technical Specifications
- Product Type LED Pinspot
- Light Source 20W RGBL LED
- Beam Angle 5.7 degrees
- Frost Filter Lenses 10-degree and 45-degree (included)
- LED Life Expectancy 30,000 Hrs
- LED Refresh Rate 3.6 KHz
- Color Macros 63
- Color Programs 13
- White Temperature Presets 2000K to 9900K
- DMX Channel Modes 12
- RDM Yes

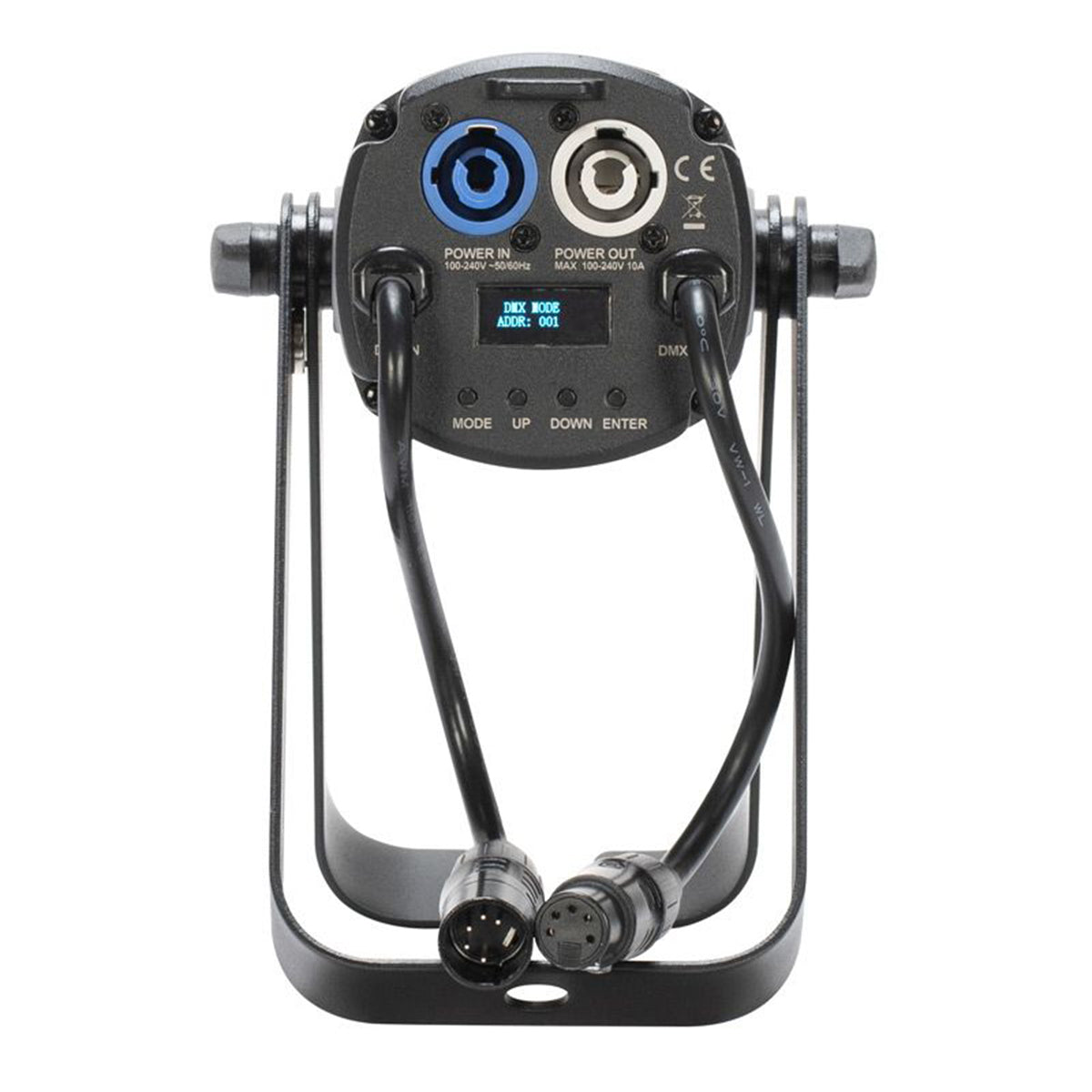

- Power Connections Indoor Locking In/Thru
- Power Linking 57 @120V / 95 @230V
- Control 5-Pin DMX In/Out
- Input Voltage 100-240V 50/60Hz (Auto Sensing)
- Dimensions (L x W x H) 6.69" x 5.31" x 8.46" / 170 x 135 x 215mm
- Weight 3.2 lb / 1.45 kg
