SABER SPOT WW
AMERICAN DJ
SABER SPOT WW
SABER SPOT WW

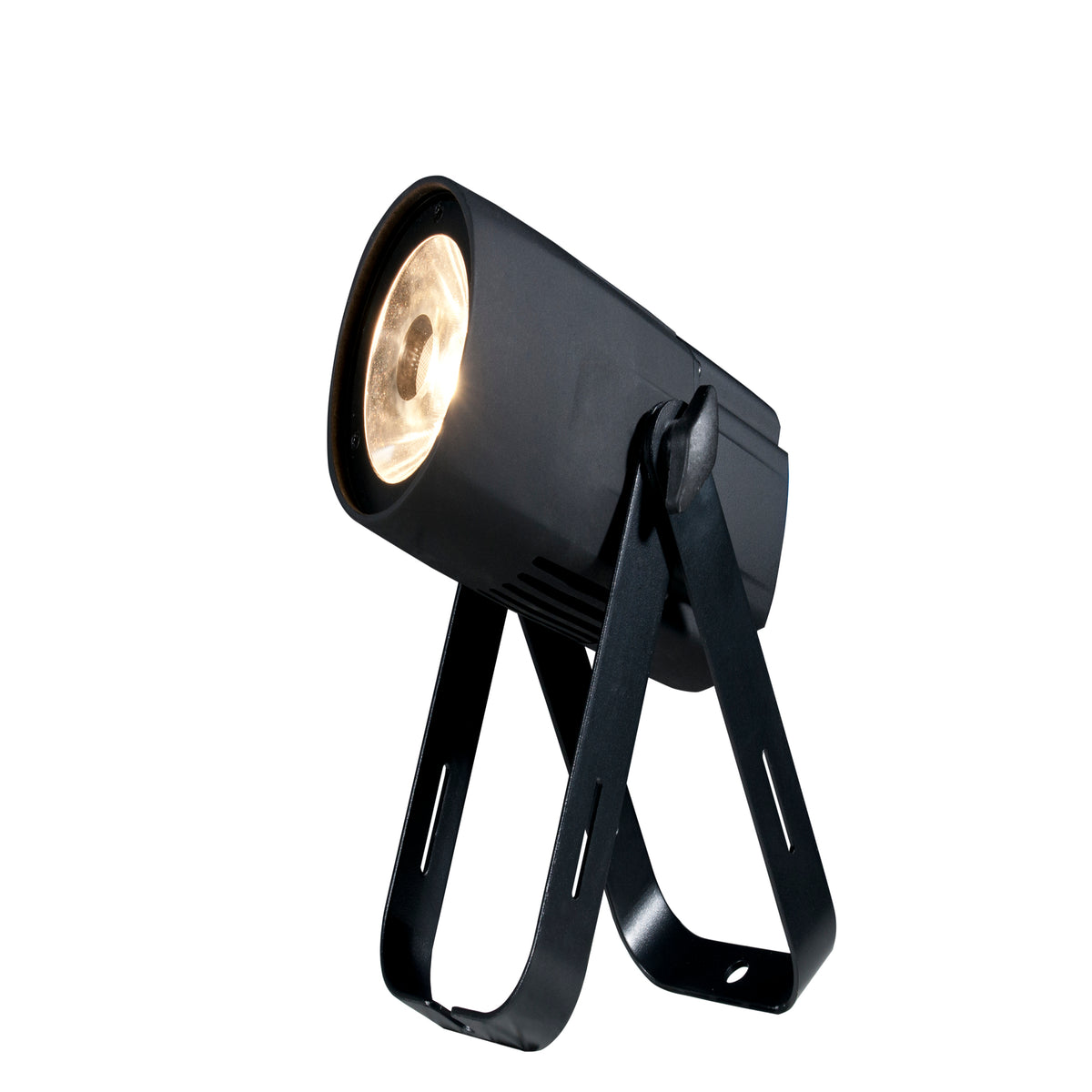

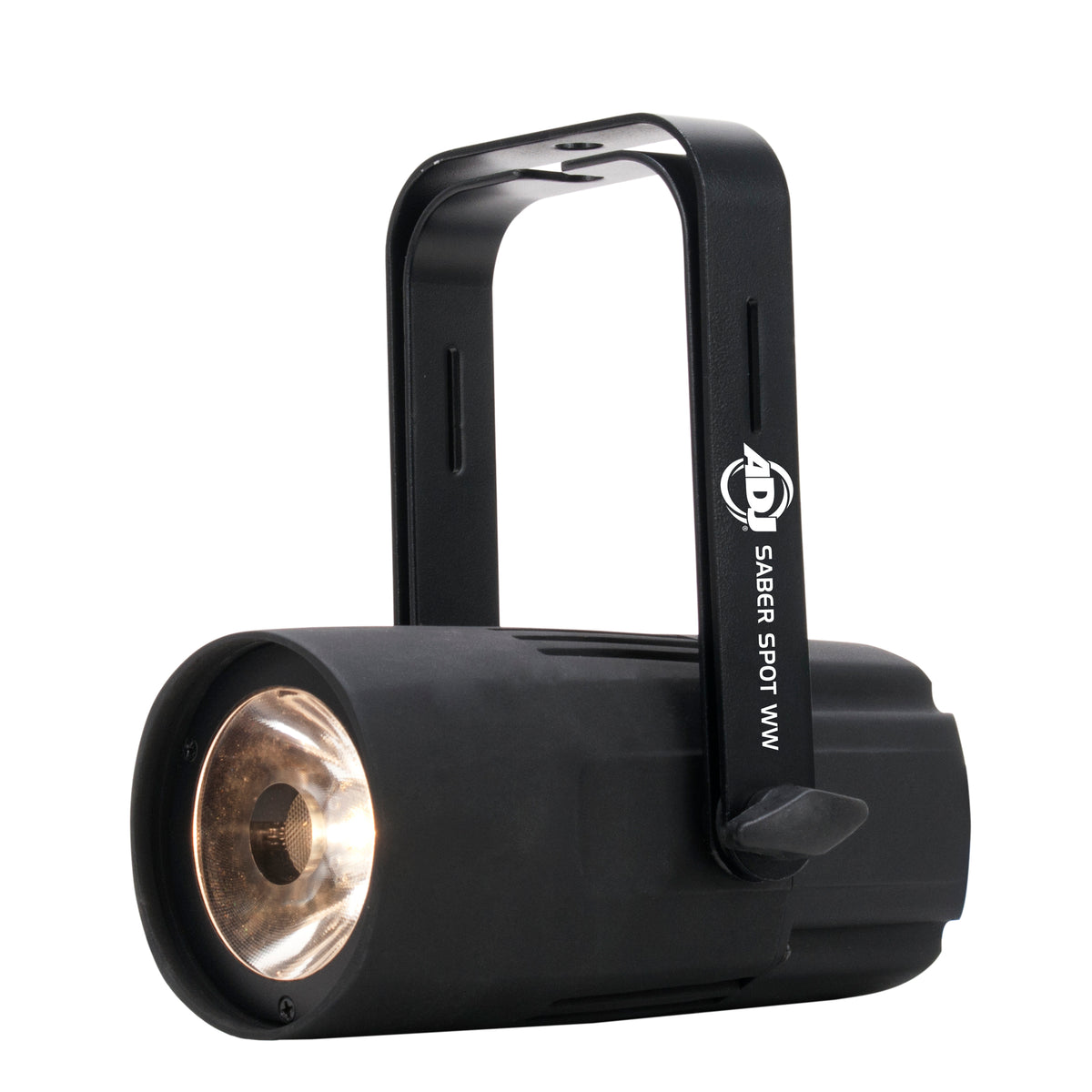

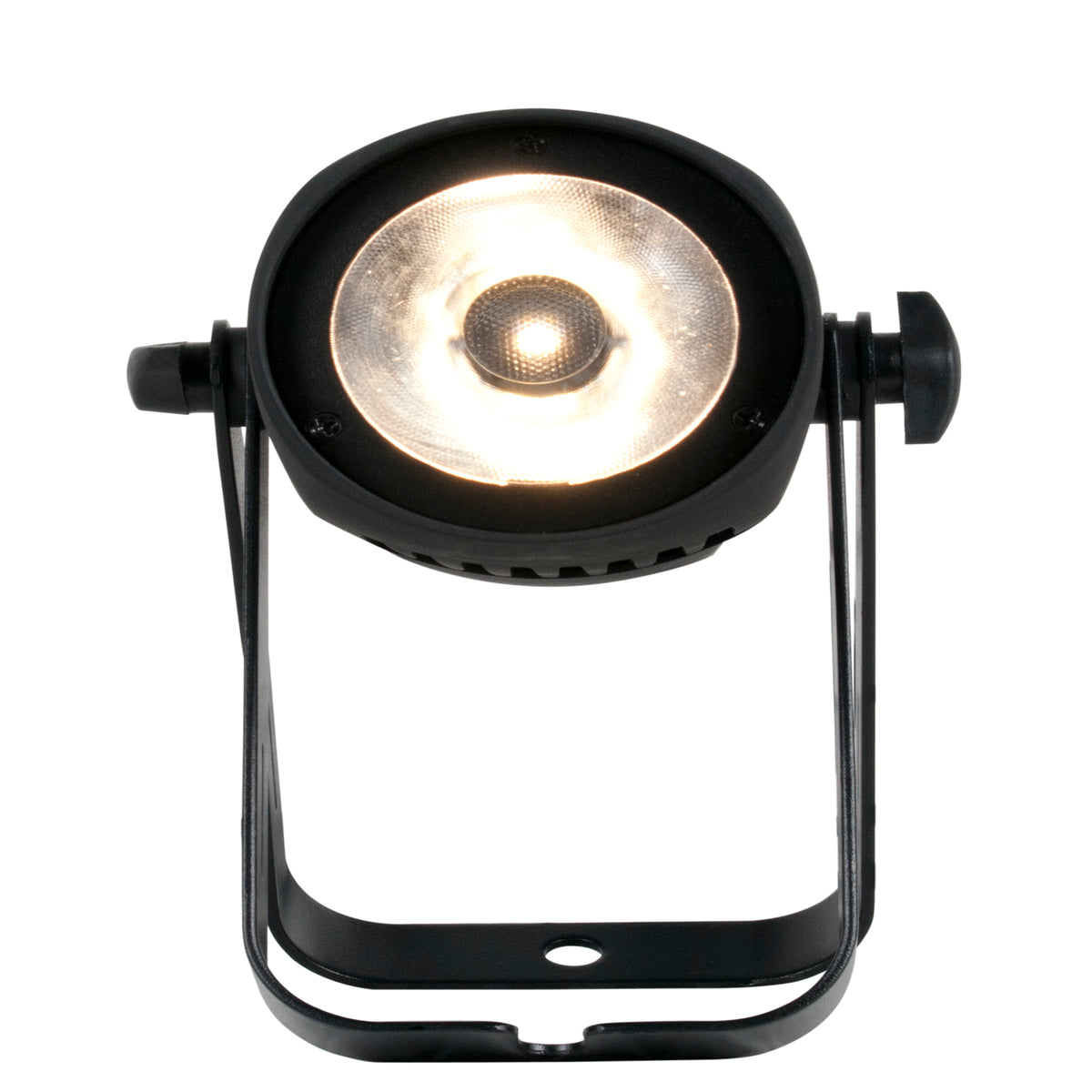

Compact LED Pinspot, 15W Warm White, 4-Degree Beam, Locking Power Cord And Two Frost Lenses Included
Free Shipping
Features
- 15W warm white LED with a razor sharp 4-degree ACL beam
- Two frost lenses widen the beam to 10 or 45 degrees
- Flicker free 3.6KHz refresh rate for video work
- Electronic dimming 0-100% with two DMX channel modes
- Scissor bracket hangs on truss or sits on the ground
Couldn't load pickup availability
What's Included in the box
- 1 Saber Spot WW Fixture
- Locking Power Cord
- 2 Frost Filter Lenses (10-Degree and 45-Degree)
- O-Ring for Frost Filter Lens
SKU: SKU: SABER SPOT WW
View full details



Product Description
Two frost filter lenses are included, at 10 and 45 degrees, with an O-ring to hold them in place, so the same fixture widens into an accent wash when a room calls for it. Output is flicker free at a 3.6KHz refresh rate for video work, and electronic dimming runs 0 to 100% in either of two DMX channel modes, set from the 4-button digital display on the rear panel. RDM is supported.
Power in and out use locking connections and DMX runs on 3-pin in and out pigtails, so a row of fixtures chains from a single drop. The scissor bracket hangs it from truss or sets it on the ground aimed upward.
At 2.6 lb and 3.5" x 6.75" x 3.5" it disappears into a room: reception table spotting, retail displays, gallery and museum lighting, and performance stages. A locking power cord is included. ETL approved, UL, CE. IP20, dry locations only.
Features
-
Light Exactly Where You Aim It
A 4-degree ACL beam drops a tight pool of light on a cake or centerpiece and leaves the surrounding walls and floor dark.
-
Two Ways To Widen
Included 10 and 45-degree frost lenses turn the same fixture into a soft accent light when a tight beam is too much.
-
Camera Friendly Output
Flicker free operation at a 3.6KHz refresh rate keeps banding out of the phone videos guests post from the reception.
-
Straightforward Control
Two DMX channel modes, 0-100% electronic dimming, and RDM are set from a 4-button display, so patching takes seconds.
-
Hangs Or Sits
The scissor bracket clamps to truss or rests on the floor, which covers table spotting, retail displays, and gallery walls.
Technical Specifications
- Product Type Compact LED Pinspot
- Light Source 15W Warm White LED
- LED Life Expectancy 10,000 Hours
- Beam Angle 4 Degrees
- Included Lenses 2 Interchangeable Frost Filter Lenses, 10-Degree and 45-Degree
- Refresh Rate 3.6KHz, Flicker Free
- DMX Channel Modes 2 Modes: 1 or 2 Channels
- Protocols DMX-512, RDM
- Display 4-Button Digital Display
- Dimming Electronic 0-100%
- Control Connections 3-Pin DMX In/Out Pigtails
- Power Connections Locking Power In and Pass Through
- Input Voltage 100-240V 50/60Hz Auto Sensing
- Power Draw 15W, 0.13A at 120V 60Hz; 15W, 0.07A at 220V 50Hz
- Mounting Scissor Yoke for Hanging or Ground Use
- Housing Metal, Black
- Certifications ETL Approved, UL, CE
- IP Rating IP20, Dry Area, No Liquids
- Weight 2.6 lb / 1.2 kg
- Dimensions (LxWxH) 3.5" x 6.75" x 3.5" / 88 x 170 x 87 mm
