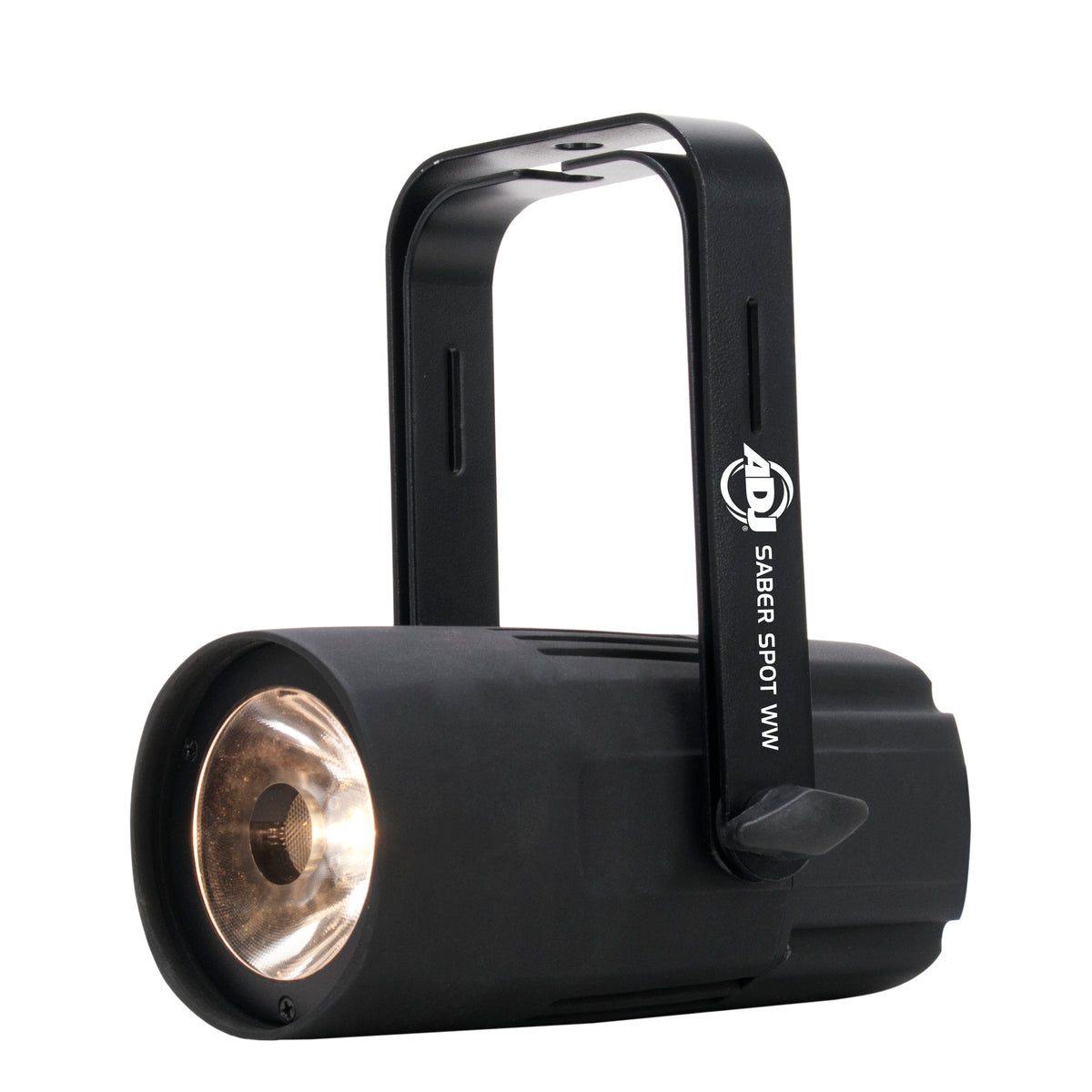

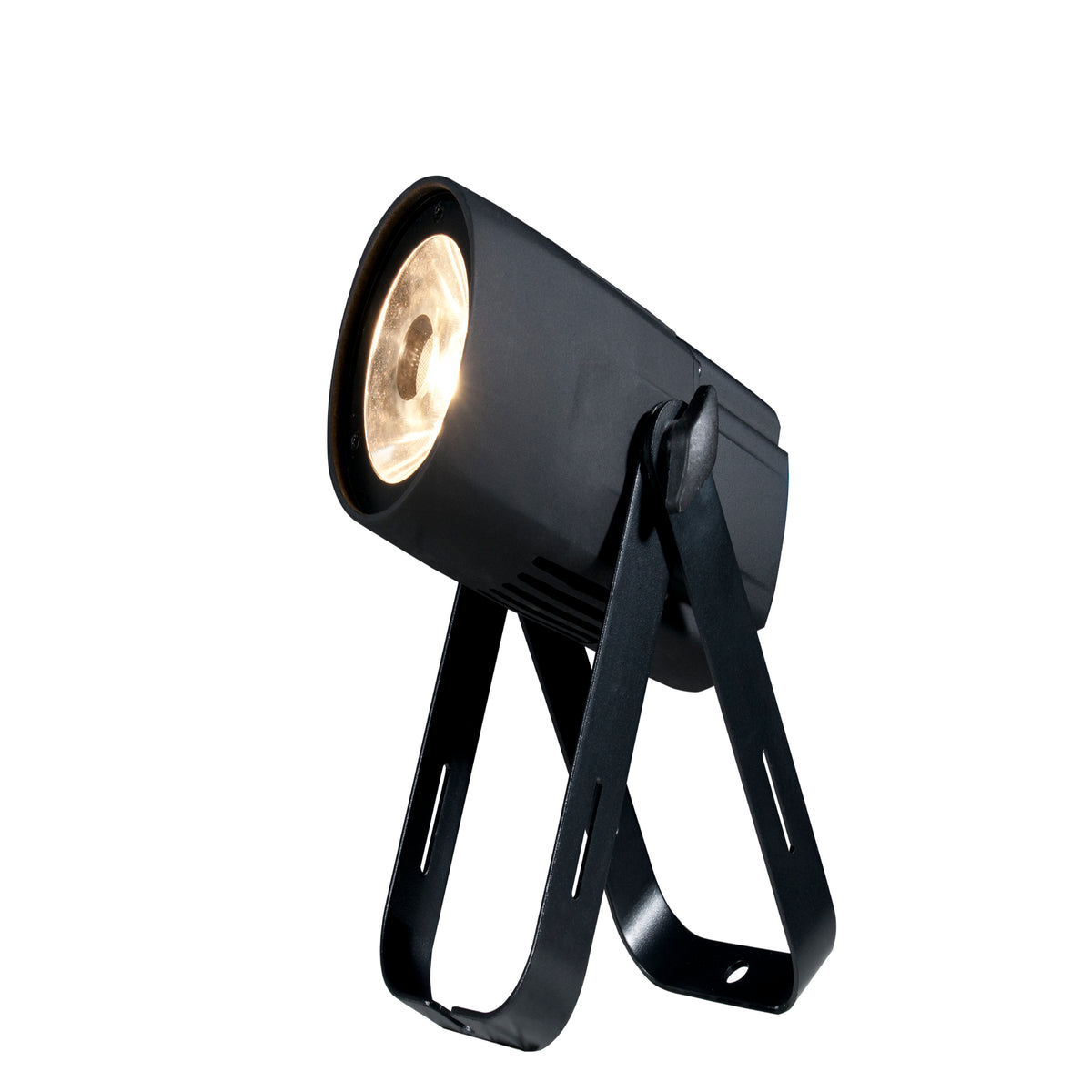

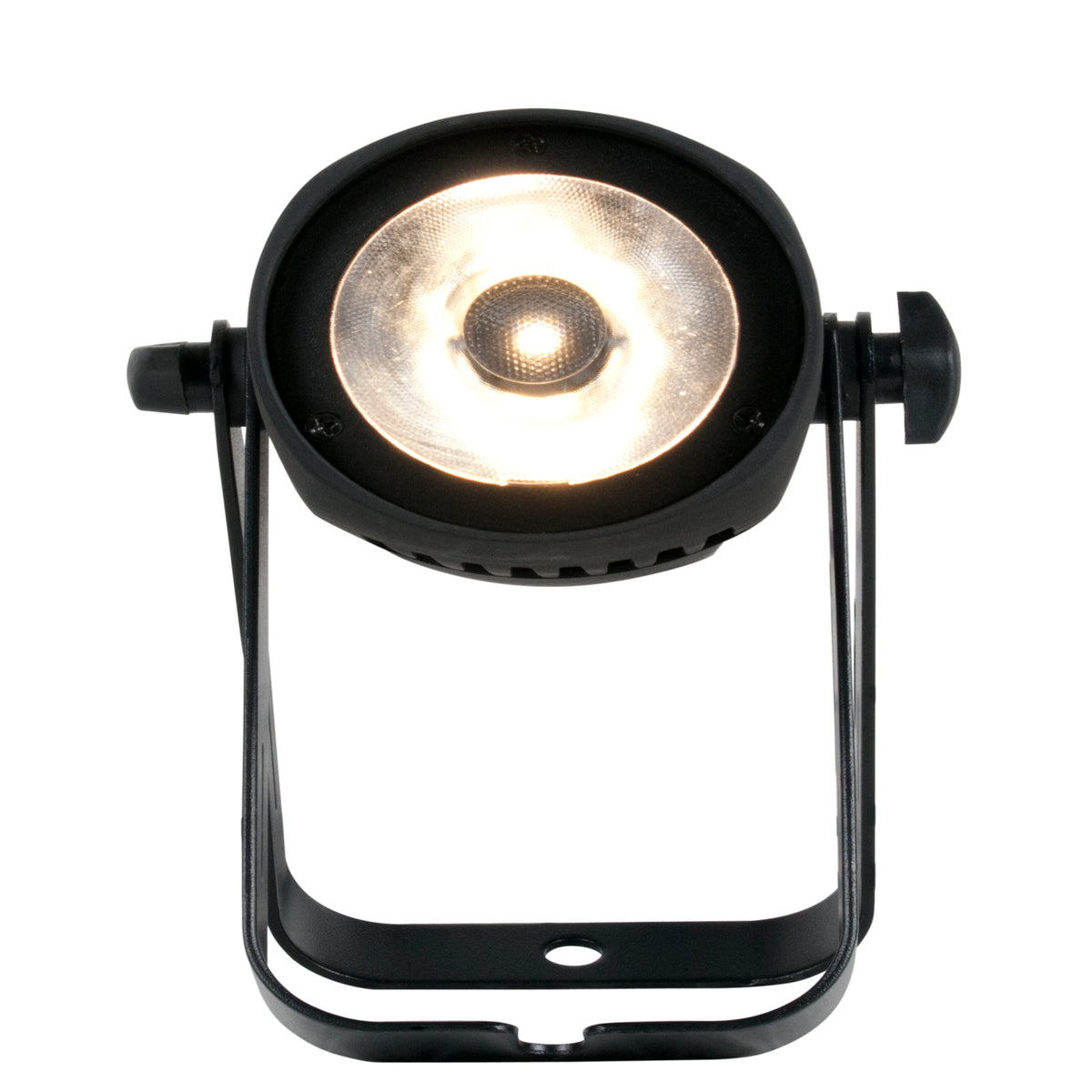

Saber Spot WW Compact 15W Warm White LED DMX Pinspot Light
AMERICAN DJ
Saber Spot WW Compact 15W Warm White LED DMX Pinspot Light
Saber Spot WW Compact 15W Warm White LED DMX Pinspot Light
15W Warm White LED Pinspot, 4-Degree Beam, ACL Lens, DMX/RDM
Free Shipping
Features
- 15W warm white LED with built-in ACL lens for a tight 4-degree beam
- DMX-512 and RDM control with two channel modes
- Flicker-free at 3.6 KHz refresh rate for camera-friendly output
- Two interchangeable frost filter lenses (10-degree and 45-degree)
- Metal black housing at 3.5" x 6.75" x 3.5" and only 2.6 lb
Couldn't load pickup availability
What's Included in the box
- ADJ Saber Spot WW Pinspot
- Locking Power Cord
- Frost Filter Lenses (10-degree and 45-degree)
- O-Ring for Frost Filter Lens
SKU: SKU: SABER SPOT WW*
View full details



Product Description
Electronic dimming runs from 0 to 100% with flicker-free output at a 3.6 KHz refresh rate, so the fixture looks clean on camera and under broadcast conditions. Two interchangeable frost filter lenses (10-degree and 45-degree) widen the beam when you need a softer spread, and a locking power in/thru design lets you daisy-chain multiple units on a single circuit. The scissor bracket mounts the fixture overhead or sits it on the ground, and the metal black housing measures 3.5" x 6.75" x 3.5" at just 2.6 lb. A 4-button digital display on the rear panel handles all menu settings without needing a separate interface.
Features
Razor-Sharp 4-Degree Beam
The built-in ACL lens produces an extremely tight spot for pinpointing centerpieces, objects, or performers from across a room.
Flicker-Free on Camera
A 3.6 KHz refresh rate keeps the warm white output clean for video, broadcast, and live-streamed productions.
Adjustable Beam Spread
Swap to the included 10-degree or 45-degree frost filter lens when you need a wider, softer wash instead of a tight spot.
Locking Power Daisy-Chain
Power in/thru with locking connectors lets you link multiple fixtures on a single circuit, cutting cable runs and setup time.
Compact and Lightweight
At 2.6 lb and 3.5" x 6.75" x 3.5", the metal housing tucks into tight rigging spaces or sits low-profile on the ground.
Technical Specifications
- Product Type LED Pinspot
- Light Source 15W Warm White LED
- Beam Angle 4 degrees
- Frost Filter Lenses 10-degree and 45-degree (included)
- LED Life Expectancy 10,000 Hrs
- Refresh Rate 3.6 KHz (Flicker Free)
- DMX Channel Modes 1 or 2
- RDM Yes
- Power Connections Locking In/Thru
- Control 3-Pin DMX In/Out
- Input Voltage 100-240V 50/60Hz (Auto Sensing)
- Power Consumption 15W
- Dimensions (L x W x H) 3.5" x 6.75" x 3.5" / 88 x 170 x 87mm
- Weight 2.6 lb / 1.2 kg
